29353 | Westwood Cottage

Reverse

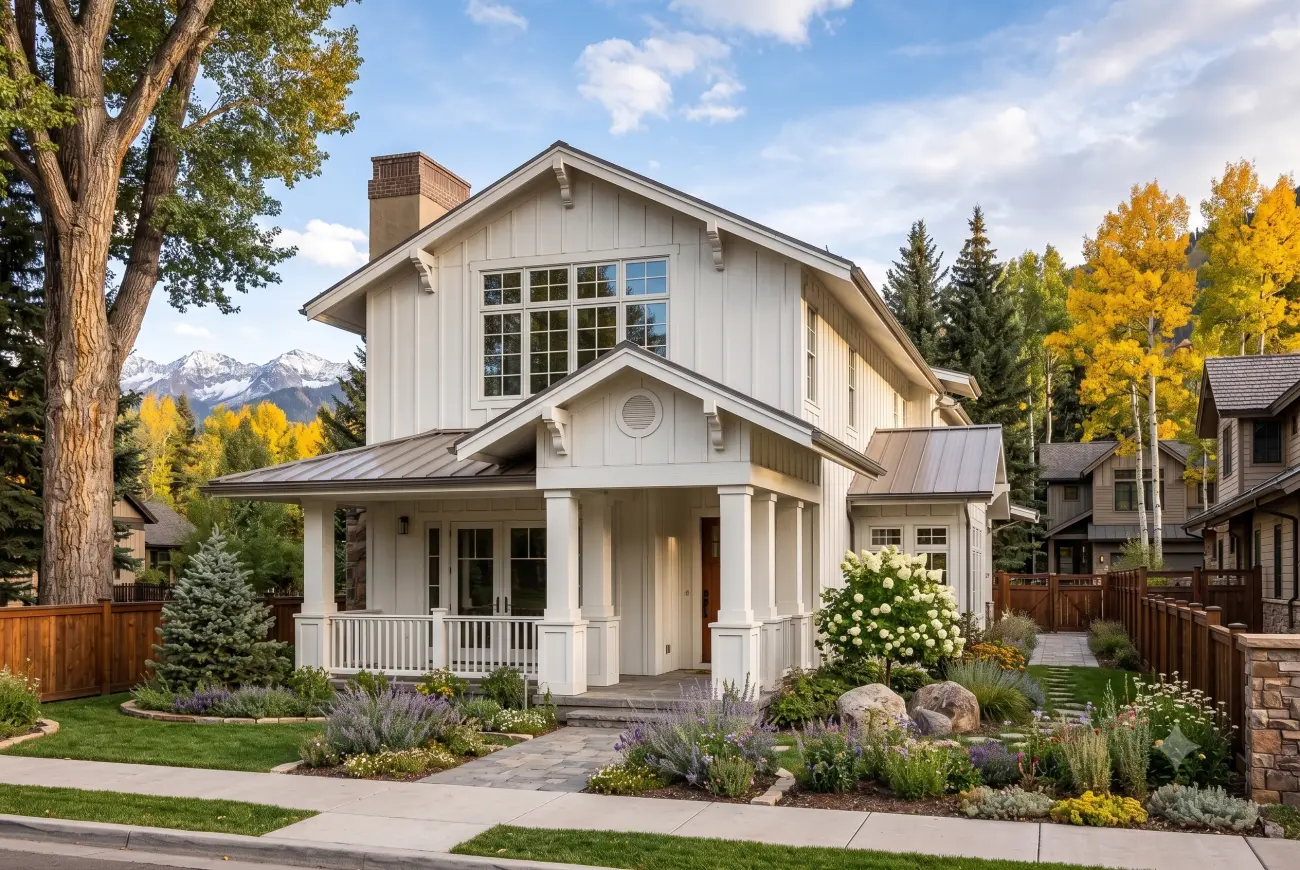

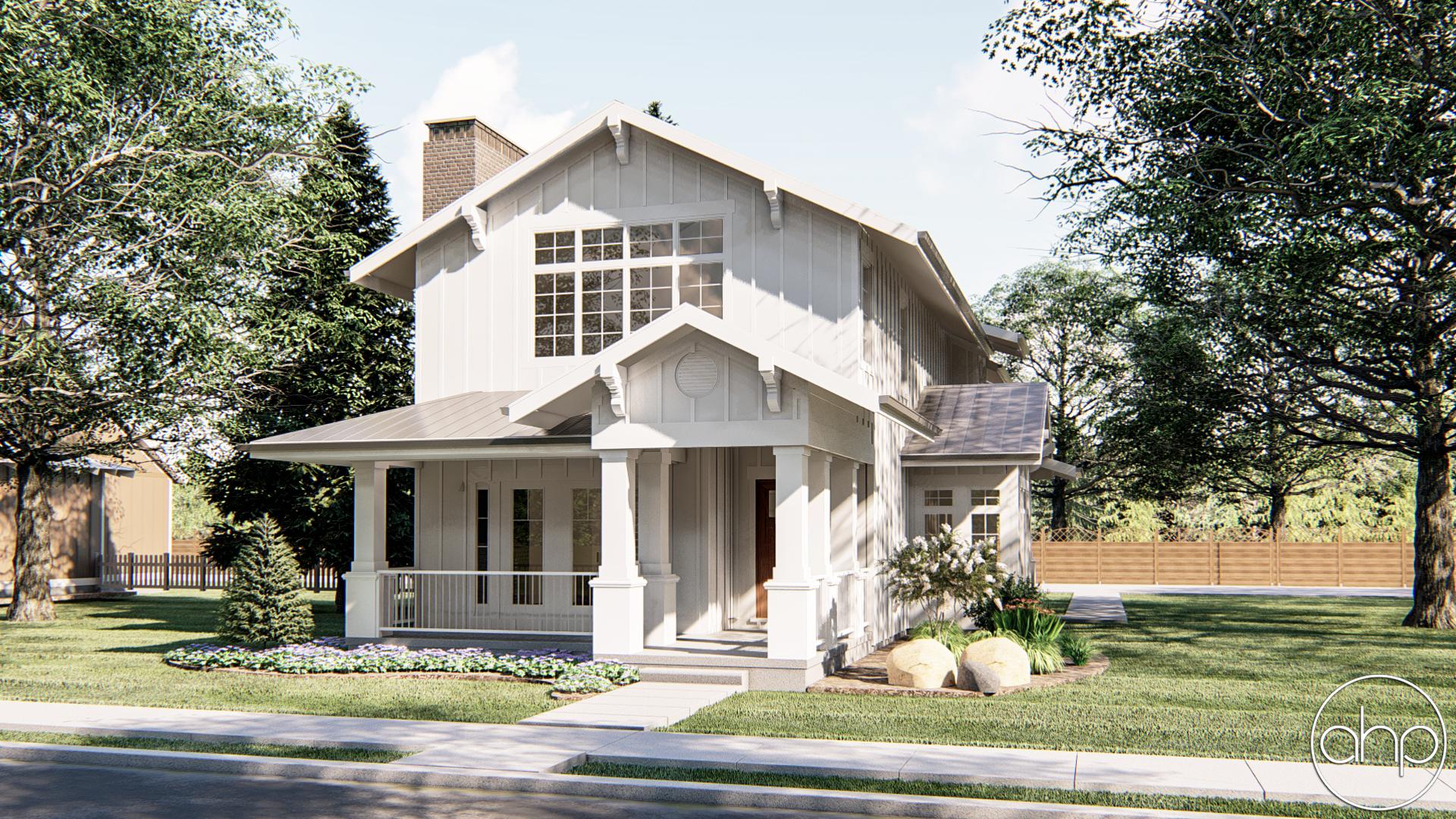

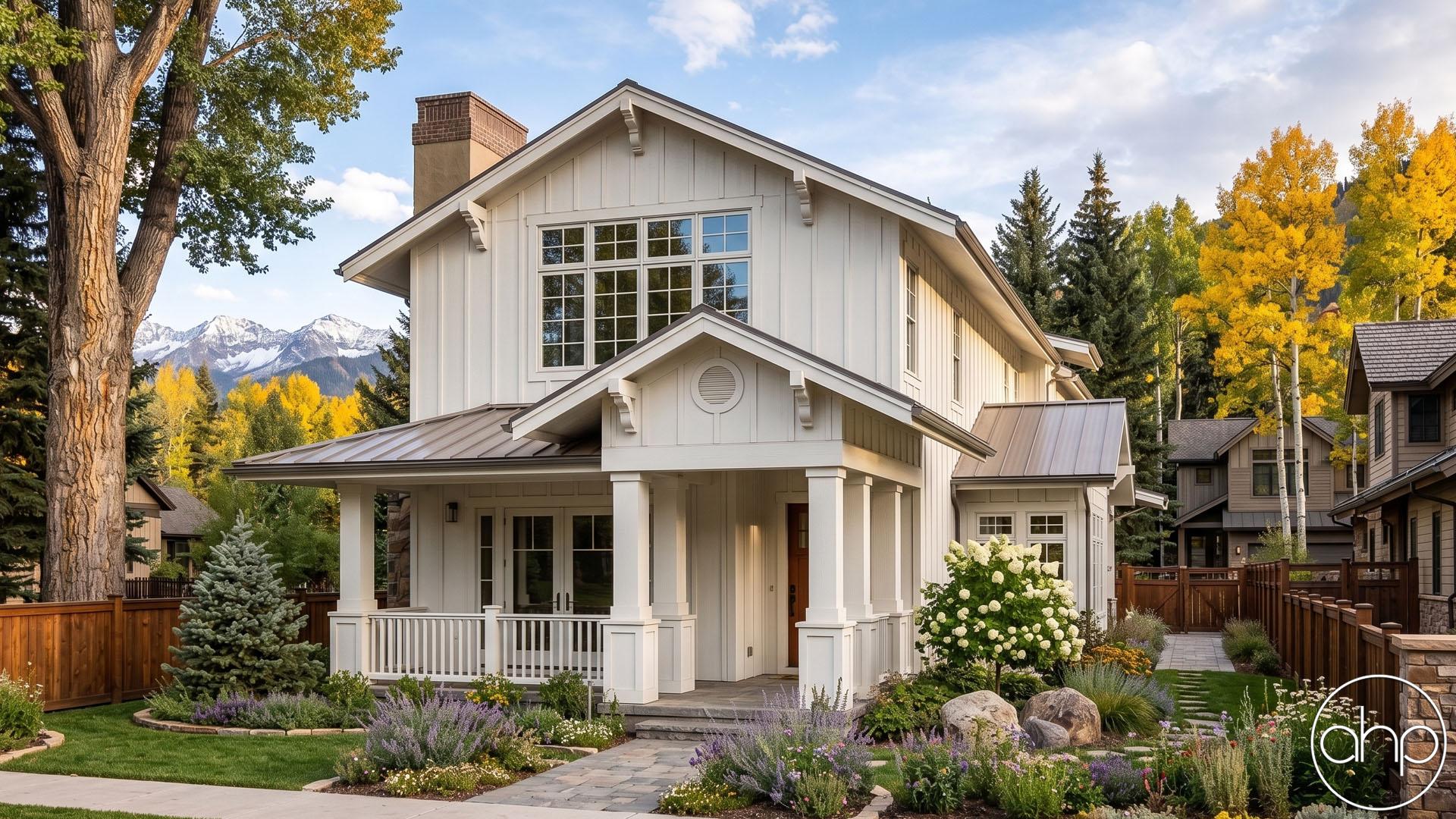

Westwood Cottage Rendering Westwood Cottage Rendering Westwood Cottage Rendering
NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

2 Story Craftsman House Plan

Westwood Cottage - 29353

2307
Sq Ft
3
Beds
3
Baths
2
Bays
30' 0"
Wide
74' 0"
Deep

Floor Plan Images

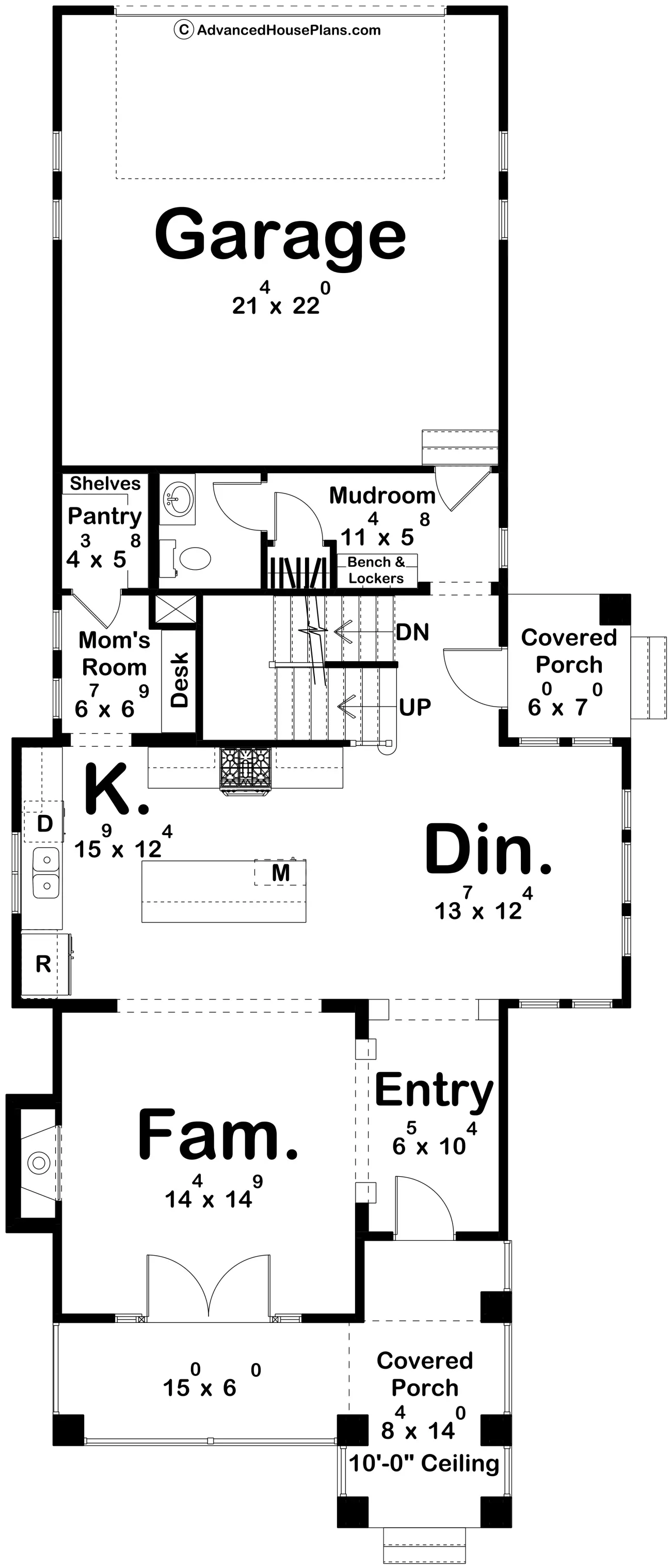

Main Level

2 Story Craftsman House Plan | Westwood Cottage

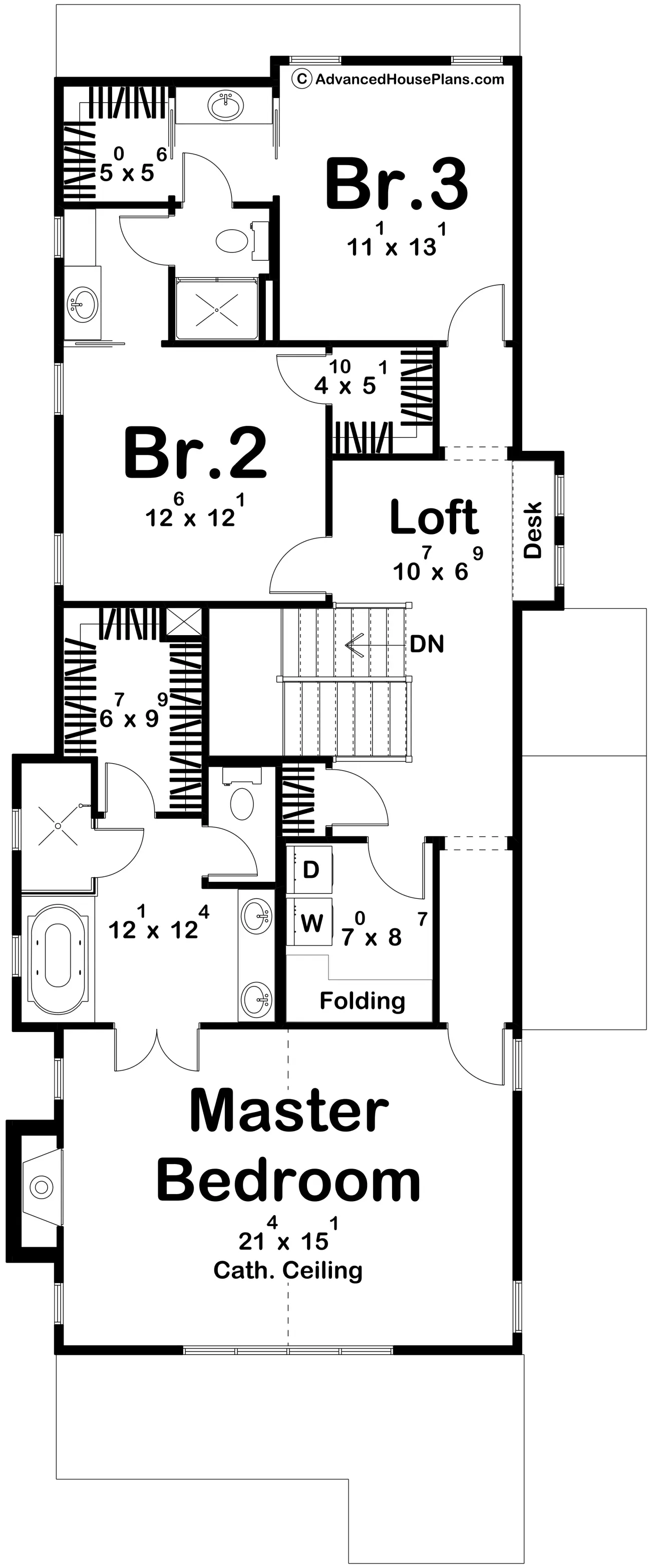

Second Level

2 Story Craftsman House Plan | Westwood Cottage

Plan Description

At only 30' wide, this narrow lot house plan features thoughtful room arrangements and an abundance of amenities. The home's gabled front porch opens into an entry area that offers immediate views to the family room, dining room and kitchen. The kitchen features a breakfast island and pantry, which is accessed through the Mom's Room with built-in desk

A rear-load, two-car garage stays in line with the home's streamlined design, and accesses the living areas through a practical mud room, complete with bench, closet and powder bath.

On the second level, the master suite boasts a Cathedral Ceiling and an abundance of natural light. Its bath area includes a soaking tub, shower, dual sinks, compartmented toilet and walk-in closet. Bedrooms 2 and 3 both have walk-in closets and share a bath. An upstairs common area is highlighted by a naturally lit recessed area with built-in desk.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 3
Bathrooms 3
Garage Bays 2
Square Footage
Main Level 993 Sq. Ft.
Second Level 1314 Sq. Ft.
Garage 491 Sq. Ft.
Total Finished Area 2307 Sq. Ft.
Exterior Dimensions
Width 30 ' 0"
Depth 74 ' 0"
Ridge Height
Calculated from main floor line
27 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Basement
Exterior Wall Construction
2x4
Roof Pitches
6/12 Primary 4/12 Secondary
Foundation Wall Height
9'
Main Wall Height
9'
Second Wall Height
8'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
