Modern Cottage Style House Plan

Santa Ana - 30544

Sq Ft
20' 0"
40' 8"

Floor Plan Images

Main Level

Santa Ana

Plan Description

Investing in this modern cottage Accessory Dwelling Unit (ADU) with two bedrooms, one bathroom, and an open concept living space offers numerous advantages that cater to a variety of lifestyle needs and preferences. First and foremost, this type of property strikes an ideal balance between functionality and aesthetic appeal. The two-bedroom layout provides ample space for a small family, guests, or even a home office, ensuring that the ADU can adapt to different living arrangements over time. The single bathroom, thoughtfully designed, maximizes efficiency without compromising comfort, making the unit both practical and easy to maintain.

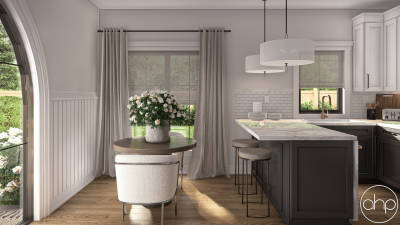

The open concept living space is a standout feature, enhancing the sense of spaciousness and facilitating a modern lifestyle centered around fluid, flexible living areas. This layout is particularly beneficial for social interactions, allowing for seamless transitions between the kitchen, dining, and living areas. It fosters a communal atmosphere, perfect for entertaining guests or enjoying quality family time. Additionally, the open design promotes better airflow and natural light distribution, creating a bright and inviting environment that enhances overall well-being.

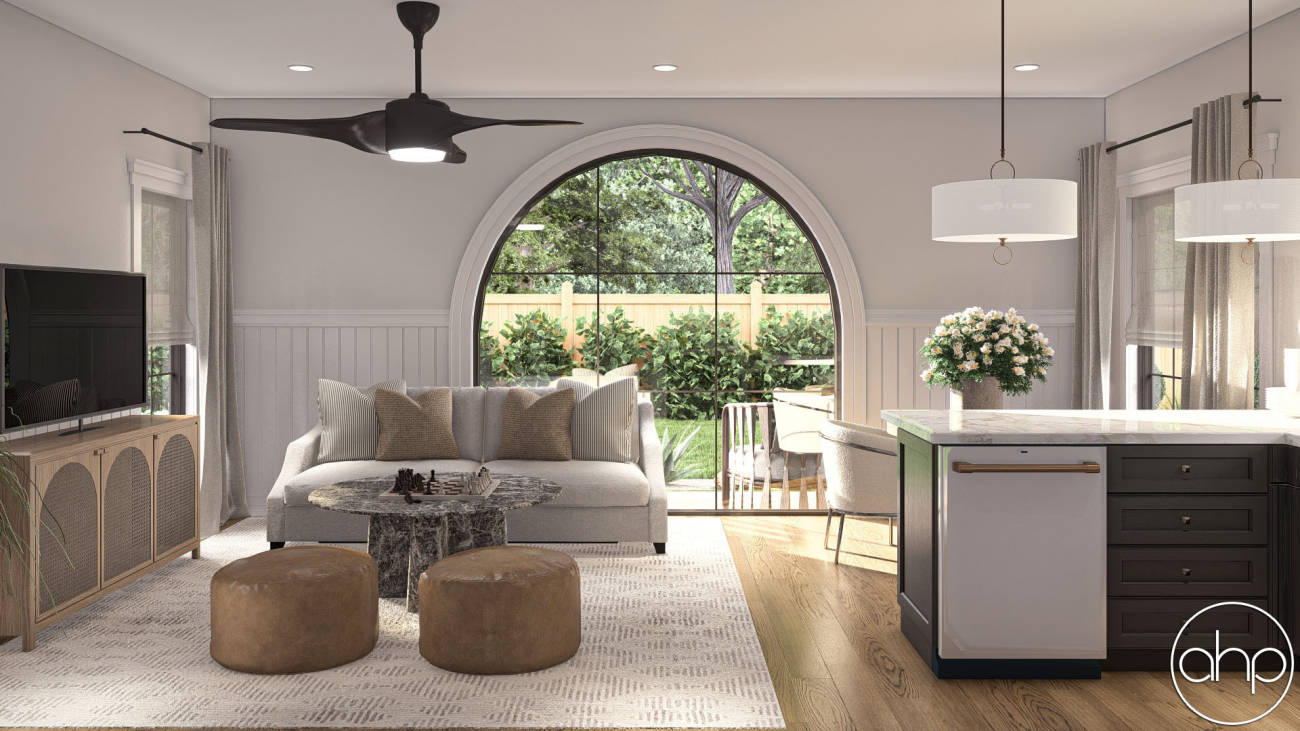

One of the most striking architectural elements of this modern cottage ADU is the large arched window. This feature not only adds a unique visual appeal but also serves a functional purpose. The arched window allows an abundance of natural light to flood the interior, creating a warm and welcoming ambiance. This connection to the outdoors can make the living space feel larger and more connected to nature.

The Santa Ana is an excellent choice for those seeking a versatile, stylish, and comfortable living space. It offers the perfect combination of practicality and charm, with its adaptable two-bedroom layout, efficient single bathroom, and airy open concept living area. Whether you plan to use it as a primary residence, a guest house, or a rental property, this type of ADU is a smart investment that promises both immediate enjoyment and long-term value.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 2
Bathrooms 1
Square Footage
Main Level 795 Sq. Ft.
Total Finished Area 795 Sq. Ft.
Exterior Dimensions
Width 20 ' 0"
Depth 40 ' 8"
Ridge Height
Calculated from main floor line
15 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Primary 14/12, Secondary Flat
Main Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
