1 Story Craftsman Style Lake House Plan with Wrap-around Deck

Pelican Bay - 29758

Sq Ft
70' 0"
89' 4"

Plan Video

Floor Plan Images

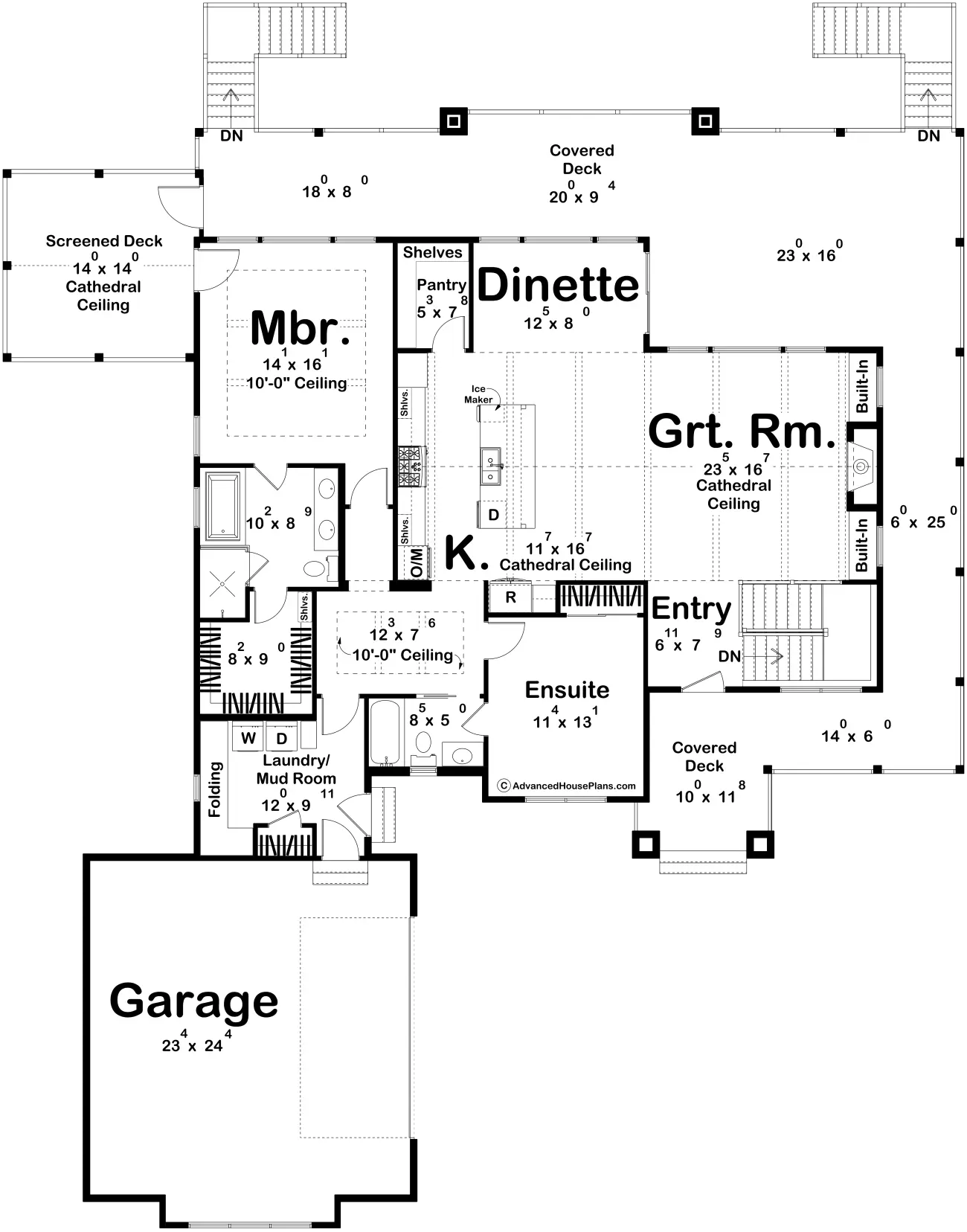

Main Level

1 Story Craftsman Style House Plan | Smith Lake

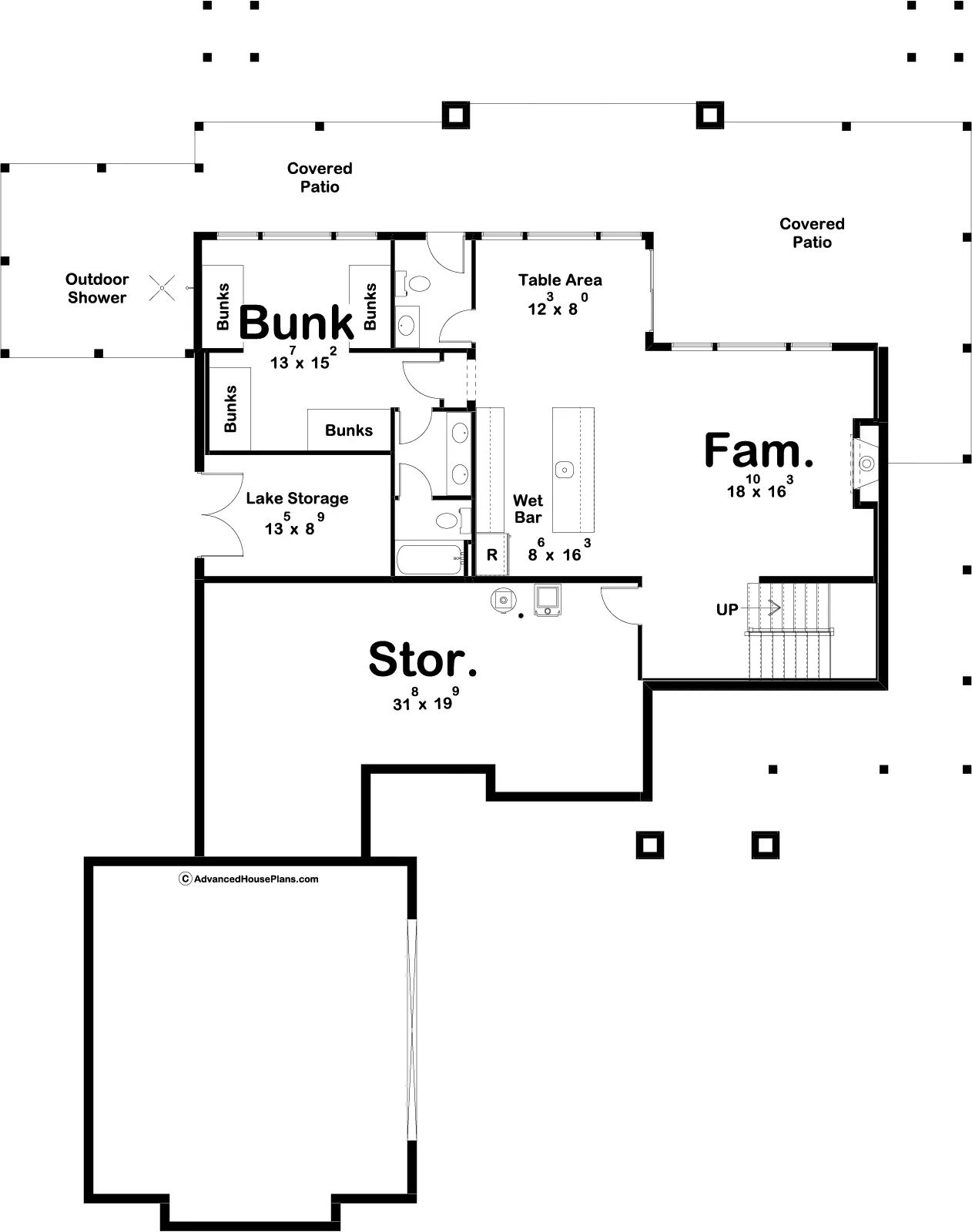

Optional Finished Basement

1 Story Craftsman Style House Plan | Smith Lake

Plan Description

This rustic, craftsman style lake house has everything you need to get the most out of the lake living lifestyle. The charming exterior textures of stone and shake siding give this home great curb appeal. Once you step inside the home, you will be blown away by the large great room that lies under a cathedral ceiling with exposed wood beams. Adjacent to the great room you will find the kitchen and dining area. The kitchen includes a walk-in pantry and a kitchen island with a snack bar. The master suite includes a large master bath with his/her vanities, a soaking tub, and a walk-in closet. There is also an ensuite on the main level with its own access to the shared hall bath.

If you are looking for outdoor entertainment space, the Pelican Bay plan has you covered. Just off the rear of the house, you'll find a massive covered deck that wraps around the right side of the house. The deck can be accessed through sliding doors from the dining room or from the private screened deck off of the master suite. 2 staircases lead from the deck down to the lake level.

A 2 car garage accesses the home through a convenient mudroom.

An optional finished walkout basement adds 1032 sq ft and includes a large family room, a table area, a wet bar, and a bunk house with 4 bunks.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 2
Bathrooms 2
Garage Bays 2
Square Footage
Main Level 1802 Sq. Ft.
Garage 617 Sq. Ft.
Total Finished Area 1802 Sq. Ft.
Exterior Dimensions
Width 70 ' 0"
Depth 89 ' 4"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
6/12 Primary, 10/12 Secondary
Foundation Wall Height
Main Wall Height
