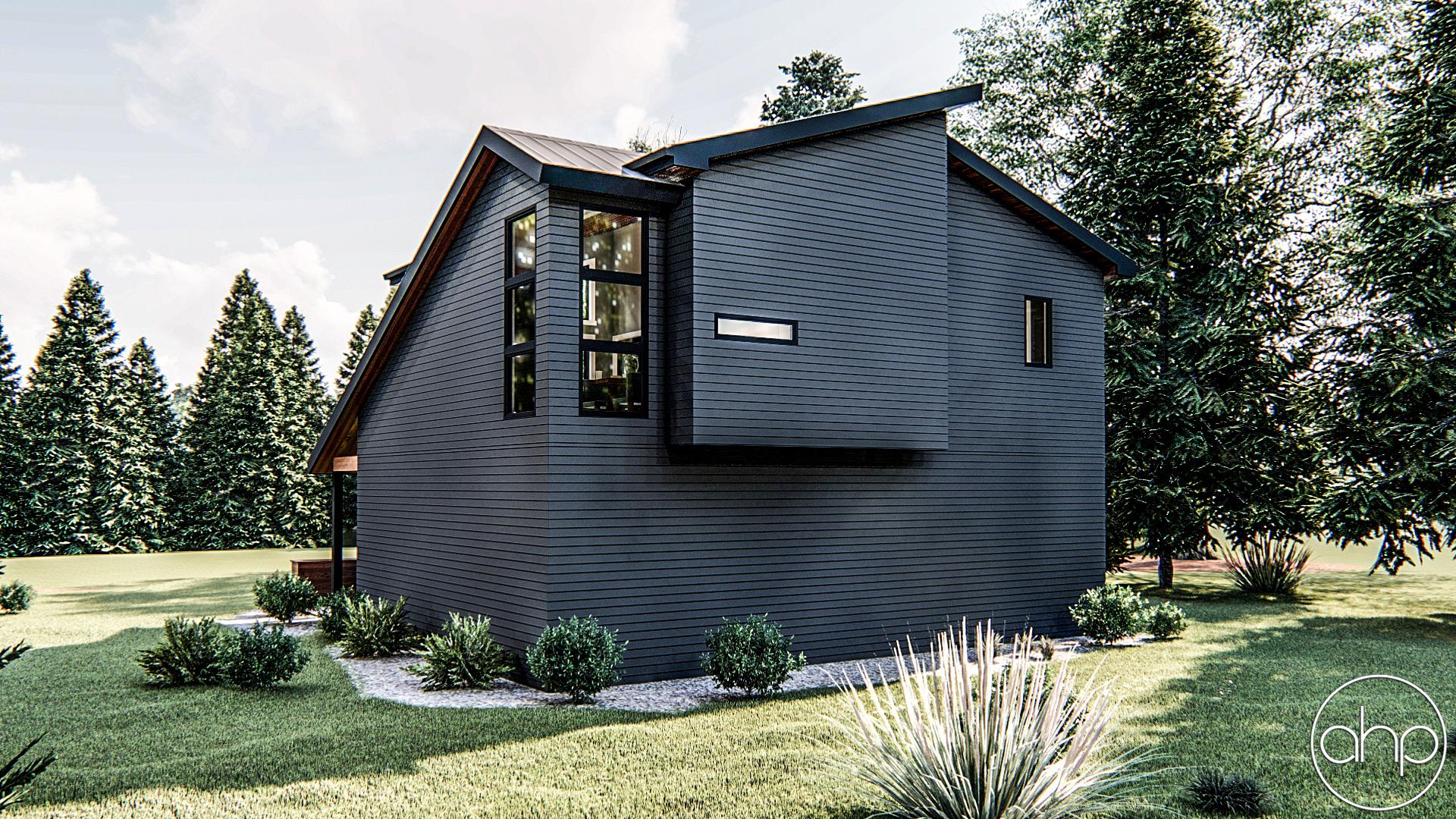

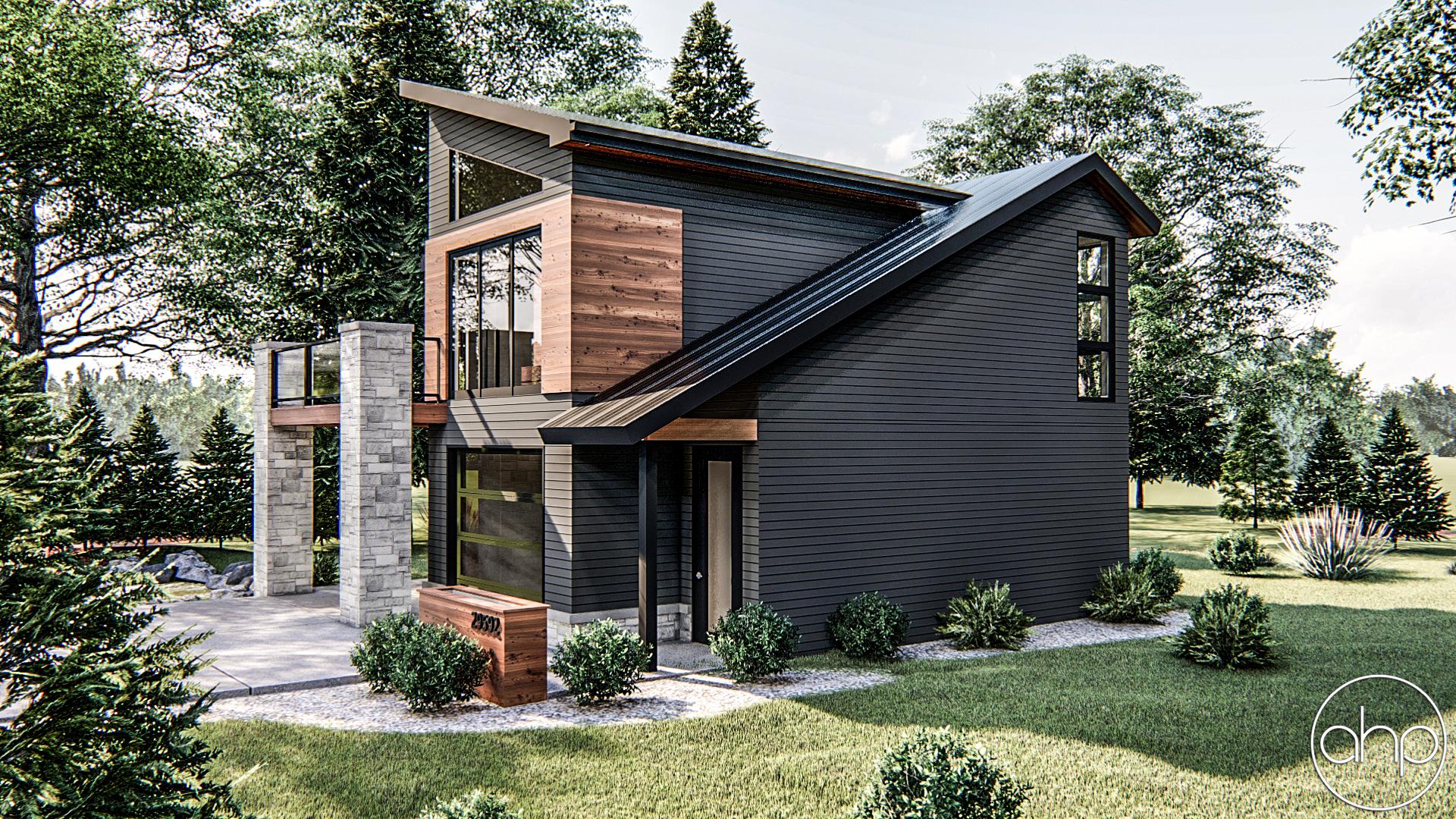

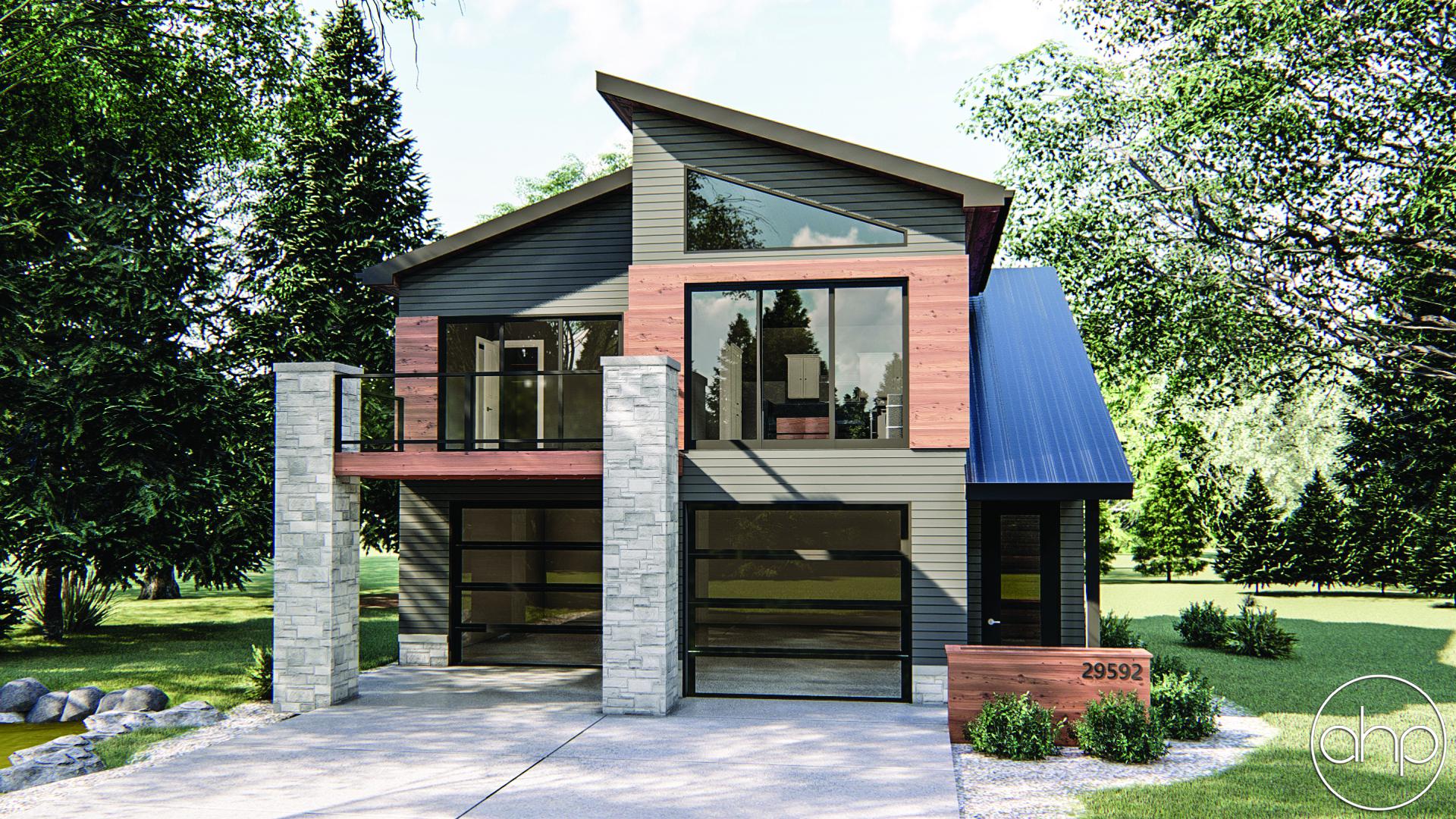

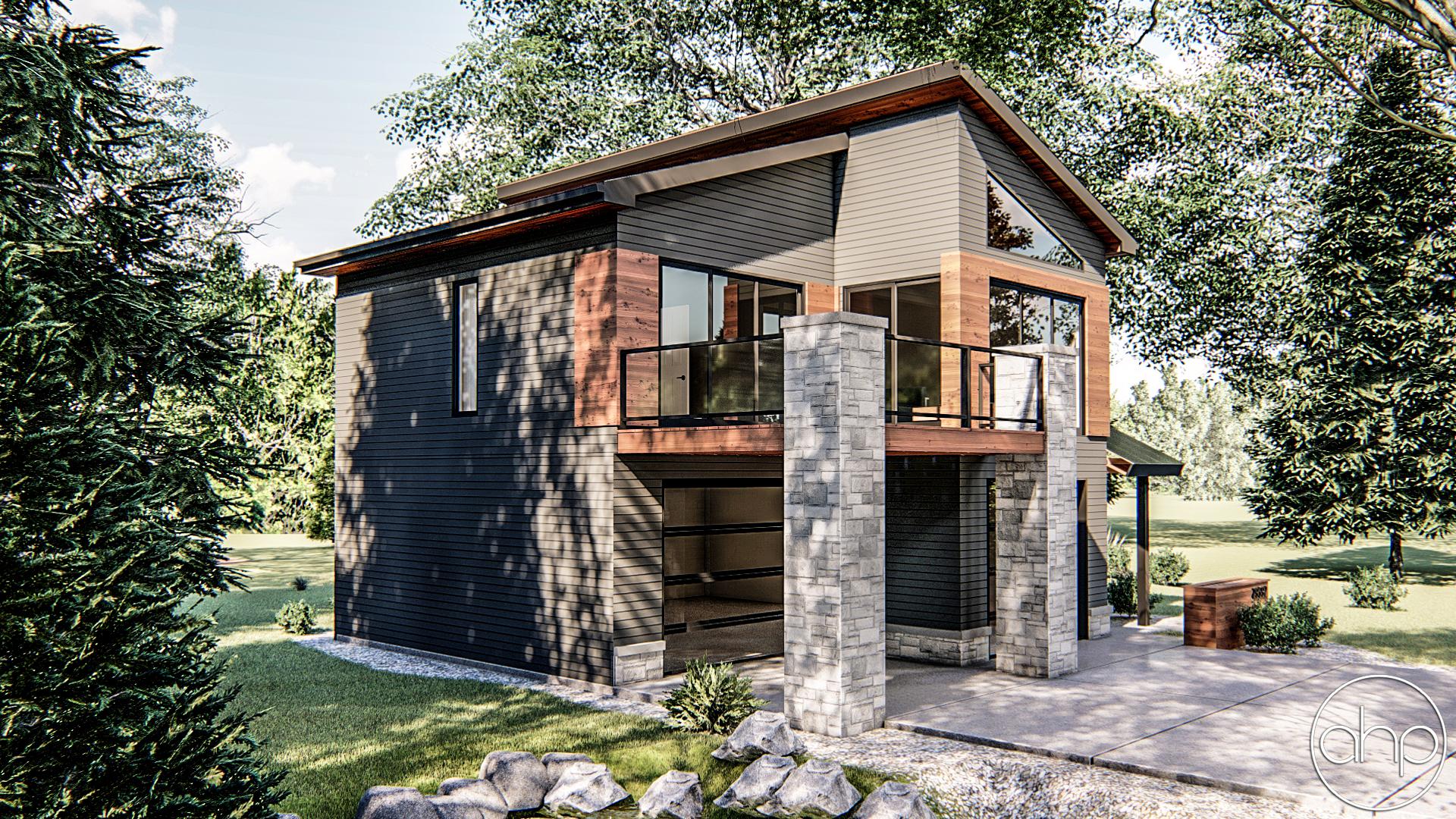

Lone Tree Rendering Lone Tree Rendering Lone Tree Rendering Lone Tree Rendering

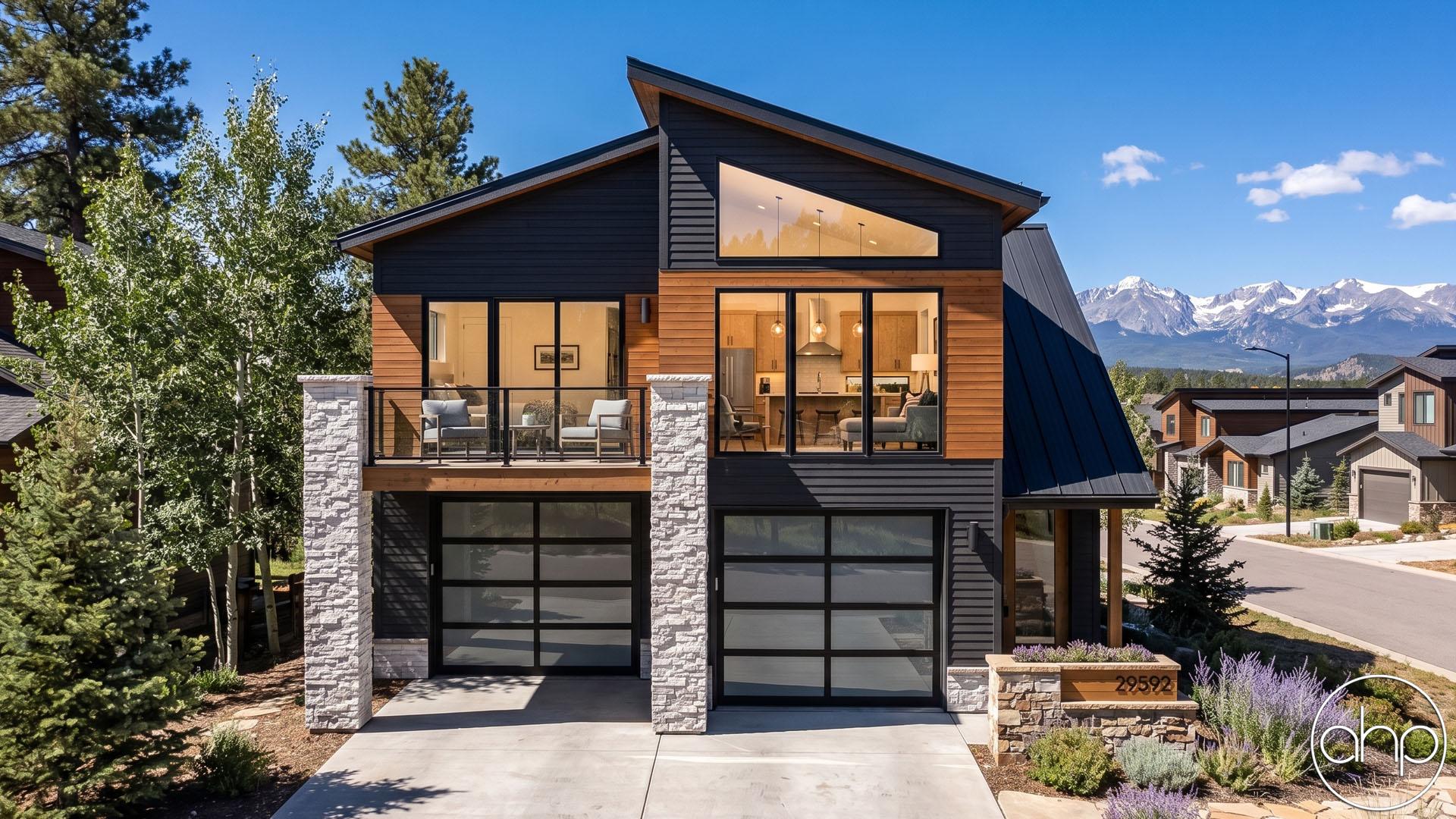

NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

Modern 2 Car Garage with Apartment

Lone Tree - 29592

758
Sq Ft
1
Beds
1
Baths
2
Bays
31' 0"
Wide
32' 0"
Deep

Floor Plan Images

Main Level

Modern 2 Car Garage with Apartment | Lone Tree

Second Level

Modern 2 Car Garage with Apartment | Lone Tree

Plan Description

Modern styling, metal roof, thinset stone veneer, and cedar siding help set this 2 car apartment garage apart from its competition. When pulling into your 2 car garage you will be greeted with 9' wide glass garage doors and ample room for your daily driver. A formal entry with staircase sits behind the cedar planter box which leads you upstairs to your 1 bedroom apartment.  A kitchen with all the amenities which are found in a much larger home sits at the top of the stairs. The kitchen hosts an island for entertaining guest as well as a walk-up pantry.  Tall sloped ceilings and great views to both the dining and family room from the kitchen are what to expect in this unique modern apartment garage. The master bedroom lies just off of the kitchen and it hosts its own walk-in closet,3/4 bath and a walkout deck that sits above the 2 car garage.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 1
Bathrooms 1
Garage Bays 2
Square Footage
Main Level 758 Sq. Ft.
Garage 757 Sq. Ft.
Total Finished Area 758 Sq. Ft.
Exterior Dimensions
Width 31 ' 0"
Depth 32 ' 0"
Ridge Height
Calculated from main floor line
26 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x4
Roof Pitches
4/12 Primary, 6/12 Secondary
Foundation Wall Height
9'
Main Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$800
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.
