Modern Style Carriage House

Greystone - 30233

Sq Ft
55' 8"
98' 0"

Floor Plan Images

Foundation Plan


Main Level


Plan Description

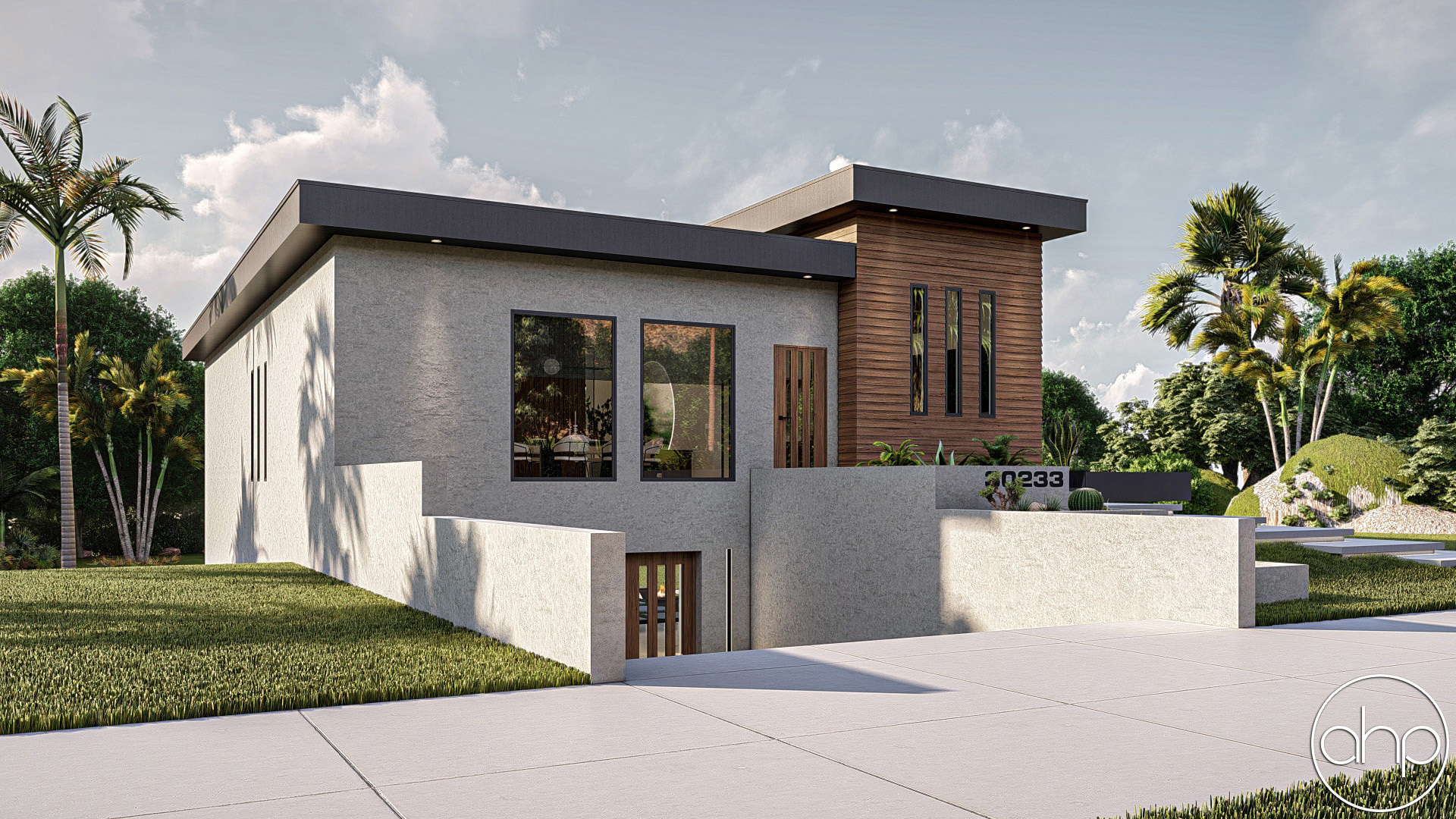

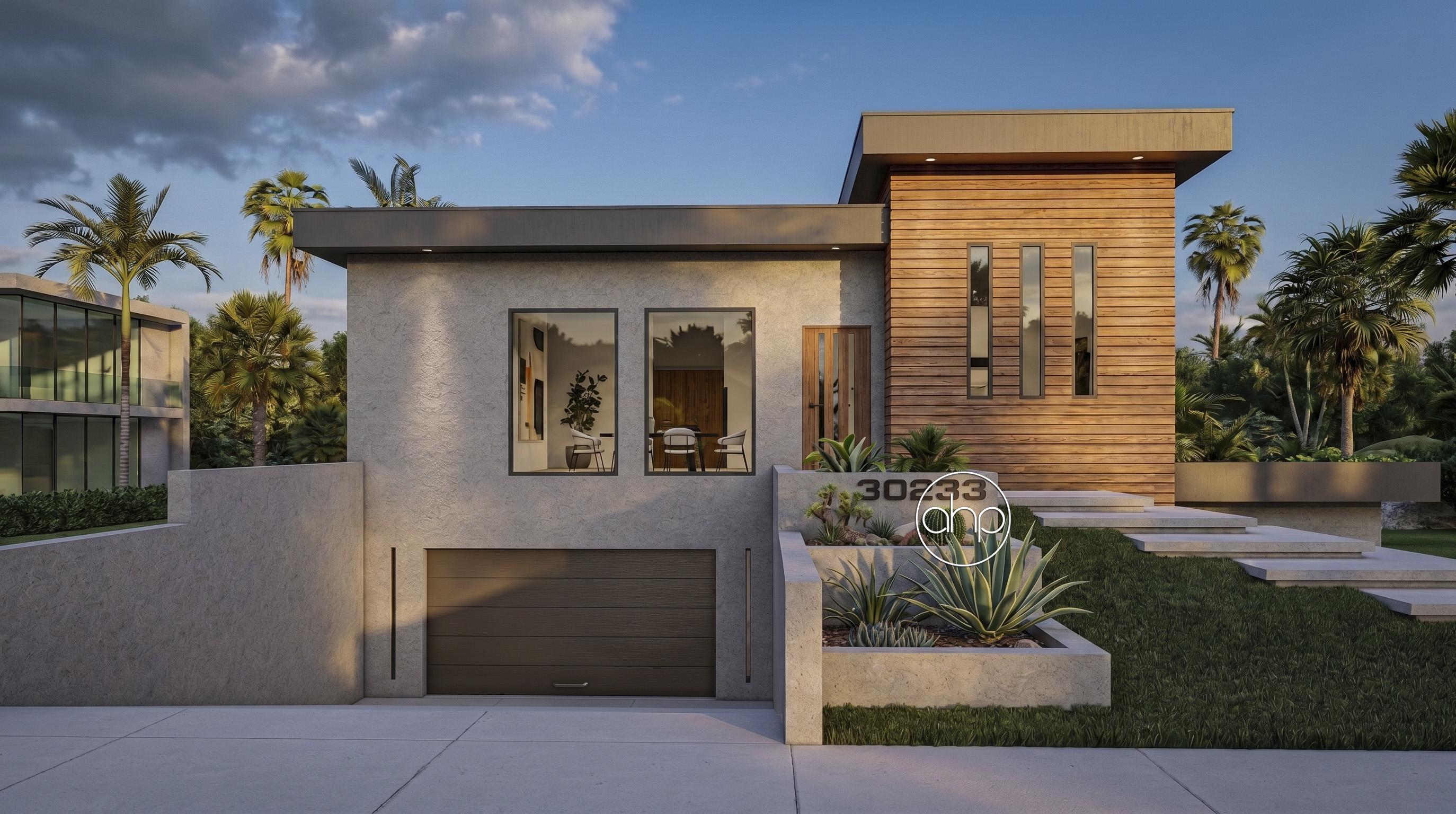

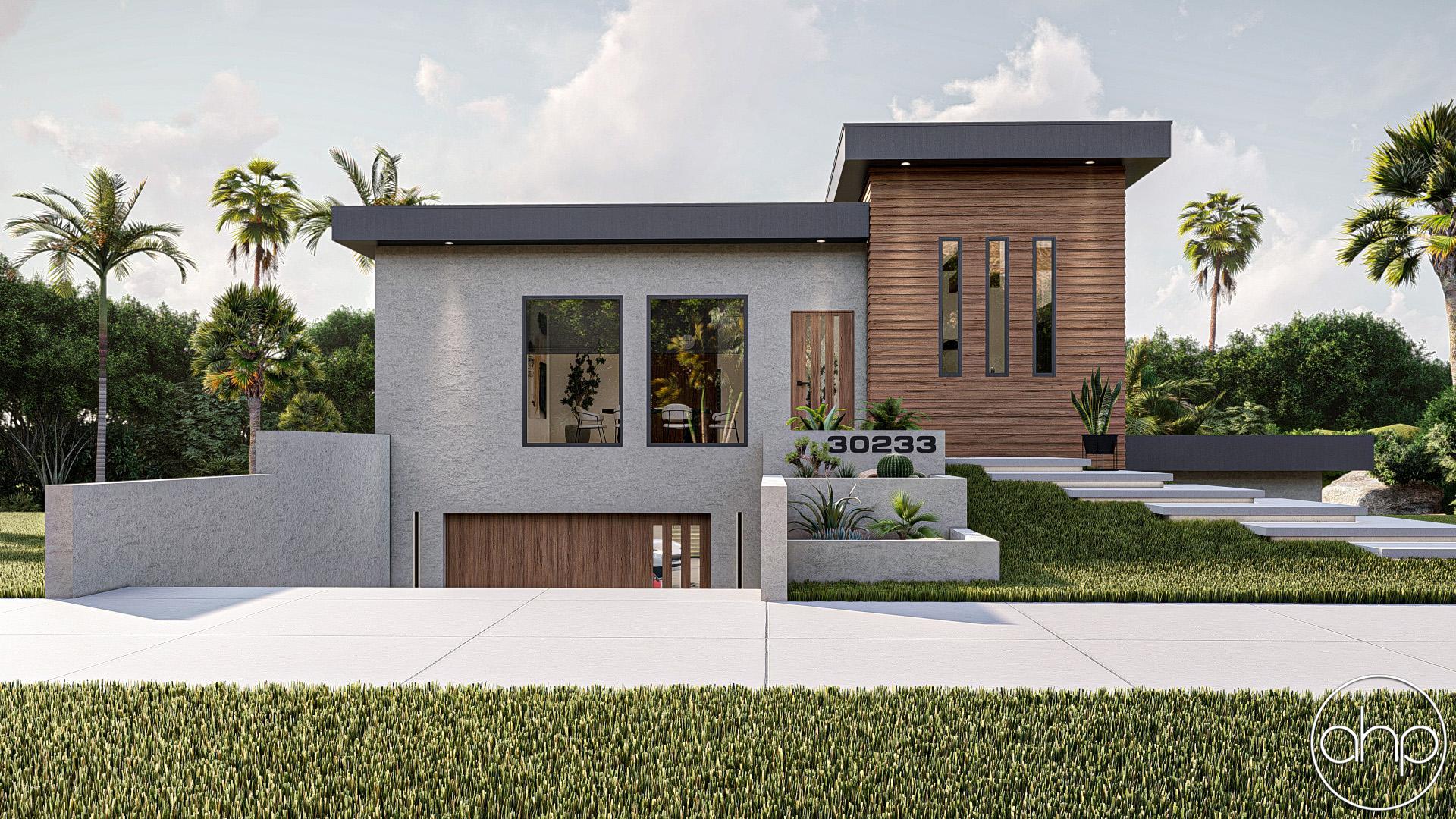

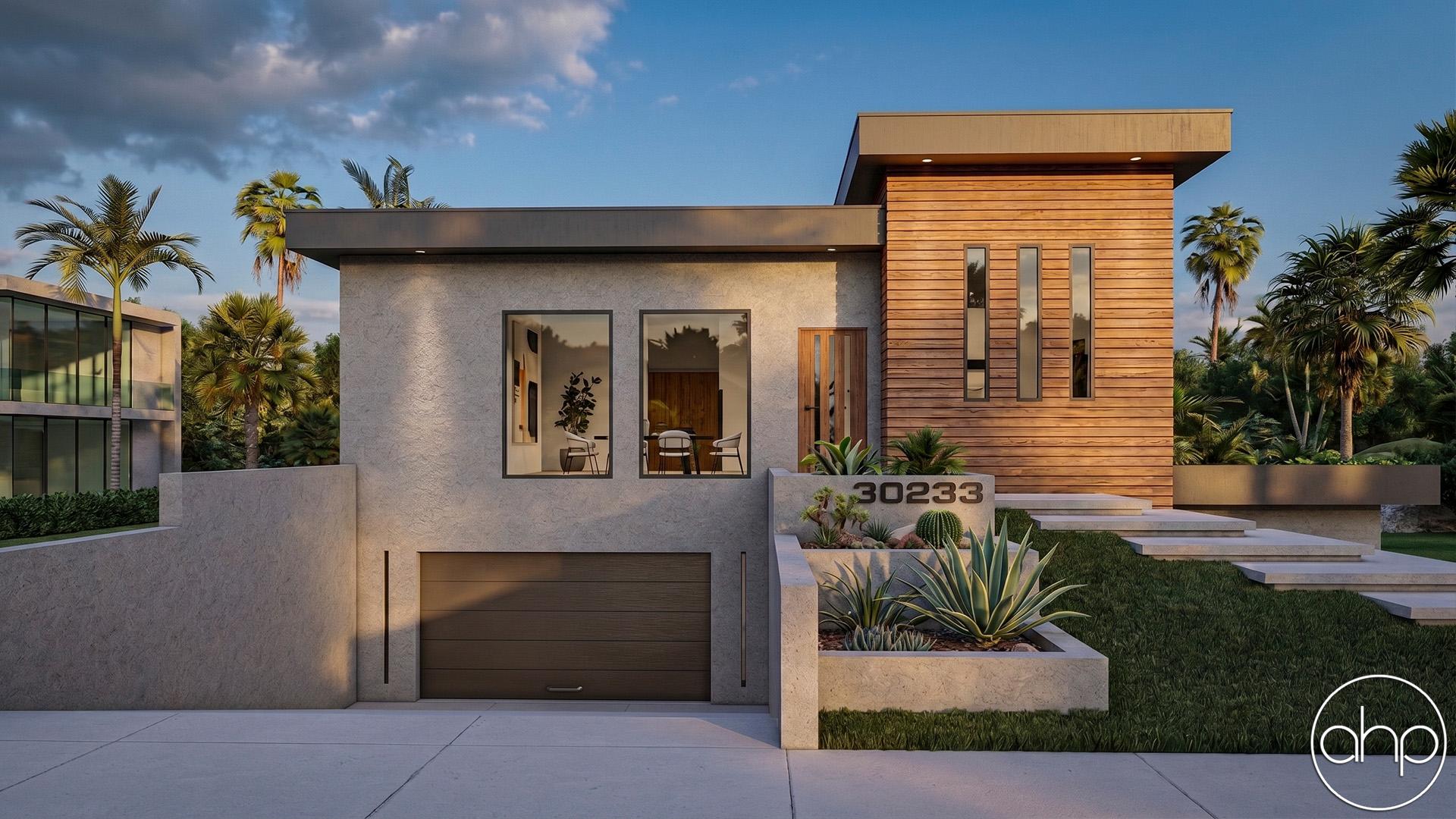

The sleek, modern design of this home is sure to impress, making it every car-lovers dream. This apartment garage includes 1797 square feet of living space on the main floor and 2828 square feet of garage space below.

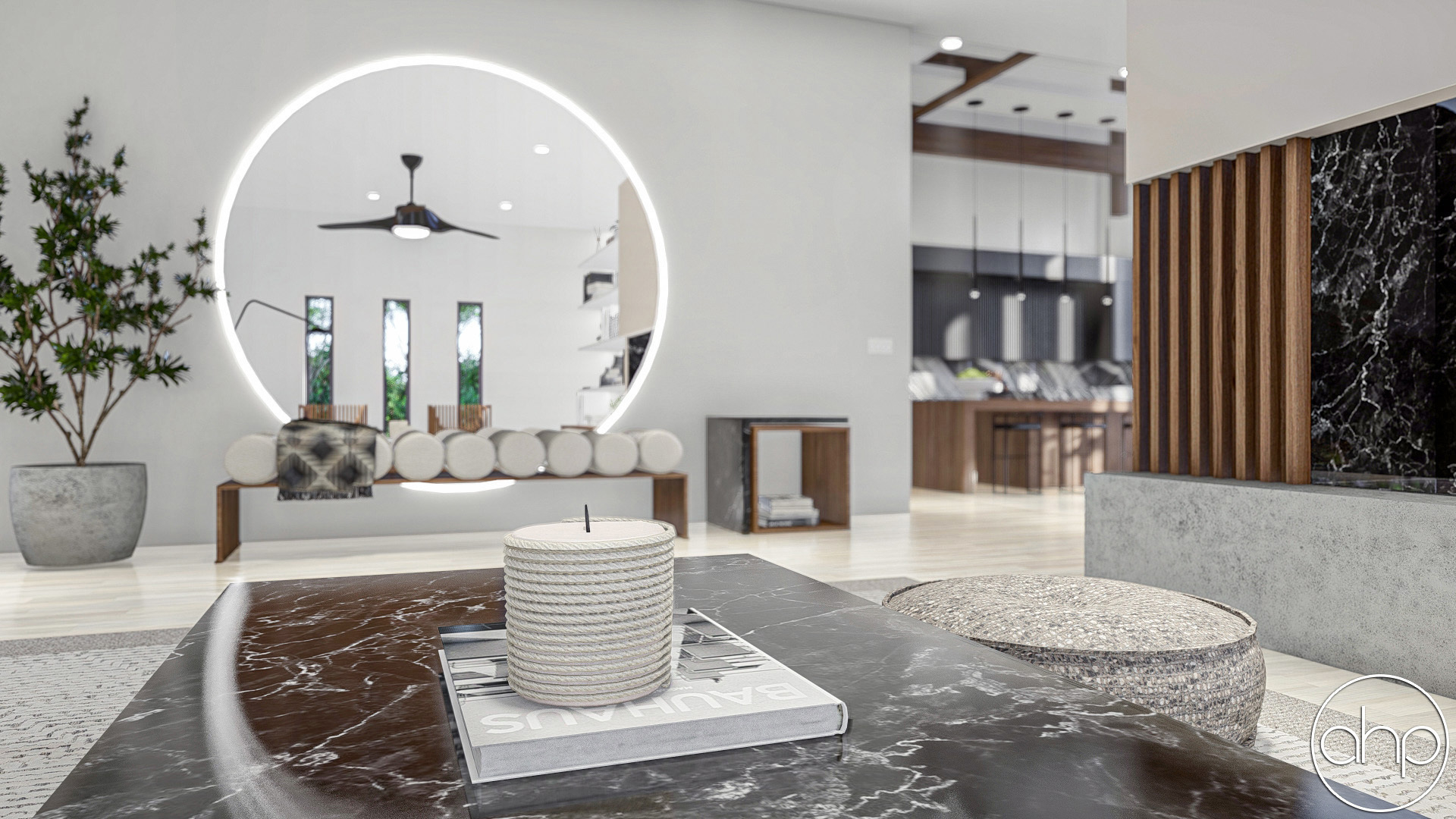

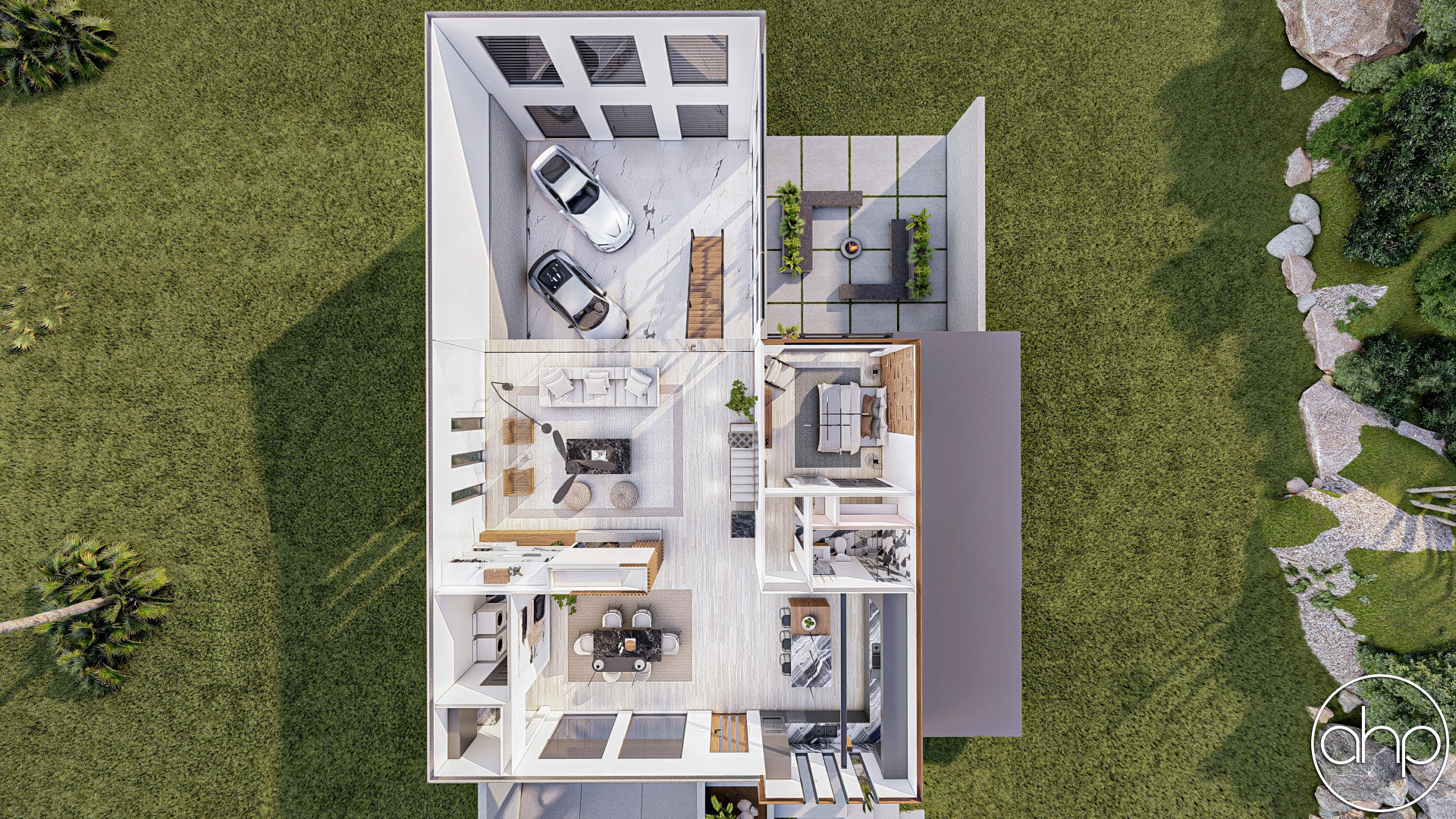

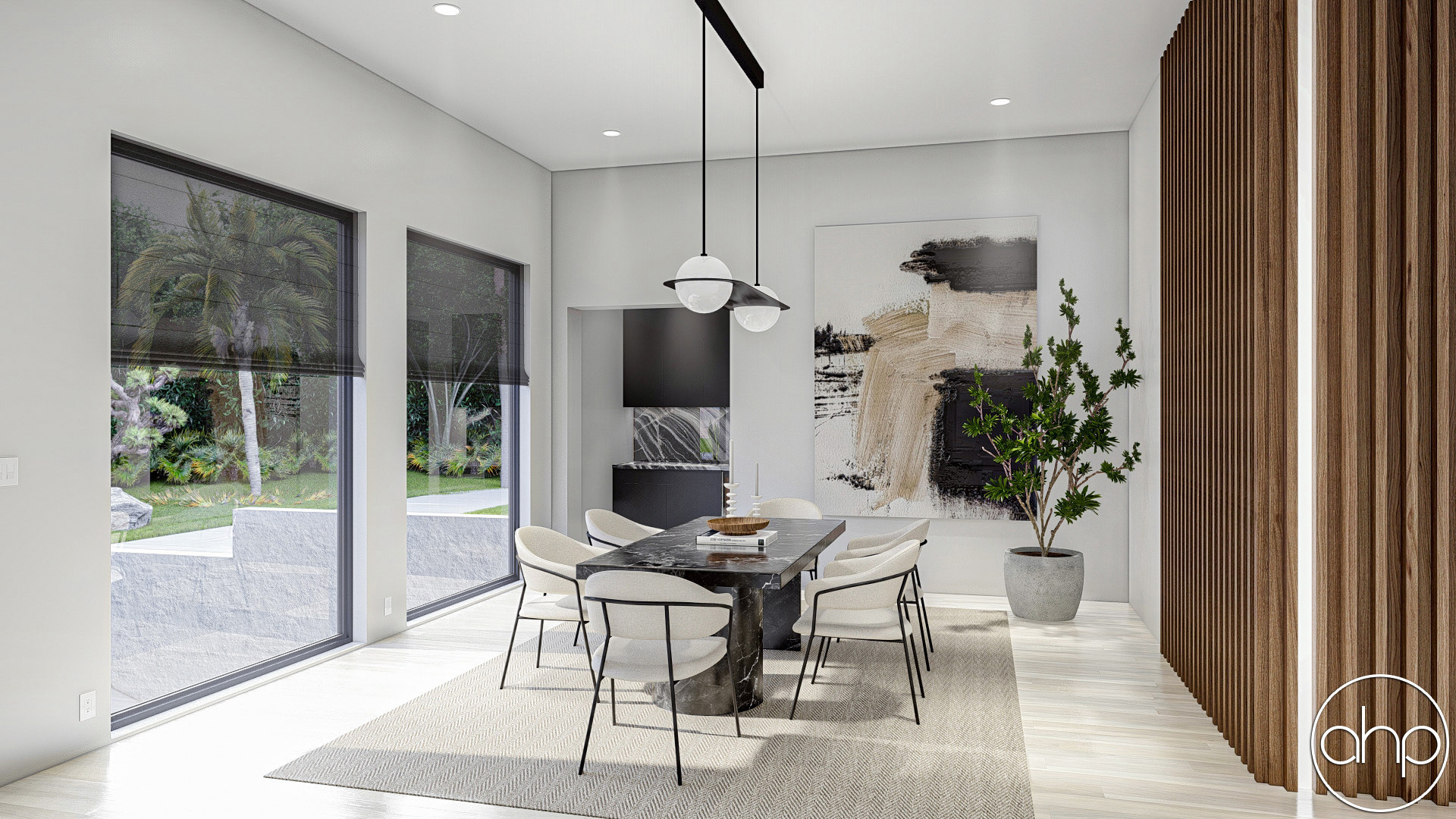

Entering on the main floor, you will be greeted by an open concept. The full kitchen on the right, and a large dining on the left. A butlers pantry and laundry room are also on this side of the home. Step in a bit further and you will find a hall bath along with a bedroom that has a large slider door and a balcony. Back in the main living space is a fireplace with built-ins on one side. The ultimate focus of this great room is the large glass wall that overlooks the showroom. Stairs connecting the great room to the garage below are closed off by a glass door.

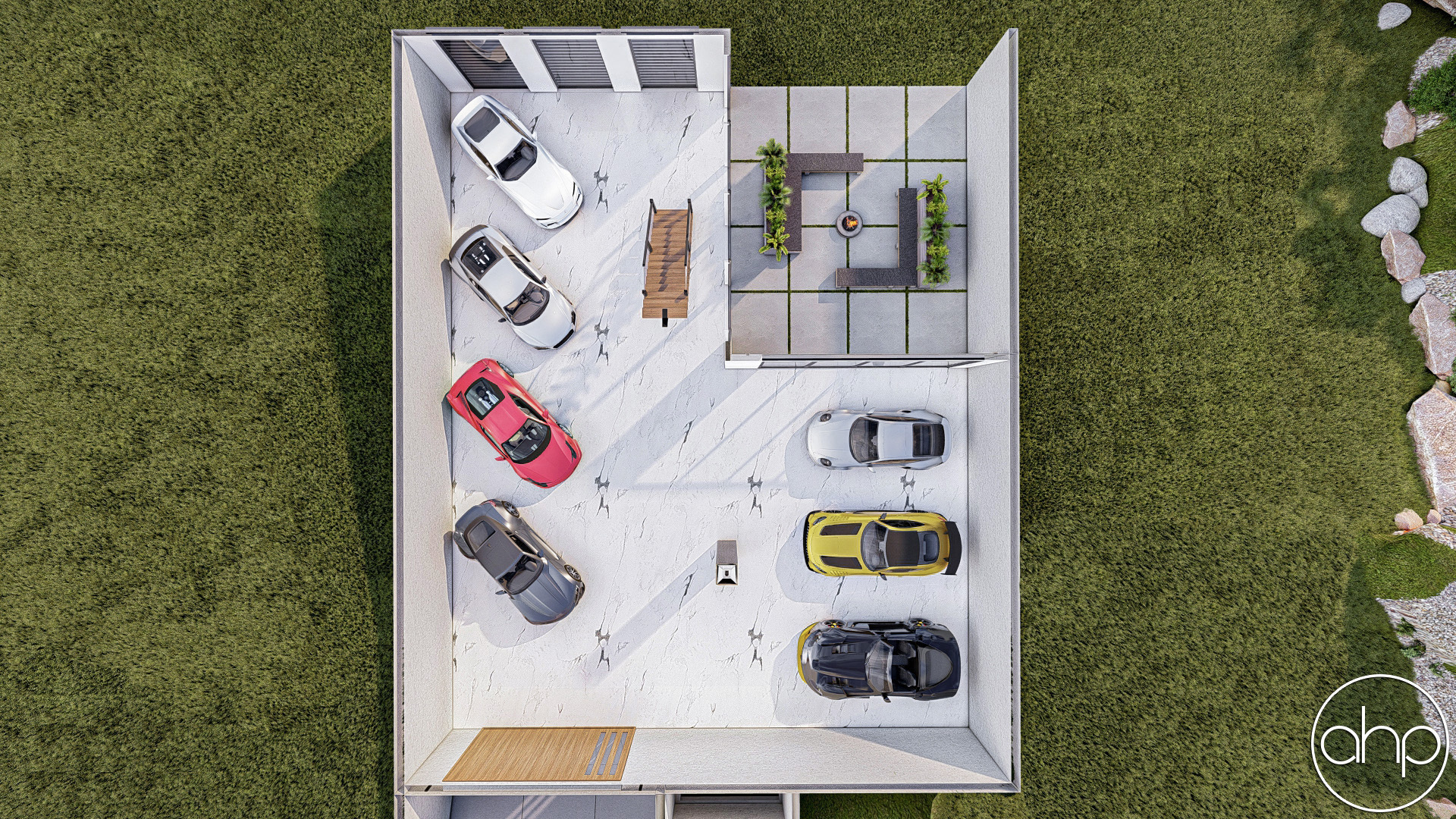

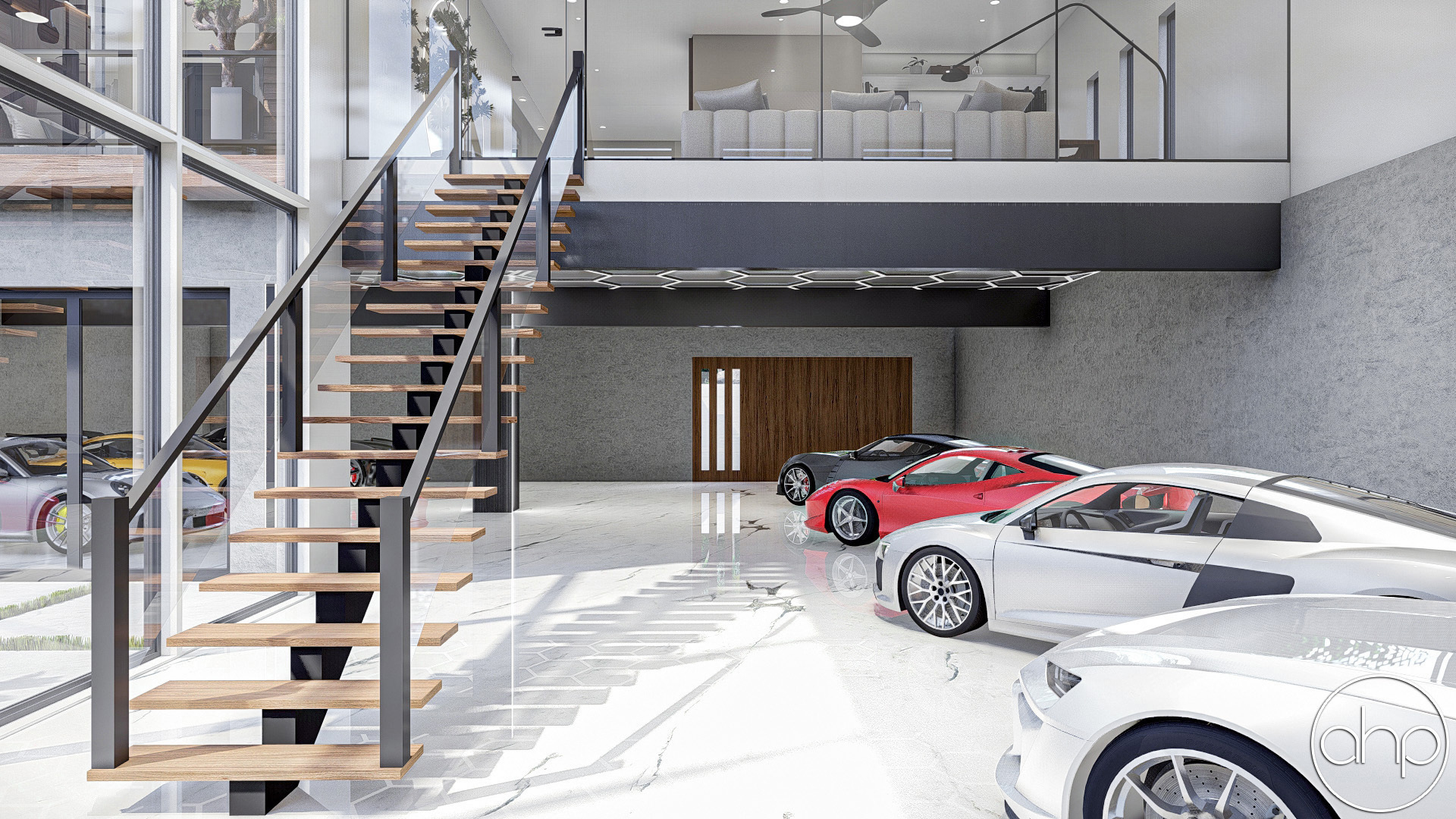

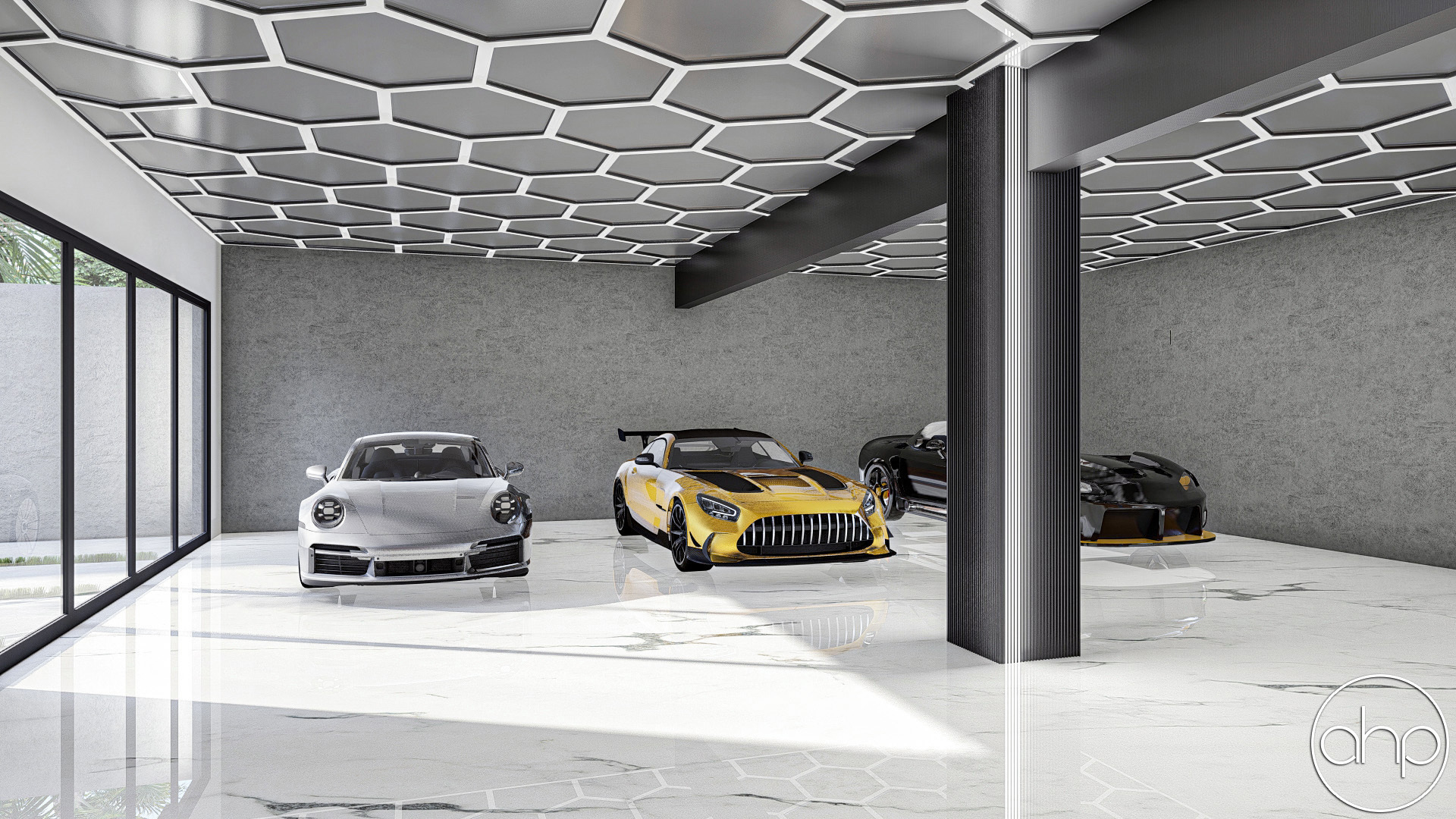

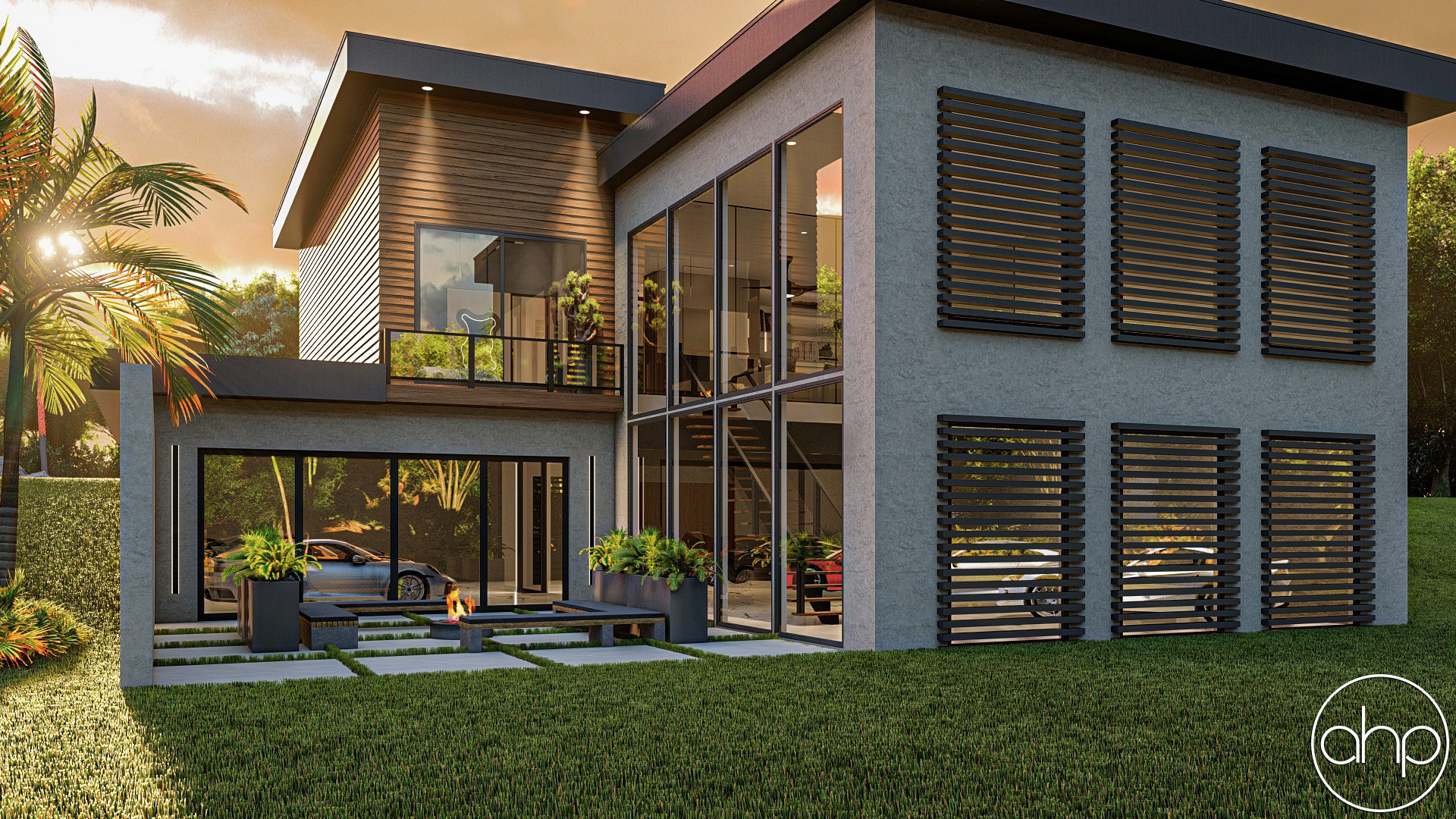

Below is 2828 square feet of garage space. The large walkout windows help bring in plenty of natural light to show off your most prized possessions.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 1
Bathrooms 1
Garage Bays 2
Square Footage
Main Level 1797 Sq. Ft.
Garage 2828 Sq. Ft.
Total Finished Area 1797 Sq. Ft.
Exterior Dimensions
Width 55 ' 8"
Depth 98 ' 0"
Ridge Height
Calculated from main floor line
18 ' 2"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Foundation Wall Height
Main Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
