29382 | Dalton

Reverse

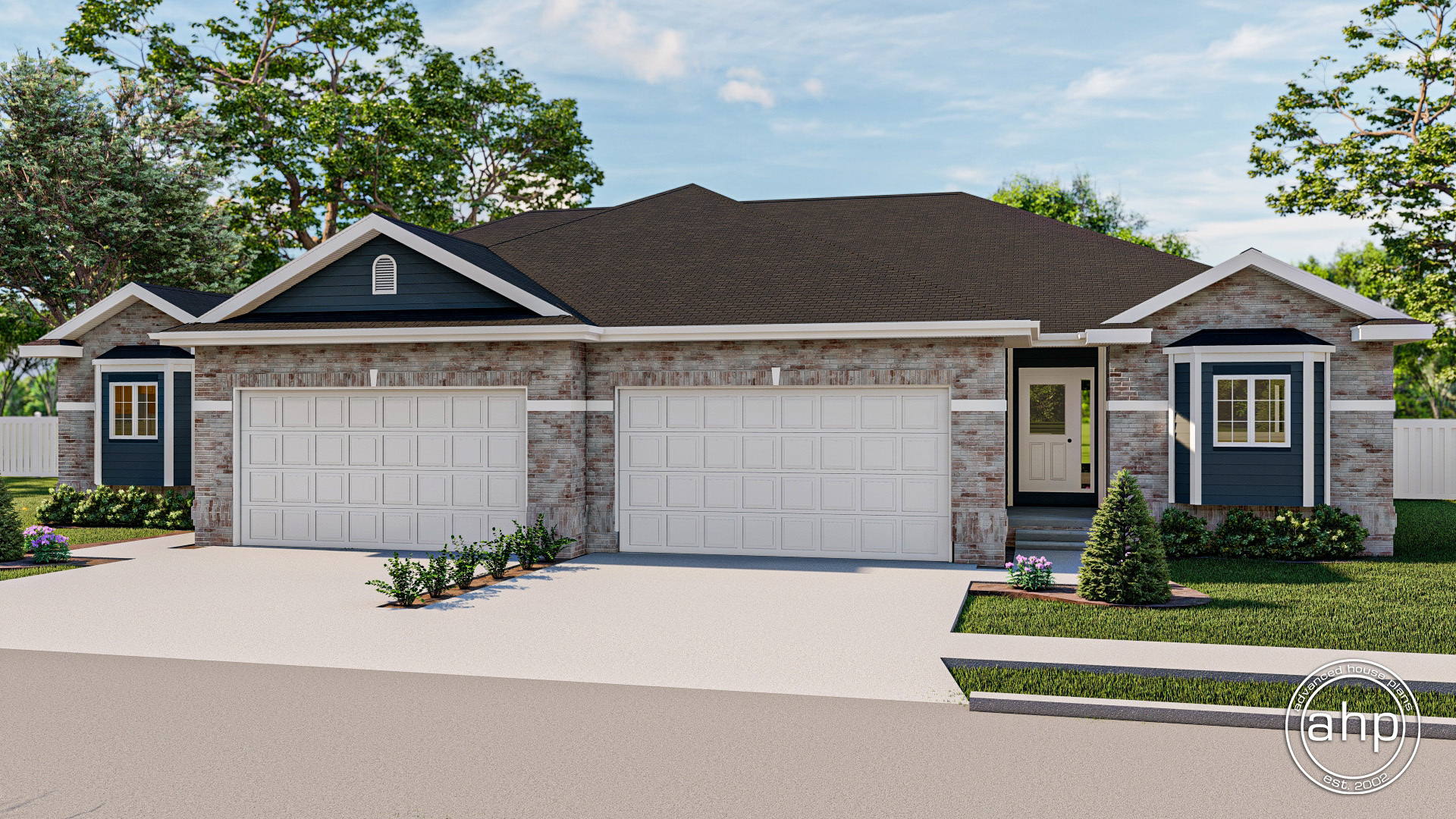

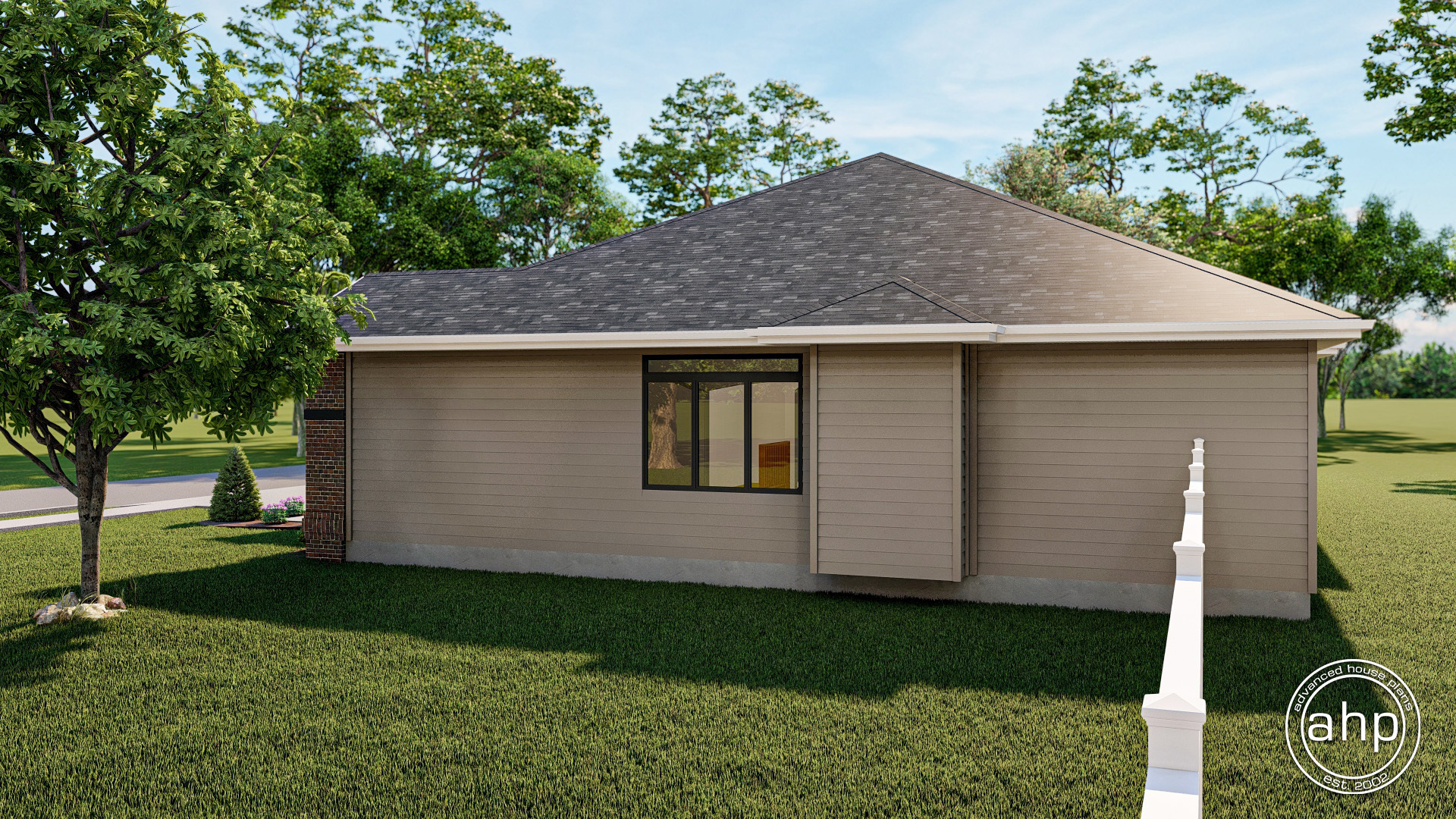

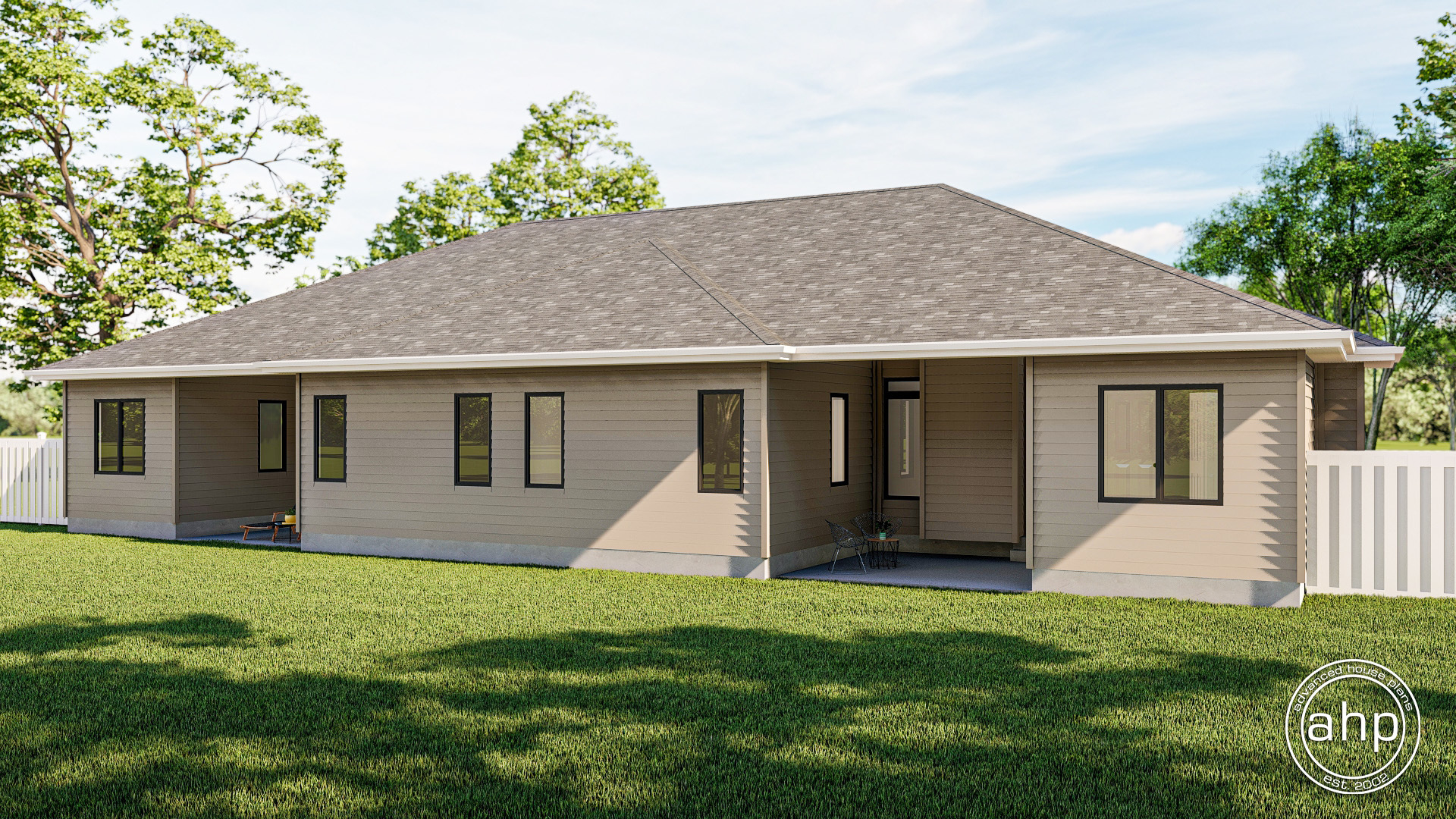

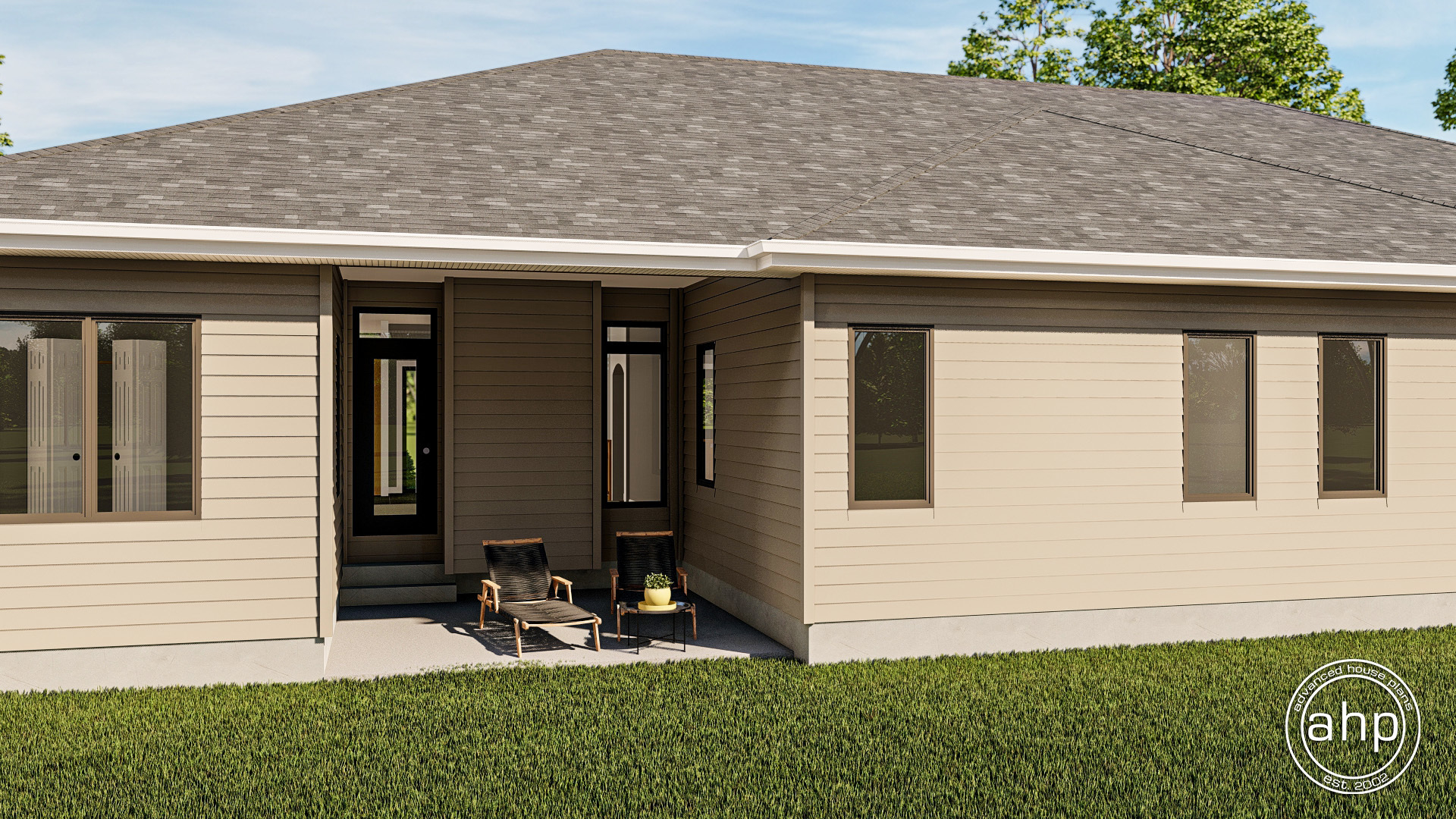

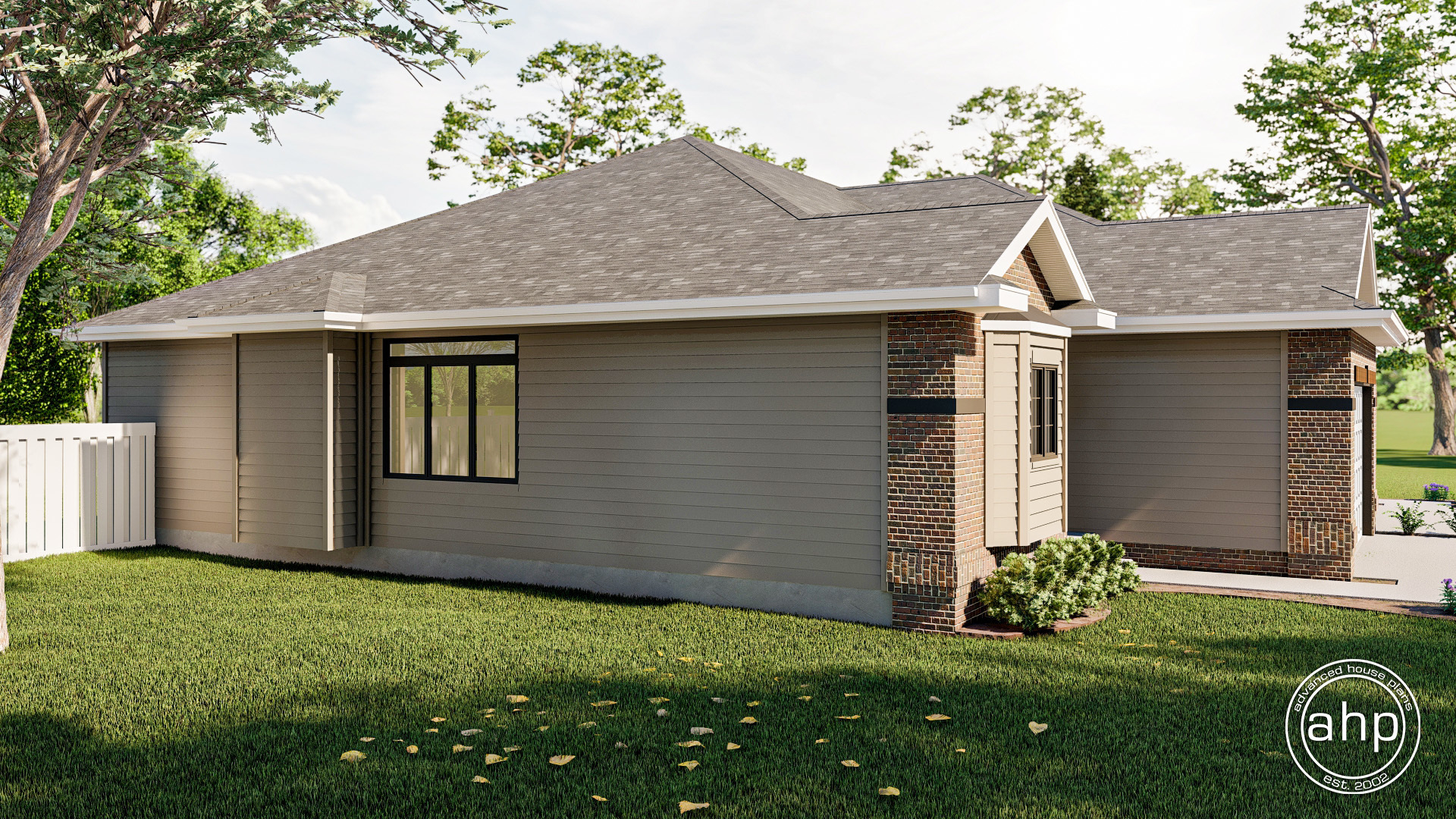

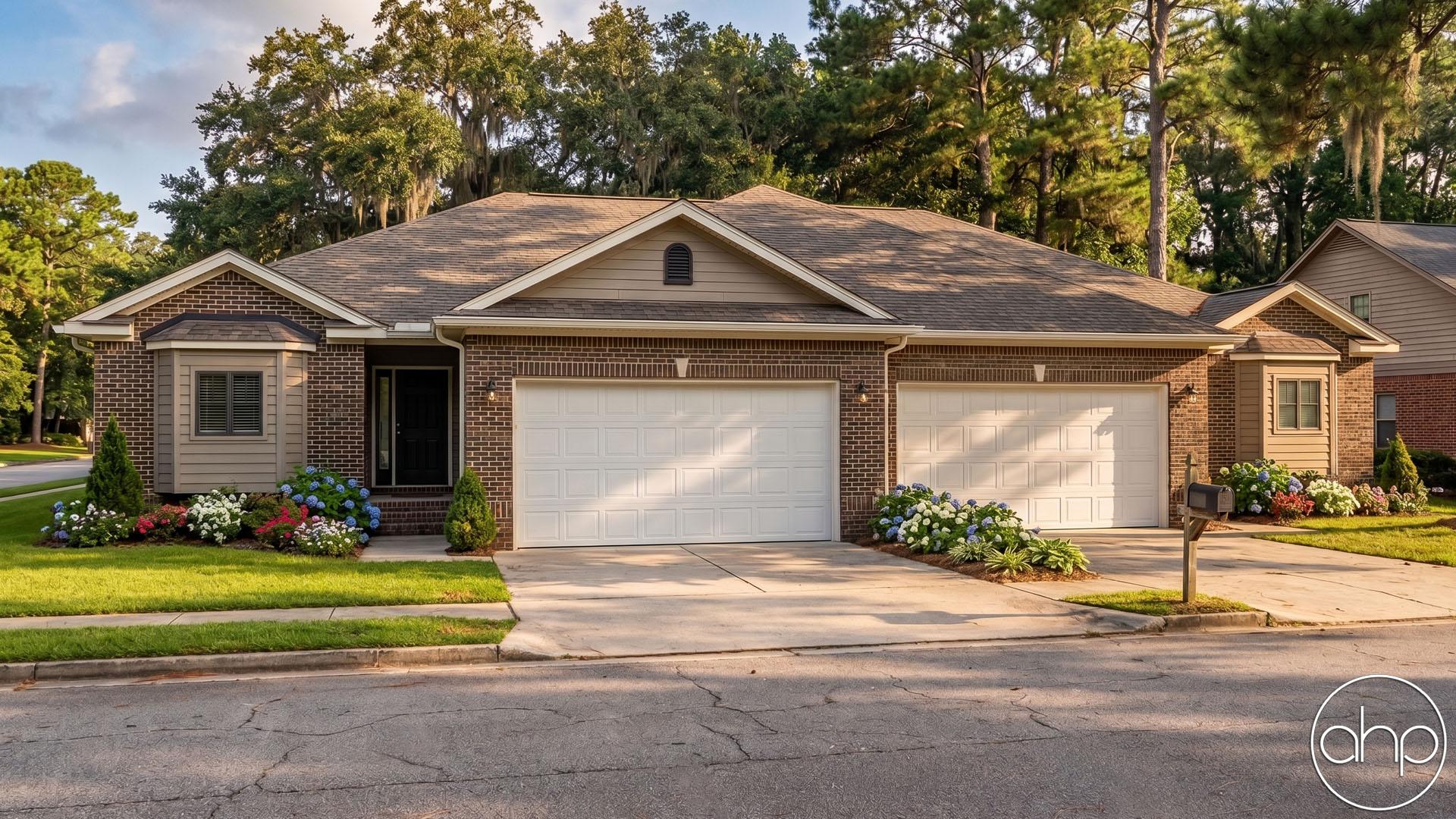

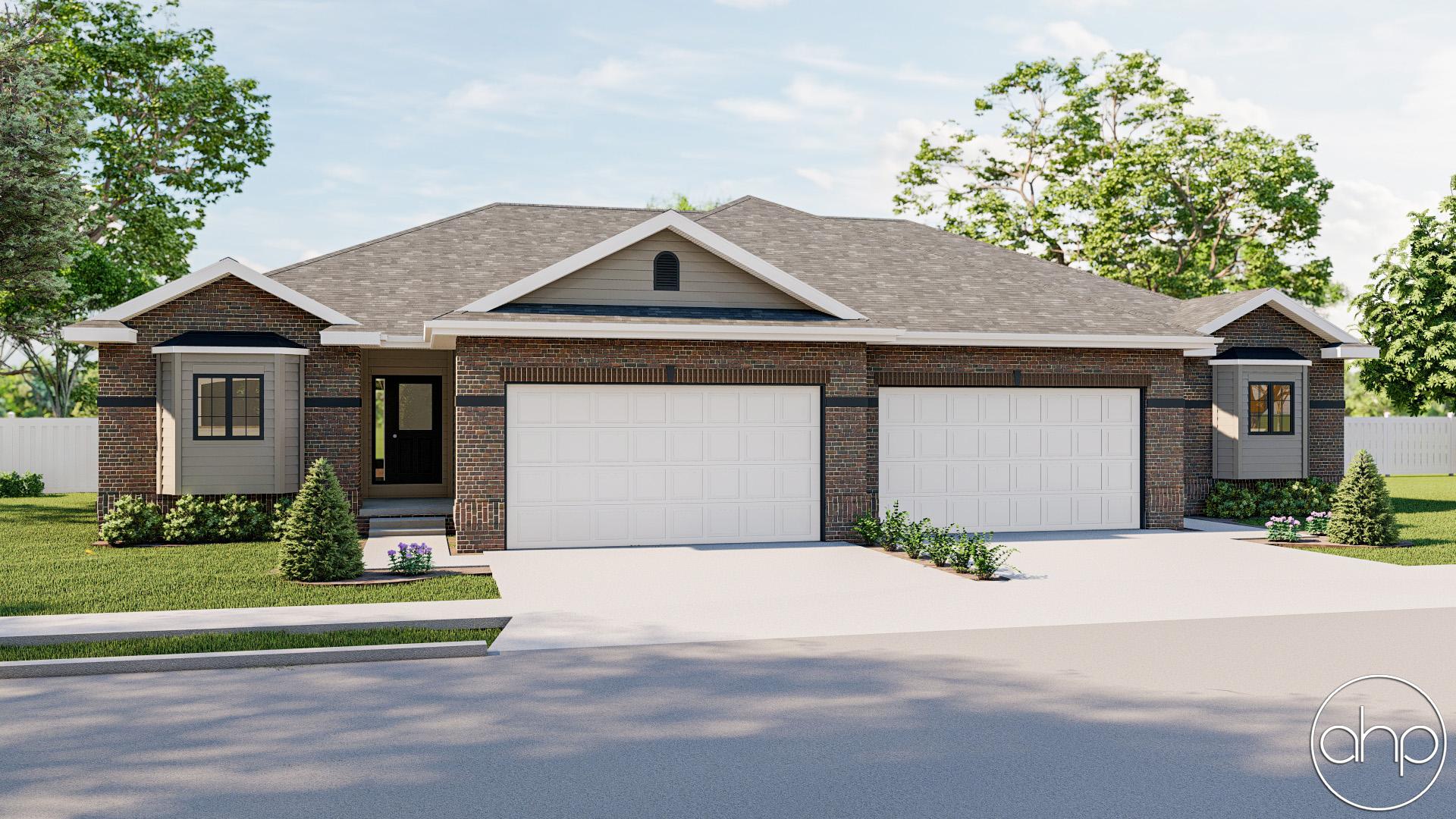

Dalton Rendering Dalton Rendering Dalton Rendering Dalton Rendering Dalton Rendering Dalton Rendering
NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

1 Story Multi-Family Traditional House Plan

Dalton - 29382

1269
Sq Ft
2
Beds
2
Baths
2
Bays
80' 0"
Wide
57' 0"
Deep

Floor Plan Images

Main Level

1 Story Multi-Family Traditional House Plan | Dalton

Plan Description

A tasteful balance of brick and gables dress the front of this one-storymulti-family house plan. First views inside the Dalton extend to the family room's fireplace and the covered patio beyond. The covered patio is deep enough to easily accommodate outdoor dining, rain or shine. Just off the family room, the dining area is defined by columns and ceiling details. The adjacent kitchen features ample counter space that wraps the classic "work triangle."

The master suite is separated from the living areas and features a 10-foot-high ceiling and smartly designed bath area with walk-in closet. Bedroom 2 privately resides on the opposite side of the rear covered patio and has its own bath. Clutter from the outside is intercepted in the mud room/laundry which accesses the 2-car garage.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 2
Bathrooms 2
Garage Bays 2
Square Footage
Main Level 1269 Sq. Ft.
Garage 467 Sq. Ft.
Total Finished Area 1269 Sq. Ft.
Exterior Dimensions
Width 80' 0"
Depth 57' 0"
Ridge Height
Calculated from main floor line
23' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Basement
Exterior Wall Construction
2x4
Roof Pitches
6/12
Foundation Wall Height
9'
Main Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at sales@advancedhouseplans.com
Buy this plan for only
$1600

If you find this plan cheaper on any other site, we will match the price guaranteed.

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.
