Plan Description

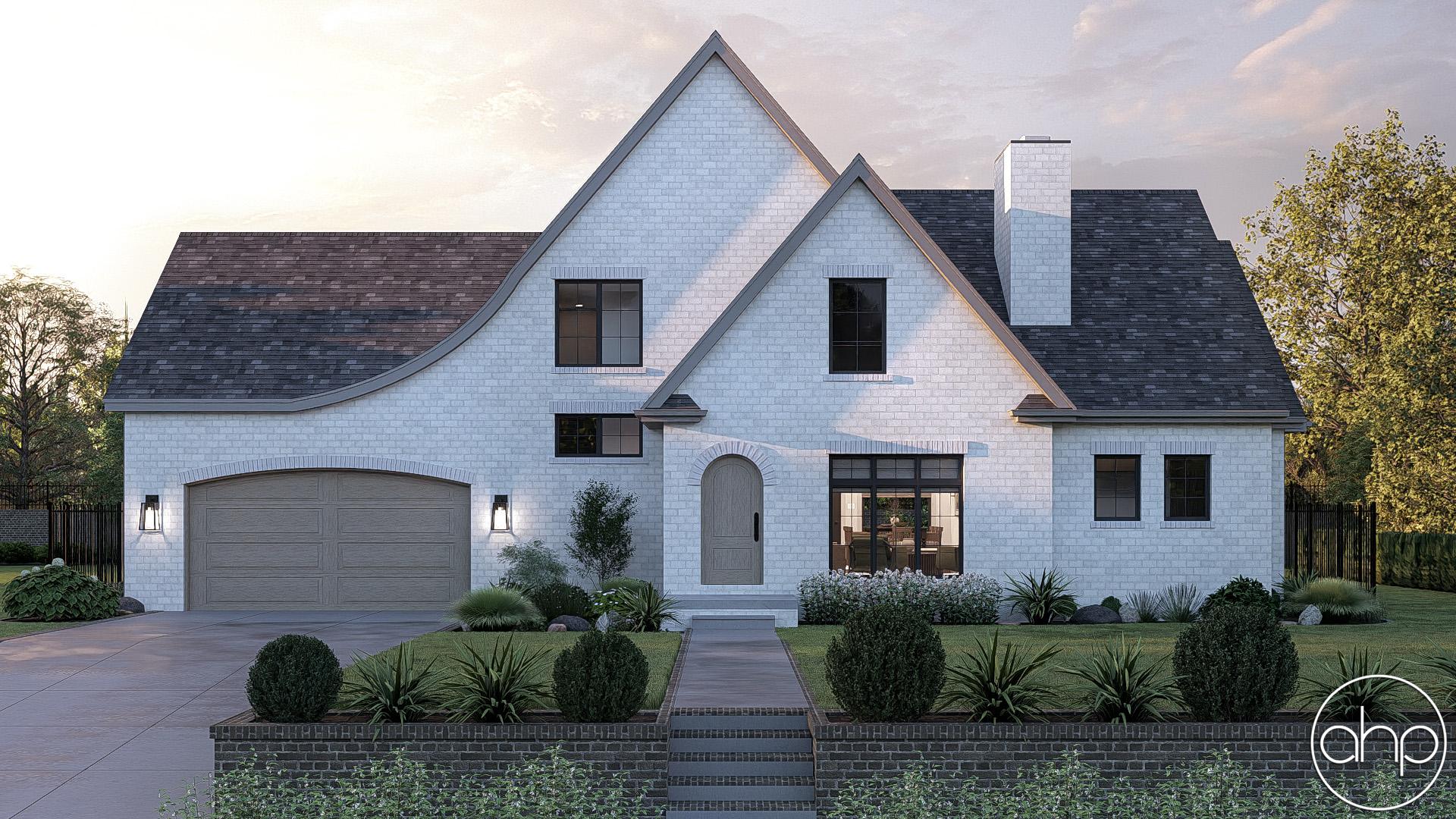

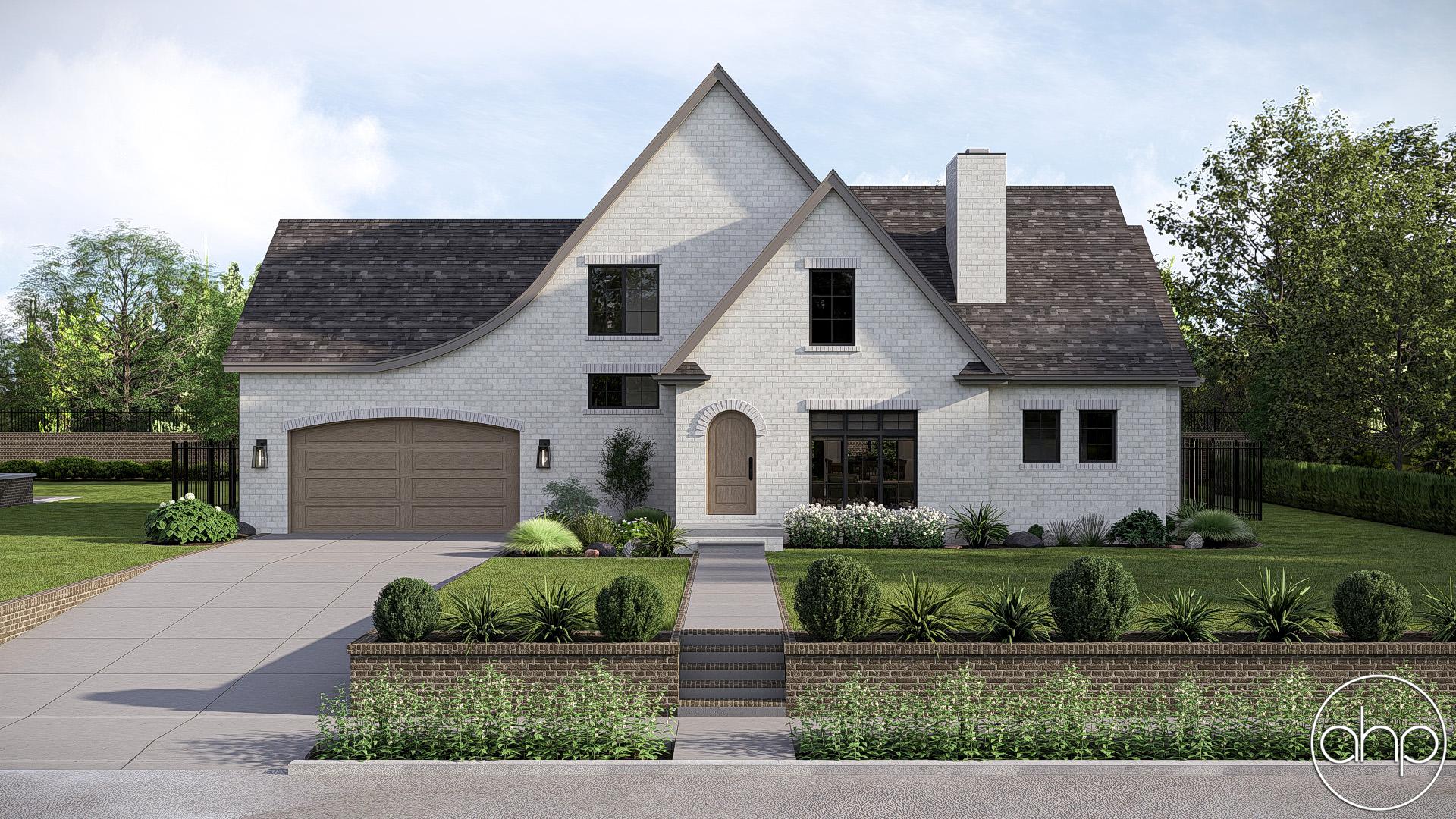

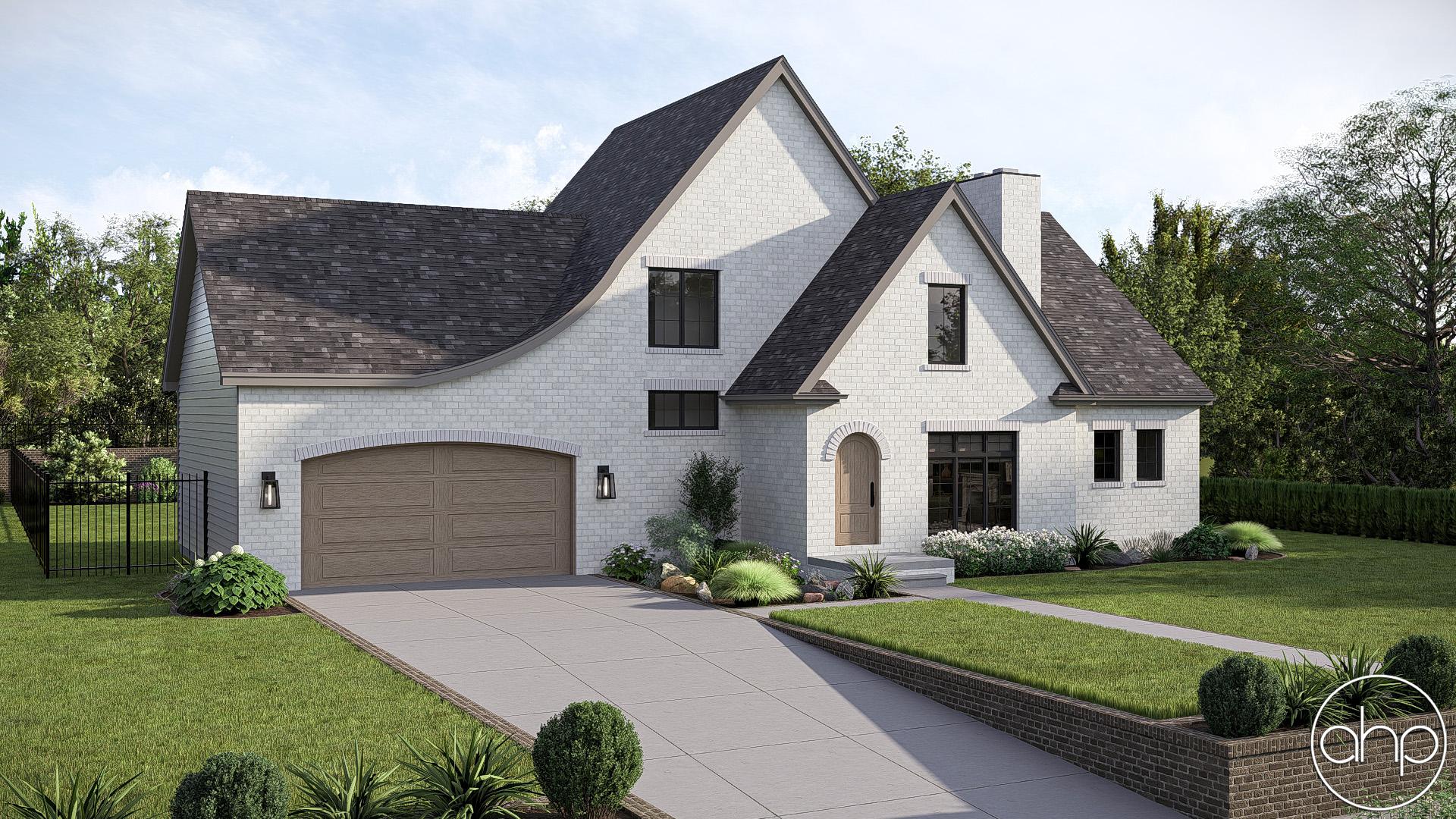

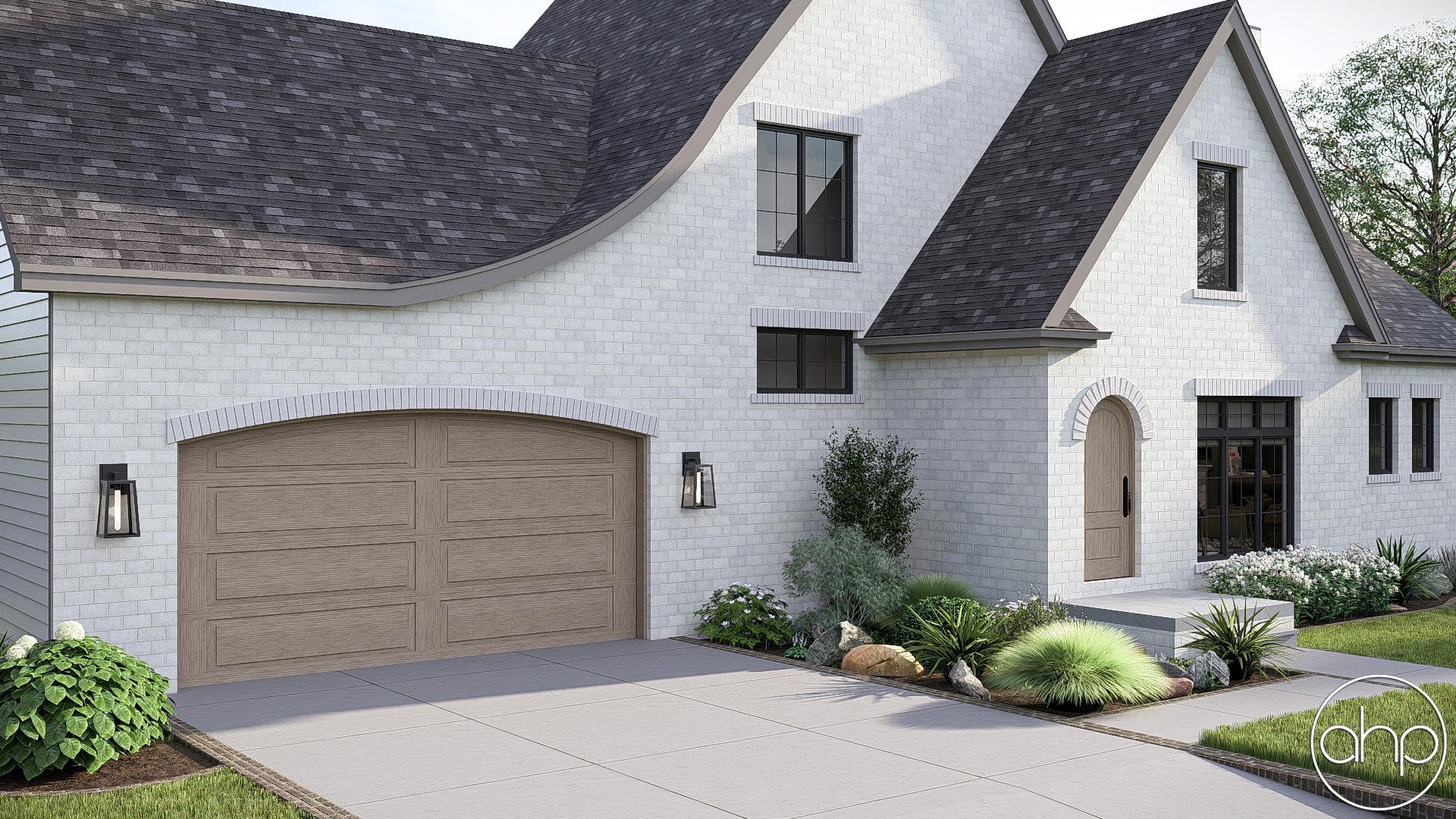

Storybook charm meets everyday livability in this stunning 1.5-story Tudor home. The exterior beautifully showcases classic Tudor architecture, highlighted by steep roof pitches and a distinctive curved front gable that adds unique architectural interest. The full brick façade enhances its stately presence while maintaining warmth and traditional appeal. A spacious two-car garage is seamlessly integrated into the design, offering both convenience and functionality.

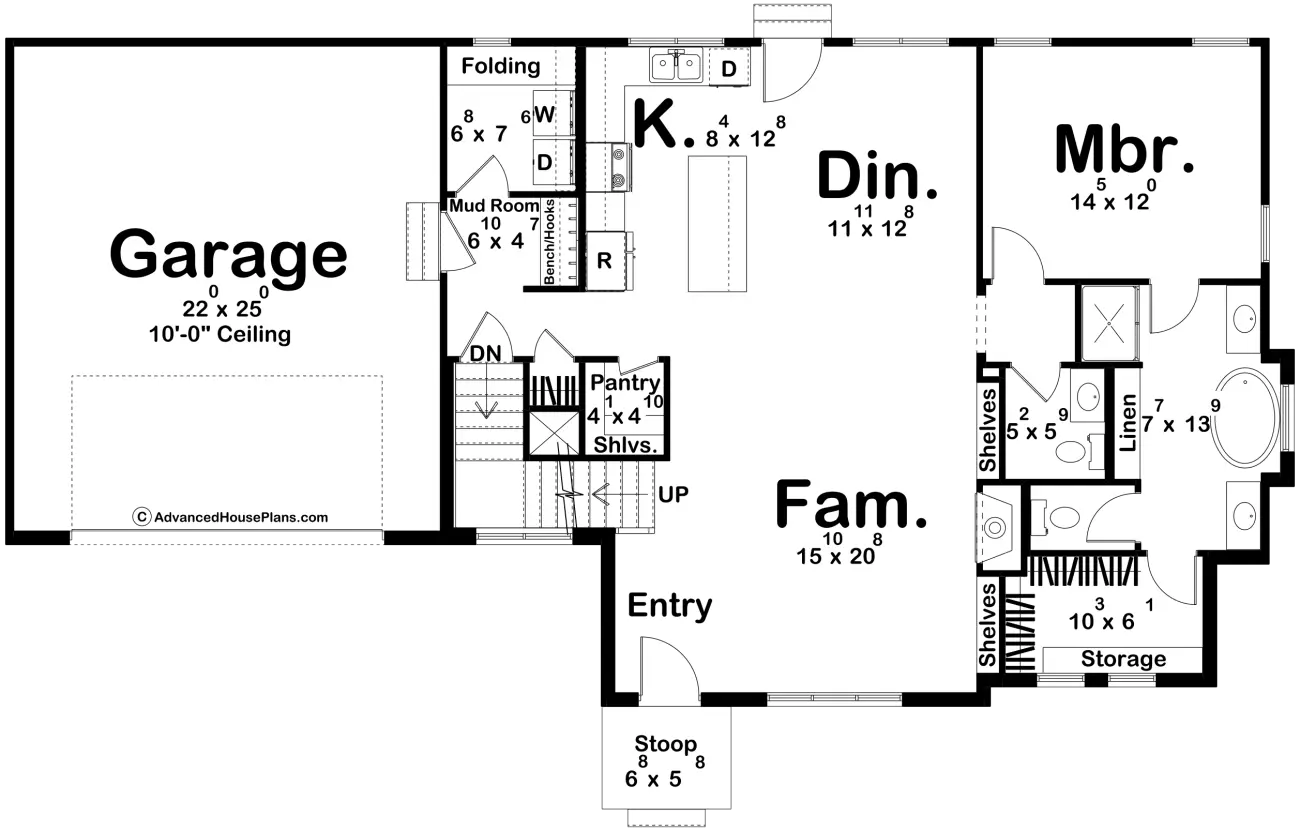

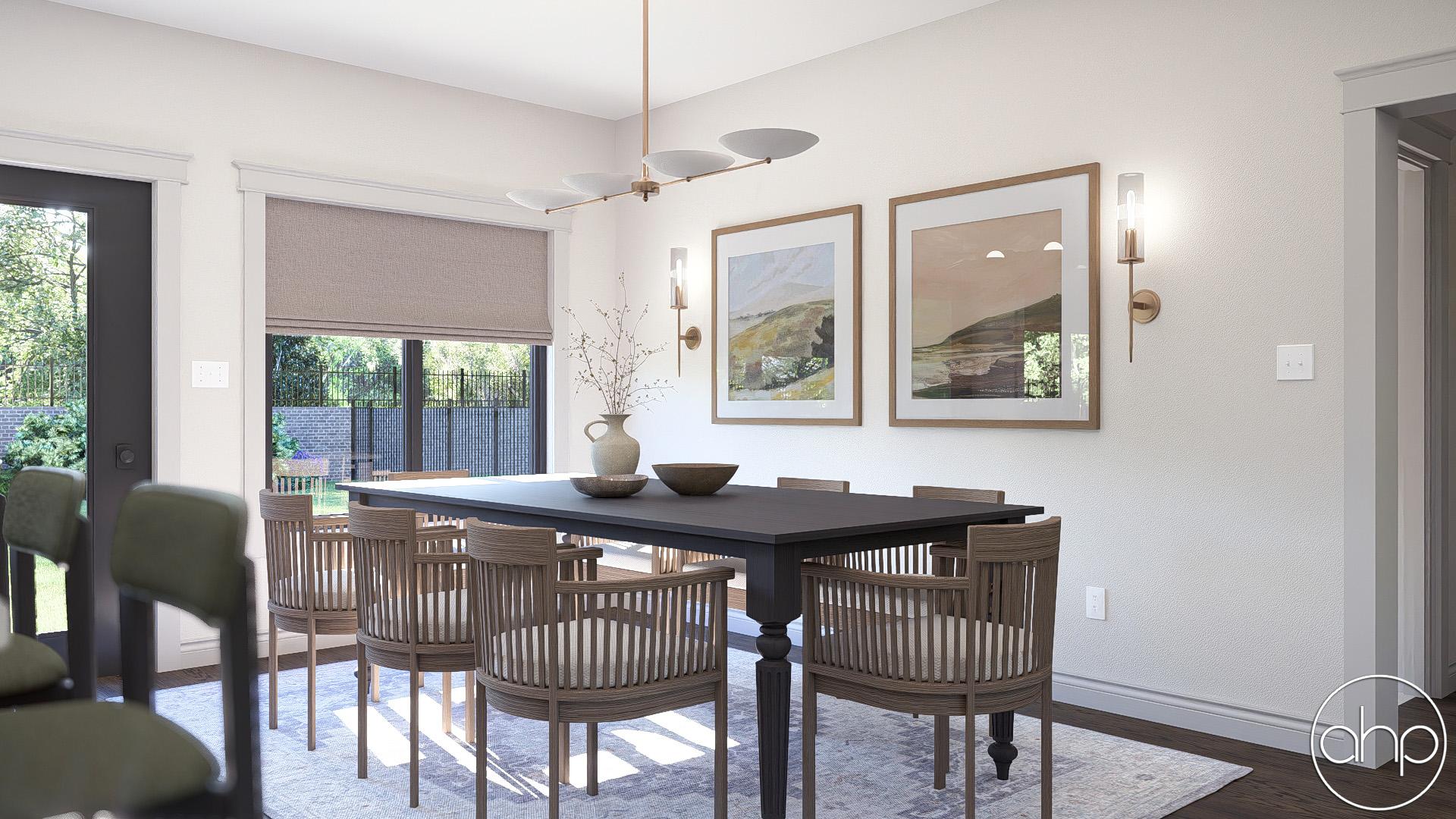

Inside, you’ll find 3 bedrooms and 3 bathrooms thoughtfully designed for comfort. The main level features a bright, open-concept living space that effortlessly connects the kitchen, dining, and family room—perfect for gathering and entertaining. The private primary suite is also located on this level, offering easy accessibility and a peaceful retreat.

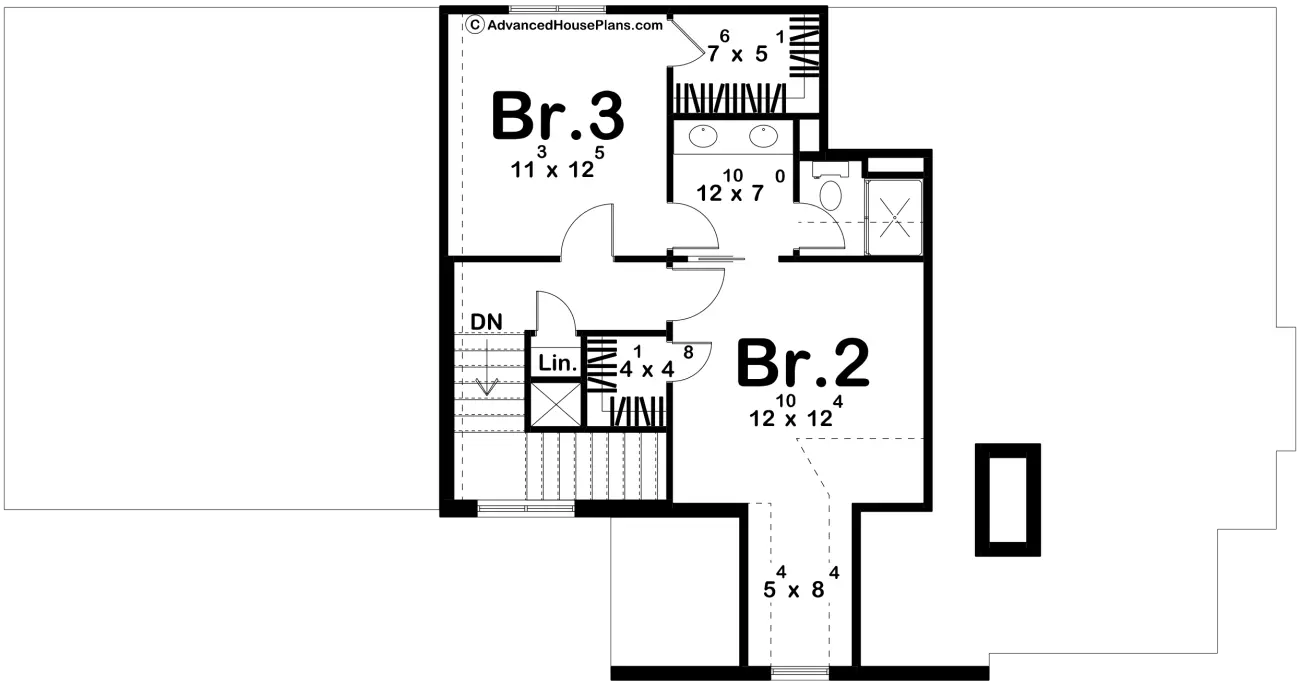

Upstairs, two additional bedrooms provide ideal space for family or guests. Cozy yet refined, this home perfectly balances classic Tudor character with modern functionality.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 3 |
| Bathrooms | 3 |
| Garage Bays | 2 |
| Square Footage Breakdown | |
| Main Level | 1345 Sq Ft |
| Second Level | 587 Sq Ft |
| Total Finished Area | 1932 Sq Ft |
| Garage | 573 Sq Ft |
| Exterior Dimensions | |
| Width | 66' 4" |
| Depth | 39' 8" |
| Ridge Height | 30' 9" |
| Default Construction Stats | |
| Default Foundation Type | Basement |
| Default Exterior Wall Construction | 2x4 |
| Roof Construction Method | Trusses |
| Floor Construction Method | I-Joists |
| Roof Pitches | Primary 14/12, Secondary 10/12, 6/12, Curved |
| Foundation Wall Height | 9' |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 8' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
