Modern Style Apartment Garage

Name: Modern Style Apartment Garage | Cordell
Brand: Advanced House Plans
SKU: 29748
Price: 800 USD
Availability: InStock

Cordell - 29748

761

Sq Ft

Beds

Baths

Bays

38' 0"

Wide

28' 0"

Deep

Floor Plan Images

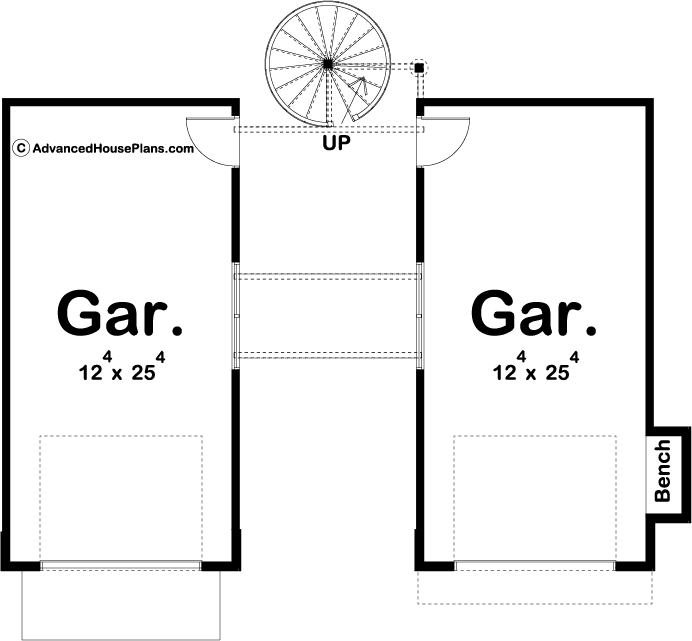

Main Level

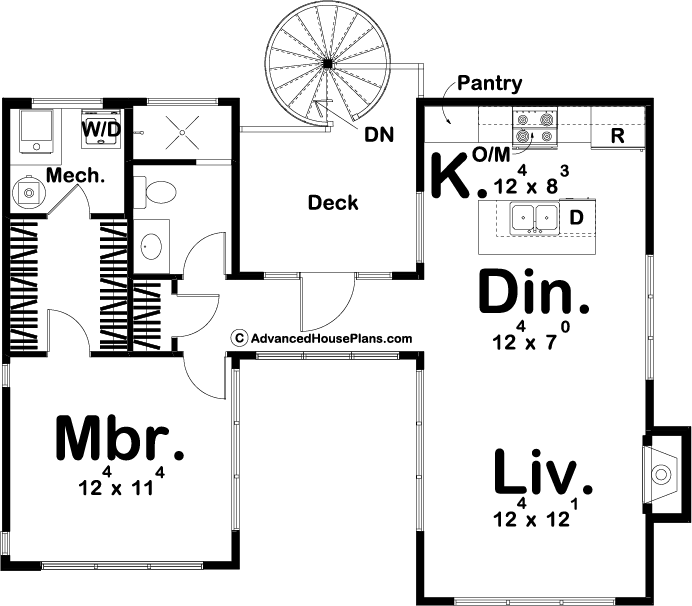

Second Level

Plan Description

This Modern style apartment garage is perfect for those who want a unique but practical floor plan. On the main level, you have 2 separate 1 car garages. Just up the charming spiral staircase, you will find a great practical apartment. The sleeping quarters are separated from the main living area by a breezeway for privacy. On one side, you'll find a living room that is warmed by a fireplace and a kitchen the includes an island with a flush snack bar. On the opposite side, you'll find the master suite that includes a walk-in closet and a laundry room.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms	1
Bathrooms	1
Garage Bays	2
Square Footage
Main Level	761 Sq. Ft.
Garage	686 Sq. Ft.
Total Finished Area	761 Sq. Ft.
Exterior Dimensions
Width	38' 0"
Depth	28' 0"
Default Construction Stats Stats are unique to the individual plan.
Foundation Type	Slab
Exterior Wall Construction	2x4
Roof Pitches	1/12 Primary, 2/12 Secondary
Main Wall Height	9'
Second Wall Height	9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
