Westport | 30844

Modern Style House Plan | Westport

2642
Sq Ft
3
Bedrooms
3
Bathrooms
4
Bays
100' 0"
Width
57' 8"
Depth

Floor Plan Images

Looking for something specific? We'll customize any plan to match your needs. Get your free alteration quote →

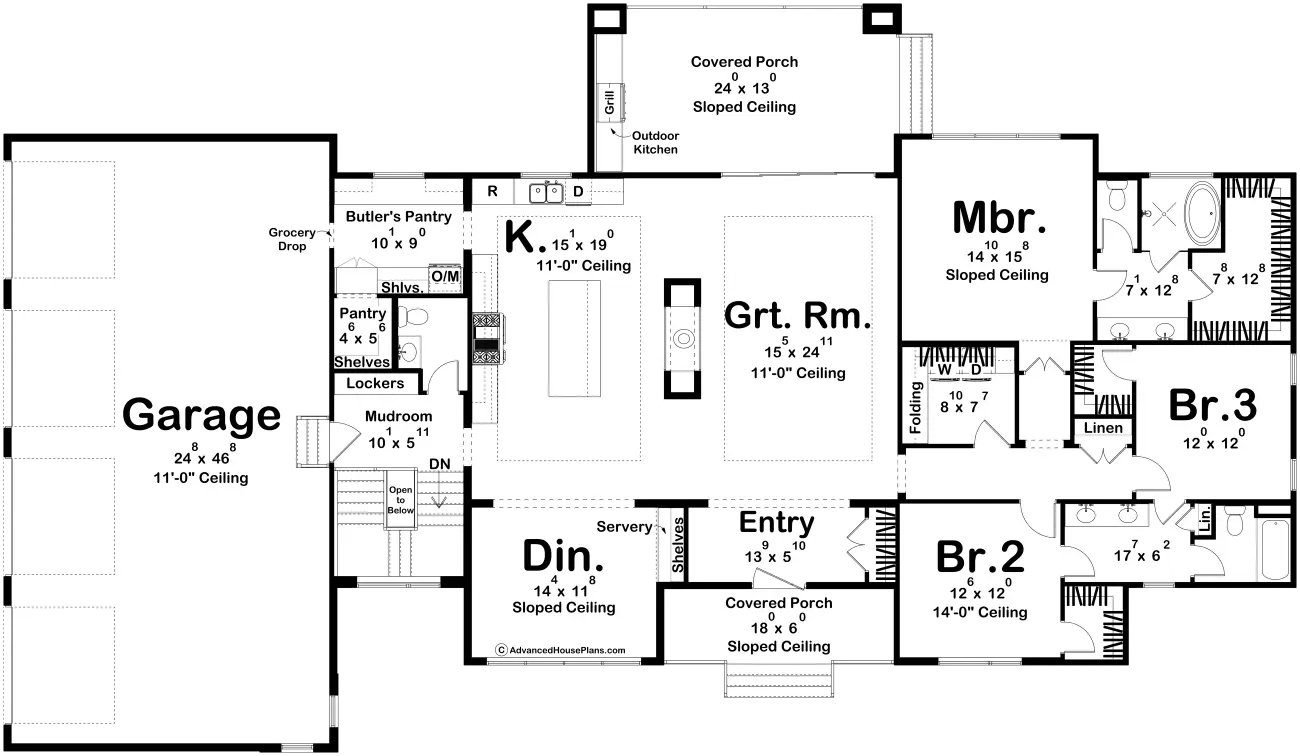

Main Floor Layout
Westport Rendering

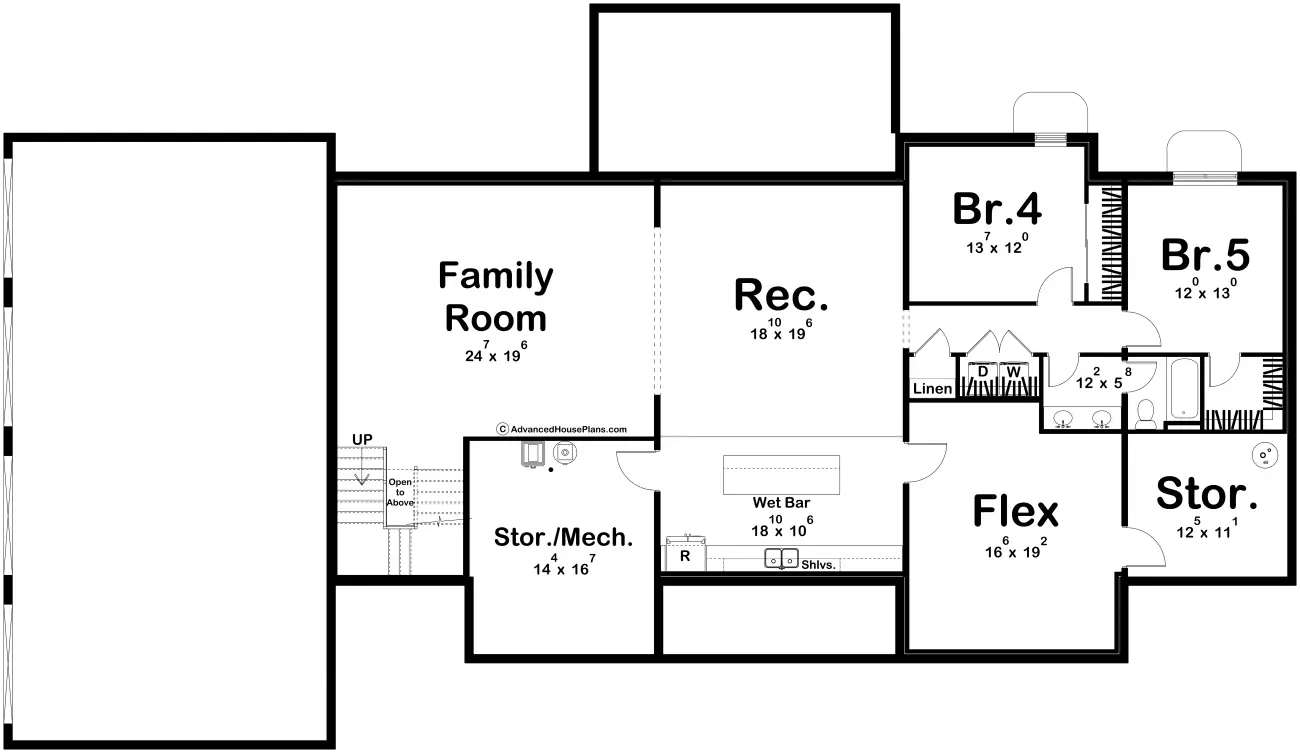

Optional Basement Floor Layout
Westport Rendering

Plan Video Tour

Plan Description

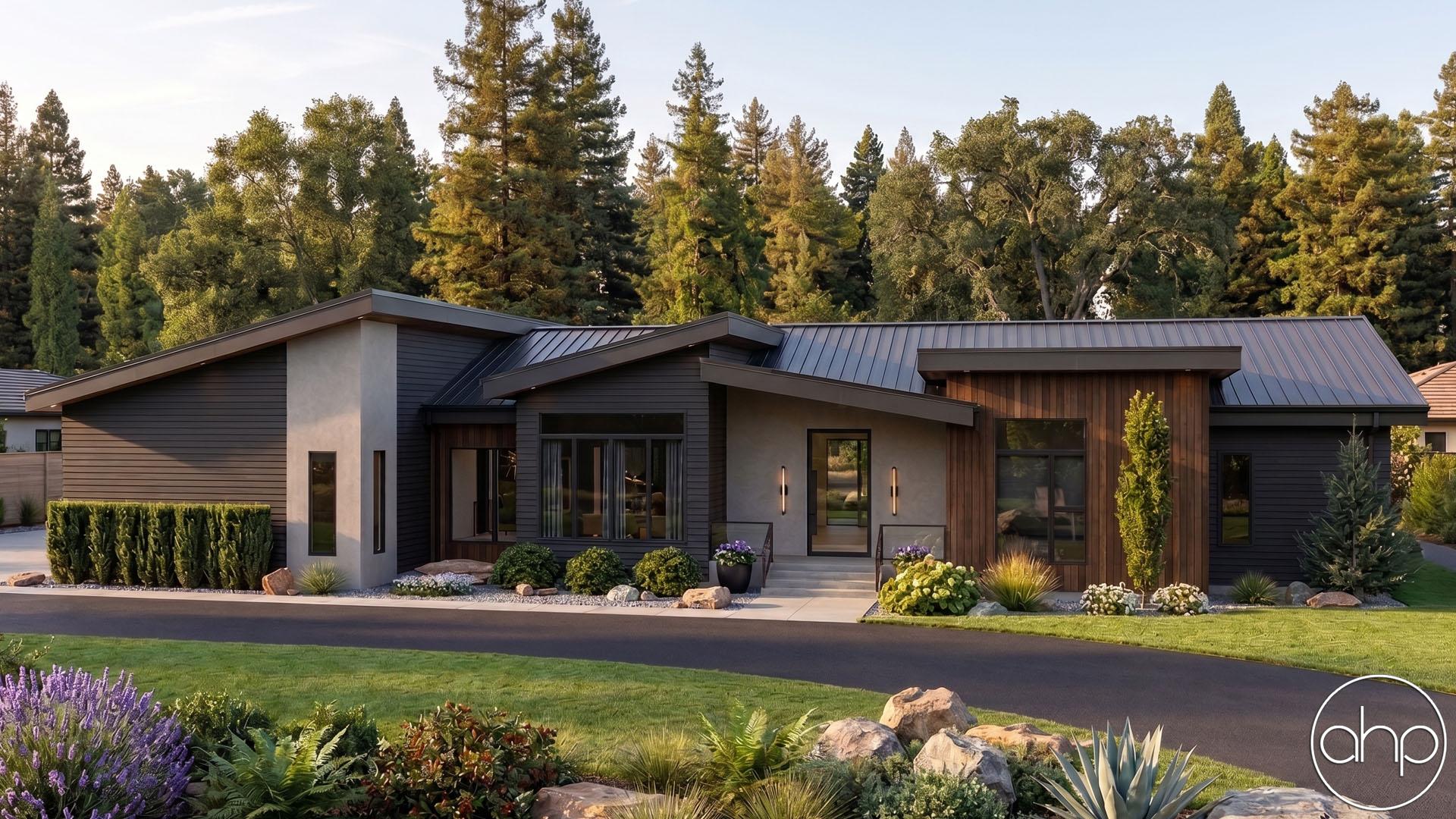

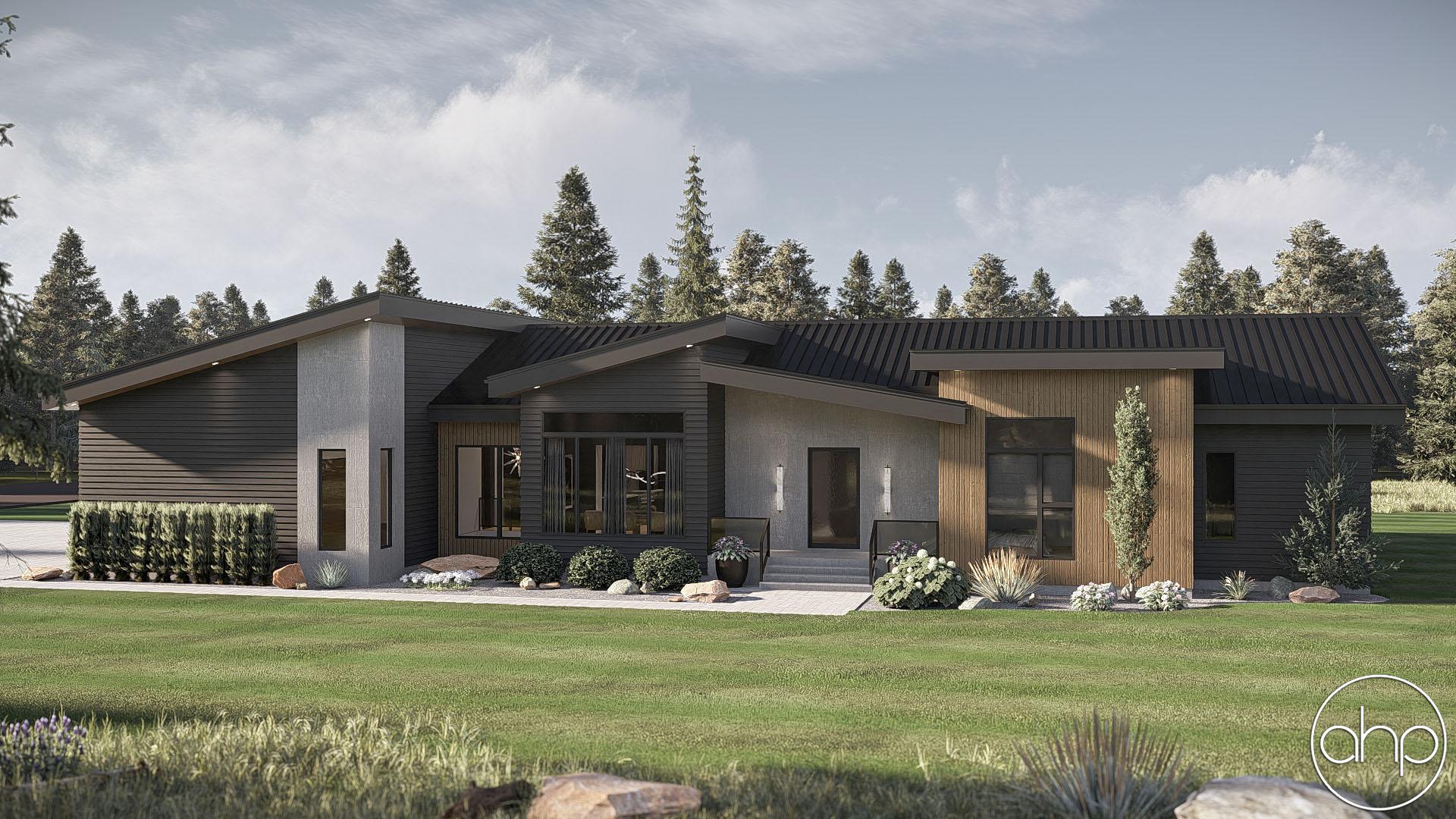

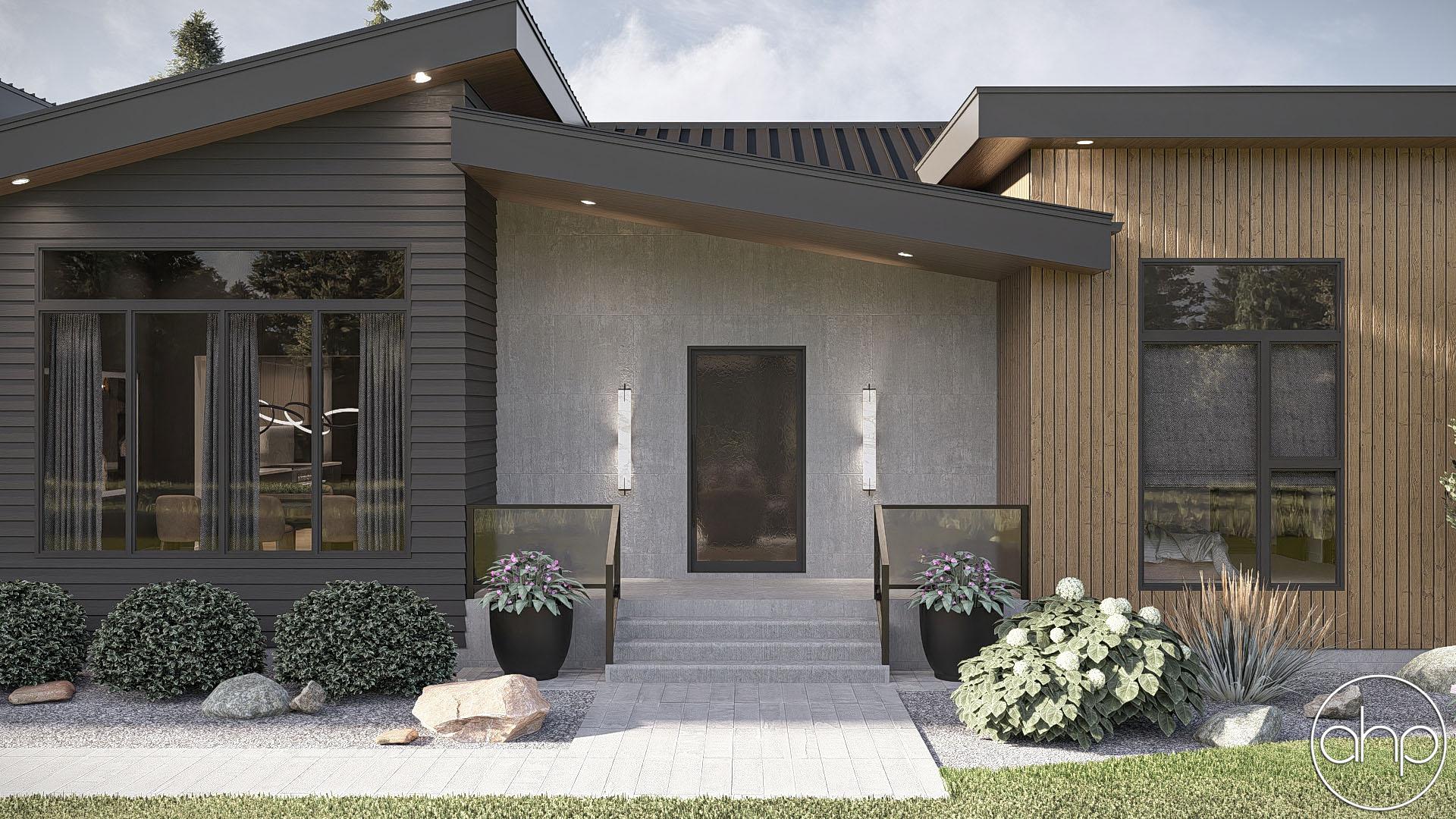

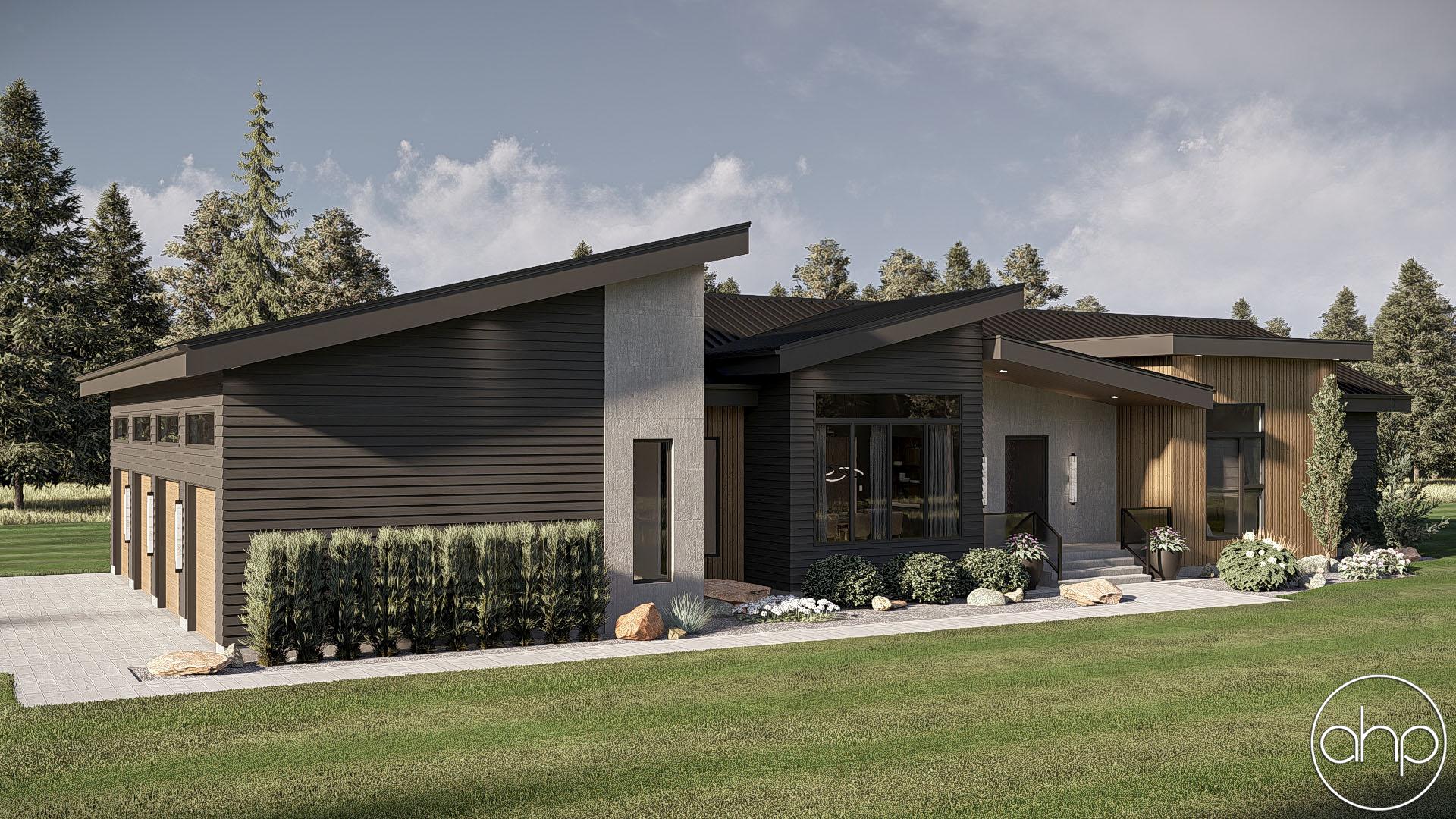

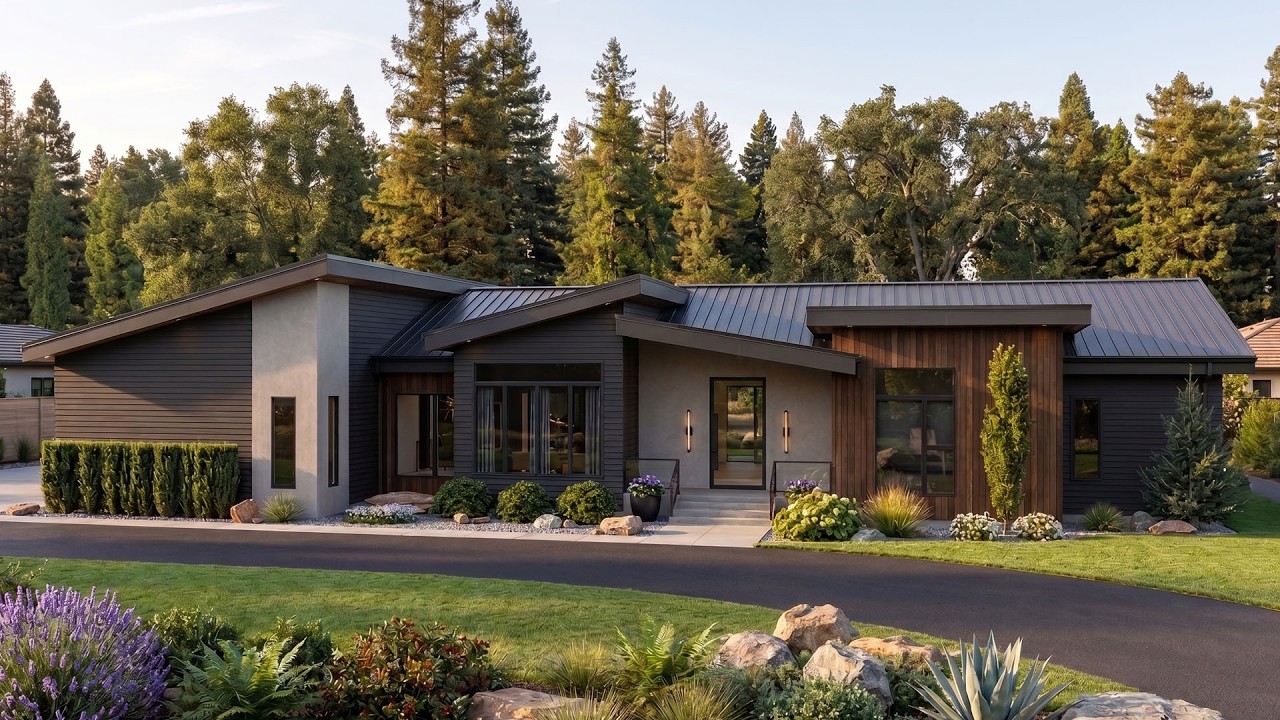

This thoughtfully designed one-story modern home blends bold contemporary style with warm, natural textures. The exterior makes a striking first impression with its single-sloped rooflines, sleek black siding, and a balanced mix of wood and stone accents. A welcoming covered front porch adds both charm and functionality, creating an inviting entry point.

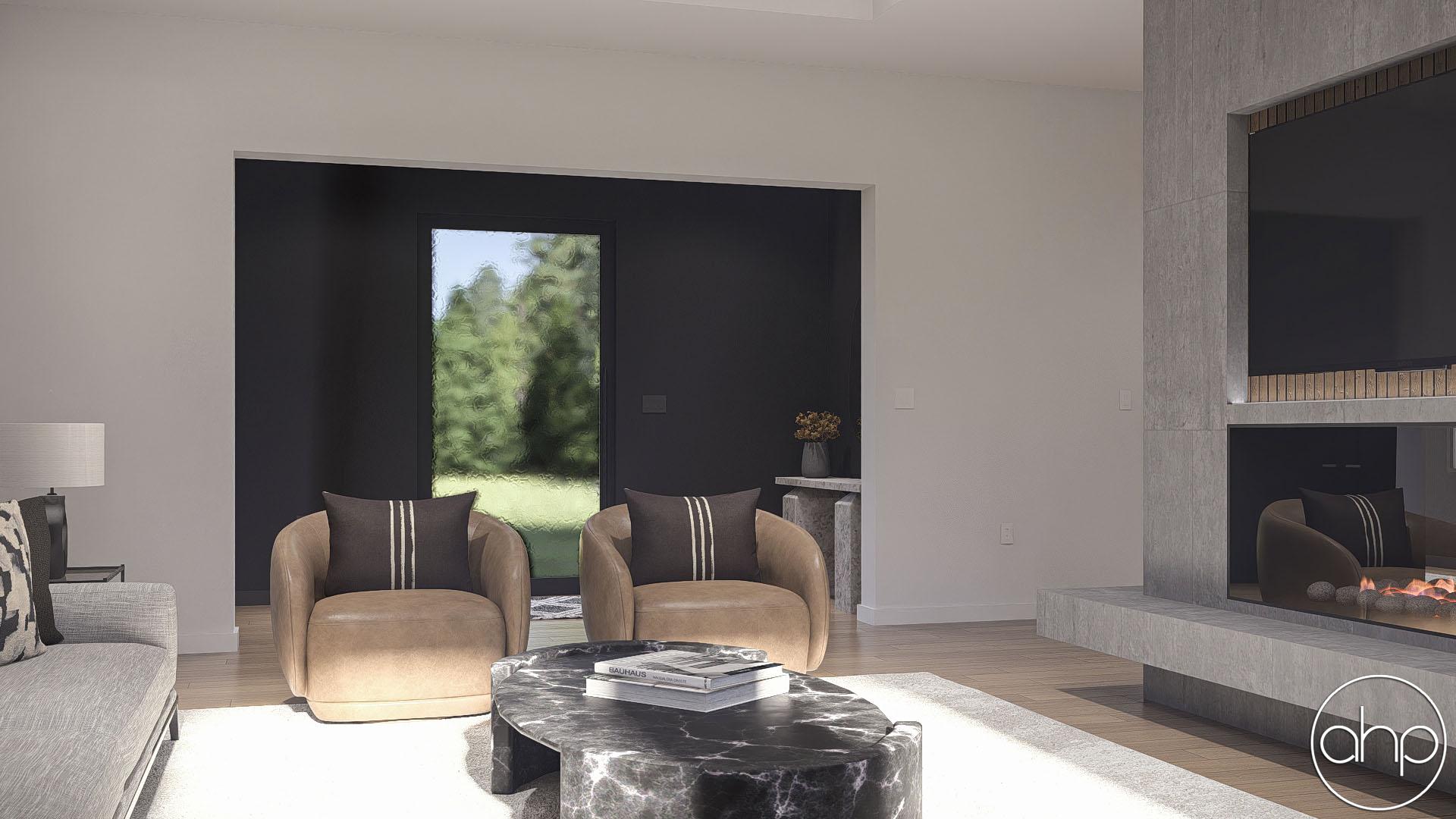

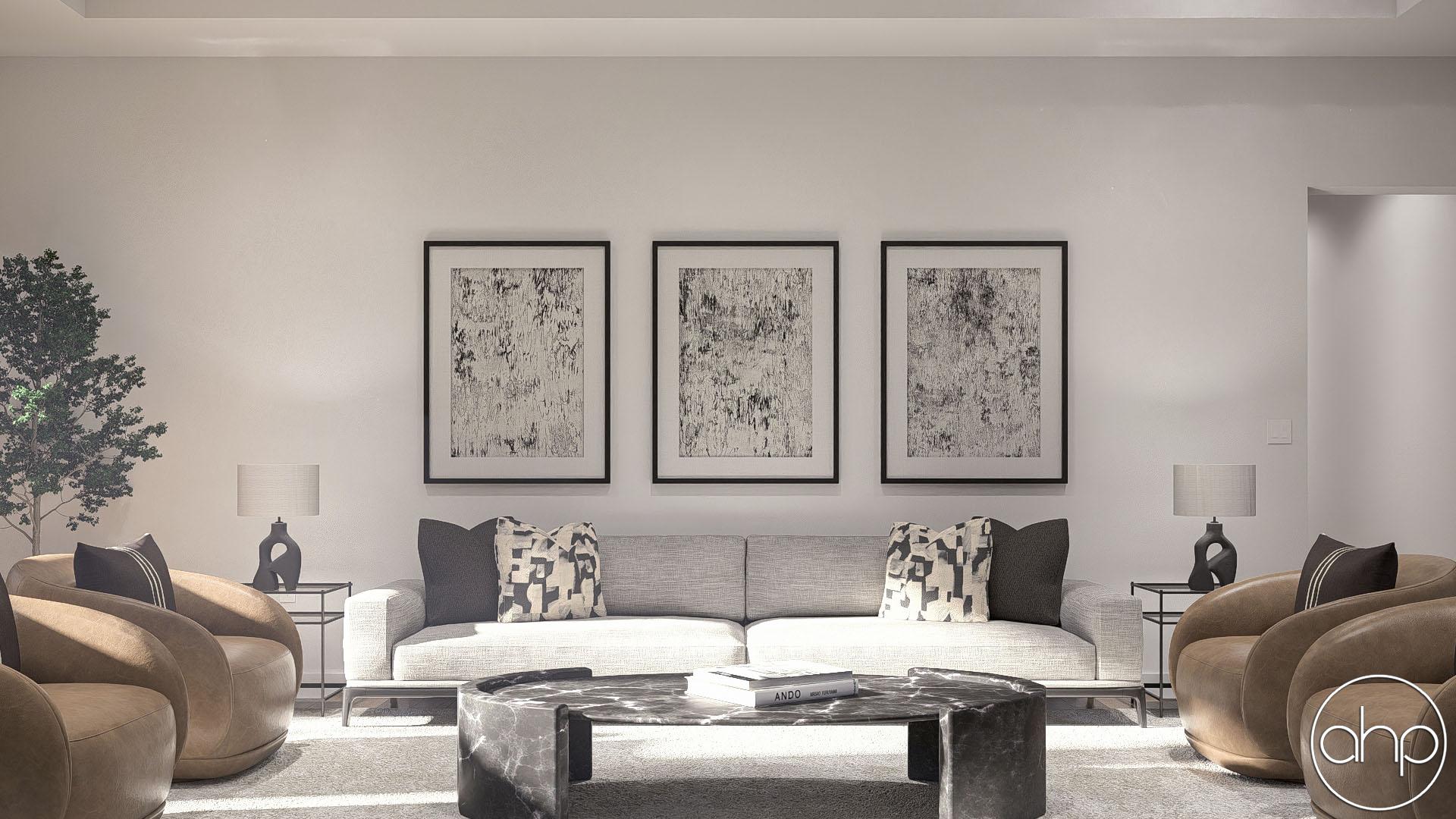

Inside, a spacious entryway sets the tone, opening directly into a bright and airy great room. This central living space flows seamlessly into the large kitchen, where a generously sized island anchors the room—perfect for gathering and everyday living. A dramatic double-sided fireplace elegantly separates the great room and kitchen, providing warmth and visual interest to both spaces.

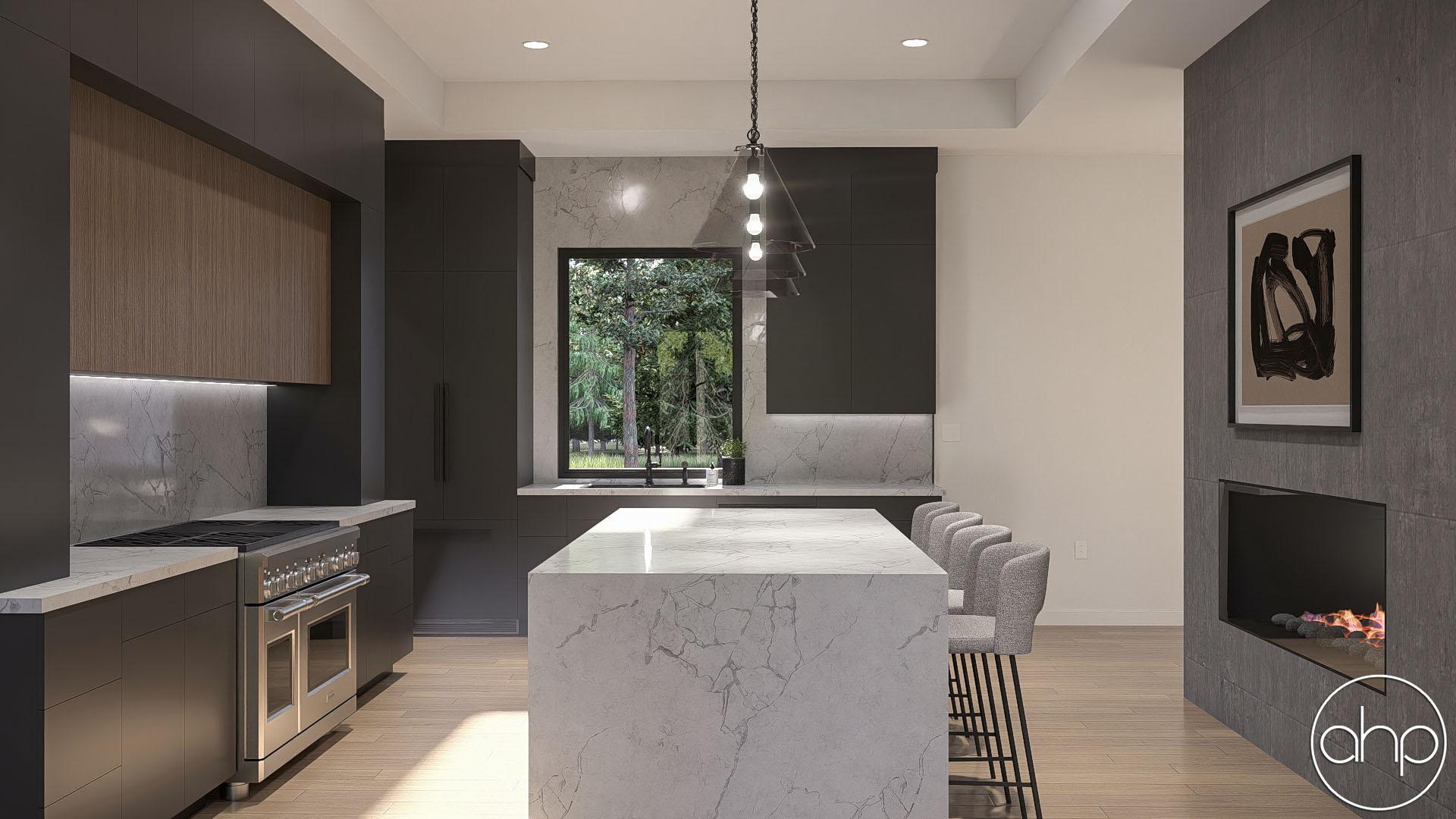

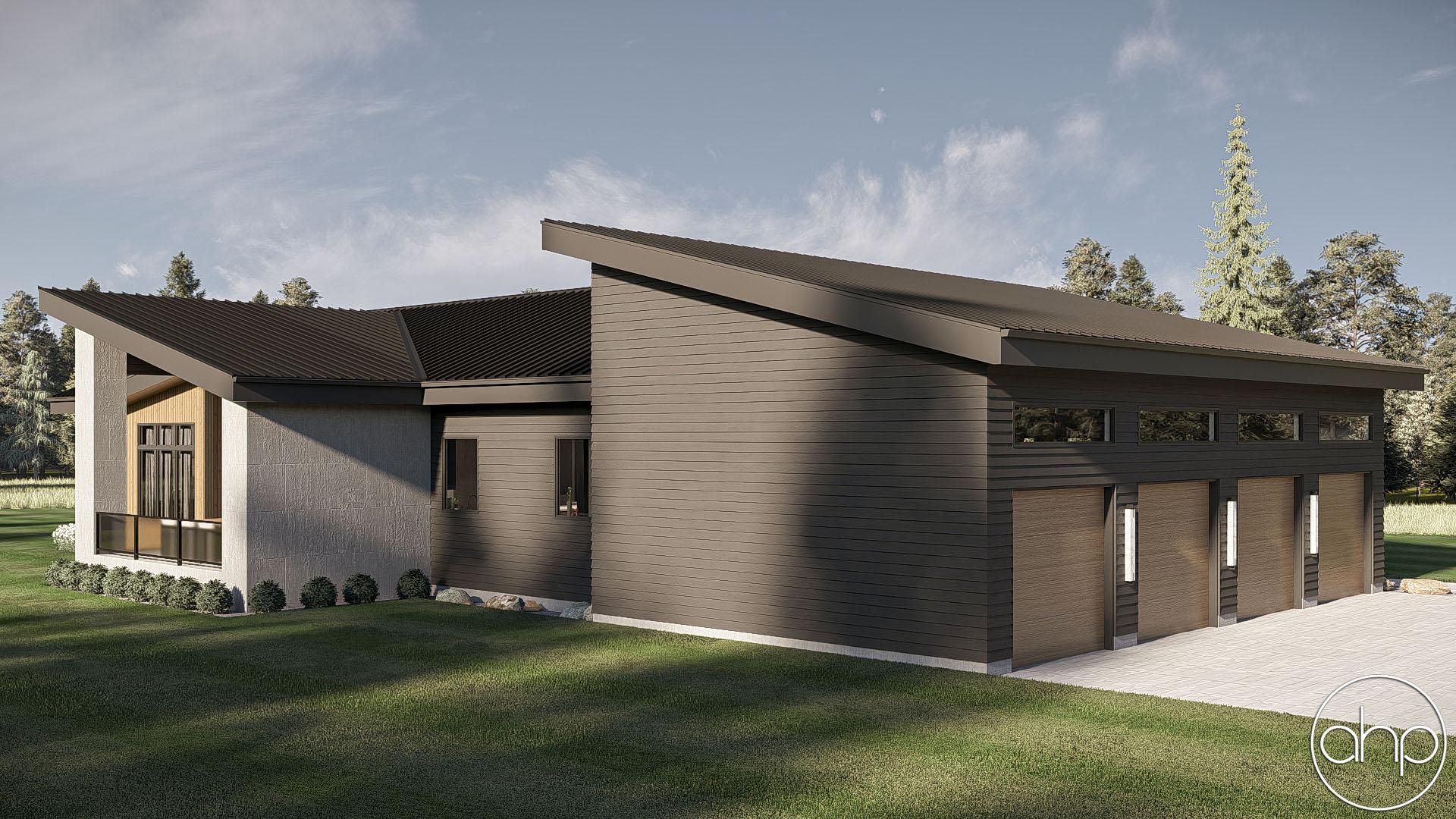

The kitchen is designed for both beauty and efficiency, featuring an open-style butler’s pantry for prep and storage, along with a cleverly concealed walk-in pantry cabinet to keep everything organized yet out of sight. A convenient grocery drop doorway connects the pantry directly to the side-load four-car garage, making unloading simple and efficient.

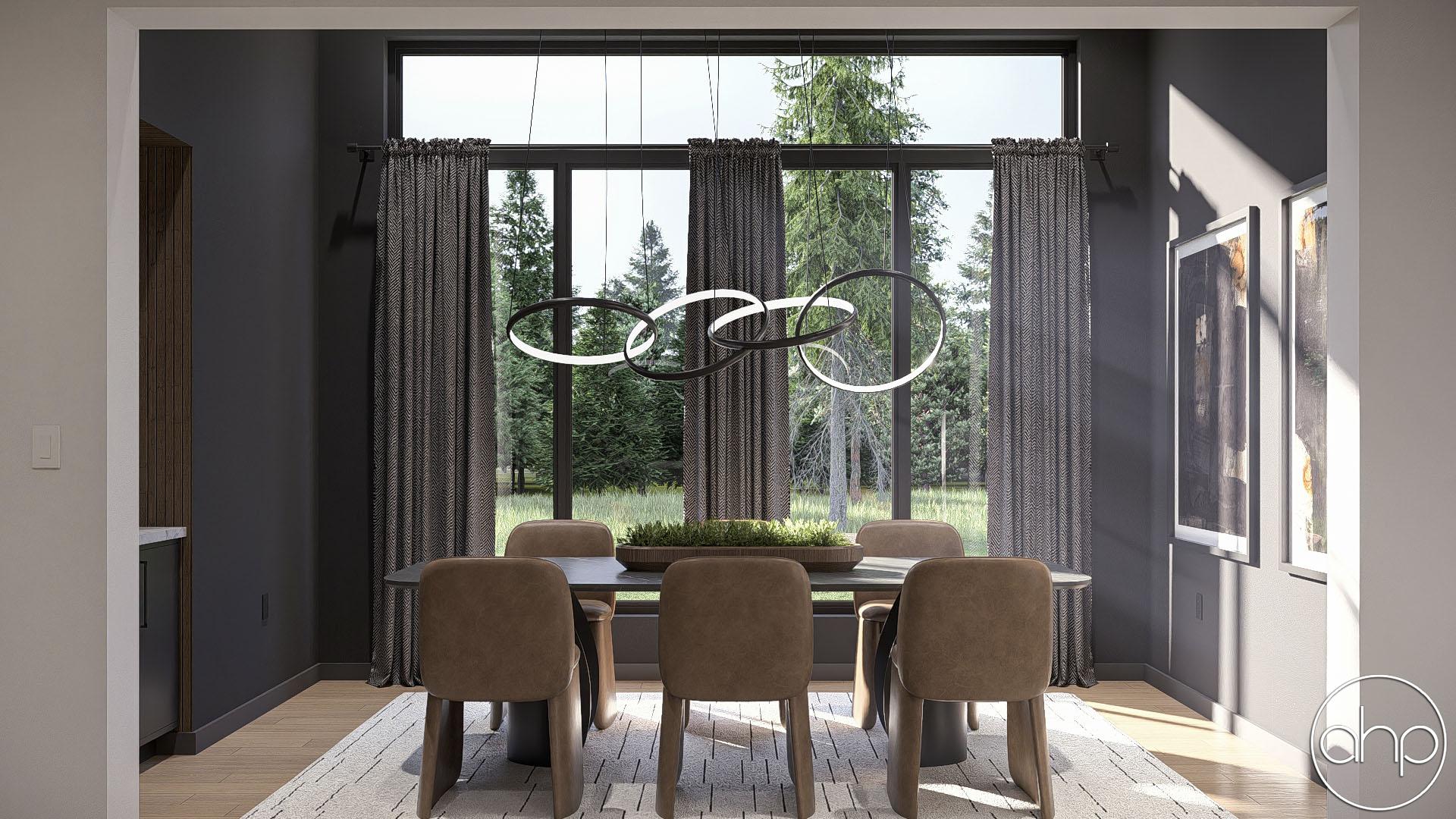

At the front of the home, the dining room enjoys abundant natural light from a large window and is enhanced by a sloped ceiling that adds volume and architectural character—ideal for both casual meals and formal gatherings.

A functional mudroom, located just off the garage, includes access to a conveniently placed half bath, helping keep the main living areas tidy and accessible.

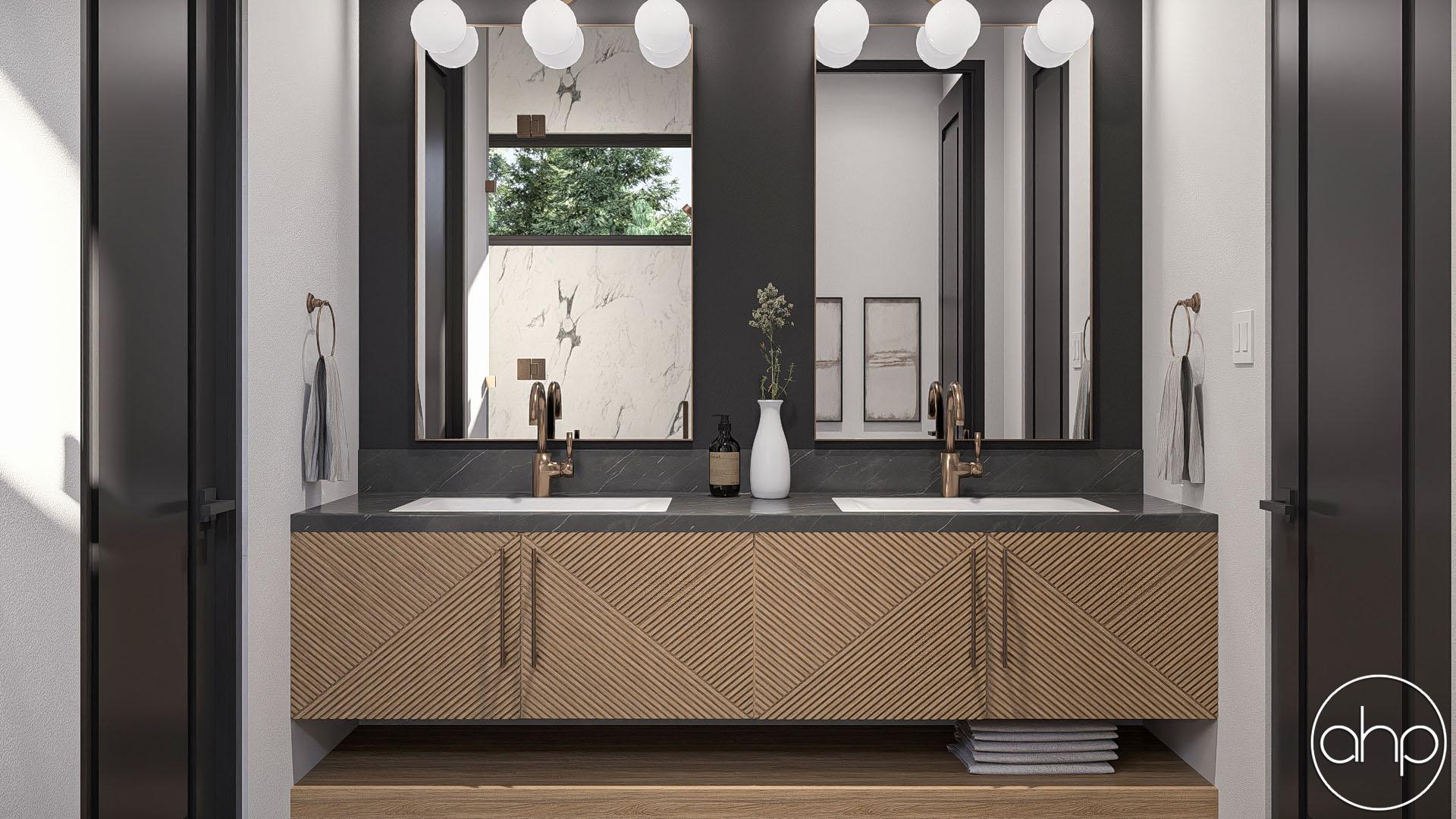

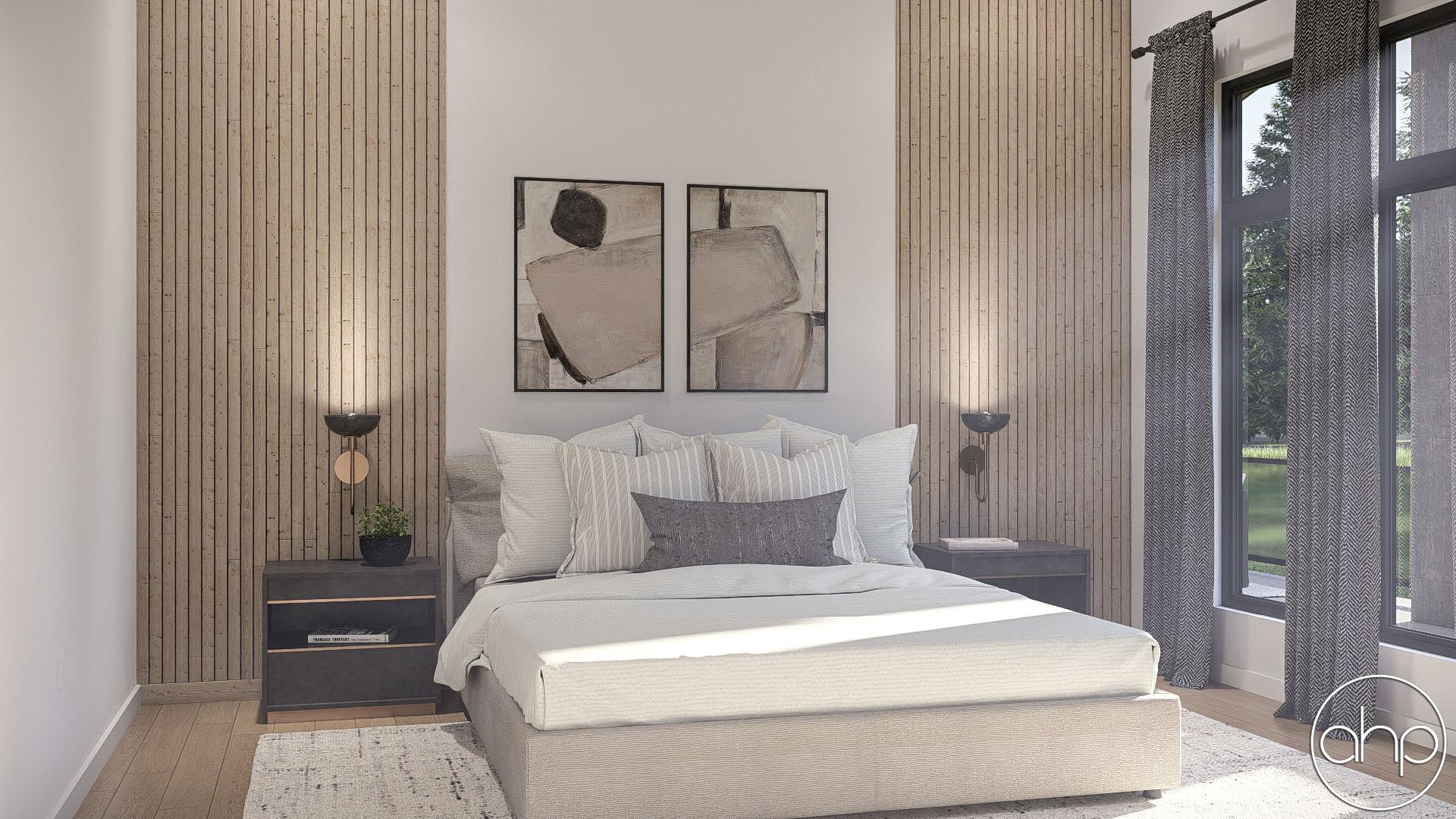

The private wing of the home is thoughtfully separated and includes three bedrooms. Two secondary bedrooms share a well-appointed Jack and Jill bathroom, while the spacious primary suite offers a peaceful retreat. The primary bedroom features a sloped ceiling for added dimension, along with a large walk-in closet and a luxurious ensuite bathroom complete with dual vanities and a walk-in wet room.

A centrally located laundry room ensures easy access from all bedrooms, enhancing everyday convenience.

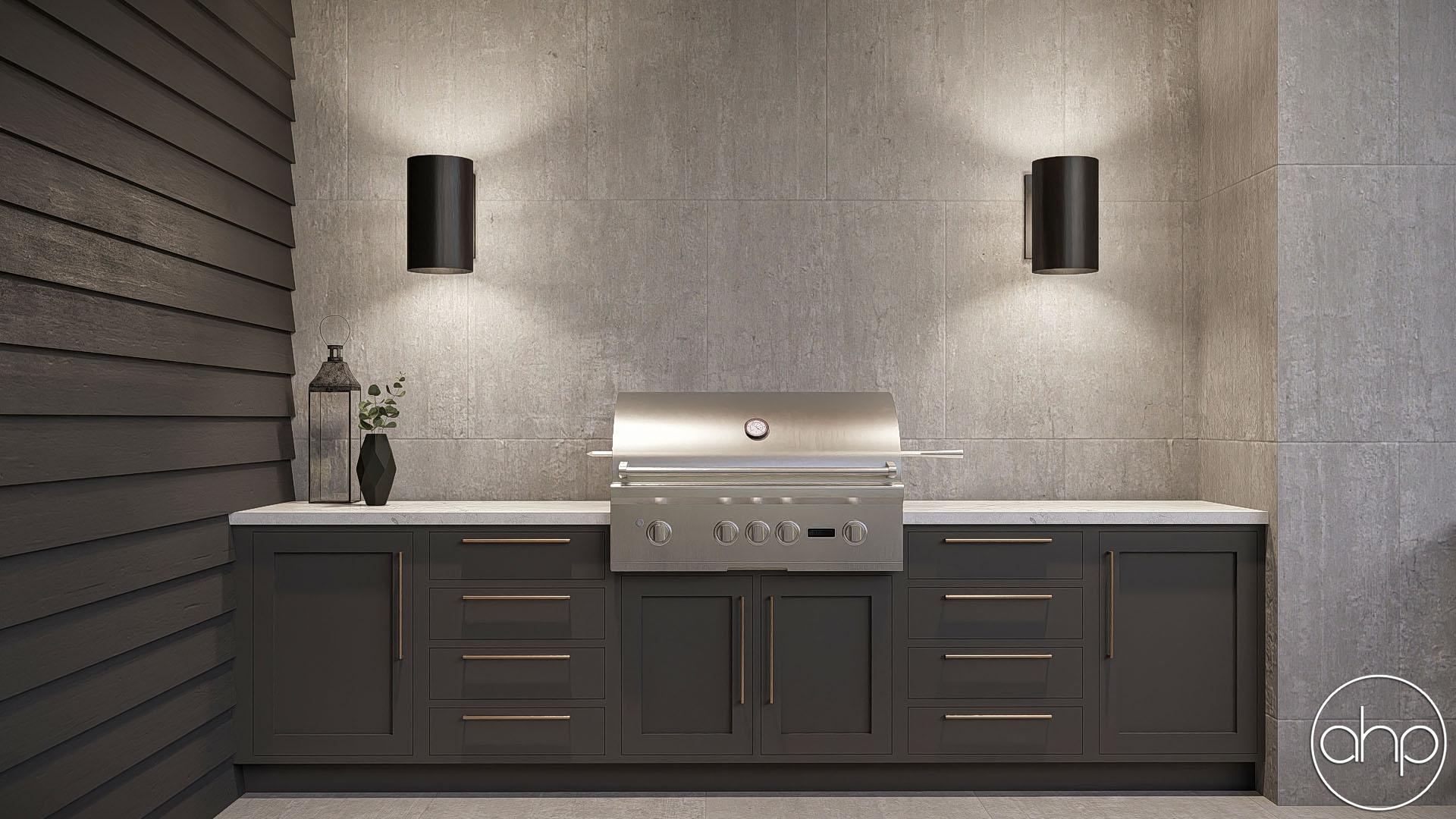

Extending the living space outdoors, a large covered rear porch sits just off the great room. With its own sloped ceiling and built-in outdoor kitchen, it’s the perfect setting for entertaining or relaxing year-round.

Overall, this home plan delivers a refined modern aesthetic paired with highly functional living spaces, designed to support both comfort and style.


Construction Specifications

Basic Layout Information
Bedrooms 3
Bathrooms 3
Garage Bays 4
Square Footage Breakdown
Main Level 2642 Sq Ft
Total Finished Area 2642 Sq Ft
Garage 1207 Sq Ft
Covered Areas (patios, porches, decks, etc) 419 Sq Ft
Optional Basement Area (Not included in total sq ft) 2116 Sq Ft
Exterior Dimensions
Width 100' 0"
Depth 57' 8"
Ridge Height 20' 1"
Default Construction Stats
Default Foundation Type Basement
Default Exterior Wall Construction 2x4
Roof Construction Method Trusses
Floor Construction Method Floor Trusses
Roof Pitches Primary 5/12, Secondary 3/12, 2/12, Flat
Foundation Wall Height 9'
Main Level Ceiling Height 10'

Instant Cost to Build Estimate

Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.

Powered By Advanced House Plans ©

What's Included in a Plan Set?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.

Cover Sheet

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements

Exterior Finishes Sheet

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Foundation Plans Sheet

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.

Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.

Floor Plans and Electrical

Roof Plan

Roof Plans

Typical Wall Section, Stair Section, Cabinets

Typical Wall Section, Stair Section, Cabinets Sheet

If you have any additional questions about what you are getting in a plan set, contact us today.
