Traditional Style Garage Plan | Varnelle

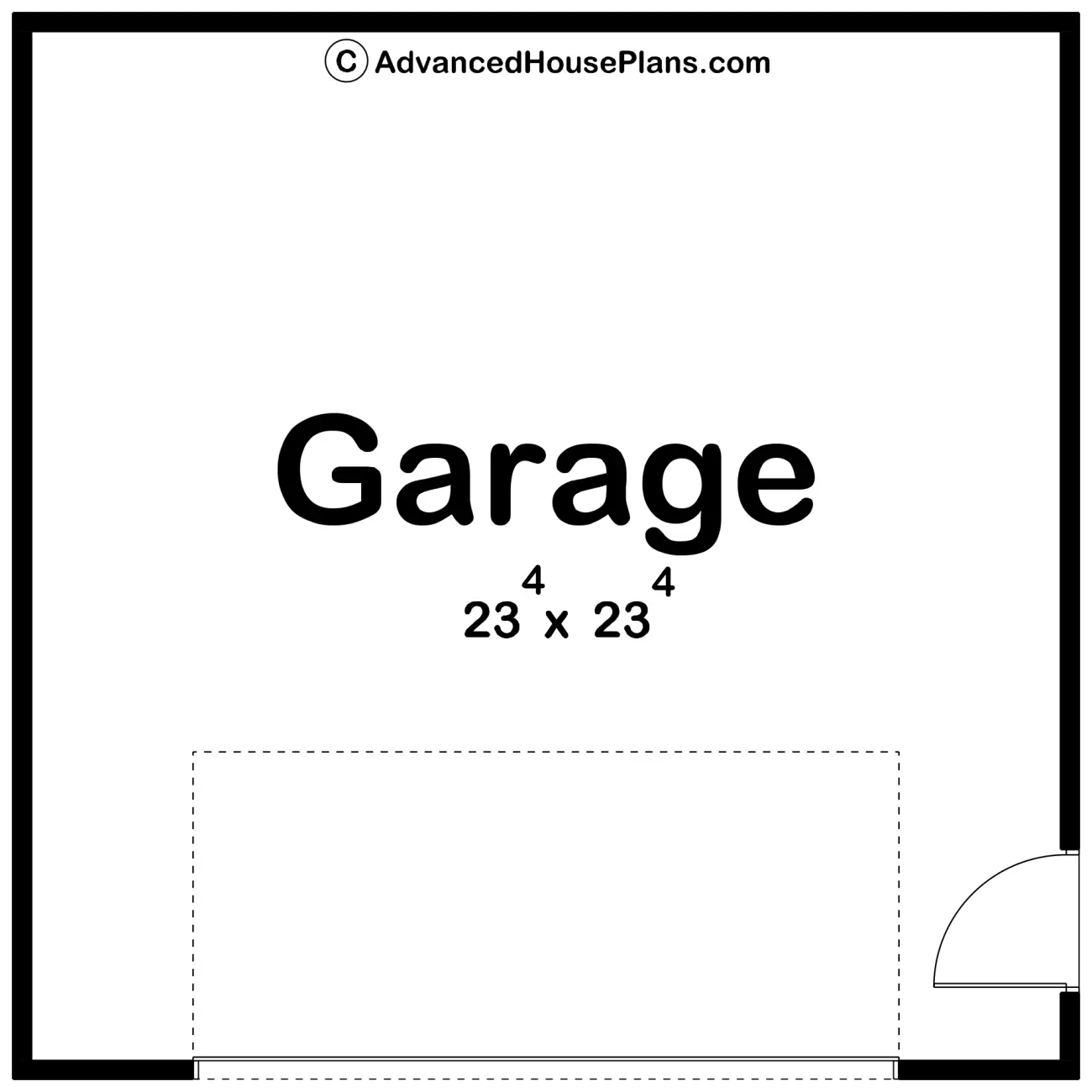

Floor Plan Images
Plan Description

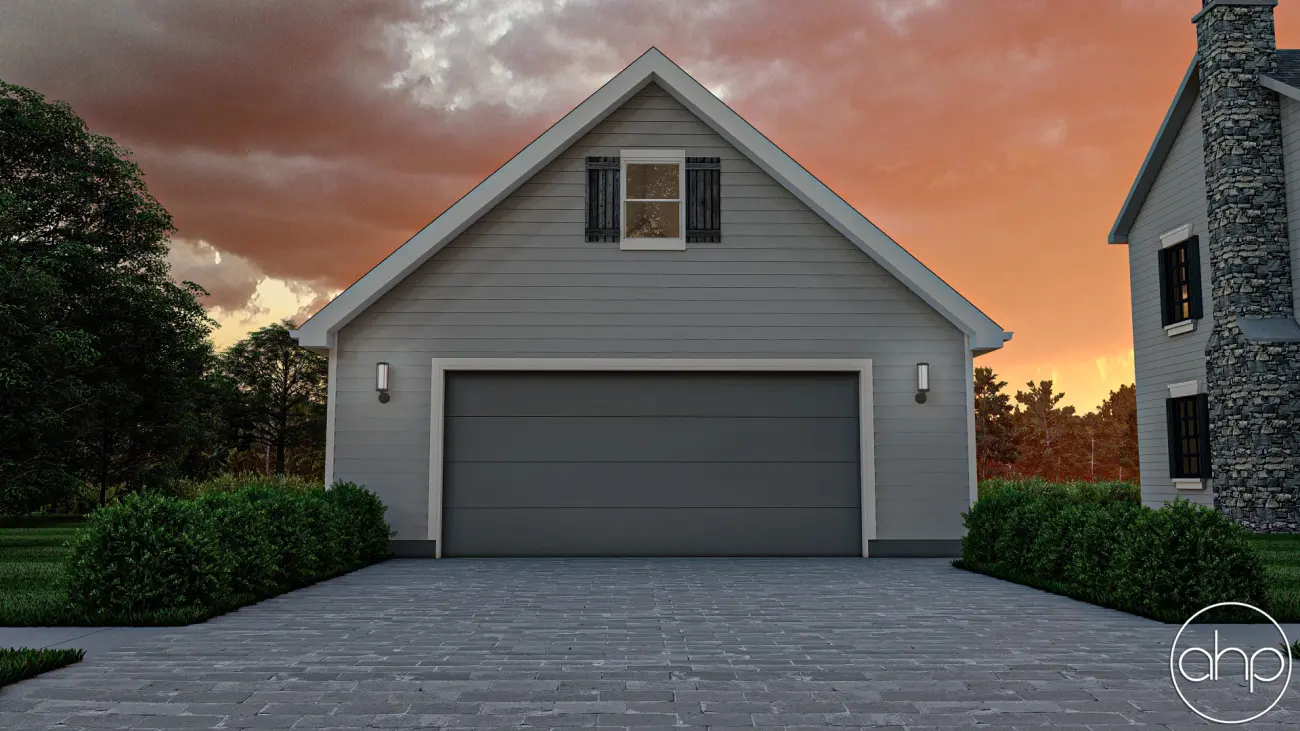

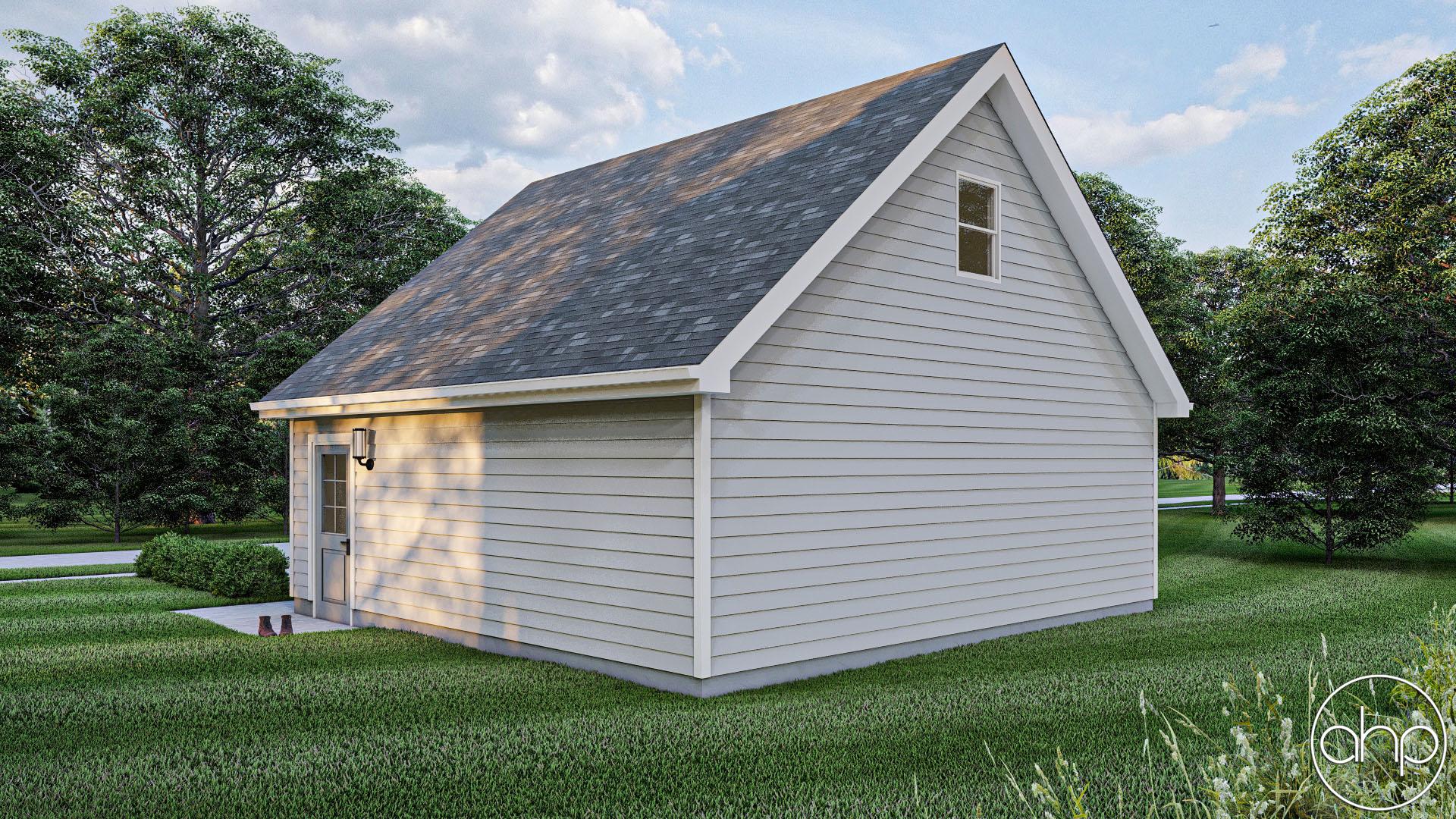

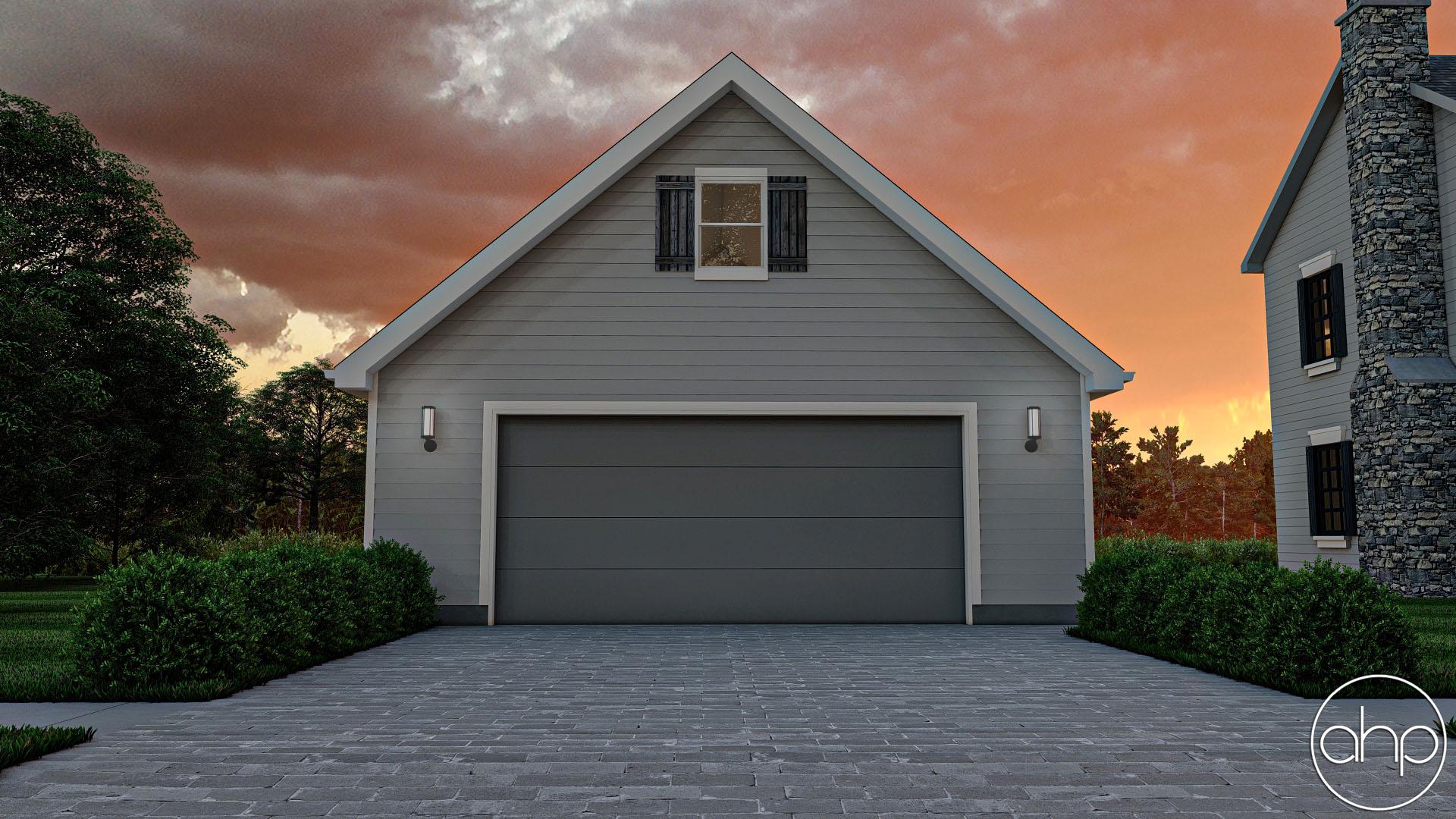

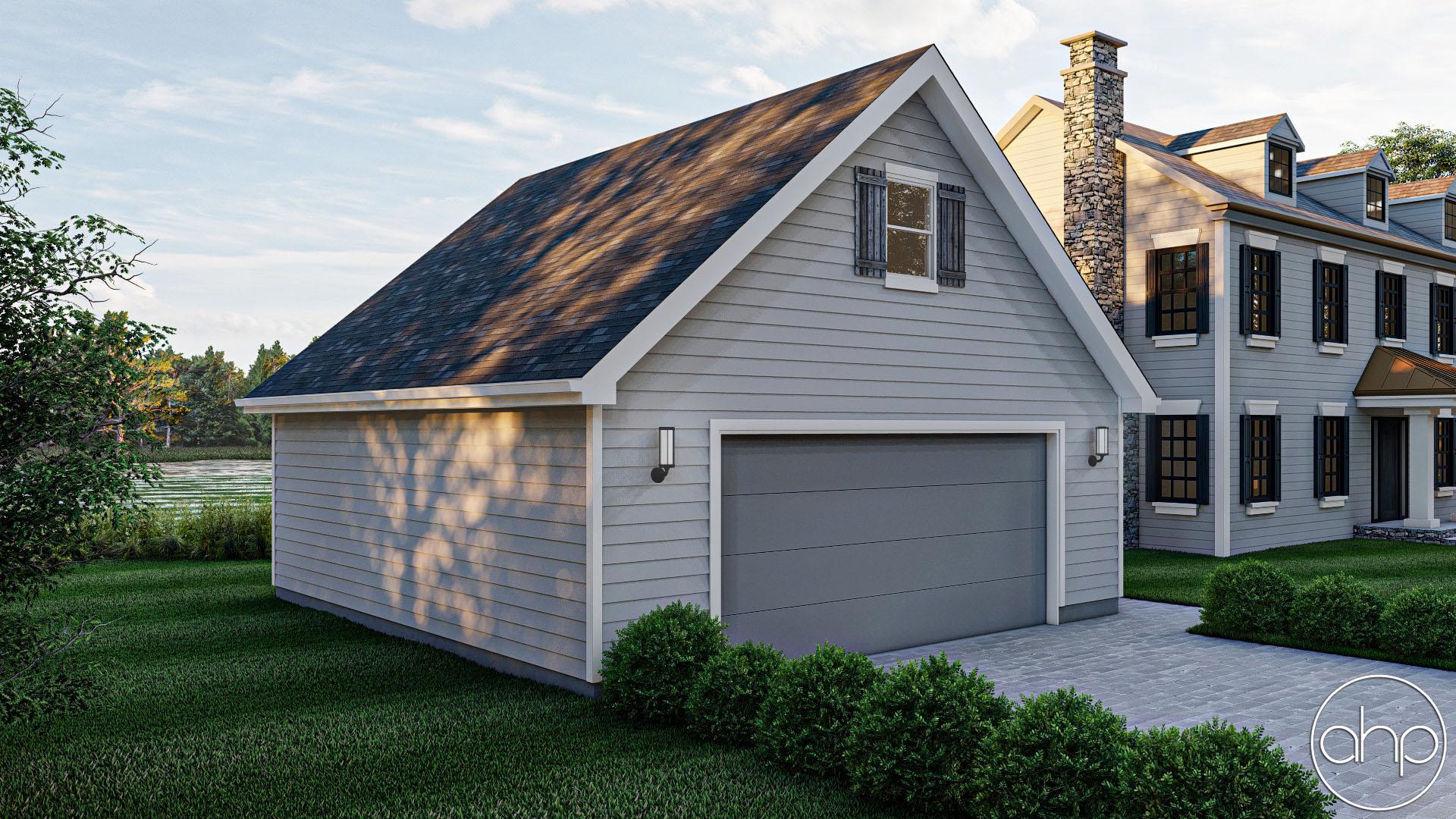

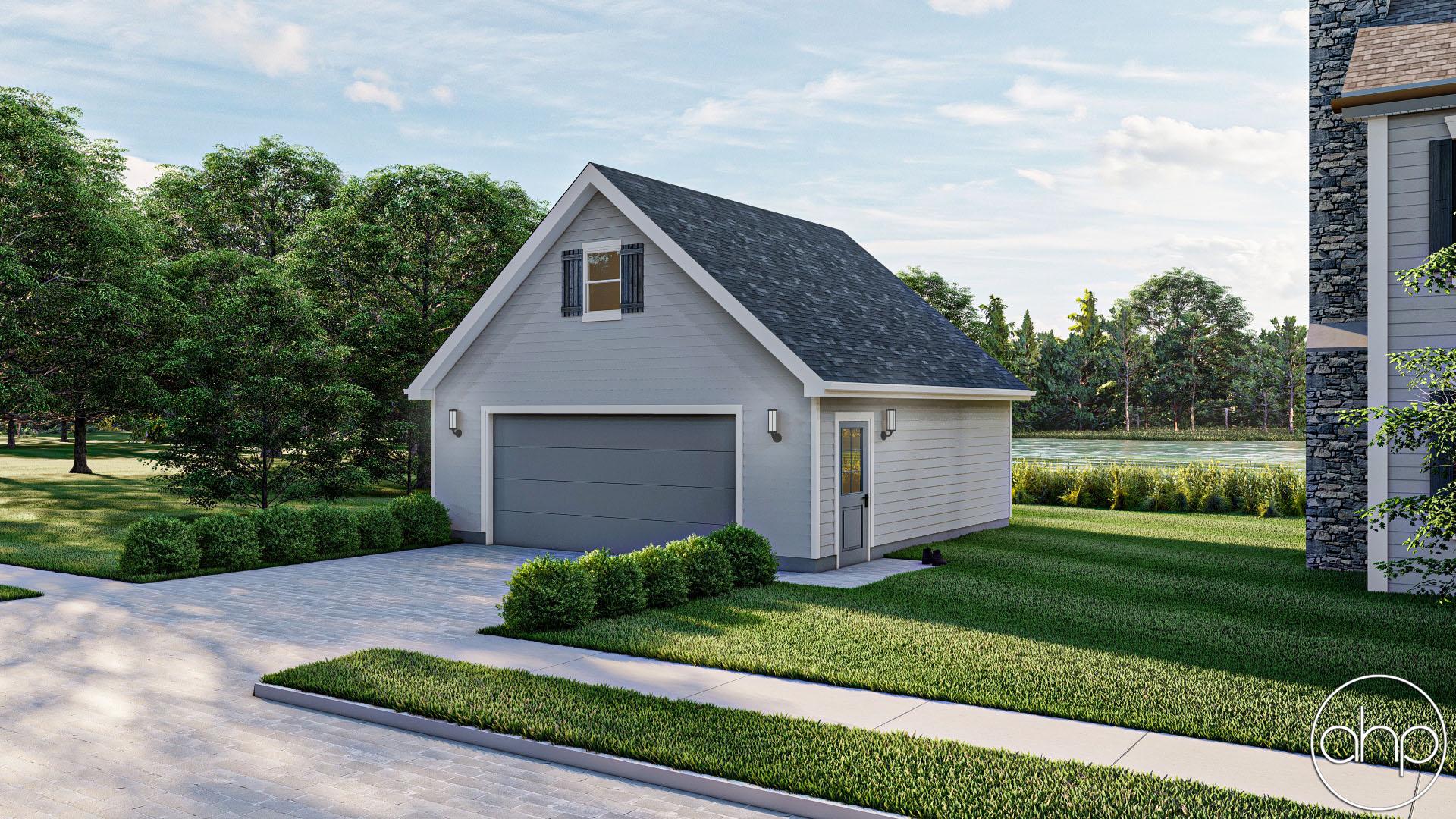

The Varnelle is a charming 2-car detached garage designed with timeless traditional style and standout curb appeal. Its front-load layout offers easy access, while the windows on both the front and rear add character. Whether you need extra parking, storage, or a beautifully matched addition to your property, the Varnelle delivers practical space with traditional appeal.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 0 |
| Bathrooms | 0 |
| Garage Bays | 2 |
| Square Footage Breakdown | |
| Garage | 576 Sq Ft |
| Exterior Dimensions | |
| Width | 24' 0" |
| Depth | 24' 0" |
| Ridge Height | 18' 7" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x4 |
| Roof Construction Method | Trusses |
| Roof Pitches | Primary 10/12 |
| Main Level Ceiling Height | 8' |
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
Note: A material list is included for all garage plans.
