Clayton | 29374

Affordable Cottage Style 2 Car Garage with Side Door Access | Clayton

Bays
576
Gar. Sq Ft
0
Fin. Sq Ft
24' 0"
Width
24' 0"
Depth

Floor Plan Images

Looking for something specific? We'll customize any plan to match your needs. Get your free alteration quote →

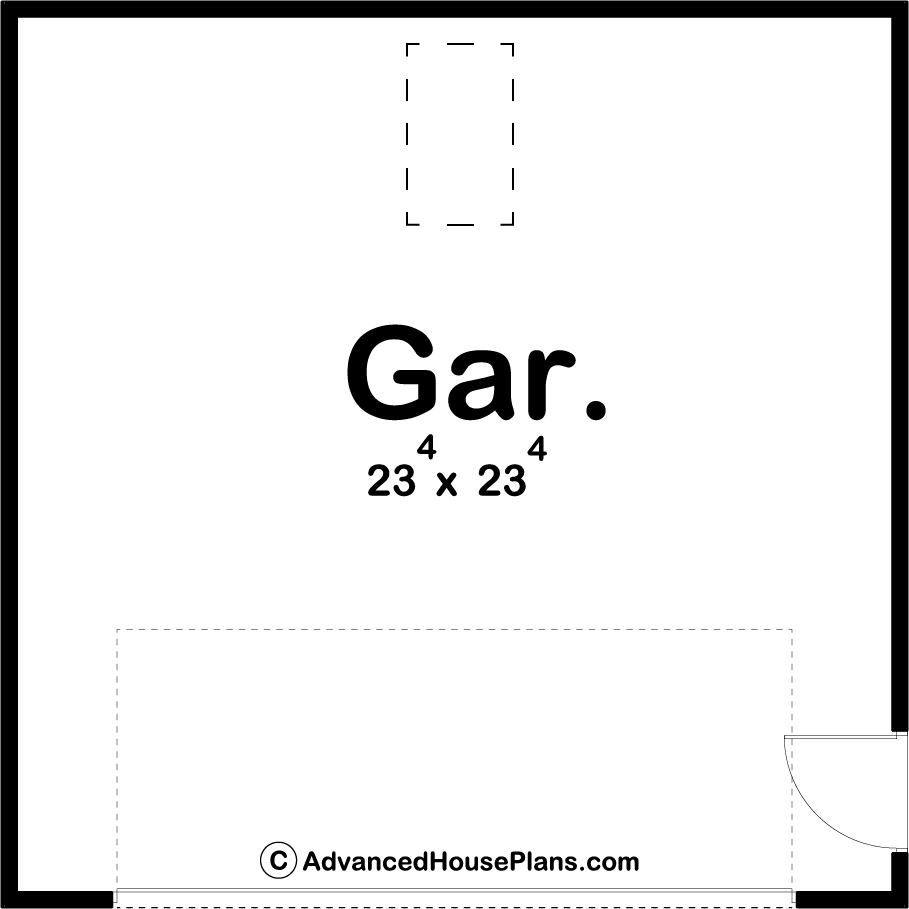

Main Floor Layout
Clayton

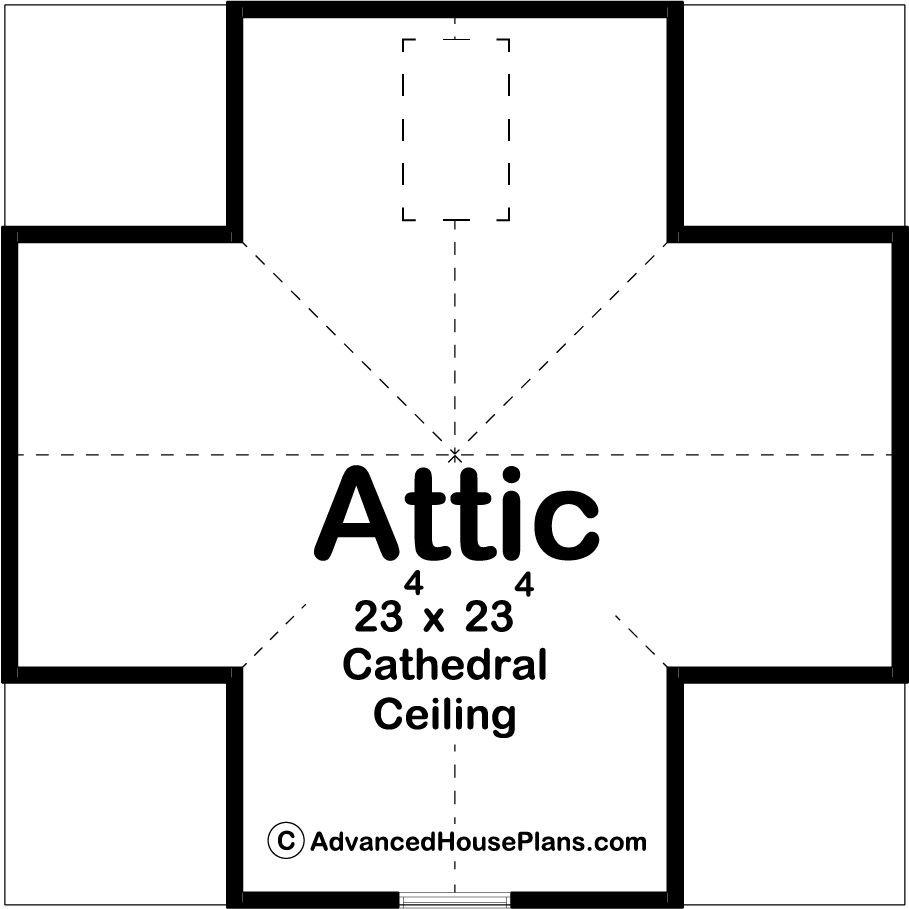

Second Floor Layout
Clayton

Plan Description

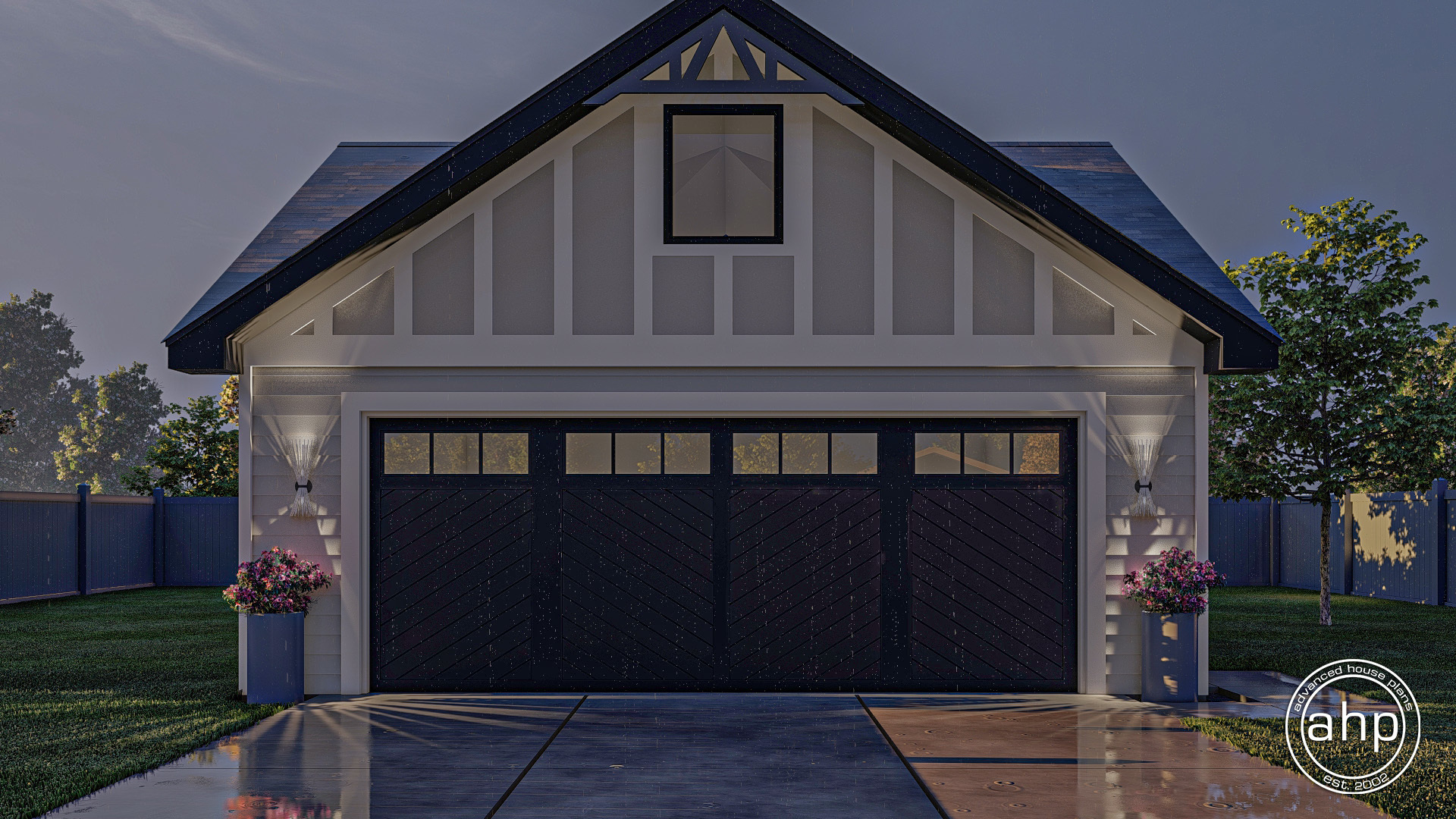

The Clayton is a cute cottage style garage with an attic above. The attic is accessed by a hatch stair. In the attic there are cathedral ceilings to allow for enough head room while up there. The window in the gable allows for ample amount of sunlight and fresh air. The garage has plenty of space for 2 cars. On the side of the garage lies a person door for easy access in and out without having to use the overhead door. Use this garage for you vehicles, as a workshop, or even just a storage building.

Construction Specifications

Basic Layout Information
Bedrooms 0
Bathrooms 0
Garage Bays 2
Square Footage Breakdown
Garage 576 Sq Ft
Exterior Dimensions
Width 24' 0"
Depth 24' 0"
Default Construction Stats
Default Foundation Type Slab
Default Exterior Wall Construction 2x4
Roof Pitches 8/12 Primary
Main Level Ceiling Height 9'
Second Level Ceiling Height 3'

What's Included in a Plan Set?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.

Cover Sheet

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements

Exterior Finishes Sheet

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Foundation Plans Sheet

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.

Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.

Floor Plans and Electrical

Roof Plan

Roof Plans

Typical Wall Section, Stair Section, Cabinets

Typical Wall Section, Stair Section, Cabinets Sheet

If you have any additional questions about what you are getting in a plan set, contact us today.

Compare
$599
We now offer financing to make your plan purchase simple!
Apple Pay
Google Pay
Affirm Badge
AfterPay Badge

Upgrade Your Plan With Add-ons

Note: Add-ons may result in a longer turn-around time.

Note: A material list is included for all garage plans.
