Floor Plans
Plan Description

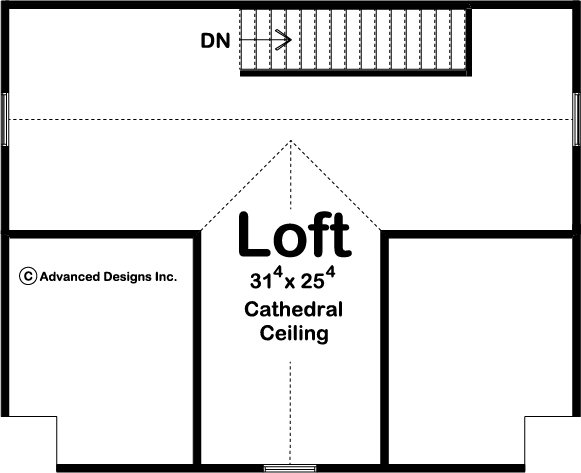

This is a 2 story traditional garage plan built on slab foundation. There is a loft with cathedral ceilings on the 2nd floor.
As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.
Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
Similar Plans
Fillmore
This is a 2 story traditional garage with a built in shop in the rear and a loft on the upper level. It is built on a slab foundation.
...read moreEleanor
This is a single story traditional style ...read more
Walters
The Walters is a traditional style garage plan with large doors on both the front and the side. On the second floor you will find a large loft with a bathroom.
...read moreFull Plan Specs
Rooms
Bedrooms | 0 |
Bathrooms | 0 |
Garage Bays | 2 |
Square Footage
Second Level | 507 Sq. Ft. |
Garage | 814 Sq. Ft. |
Total Finished | 507 Sq. Ft. |
Exterior Dimensions
Width | 32' - 0" |
Depth | 26' - 0" |
Ridge Height | 25' - 0" |
Ridge height shown from main level floor line. |
Construction Specs
Foundation Type | Slab |
Exterior Walls | 2x4 |
Roof Pitches | 10/12 Primary |
Main Wall Height | 9' |
