Want to make changes to this plan?

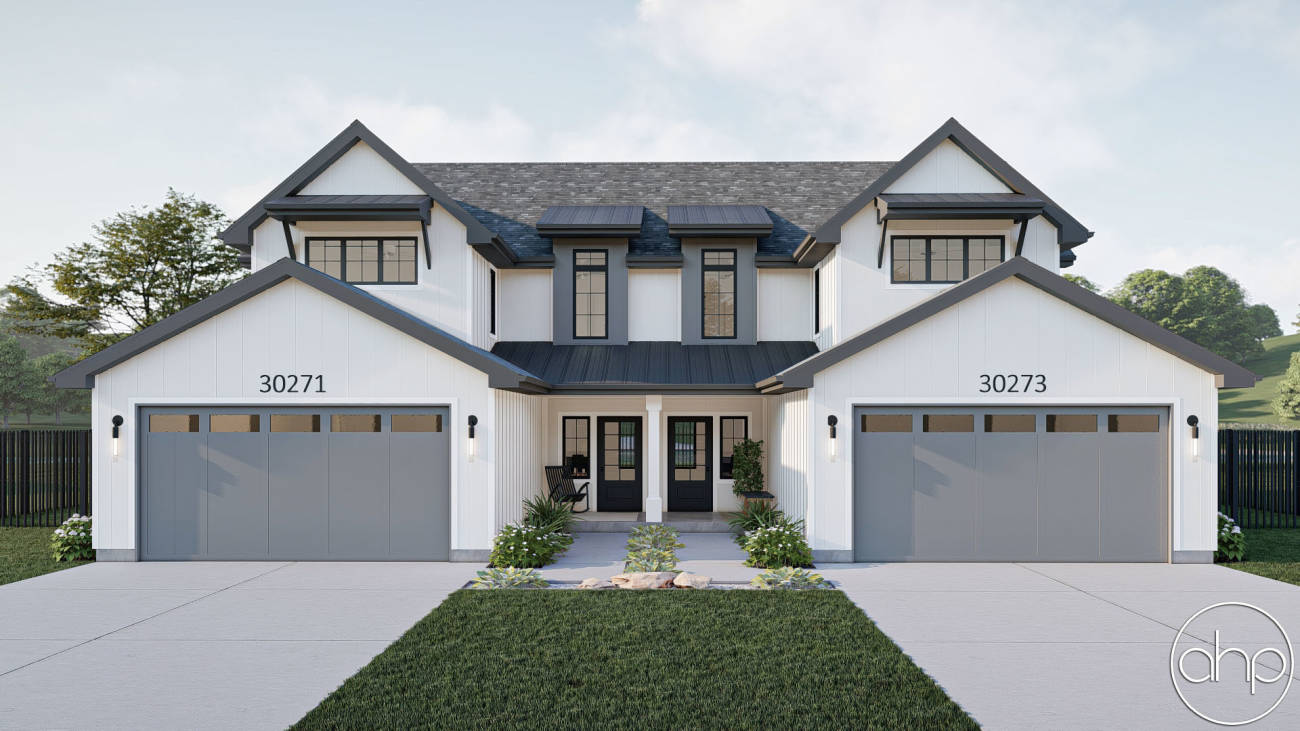

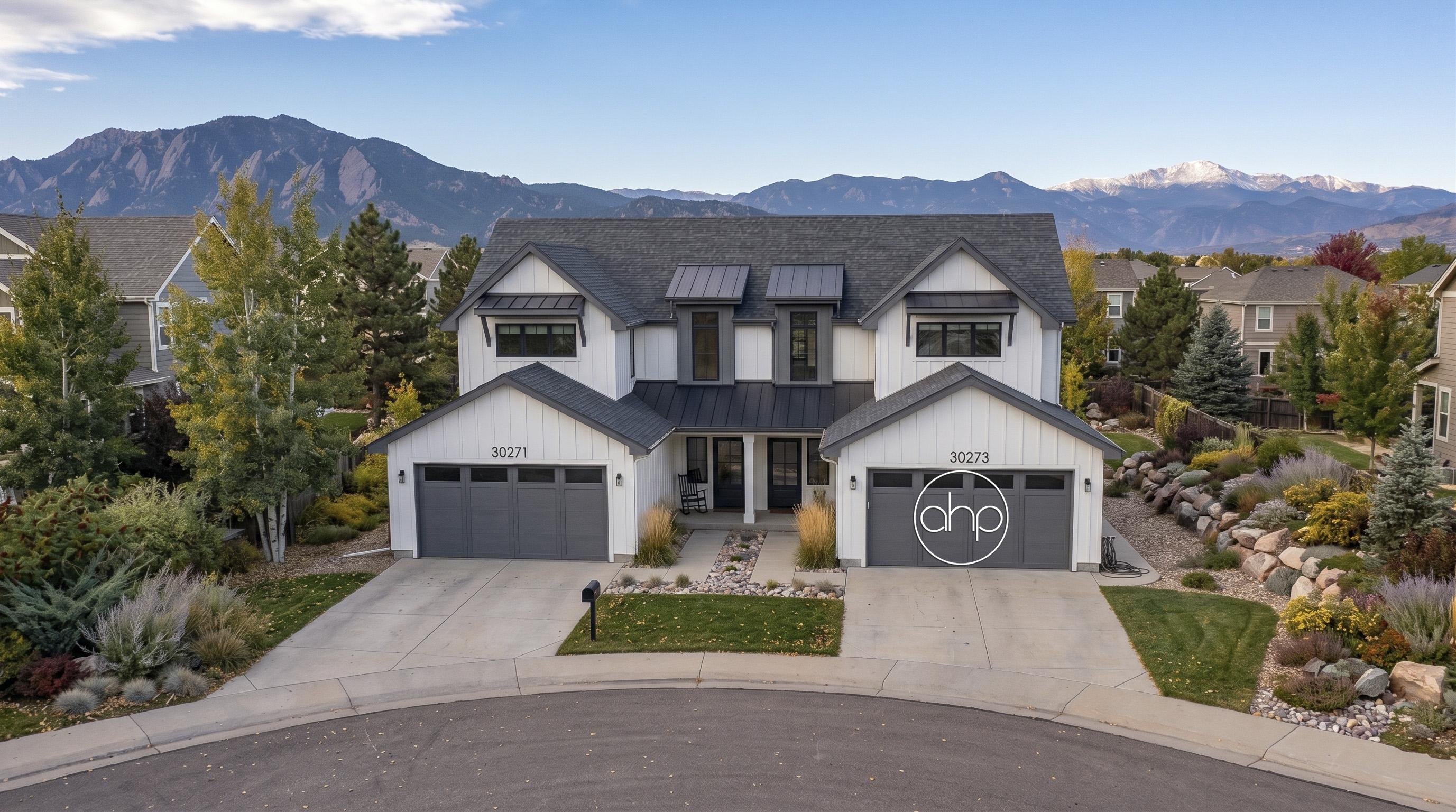

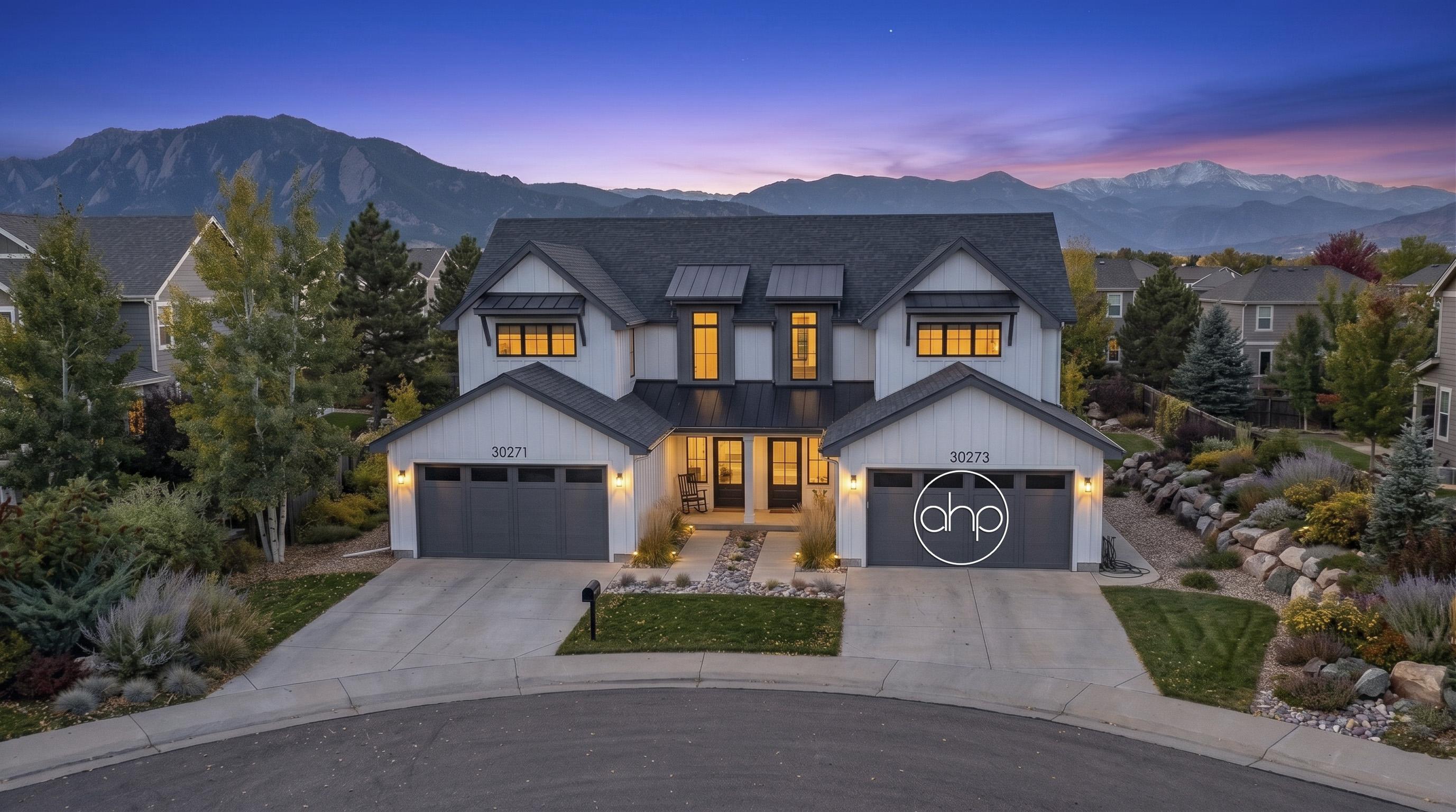

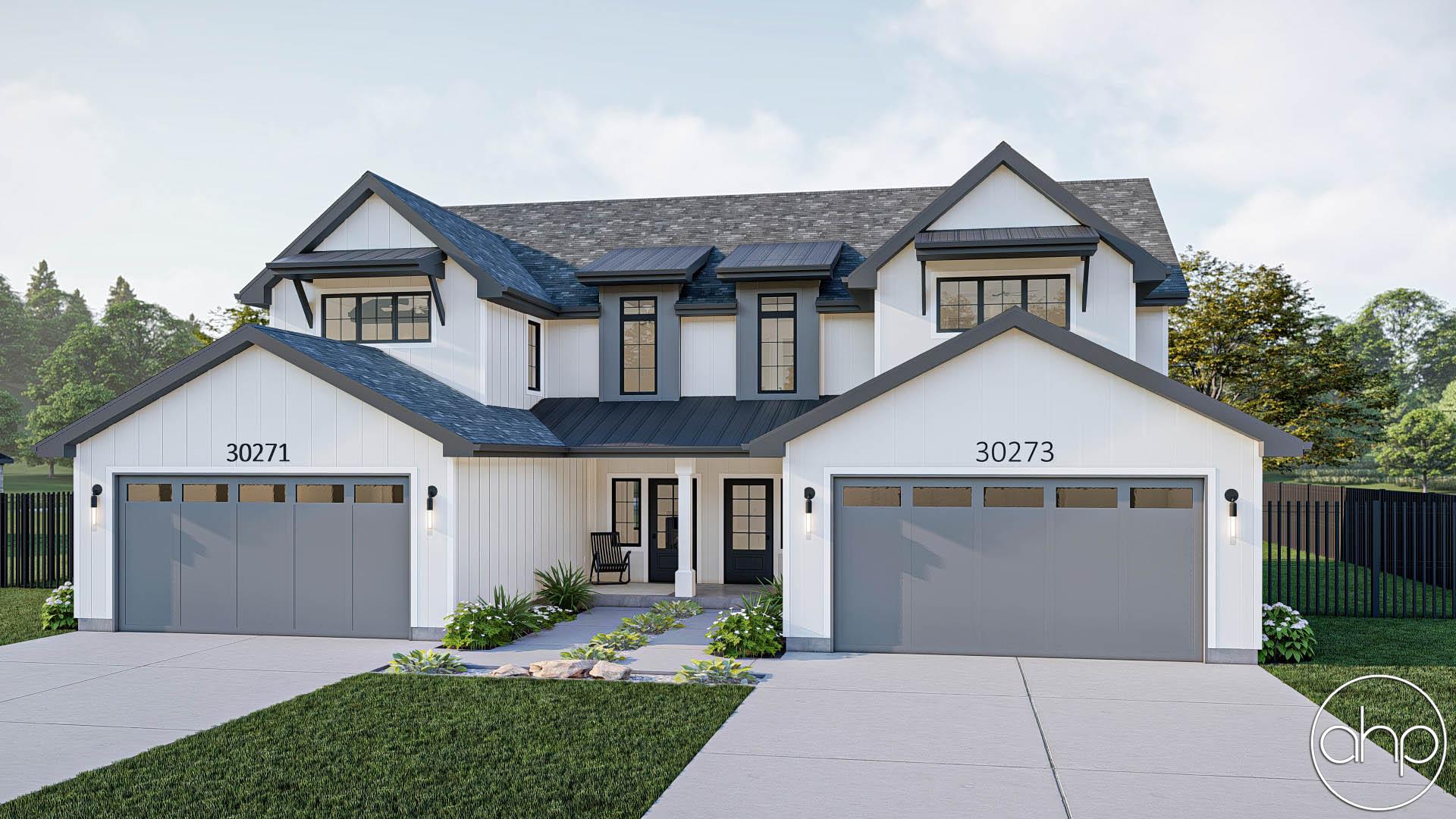

Modern Farmhouse Style Duplex

Wilshire - 30271

Sq Ft
Per Unit
Per Unit
Per Unit
Per Unit
56' 0"
52' 0"

Floor Plan Images

Main Level


Second Level


Plan Description

To see this plan in single-family form, head over to our Ridgehaven plan.


This modern farmhouse style duplex is a multi-family version of our Ridgehaven plan. Head inside through either the two-car garage and mudroom, or the beautiful covered porch and entryway. A powder bath as well as a linen closet can be found near these entry points.

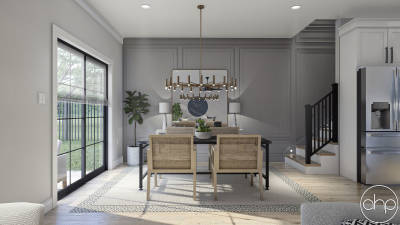

Both head into a gorgeous open space for the kitchen, dining room, and great room. The great room provides a built-in fireplace, perfect for cozying up on a cold day, and the kitchen provides a large kitchen island and plenty of counter space.

Head upstairs to find the bedrooms, two additional bathrooms, and a laundry room. Bedrooms 2 and 3 share a Hollywood bathroom, and the master suite has its own. The room is complete with double vanities, a separate toilet and shower area, and large walk-in closet.


As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 3
Per Unit
Bathrooms 3
Per Unit
Garage Bays 2
Per Unit
Square Footage
Main Level 749 Sq. Ft.
Per Unit
Second Level 842 Sq. Ft.
Per Unit
Covered Area 64 Sq. Ft.
Per Unit
Garage 445 Sq. Ft.
Per Unit
Total Finished Area 1591 Sq. Ft.
Per Unit
Exterior Dimensions
Width 56 ' 0"
Depth 52 ' 0"
Ridge Height
Calculated from main floor line
28 ' 7"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Primary 8/12, Secondary 10/12, 4/12, 6/12
Main Wall Height
Second Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
