30282 | Whalen Flats

Reverse

Designer

360 Tour

Furniture

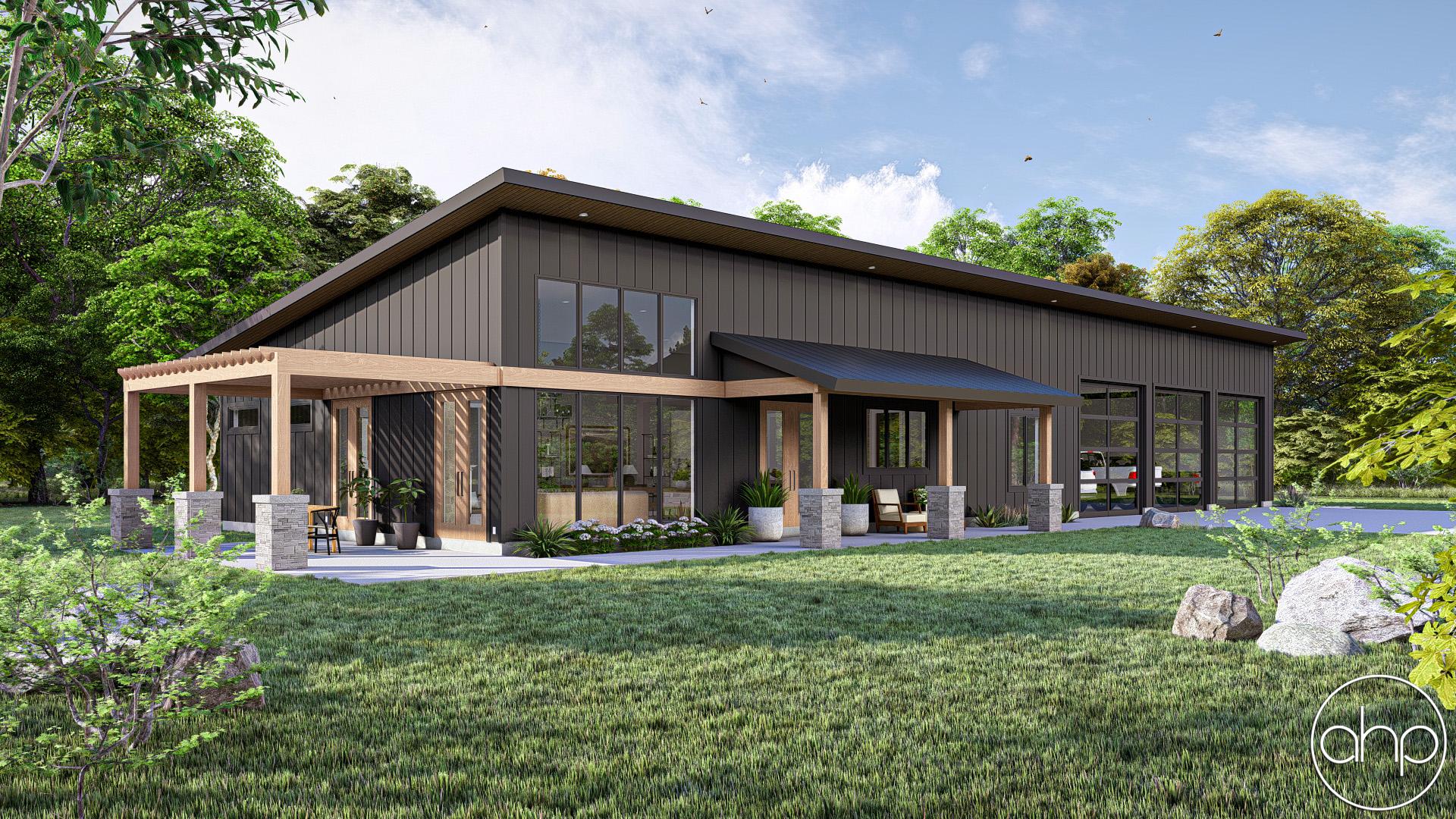

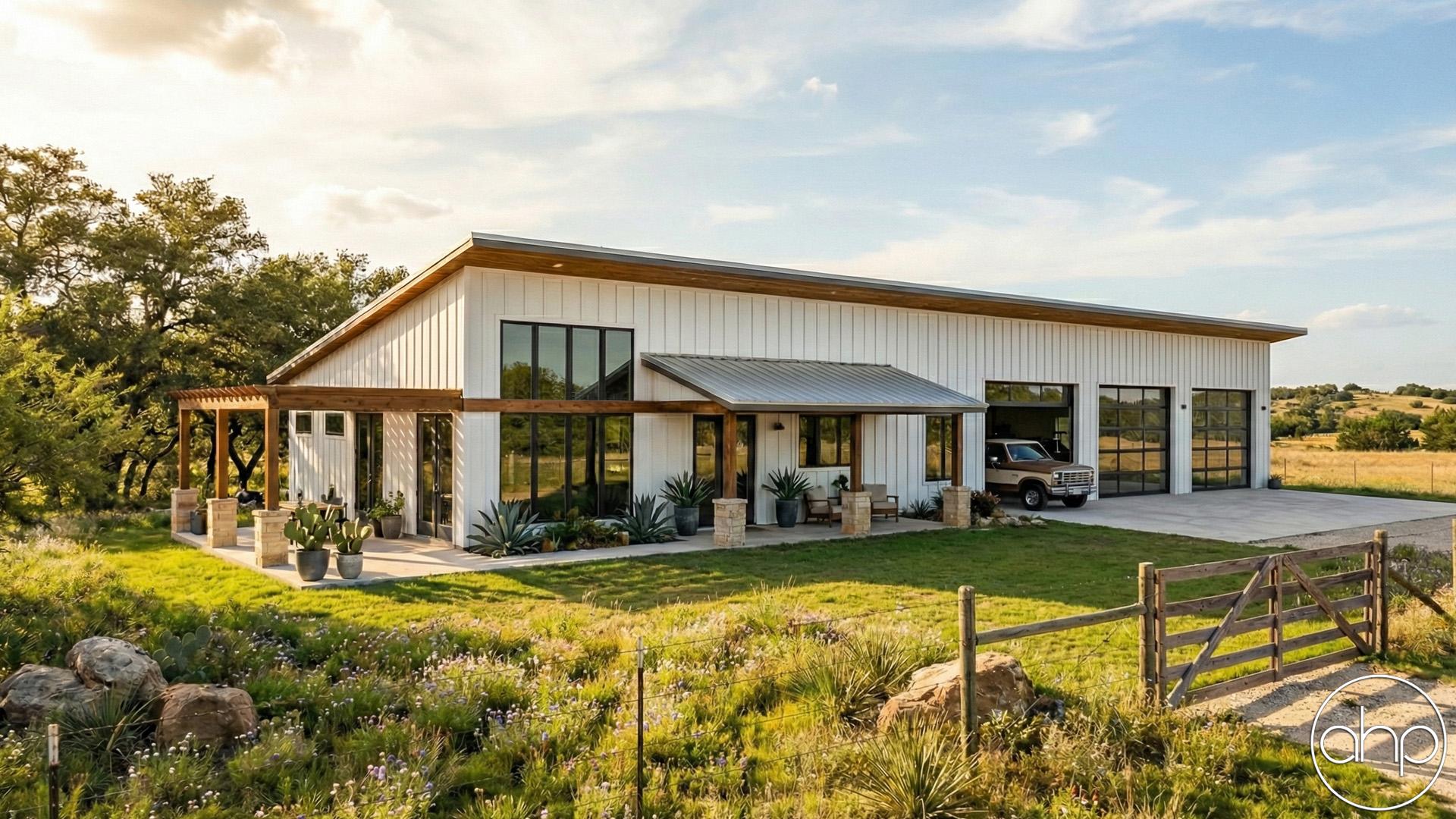

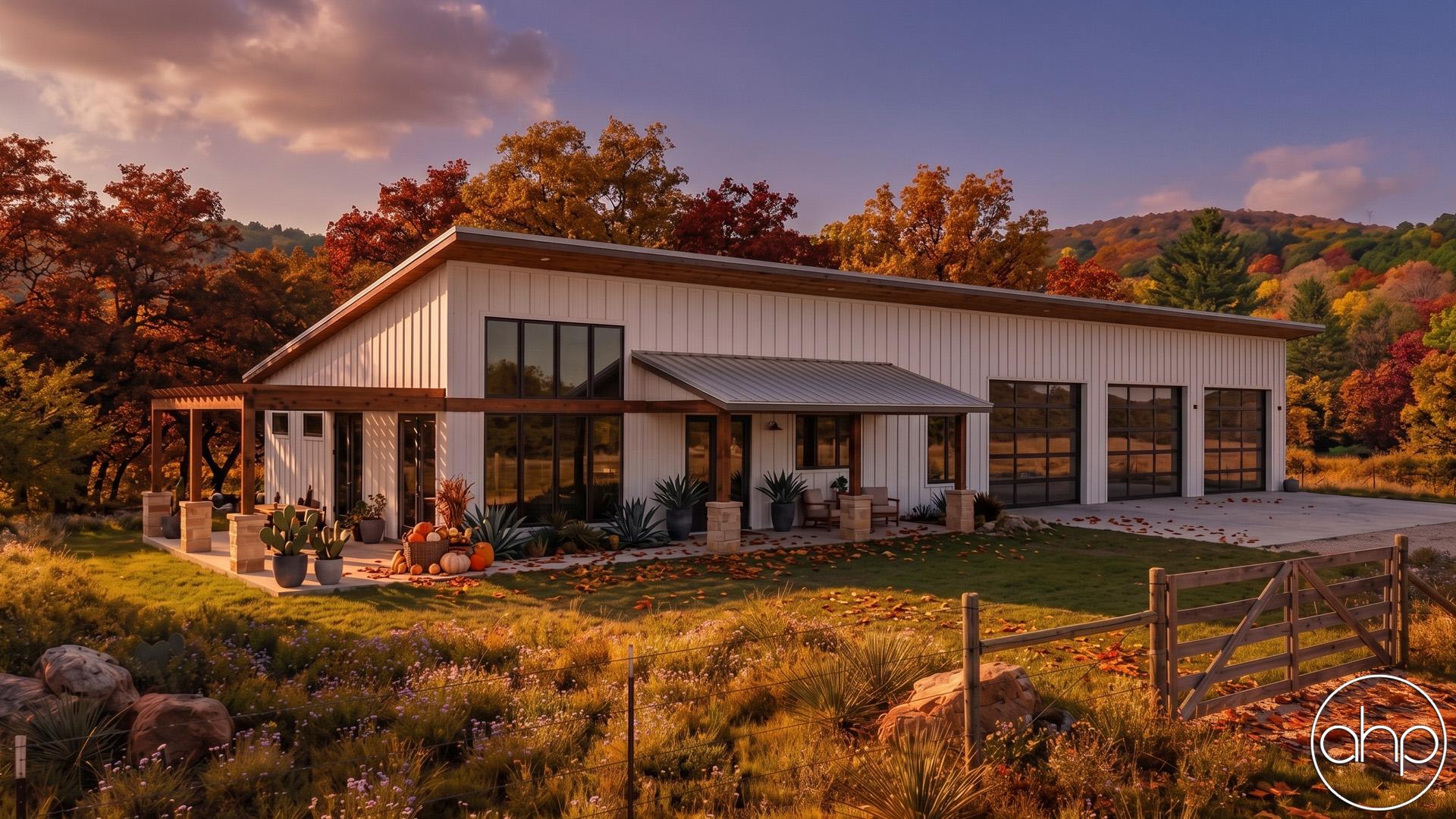

Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering Whalen Flats Rendering
NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

Modern Style Barndominium House Plan

Whalen Flats - 30282

1982
Sq Ft
4
Beds
2
Baths
3
Bays
114' 4"
Wide
43' 4"
Deep

Floor Plan Images

Main Level

Modern Style Barndominium House Plan | Whalen Flats

Plan Description

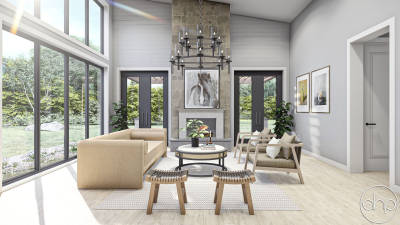

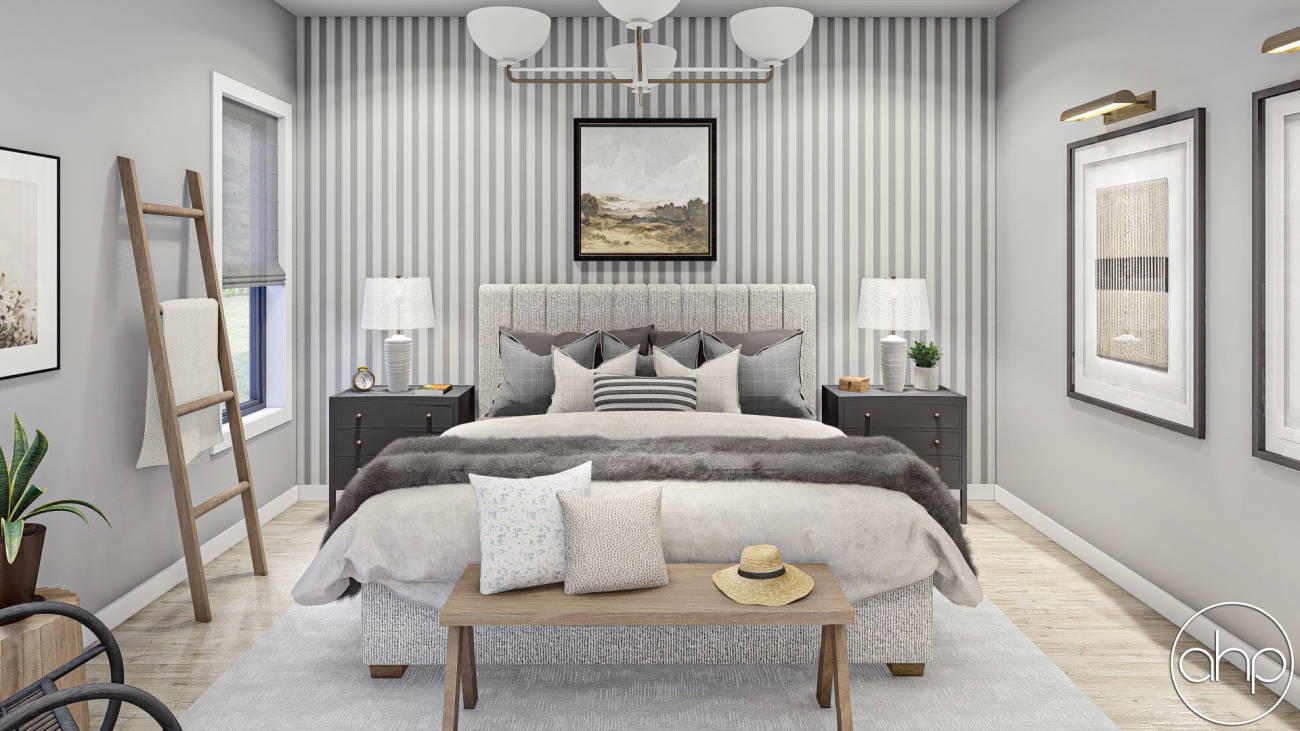

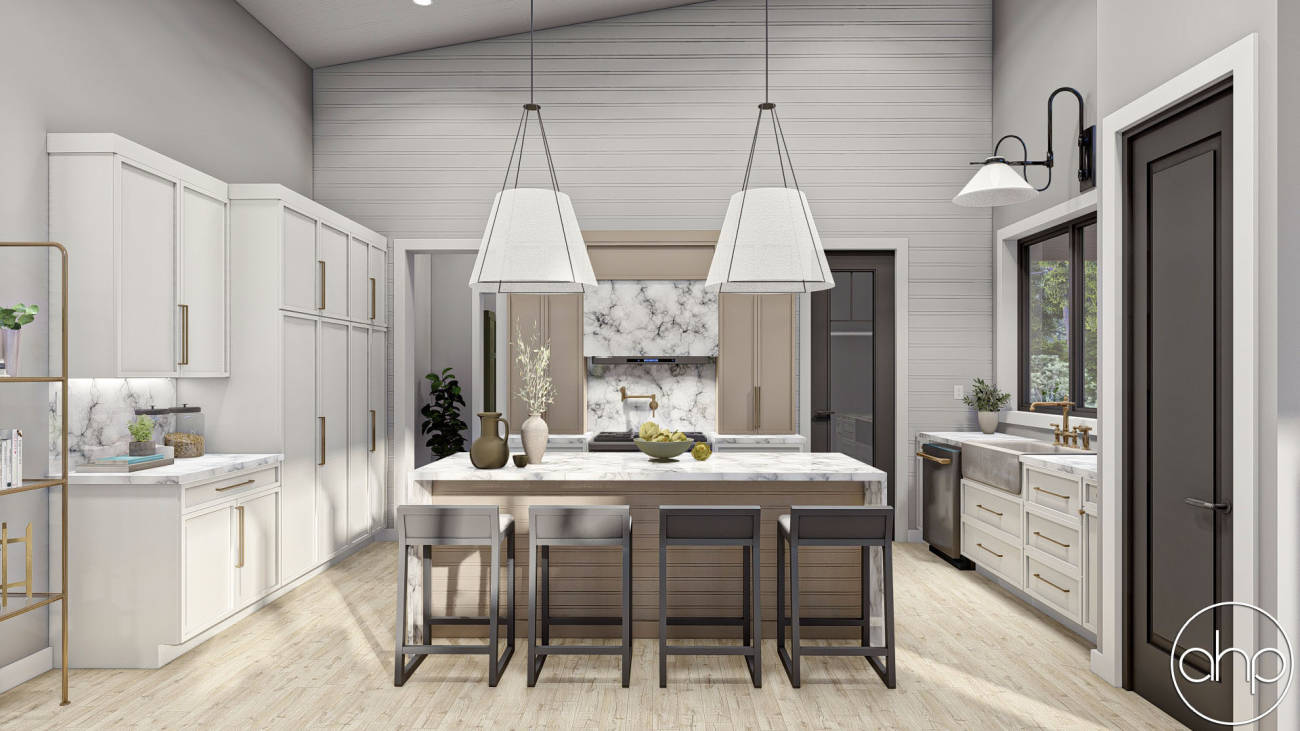

This modern barndominium has a touch that makes the home not only feel luxurious, but also comfortable. As soon as you step in through the oversized 3-car garage, you are greeted by a beautiful mudroom. Stepping in further you will find the kitchen, dining, and great room. The kitchen features a walk-in pantry and a large island looking into the open great room. The great room has a tall fireplace with French doors on either side. This plan has 4 bedrooms with plenty of room for guests. The master bedroom includes a large double vanity bathroom with a separate shower room.

Step outside onto the covered patio and under the gorgeous pergola, perfect for adding lights to create the perfect mood for your evenings. This barndominium is unlike any other, and a perfect space for all things entertaining.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 4
Bathrooms 2
Garage Bays 3
Square Footage
Main Level 1982 Sq. Ft.
Covered Area 195 Sq. Ft.
Garage 1576 Sq. Ft.
Total Finished Area 1982 Sq. Ft.
Exterior Dimensions
Width 114 ' 4"
Depth 43 ' 4"
Ridge Height
Calculated from main floor line
18 ' 7"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x6
Roof Pitches
2/12 Primary
Main Wall Height
12'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$1400
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.

Instant Cost-to-build Estimate™

See how much it will cost to build this plan. Our estimate includes everything so you'll have a good idea of how much to budget.
