Advanced House Plans

29509 | Webster


Multi-Family

1631 Sq. Ft.

3 Beds

2 Baths

2 Car
Did you know you can make alterations to this plan?

Floor Plans

Webster Floor Plan

Plan Description

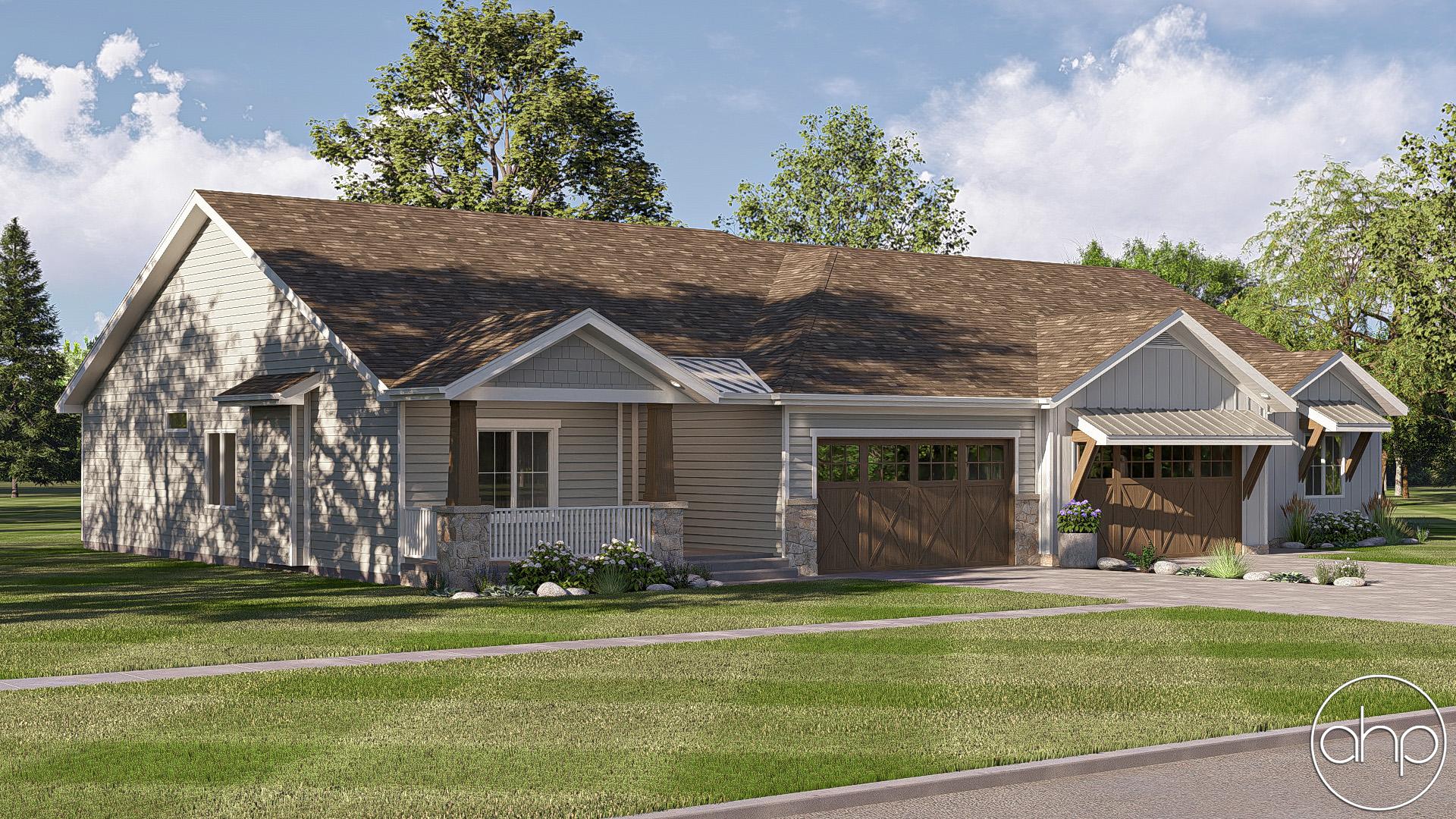

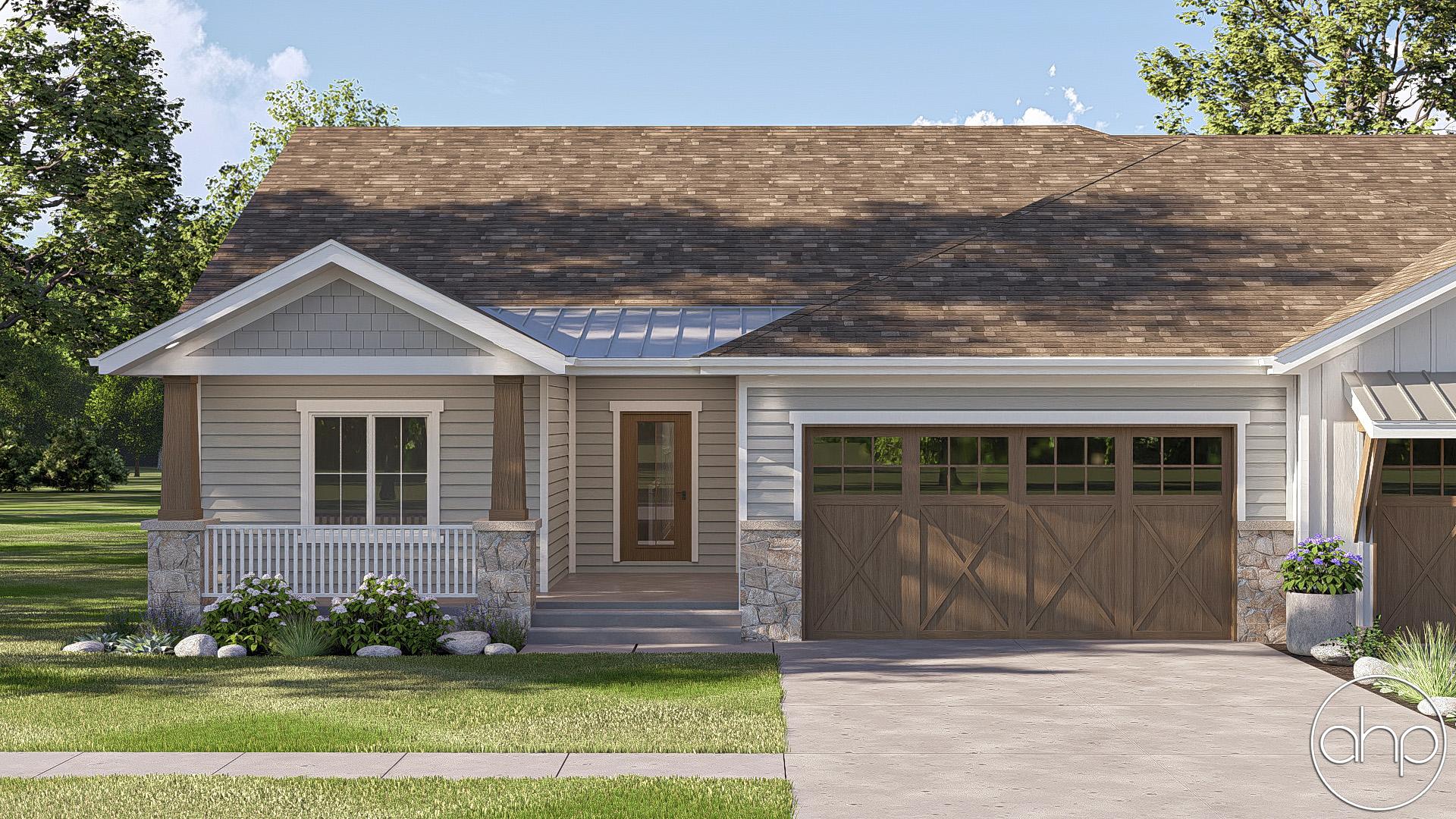

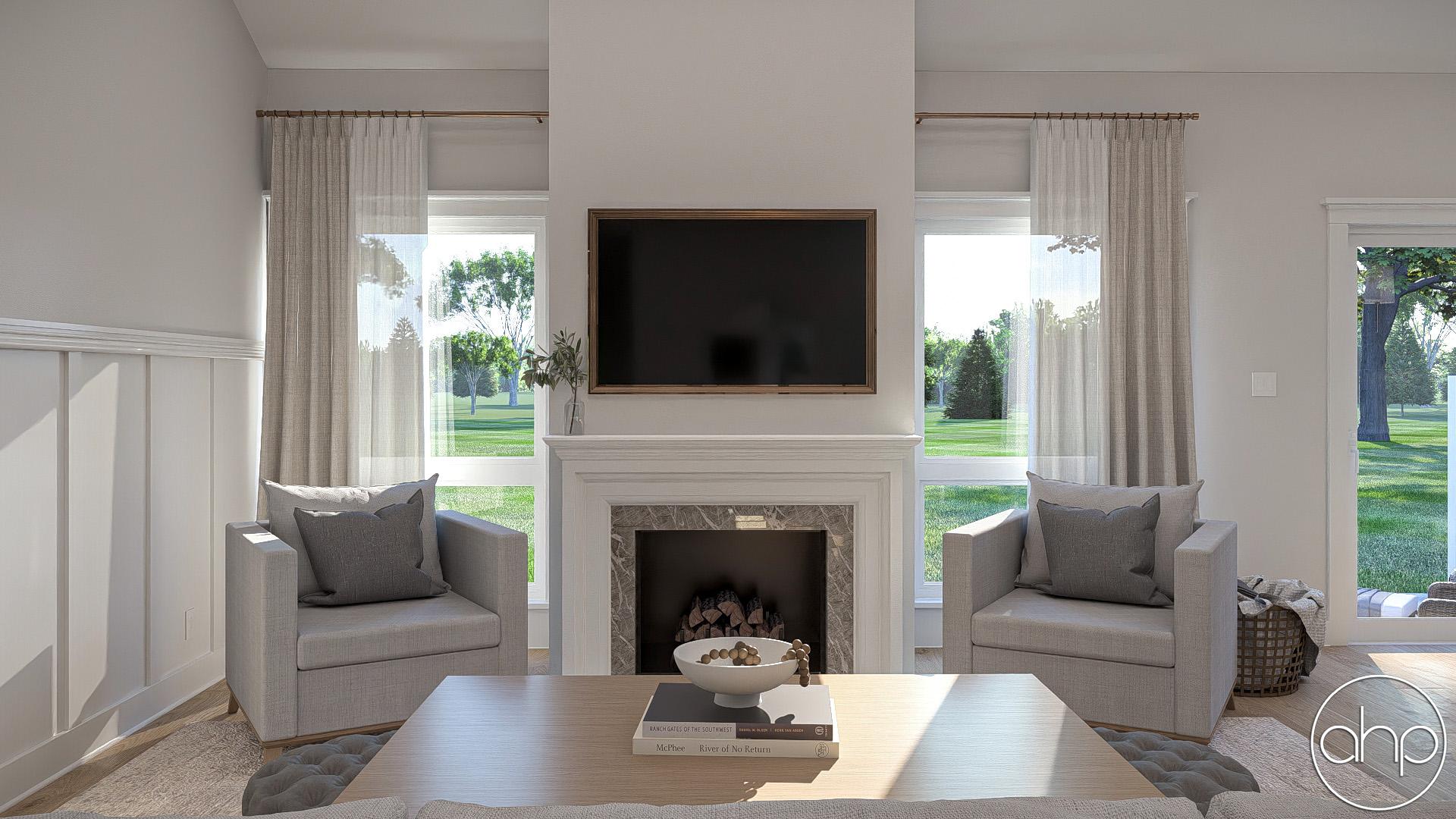

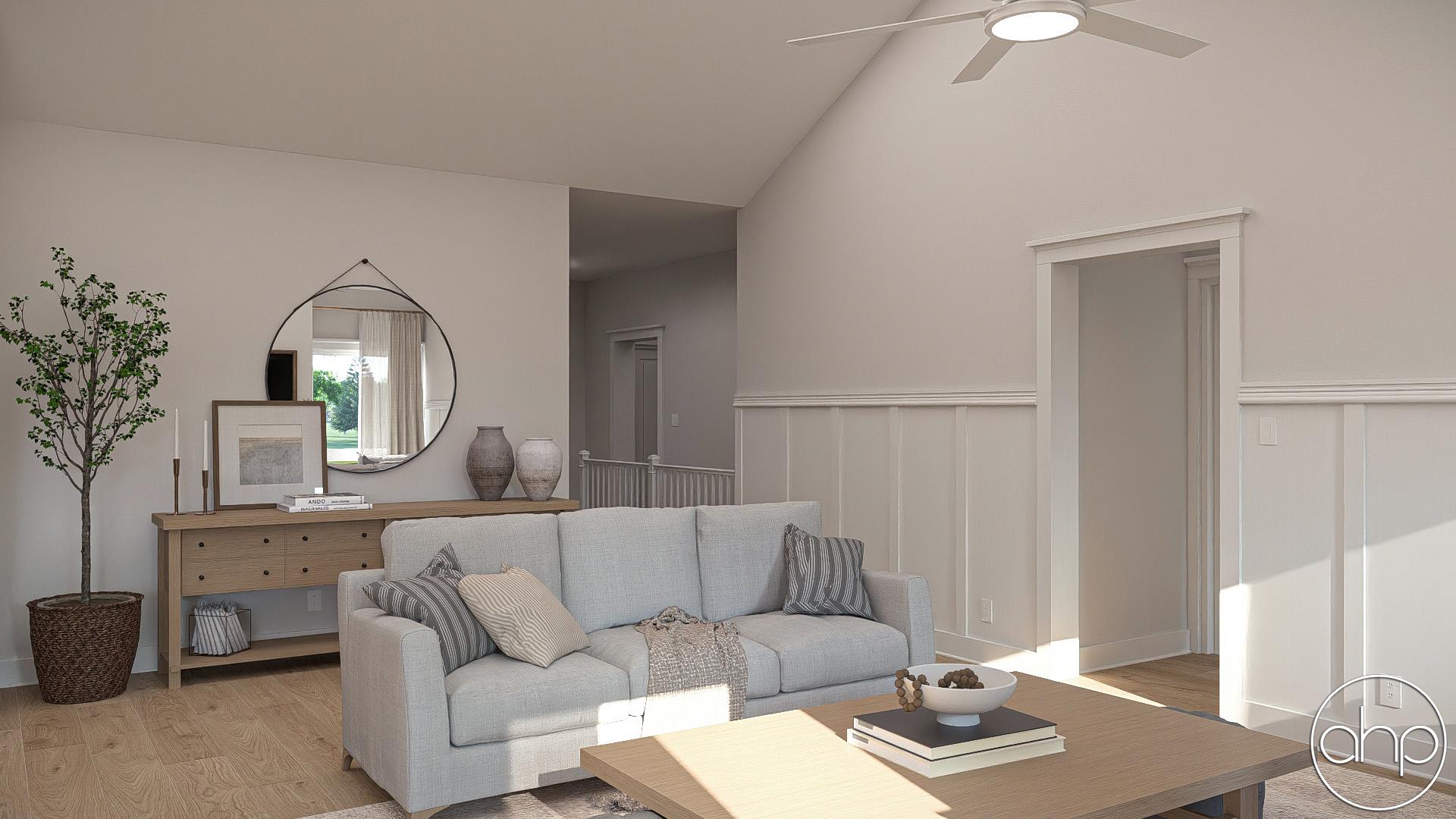

Tasteful detailing, paired with a cost-effective foundation "footprint," make this multi-family house plan a win-win for builders and buyers alike. A front entry hall, accessed from the covered front porch as well as the 2-car garage, leads to views into the great room with its cathedral ceiling, fireplace and sunny windows to the rear.

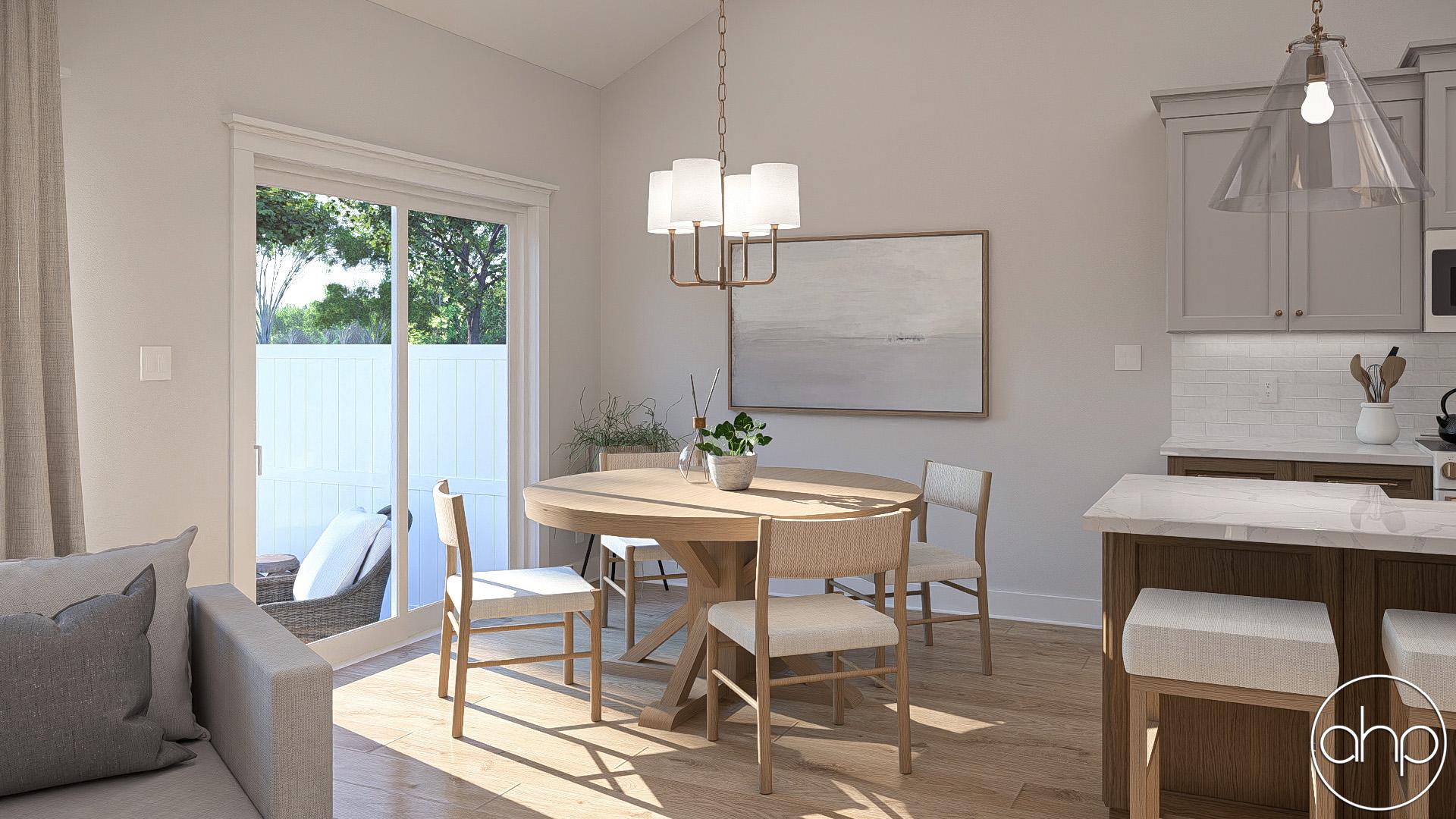

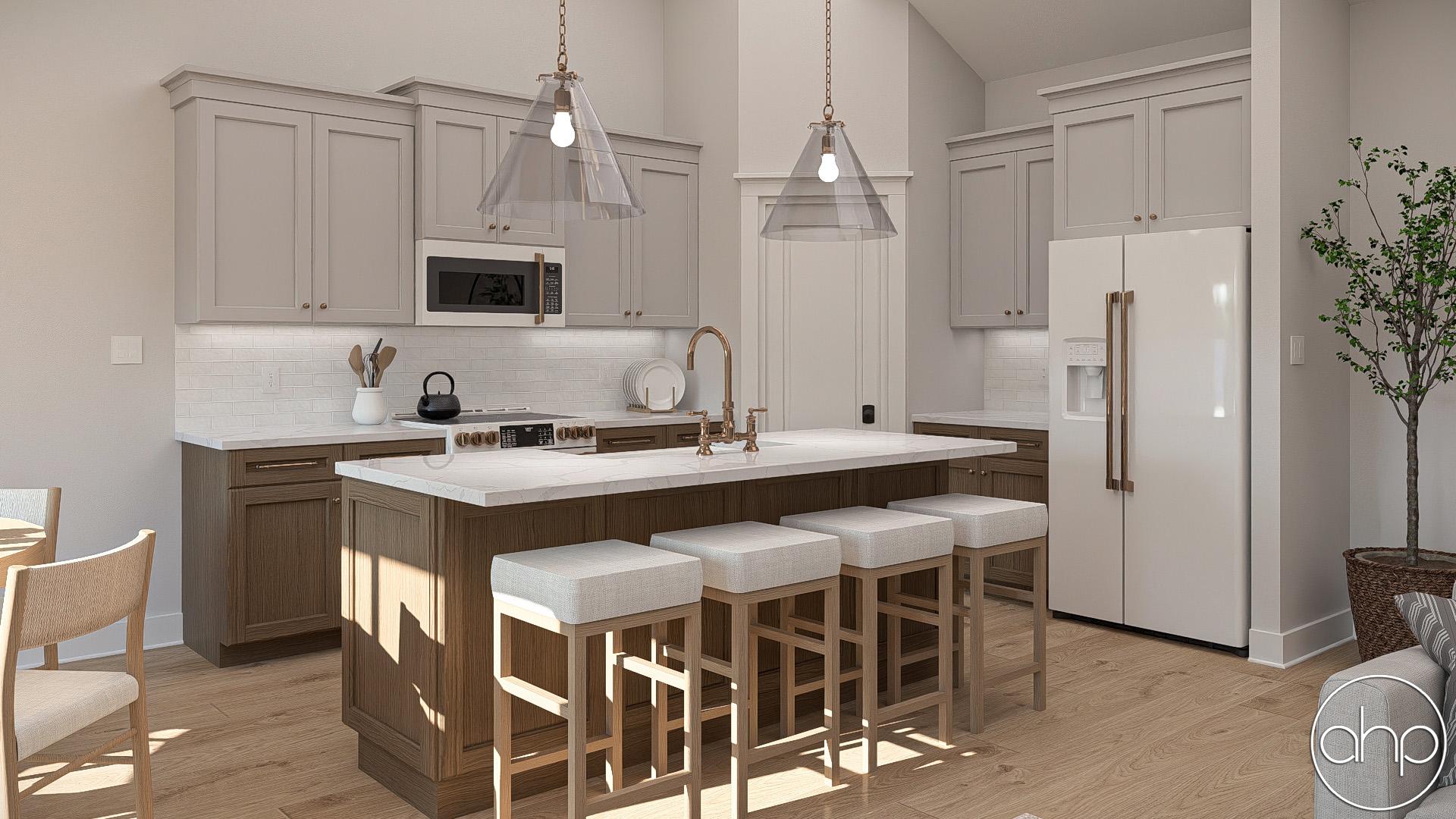

The dining area and kitchen share the same space beneath the cathedral ceiling to provide an open, airy feel. The kitchen comfortably serves with an island work area, counter space and walk-in pantry.

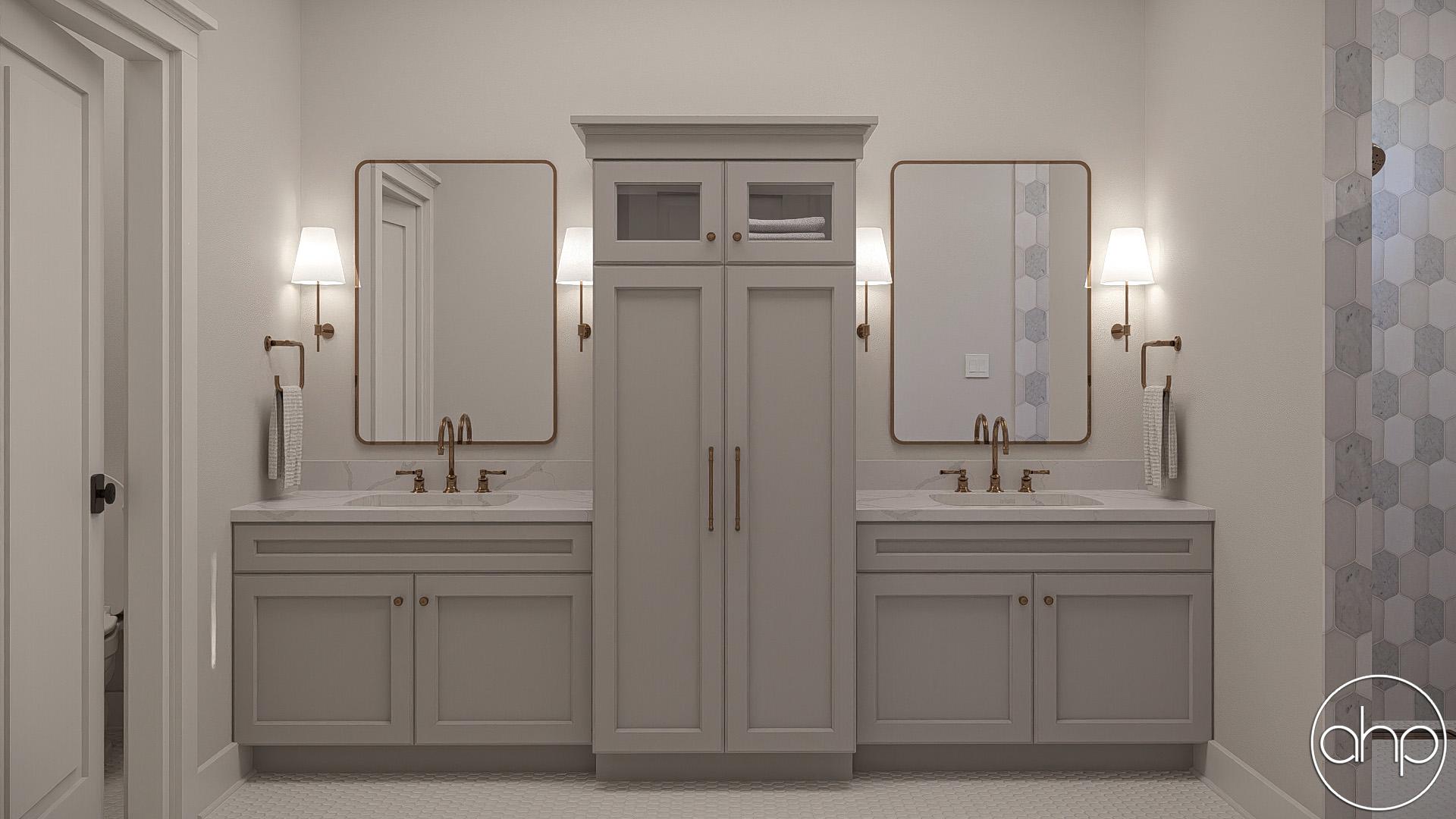

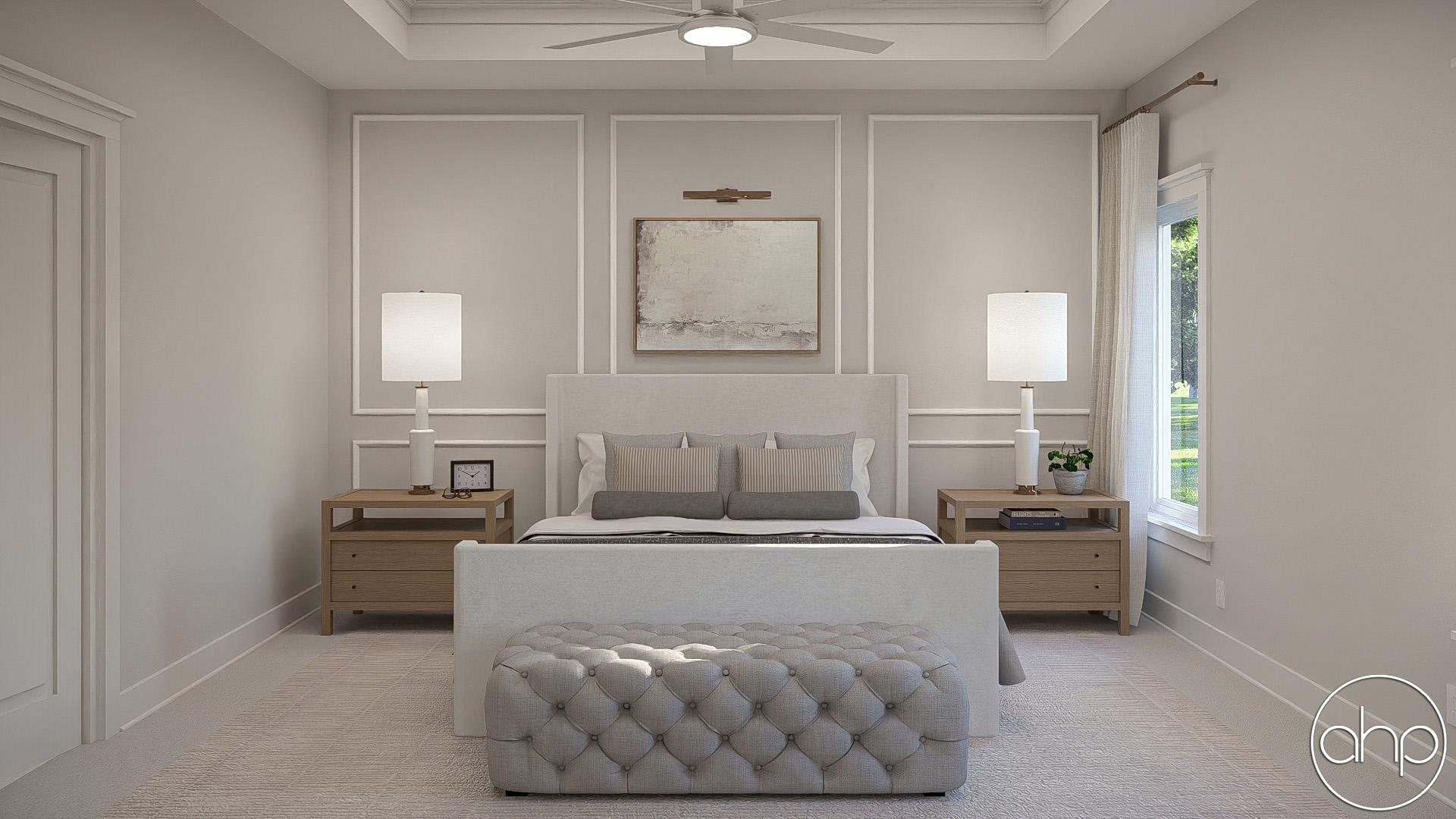

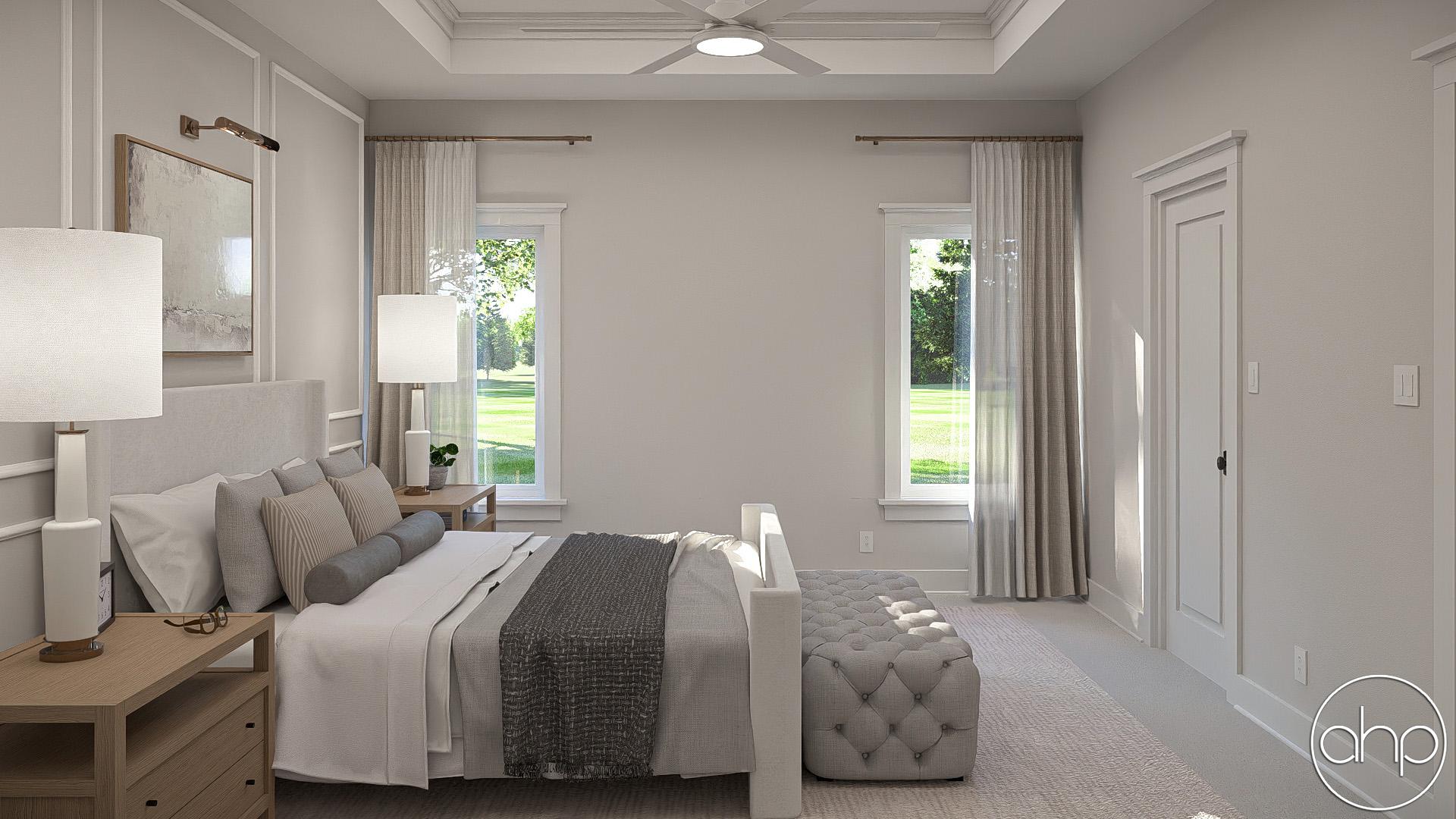

All bedrooms reside on opposite sides of the structure for maximum privacy. The master suite features a 10-foot-high ceiling, walk-in closet and bath area with dual sinks, shower and compartmented bath. Bedrooms 2 and 3 share a centrally located bath. A convenient laundry area serves all bedrooms and lies just outside the master bedroom.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Full Specifications

Rooms

Bedrooms 3
Bathrooms 2
Car Bays 2

Area

Main 1631 Sq. Ft.
Total Finished 1631 Sq. Ft.
Garage Area 539 Sq. Ft.

Dimensions

Width 88'
Depth 56'
Ridge Height 24'

Construction

Foundation Type Basement
Exterior Walls 2x4
Roof Pitch 6/12 Primary, 4/12 Secondary
Basement Wall Height 9'
Main Wall Height 9'

Plan Features


What is included in a set of plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

29509 | Webster

$1200
Do you need to get this plan bid out before you buy it? Purchase a bid set for only $250 .
