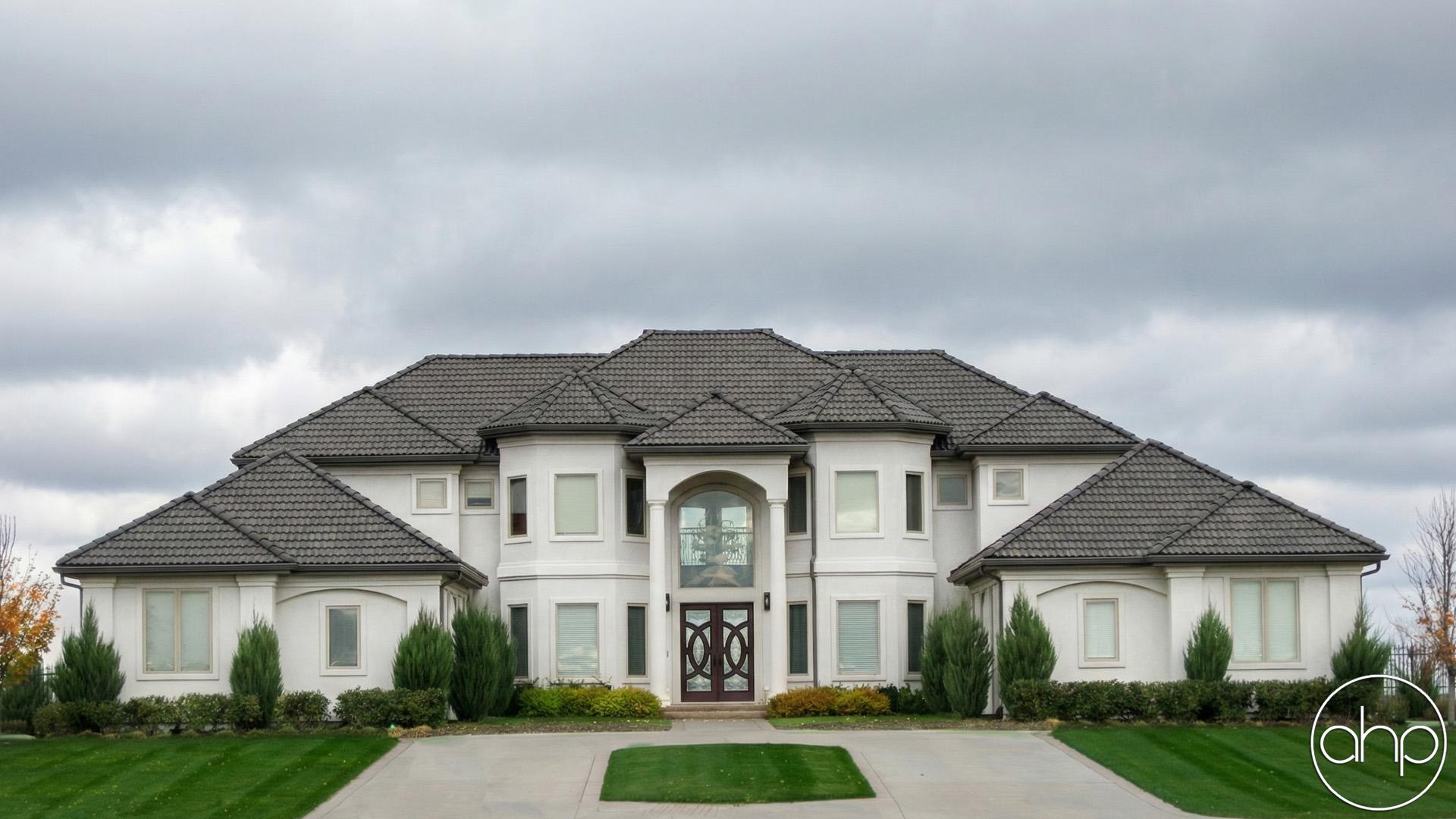

Waterford Rendering Waterford Rendering
NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

2 Story Mediterranean House Plan

Waterford - 29134

4114
Sq Ft
4
Beds
5
Baths
4
Bays
88' 0"
Wide
75' 0"
Deep

Floor Plan Images

Main Level

2 Story Mediterranean House Plan | Waterford

Second Level

2 Story Mediterranean House Plan | Waterford

Plan Description

29134 Waterford

Perfect symmetry, classic details and an abundance of luxurious amenities in this stunning 2-story house plan, serve to captivate attention both inside and out. A high covered porch grants entrance, where a 2-story-high entry hall presents a formal dining room and den on either side. Guests are invited to venture to the great room, with corner fireplace and bright windows, beneath a soaring 2-story-high ceiling.

Off to one side of the great room, the breakfast area, hearth room, and kitchen constitute another comfortable gathering area, with entertaining options that expand to the rear deck. Just off the kitchen, a utility area serves practical purposes with a laundry room and a mudroom that accesses one of the two, 2-car garages.

On the opposite side of the home, a guest suite resides in privacy and includes a bath area with tub, shower, compartmented toilet and a spacious walk-in closet.

The second level presents an airy landing space and a loft with fireplace. Views to the entry hall and great room below add to the appeal of this unique, semi-private area. The loft lies just outside the master suite, which includes a sunny octagonal sitting area and a bath that features his-and-her vanities, walk-in shower, corner soaking tub, compartmented toilet and a generously sized walk-in closet with dressing bench. Bedrooms 2 and 3 each include a built-in desk, private bathroom and walk-in closet

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 4
Bathrooms 5
Garage Bays 4
Square Footage
Main Level 2414 Sq. Ft.
Second Level 1700 Sq. Ft.
Garage 1194 Sq. Ft.
Total Finished Area 4114 Sq. Ft.
Exterior Dimensions
Width 88 ' 0"
Depth 75 ' 0"
Ridge Height
Calculated from main floor line
29 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Basement
Exterior Wall Construction
2x4
Roof Pitches
6/12
Foundation Wall Height
9'
Main Wall Height
9'
Second Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
