Barndominium Style House Plan | Wartrace
Floor Plan Images
Plan Description
Envision your dream 4-bedroom, 3-bathroom barndominium — a perfect fusion of modern comfort and rustic elegance. With its striking design and thoughtful layout, this home instantly feels inviting. The large side-load garage not only provides plenty of room for vehicles, tools, and toys, but also keeps the exterior lines clean and uncluttered, enhancing the home’s curb appeal. Whether you’re coming back from work, the weekend’s adventures, or running errands, pulling into this garage just feels good.

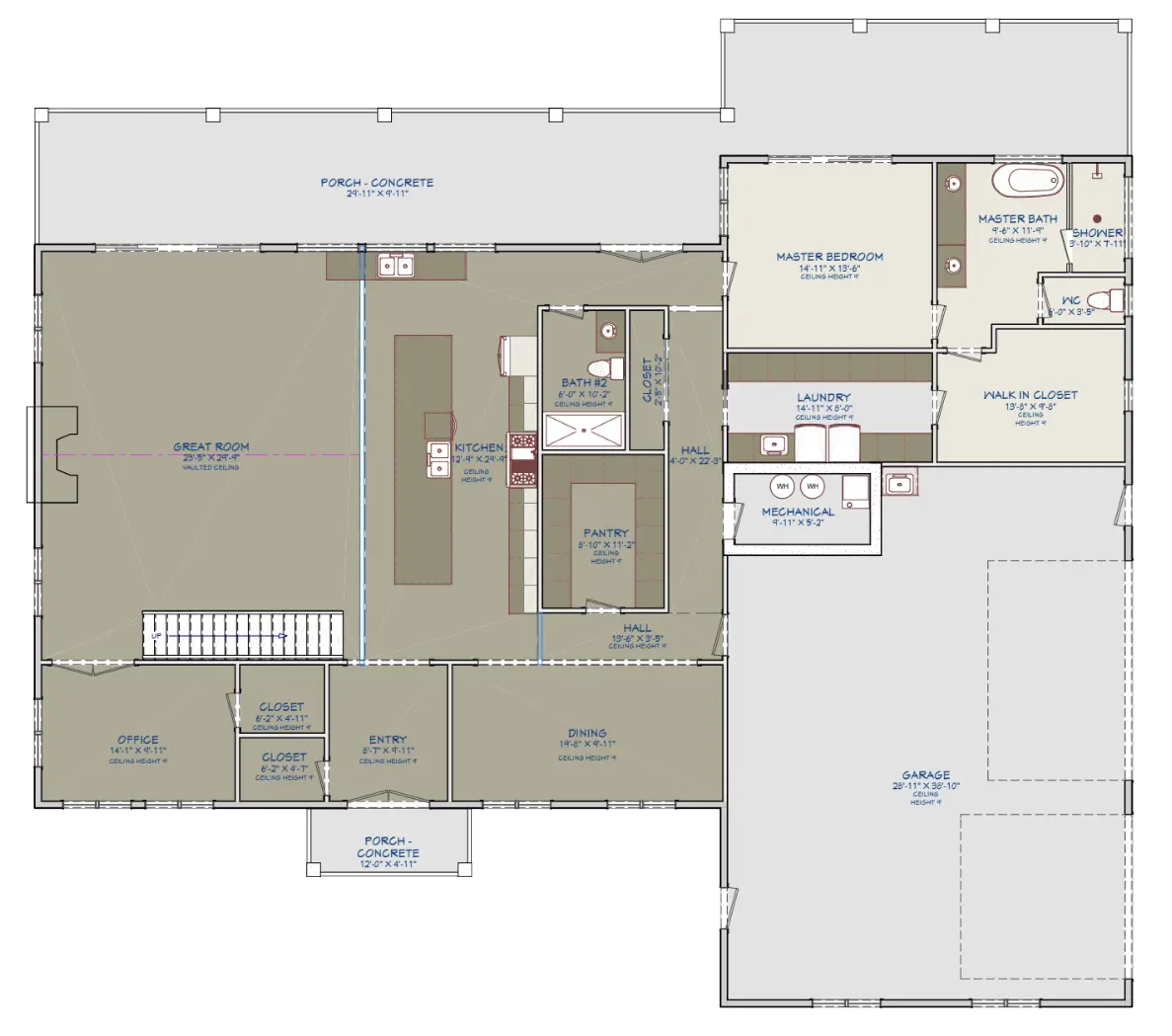

Step into a spacious, open-concept main area where high ceilings and wide sightlines create a sense of freedom and flow. The heart of this space is the large kitchen, complete with a generous island for meal prep and gathering, plus a pantry room that keeps everything organized and at your fingertips. Bright, connected, and effortlessly laid out, this central living space is designed for real life — from casual breakfasts to holiday dinners and everything in between.
When it’s time to relax, your private master suite awaits. Thoughtfully separated from the other bedrooms, this serene retreat offers space, comfort, and quiet — a place to rest and recharge at the end of the day. With its inviting layout and peaceful atmosphere, the master suite becomes your own personal sanctuary within the home.

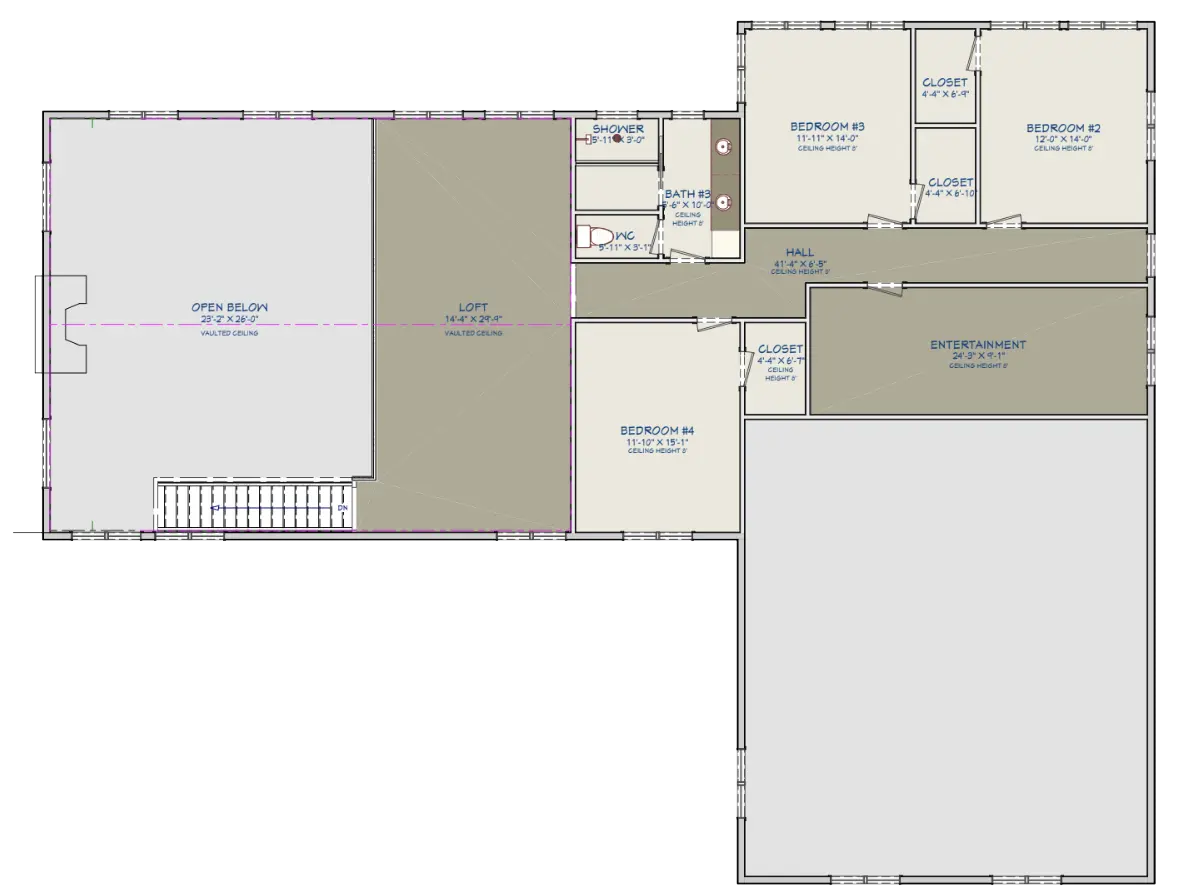

Upstairs, a second-level loft adds flexible living space that adapts to your needs — perfect for a playroom, media lounge, home office, or creative studio. Flanked by additional bedrooms, this loft becomes the ideal hangout zone for family, guests, or work-from-home days. This barndominium isn’t just a house — it’s a place designed for gathering, growing, and living your best life.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 4 |
| Bathrooms | 3 |
| Garage Bays | 3 |
| Square Footage Breakdown | |
| Main Level | 2815 Sq Ft |
| Second Level | 1673 Sq Ft |
| Total Finished Area | 4488 Sq Ft |
| Garage | 1095 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 856 Sq Ft |
| Exterior Dimensions | |
| Width | 80' 0" |
| Depth | 62' 0" |
| Ridge Height | 30' 0" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x6 |
| Roof Construction Method | Trusses |
| Floor Construction Method | I-Joists |
| Roof Pitches | Primary 7/12 |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 8' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.

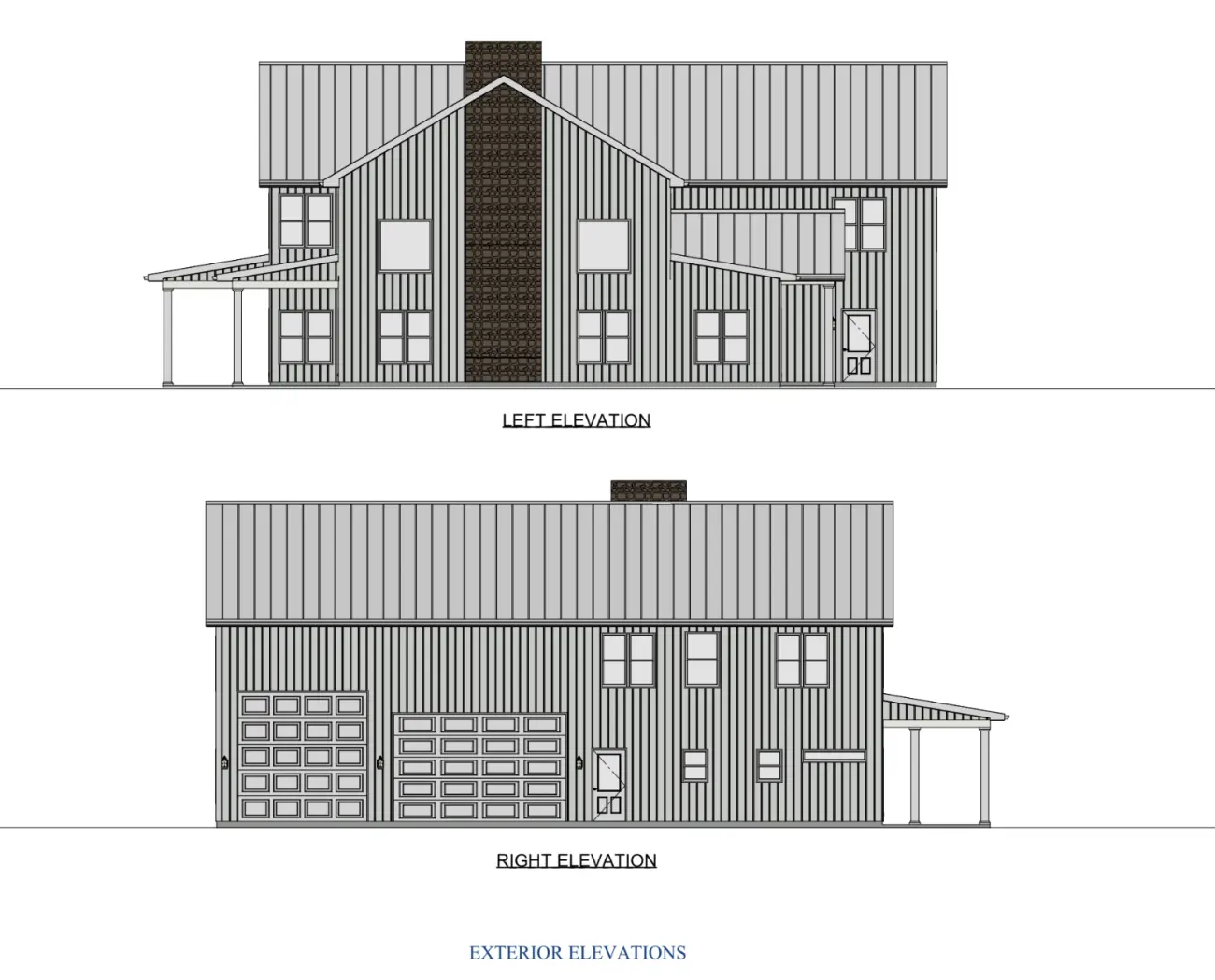

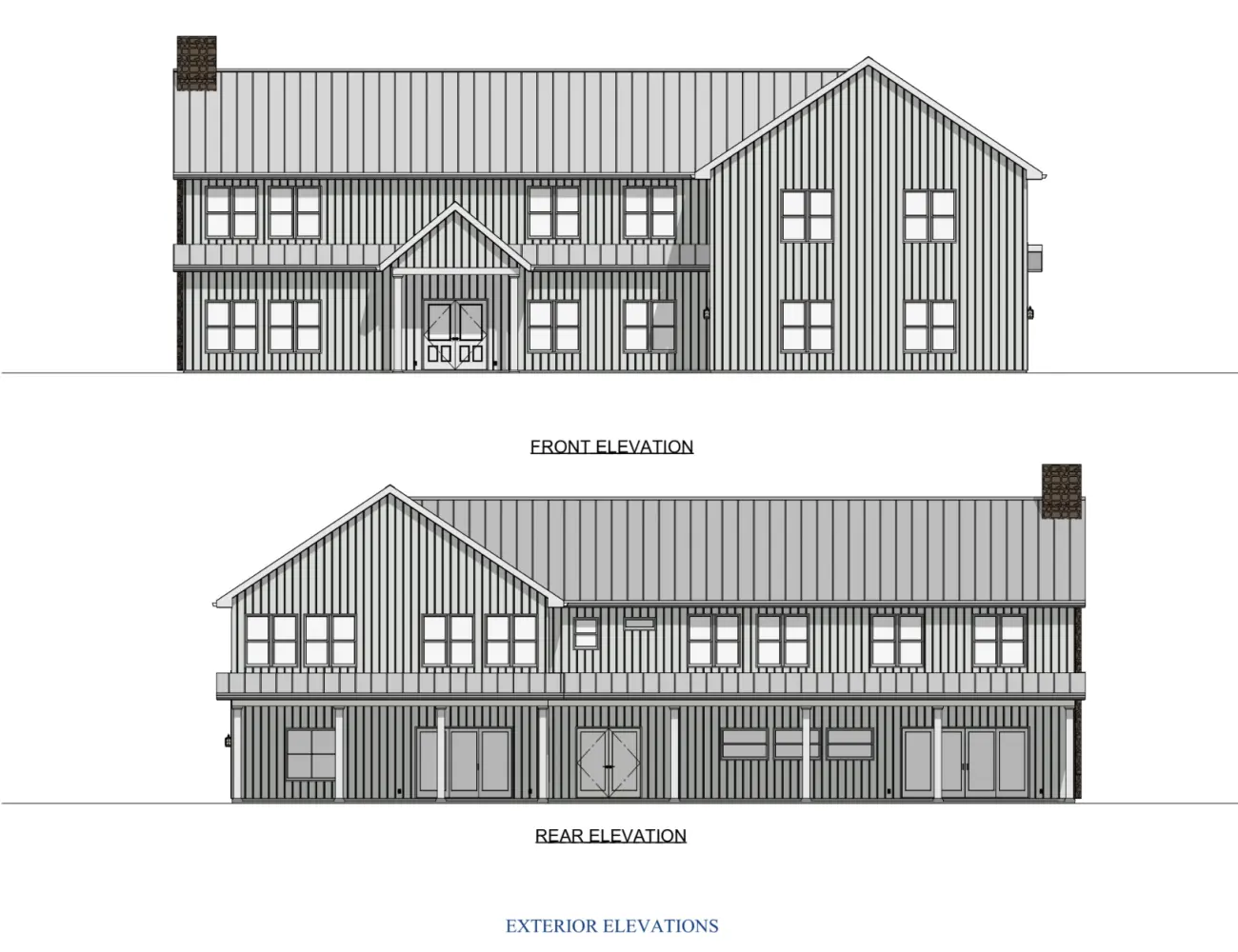

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
