29814 | Valley Heights

Reverse

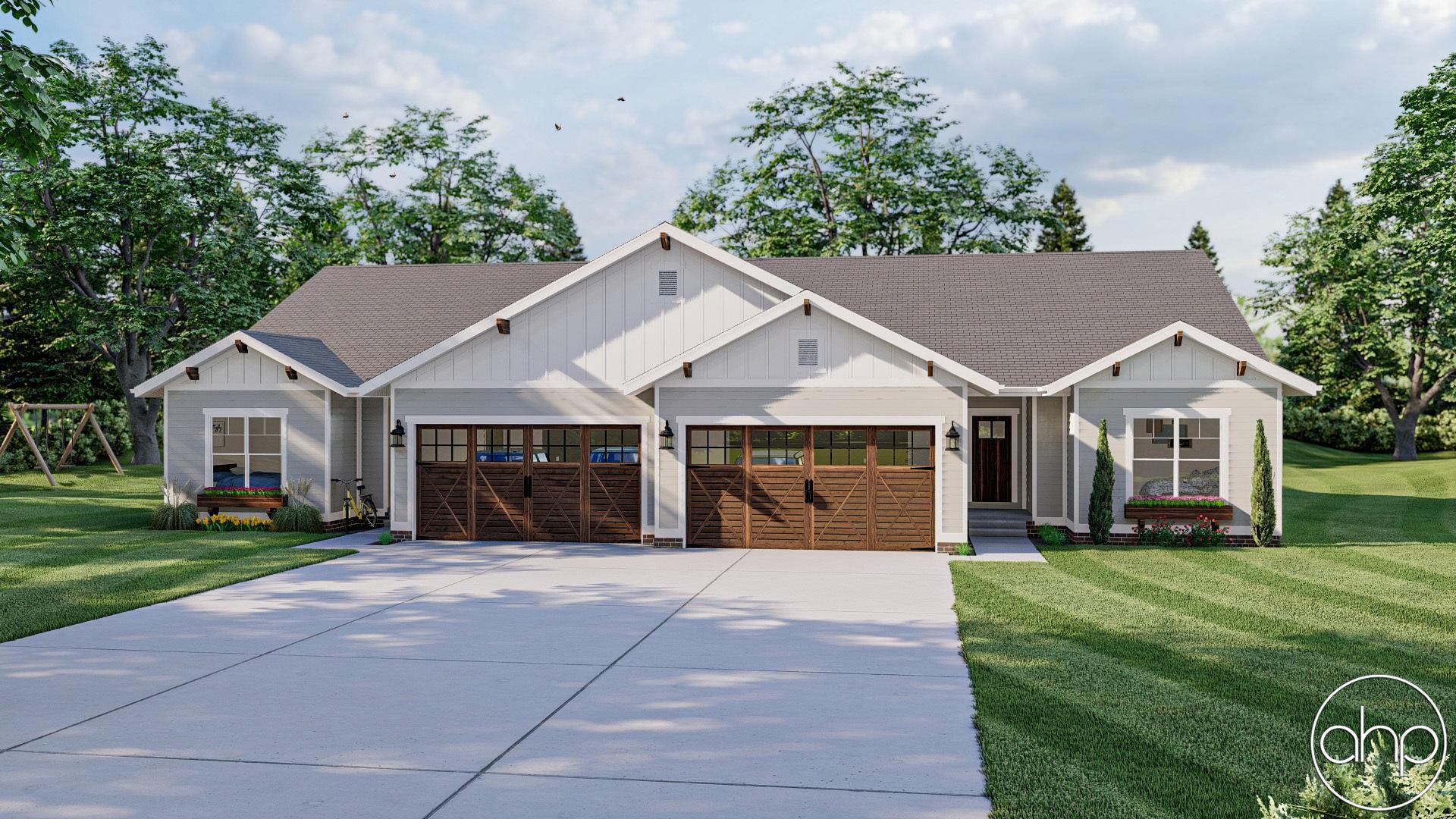

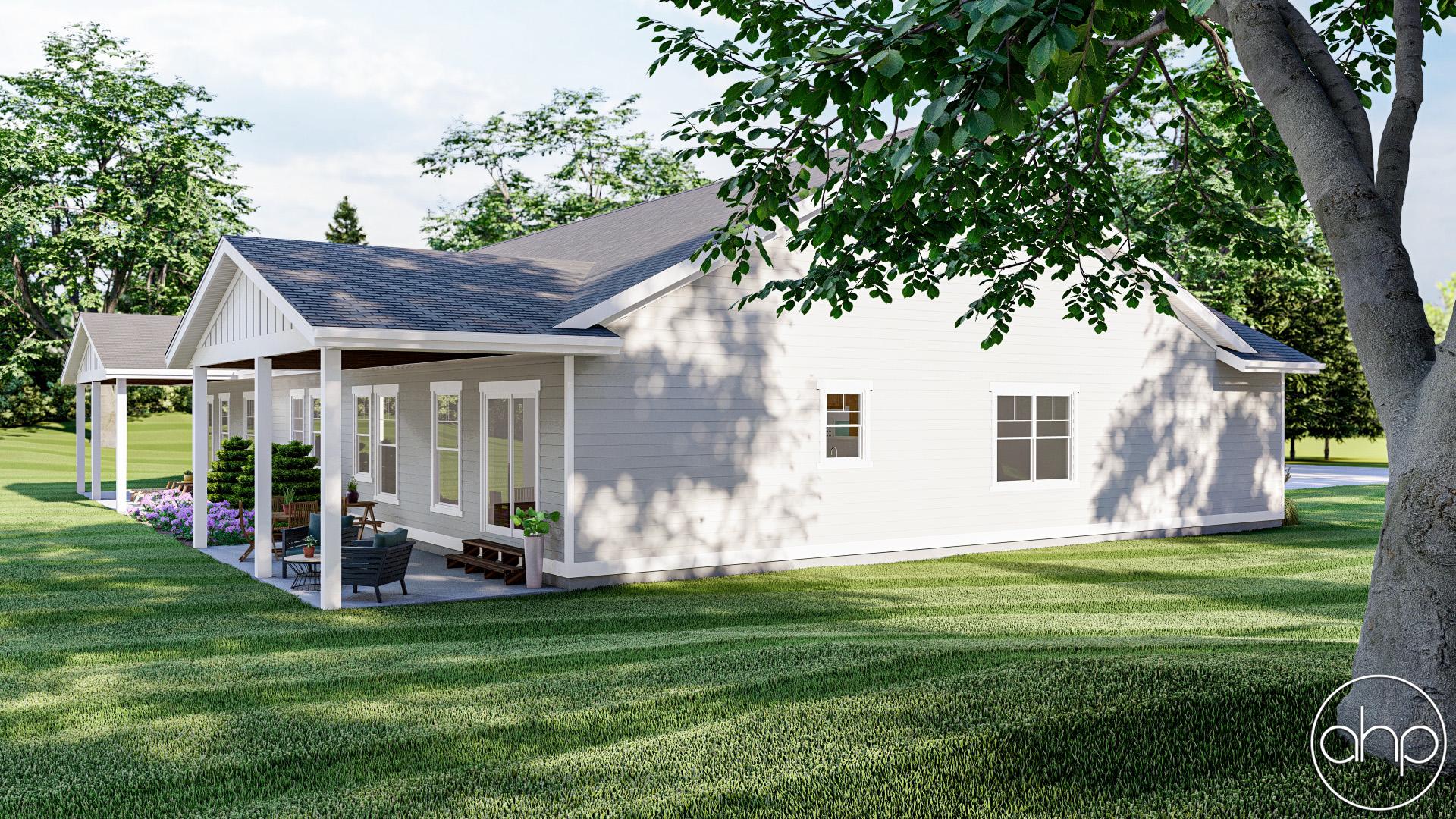

Valley Heights Rendering Valley Heights Rendering Valley Heights Rendering Valley Heights Rendering Valley Heights Rendering
NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

Craftsman Style Multi Family House Plan

Valley Heights - 29814

1616
Sq Ft
Per Unit
3
Beds
Per Unit
2
Baths
Per Unit
2
Bays
Per Unit
80' 0"
Wide
68' 0"
Deep

Floor Plan Images

Main Level

Valley Heights

Plan Description

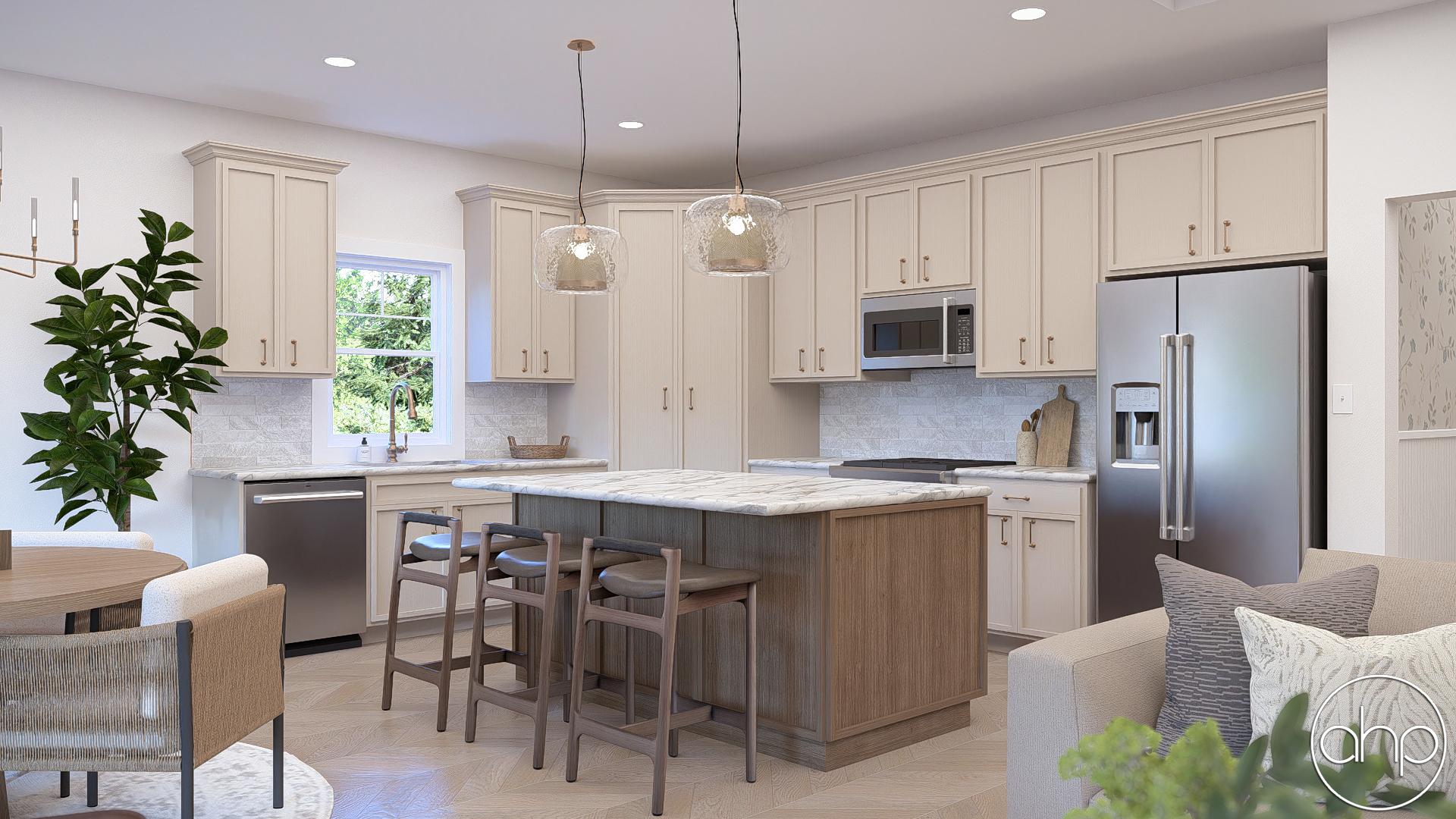

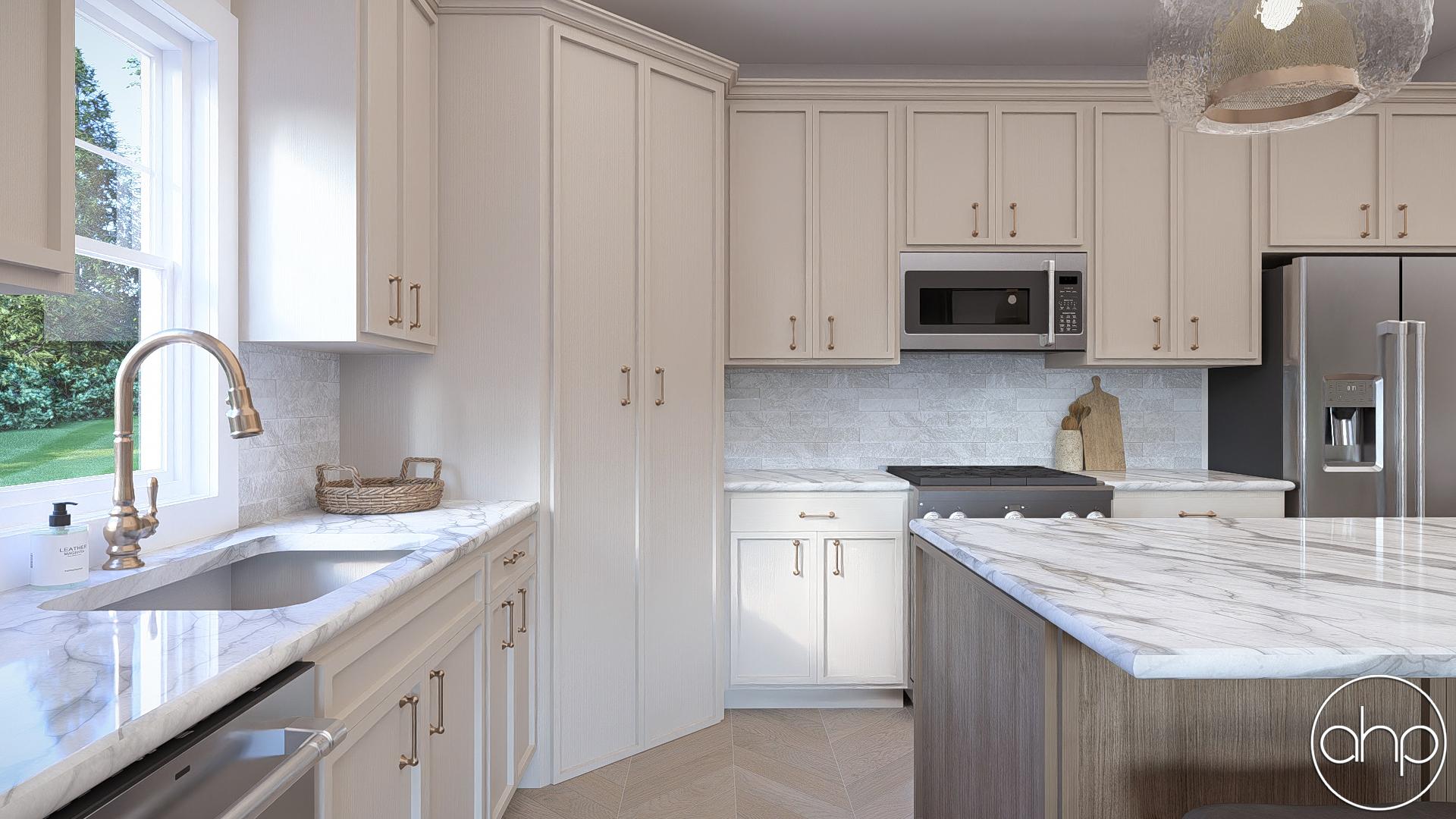

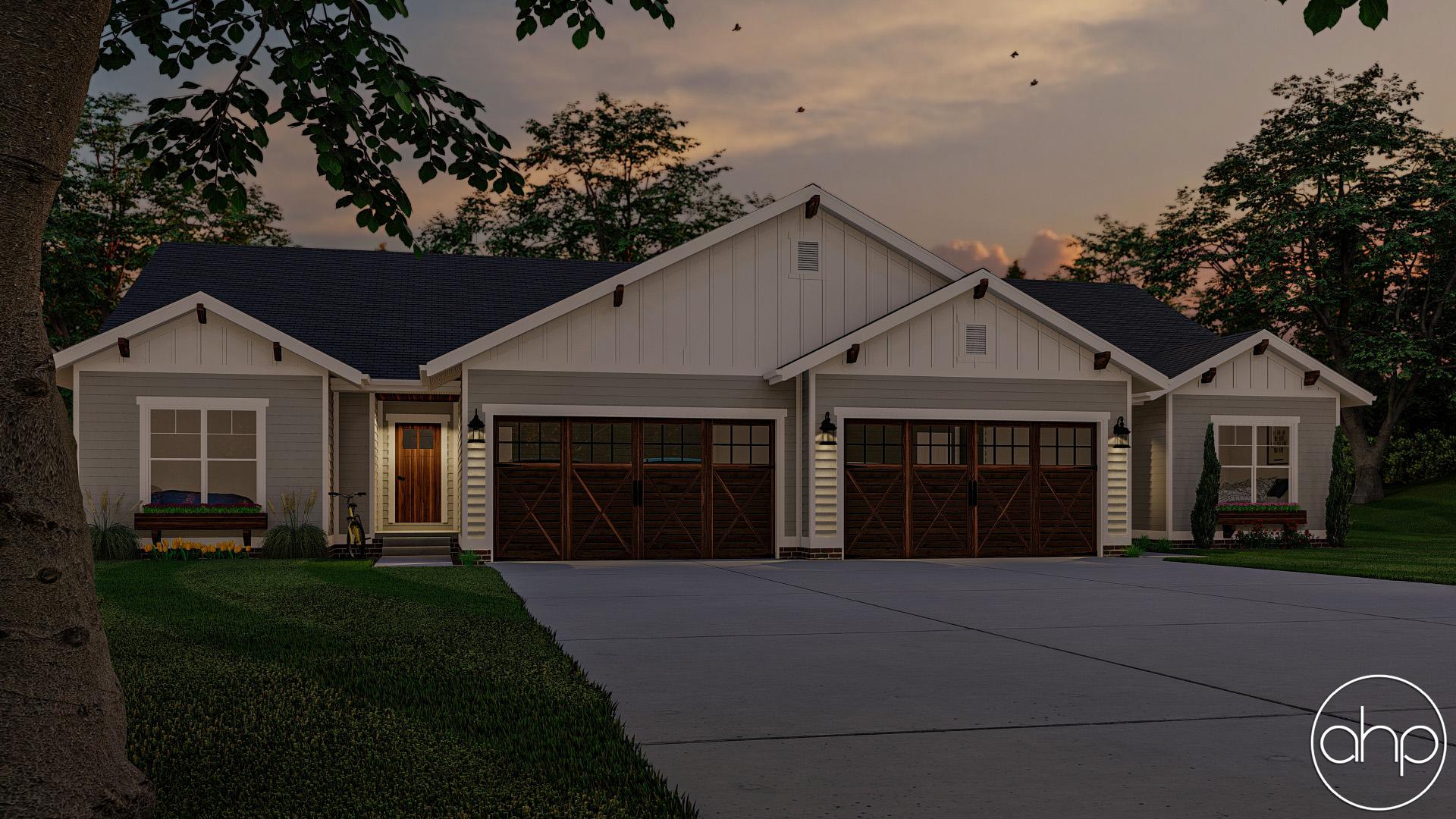

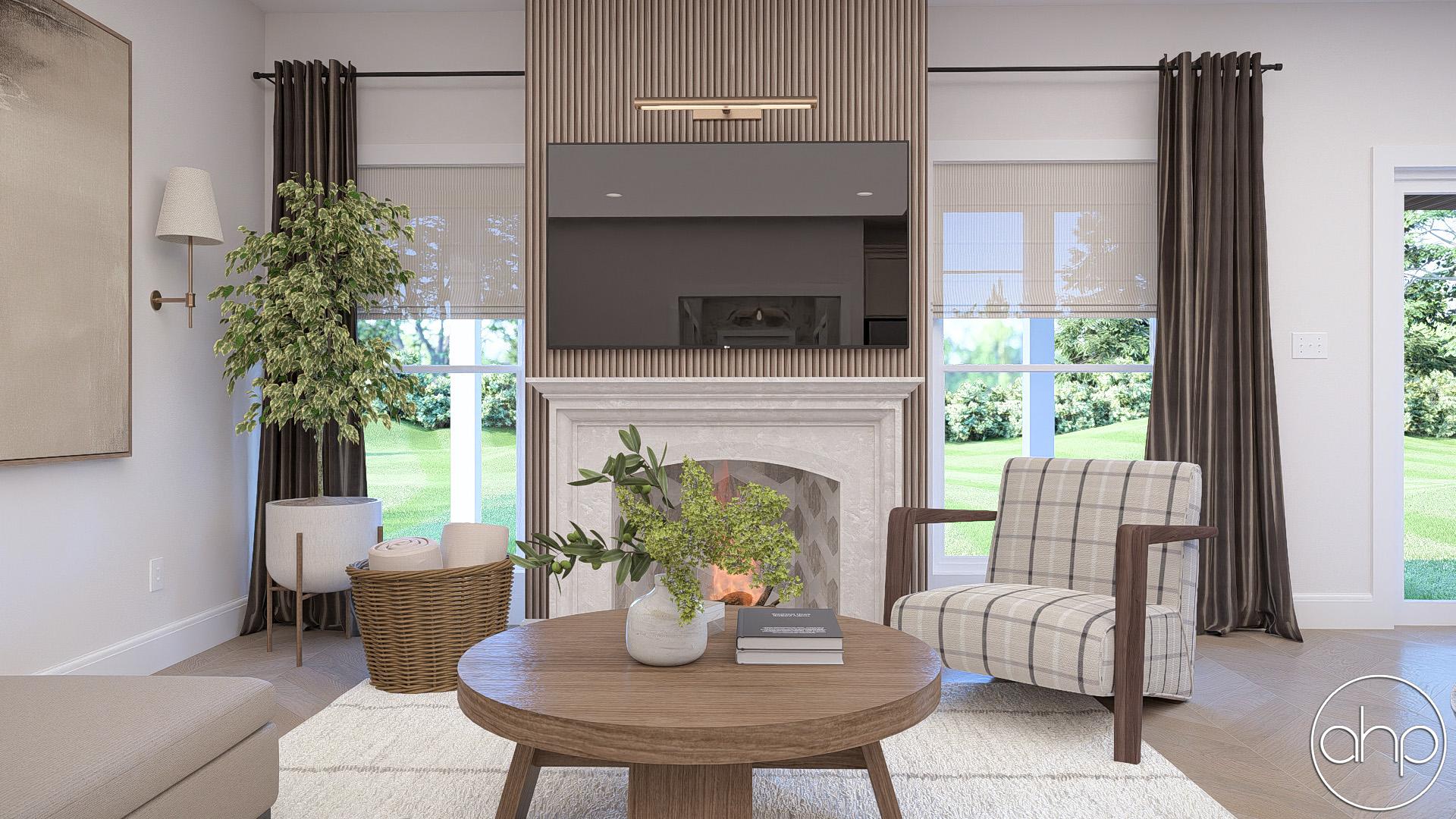

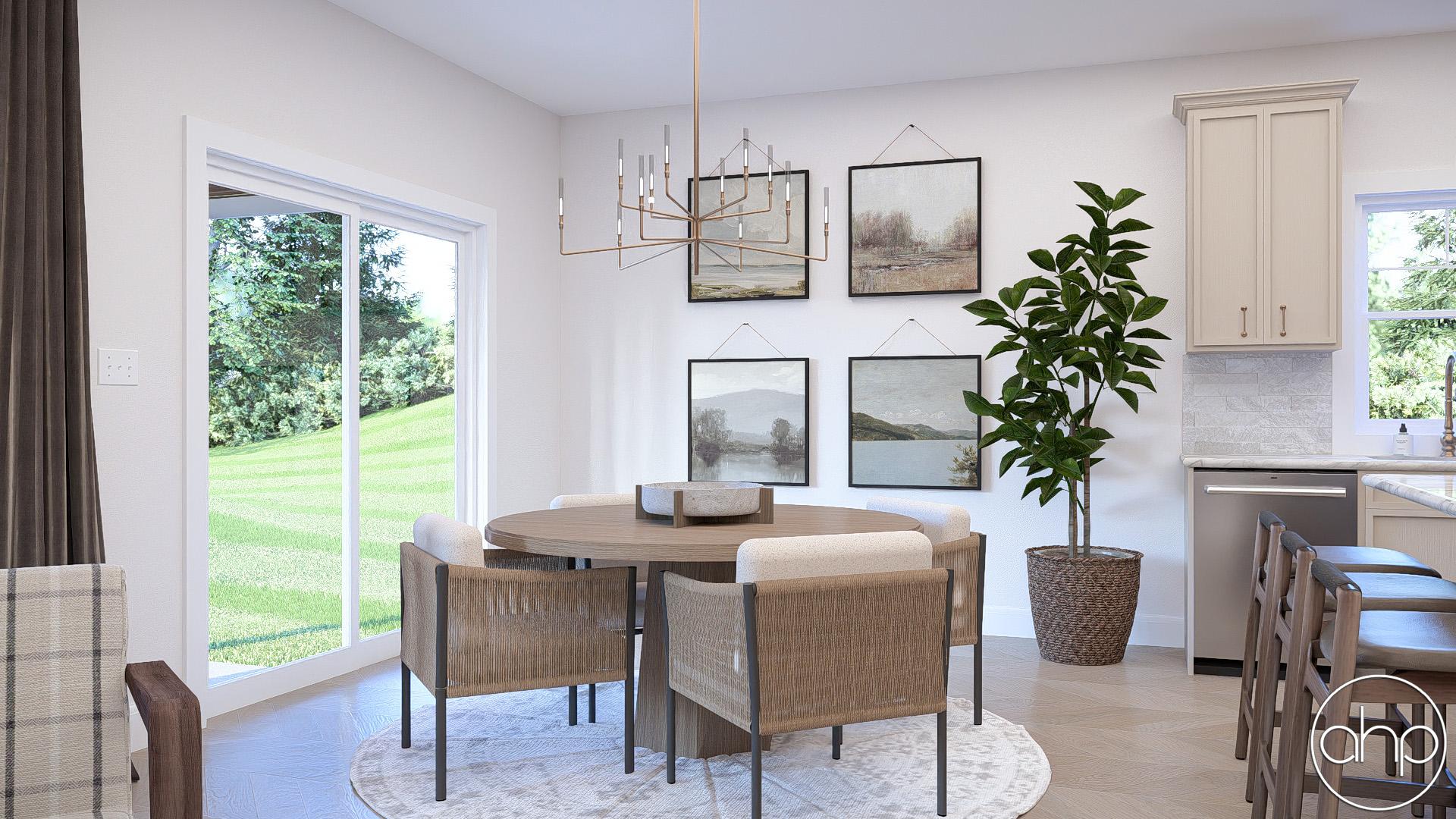

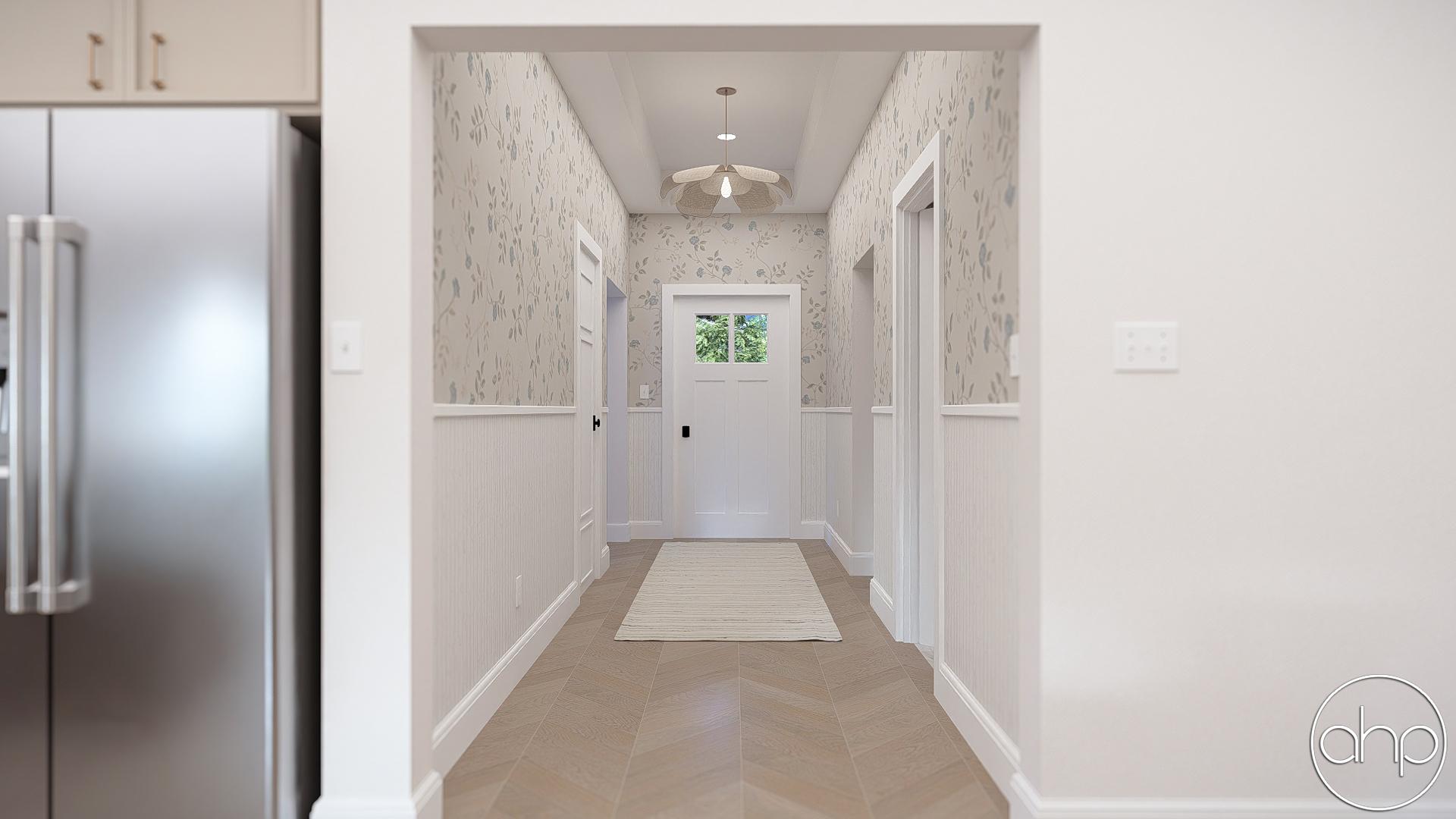

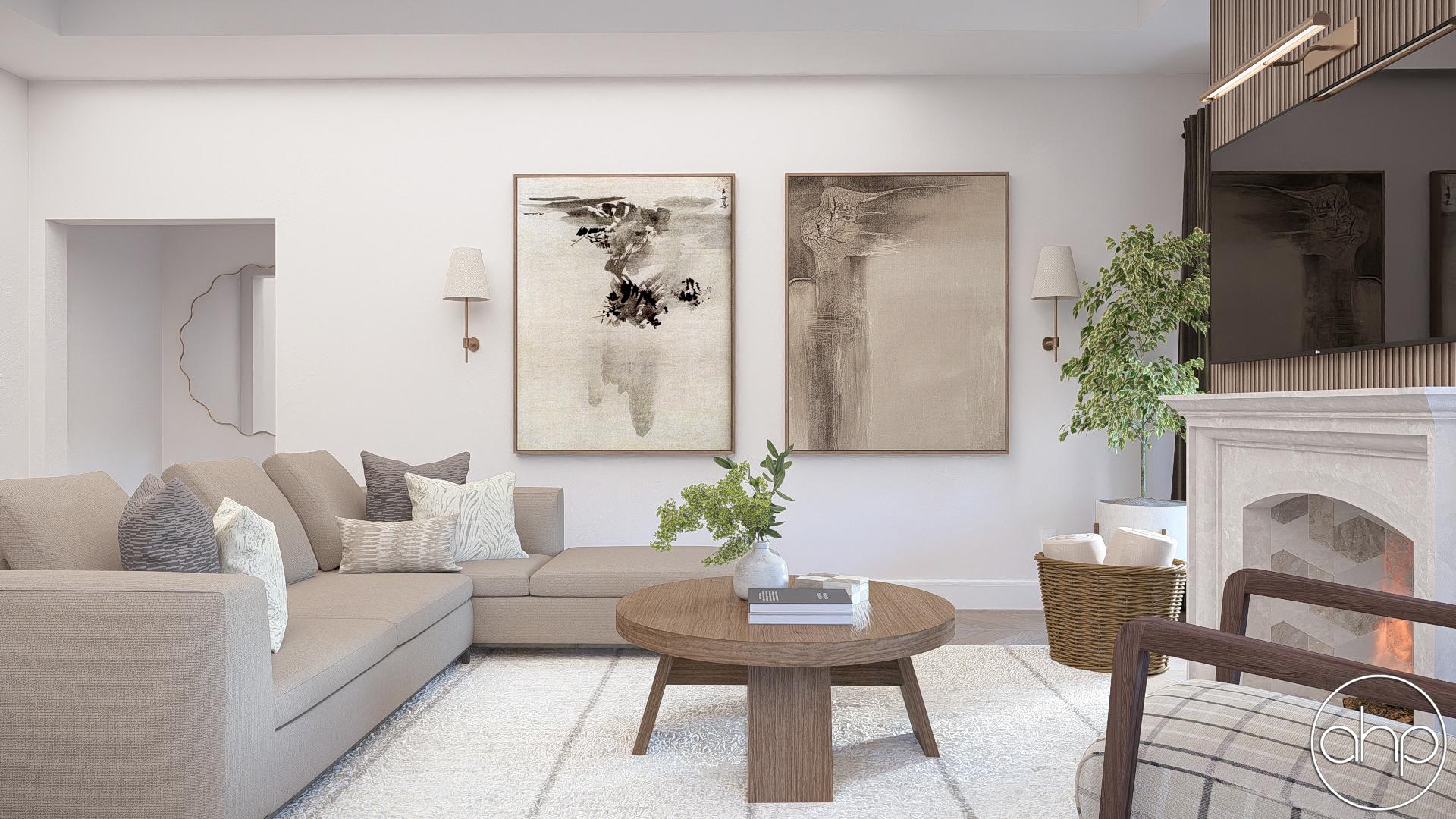

A seemingly endless array of enticing amenities are found in this 1 storyCraftsman-style multi-family house plan. A covered front stoop greets guests, who upon entering the home, are treated to views of the great room. The great room captivates its occupants with a trayed ceiling and is warmed by a fireplace. The kitchen, with an island workspace and pantry, flows seamlessly into the dining room.

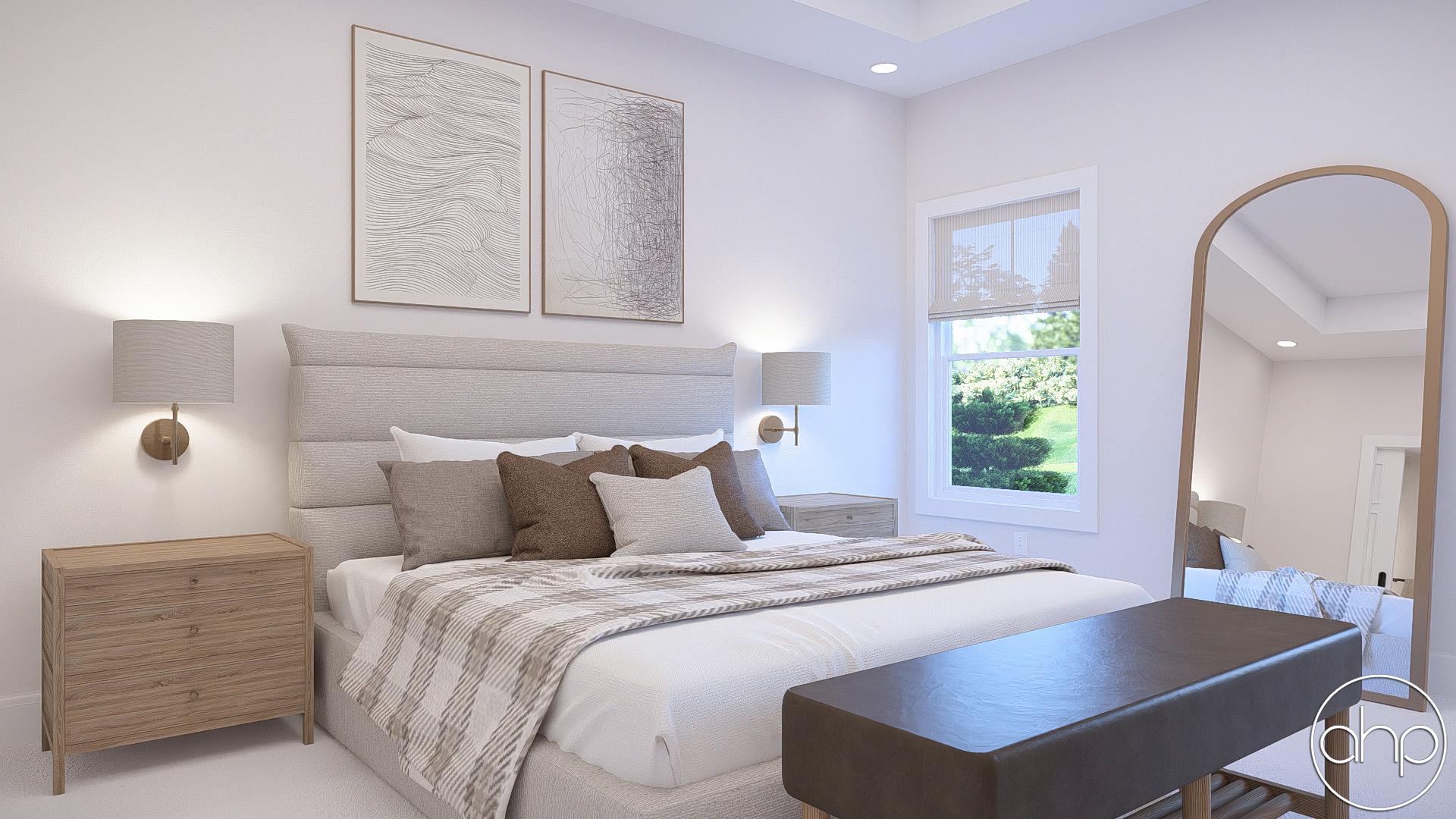

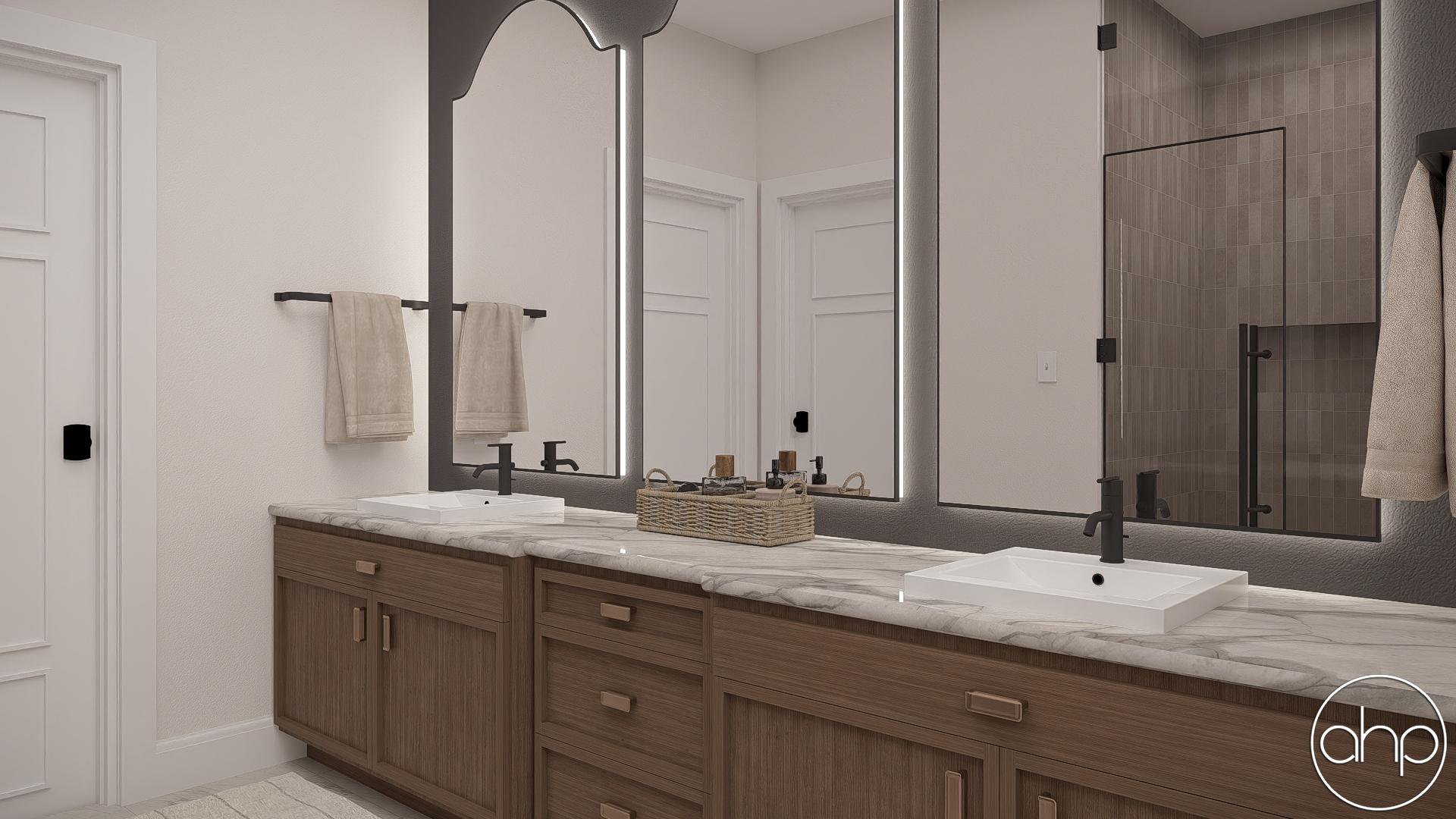

The master suite includes a master bath with his and her vanities and a walk-in closet with access to the laundry room. Bedrooms 2 and 3 share a centrally located hall bathroom.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 3
Per Unit
Bathrooms 2
Per Unit
Garage Bays 2
Per Unit
Square Footage
Main Level 1616 Sq. Ft.
Per Unit
Covered Area 286 Sq. Ft.
Per Unit
Garage 457 Sq. Ft.
Per Unit
Total Finished Area 1616 Sq. Ft.
Per Unit
Exterior Dimensions
Width 80 ' 0"
Depth 68 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Basement
Exterior Wall Construction
2x4
Roof Pitches
6/12 Primary
Foundation Wall Height
9'
Main Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$1800
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.
