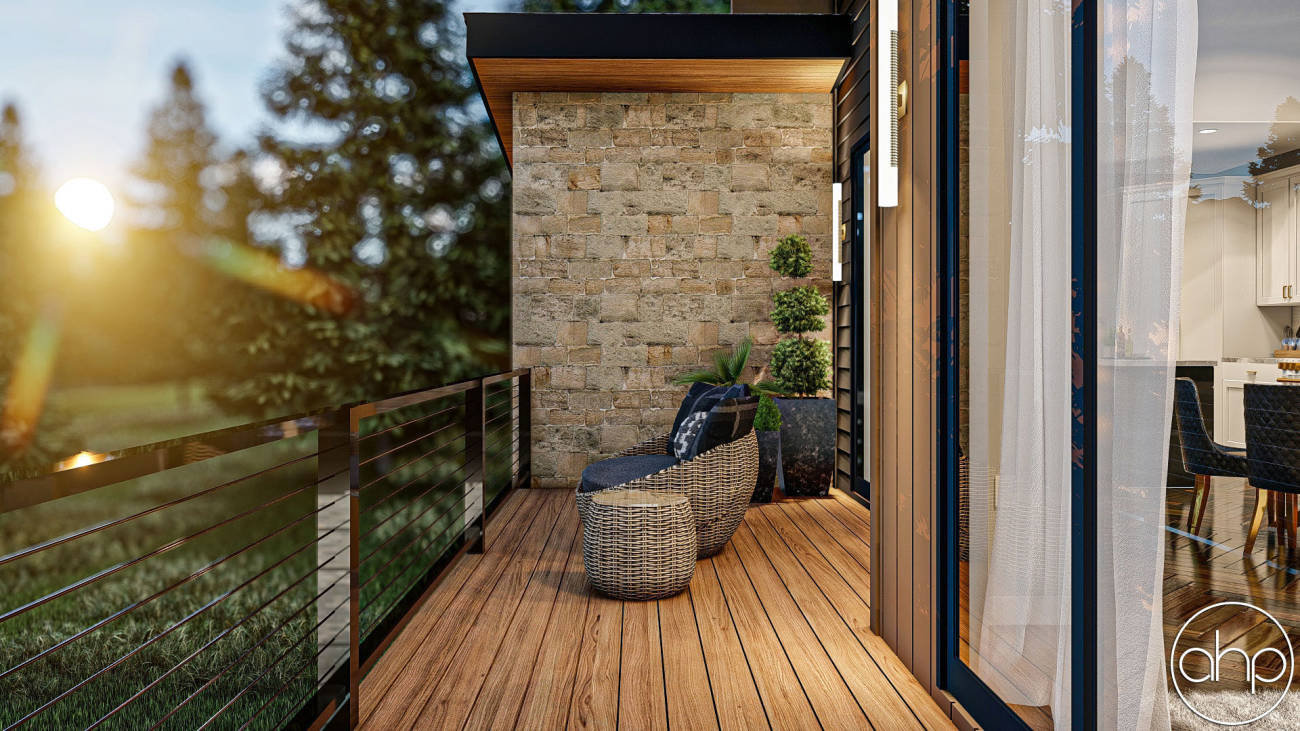

Stonehurst Rendering Stonehurst Rendering Stonehurst Rendering Stonehurst Rendering Stonehurst Rendering Stonehurst Rendering Stonehurst Rendering Stonehurst Rendering Stonehurst Rendering Stonehurst Rendering Stonehurst Rendering Stonehurst Rendering Stonehurst Rendering
NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

Modern Style Carriage House

Stonehurst - 30196

1227
Sq Ft
2
Beds
2
Baths
2
Bays
40' 4"
Wide
34' 8"
Deep

Floor Plan Images

Main Level

Stonehurst

Second Level

Stonehurst

Plan Description

This modern style carriage home has a beautifully unique exterior, but also an interior that matches perfectly. While giving off a feel of modern, it also gives off a feel of a craftsman style home in the mountains. The exterior of the home has great curb appeal, with different textures of light-colored stone along with dark garage doors and finishings. Before even stepping inside, you can be in awe of Stonehurst's beauty.

Take two different routes to get inside, either the main entry through the garage, where you are met with a mudroom style area, including lockers, a catchall, and a laundry room, or head up the stairs to the second level. Here, you are welcomed with a large open area, including the kitchen, dining, and great room. The dining room being in between the other two adds a great separation of space without taking away from the airness of the room itself. The walk-in pantry and fireplace are just two simple features that add to the elegance of this home.

The Stonehurst plan is complete with two bedrooms and a shared bathroom. Perfect for a new family or empty nesters.



As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 2
Bathrooms 2
Garage Bays 2
Square Footage
Main Level 202 Sq. Ft.
Second Level 1025 Sq. Ft.
Garage 748 Sq. Ft.
Total Finished Area 1227 Sq. Ft.
Exterior Dimensions
Width 40 ' 4"
Depth 34 ' 8"
Ridge Height
Calculated from main floor line
27 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x4
Roof Pitches
2/12
Main Wall Height
10'
Second Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$1200
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.
