Barndominium Style House Plan | Smithville
Floor Plan Images
Plan Description
Imagine your dream home — a stunning two-story four-bedroom, three-bathroom barndominium that’s as functional as it is beautiful. Step inside and be greeted by an expansive open concept main living area, where the kitchen, dining, and living spaces flow together seamlessly. With soaring ceilings, this heart-of-the-home layout is perfect for entertaining guests, hosting family gatherings, or simply relaxing in comfort.
The main floor master suite is your private retreat, thoughtfully designed for everyday ease and comfort. Spacious and serene, the master features a luxurious en-suite bathroom with premium fixtures and plenty of closet space. This home isn’t just beautiful — it’s built for real life, real memories, and real joy.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 4 |
| Bathrooms | 3 |
| Garage Bays | 3 |
| Square Footage Breakdown | |

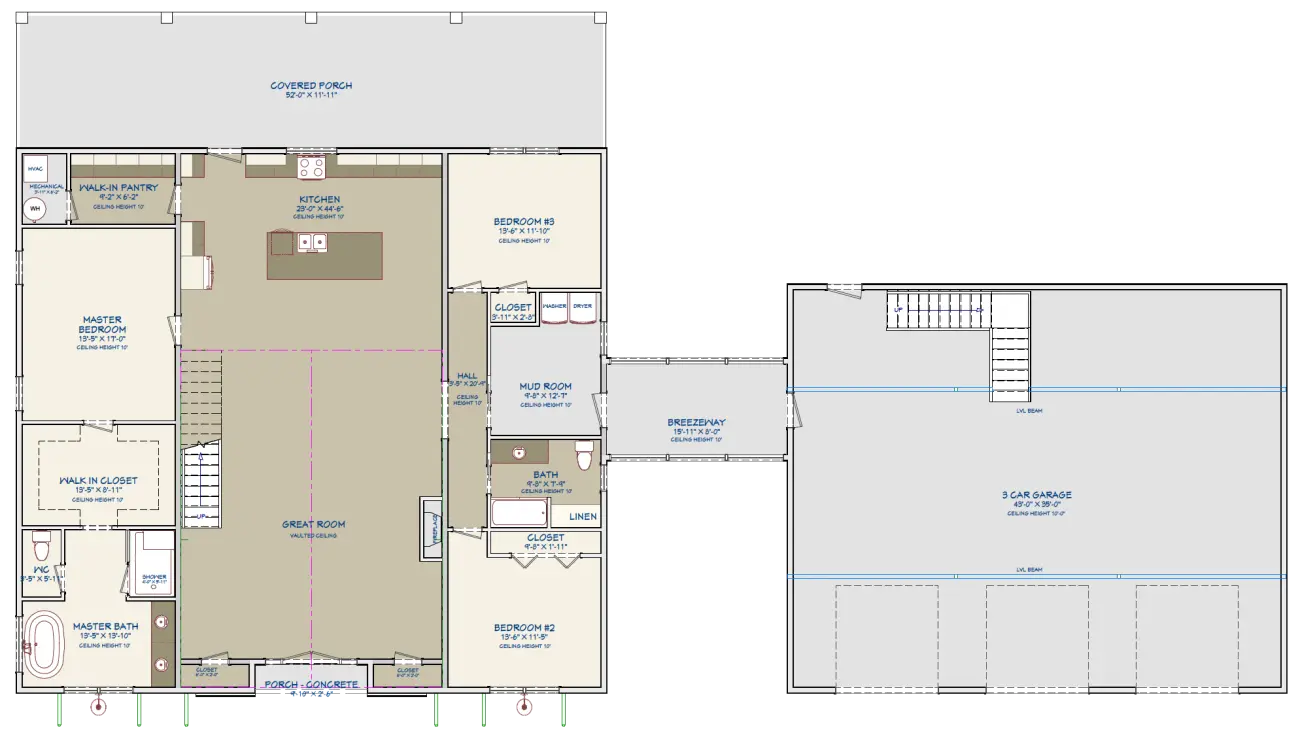

| Main Level | 2471 Sq Ft |

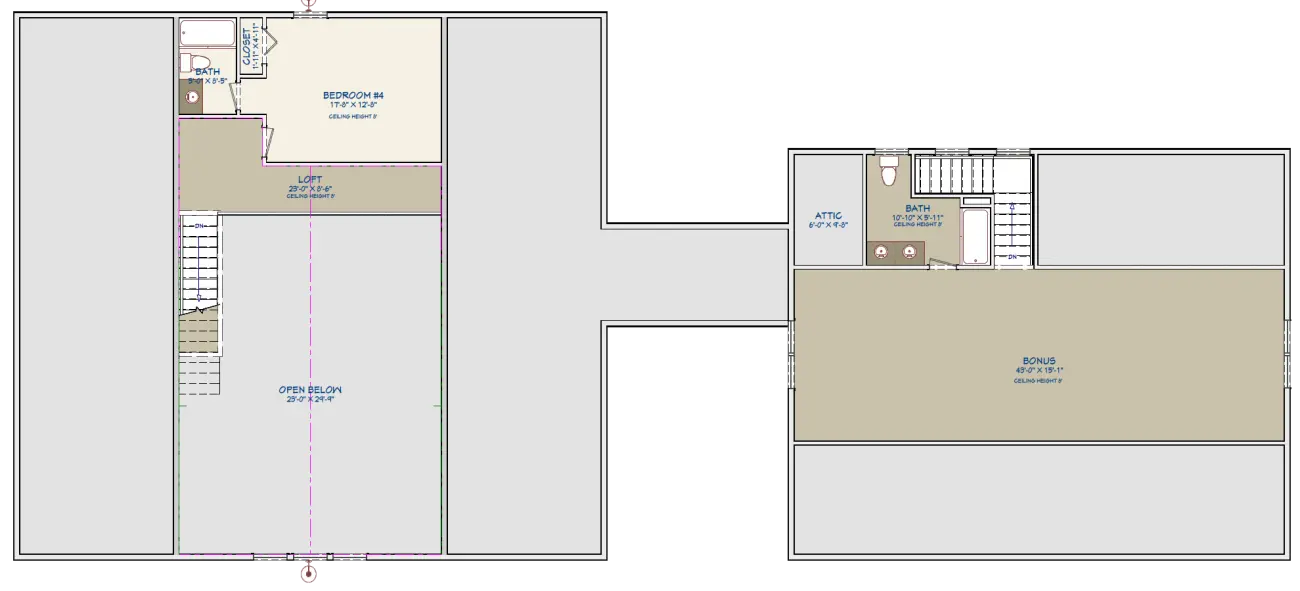

| Second Level | 427 Sq Ft |
| Total Finished Area | 2898 Sq Ft |
| Garage | 1580 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 800 Sq Ft |
| Optional Bonus Area (Not included in total sq ft) | 781 Sq Ft |
| Exterior Dimensions | |
| Width | 112' 0" |
| Depth | 60' 0" |
| Ridge Height | 28' 0" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x6 |
| Roof Construction Method | Trusses |
| Floor Construction Method | I-Joists |
| Roof Pitches | Primary 8/12 |
| Main Level Ceiling Height | 10' |
| Second Level Ceiling Height | 8' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.

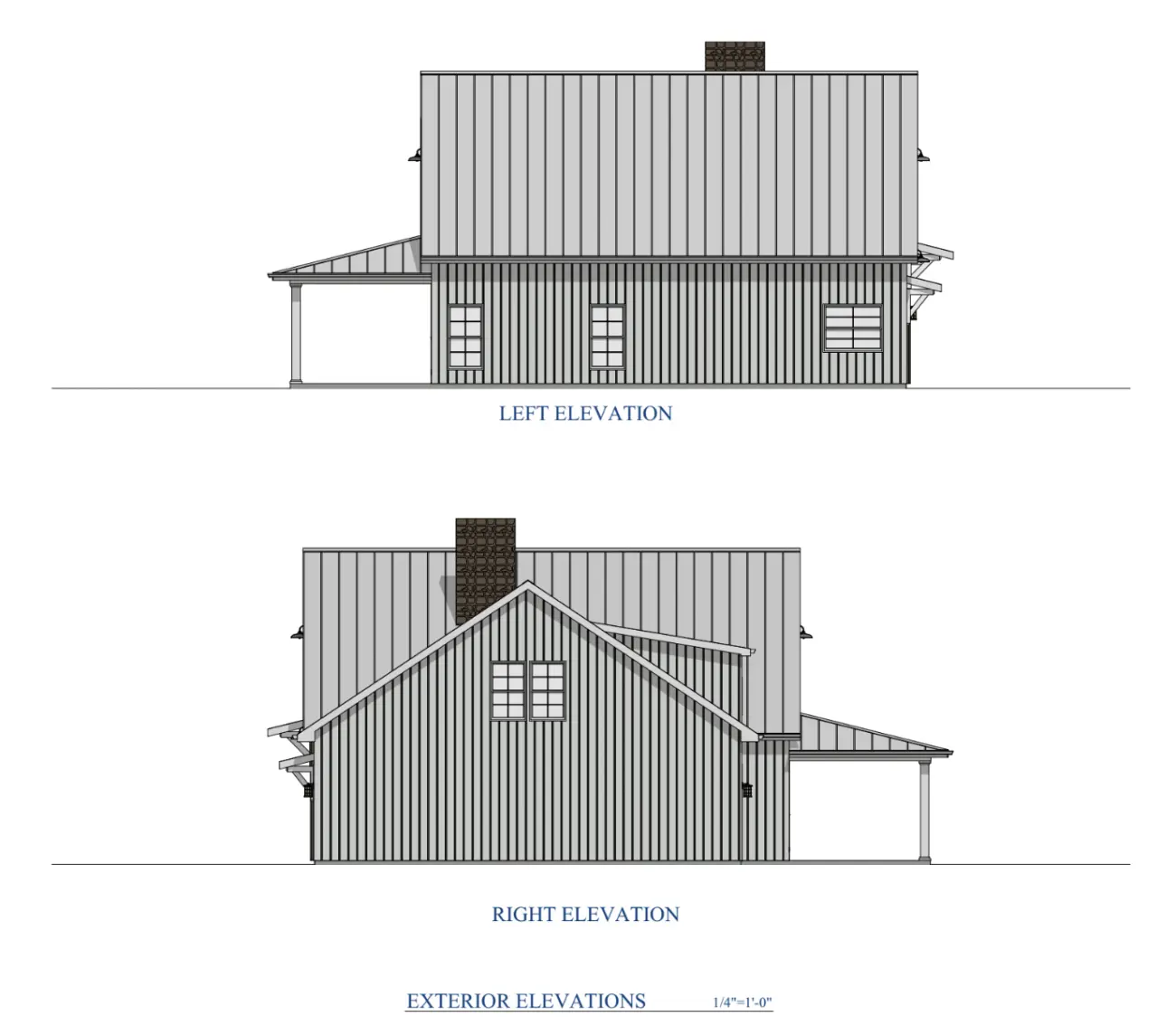

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
