29043 | Sierra Vista


1 Story

2512 Sq. Ft.

2 Beds

3 Baths

3 Car
Did you know you can make alterations to this plan?

Floor Plans

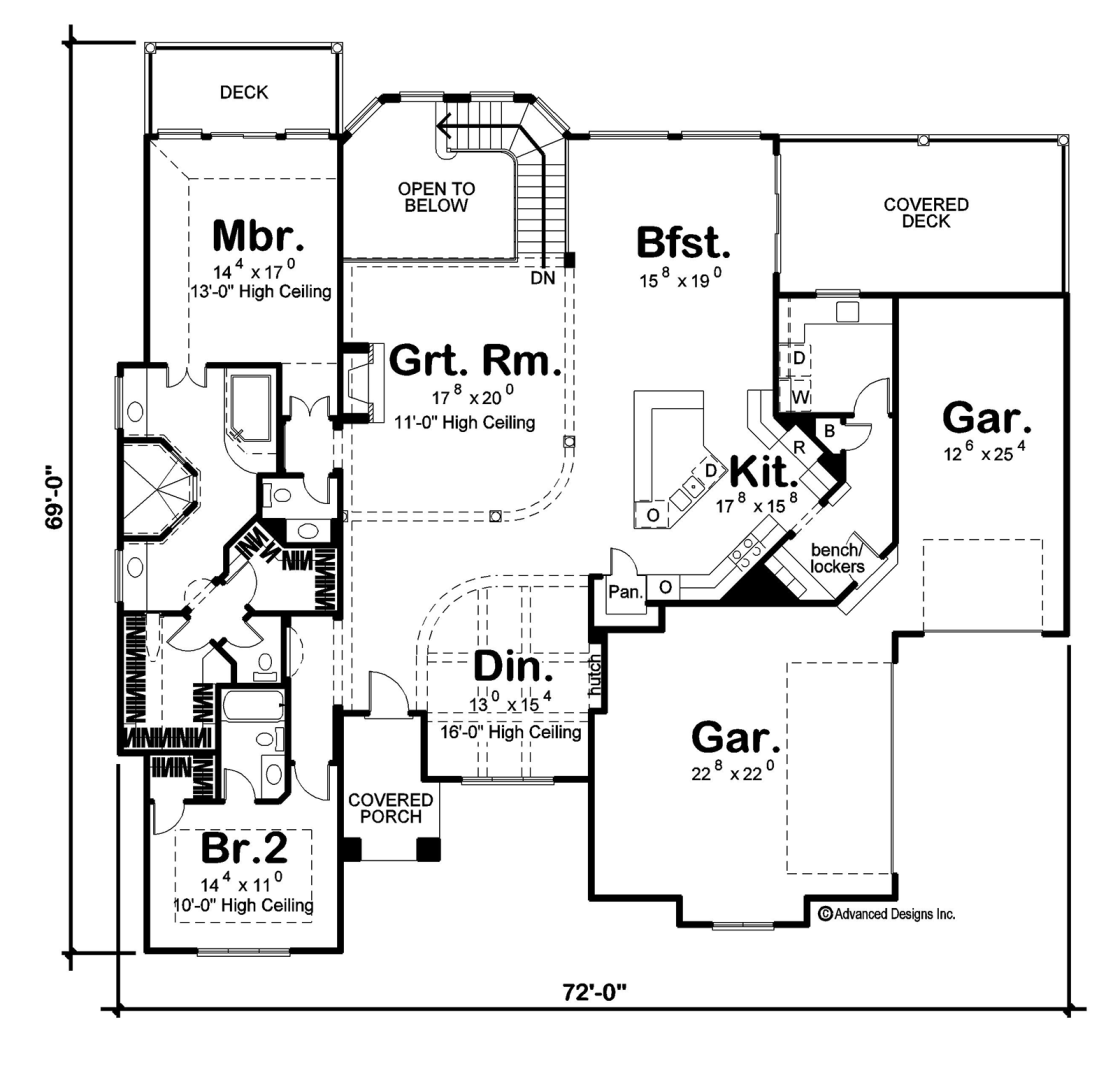

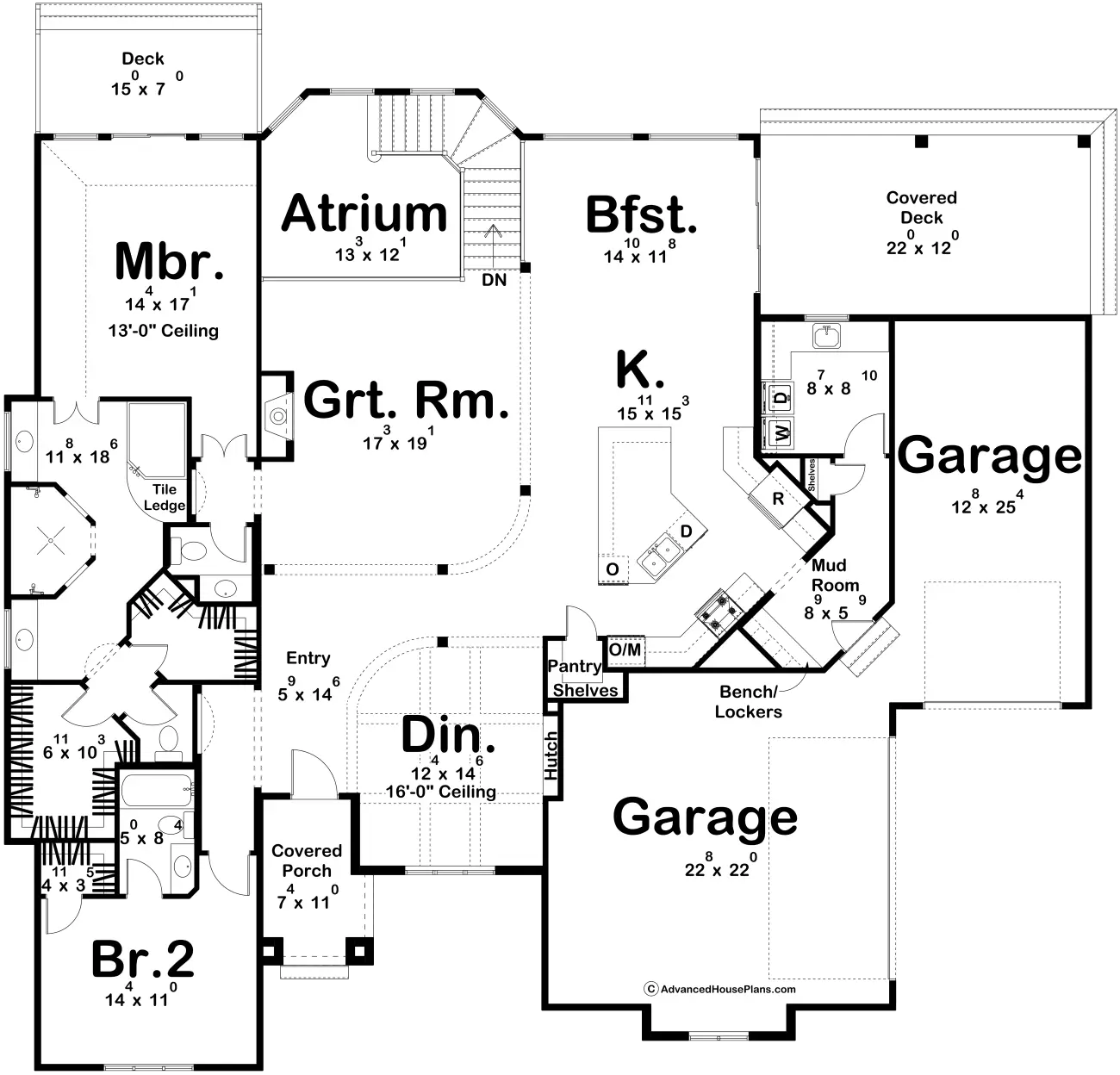

Sierra Vista Floor Plan

Plan Description

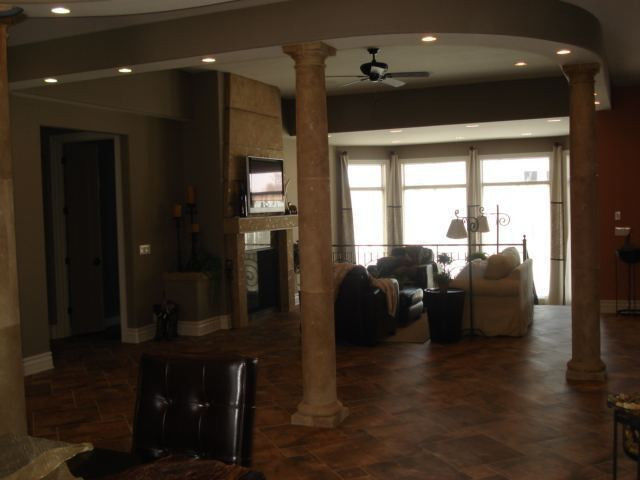

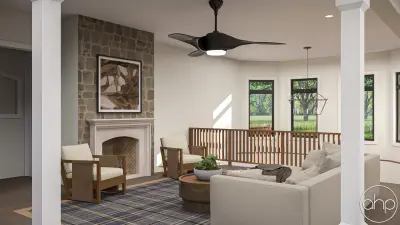

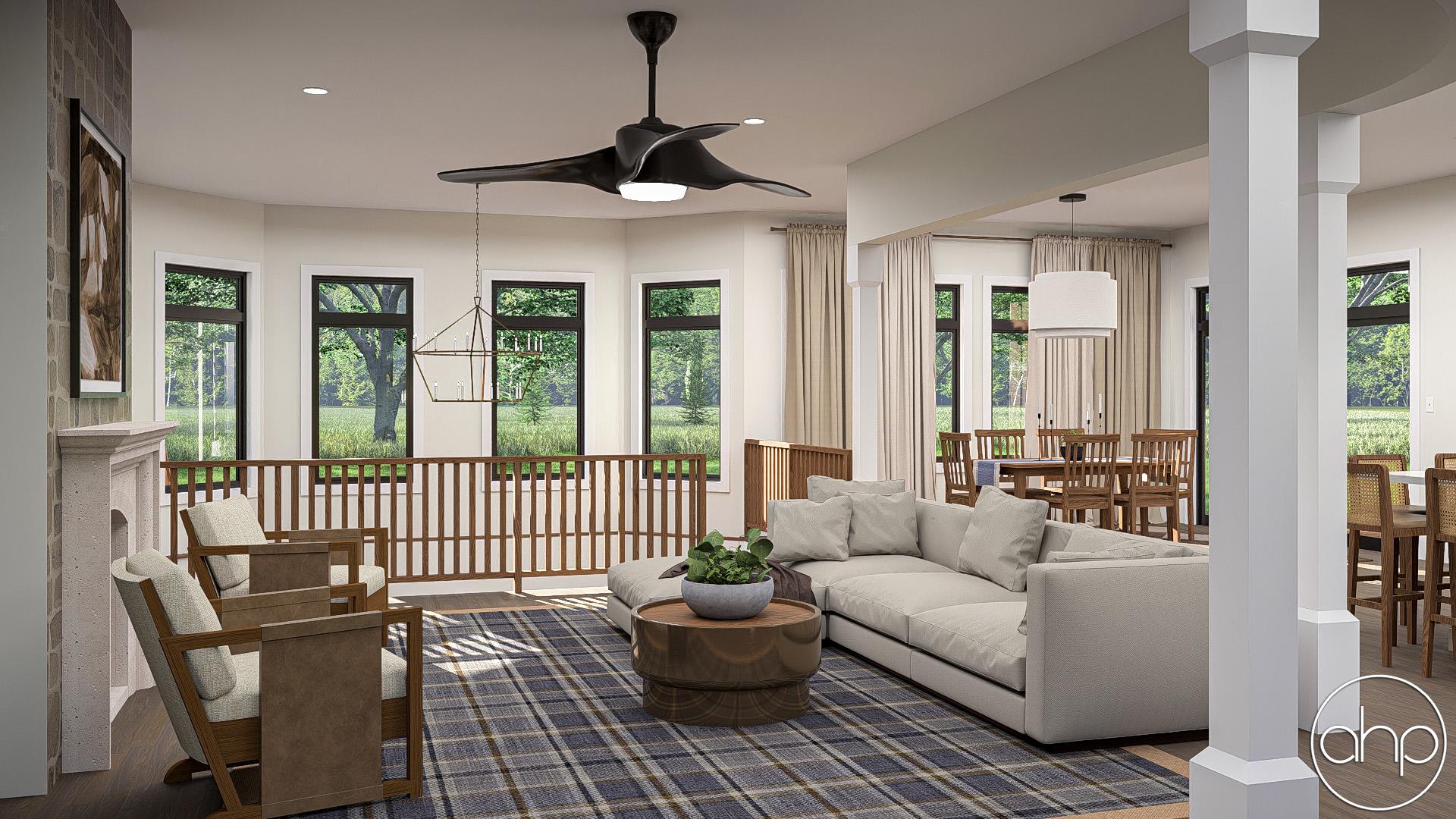

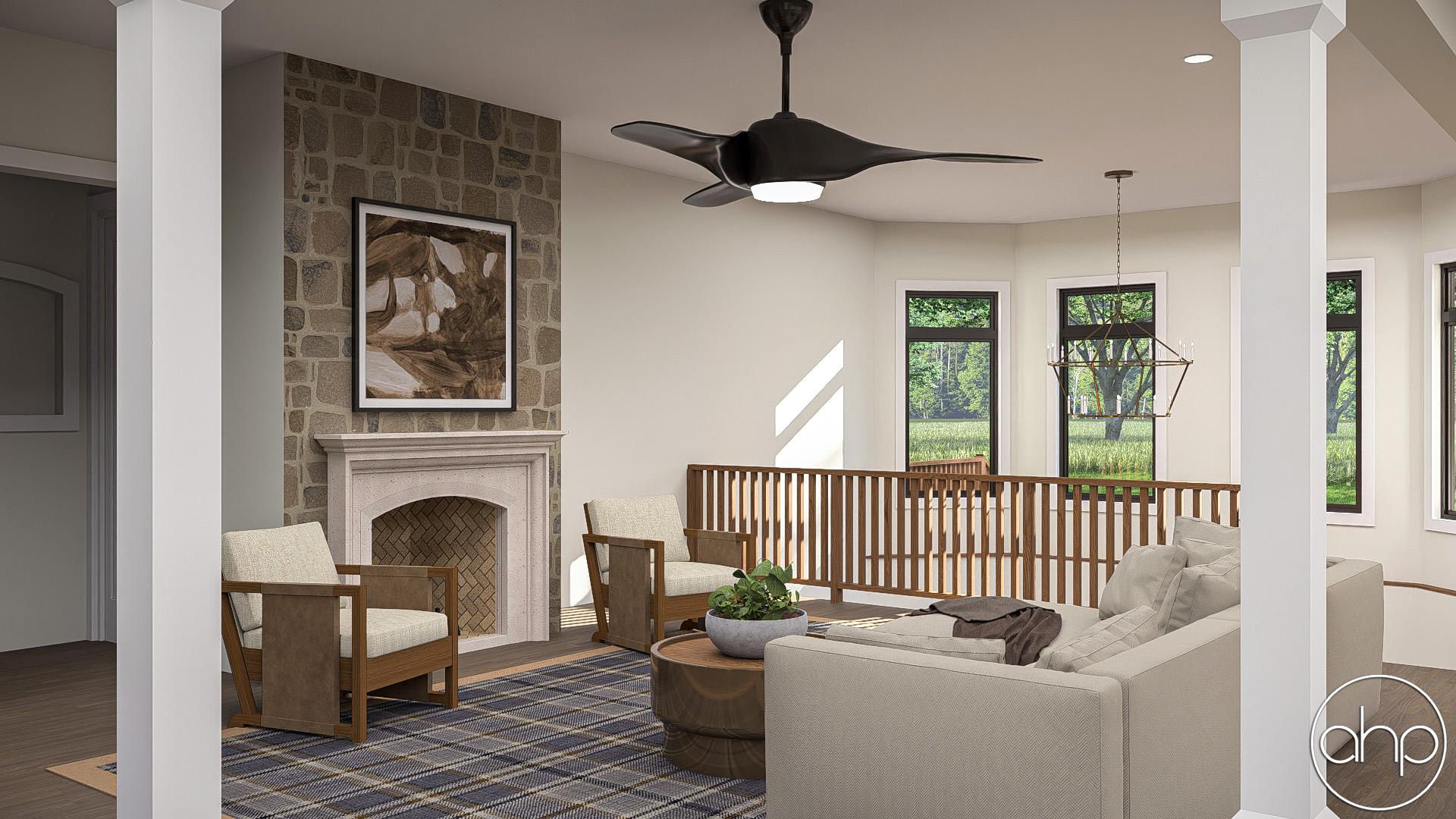

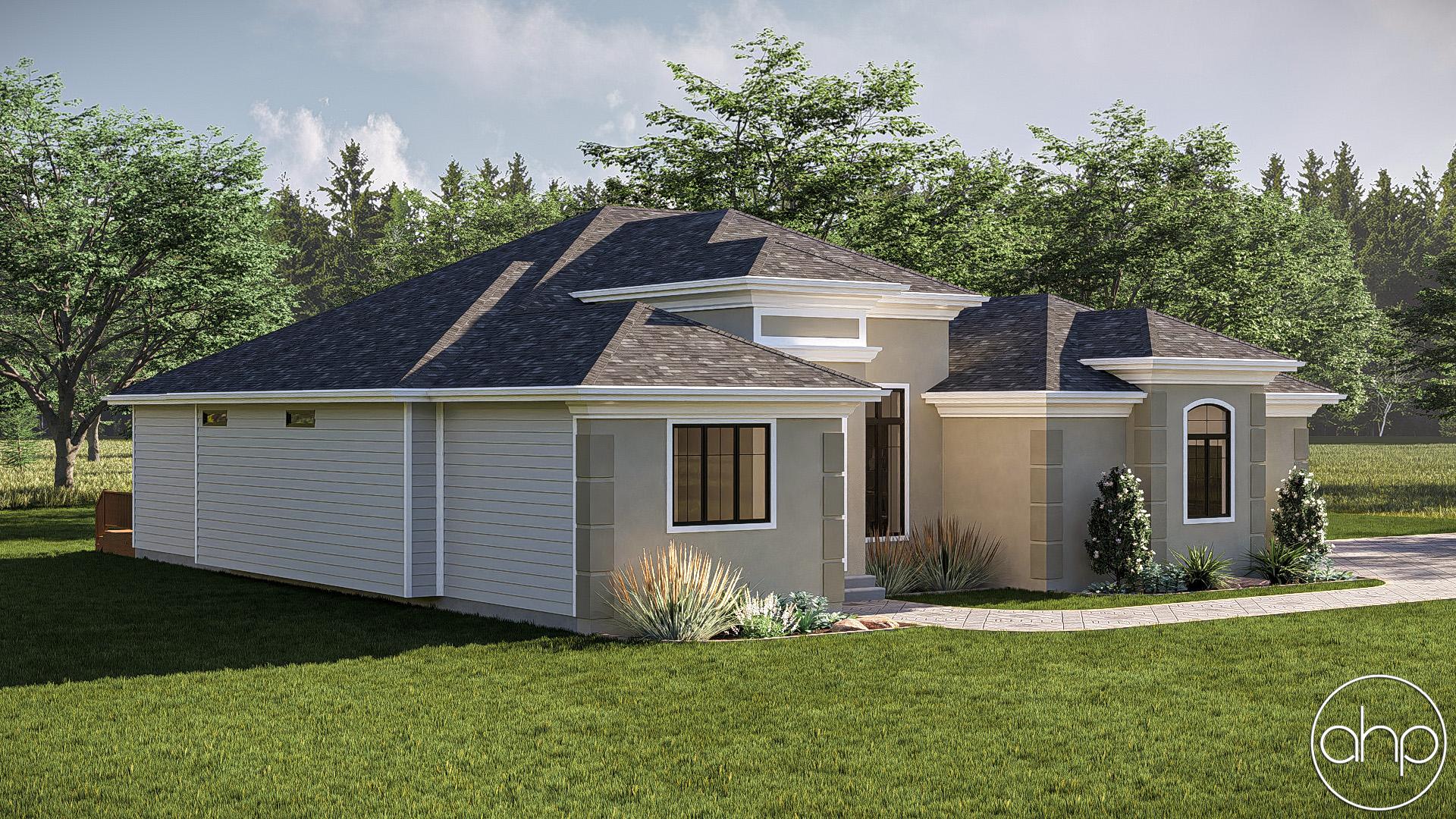

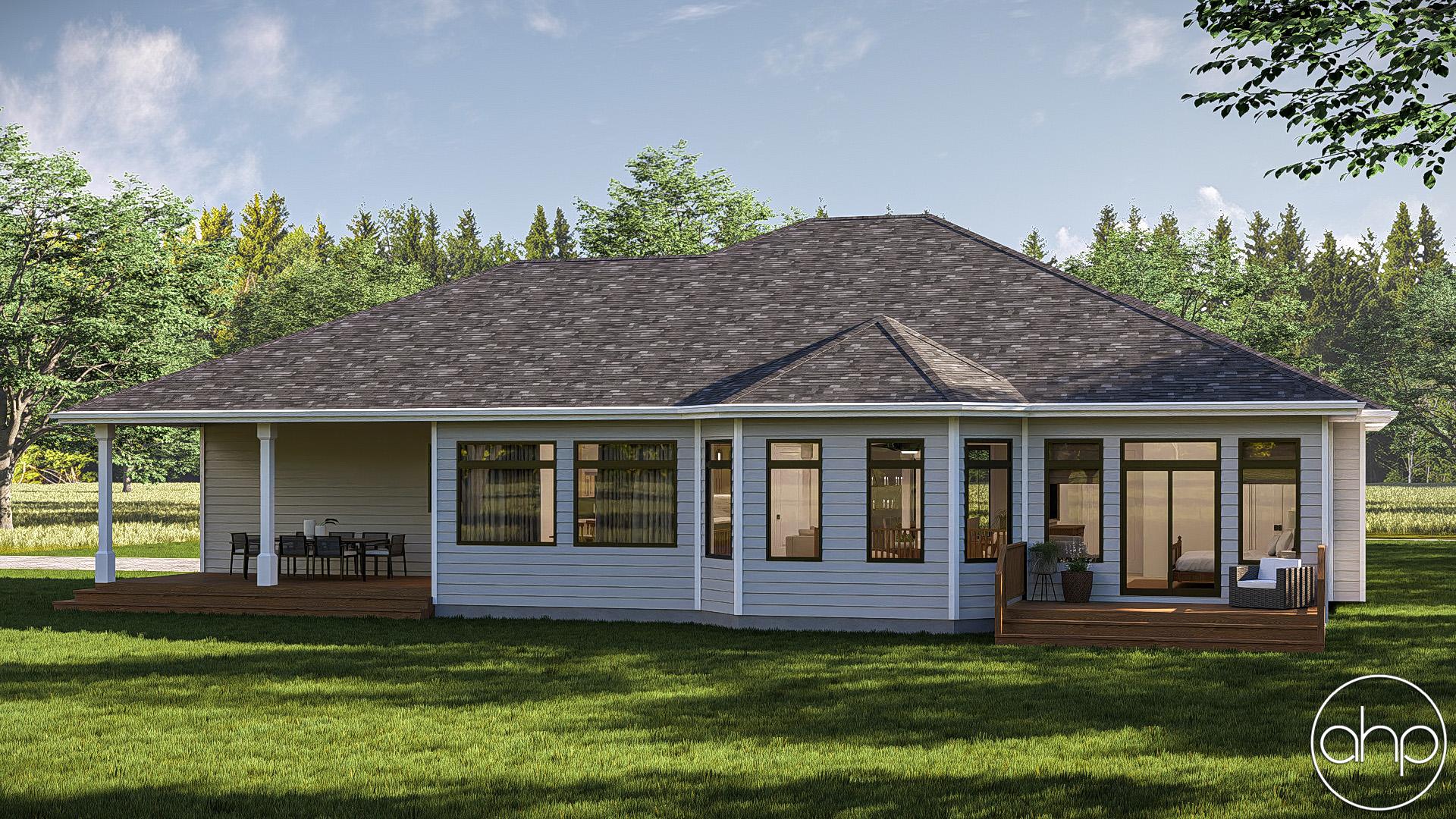

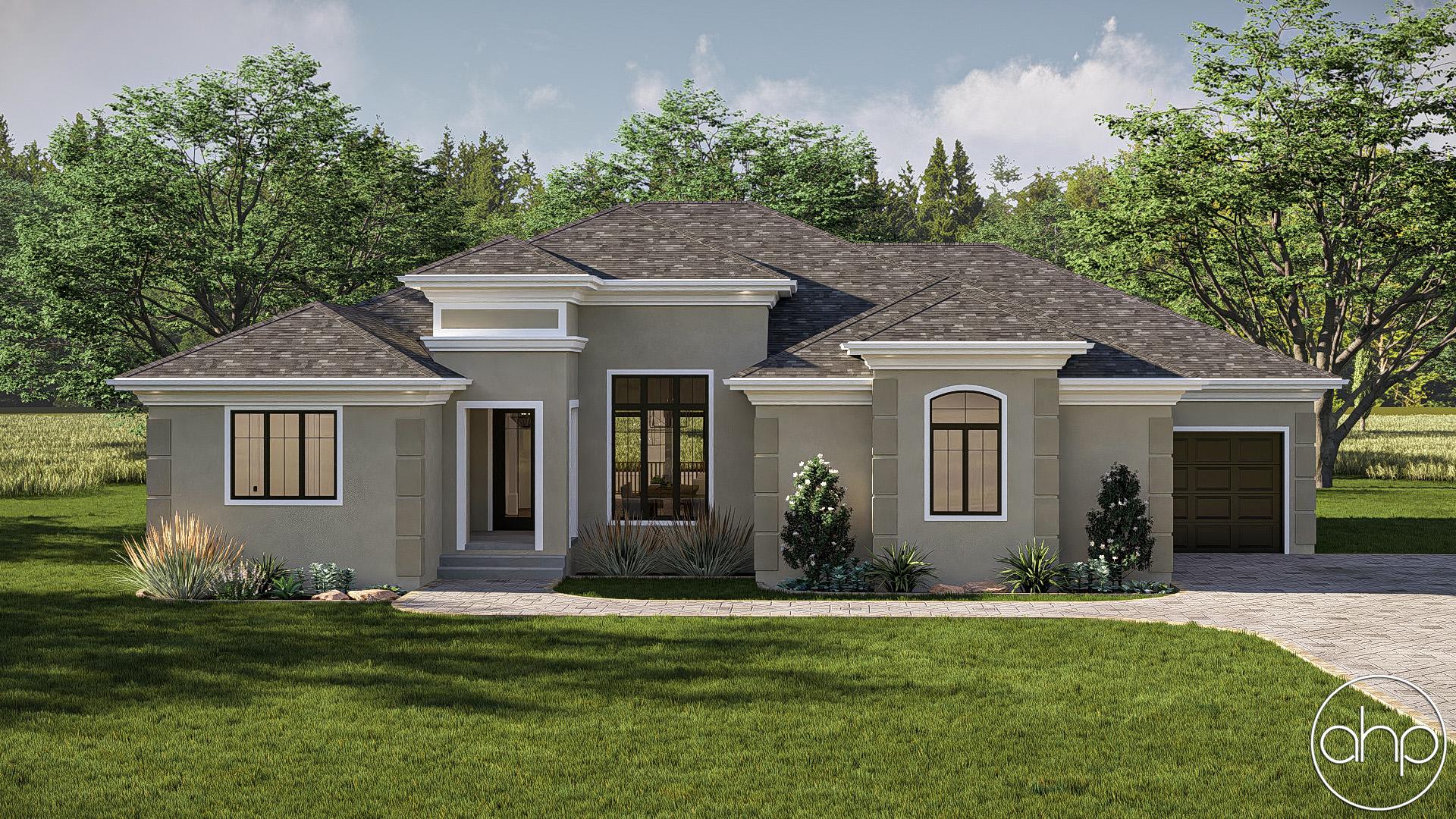

The Sierra Vista is a charming Mediterranean ranch with generous, flowing spaces. The open floor plan is perfect for entertaining and with four roomy bedrooms, it is ideal for growing families. Large rear-facing windows provide for comfortable natural-lighting and refreshing outdoor views from throughout the main living areas. You will love summer afternoons reclining in the cool of your fantastic covered deck.

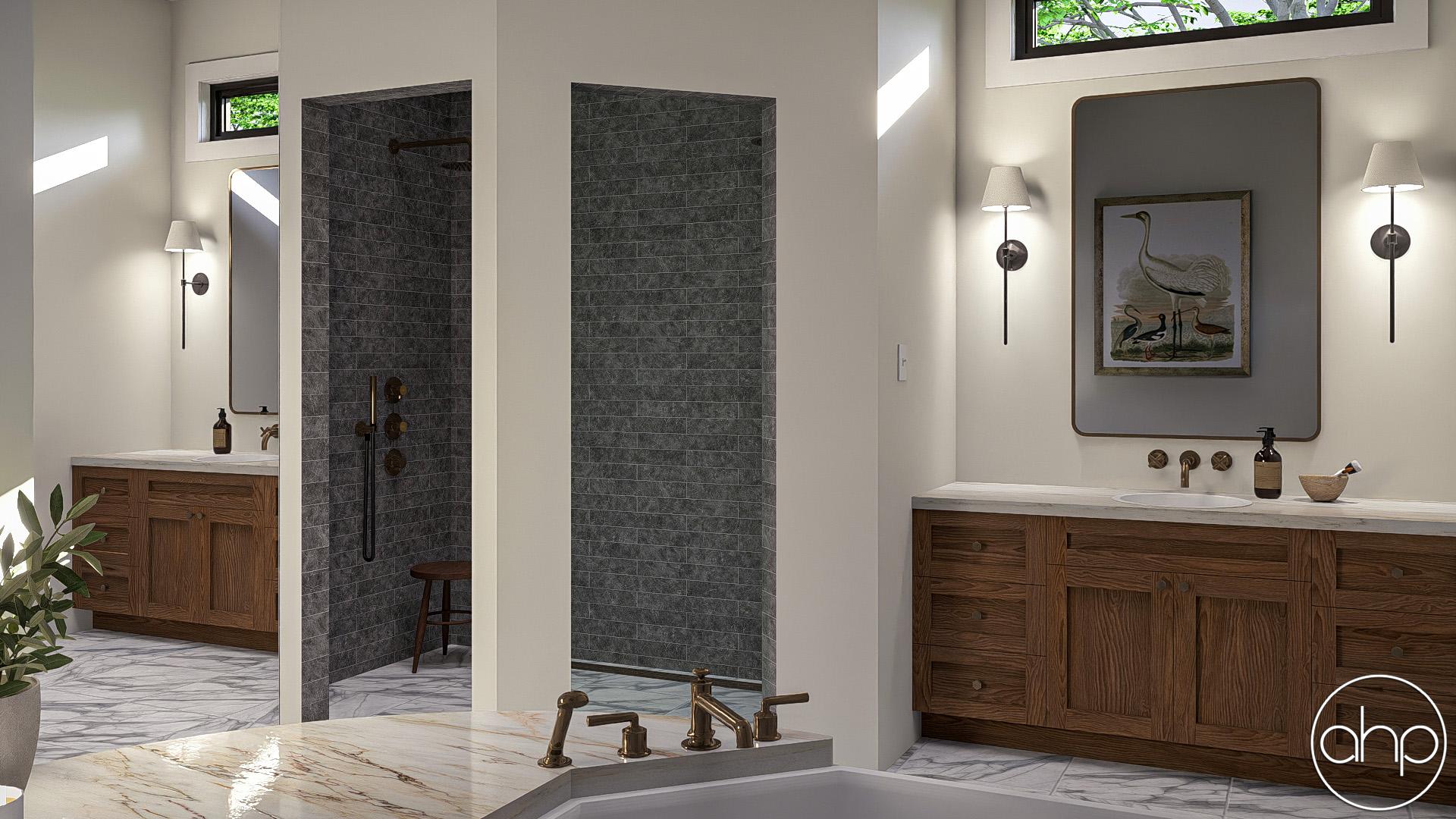

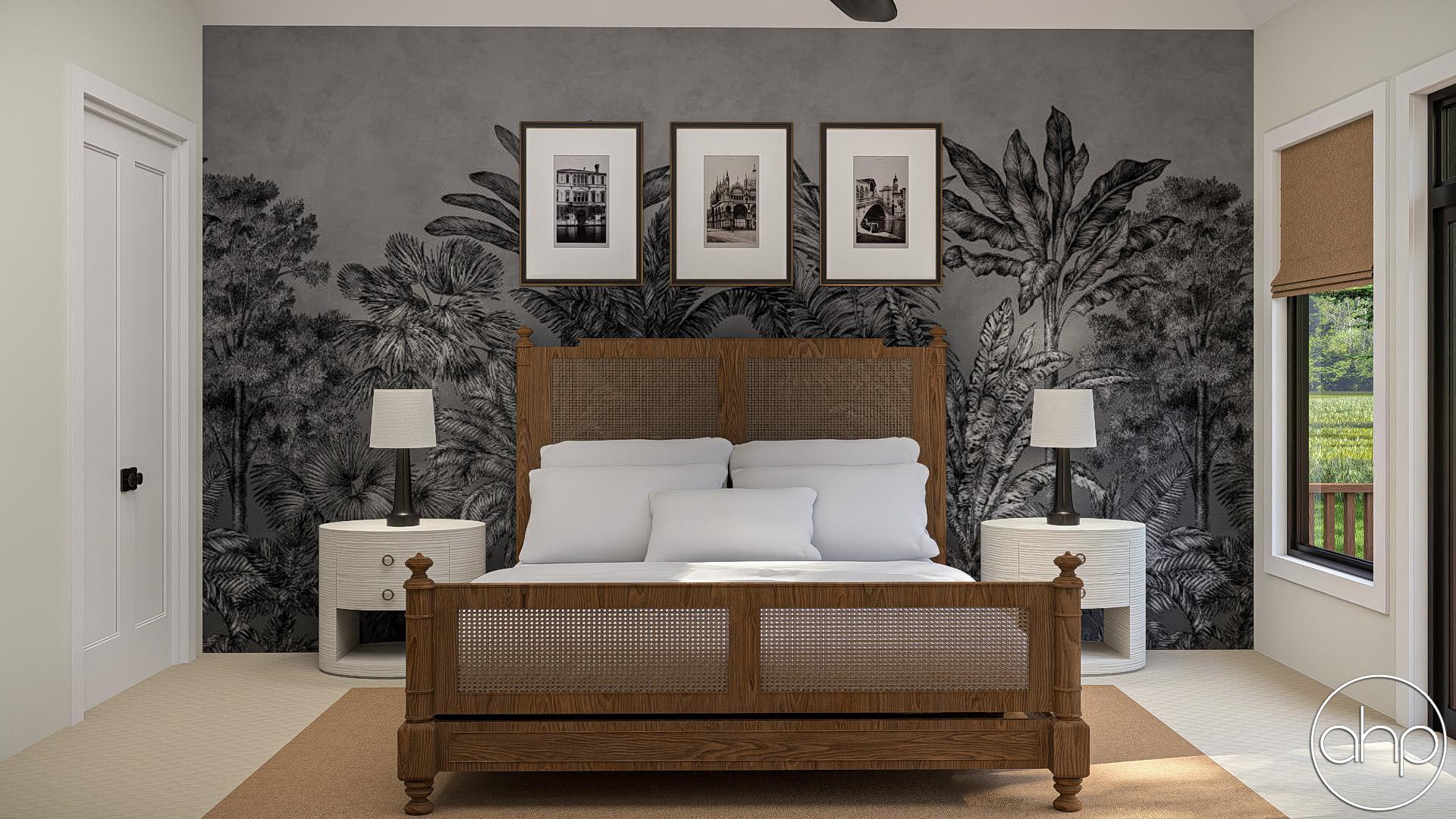

The spacious master bedroom has tall ceilings allowing for plenty of natural lighting with the large windows that overlook your backyard. Relax on a quiet evening on the private deck. The master suite features an alluring, thoughtful bathroom with his and her vanities, closet space and a private water closet.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Full Specifications

Rooms

Bedrooms 2
Bathrooms 3
Car Bays 3

Area

Main 2512 Sq. Ft.
Total Finished 2512 Sq. Ft.
Garage Area 870 Sq. Ft.

Dimensions

Width 72'
Depth 69'
Ridge Height 25'

Construction

Foundation Type Basement
Exterior Walls 2x4
Roof Pitch 6/12
Basement Wall Height 9'
Main Wall Height 10'

Plan Features


What is included in a set of plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

29043 | Sierra Vista

$1000
Do you need to get this plan bid out before you buy it? Purchase a bid set for only $250 .
