Barndominium Style House Plan | Shelbyville
Floor Plan Images
Plan Description
This striking barndominium showcases a bold roofline and an exterior that immediately captures attention through its timeless materials and carefully crafted details. The design blends classic barn-inspired elements with refined finishes, creating a home that feels both enduring and distinctive. Its 1.5-story layout offers a thoughtful balance of openness and practicality, making it well suited for a wide range of lifestyles.
The main floor is designed for comfort and convenience, featuring four generously sized bedrooms along with the primary living spaces. The expansive family room serves as the centerpiece of the home, highlighted by a dramatic vaulted ceiling that enhances the sense of space and light. Just behind it, the kitchen continues the airy feel with its own high ceilings, creating a seamless flow ideal for entertaining and daily living.

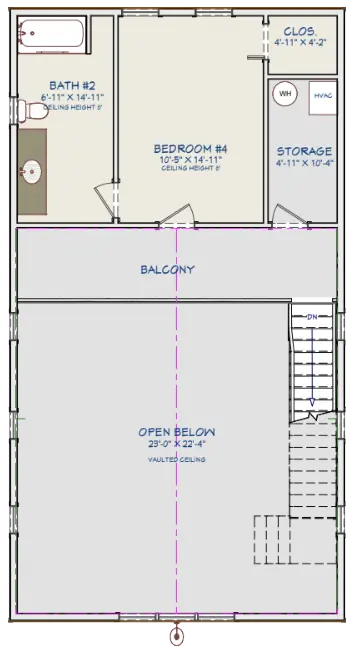

Upstairs, a balcony overlooks the family room below, adding architectural interest and a strong visual connection between levels. This upper space also includes an additional bedroom and full bathroom, making it perfect for guests, older children, or a private retreat. The overall design delivers a harmonious blend of openness, warmth, and timeless appeal throughout.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 5 |
| Bathrooms | 4 |
| Garage Bays | 0 |
| Square Footage Breakdown | |
| Main Level | 2327 Sq Ft |
| Second Level | 505 Sq Ft |
| Total Finished Area | 2832 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 977 Sq Ft |
| Exterior Dimensions | |
| Width | 56' 0" |
| Depth | 67' 0" |
| Ridge Height | 32' 5" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x6 |
| Roof Construction Method | Trusses |
| Floor Construction Method | I-Joists |
| Roof Pitches | Primary 10/12, Secondary 3/12 |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 8' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.

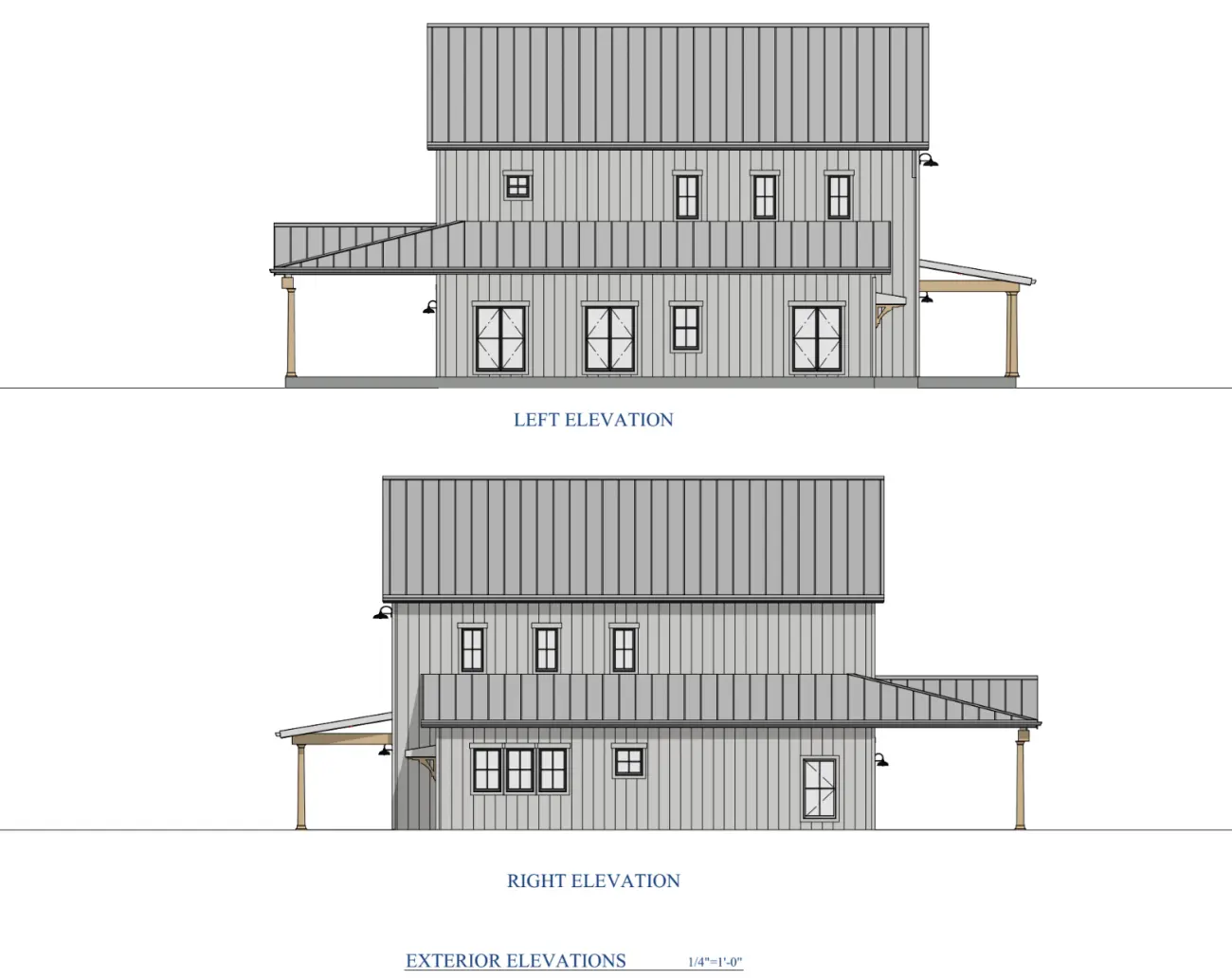

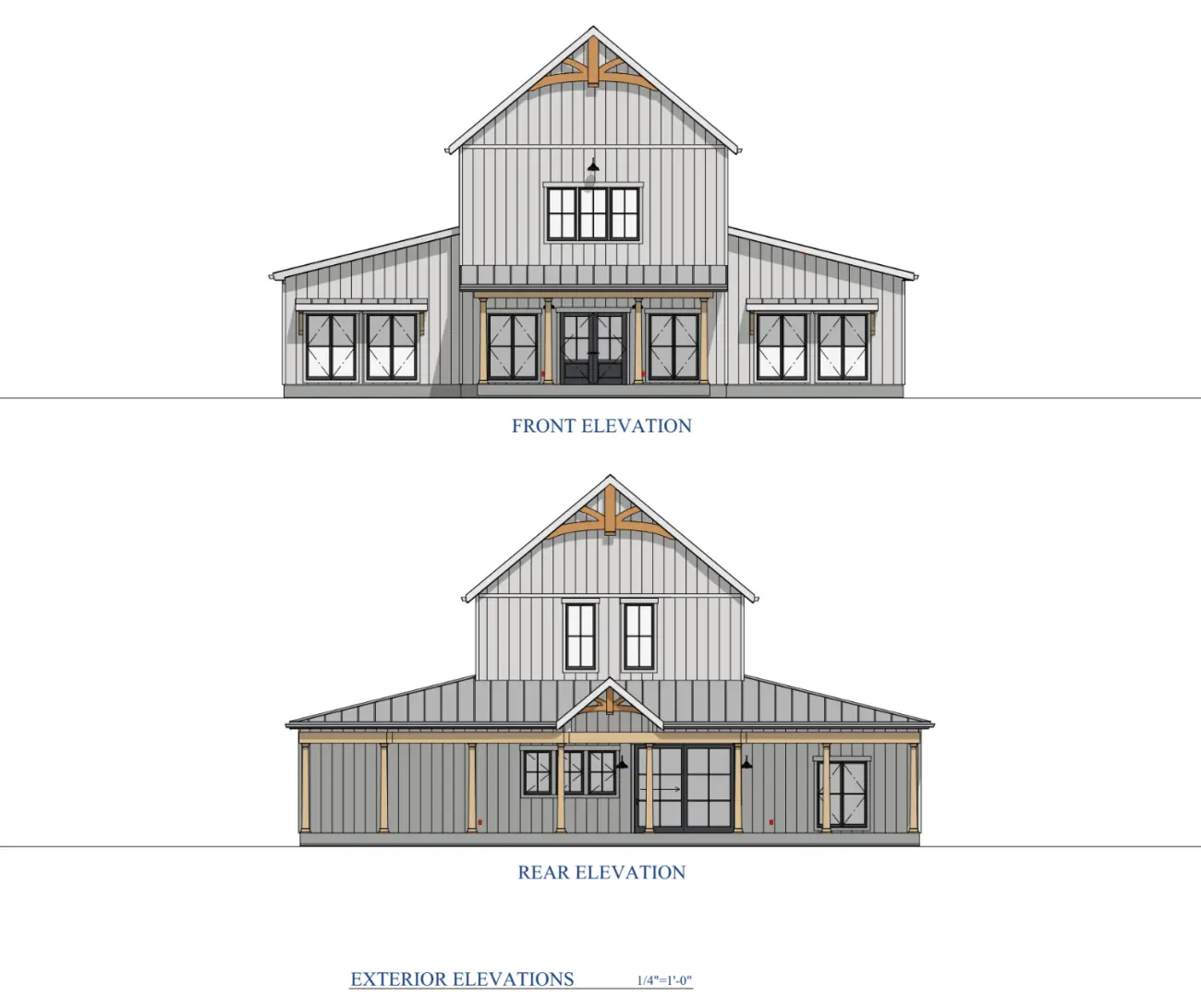

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
