Plan Description

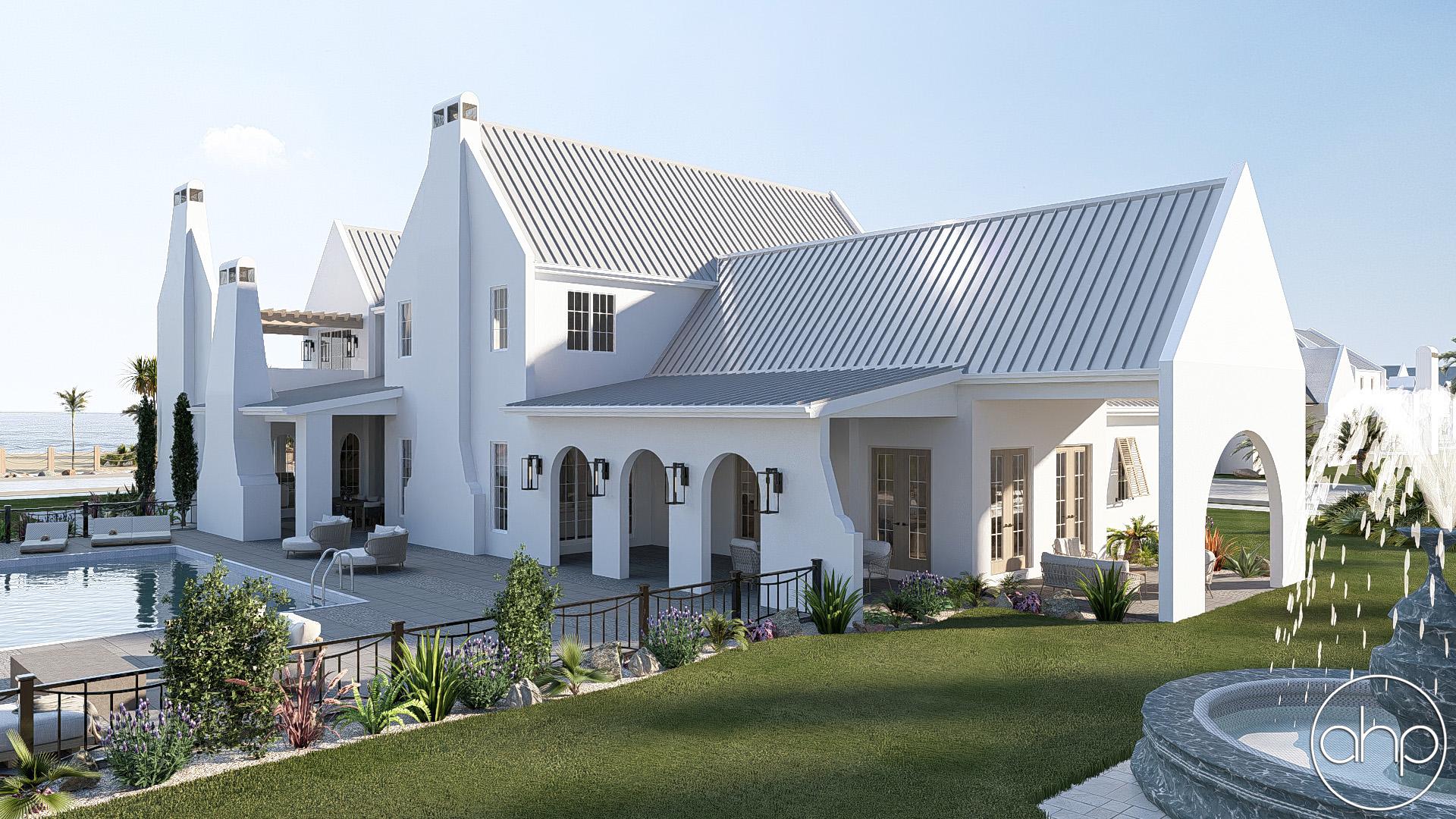

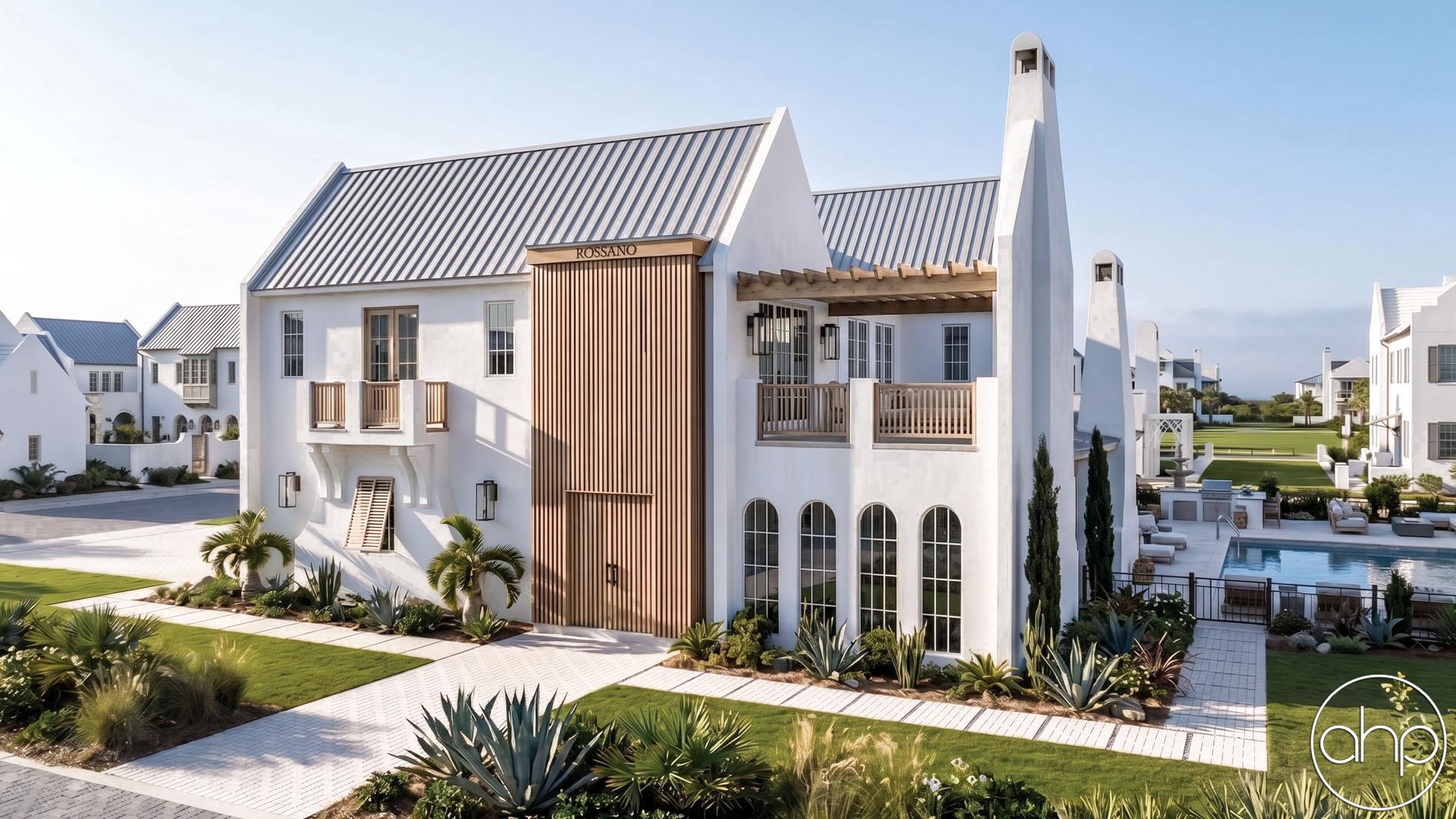

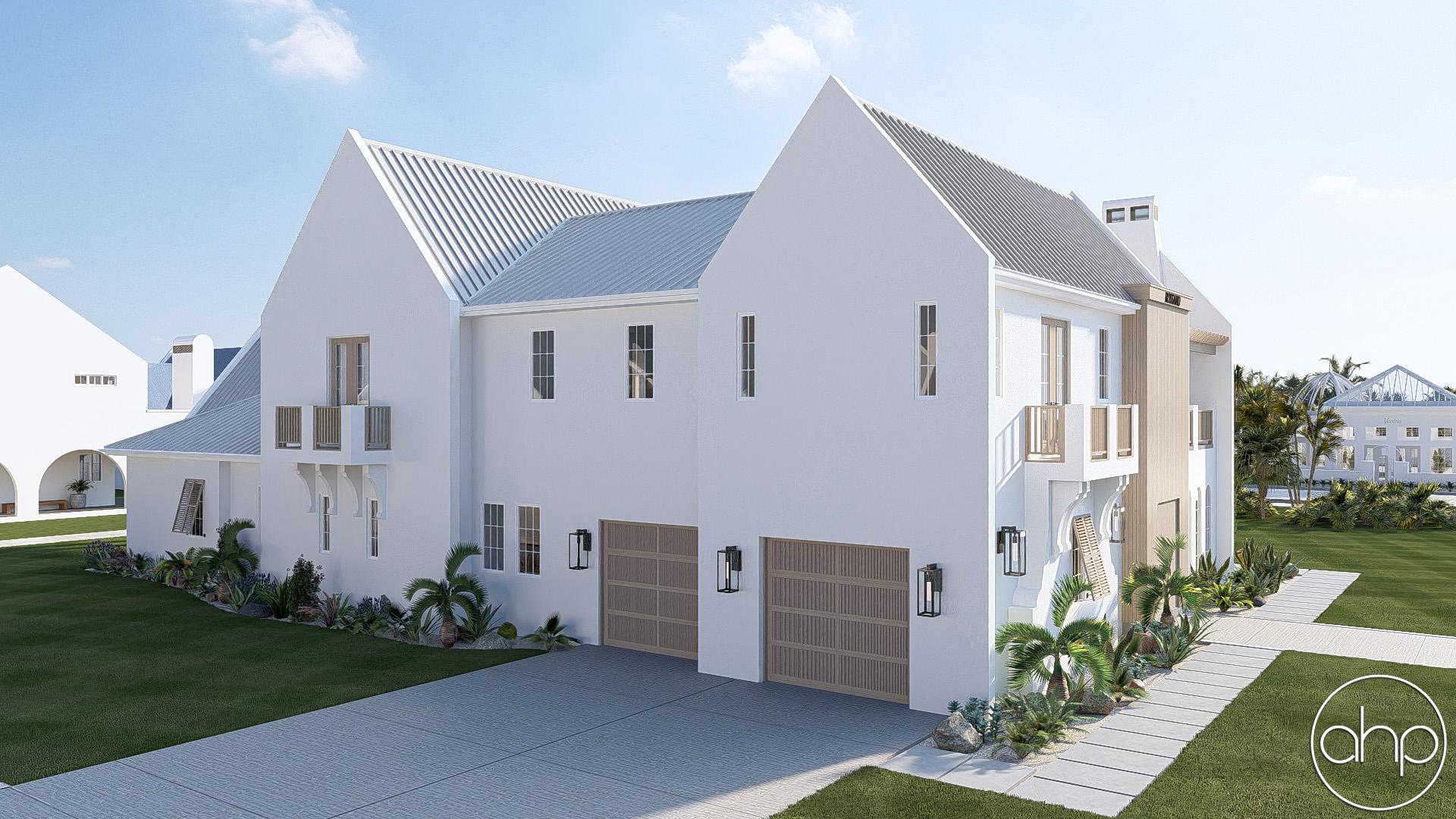

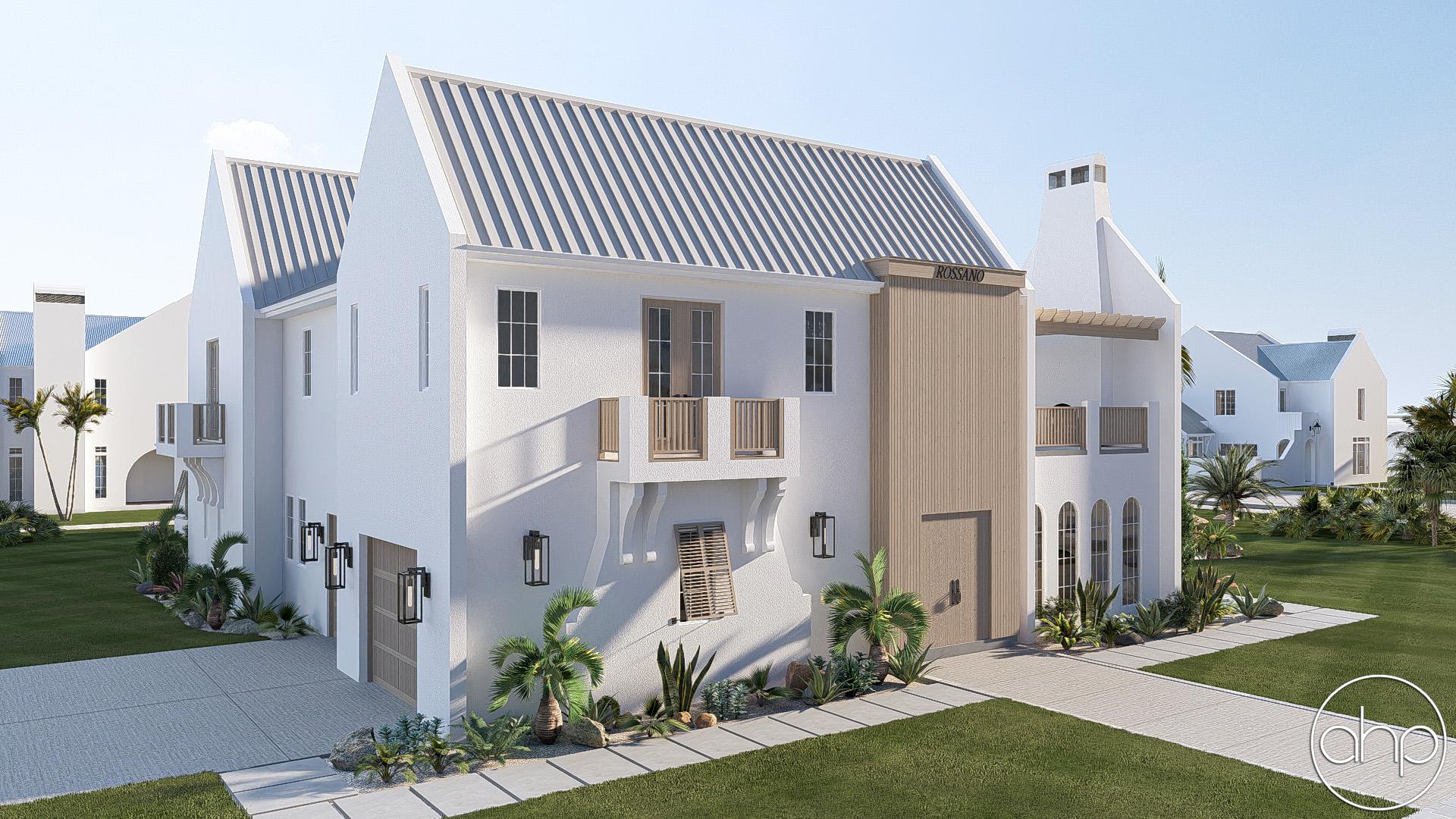

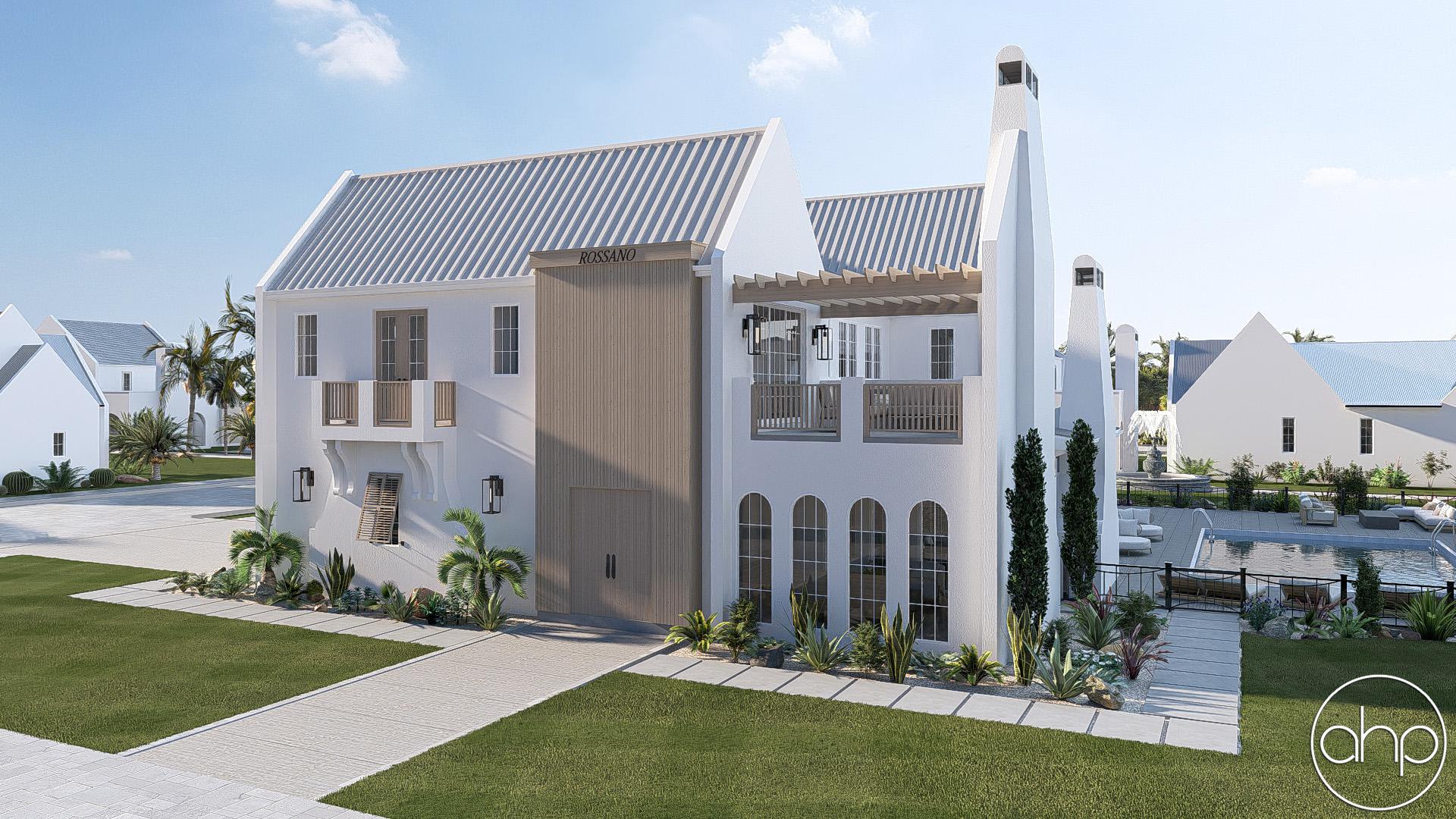

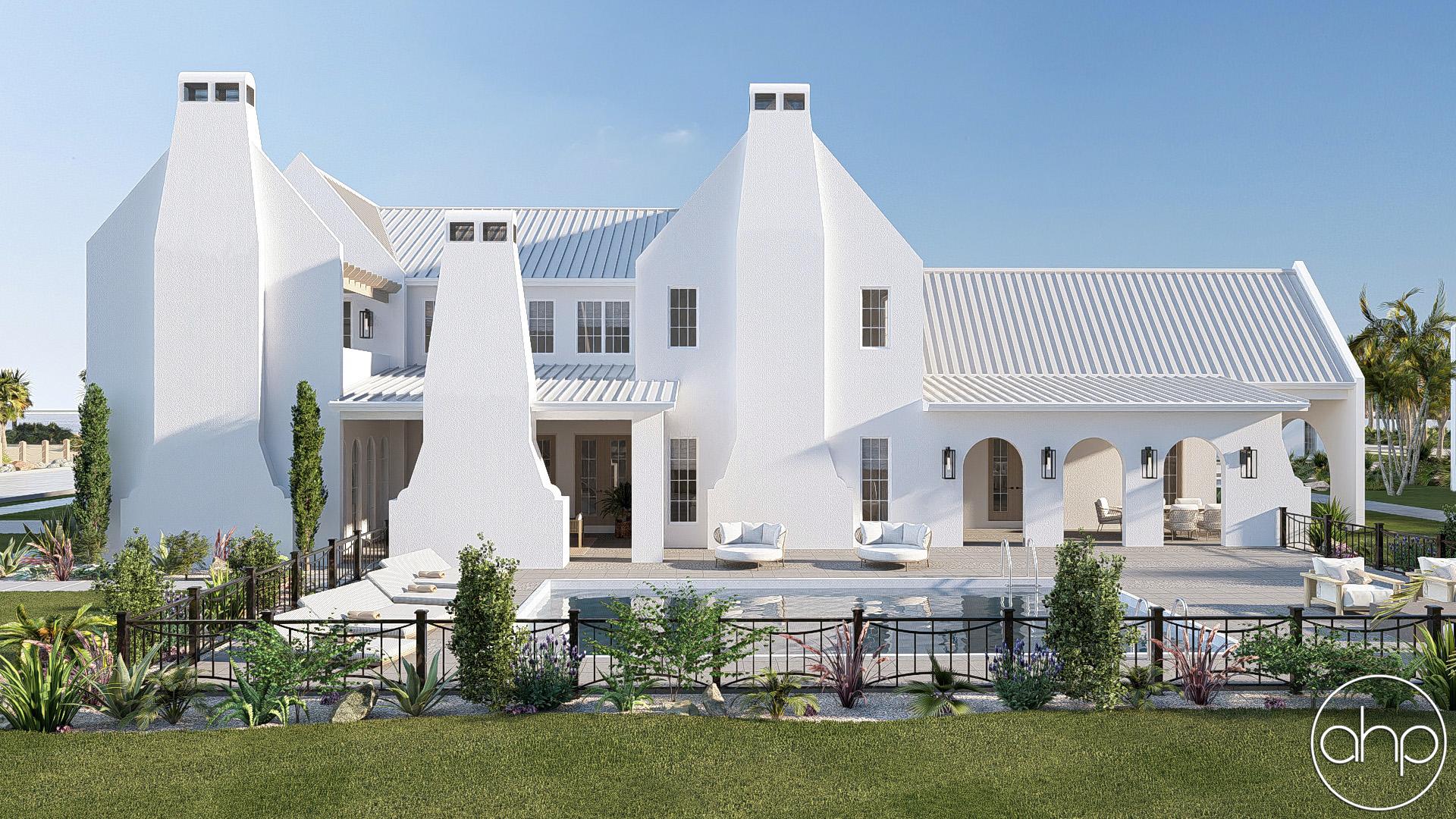

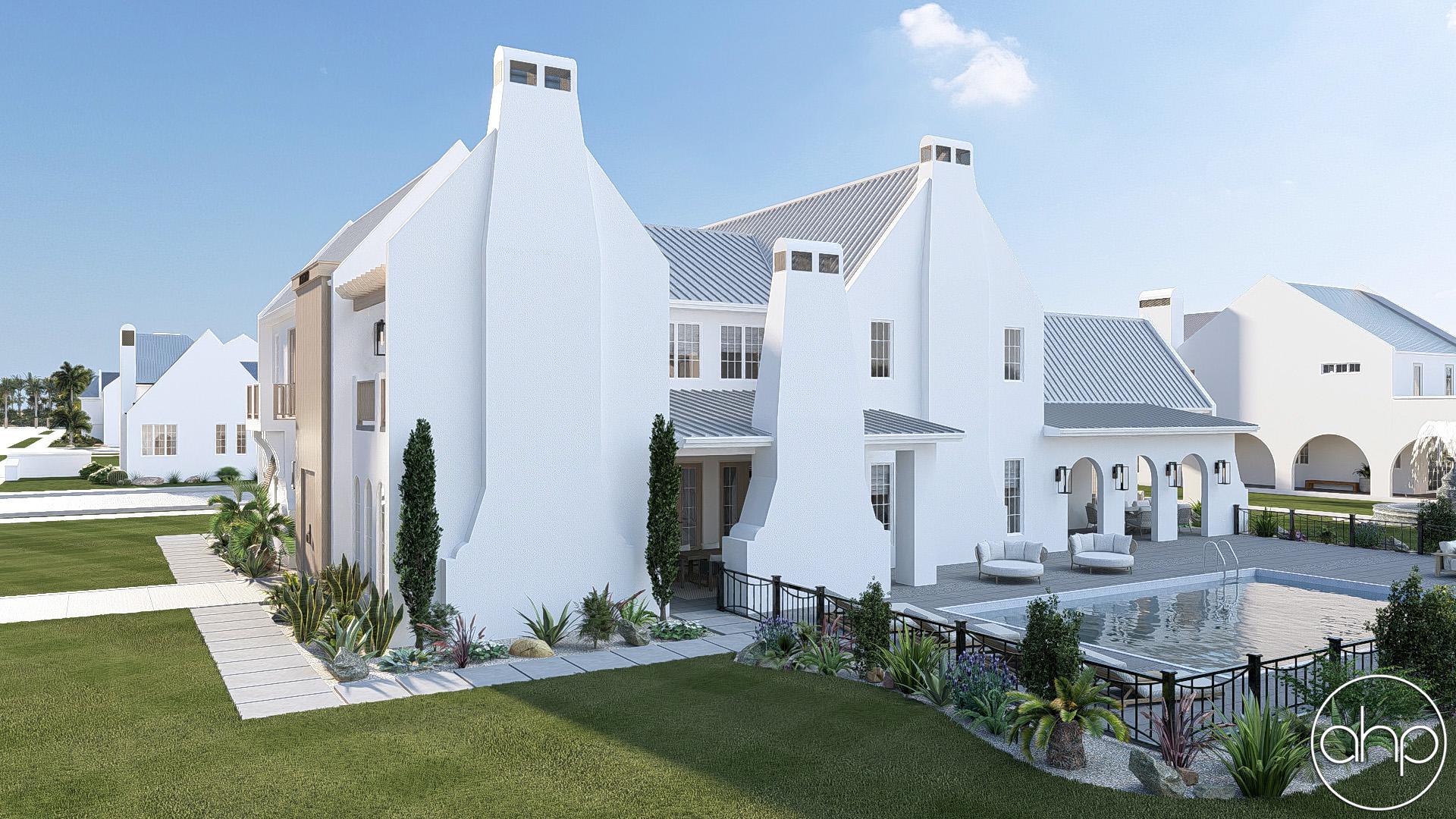

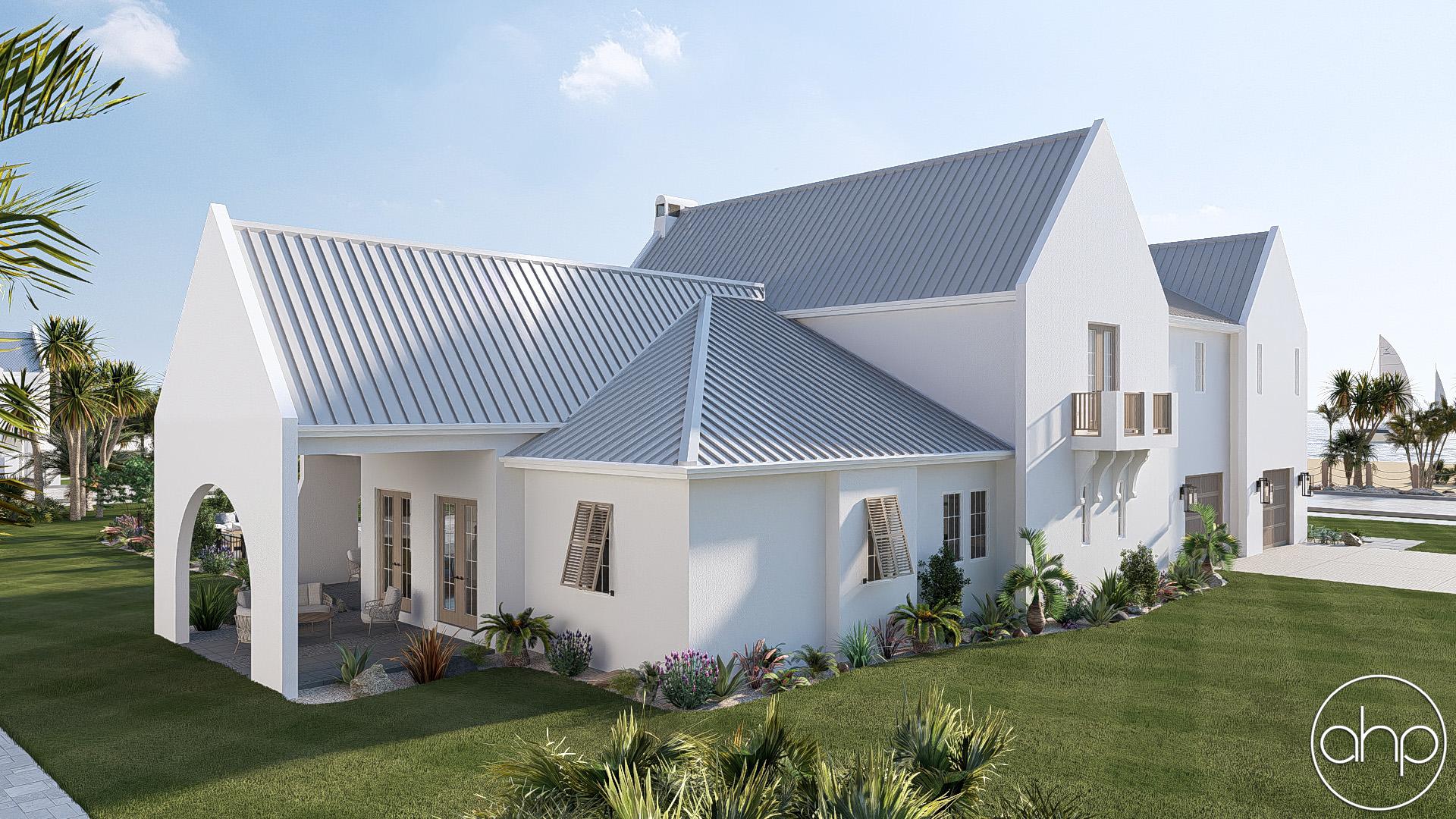

This Bermuda-style coastal home carries itself with a quiet confidence, its narrower footprint giving it an elegant, almost tailored presence. A two-story form rises above a side-entry two-car garage, balancing practicality with charm. The exterior hints at breezy coastal living, while inside, the layout unfolds in a way that feels both intentional and airy.

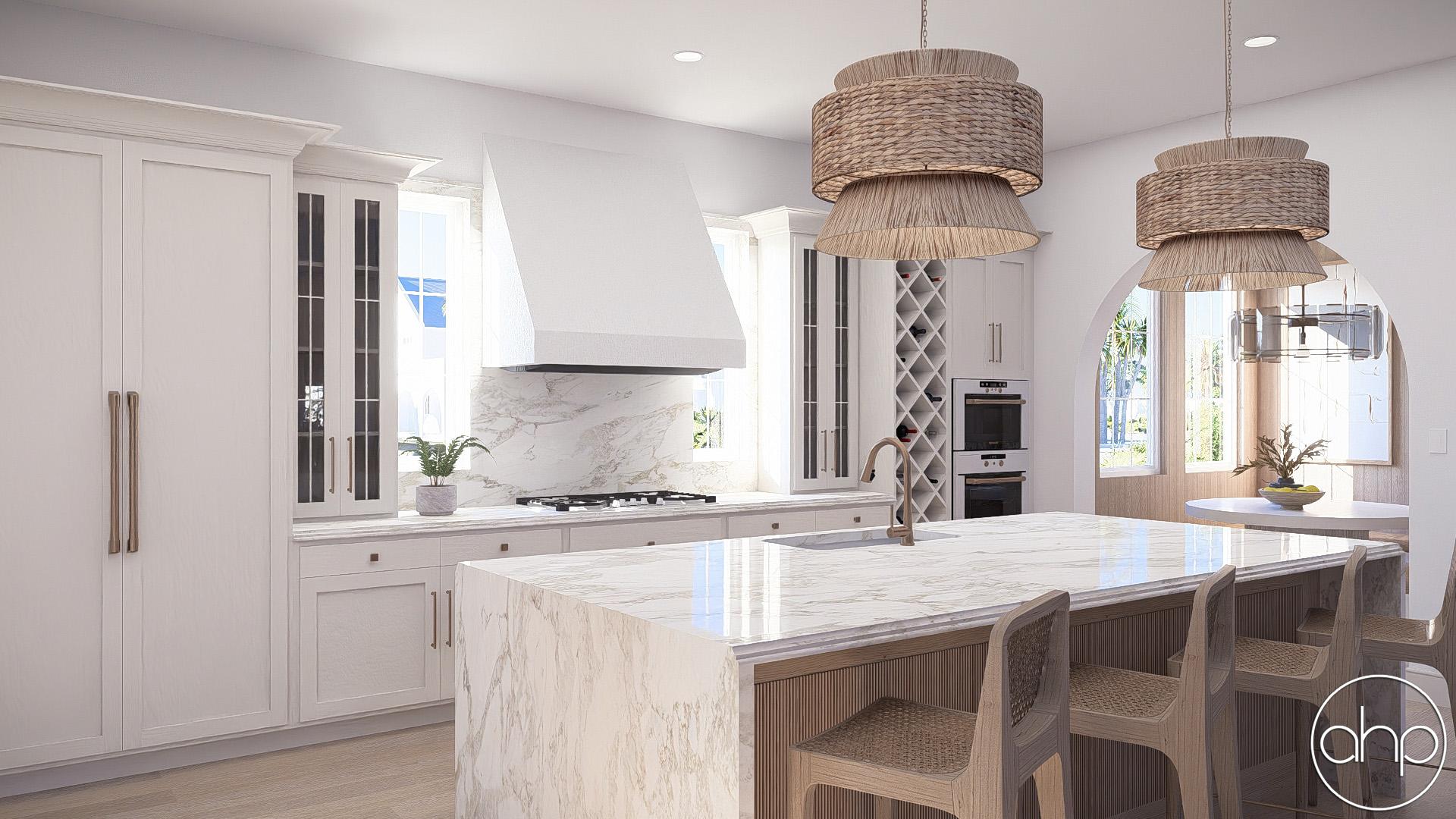

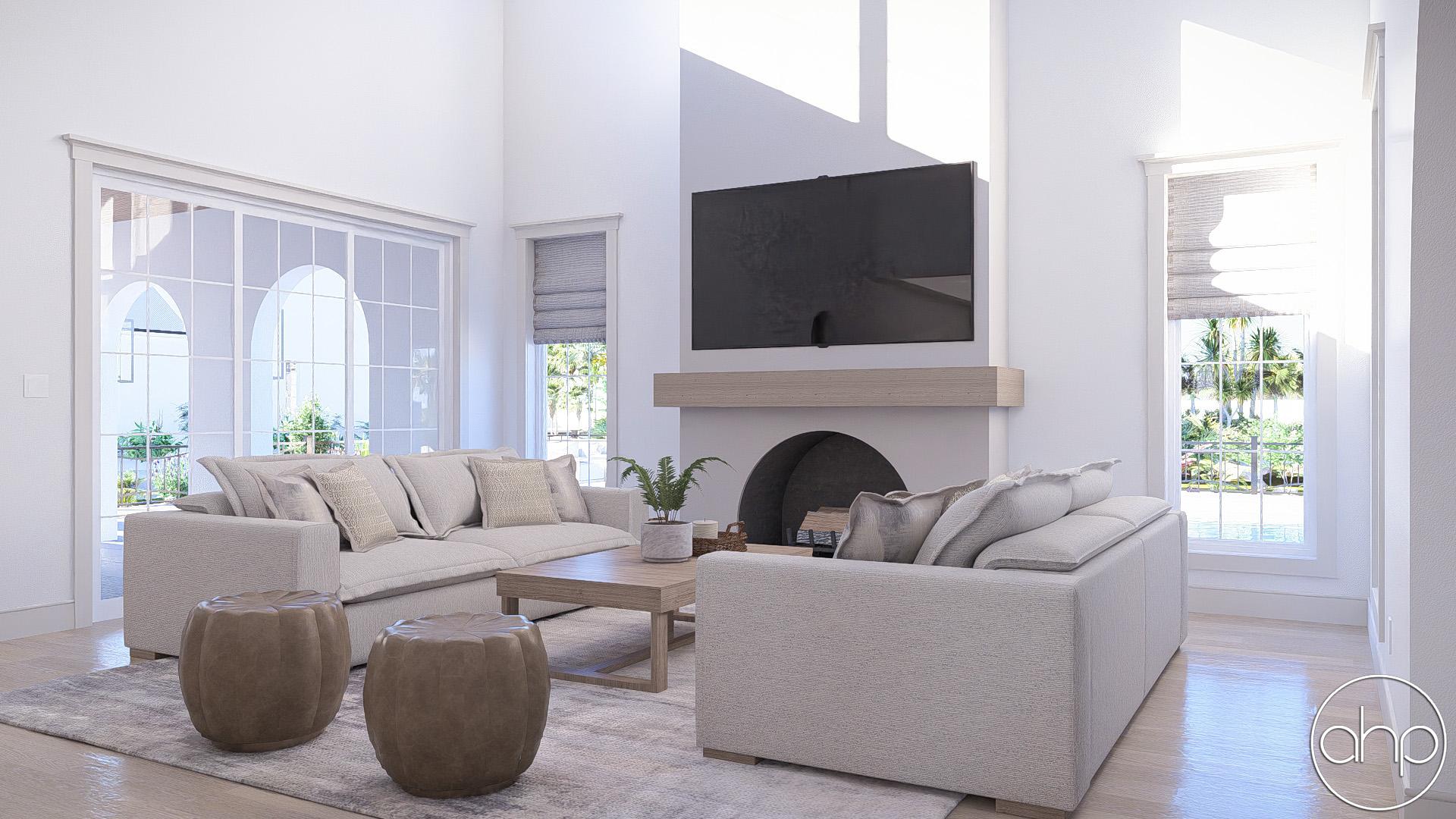

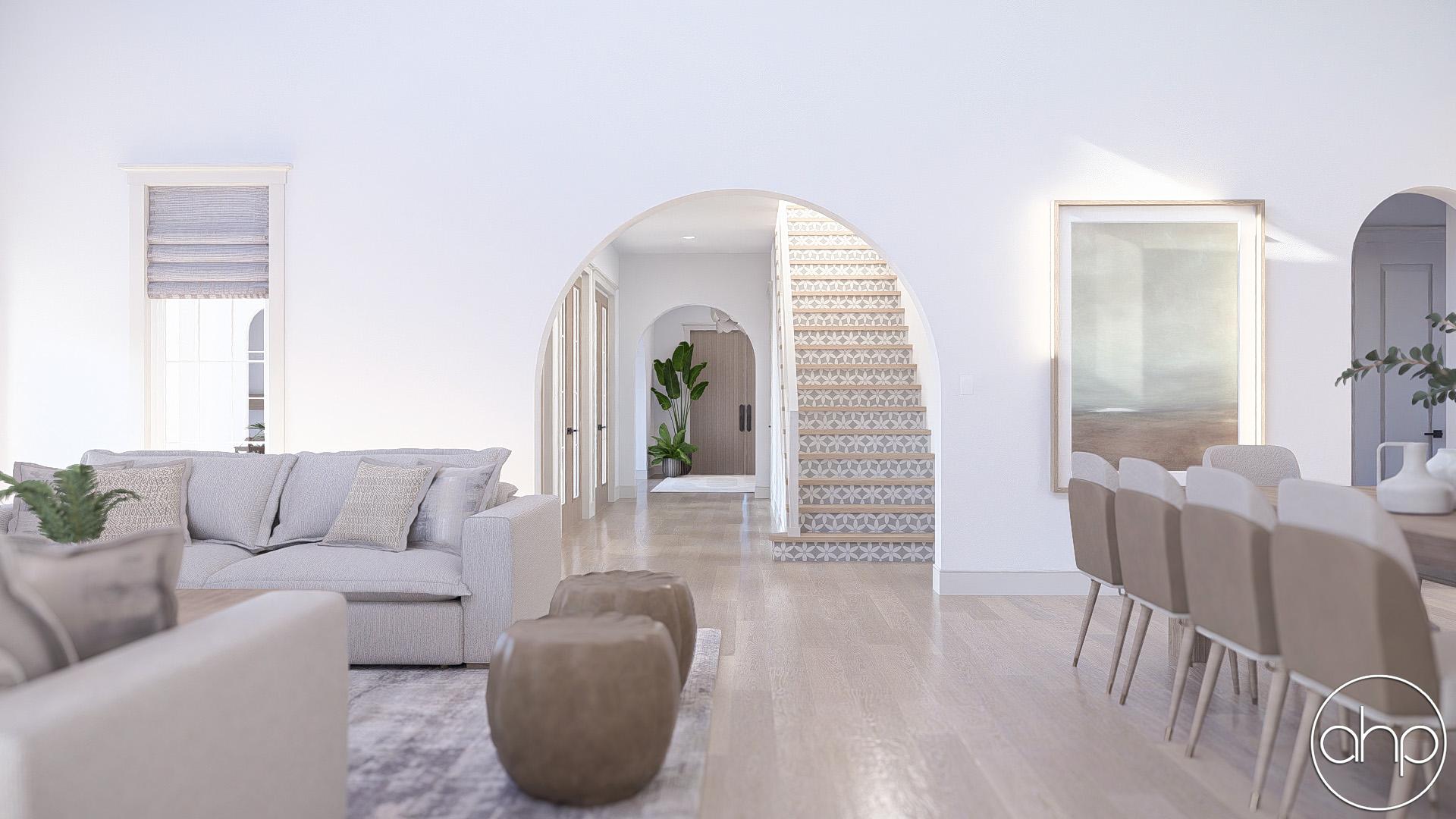

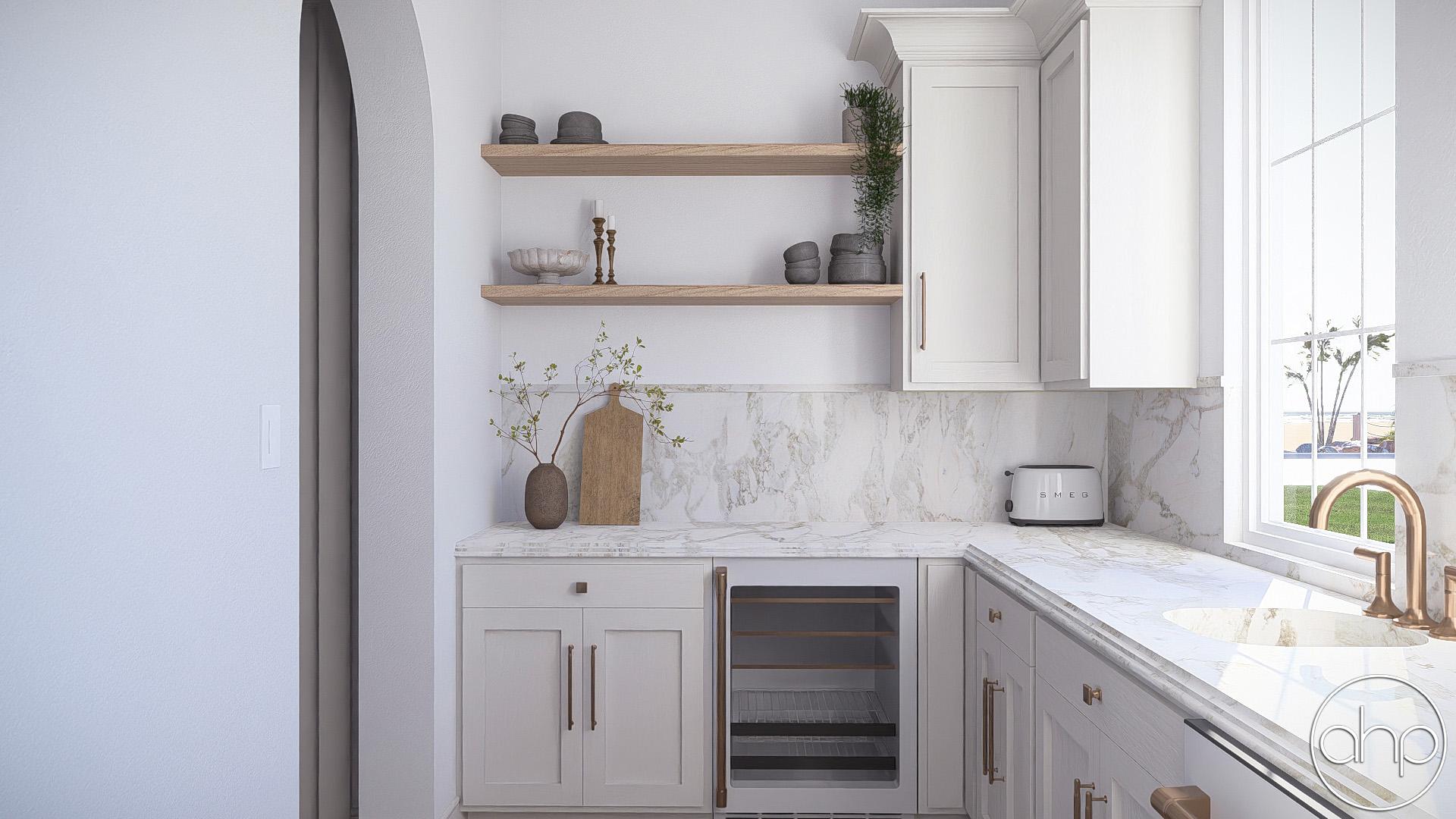

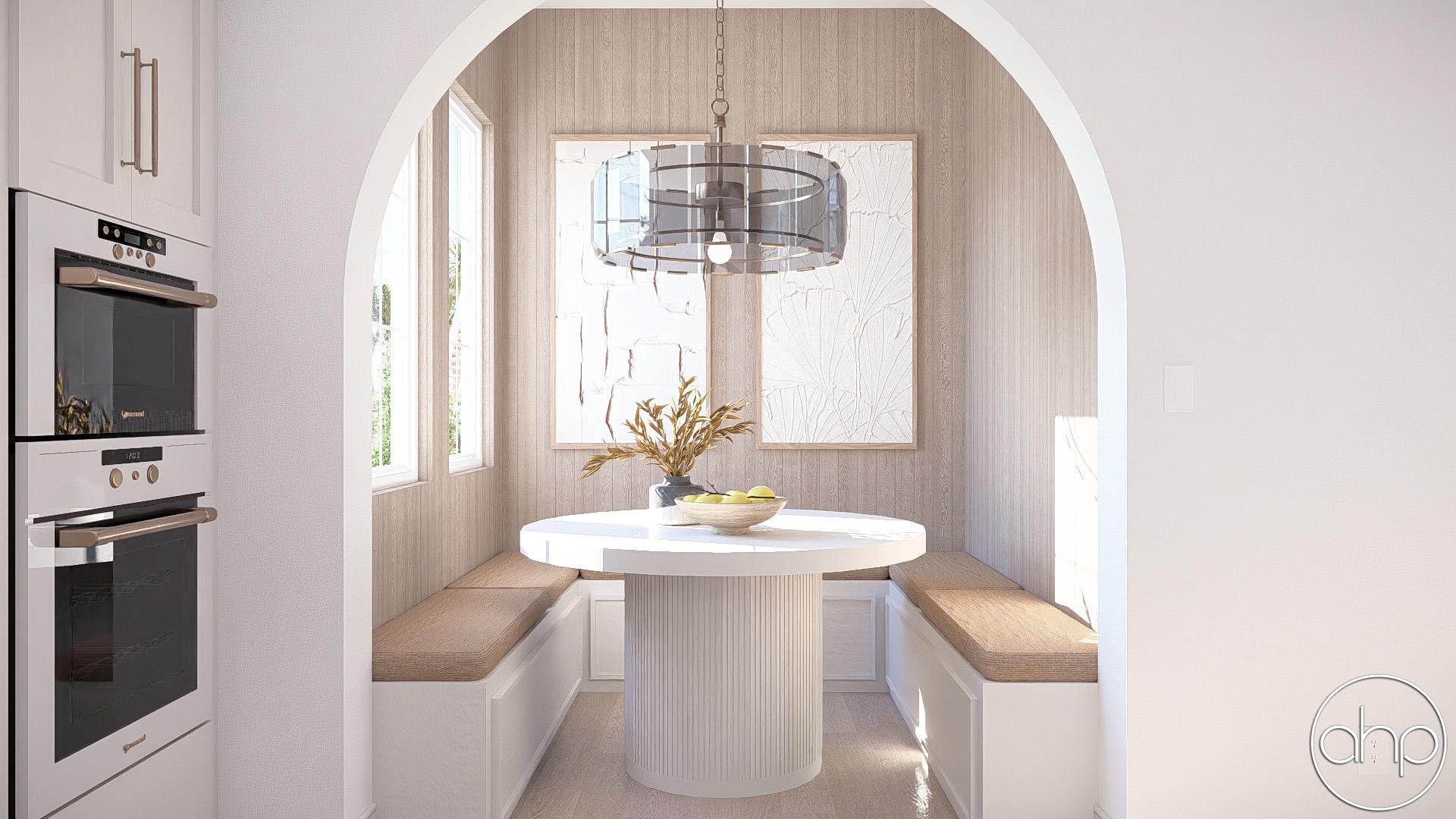

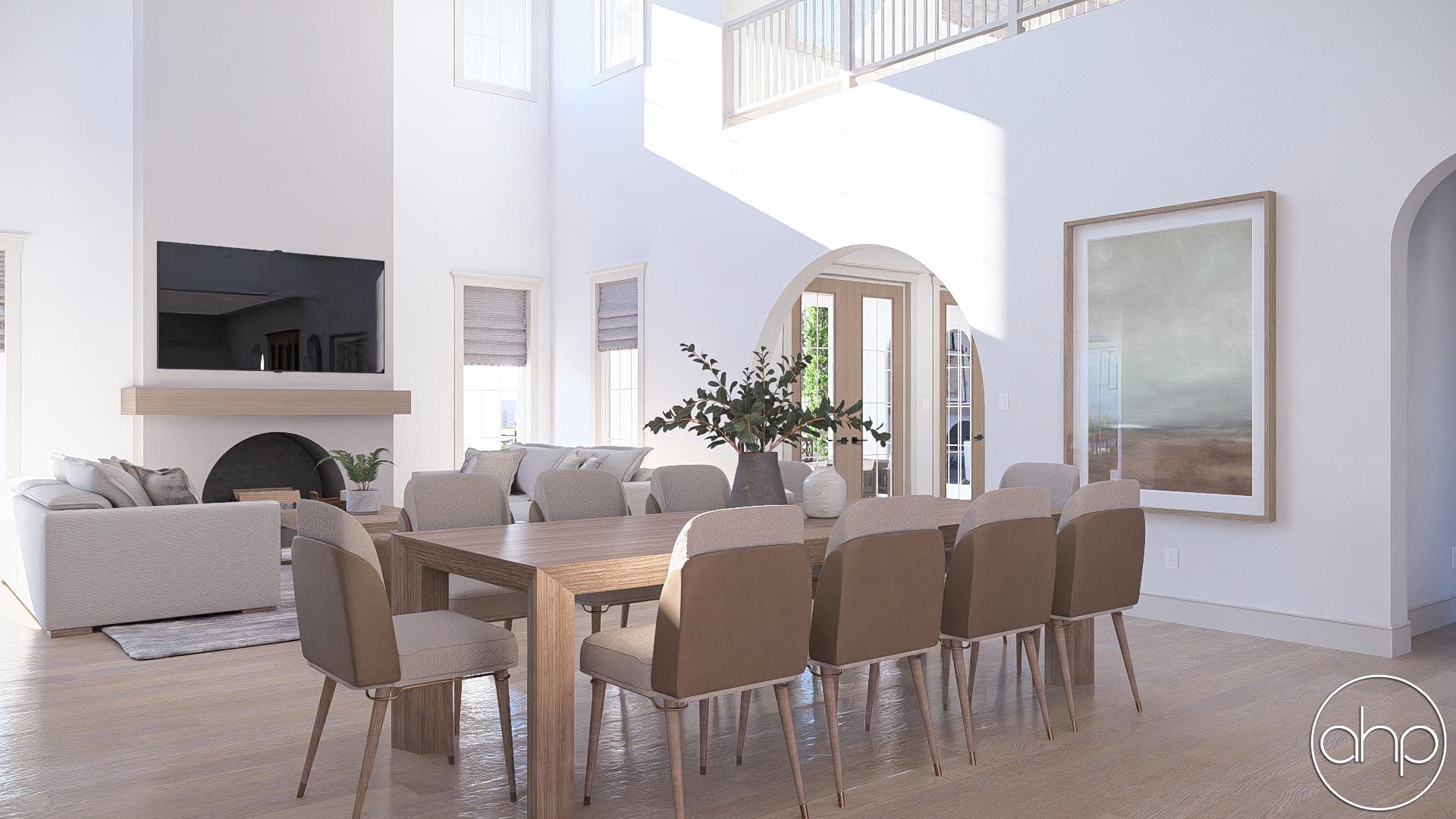

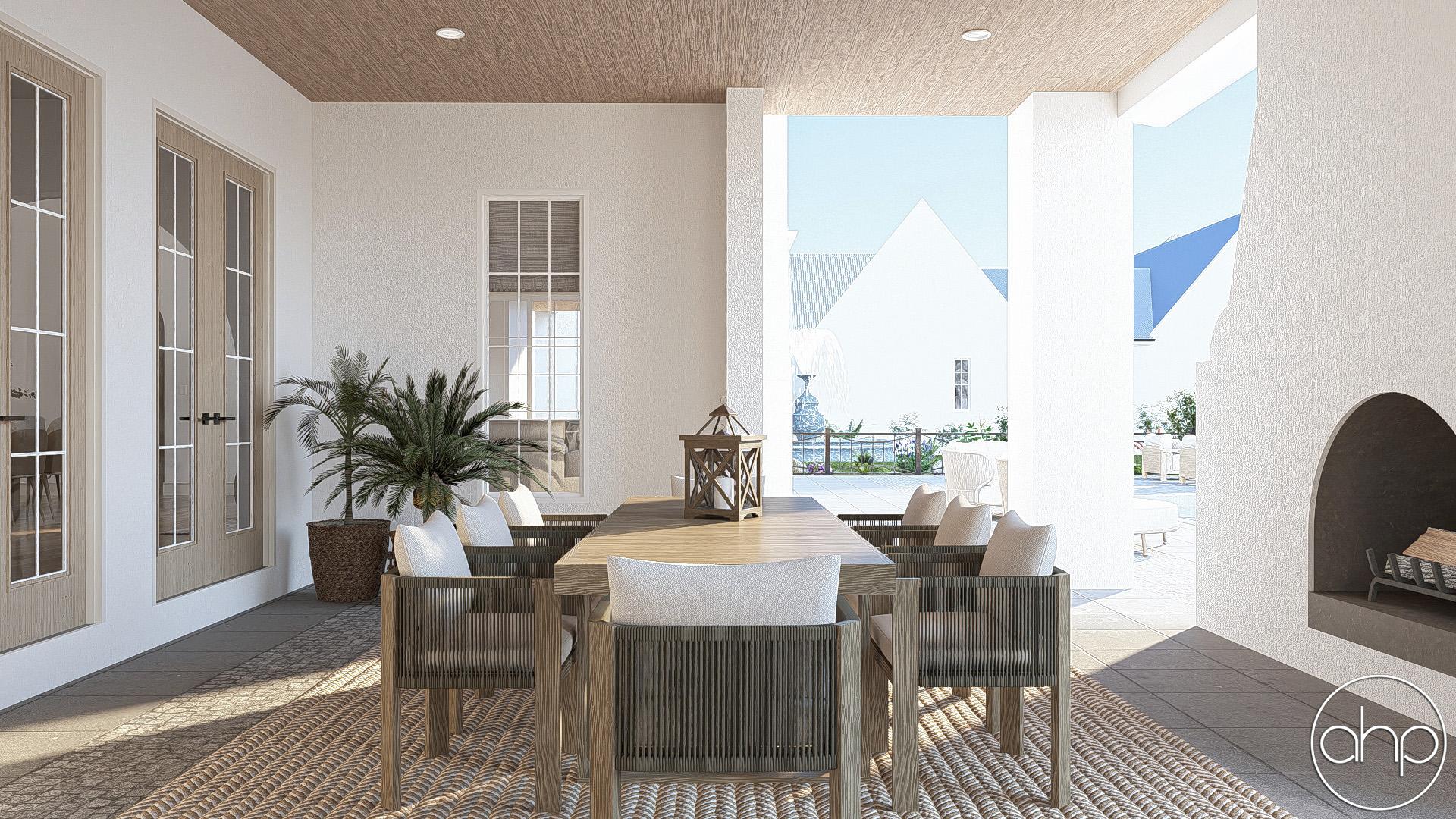

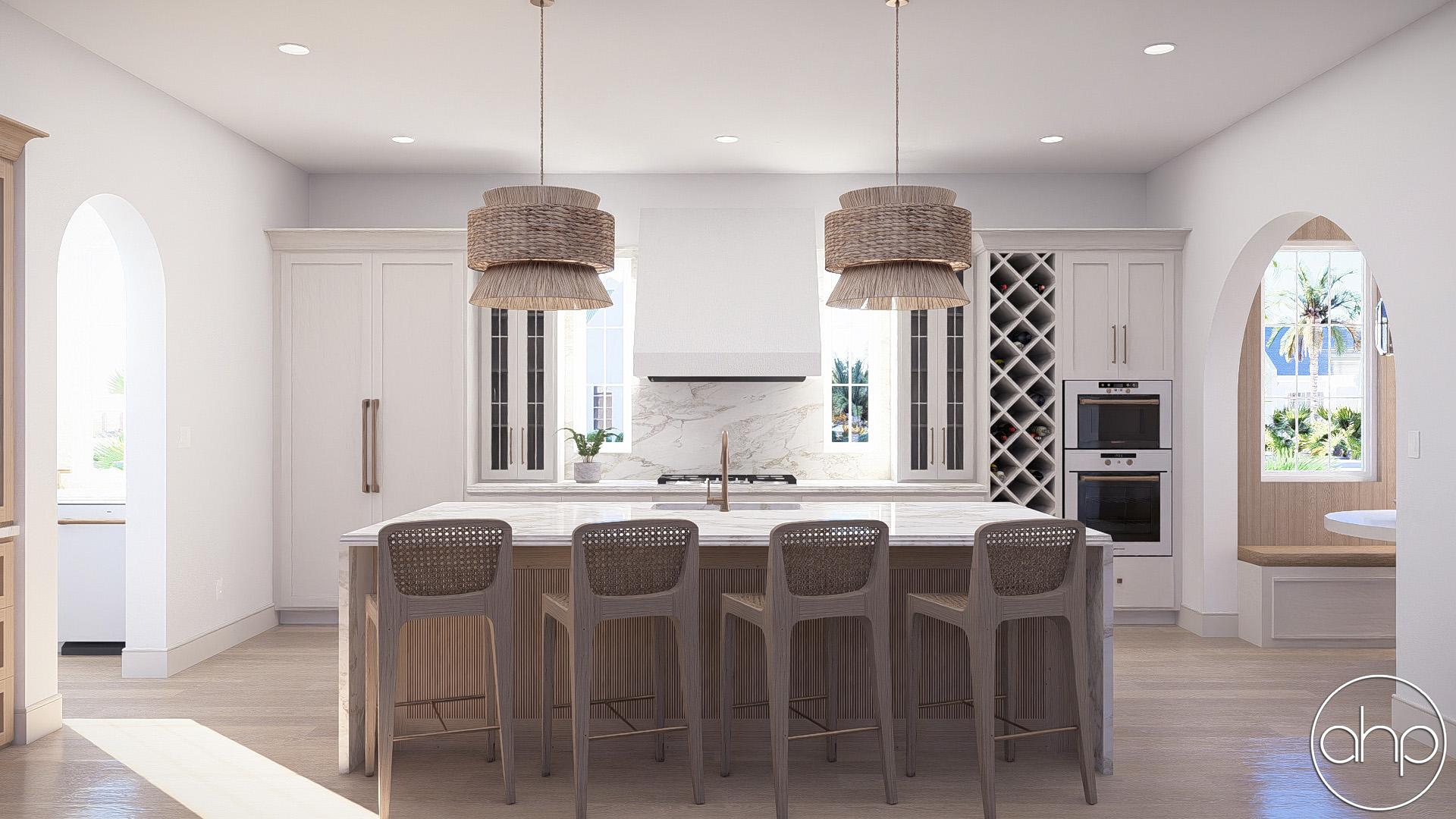

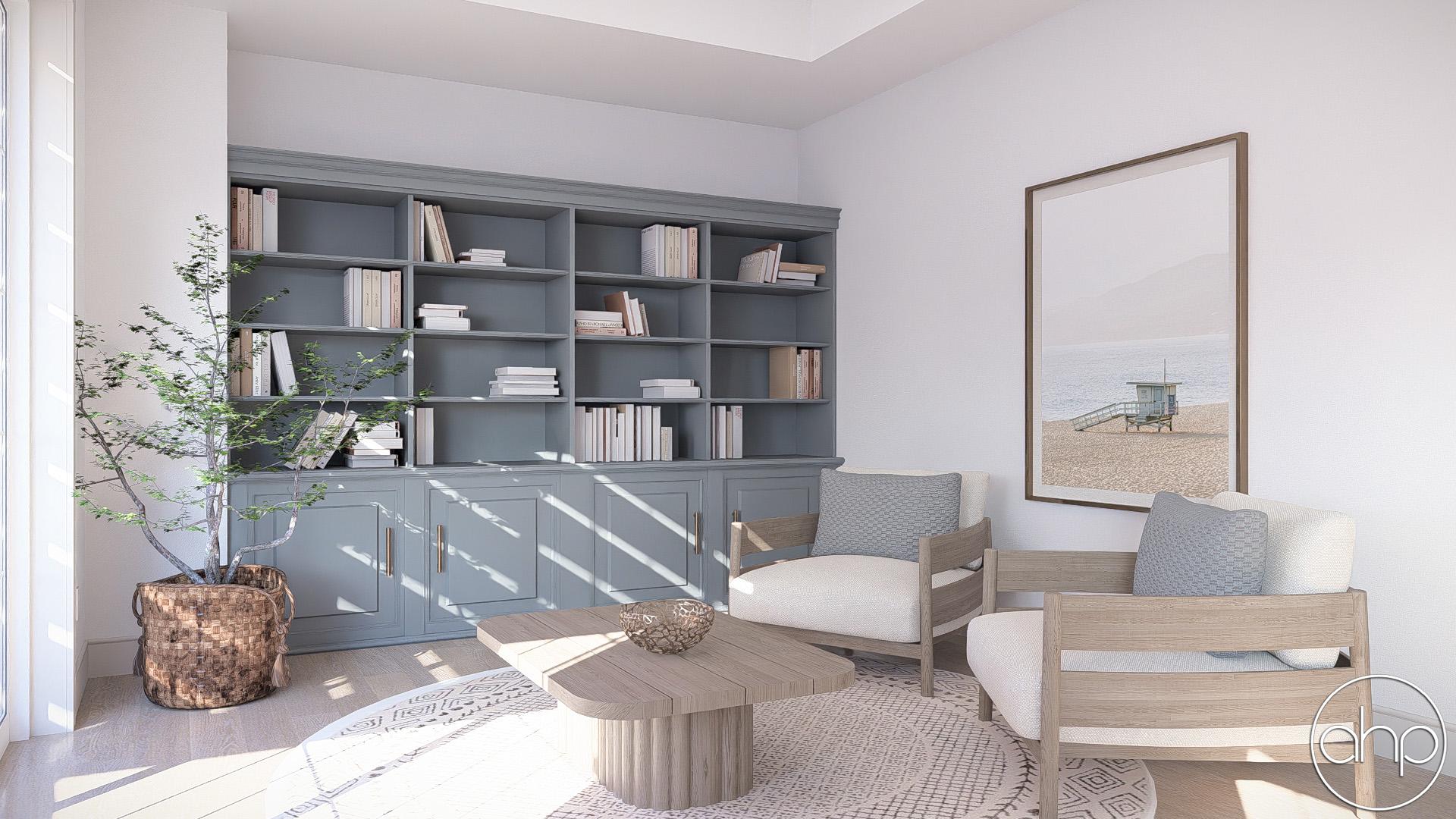

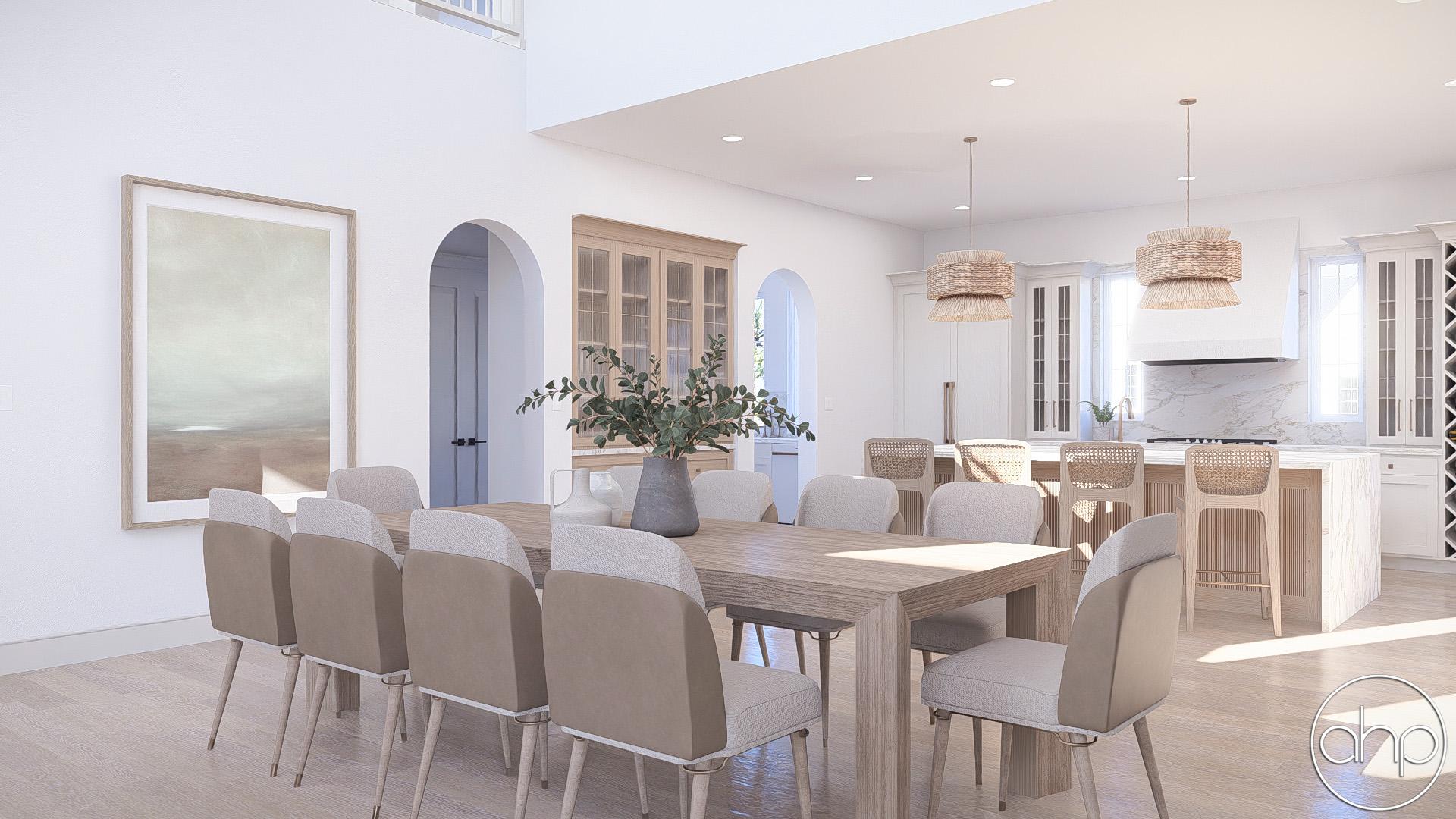

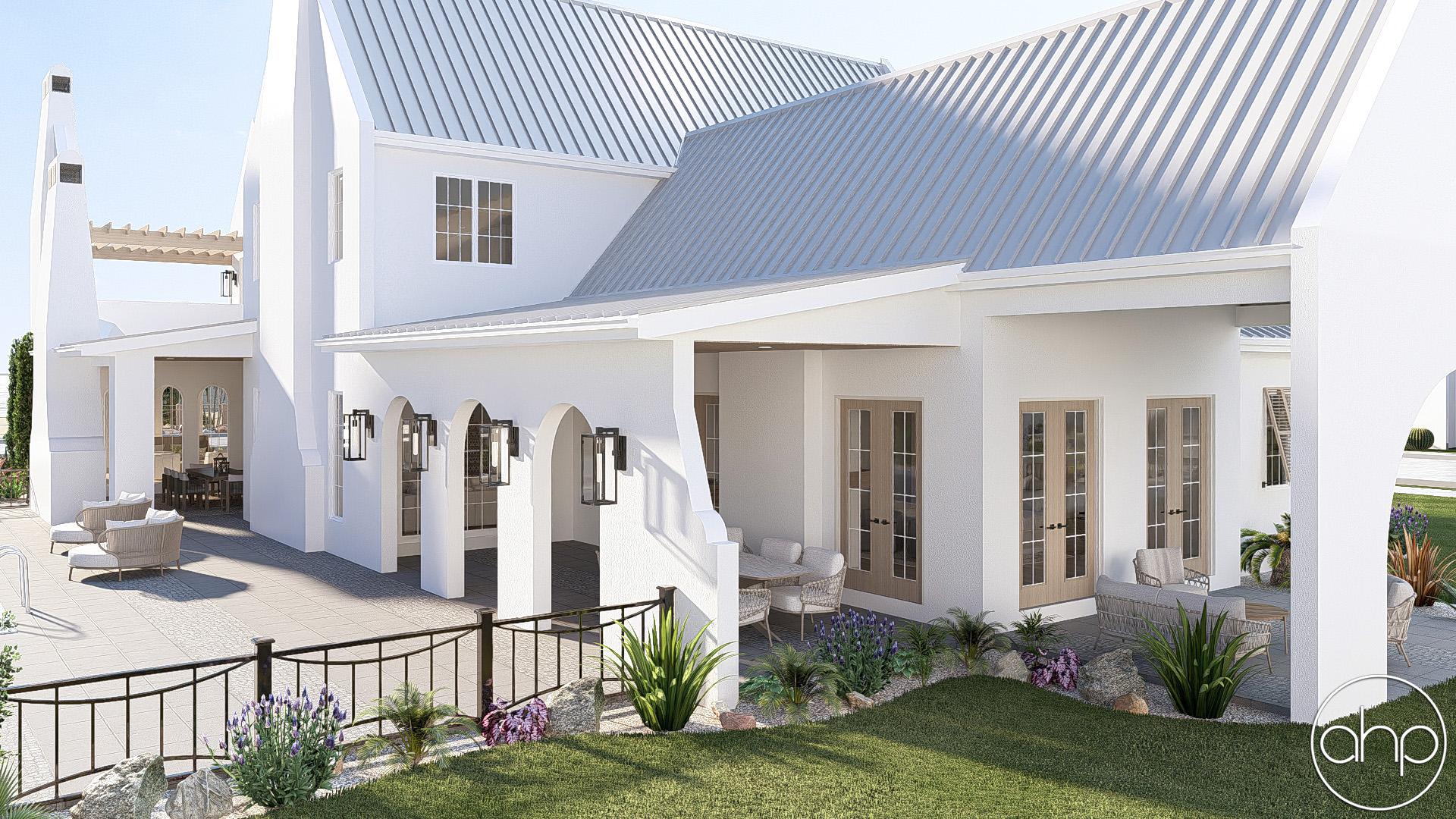

The main level is defined by a dramatic great room crowned with a soaring two-story ceiling, where sunlight pours in and shifts throughout the day. Above, a loft peeks over the space, adding depth and connection between levels. Just steps away, the dining area and kitchen create a seamless hub for gathering, with a built-in breakfast nook tucked in like a cozy retreat for slow mornings and casual meals. The indoor living spaces also transition effortlessly into the outdoor areas, creating a natural, fluid connection that invites movement between inside and out.

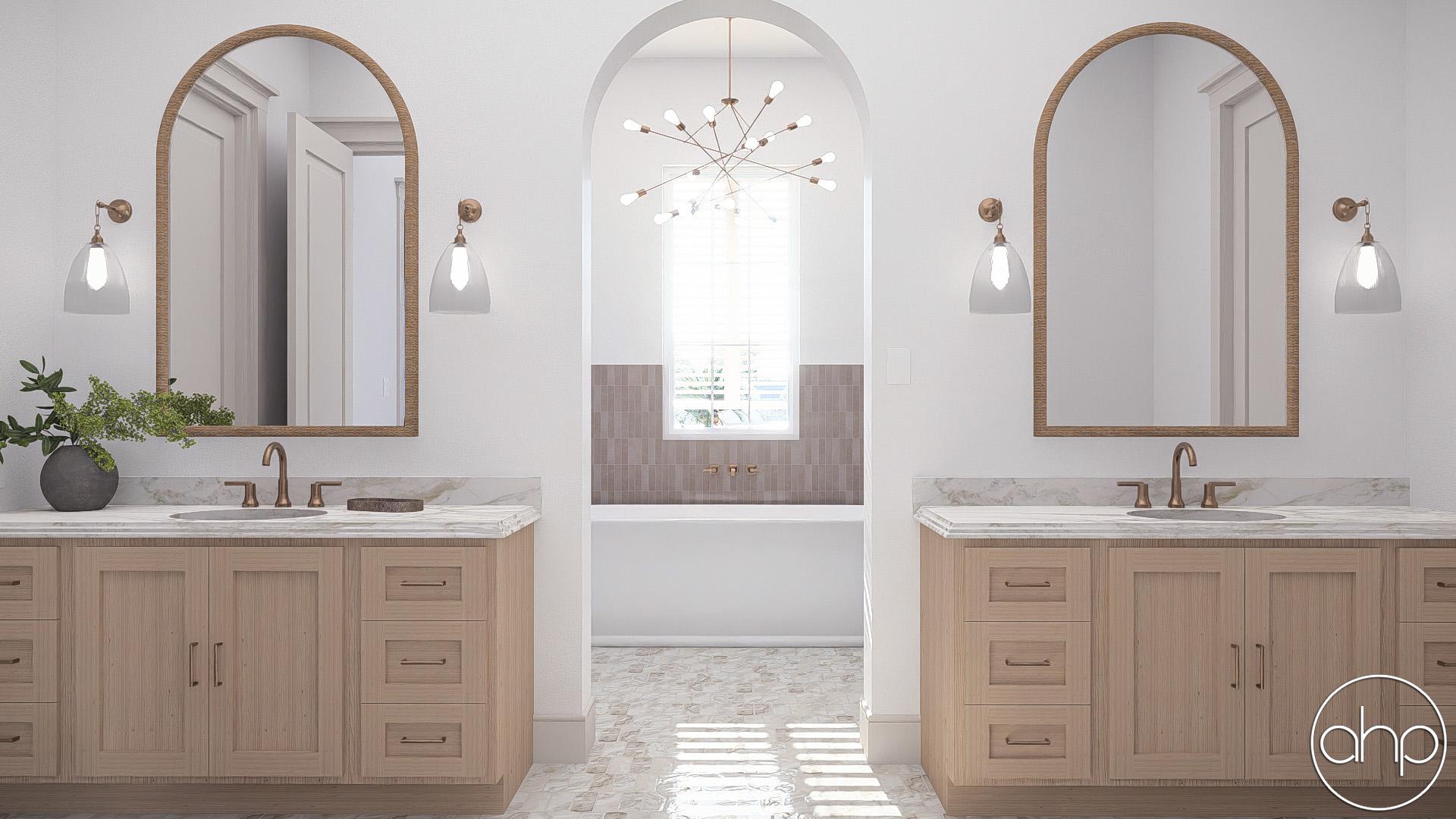

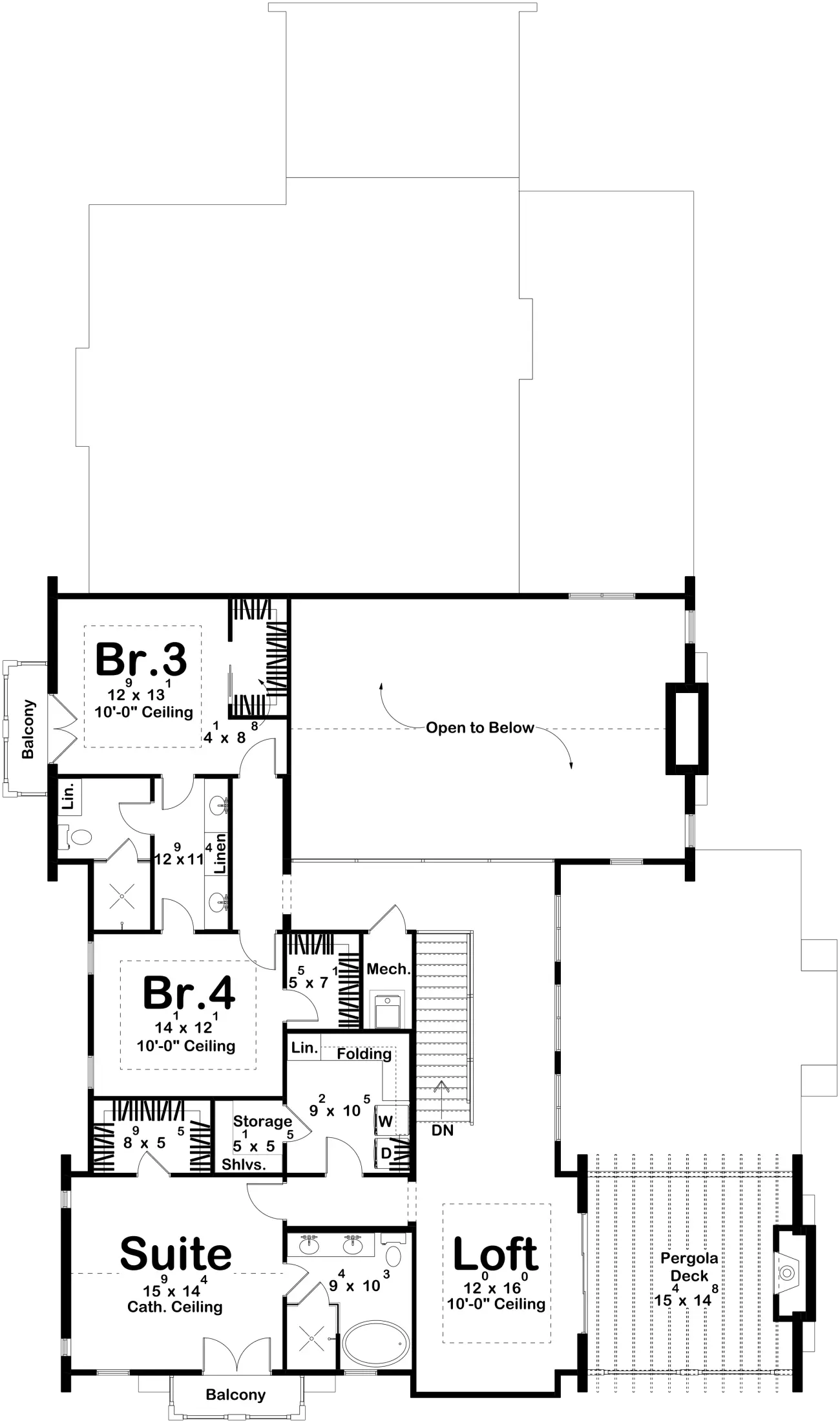

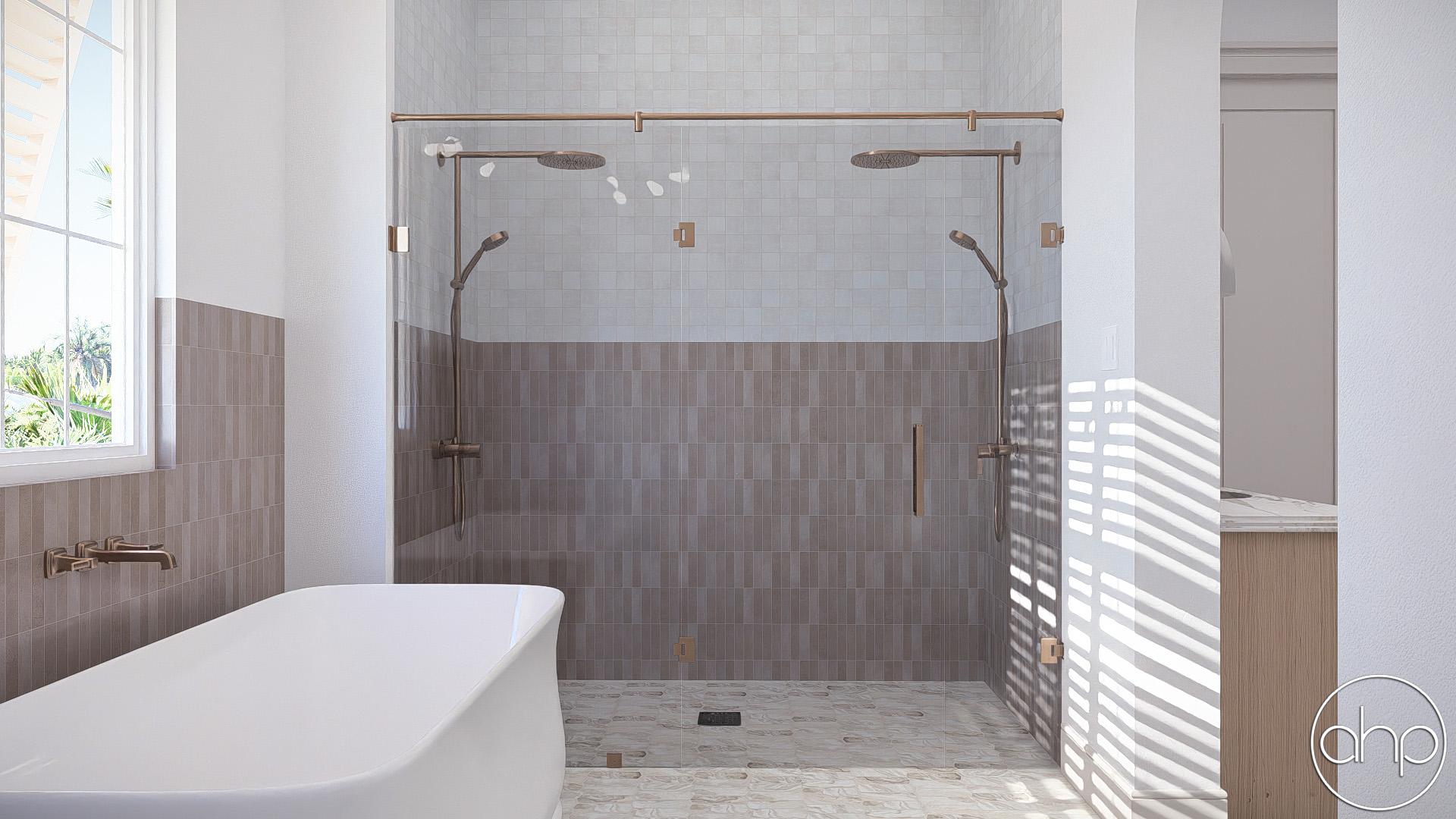

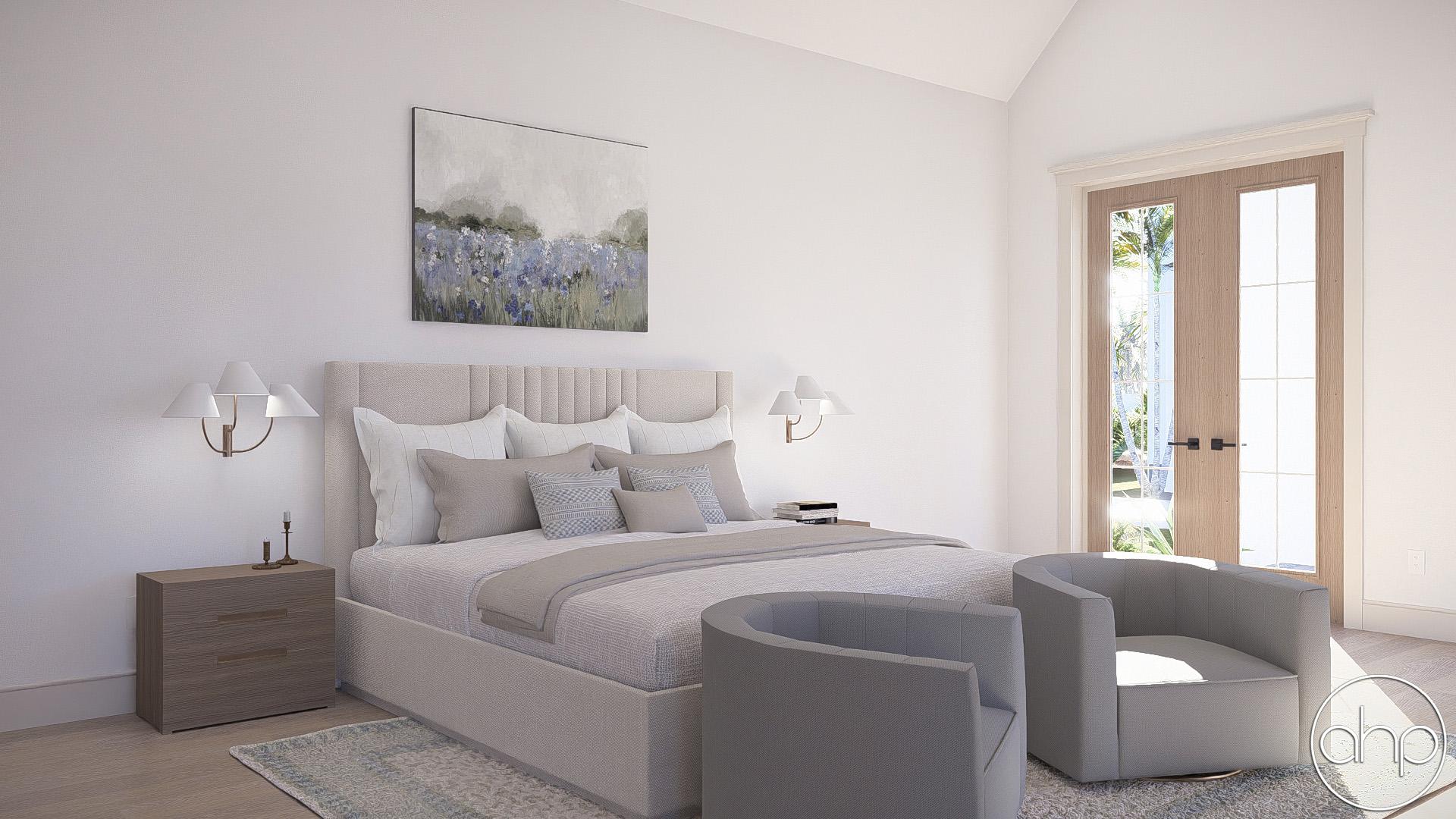

Privacy is thoughtfully woven into the design with a split-bedroom layout. The primary suite rests on the main level, offering a quiet escape, while upstairs, additional bedrooms—including a dedicated guest suite—provide comfort and separation.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 4 |
| Bathrooms | 4 |
| Garage Bays | 2 |
| Square Footage Breakdown | |
| Main Level | 2875 Sq Ft |
| Second Level | 1726 Sq Ft |
| Total Finished Area | 4601 Sq Ft |
| Garage | 717 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 1278 Sq Ft |
| Exterior Dimensions | |
| Width | 58' 8" |
| Depth | 103' 8" |
| Ridge Height | 34' 5" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x4 |
| Roof Construction Method | Trusses |
| Floor Construction Method | Floor Trusses |
| Roof Pitches | Primary 14/12, Secondary 6/12, 2/12, Flat |
| Main Level Ceiling Height | 10' |
| Second Level Ceiling Height | 9' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
