Traditional Style Garage Plan

Name: Traditional Style Garage Plan | Redmond
Brand: Advanced House Plans
SKU: 30053
Price: 450 USD

Redmond - 30053

Sq Ft

Beds

Baths

Bays

24' 0"

Wide

20' 0"

Deep

Floor Plan Images

Main Level

Plan Description

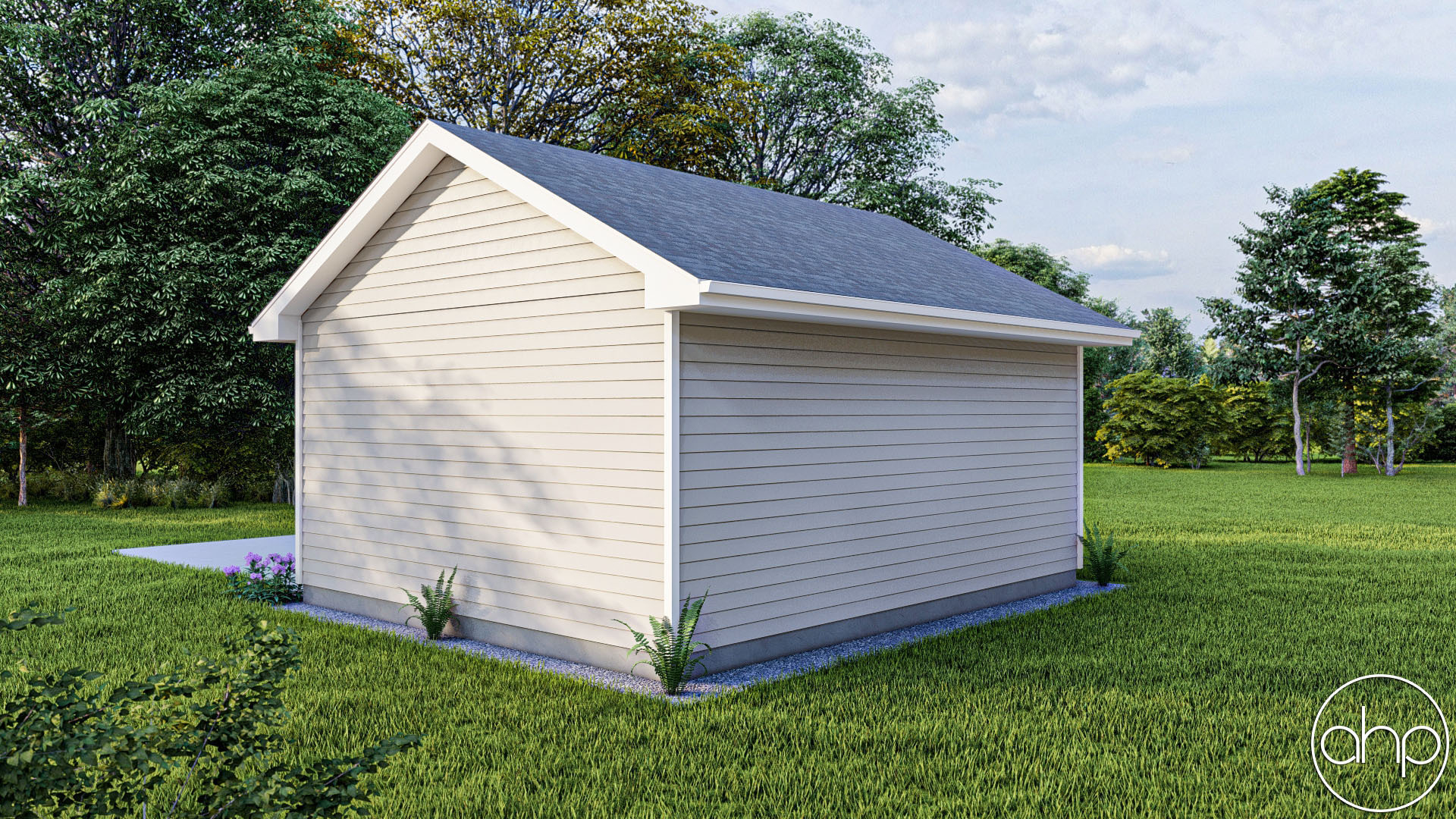

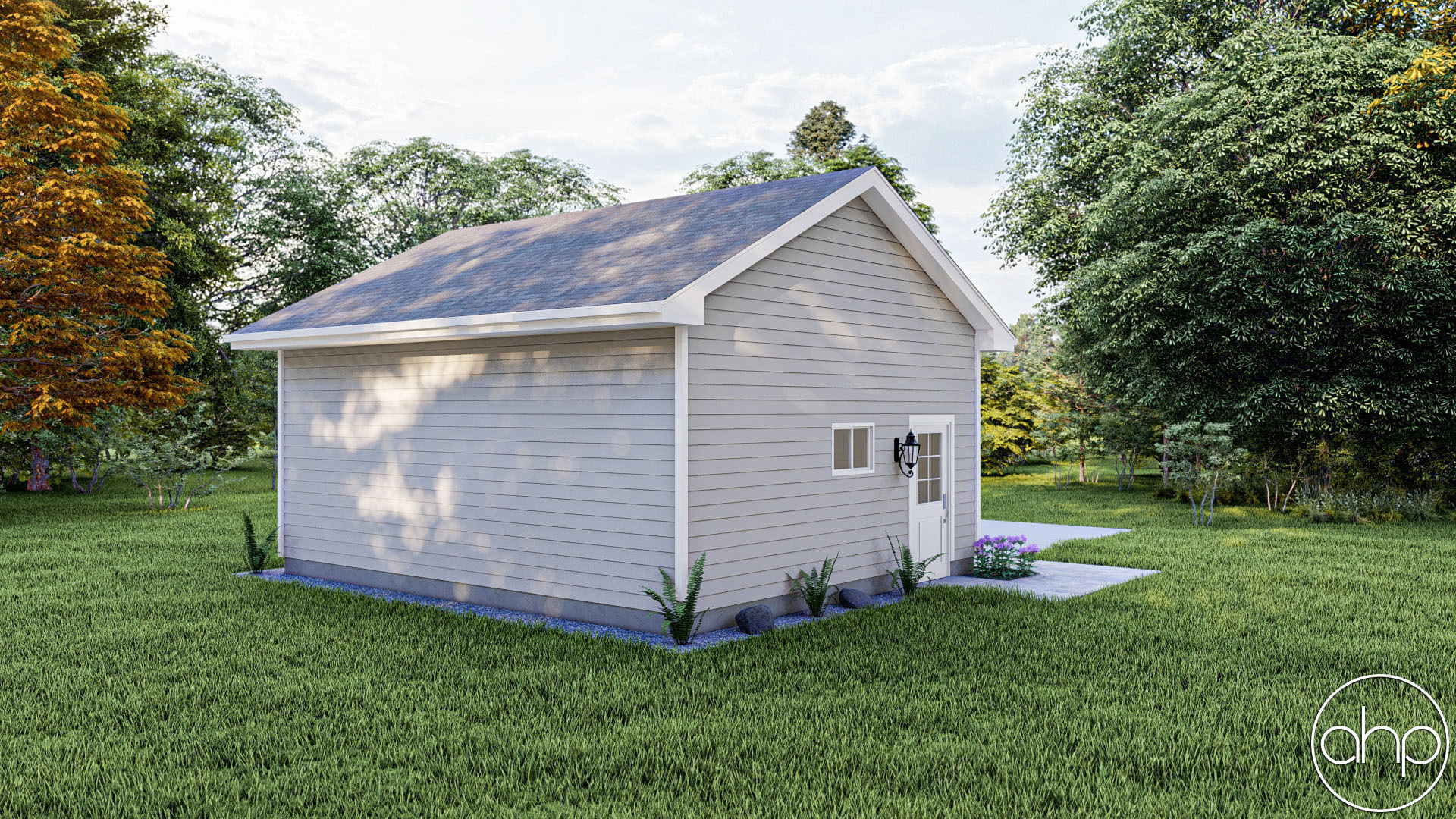

The Redmond is a handsome stand-alone garage. The 10' high walls allow for 8' tall garage doors. There is a man door on the side for easy access and a window for natural light. It would be great for storage or a workshop on your property.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Garage Bays	2
Square Footage
Garage	480 Sq. Ft.
Exterior Dimensions
Width	24 ' 0"
Depth	20 ' 0"
Ridge Height Calculated from main floor line	16 ' 10"
Default Construction Stats Stats are unique to the individual plan.
Foundation Type	Slab
Exterior Wall Construction	2x4
Roof Pitches	6/12 Primary
Main Wall Height	10'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
