Modern Style Pool House Plan

Pikewood - 30263

792
Sq Ft
0
Beds
1
Baths
0
Bays
40' 0"
Wide
23' 8"
Deep

Floor Plan Images

Main Level

Pikewood

Plan Description

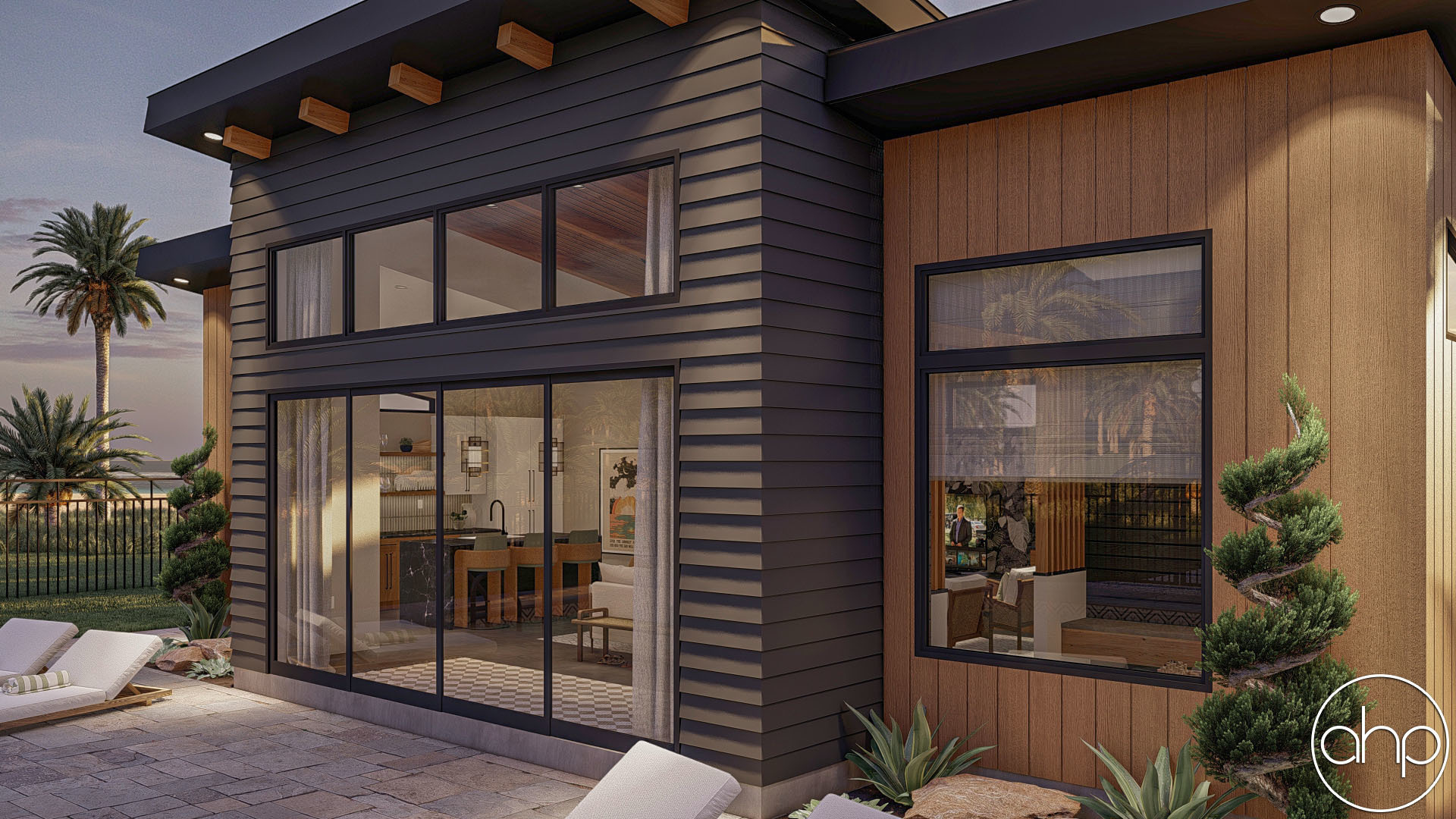

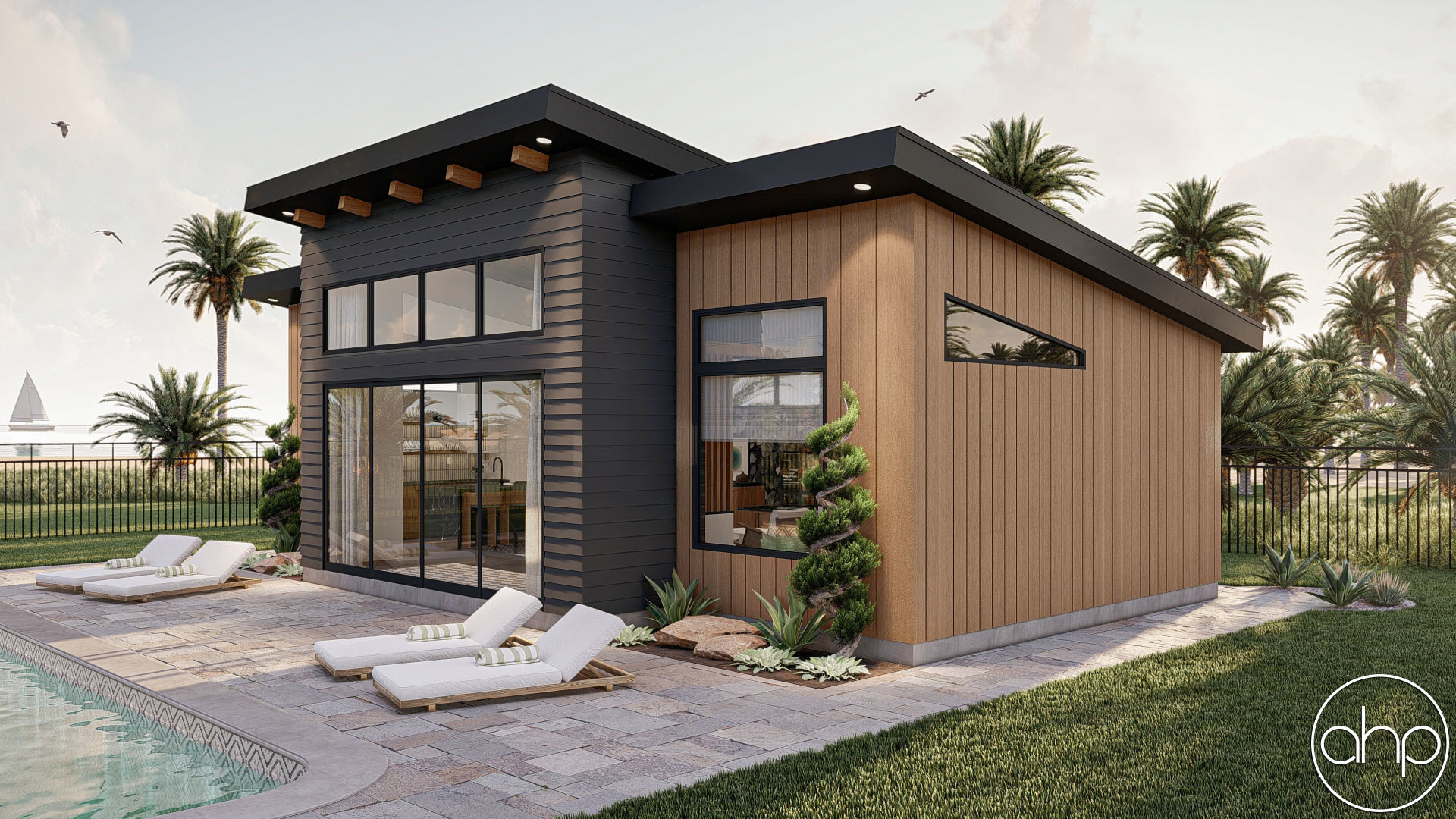

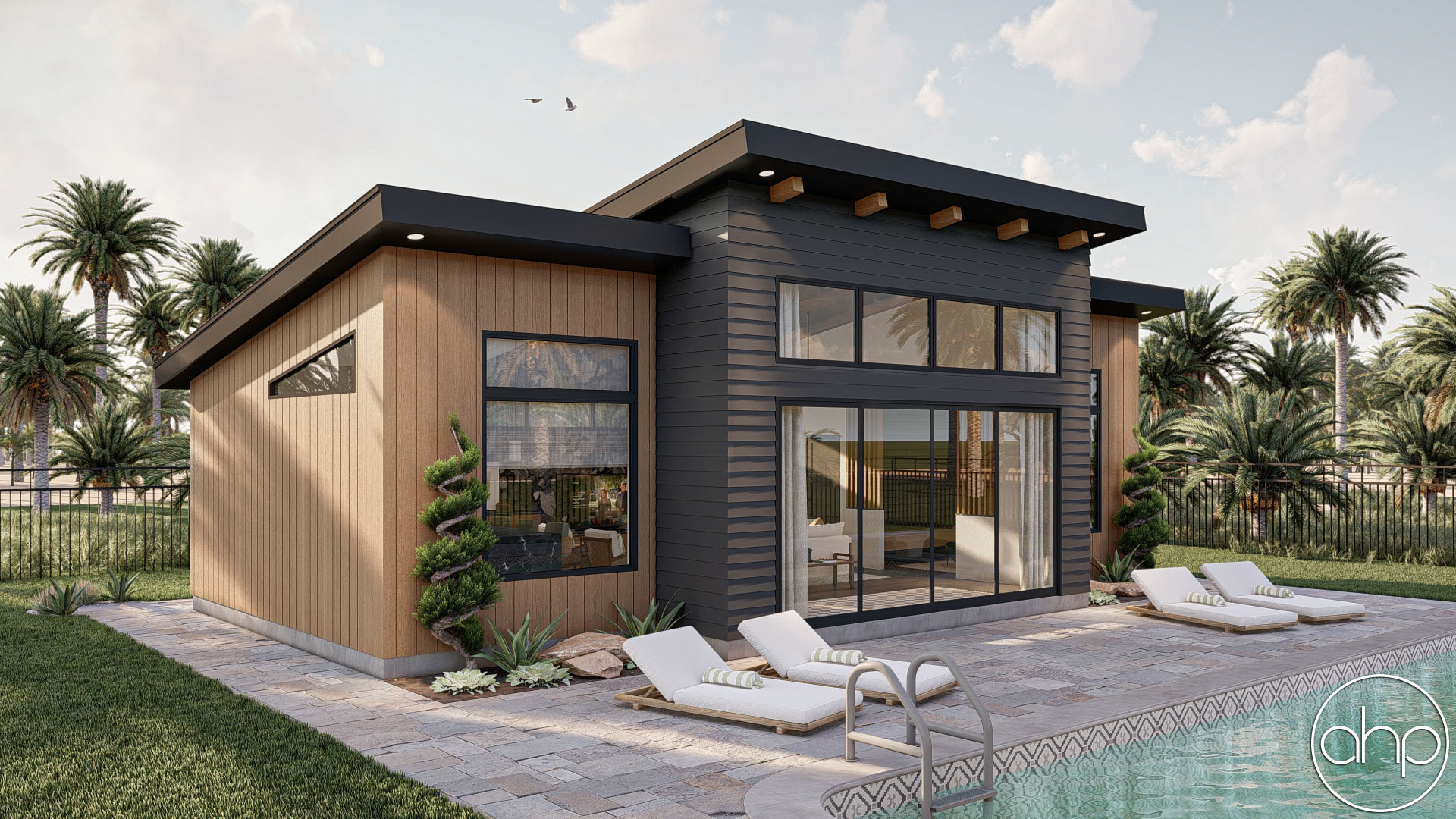

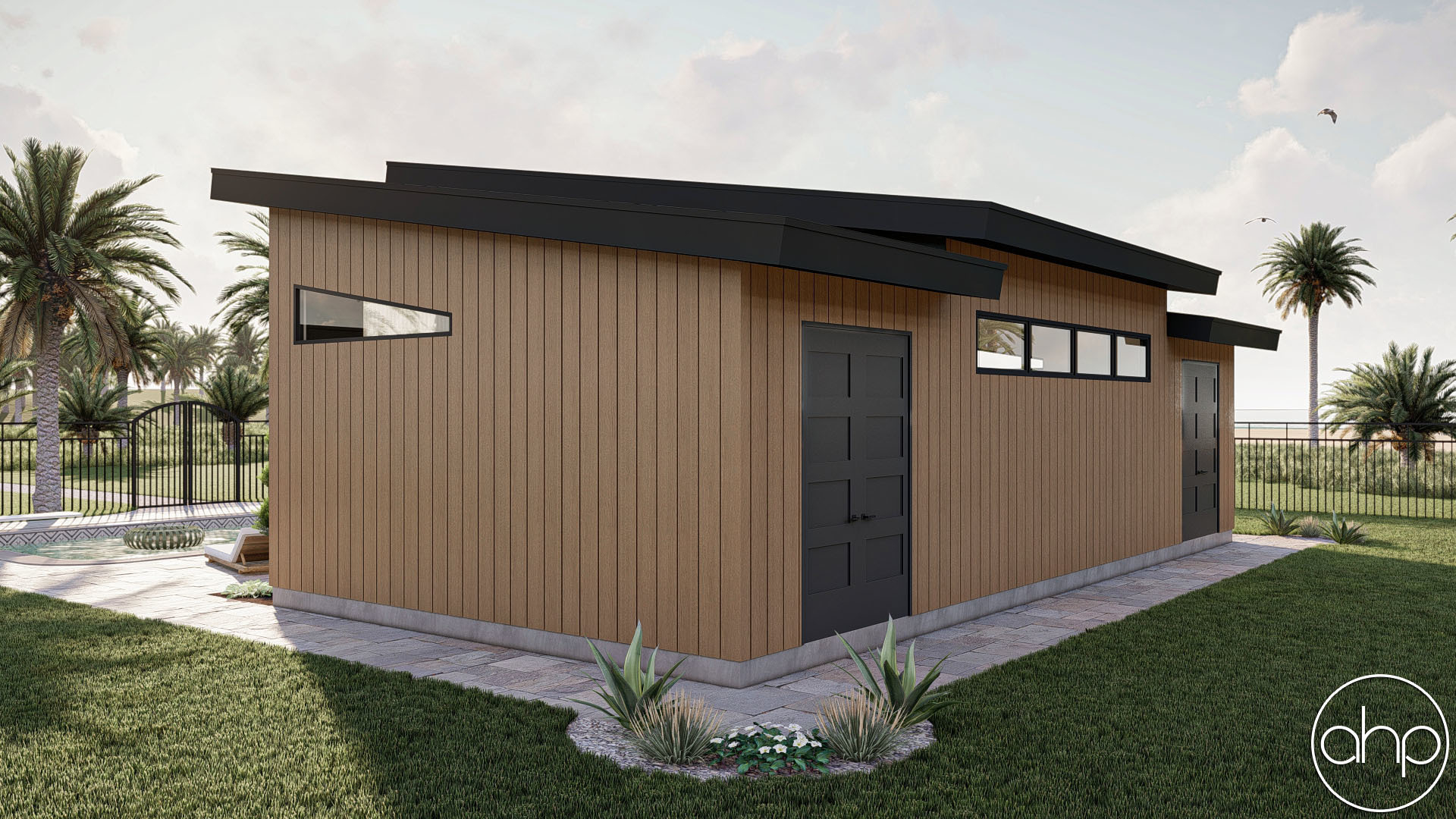

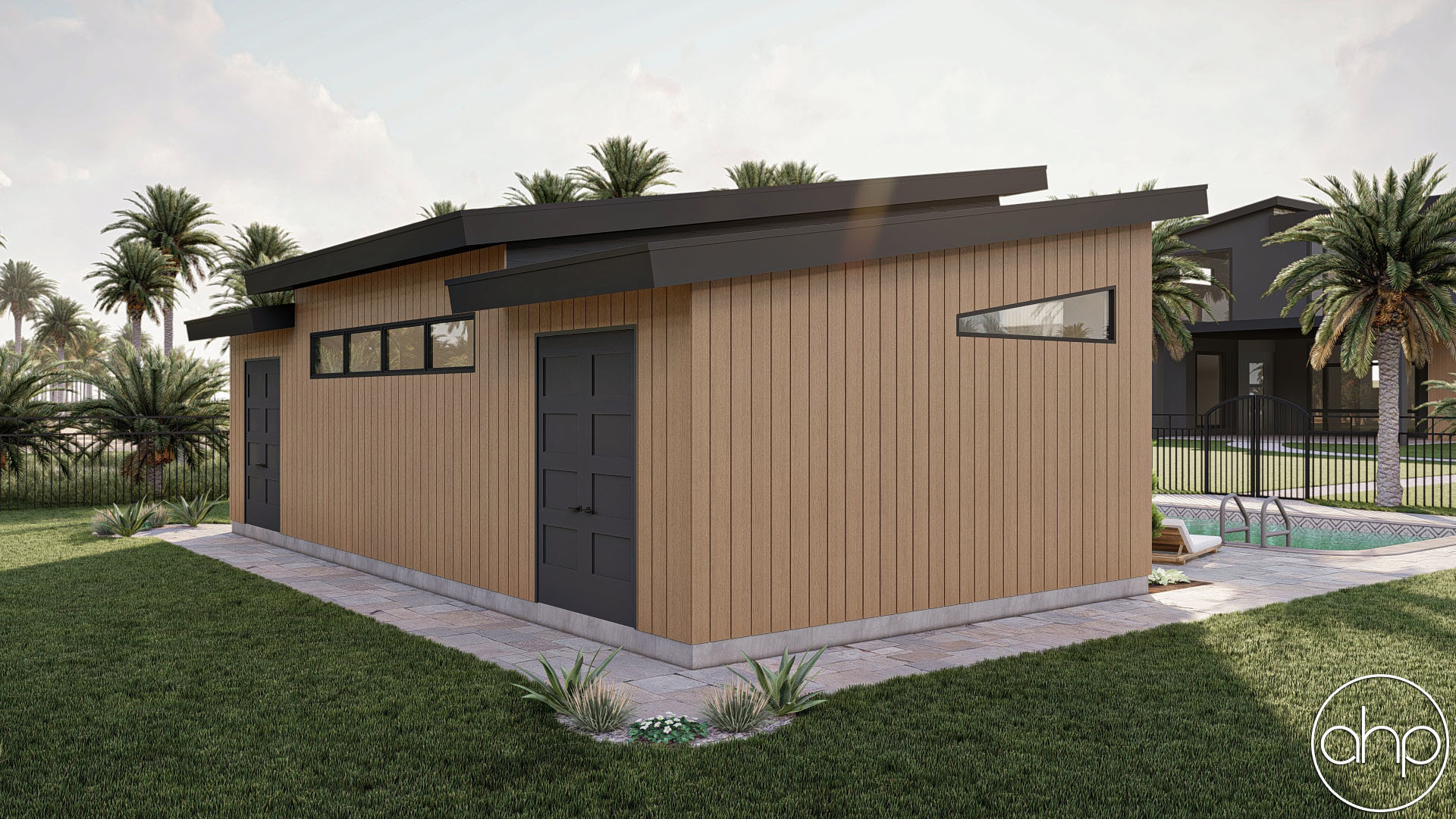

The Pikewood is a modern pool house with small square footage, but a big luxury feel. The large glass and wood accents make you want to step inside this pool house.

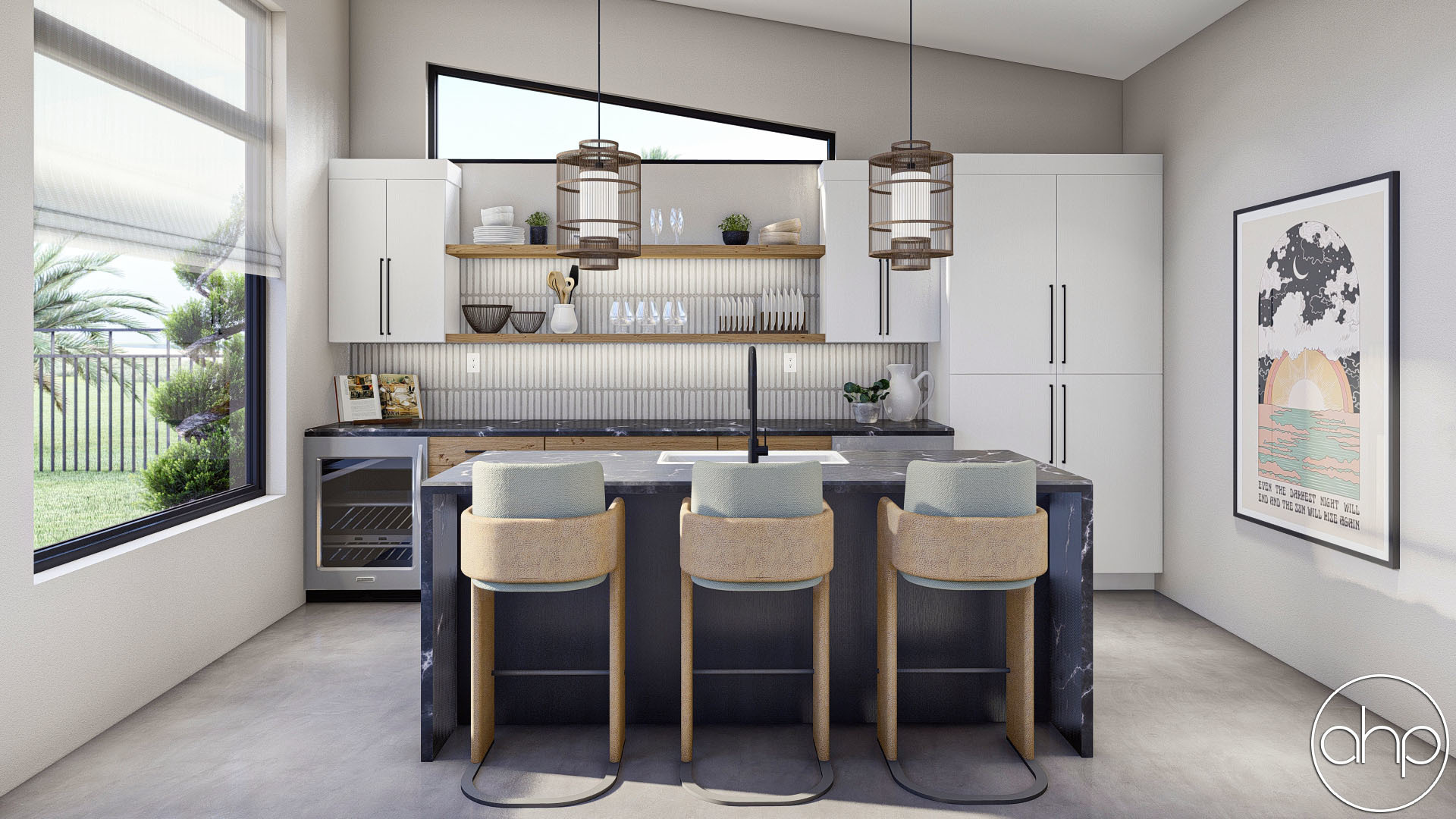

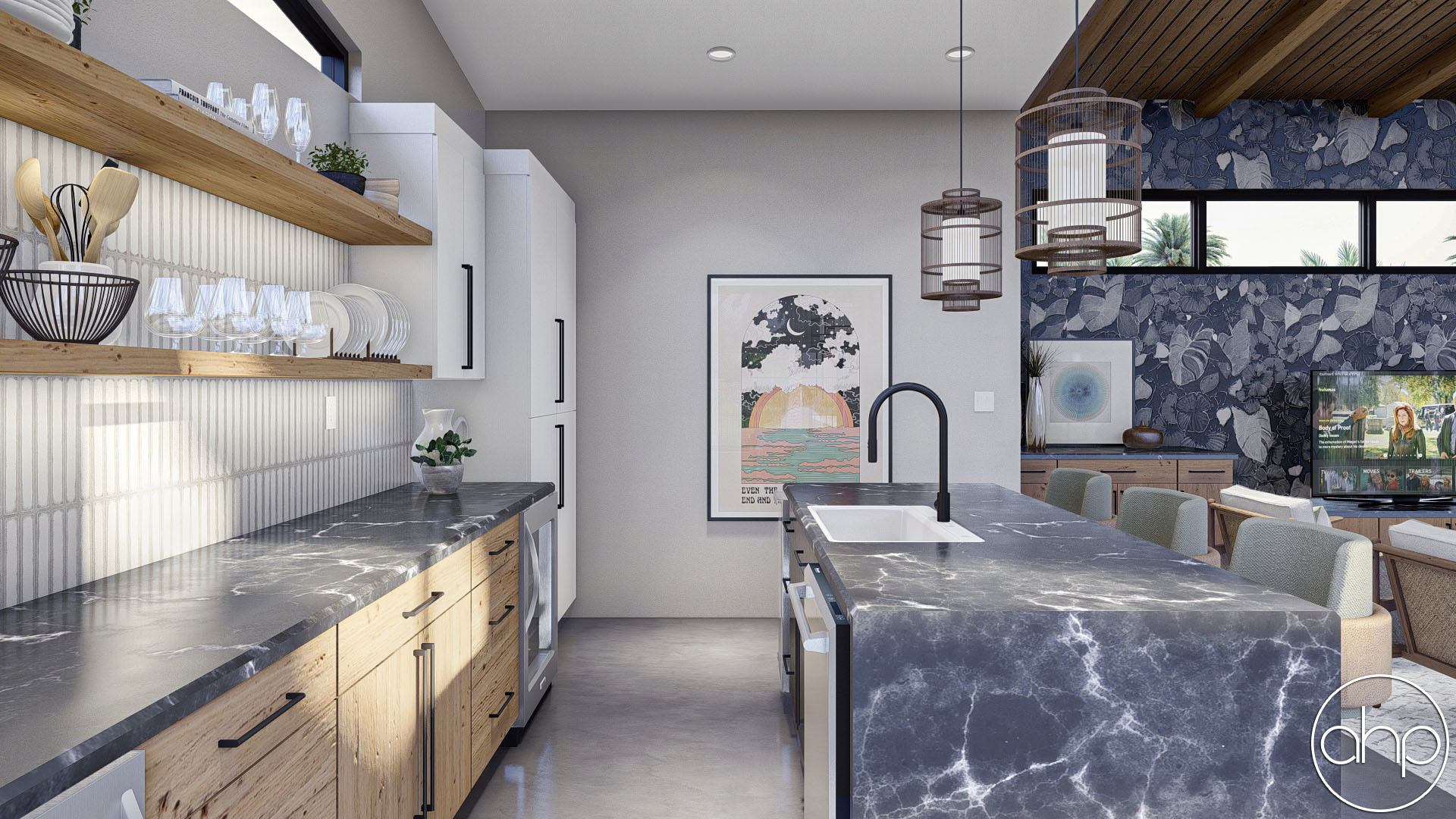

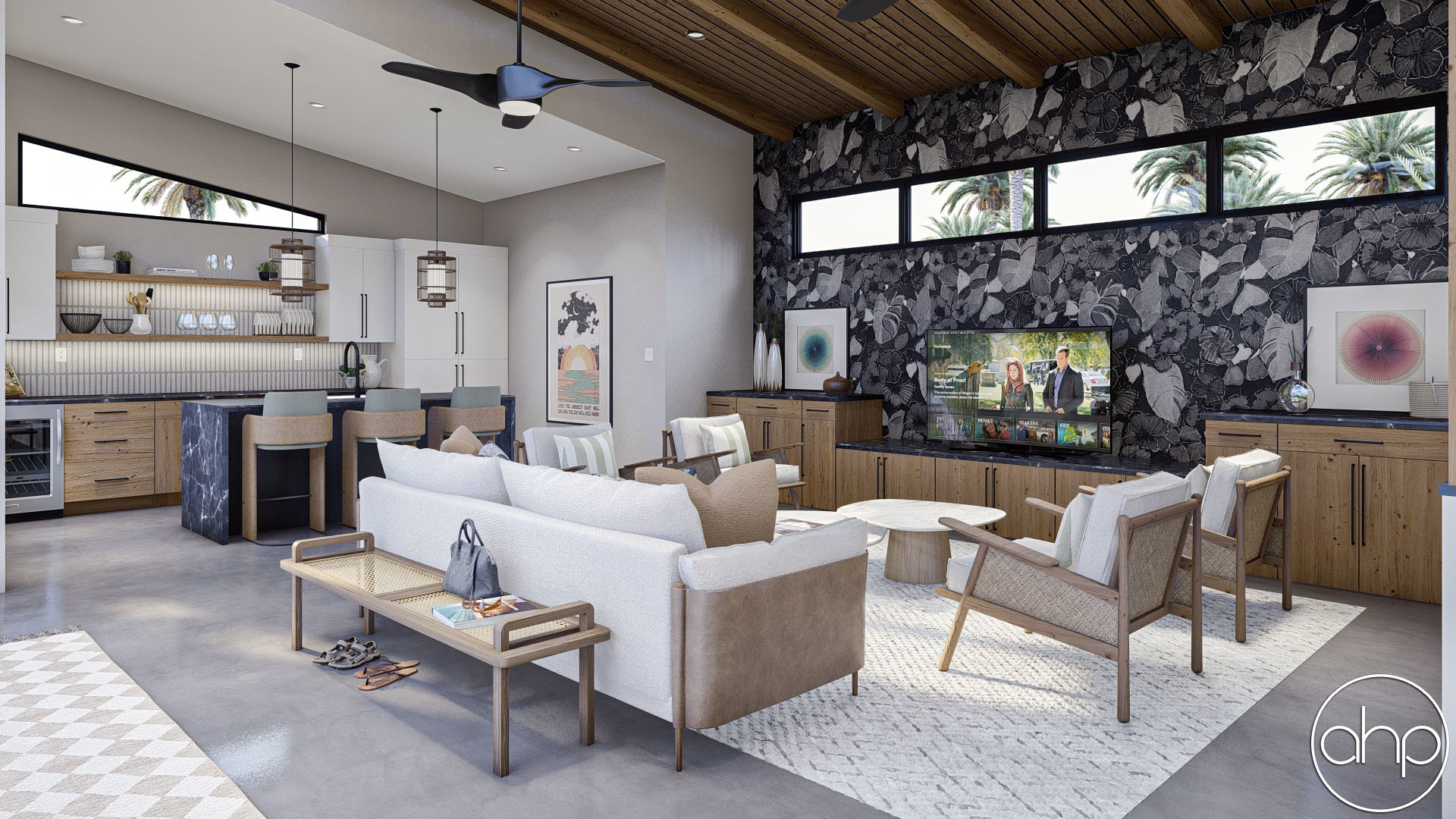

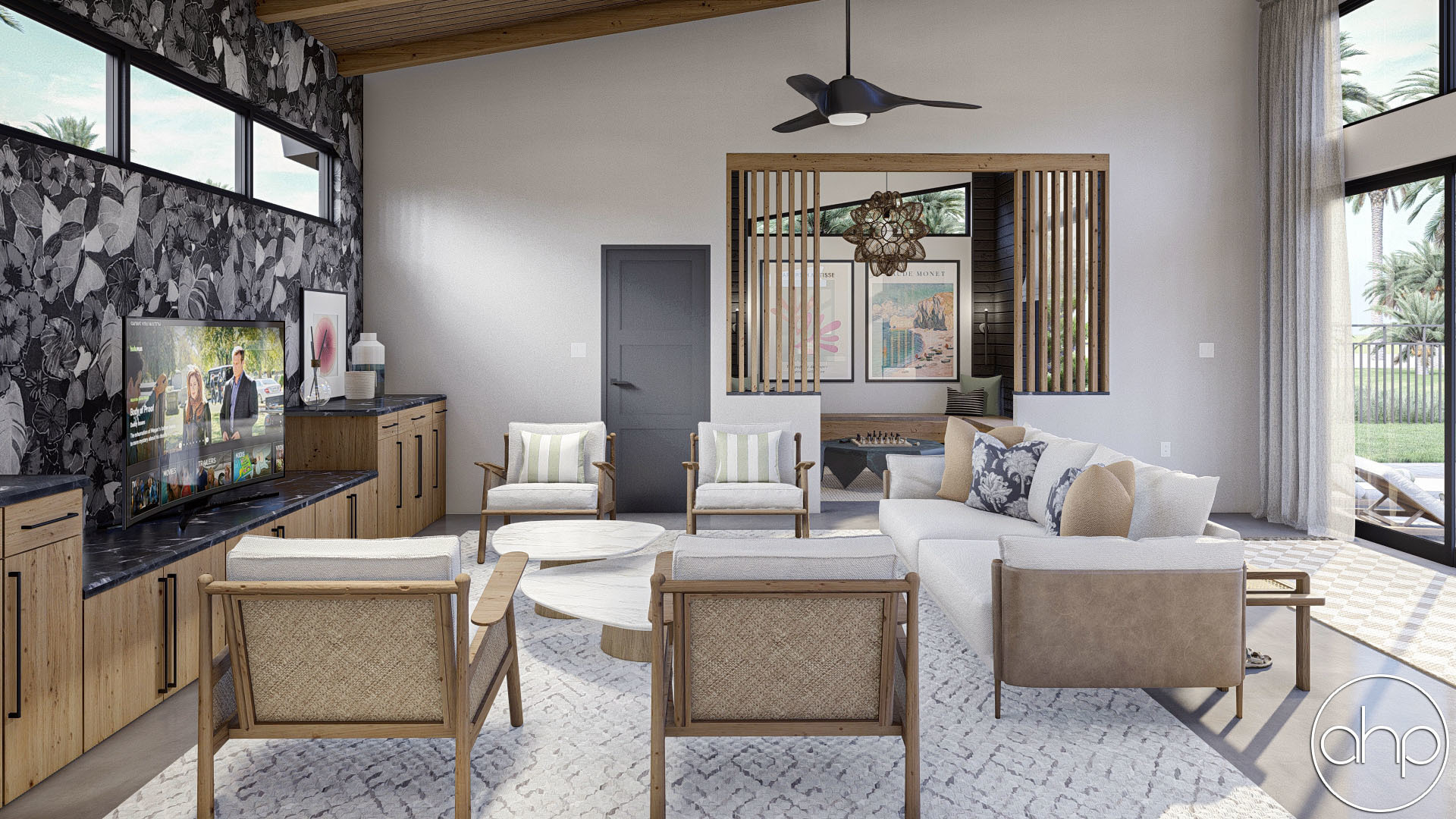

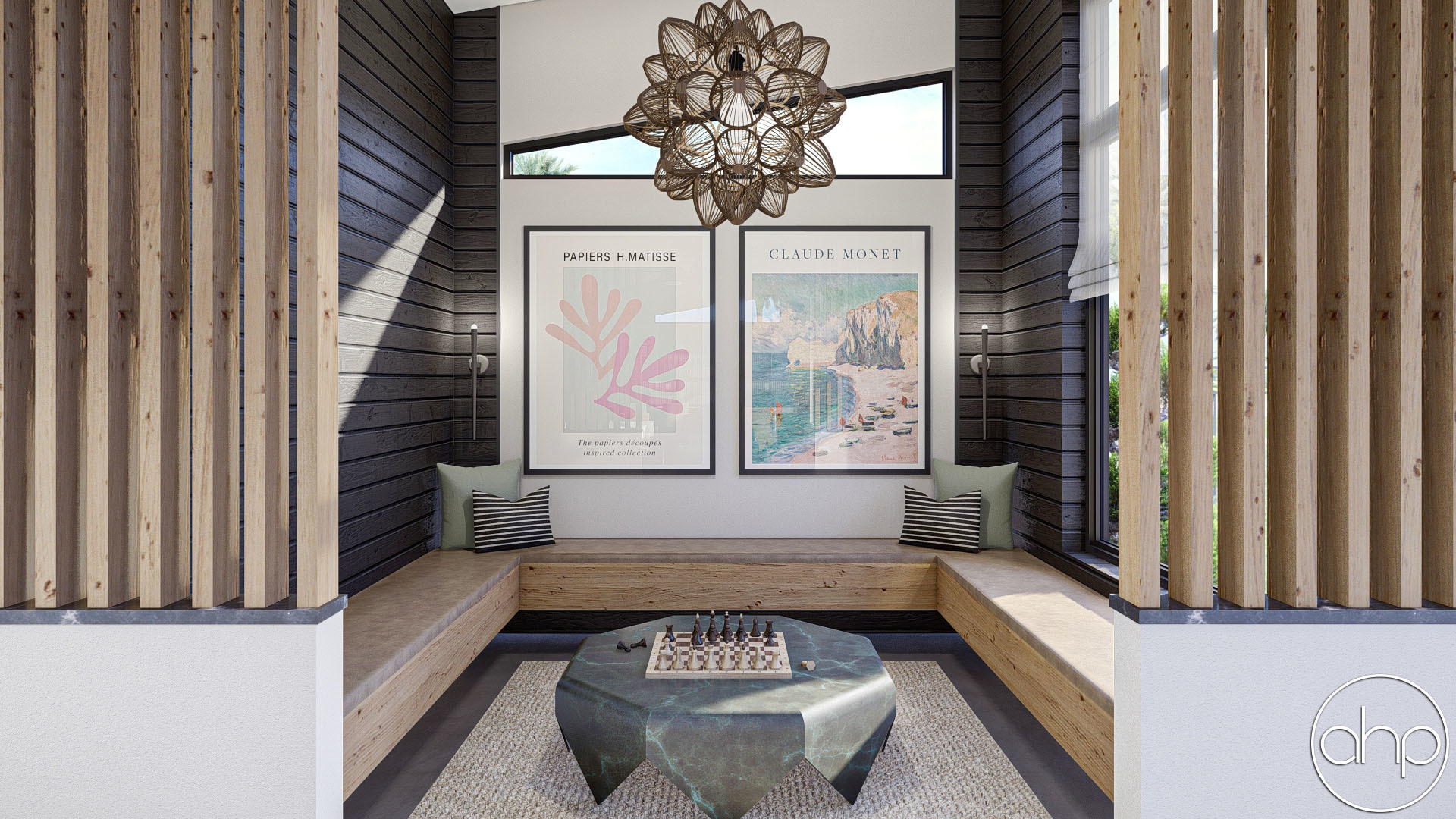

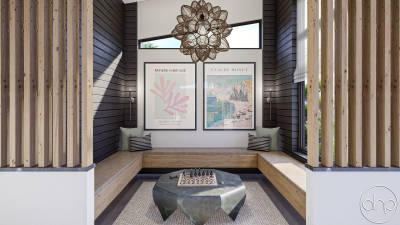

On the inside you will find tall sloped ceilings throughout. In the main room, there are exposed beams running from front to back. There are built-ins on the rear wall for your entertainment set up. The wet bar is loaded with two under counter refrigerators, a pantry, and an island with a dishwasher, sink, and ice maker if you please. On the other side is a bathroom and a lounge area with bench seating on three sides. A slat accent wall separates this from the main seating area. The rear of the pool house has two separate storage spaces for all of the equipment needed to run the best pool house.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bathrooms 1
Square Footage
Main Level 792 Sq. Ft.
Total Finished Area 792 Sq. Ft.
Exterior Dimensions
Width 40 ' 0"
Depth 23 ' 8"
Ridge Height
Calculated from main floor line
16 ' 5"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x4
Roof Pitches
2/12 Primary
Main Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
