Plan Description

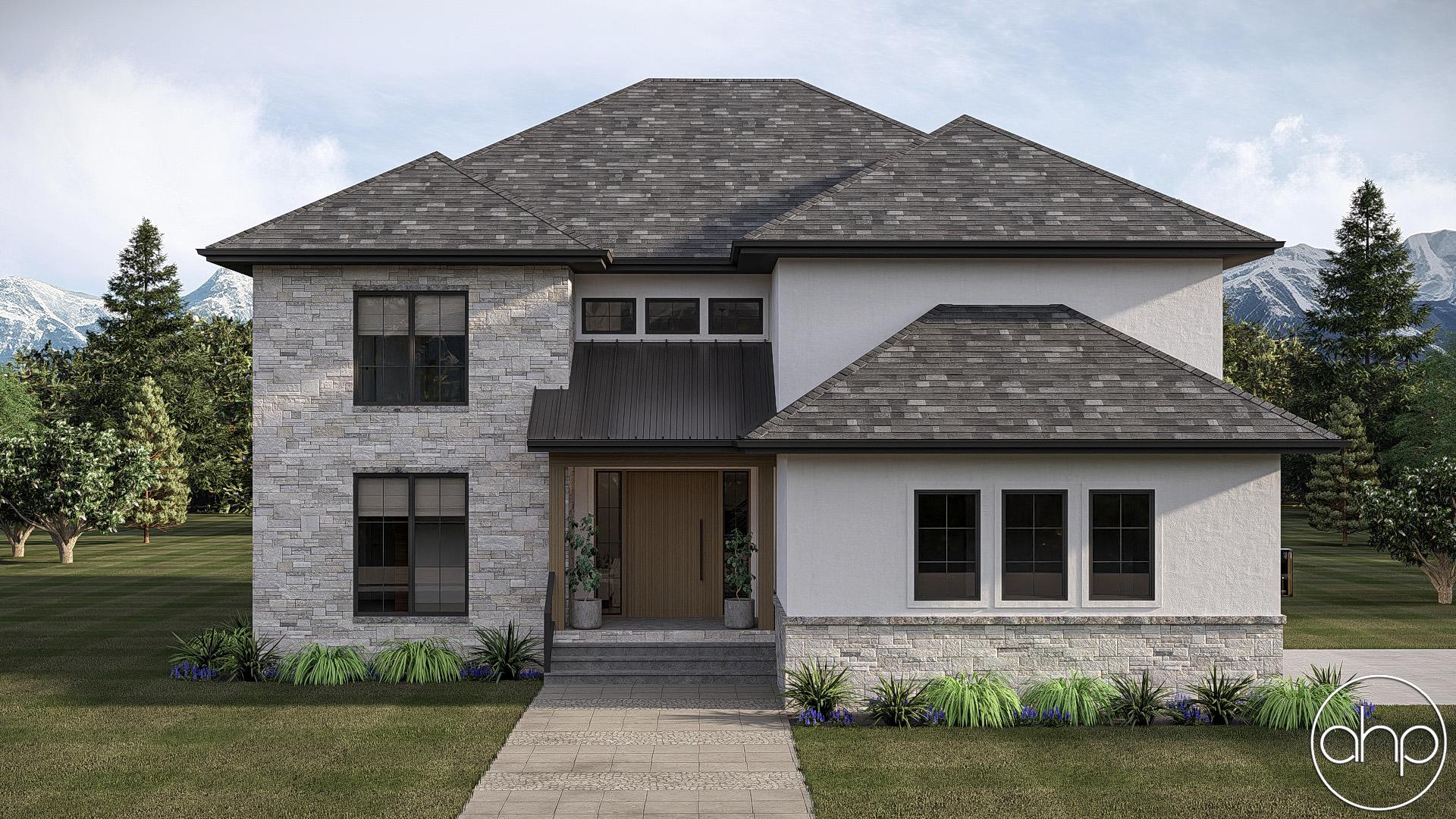

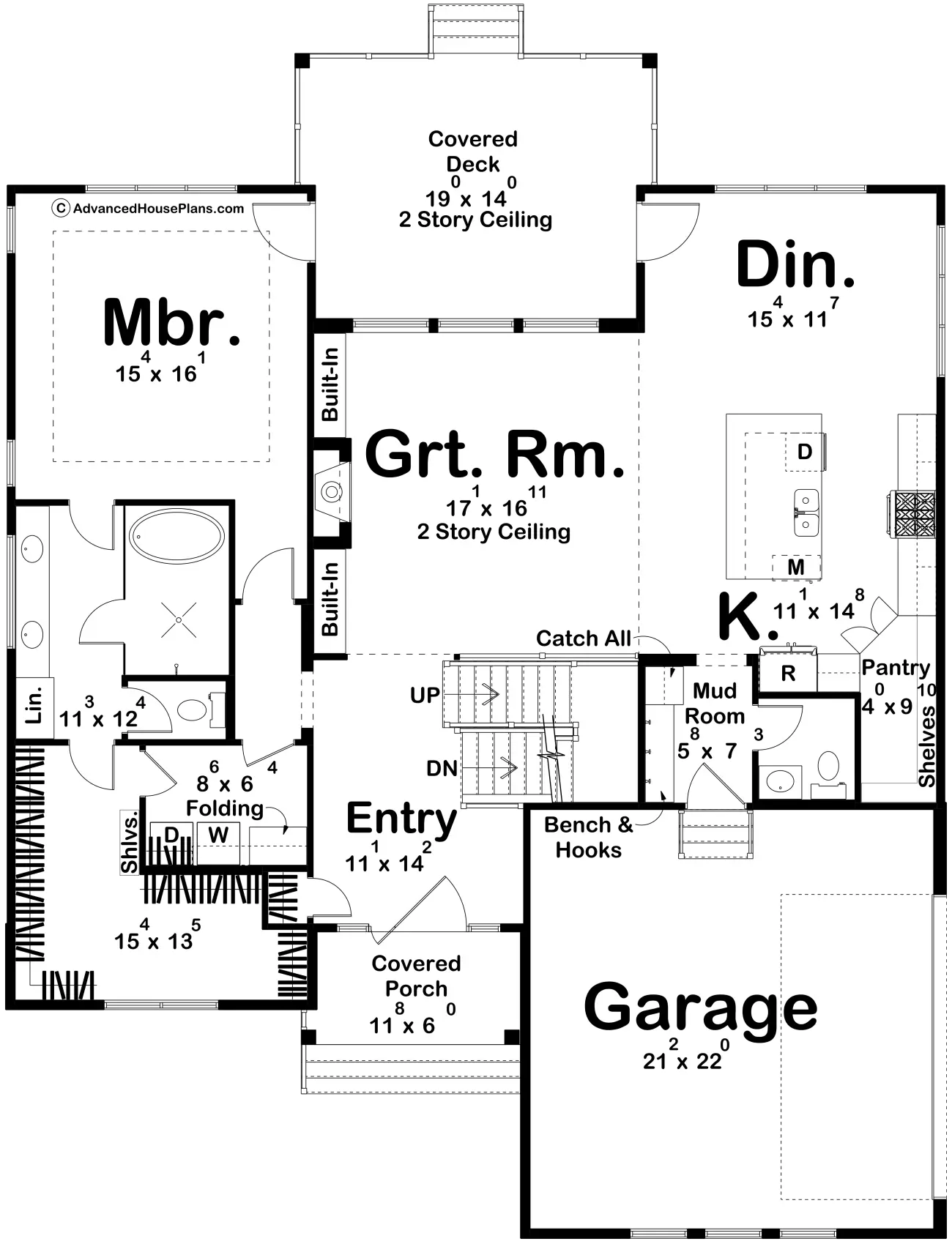

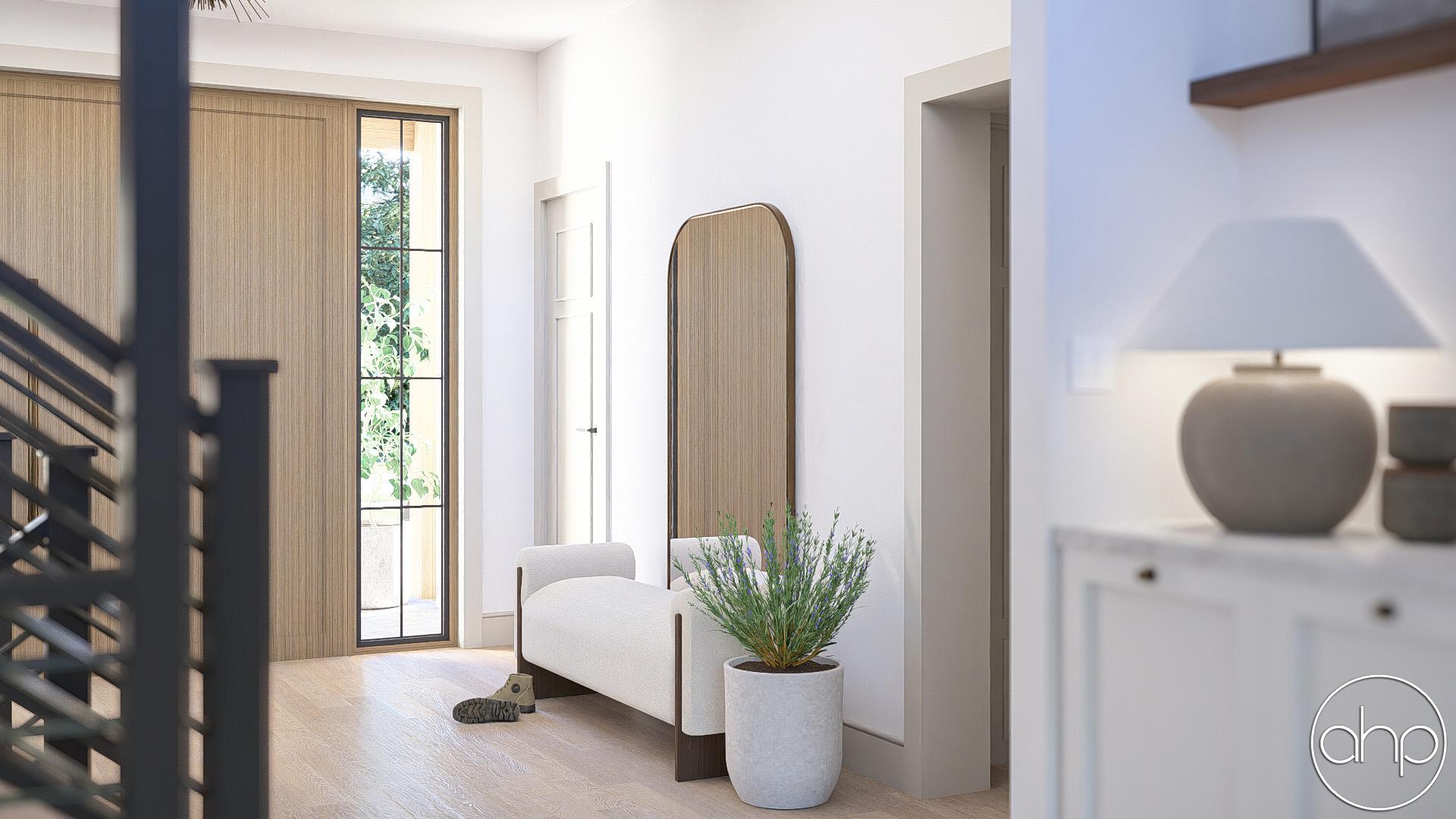

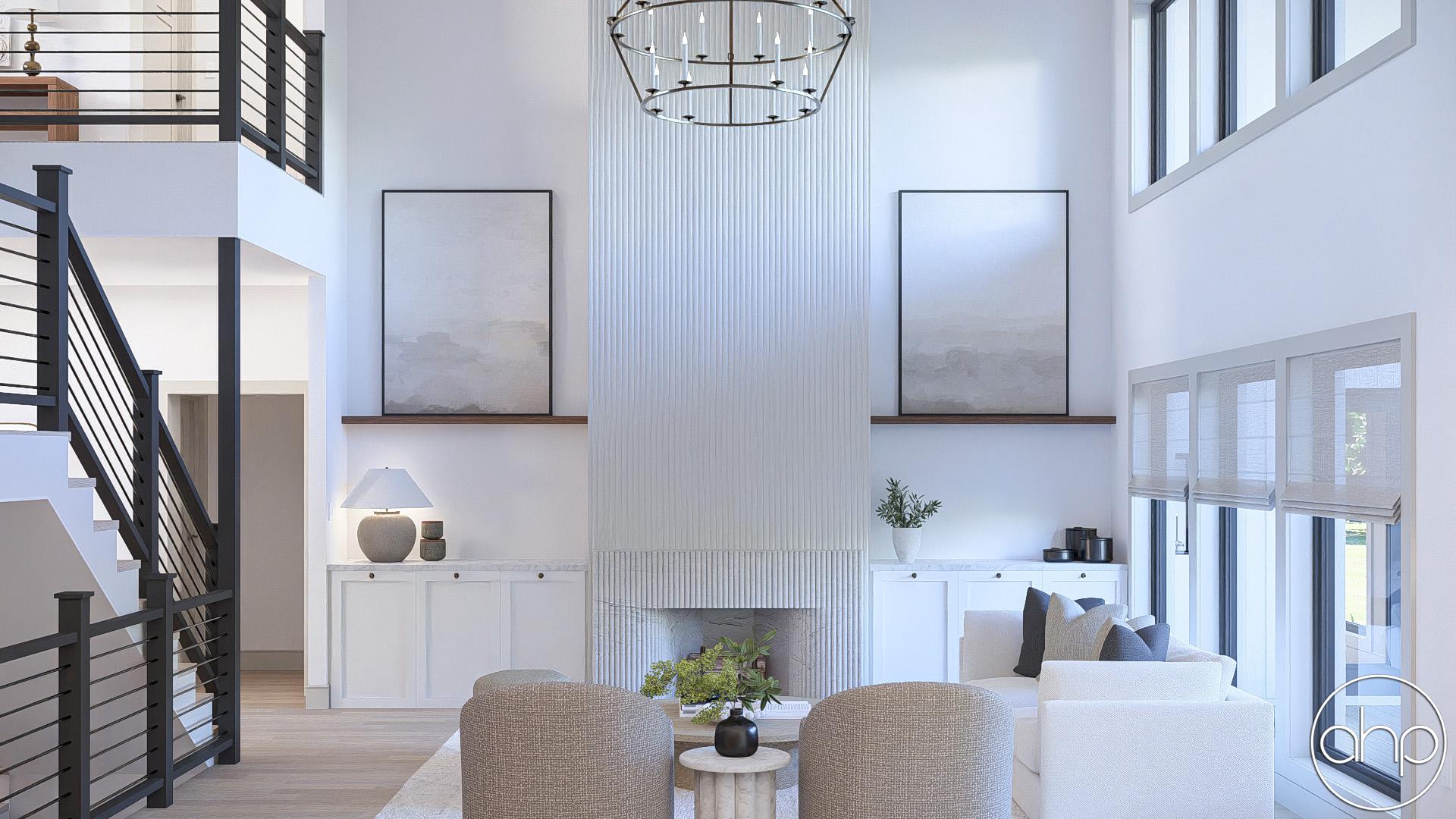

The Park West is an exceptional 4 bed, 4 bath Mediterranean-style home that combines luxurious living with unforgettable architectural details. A side-load garage preserves the home's elegant curb appeal, while the covered front porch welcomes you into an impressive entry that opens to a dramatic two-story great room complete with a fireplace and custom built-ins. The gourmet kitchen is designed for entertaining, featuring a large island with a wraparound snack bar and a spacious walk-in pantry, while the main-floor master suite and laundry room provide everyday convenience.

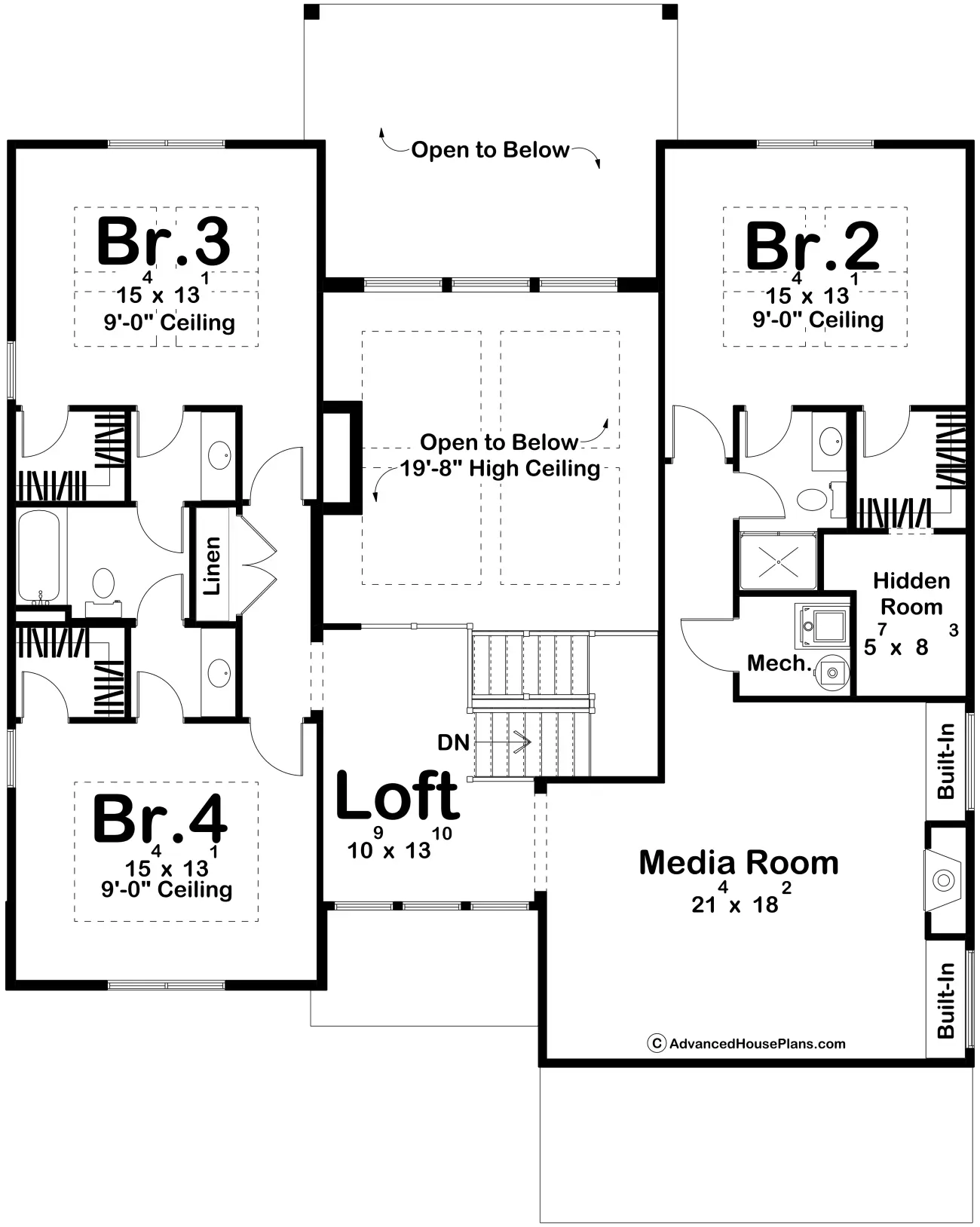

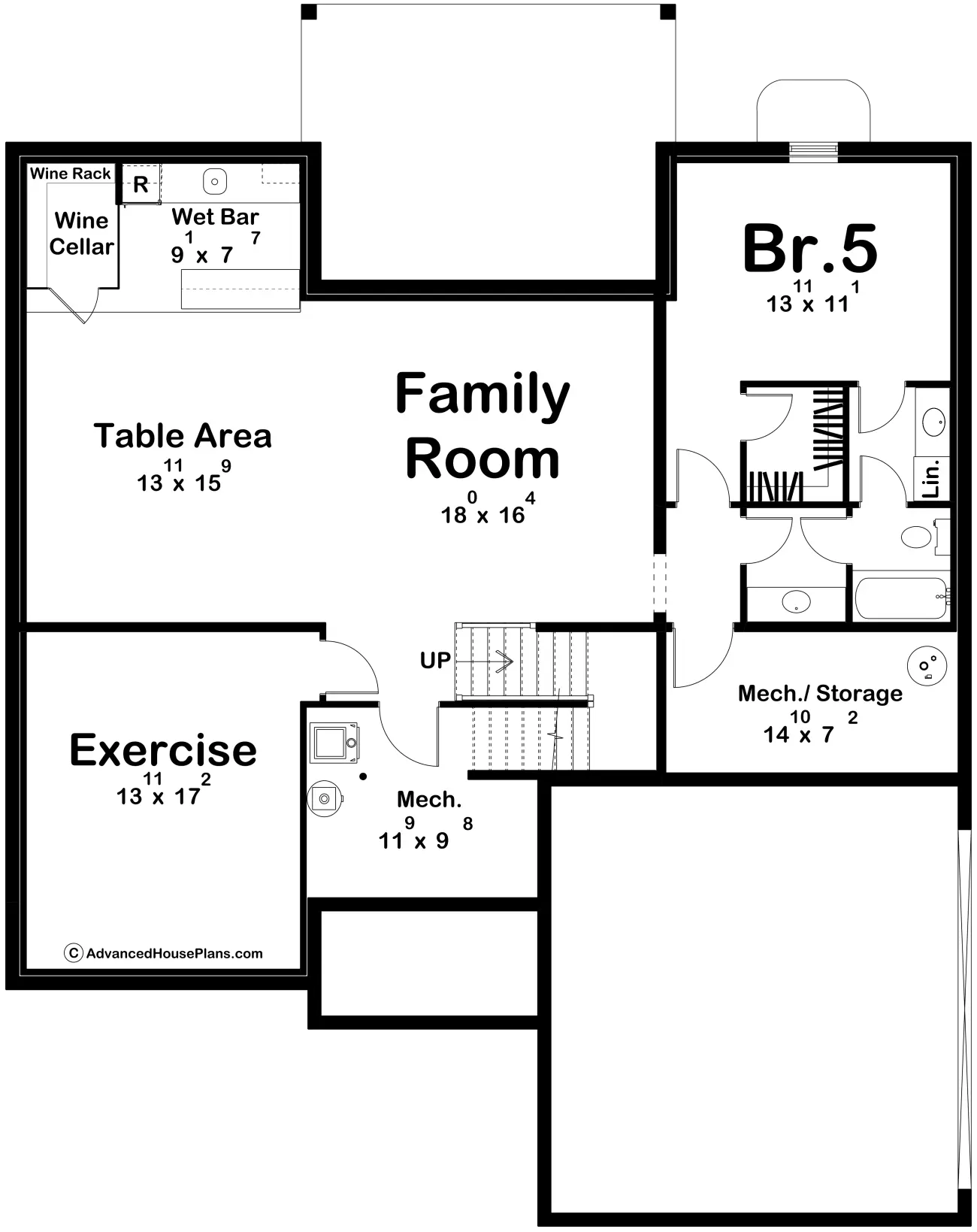

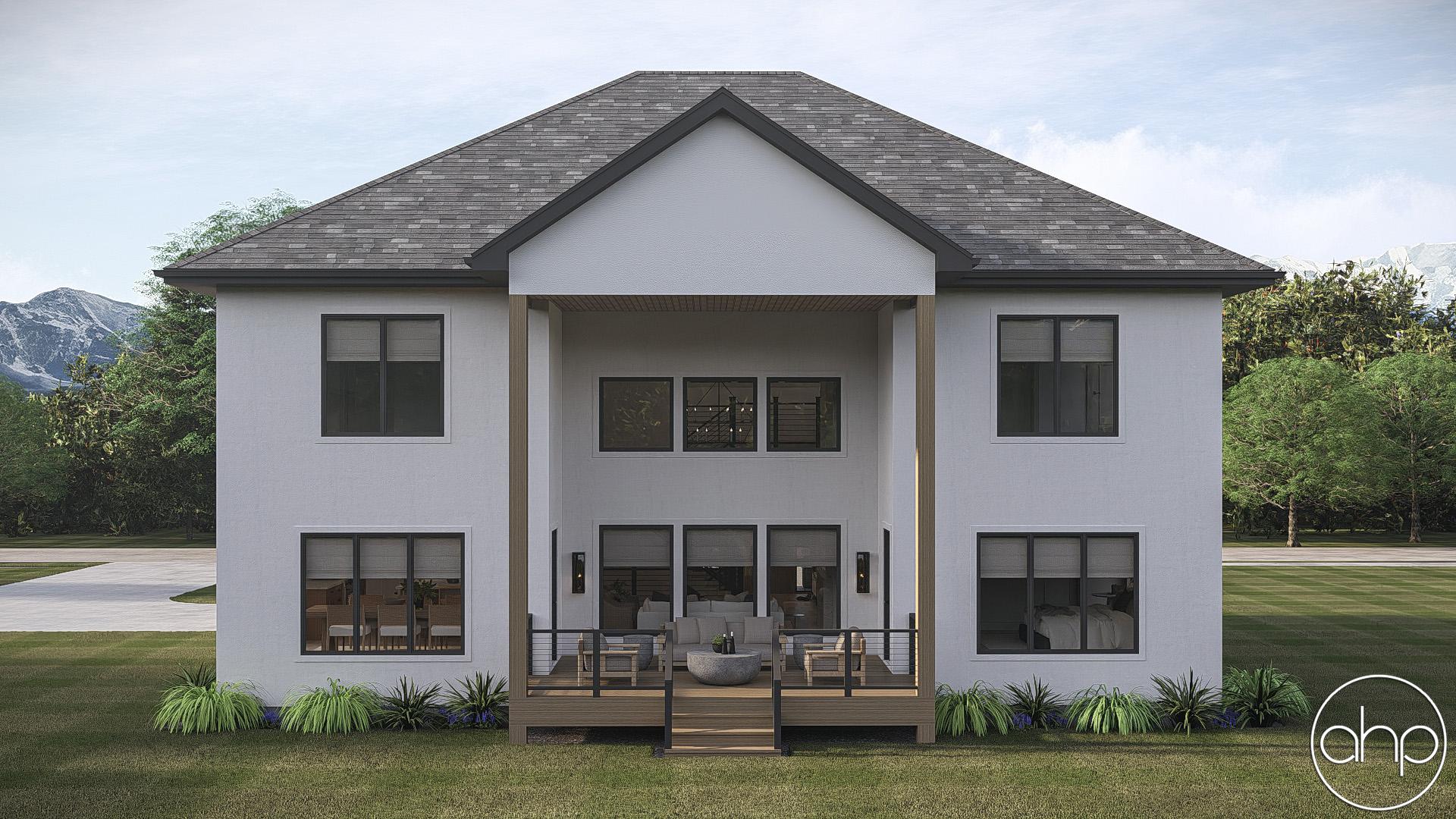

Upstairs, three additional bedrooms are joined by a large media room with its own fireplace, creating the perfect space for movie nights and family gatherings. Bedroom two even includes access to a hidden room through its walk-in closet, adding a unique touch that's sure to delight. Outside, the covered rear deck with its soaring two-story ceiling extends your living space for year-round entertaining. For even more luxury, the optional finished basement adds a wine cellar, wet bar, exercise room, and an additional bedroom, making the Park West a truly spectacular home designed for both everyday living and extraordinary entertaining.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 4 |
| Bathrooms | 4 |
| Garage Bays | 2 |
| Square Footage Breakdown | |
| Main Level | 1719 Sq Ft |
| Second Level | 1653 Sq Ft |
| Total Finished Area | 3372 Sq Ft |
| Garage | 489 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 319 Sq Ft |
| Optional Basement Area (Not included in total sq ft) | 1309 Sq Ft |
| Exterior Dimensions | |
| Width | 49' 0" |
| Depth | 62' 0" |
| Ridge Height | 33' 10" |
| Default Construction Stats | |
| Default Foundation Type | Basement |
| Default Exterior Wall Construction | 2x4 |
| Roof Construction Method | Trusses |
| Floor Construction Method | Floor Trusses |
| Roof Pitches | Primary 8/12 |
| Foundation Wall Height | 9' |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 8' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
