2-Story Bermuda Style House Plan | Monaco
Floor Plan Images
Plan Video Tour
Plan Description
This 2-story Bermuda-style home is designed around privacy, natural light, and easy indoor-outdoor living. With 2,555 sq. ft., 3 bedrooms, and 3 bathrooms, it offers a well-balanced mix of open living space and quiet retreats.

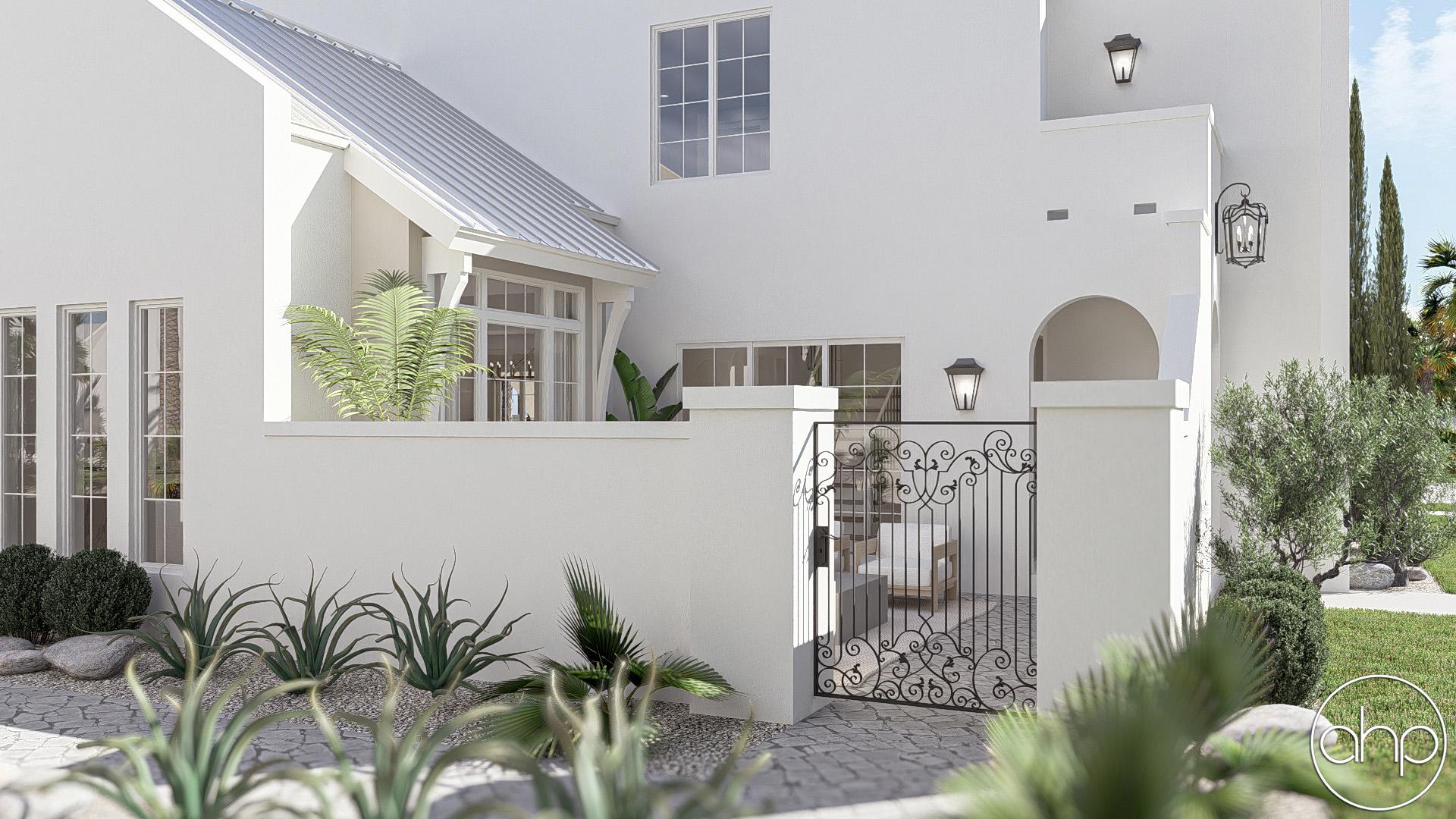

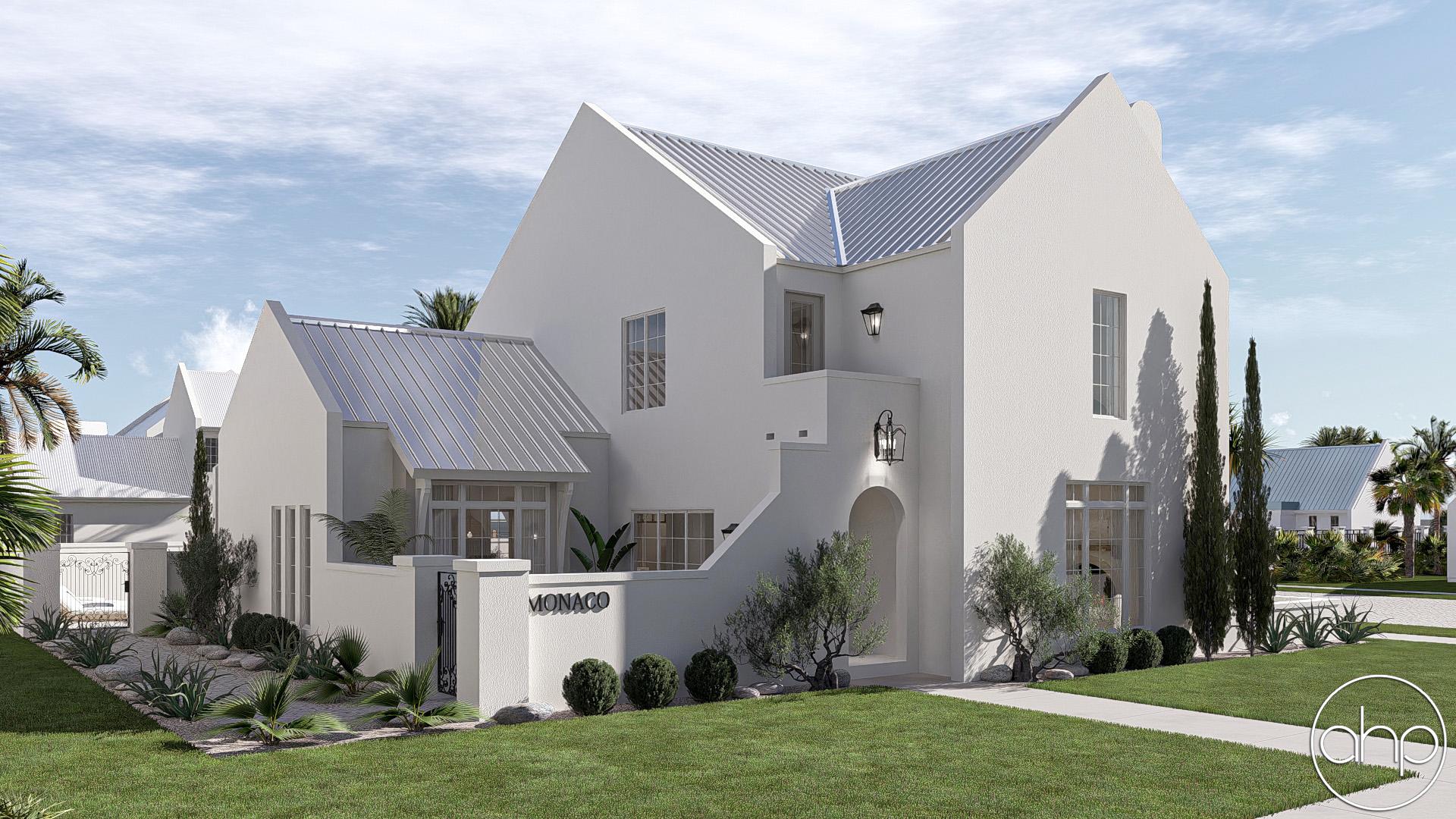

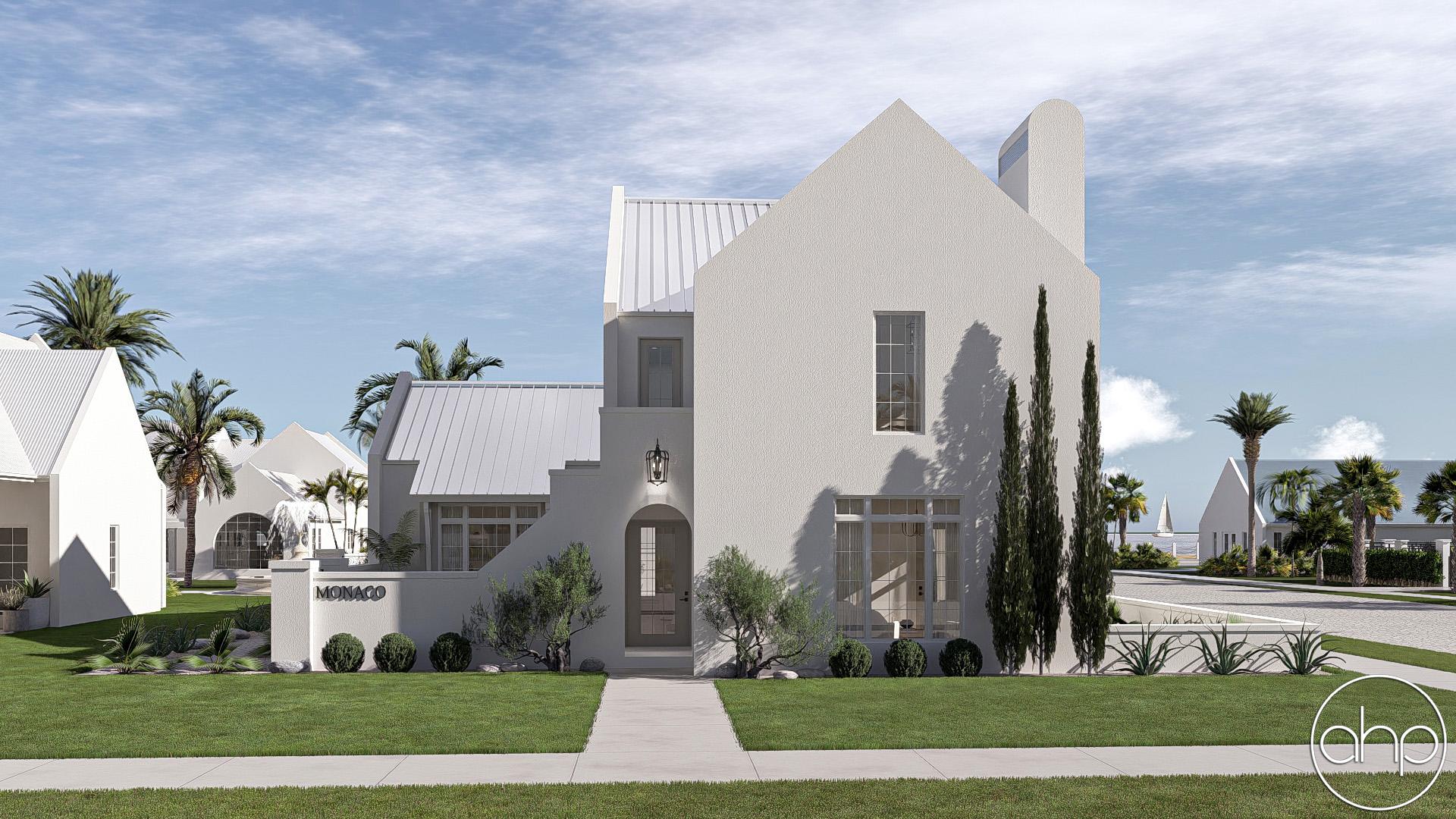

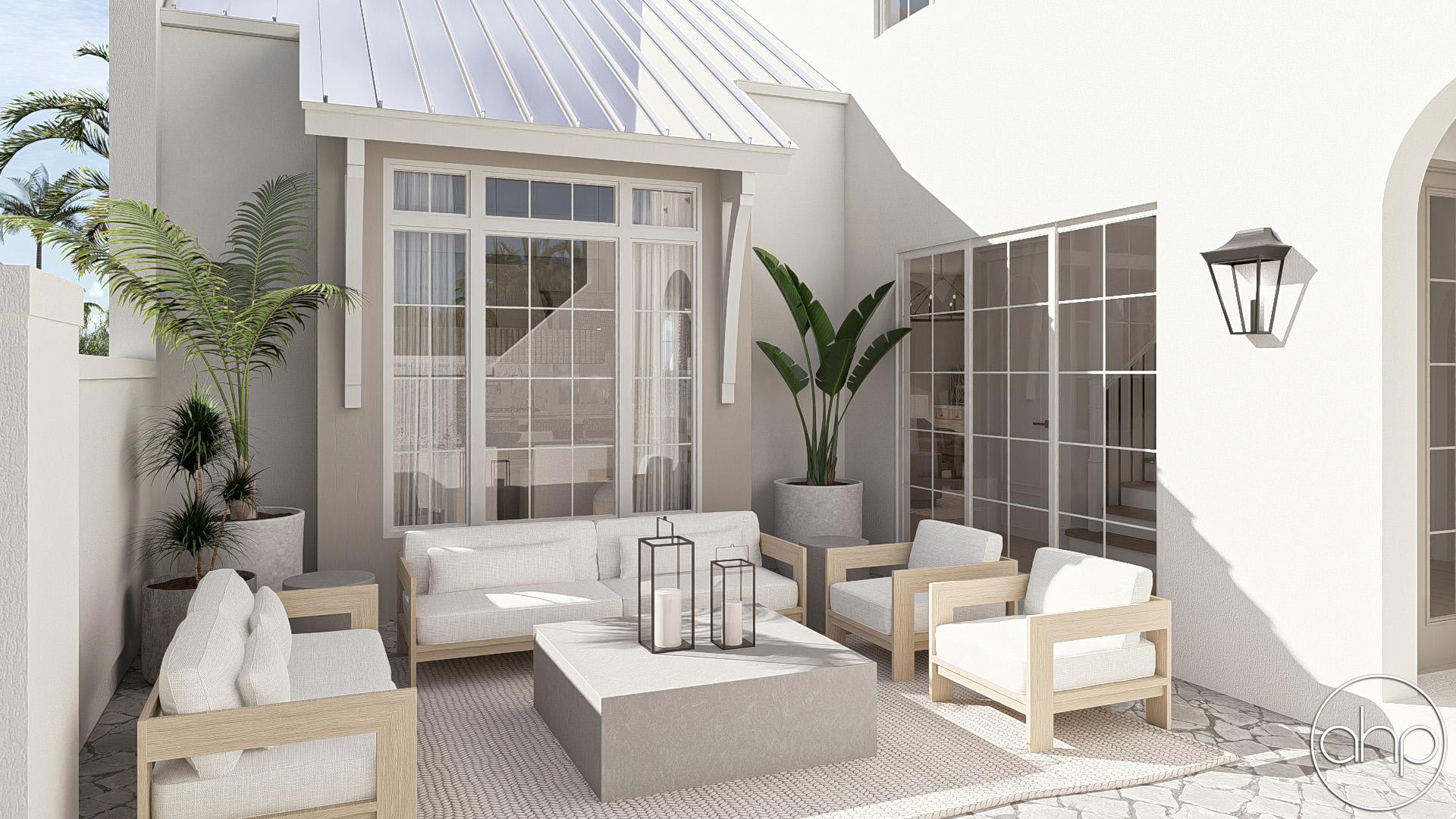

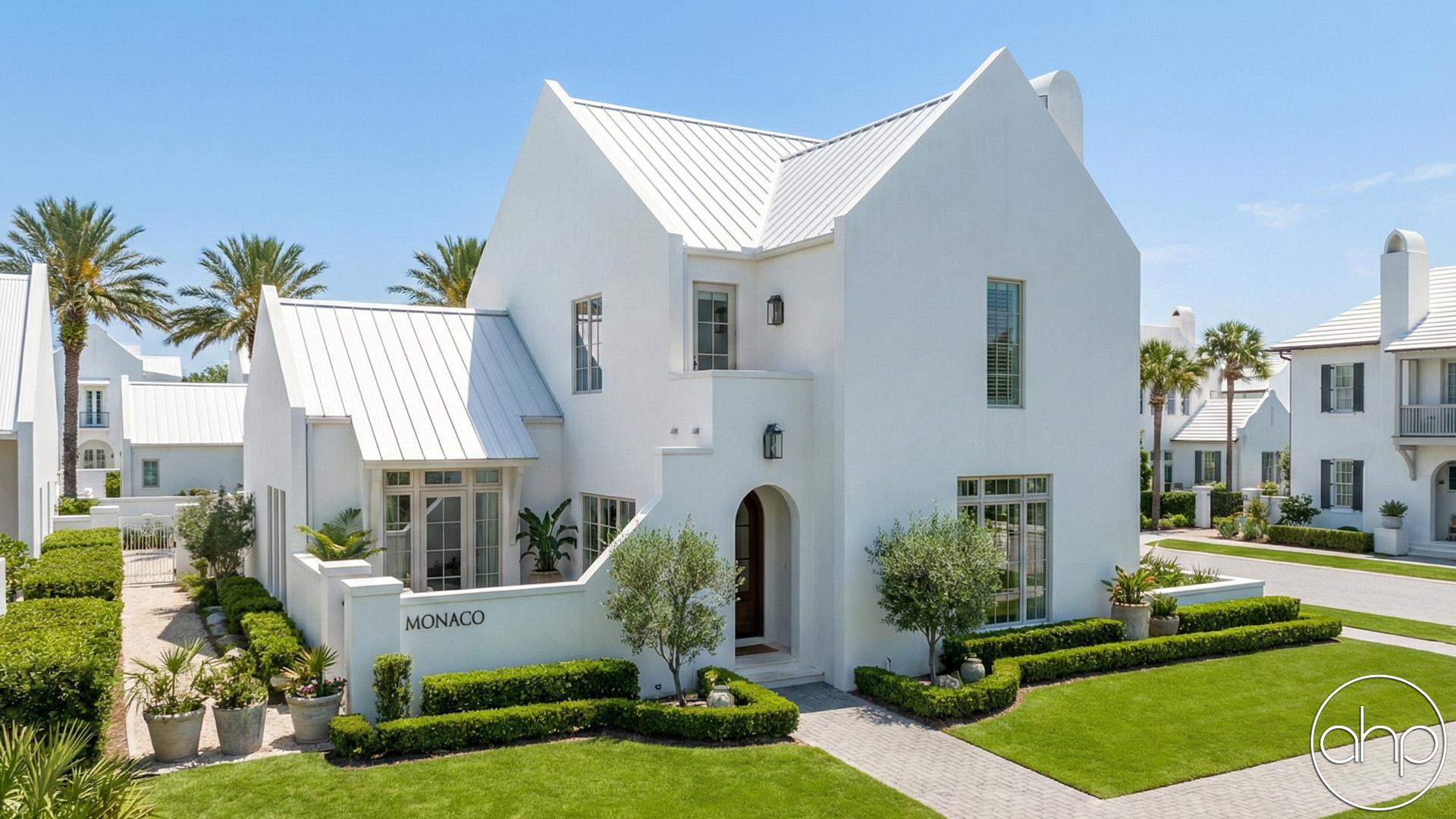

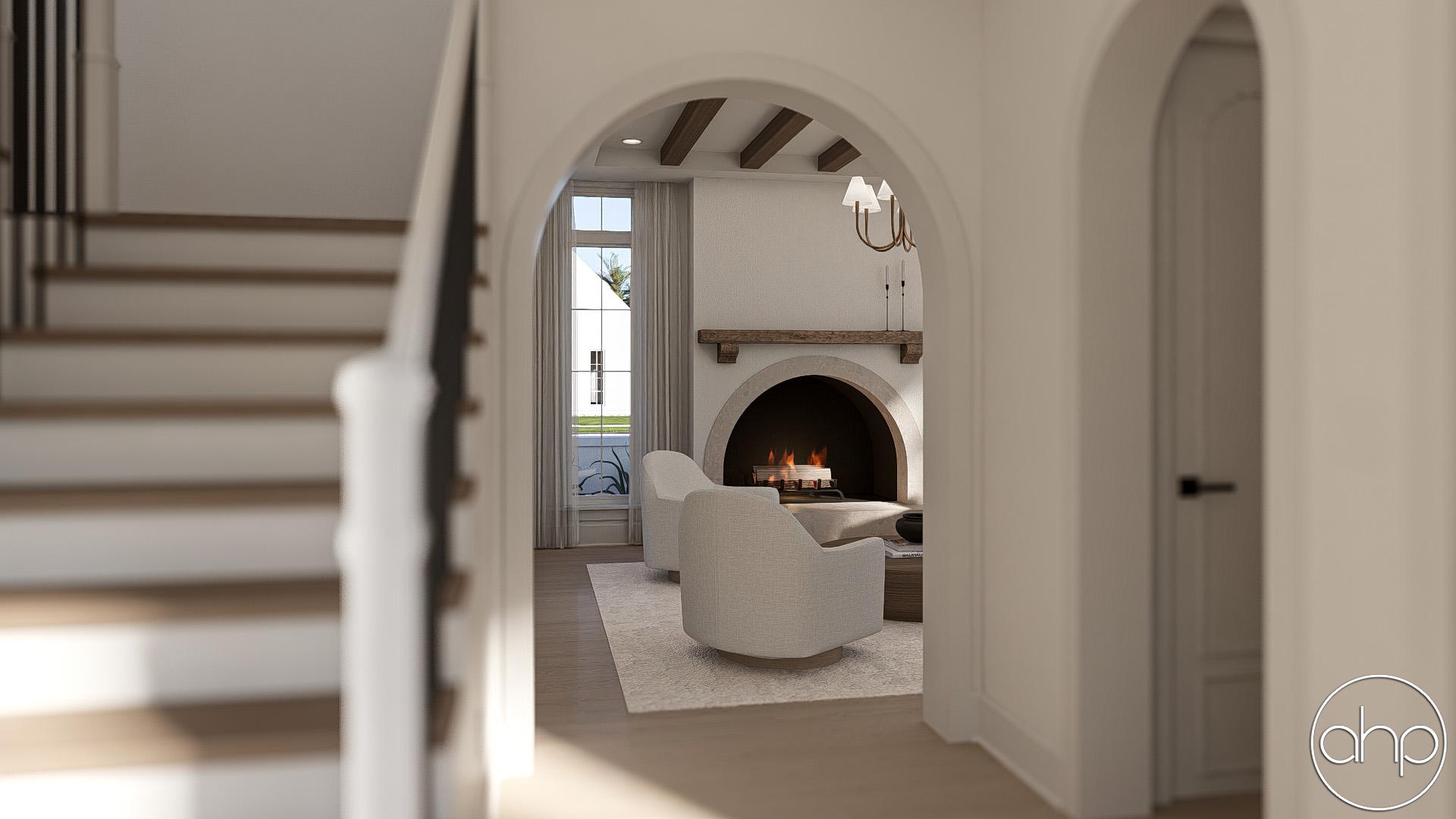

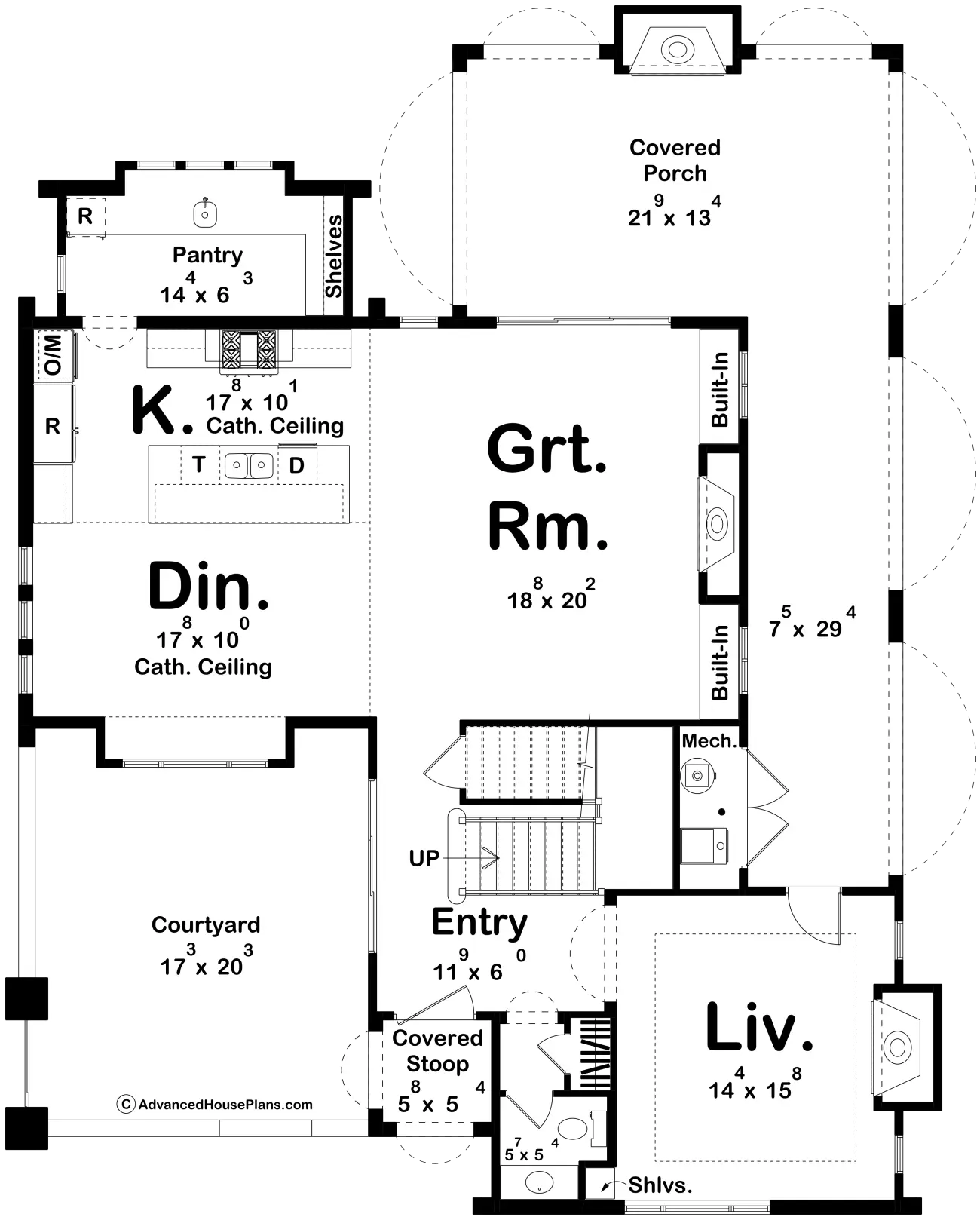

At the front, a private courtyard creates a welcoming and secluded entry experience. It’s accessible through a gate along the left side of the home, as well as from the covered front porch. Inside, the entry features a sliding glass door that opens directly to the courtyard, bringing in natural light and reinforcing that indoor-outdoor connection.

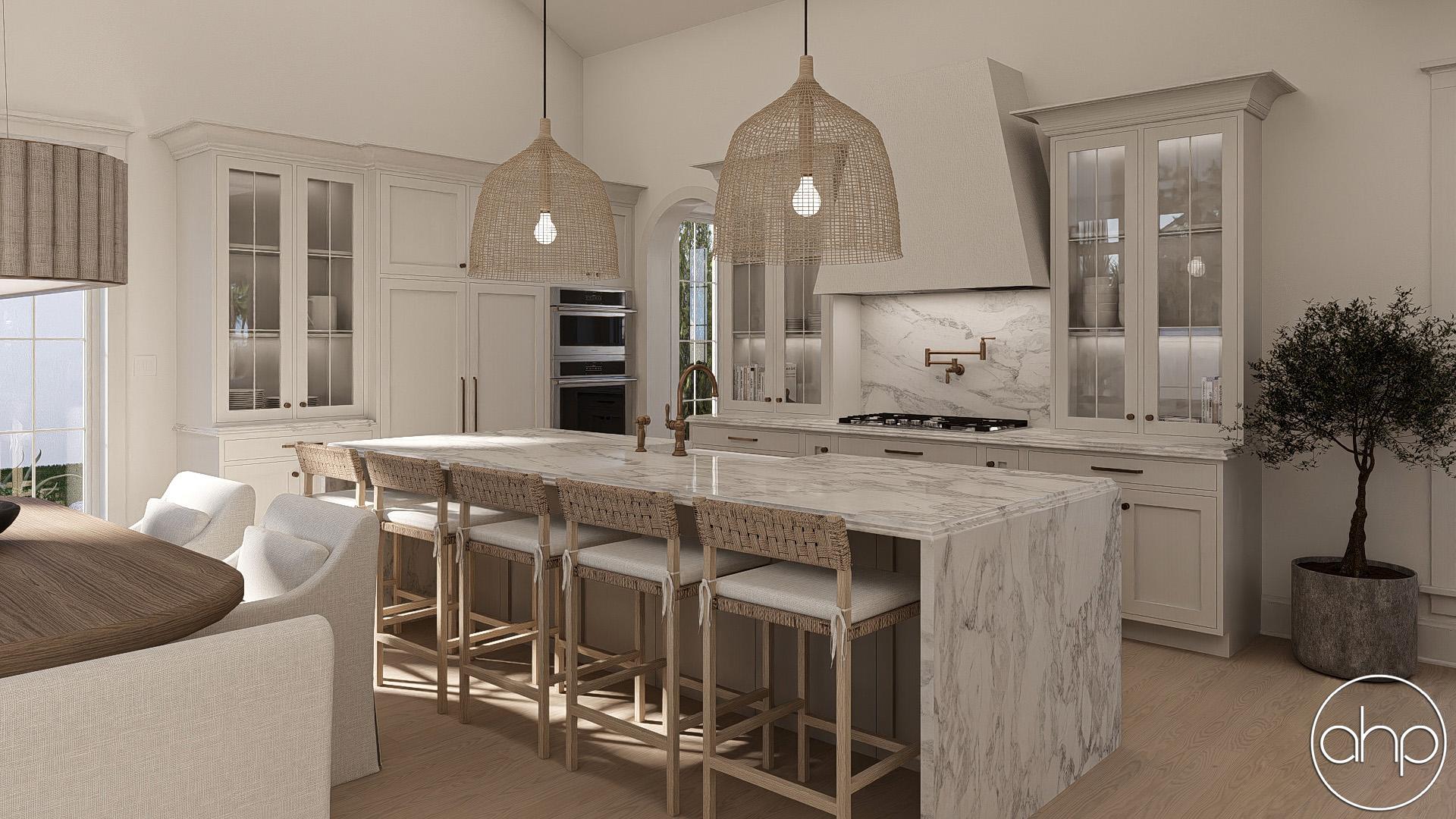

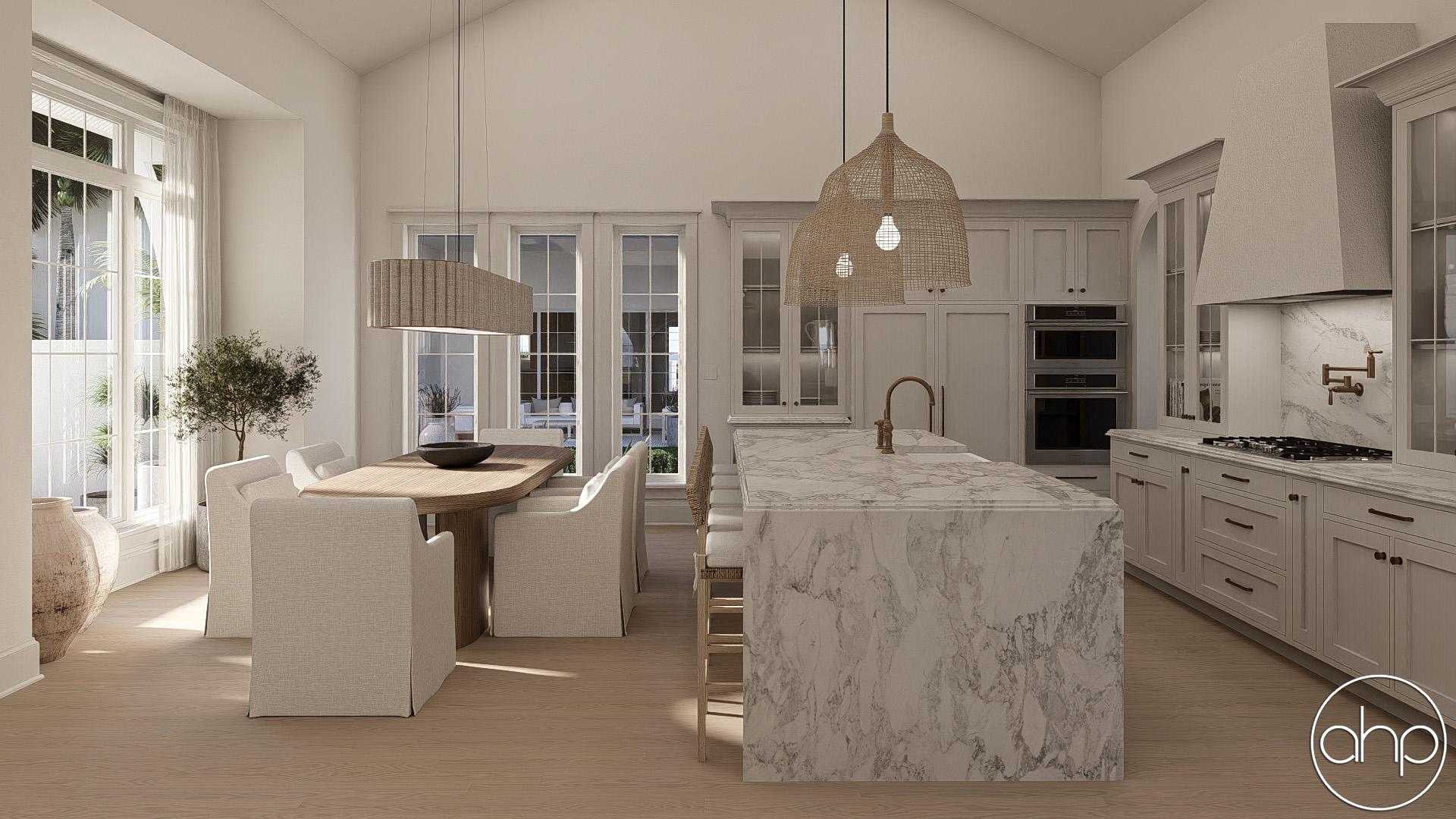

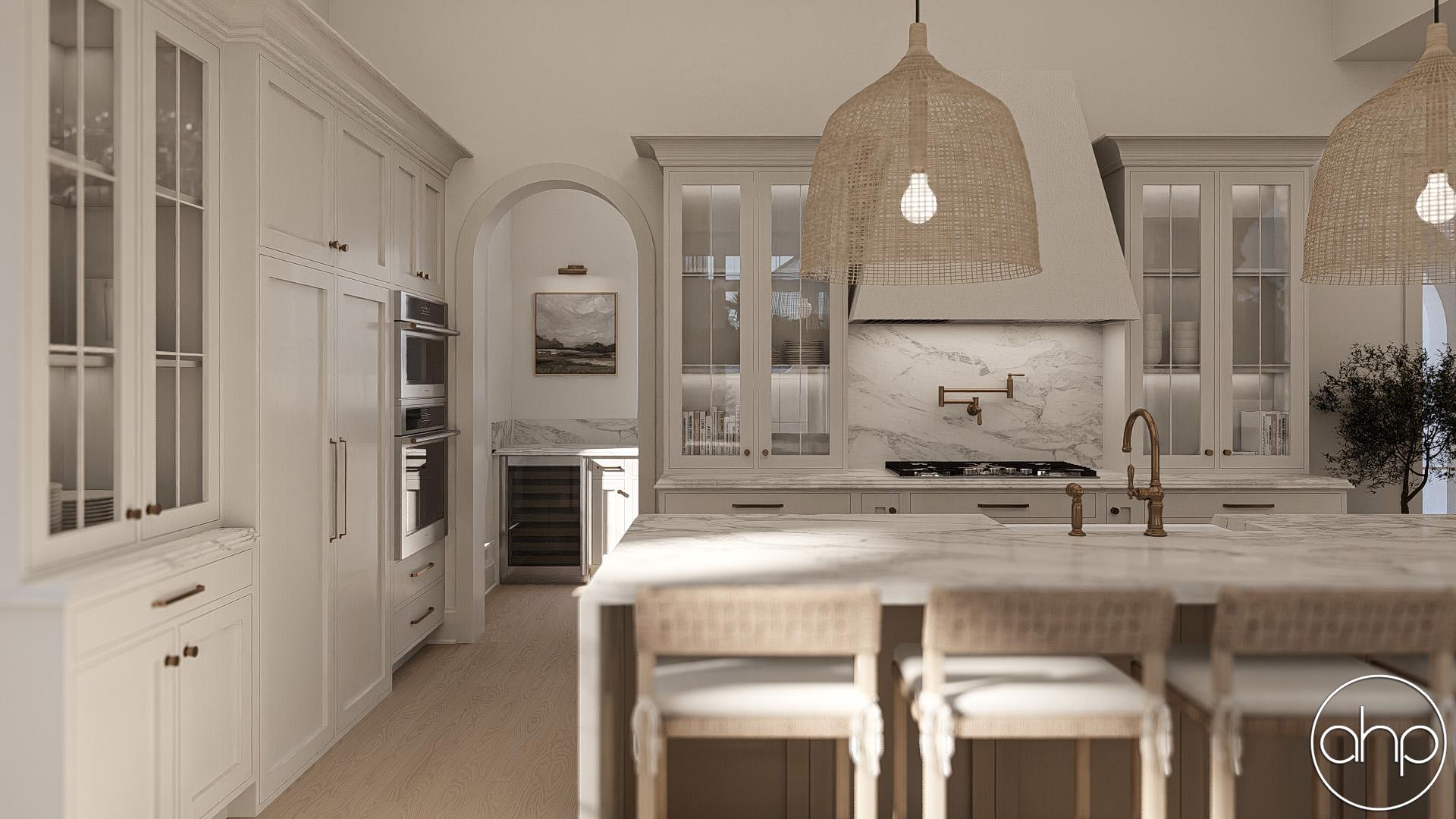

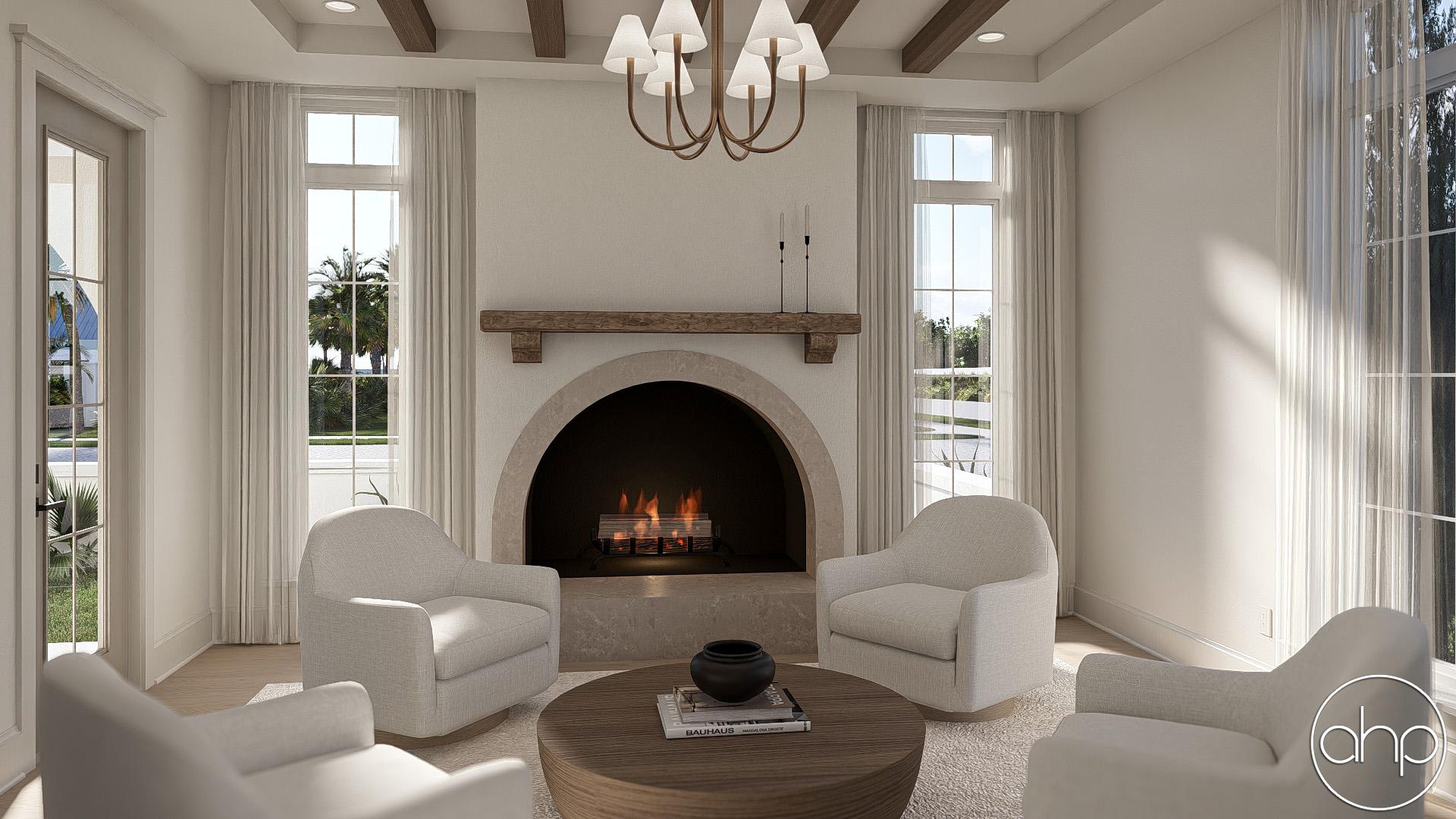

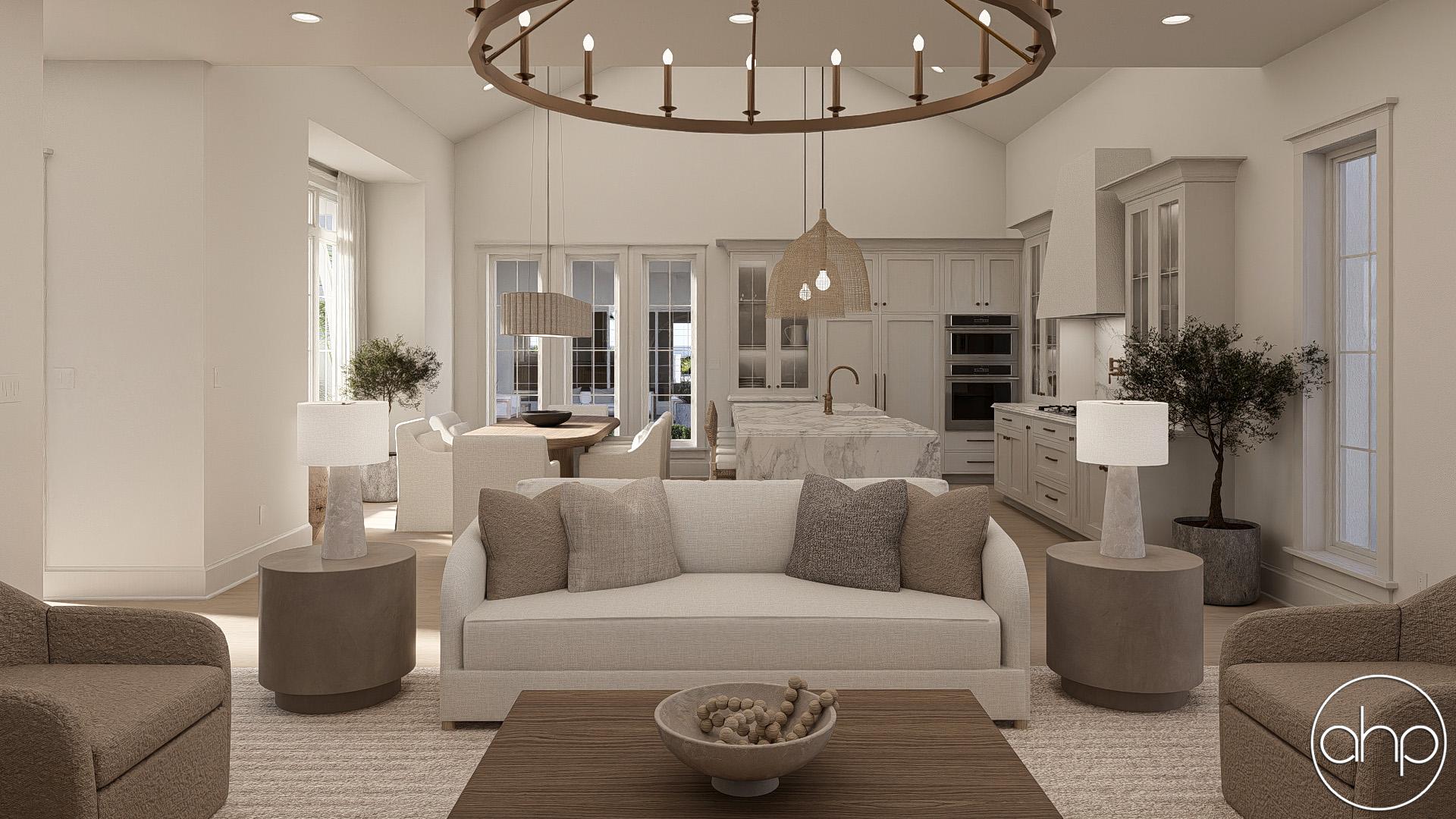

To the right of the entry, a private living room with a fireplace provides a comfortable, more relaxed space, along with a conveniently located half bath nearby. Toward the rear, the layout opens into a spacious great room that flows into the dining area and kitchen. A large pantry sits just off the back of the kitchen, adding practical storage without interrupting the main living space.

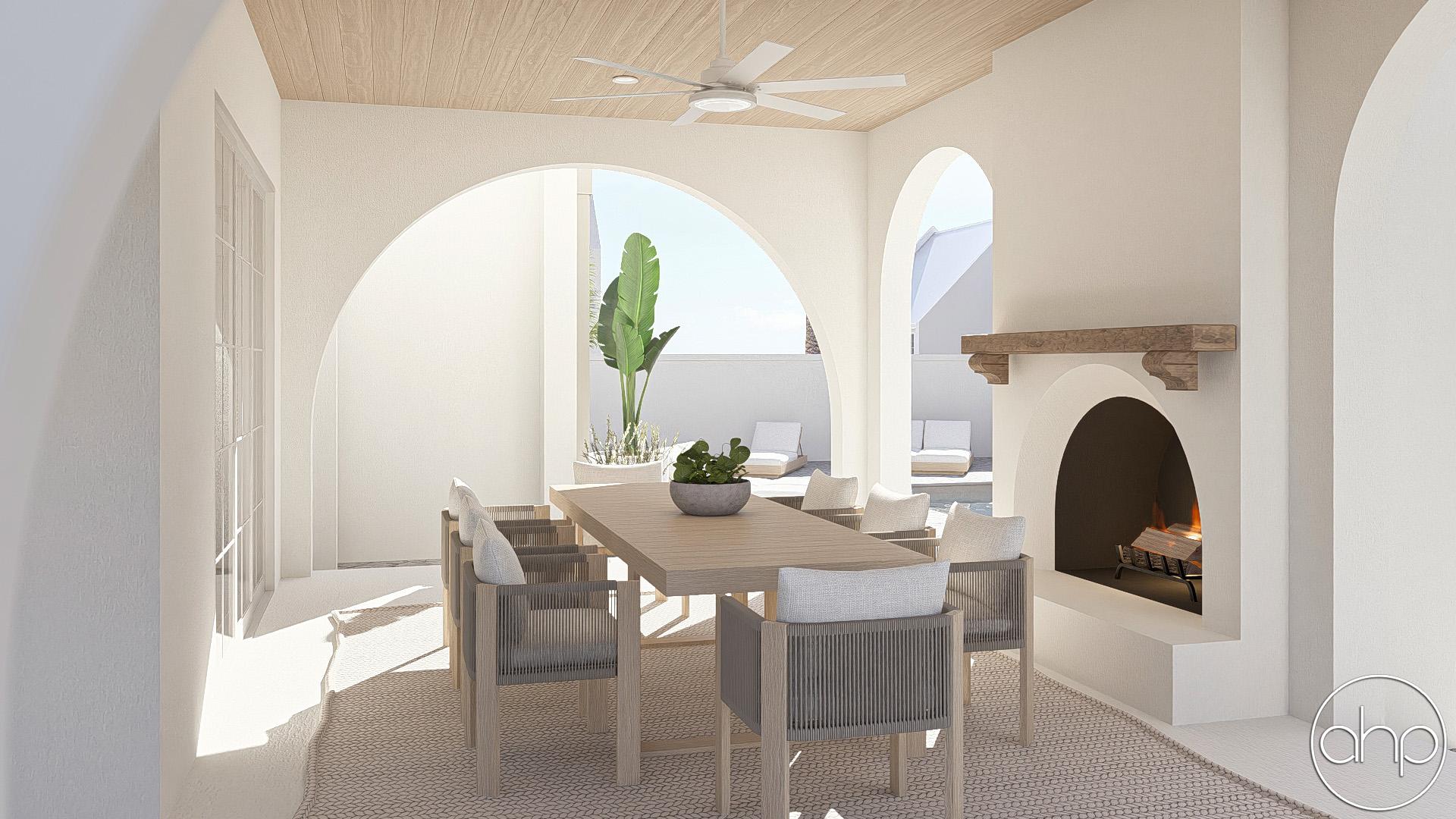

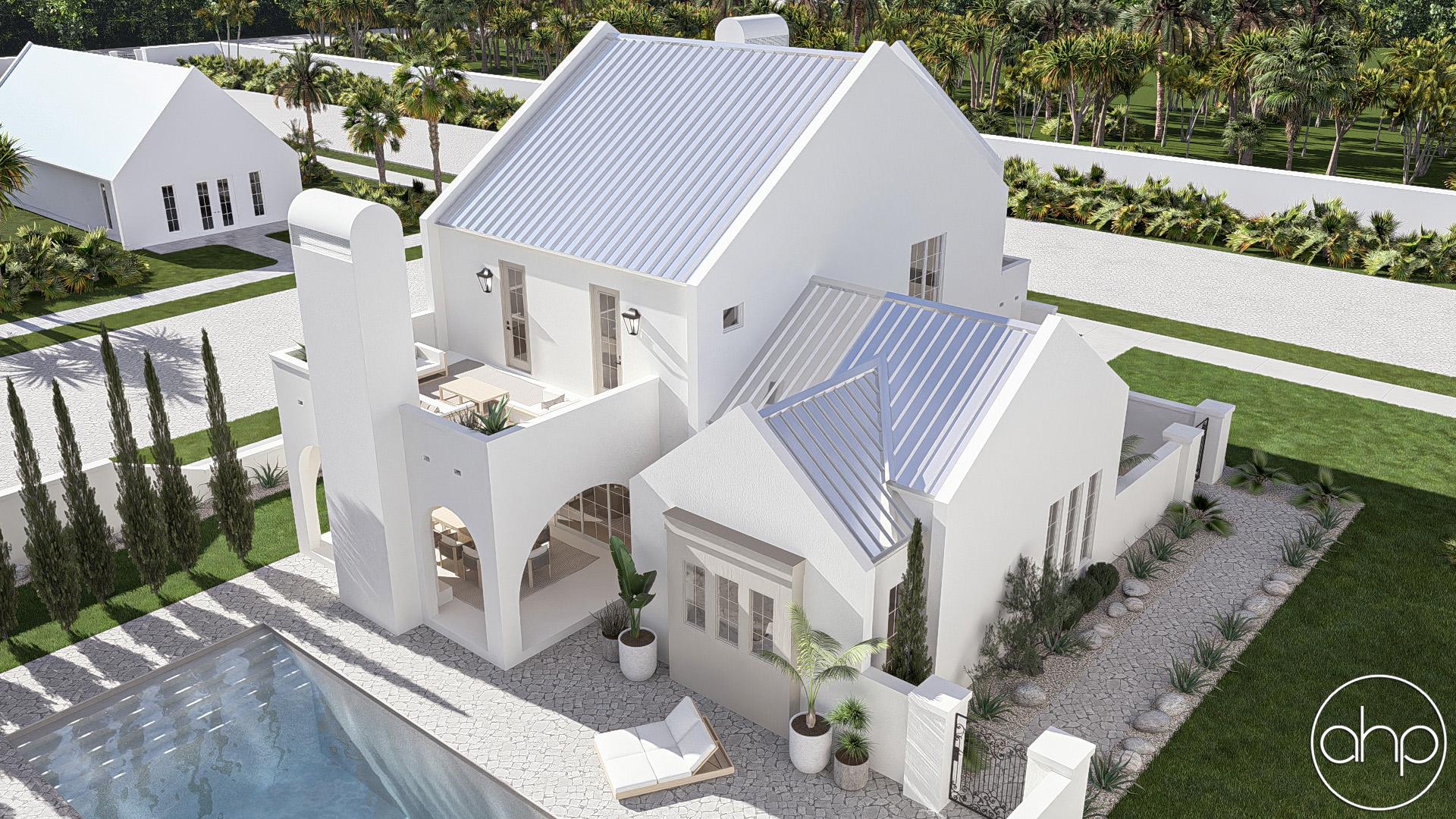

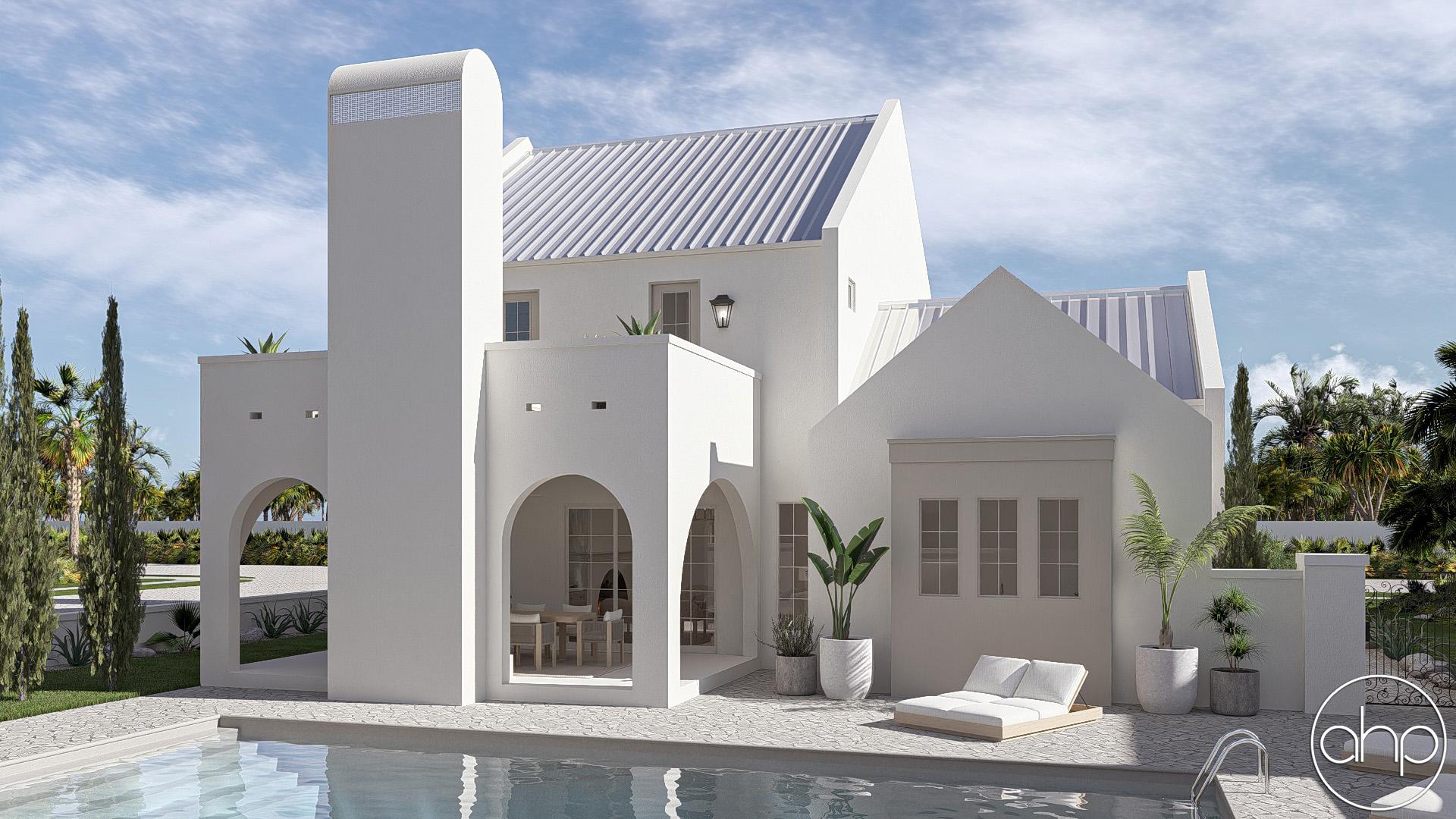

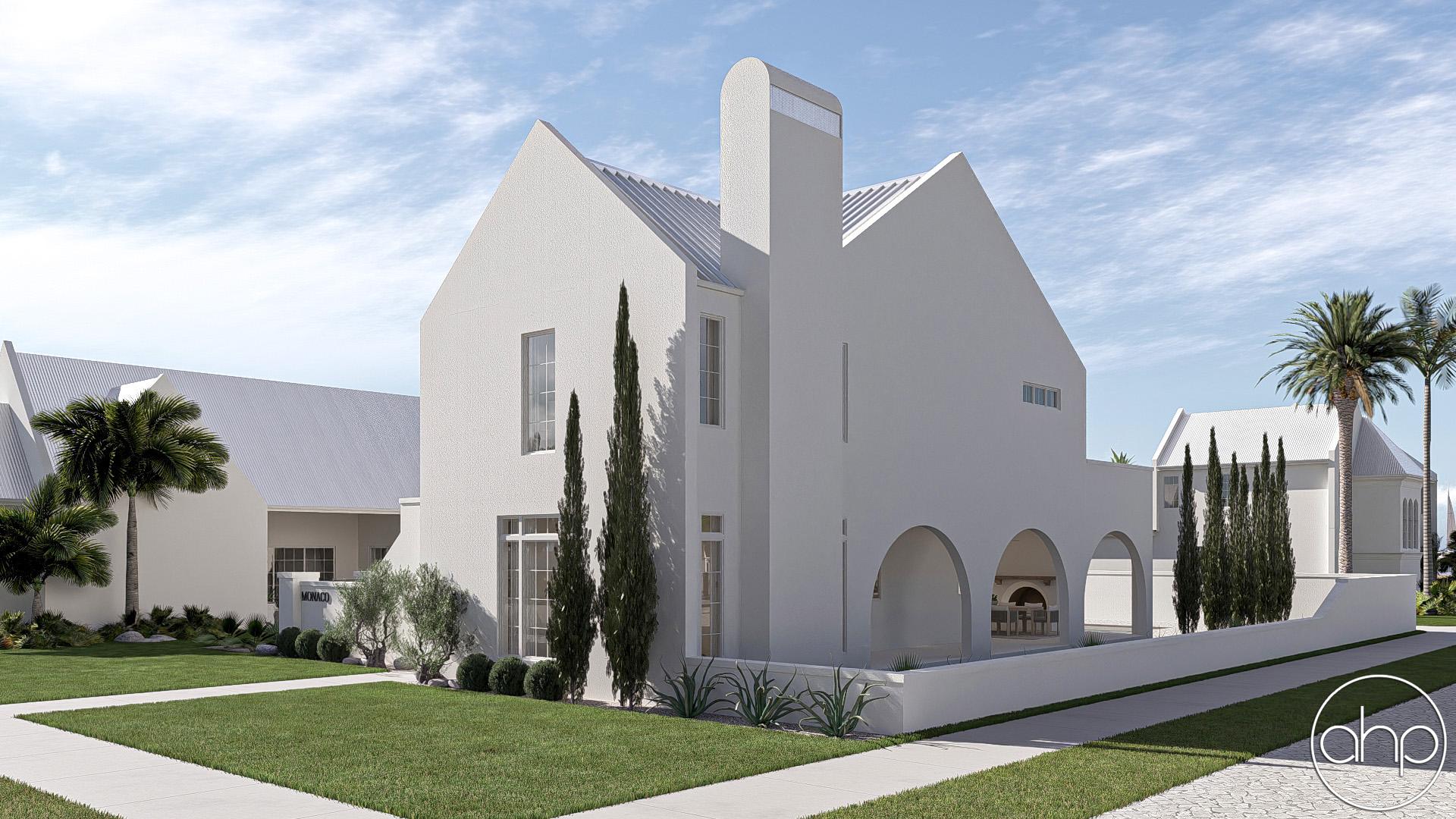

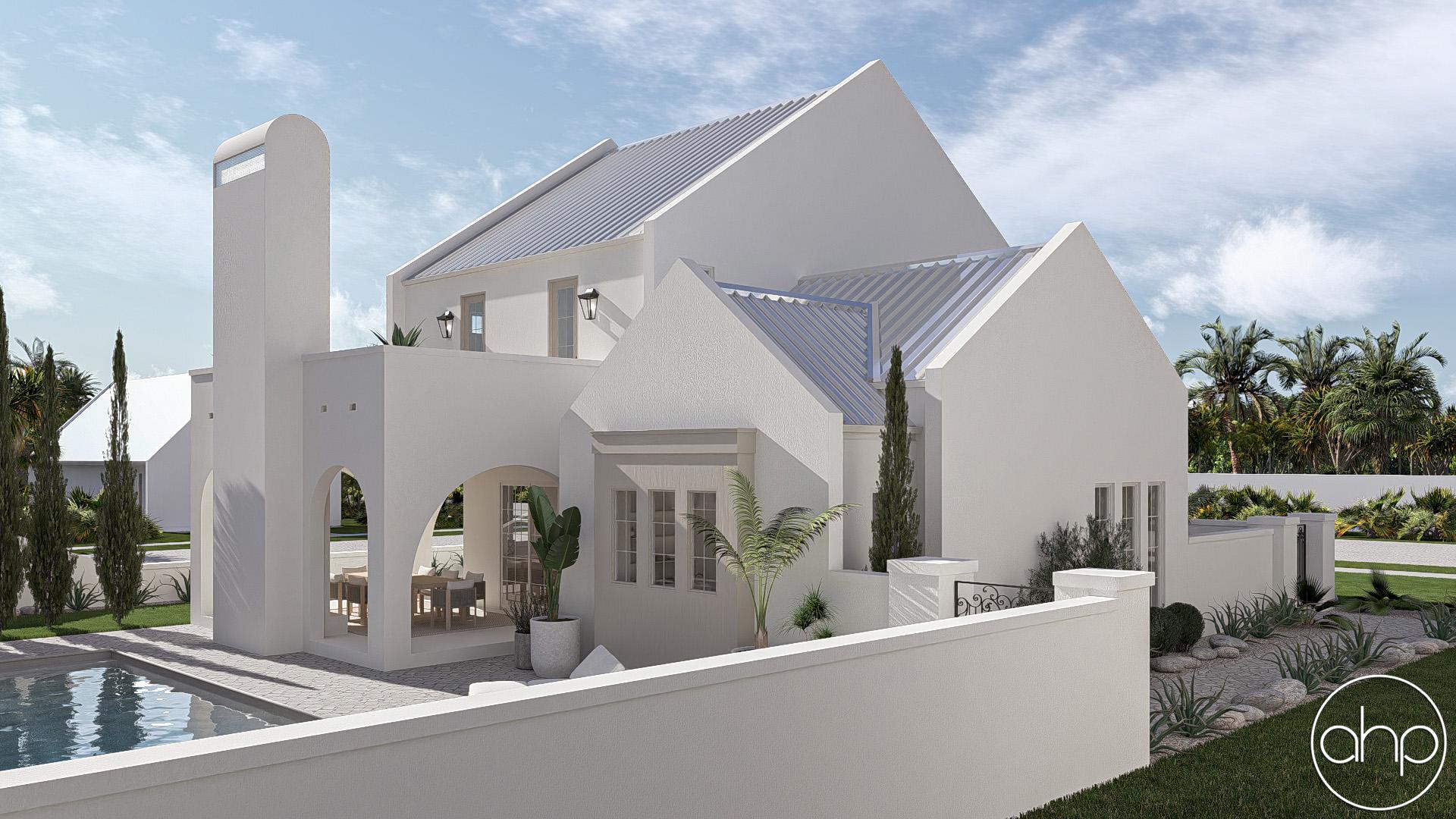

The great room extends to a covered porch that wraps around the right side of the home, offering multiple areas for outdoor seating or gathering.

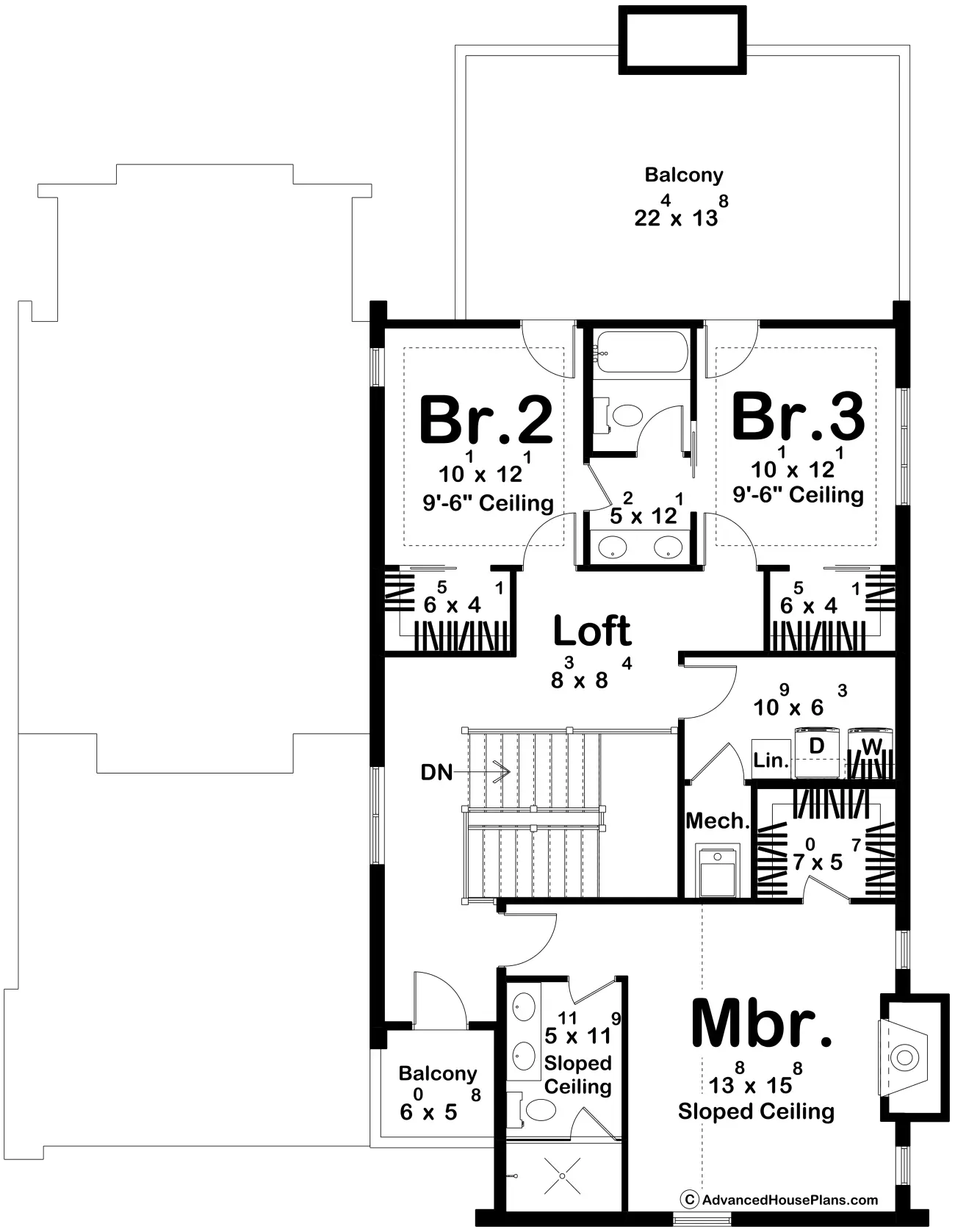

Upstairs, the master suite is located at the front of the home with a quaint balcony nearby. At the rear, two additional bedrooms share a Jack-and-Jill bath and have access to a shared balcony.

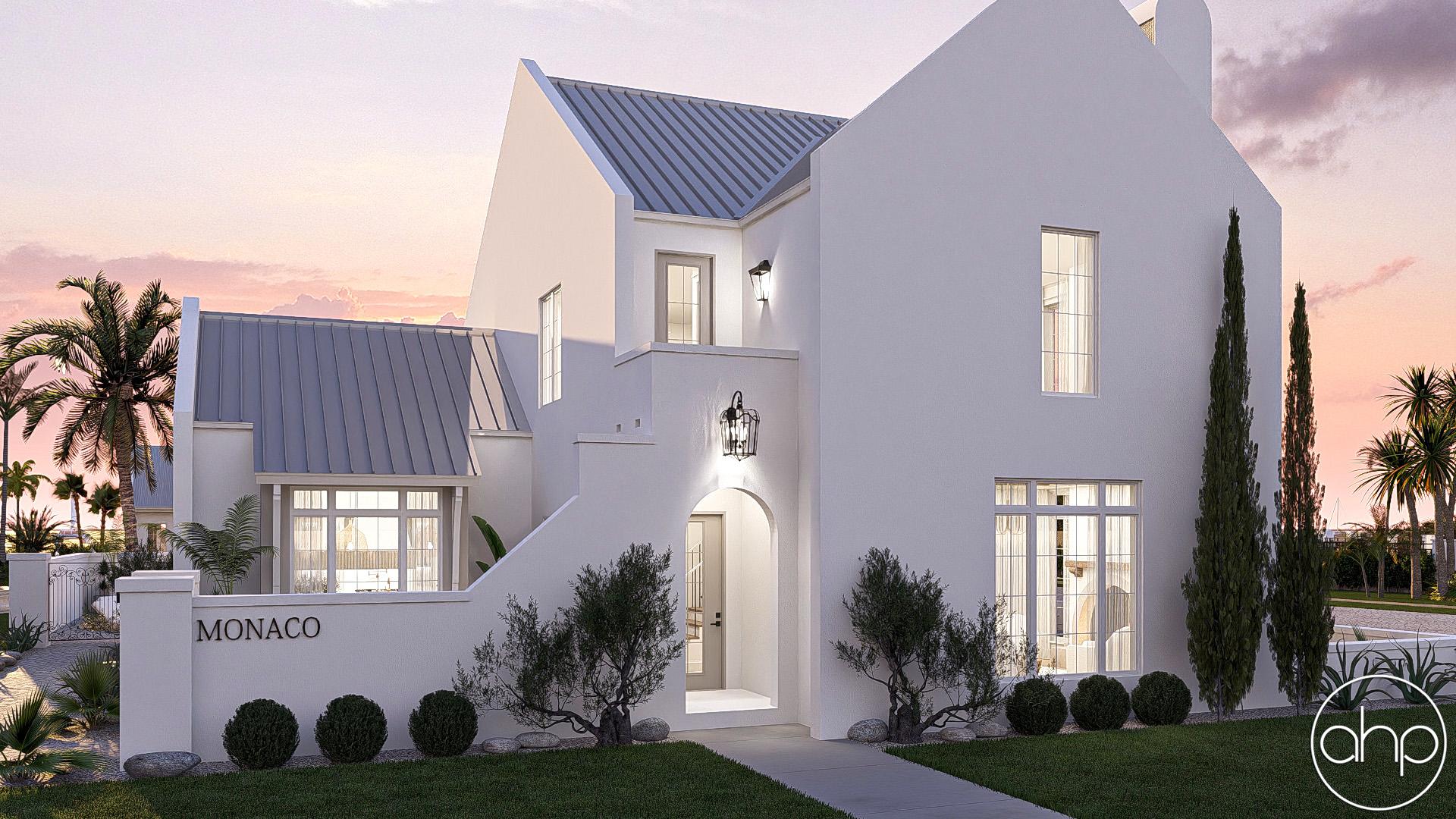

With its clean Bermuda-style exterior, simple rooflines, and strong connection to outdoor living areas, this home delivers a comfortable and functional layout suited for a variety of lifestyles.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 3 |
| Bathrooms | 3 |
| Garage Bays | 0 |
| Square Footage Breakdown | |
| Main Level | 1458 Sq Ft |
| Second Level | 1097 Sq Ft |
| Total Finished Area | 2555 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 607 Sq Ft |
| Exterior Dimensions | |
| Width | 48' 0" |
| Depth | 62' 0" |
| Ridge Height | 34' 6" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x4 |
| Roof Construction Method | Trusses |
| Floor Construction Method | Floor Trusses |
| Roof Pitches | Primary 8/12, Secondary 10/12 |
| Main Level Ceiling Height | 10' |
| Second Level Ceiling Height | 9' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
