Advanced House Plans

29367 | Mclaren

Estimated Cost to Build
$88,000 to $106,000
View Cost Assumptions
Powered by:

2 Story

1256 Sq. Ft.

2 Beds

3 Baths

0 Car
Get this plan today for only
Click here to view options.
Did you know you can make alterations to this plan?

Floor Plans

Mclaren Floor PlanMclaren Floor Plan

Plan Description

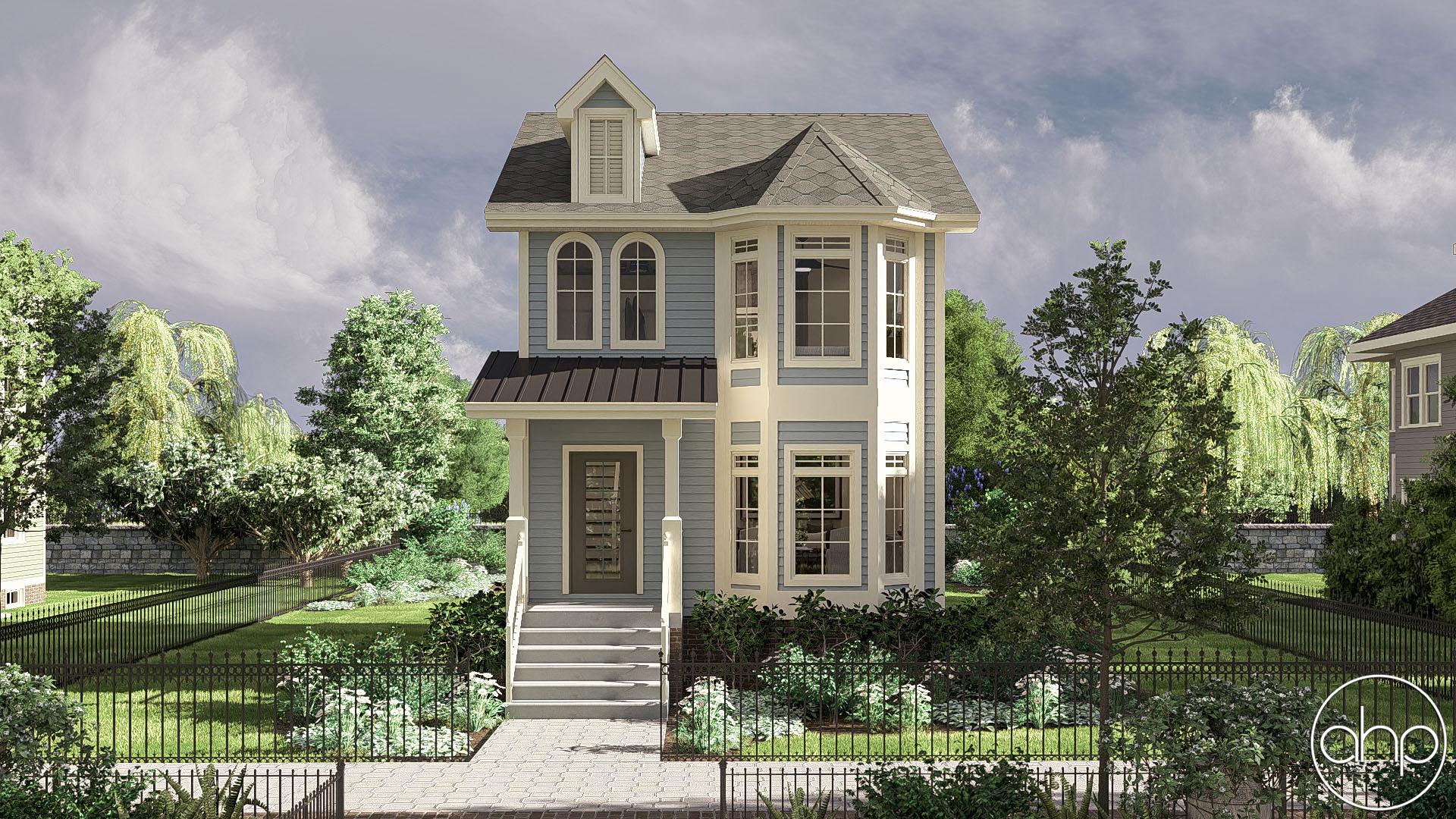

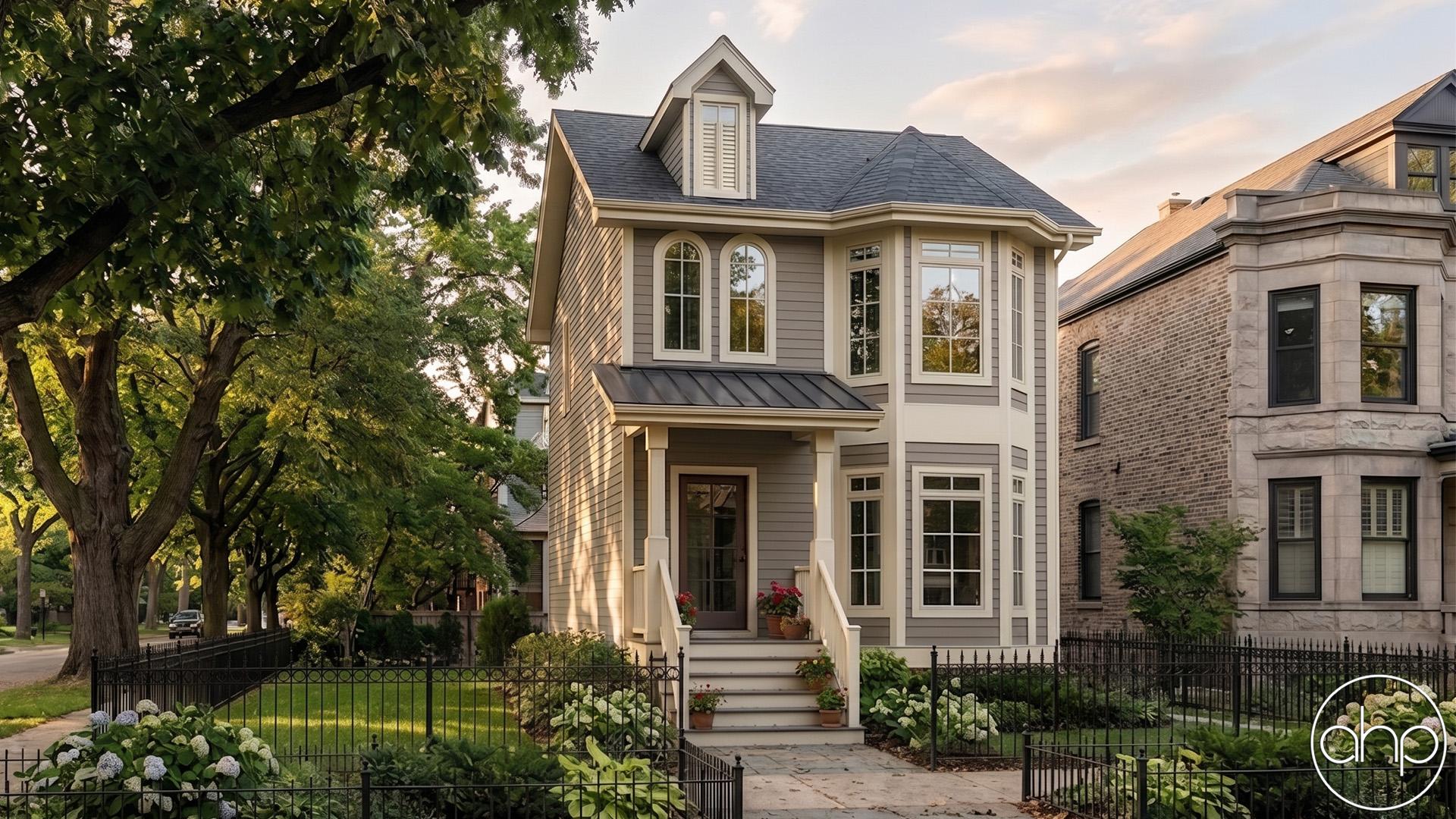

Quaint, compact and charming" describes the character of this eye-catching, narrow lot house plan. The design's nostalgically styled front elevation is accentuated by double-stacked bayed windows, a covered front porch and a tasteful rooftop dormer.

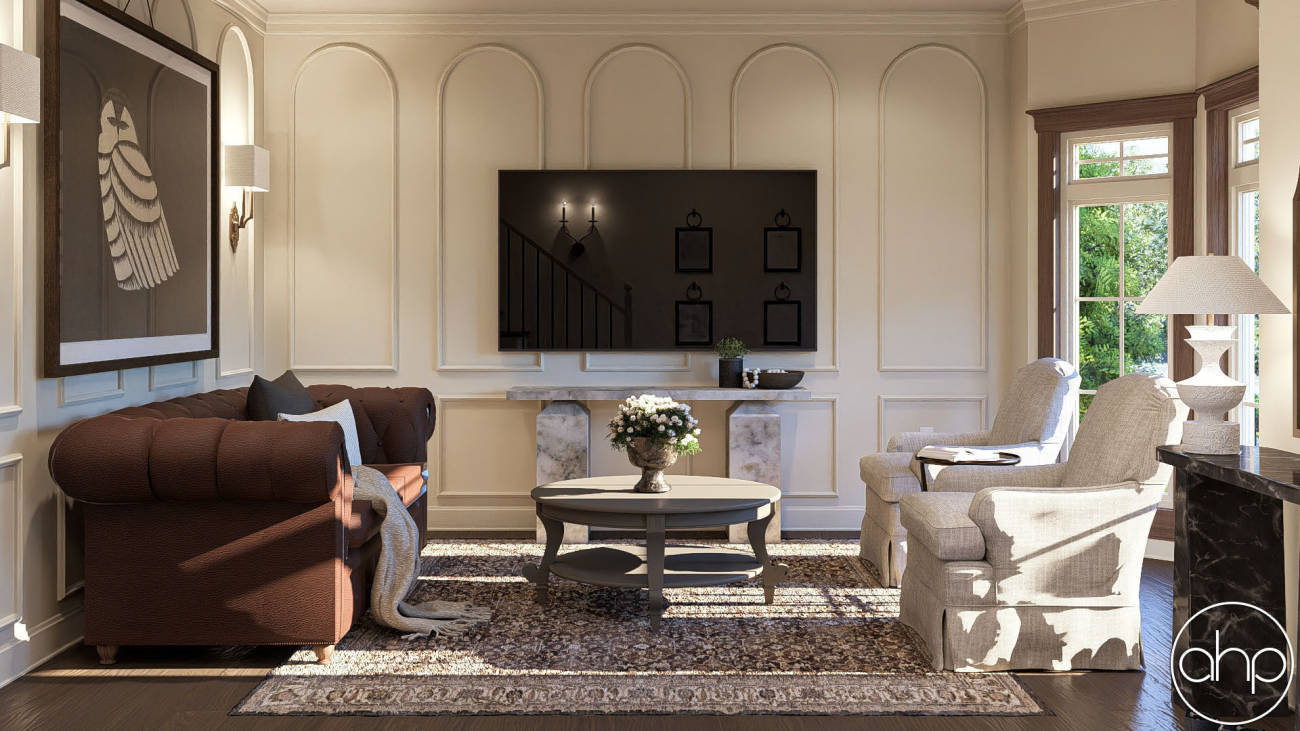

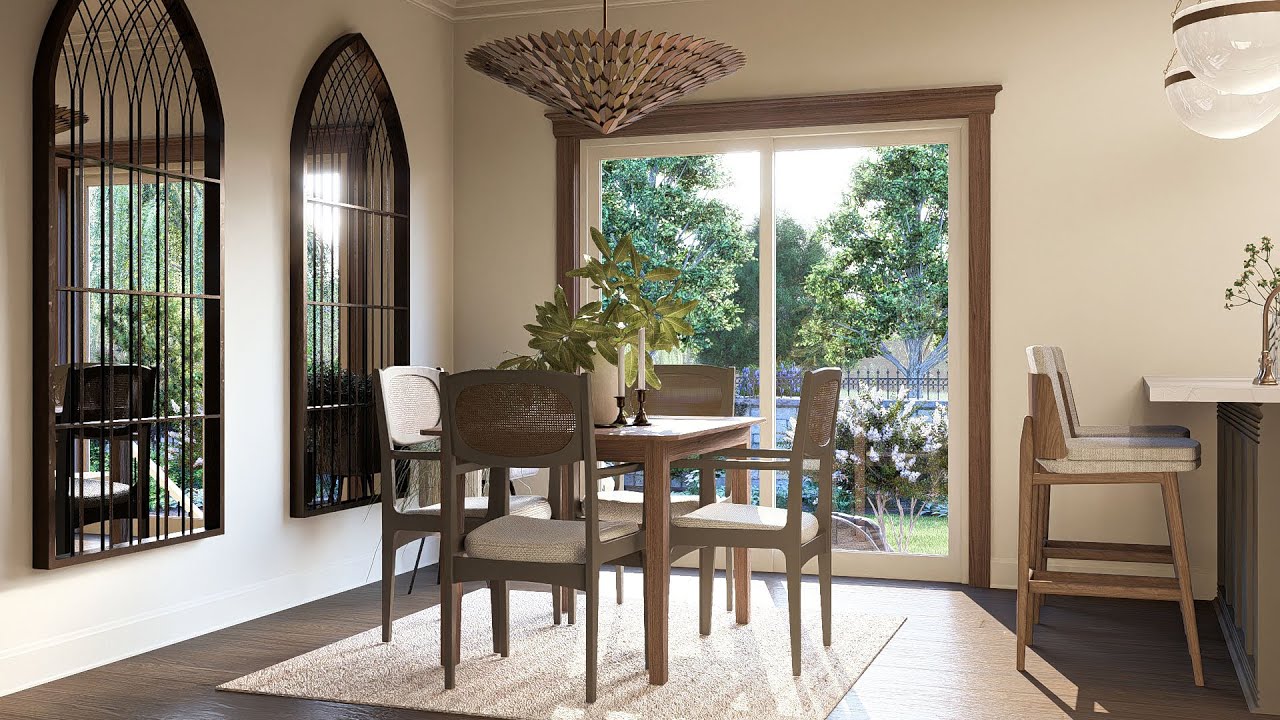

On the inside, visitors are offered immediate views of the formal living room, which is brightened by a trio of bayed windows. Farther inside, beyond the coat closet alcove and powder bath, the dining area lies open to the kitchen, which includes a breakfast island and pantry.

Upstairs, the master bedroom enjoys elevated views through its bayed windows. A nicely sized walk-in closet is brightened by two windows. Bedroom 2 is situated for privacy from the master bedroom and enjoys its own bath. A central laundry area and linen closet lie opposite the stairway's banister.

Check out our other small house plans!

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Full Specifications


Bedrooms 2
Bathrooms 3


Main 654 Sq. Ft.
Second 602 Sq. Ft.
Total Finished 1256 Sq. Ft.


Width 20'
Depth 38'
Ridge Height 31'


Foundation Type Basement
Exterior Walls 2x4
Roof Pitch 6/12 primary, 12/12, 10/12, 4/12 Secondary
Basement Wall Height 9'
Main Wall Height 9'
Second Wall Height 8'

Plan Features

What is included in a set of plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

29367 | Mclaren

Do you need to get this plan bid out before you buy it? Purchase a bid set for only $250 .
