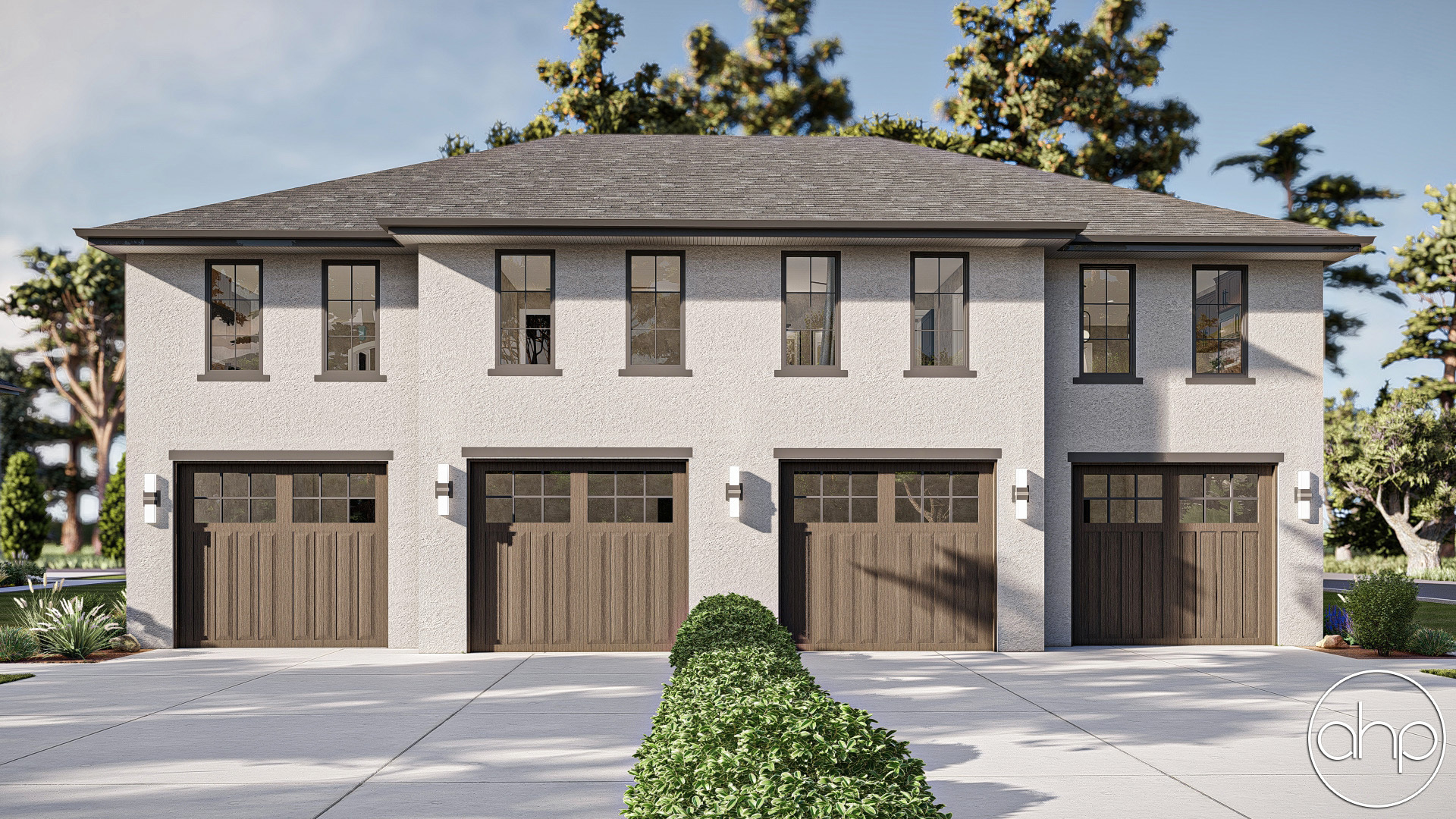

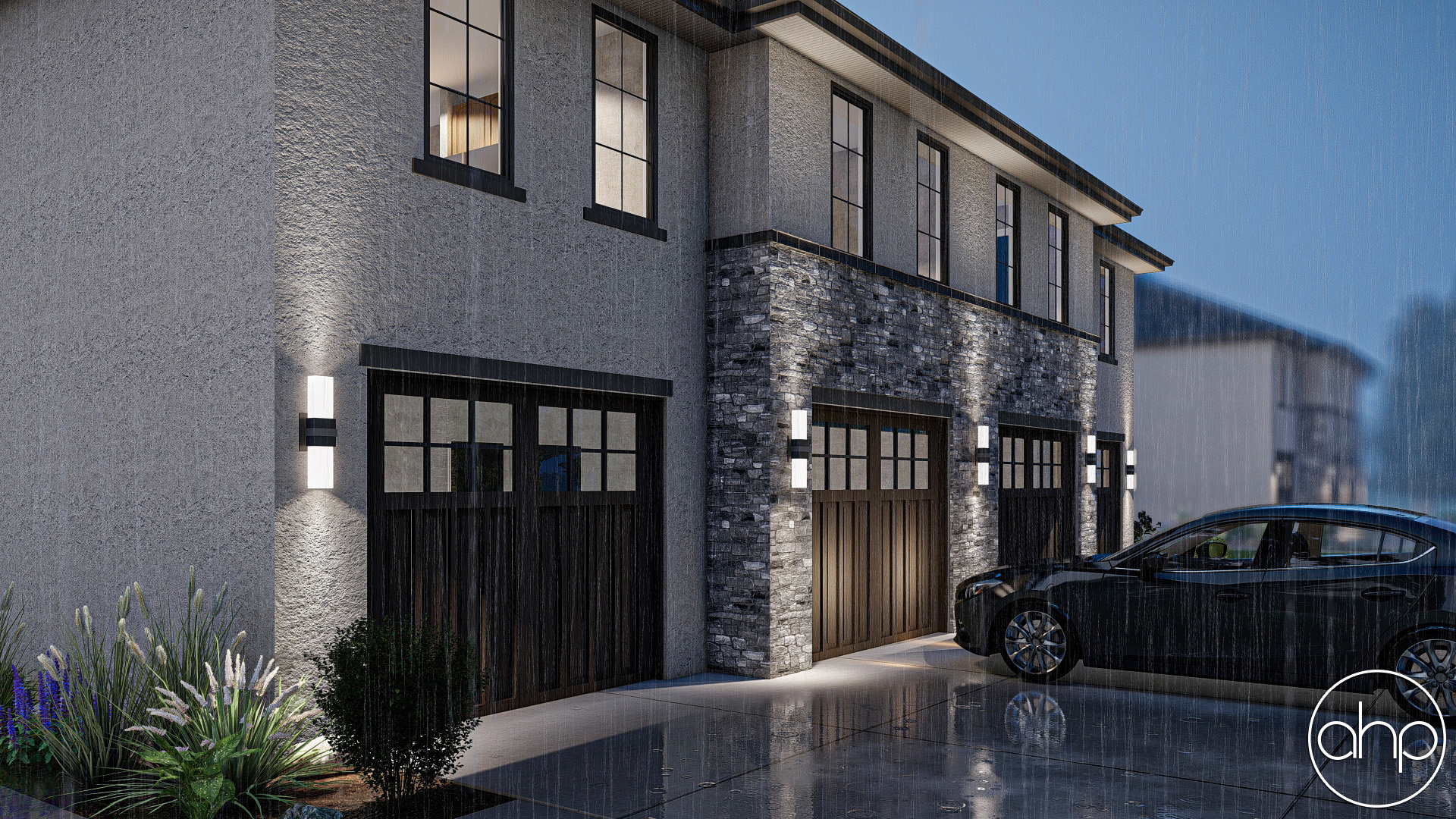

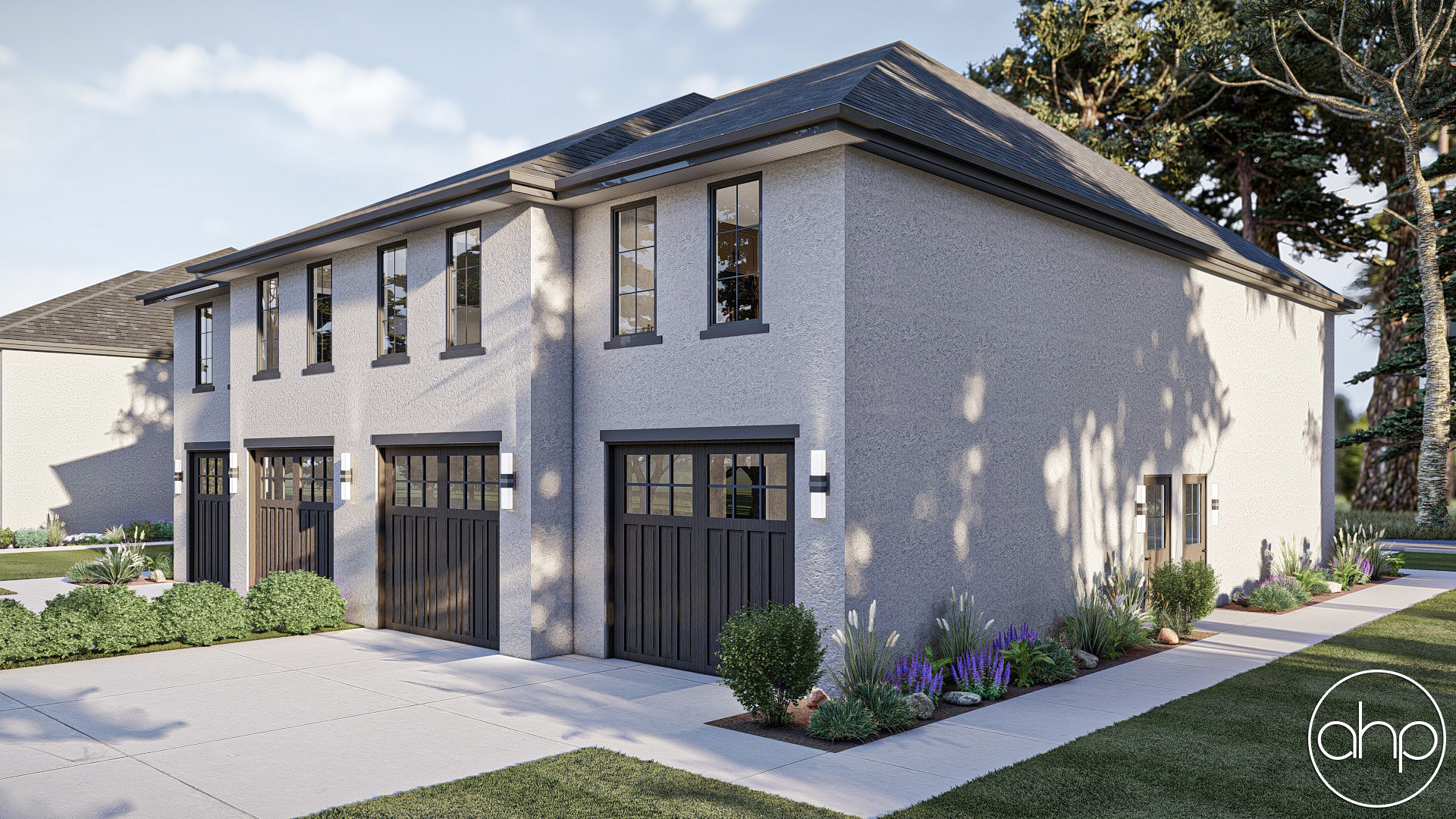

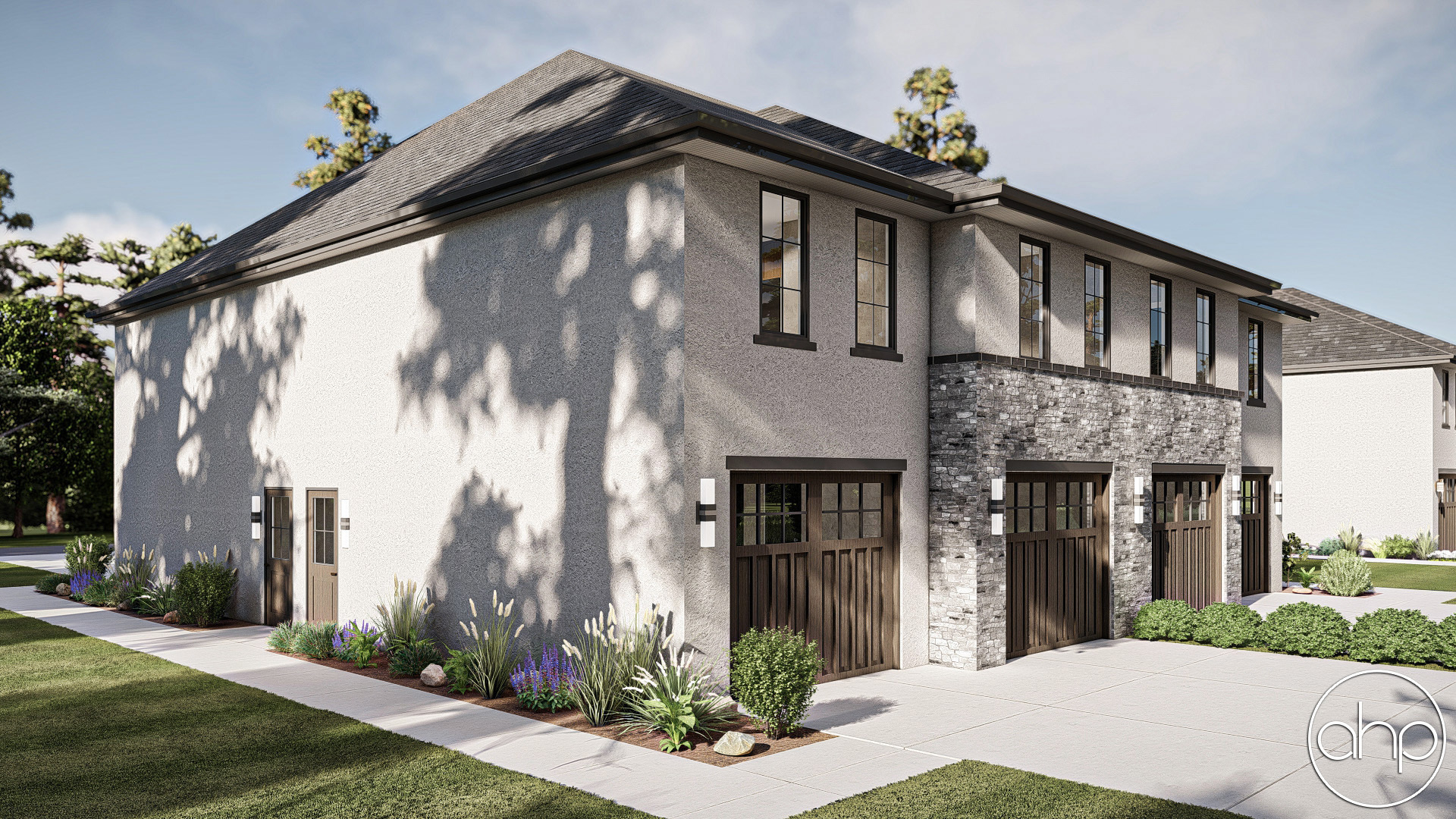

Krueger Rendering Krueger Rendering Krueger Rendering Krueger Rendering Krueger Rendering Krueger Rendering Krueger Rendering Krueger Rendering Krueger Rendering
NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

2 Story Multi-Family Mediterranean House Plan

Krueger - 29341

708
Sq Ft
Per Unit
1
Beds
Per Unit
1
Baths
Per Unit
2
Bays
Per Unit
52' 0"
Wide
56' 0"
Deep

Floor Plan Images

Main Level

2 Story Multi-Family Mediterranean House Plan | Krueger

Second Level

2 Story Multi-Family Mediterranean House Plan | Krueger

Plan Description

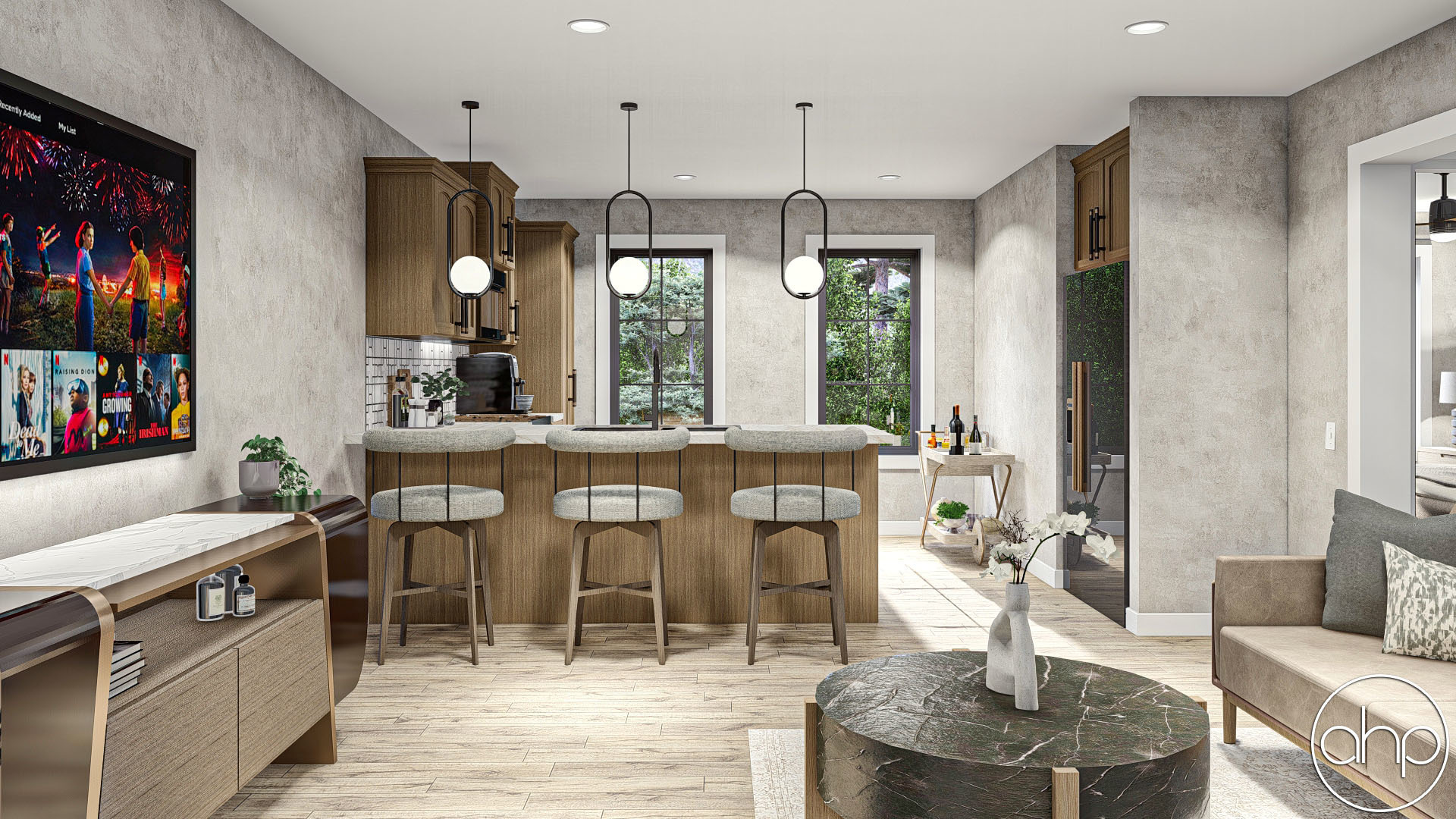

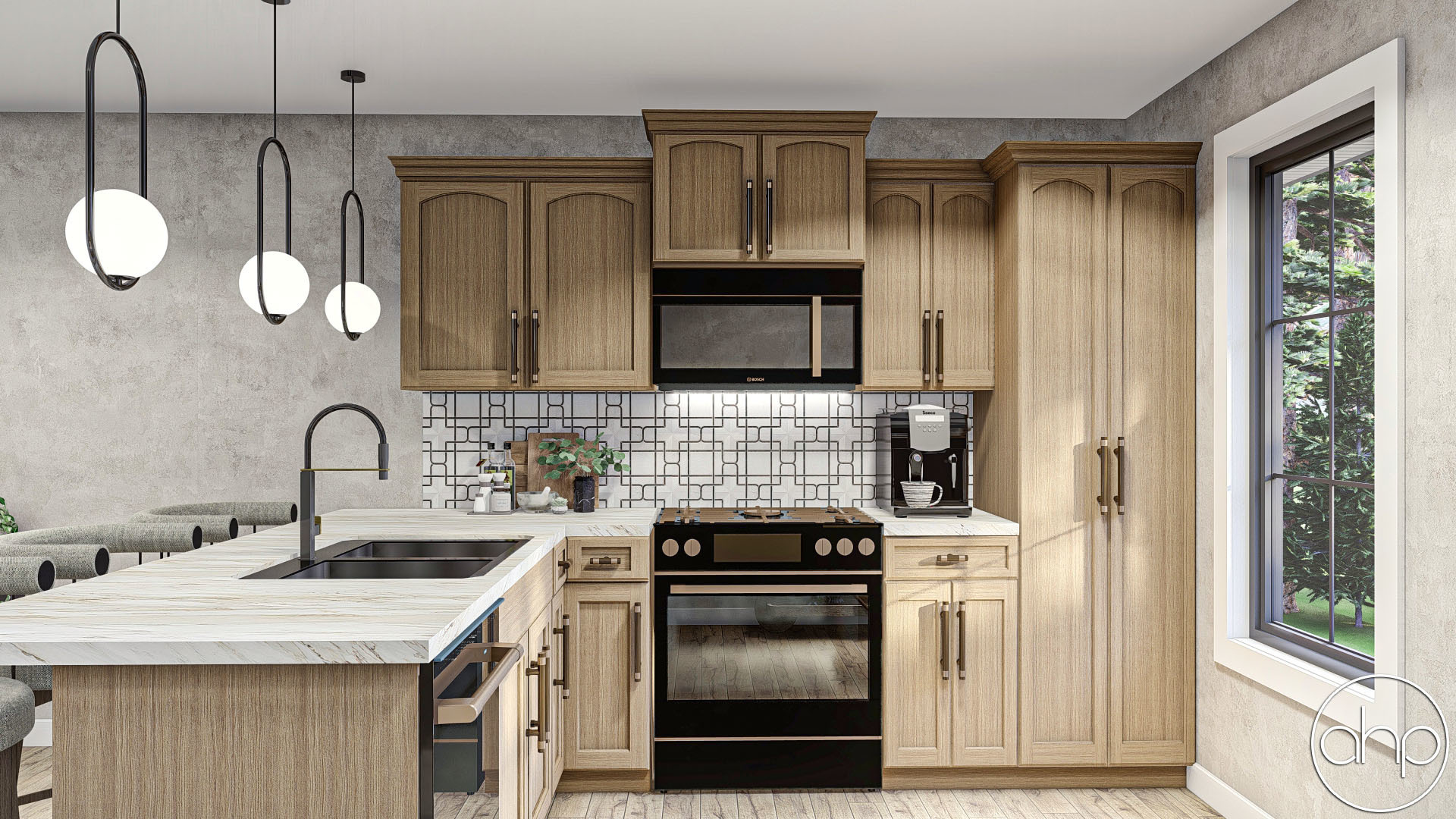

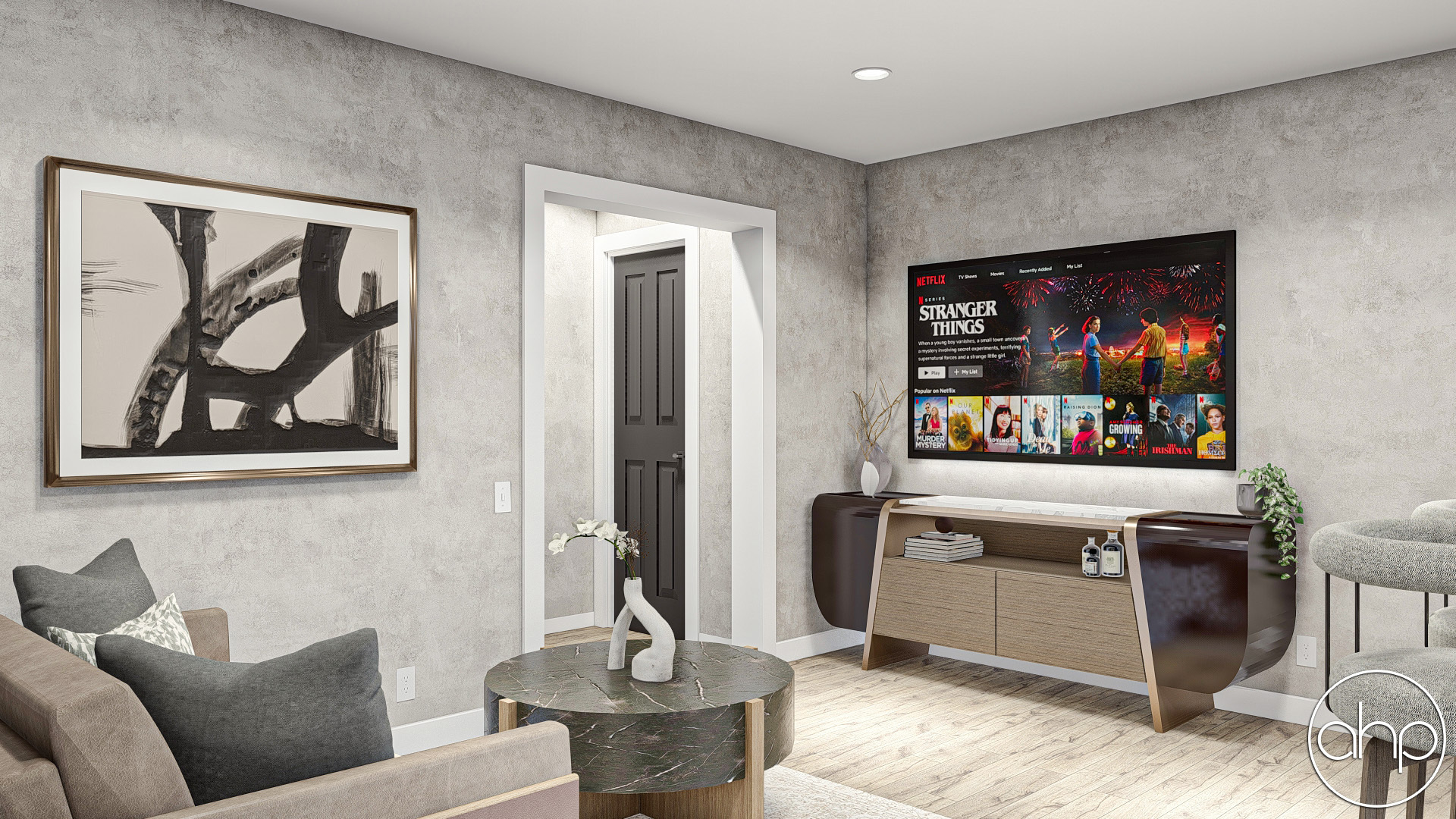

A 2-car garage grants entry into to each of the loft apartment-style residences that lie above, in this quad-plex, multi-family house plan. Once inside, guests are welcomed into the great room, which openly interacts with the kitchen. The kitchen's L-shaped counter supports an efficient work area and breakfast bar.

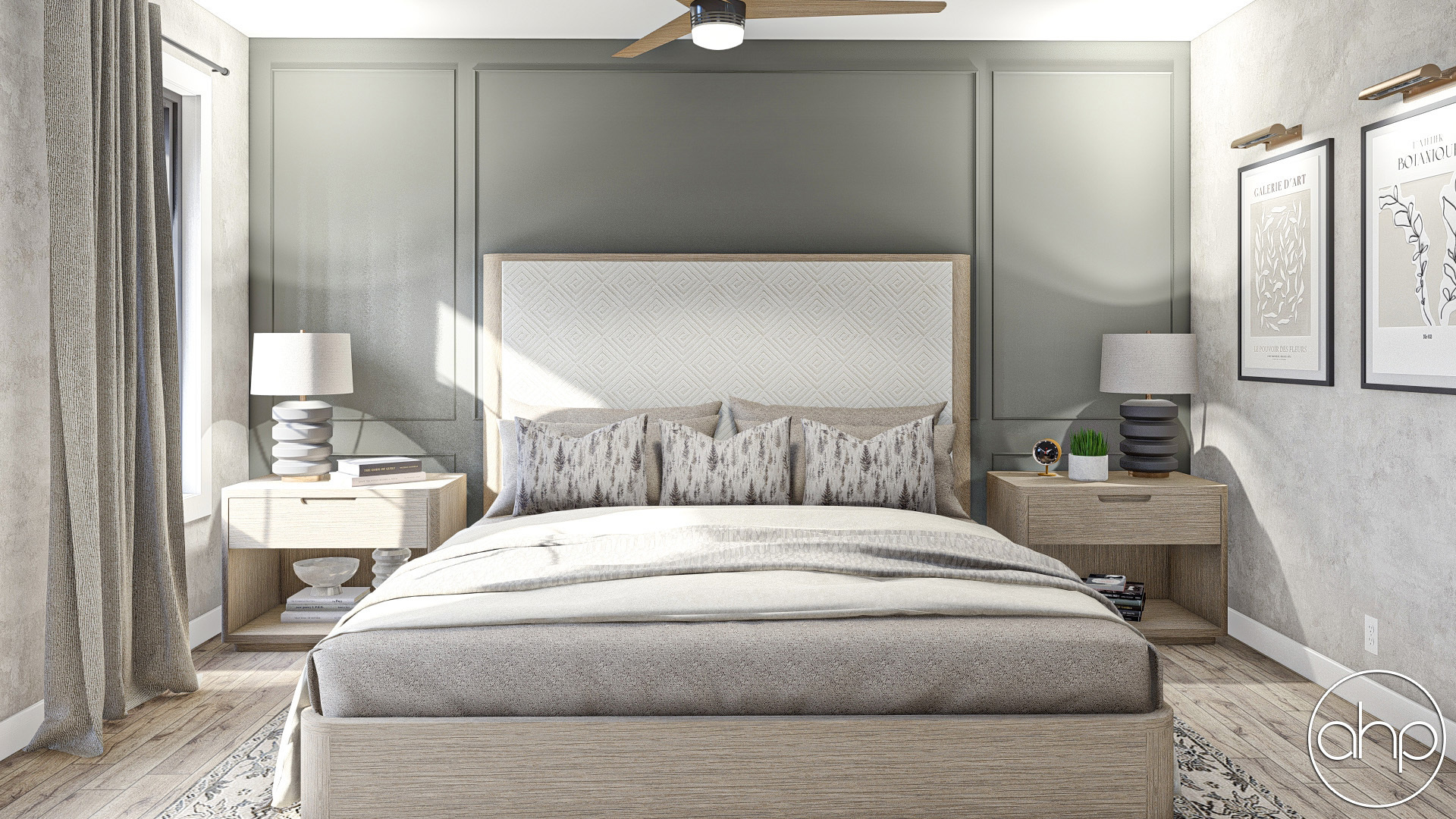

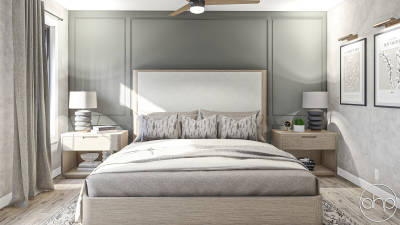

Just off the great room, an alcove provides access to the master bedroom, laundry room, and bath. Residents will appreciate the privacy afforded to the master suite, by its thoughtful placement on the corner of the structure. This arrangement provides maximum separation of the bedrooms of all neighboring residents.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 1
Per Unit
Bathrooms 1
Per Unit
Garage Bays 2
Per Unit
Square Footage
Second Level 708 Sq. Ft.
Per Unit
Garage 593 Sq. Ft.
Per Unit
Total Finished Area 708 Sq. Ft.
Per Unit
Exterior Dimensions
Width 52 ' 0"
Depth 56 ' 0"
Ridge Height
Calculated from main floor line
23 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x4
Roof Pitches
6/12 Primary, 10/12 Secondary
Main Wall Height
9'
Second Wall Height
8'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$1300
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.
