Craftsman Style Multi-Family House Plan | Hudson Heights
Floor Plan Images
Plan Video Tour
Plan Description

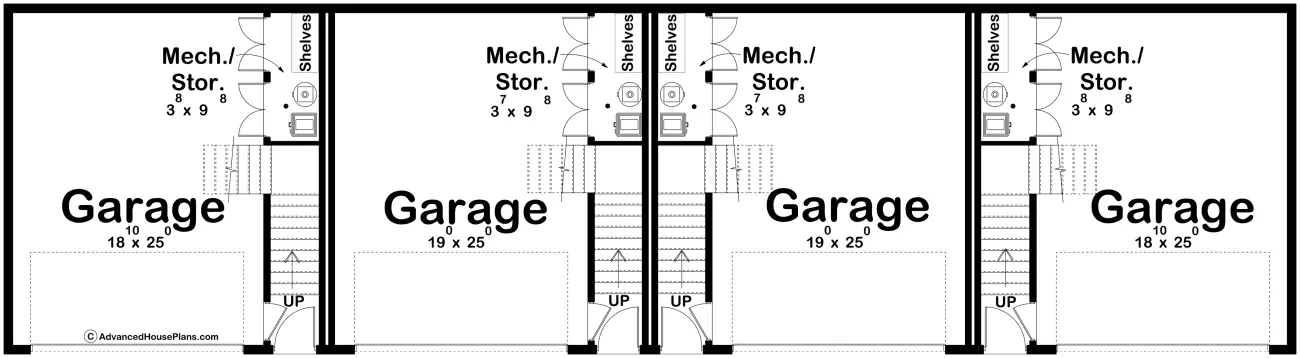

This thoughtfully designed Craftsman-style quadplex showcases classic character with practical, modern functionality. Each of the four units is arranged across three levels, beginning with a private two-car garage on the ground floor—providing ample parking and storage for every residence.
The second level is dedicated to everyday living and entertaining, featuring a great room that flows seamlessly into the kitchen and dinette. This inviting layout creates a bright, comfortable space ideal for gatherings or relaxed daily living.

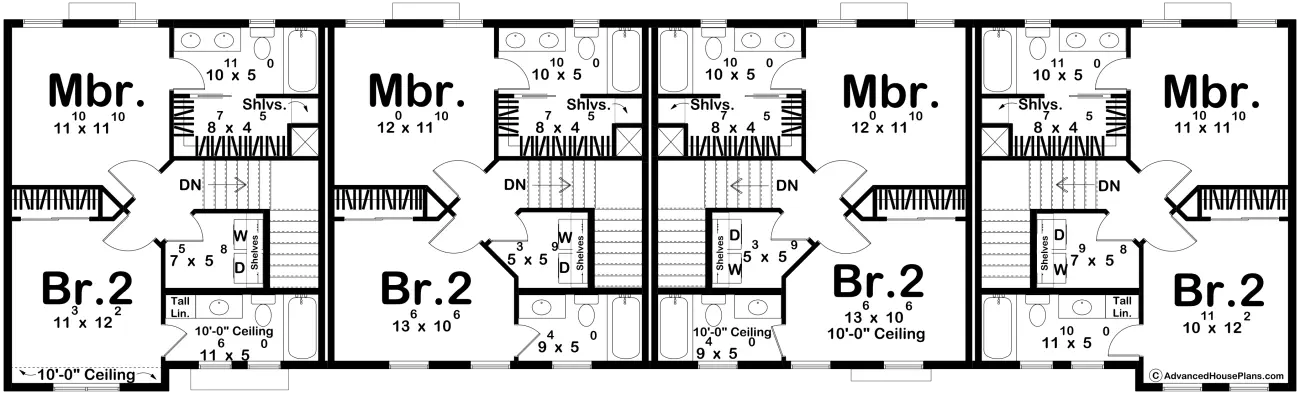

On the third floor, the home offers two well-appointed bedrooms, each with its own private bathroom, ensuring comfort, privacy, and convenience for occupants or guests.
True to its Craftsman roots, the exterior showcases timeless architectural details and a rich blend of materials. Lap siding, board-and-batten accents, and stonework come together to create depth, texture, and lasting curb appeal—making this quadplex as visually striking as it is practical.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 2 |
| Bathrooms | 3 |
| Garage Bays | 2 |
| Square Footage Breakdown | |
| Main Level | 73 Sq Ft |
| Second Level | 578 Sq Ft |
| Third Level | 586 Sq Ft |
| Total Finished Area | 1237 Sq Ft |
| Garage | 503 Sq Ft |
| Exterior Dimensions | |
| Width | 96' 8" |
| Depth | 26' 0" |
| Ridge Height | 42' 1" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x6 |
| Roof Construction Method | Trusses |
| Floor Construction Method | Floor Trusses |
| Roof Pitches | Primary 10/12, Secondary 6/12 |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 9' |
| Third Level Ceiling Height | 8' |
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
Note: The material list is for estimation purposes only.
