Modern Style House Plan

Horseshoe Bend - 30652

2583
Sq Ft
3
Beds
3
Baths
3
Bays
122' 4"
Wide
42' 0"
Deep

Floor Plan Images

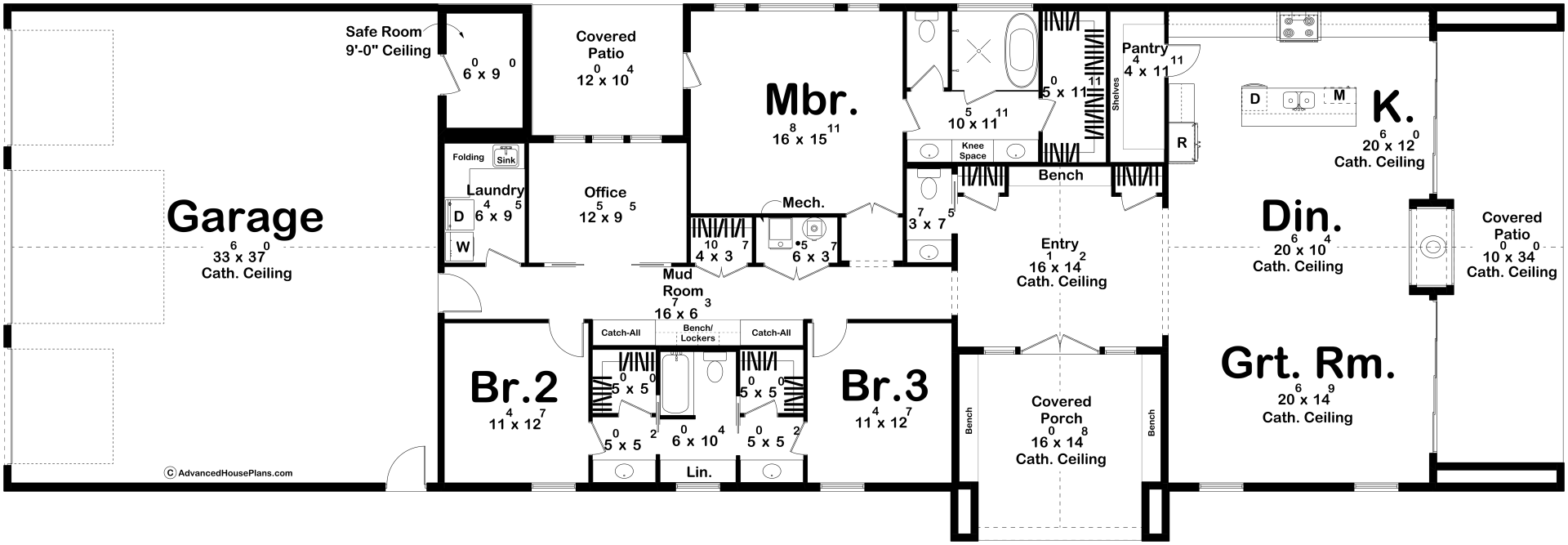

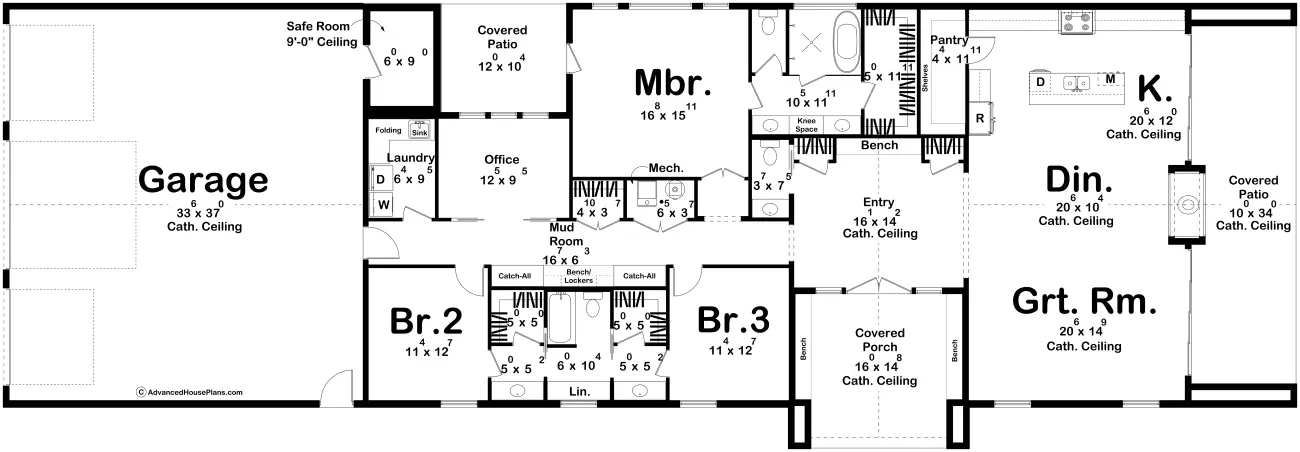

Main Level

Modern Style House Plan | Horseshoe Bend

Plan Description

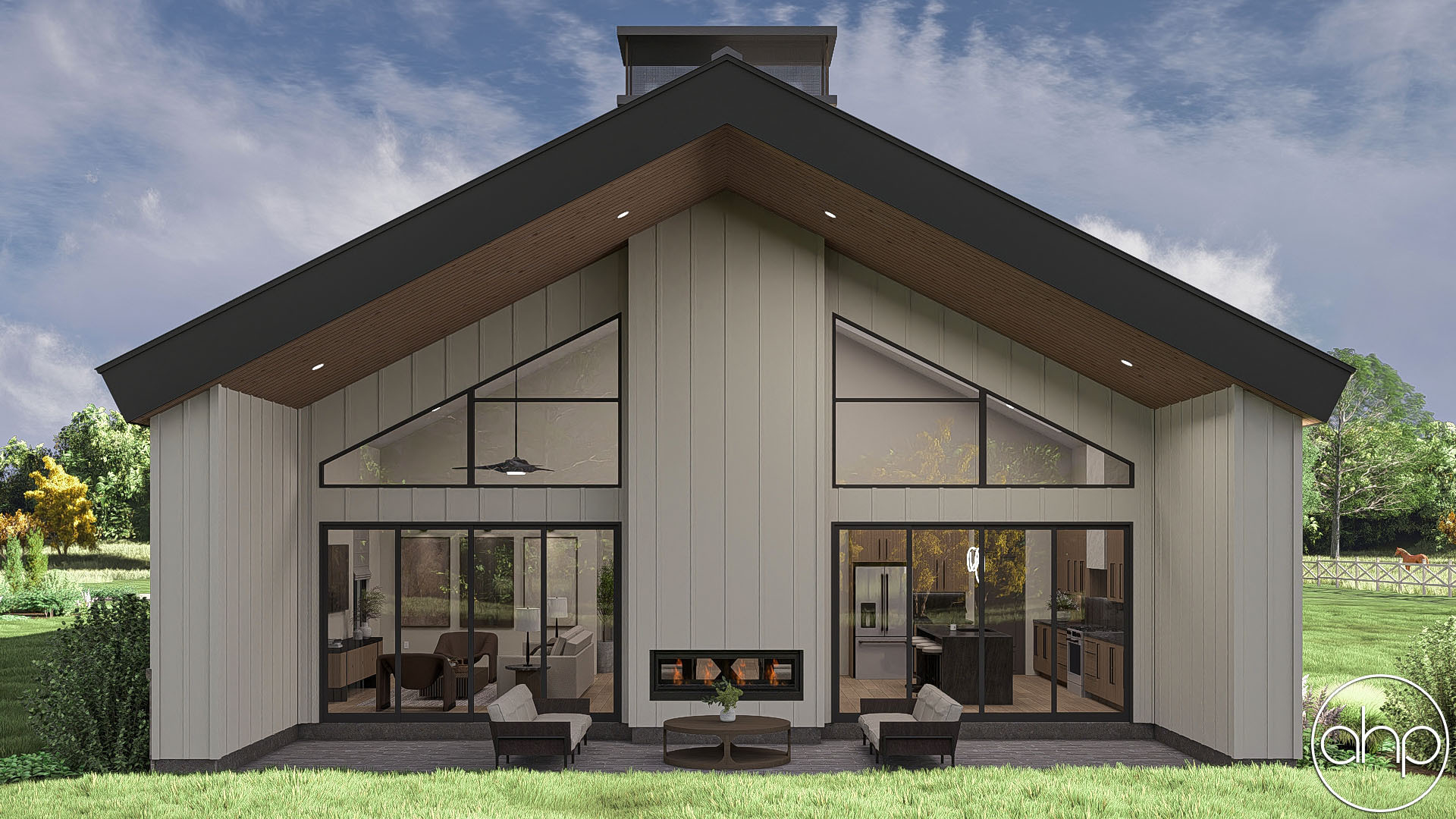

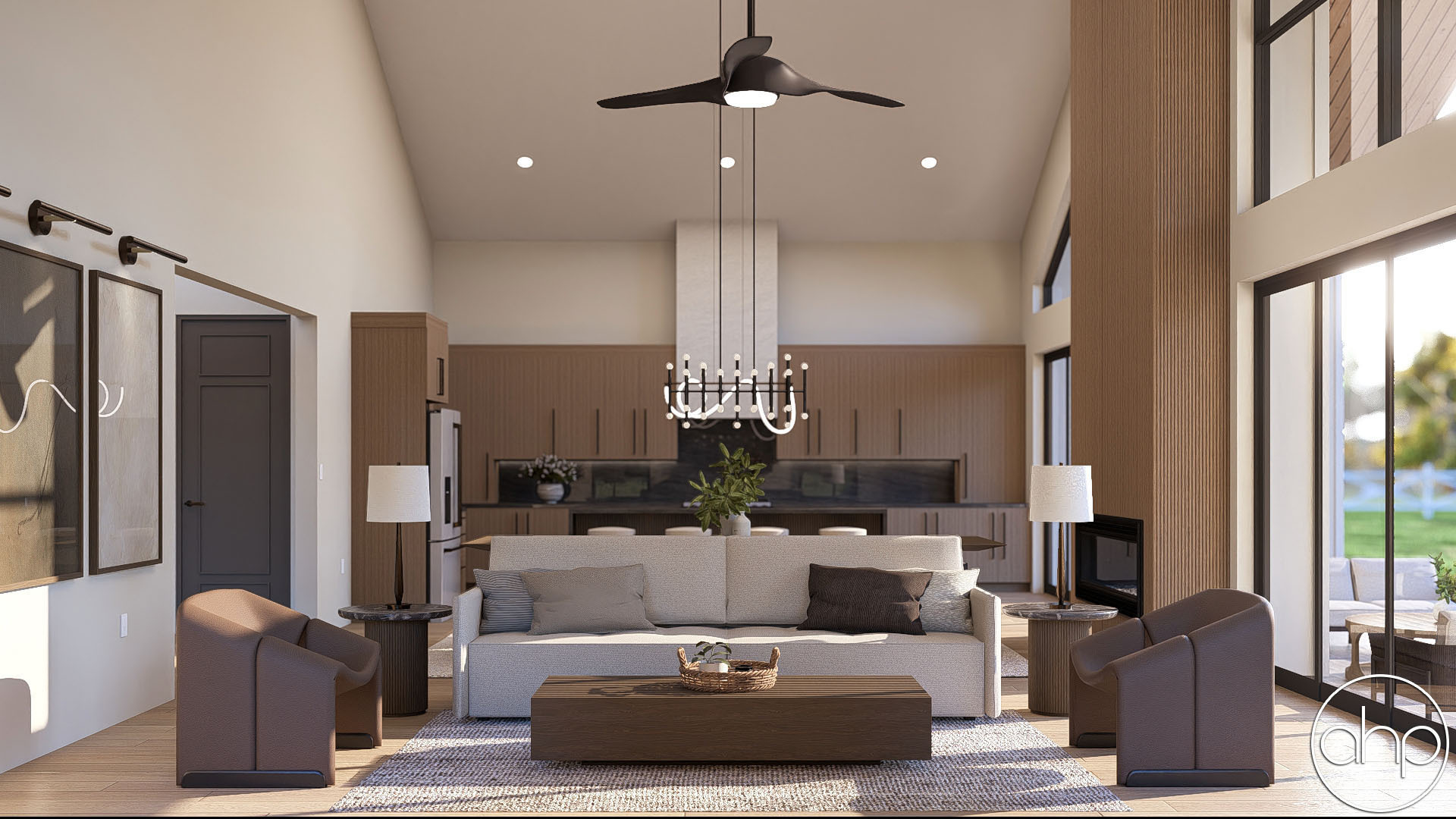

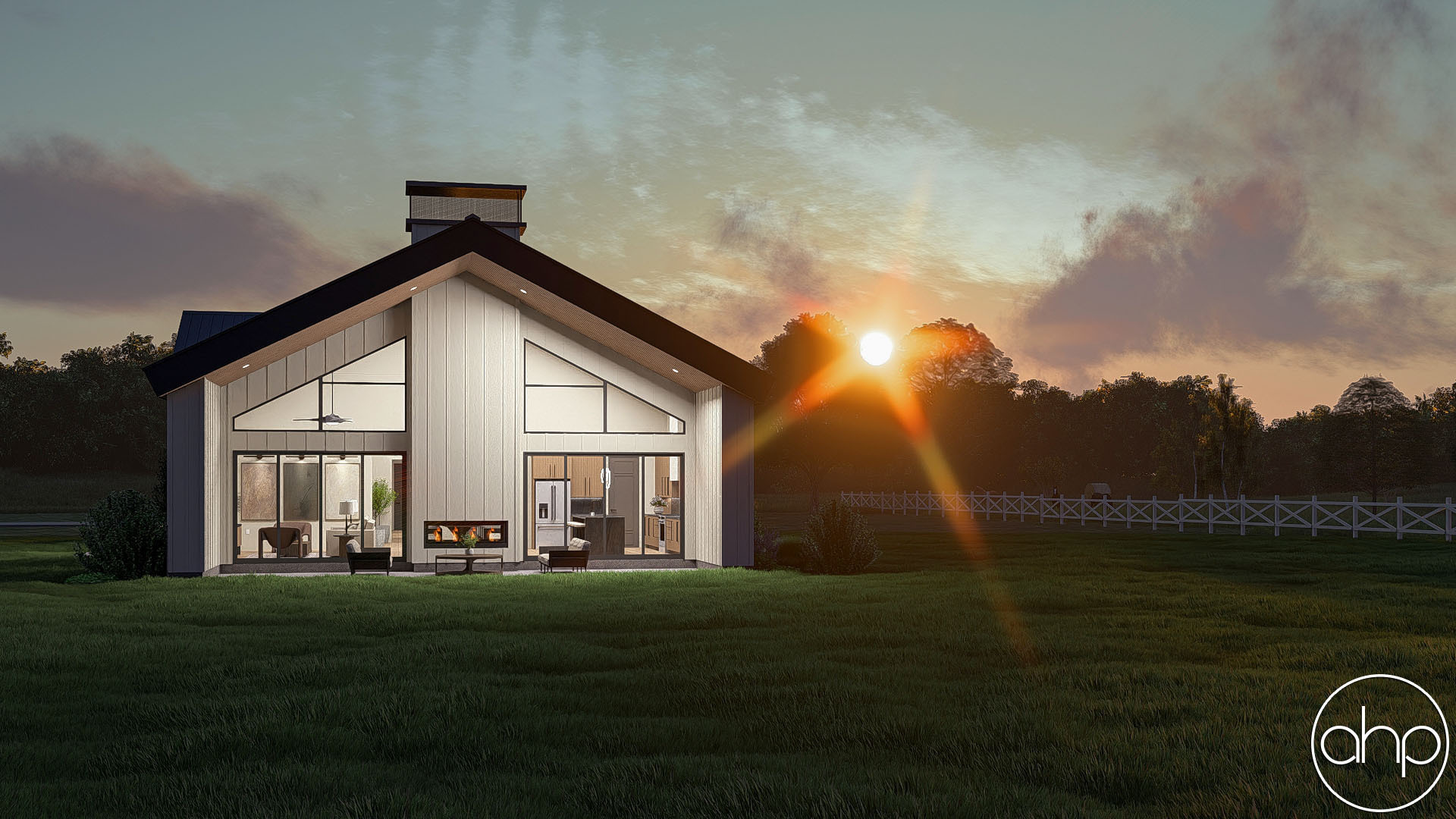

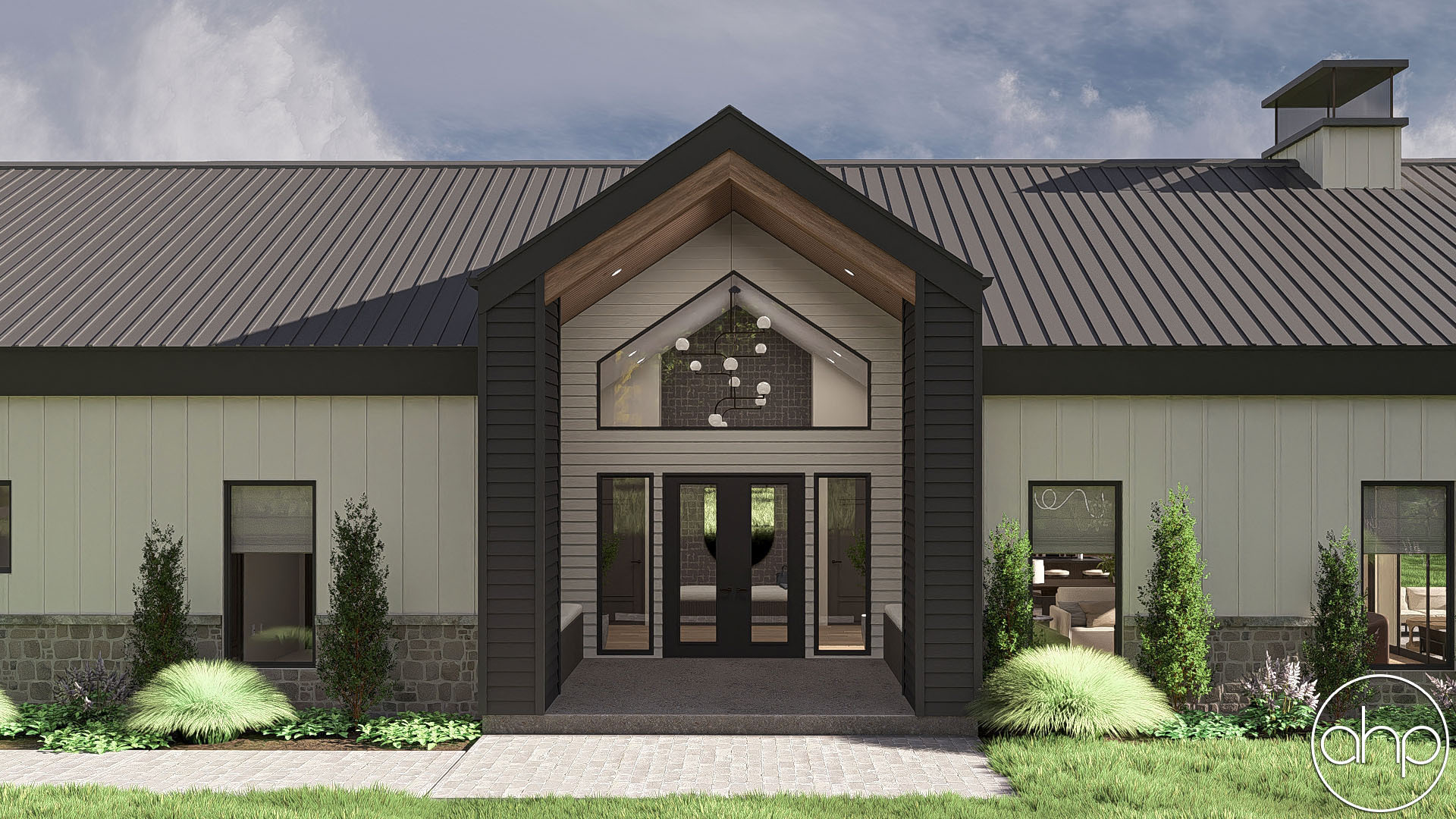

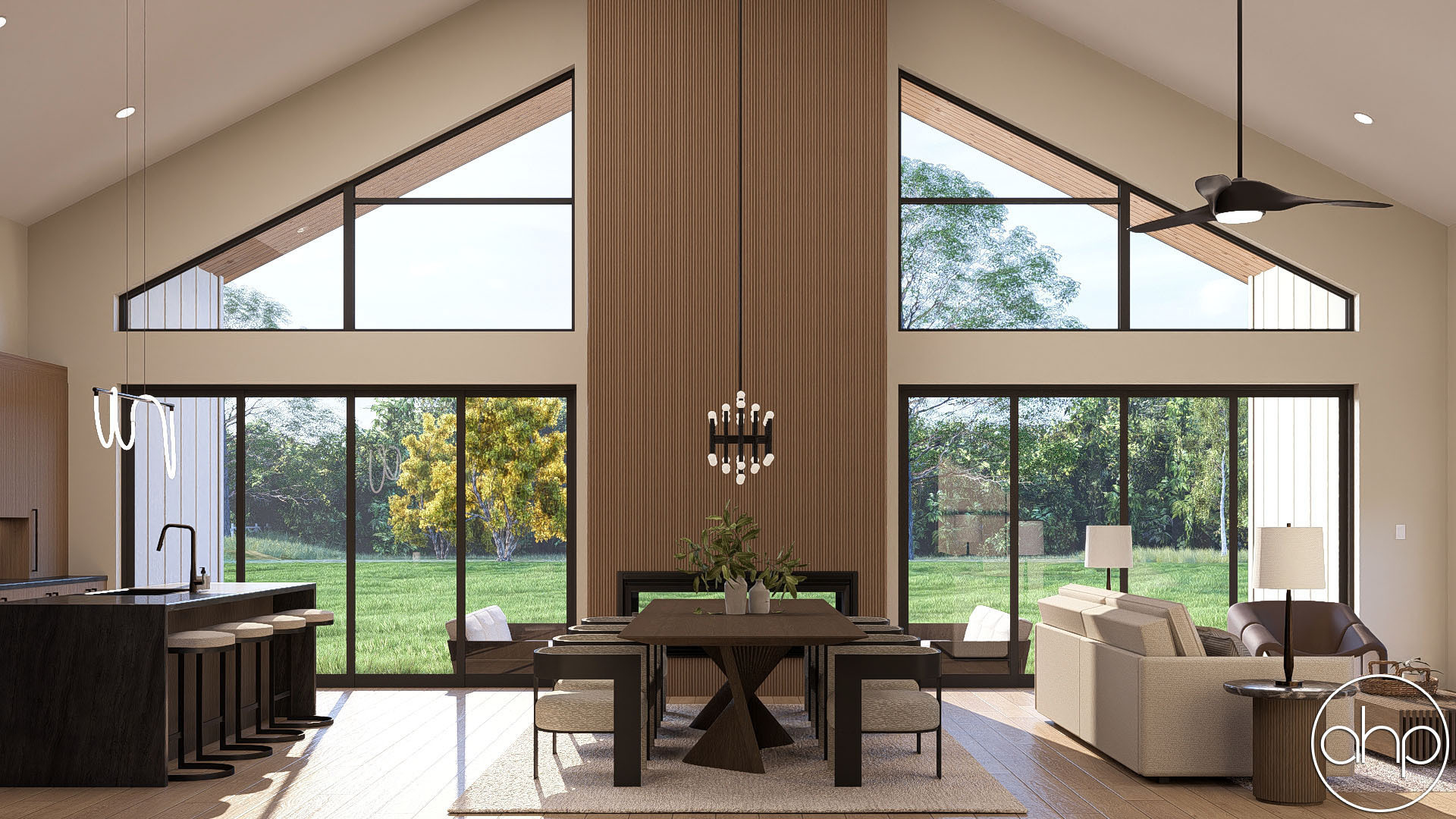

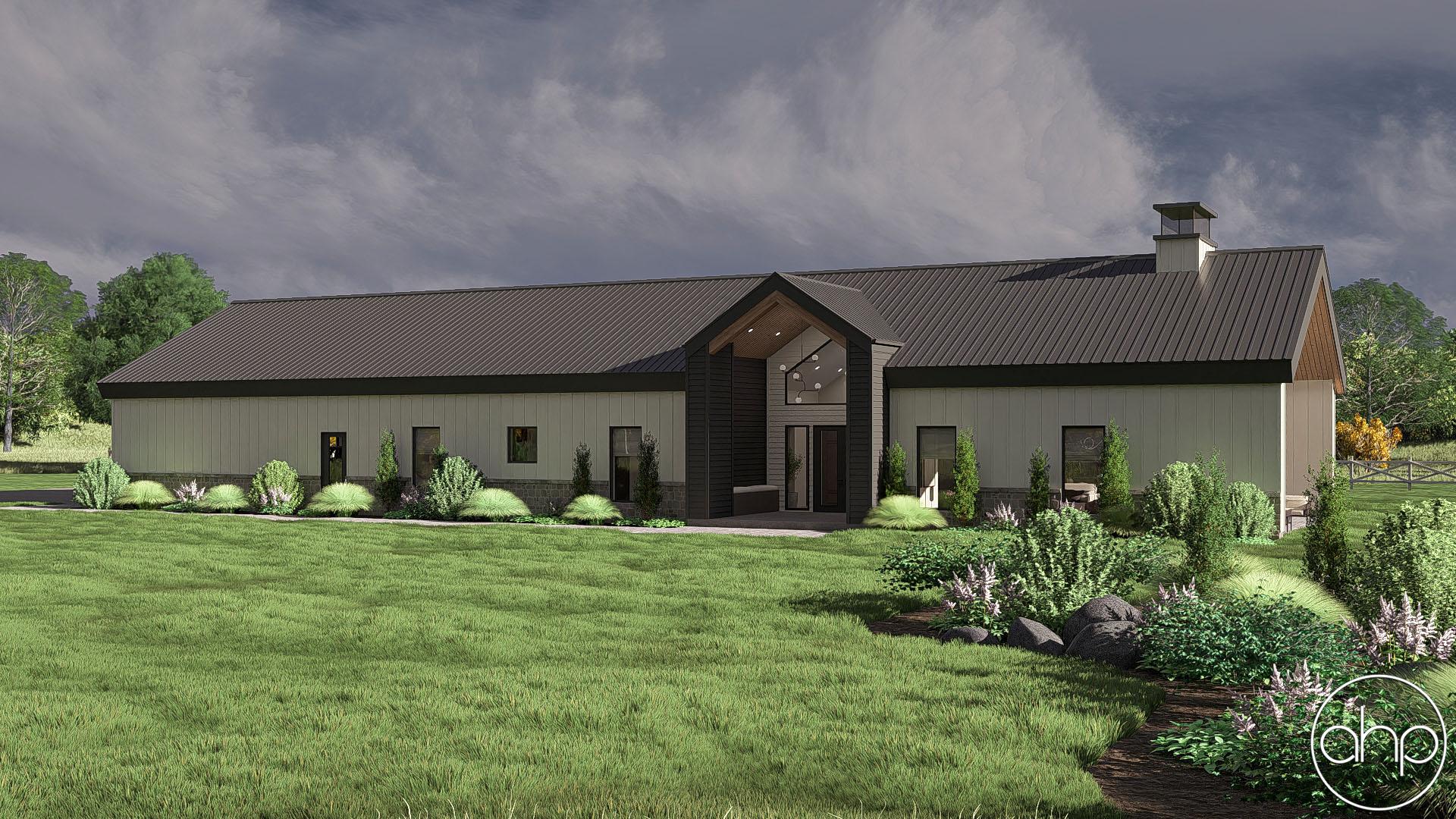

Welcome to Horseshoe Bend, a 3-bedroom, 3-bath modern barndominium that offers both style and comfort. The inviting entry features a covered porch with benches on either side and a striking cathedral ceiling. Inside, the main living space has a grand cathedral ceiling and a dual-sided fireplace that extends to a spacious covered patio, perfect for gatherings.

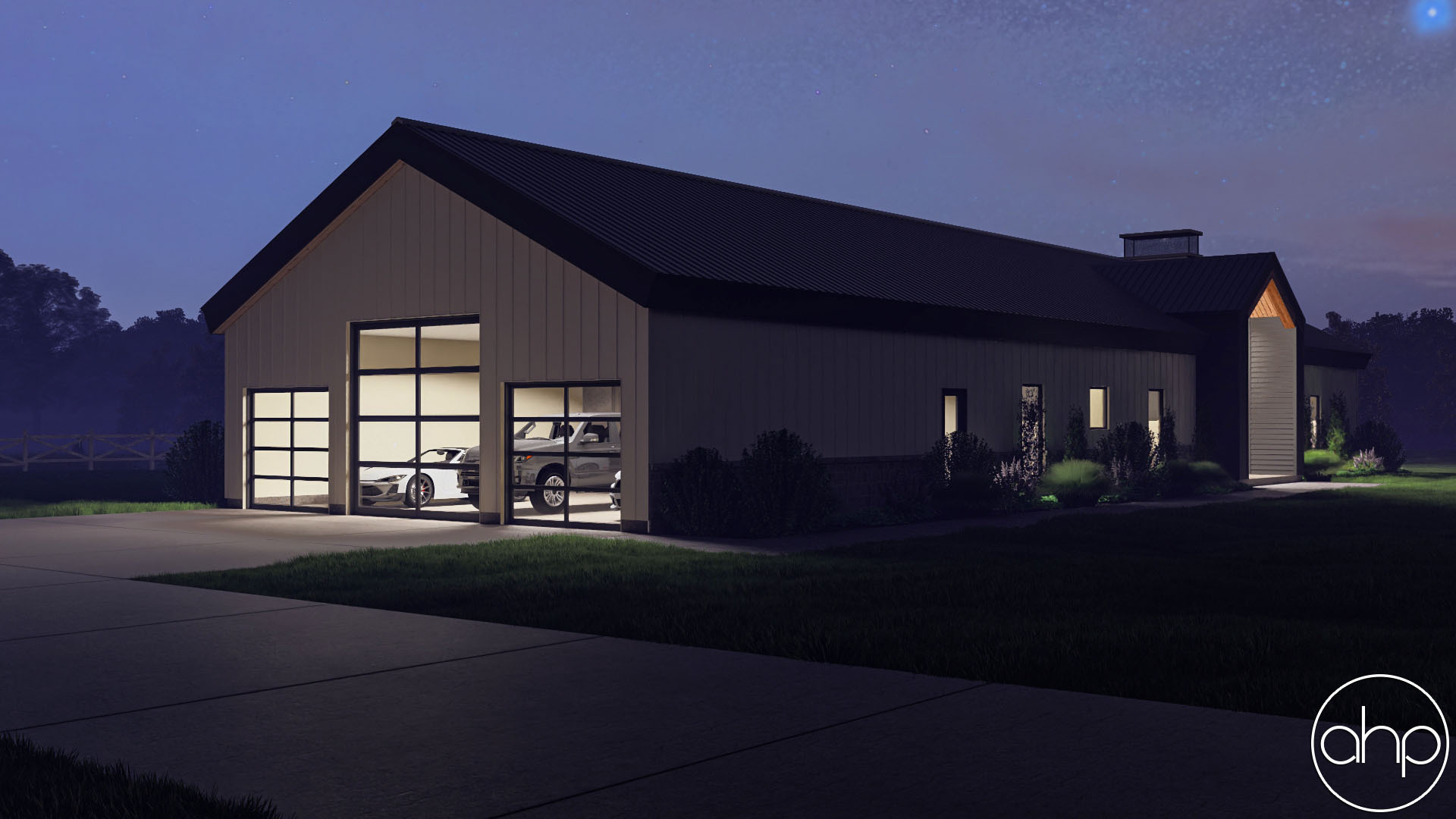

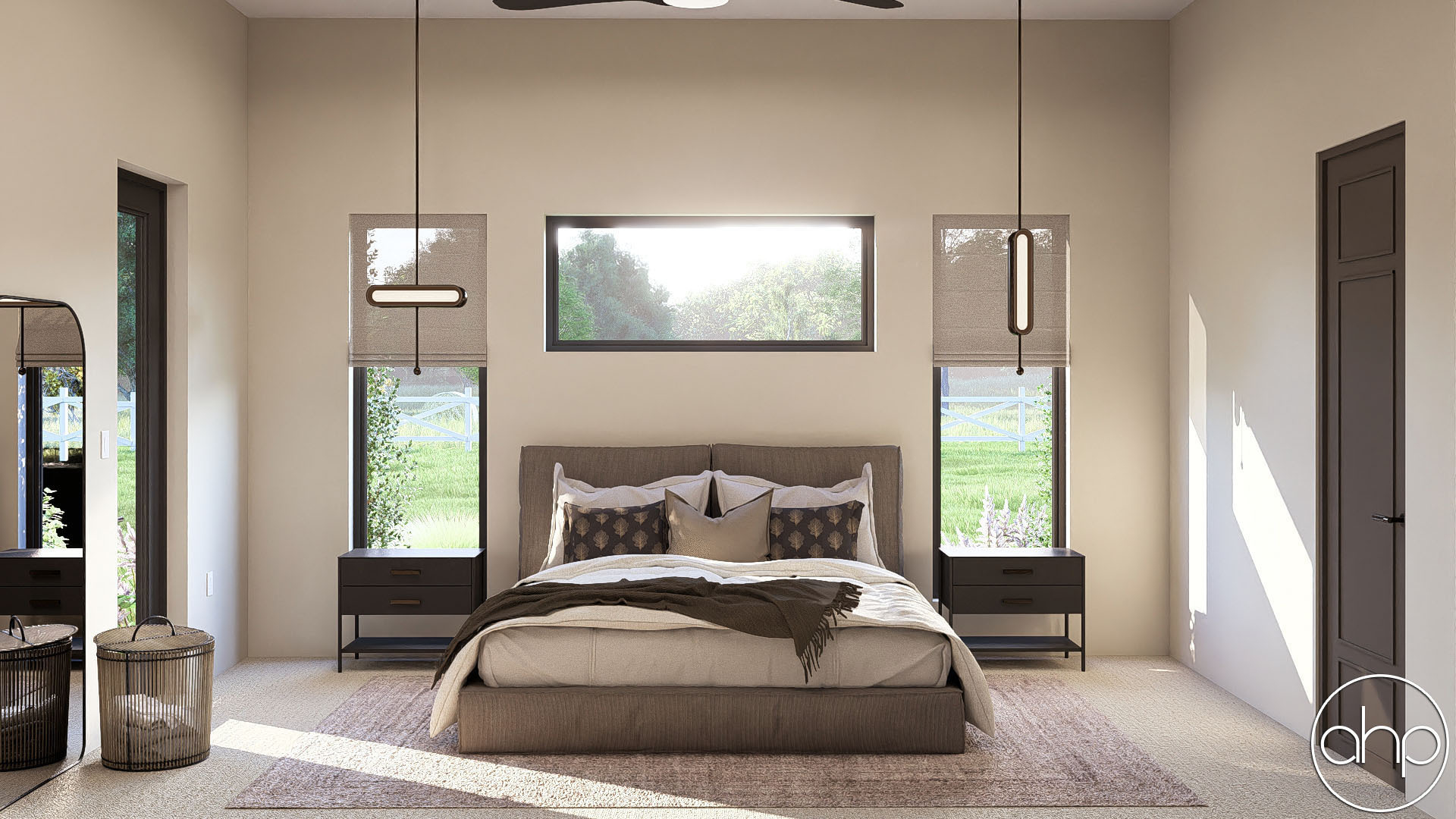

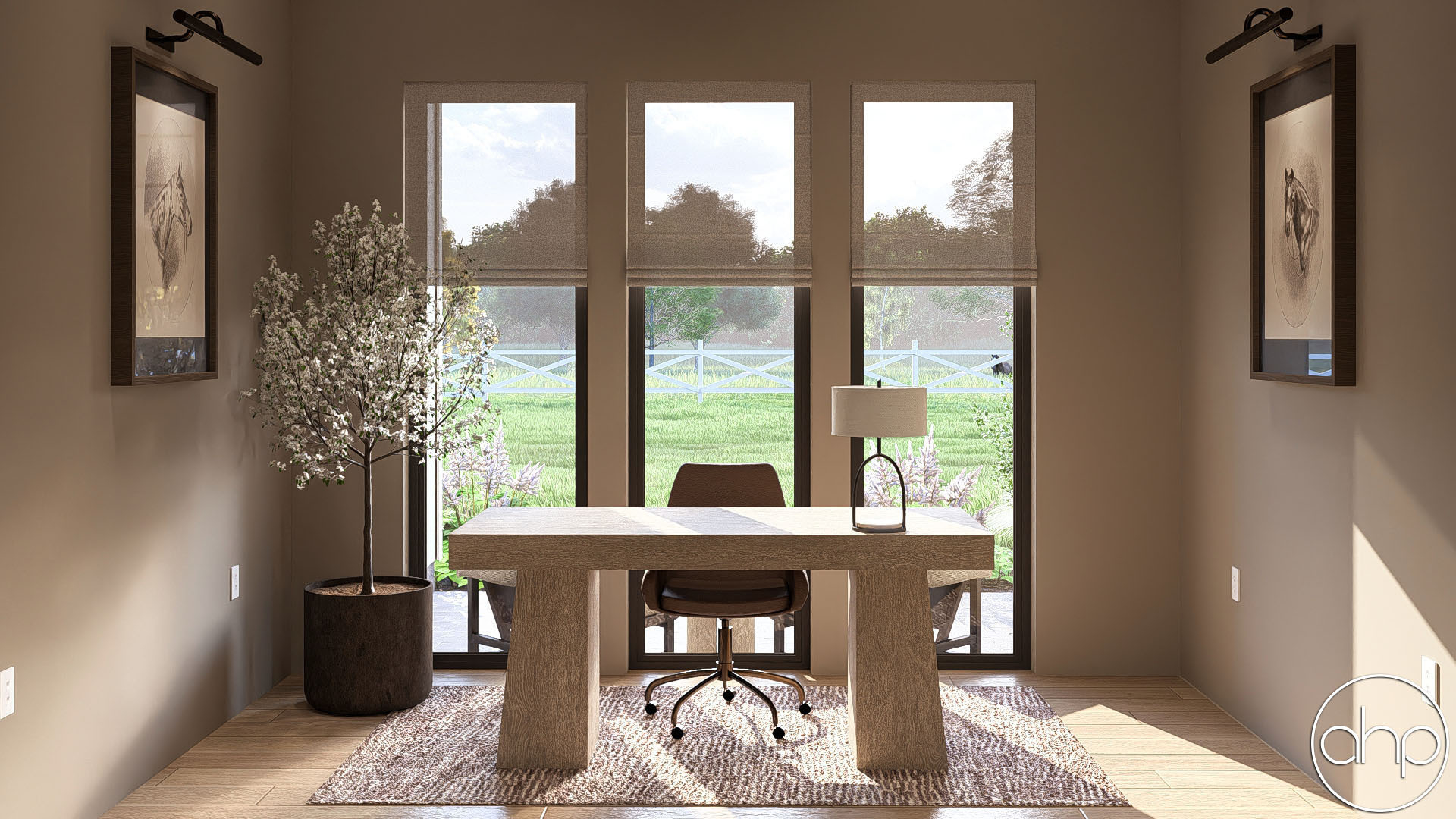

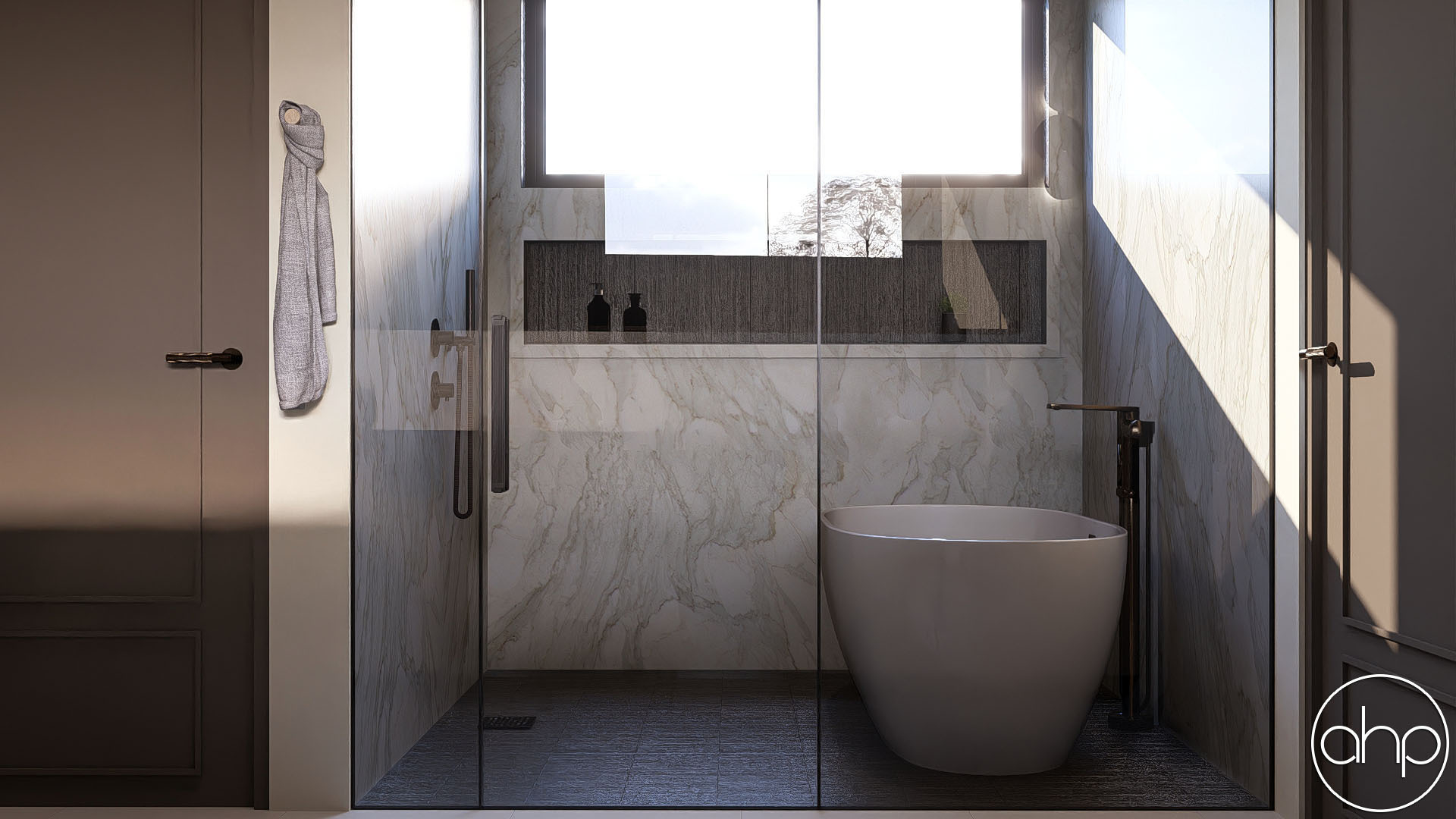

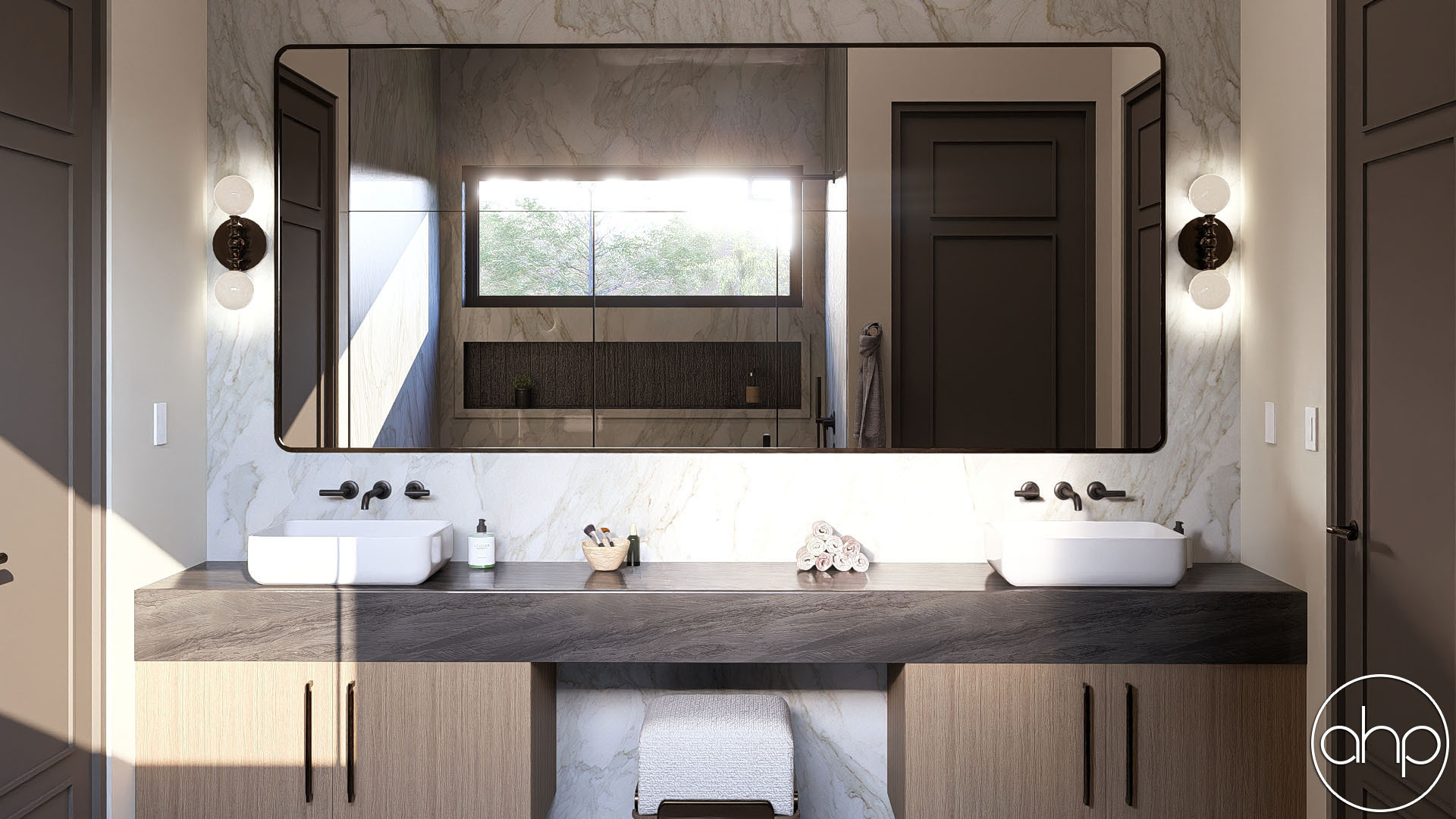

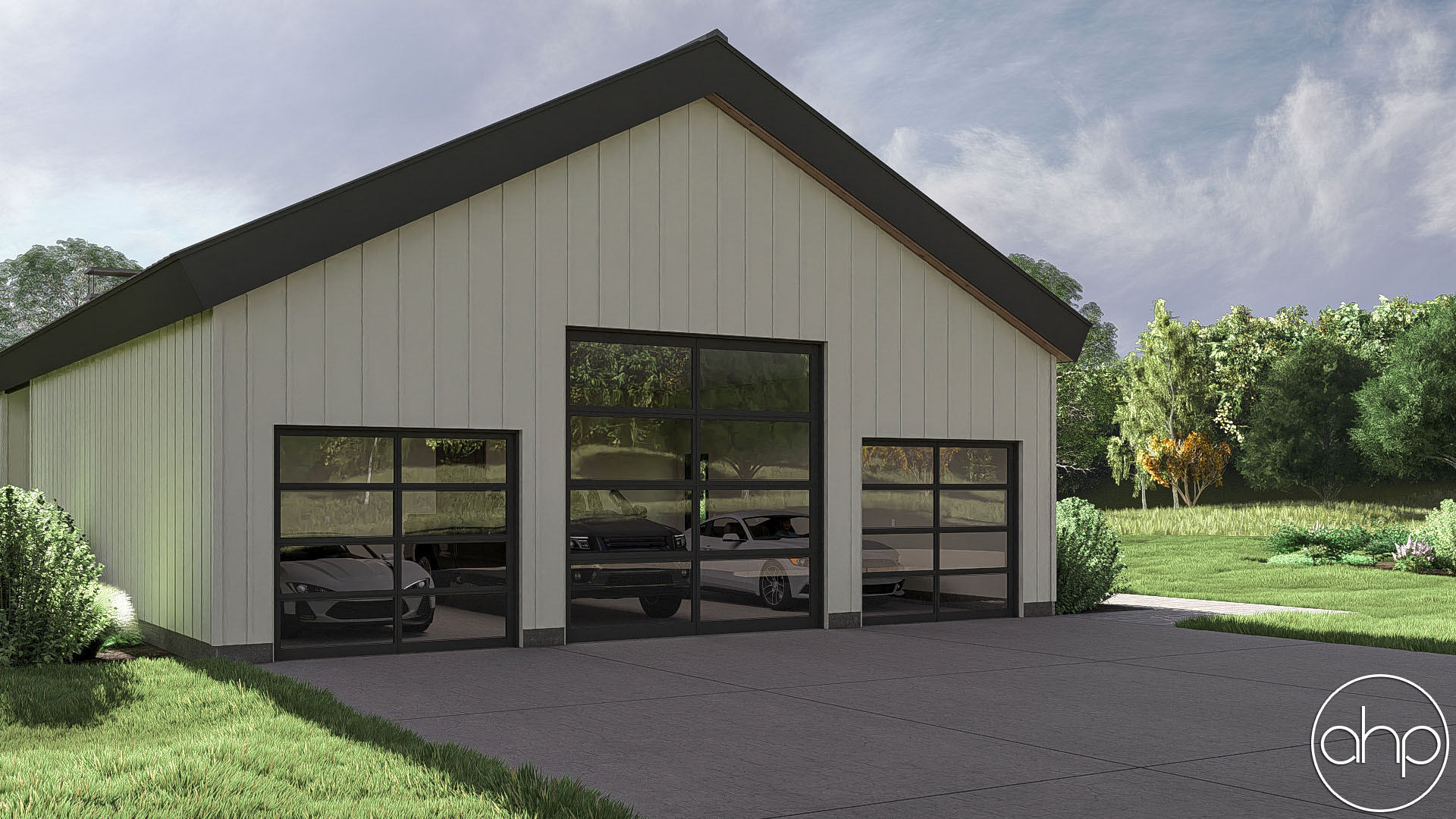

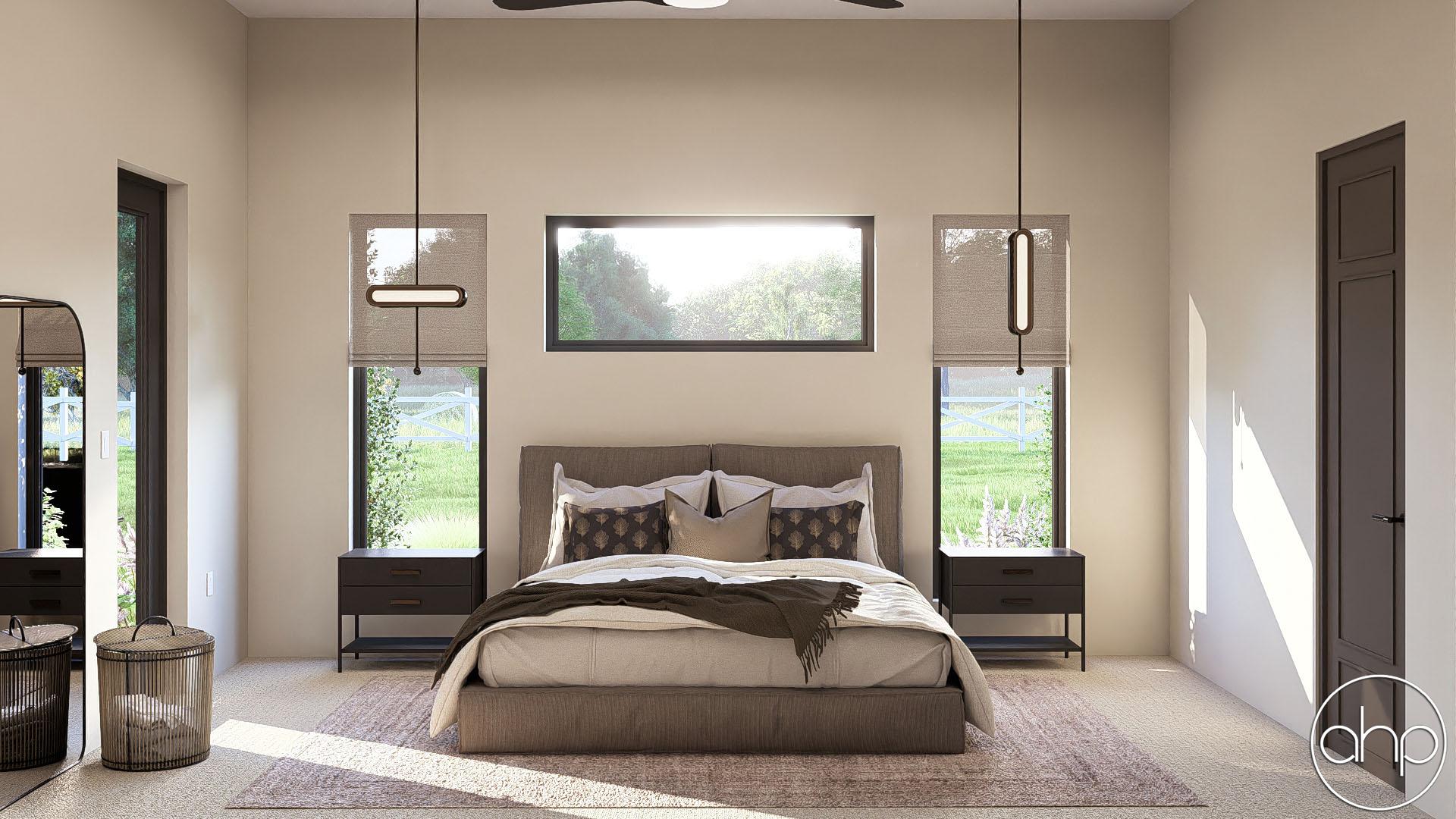

The master suite is a true sanctuary, offering a private covered patio for quiet moments. Inside the master bath, you'll find a luxurious shower with a freestanding tub nestled within, creating a spa-like experience. The double vanity provides ample space, and the expansive walk-in closet offers plenty of room for all your wardrobe needs. With large windows in the office for natural light, a dedicated laundry room complete with folding space, and a safe room in the 3-car garage, Horseshoe Bend blends modern design with thoughtful, functional features for everyday living.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 3
Bathrooms 3
Garage Bays 3
Square Footage
Main Level 2583 Sq. Ft.
Covered Area 689 Sq. Ft.
Garage 1292 Sq. Ft.
Total Finished Area 2583 Sq. Ft.
Exterior Dimensions
Width 122 ' 4"
Depth 42 ' 0"
Ridge Height
Calculated from main floor line
23 ' 2"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x6
Roof Pitches
Primary 6/12, Secondary 8/12
Main Wall Height
12'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$1600
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.

Instant Cost-to-build Estimate™

See how much it will cost to build this plan. Our estimate includes everything so you'll have a good idea of how much to budget.
