Plan Description

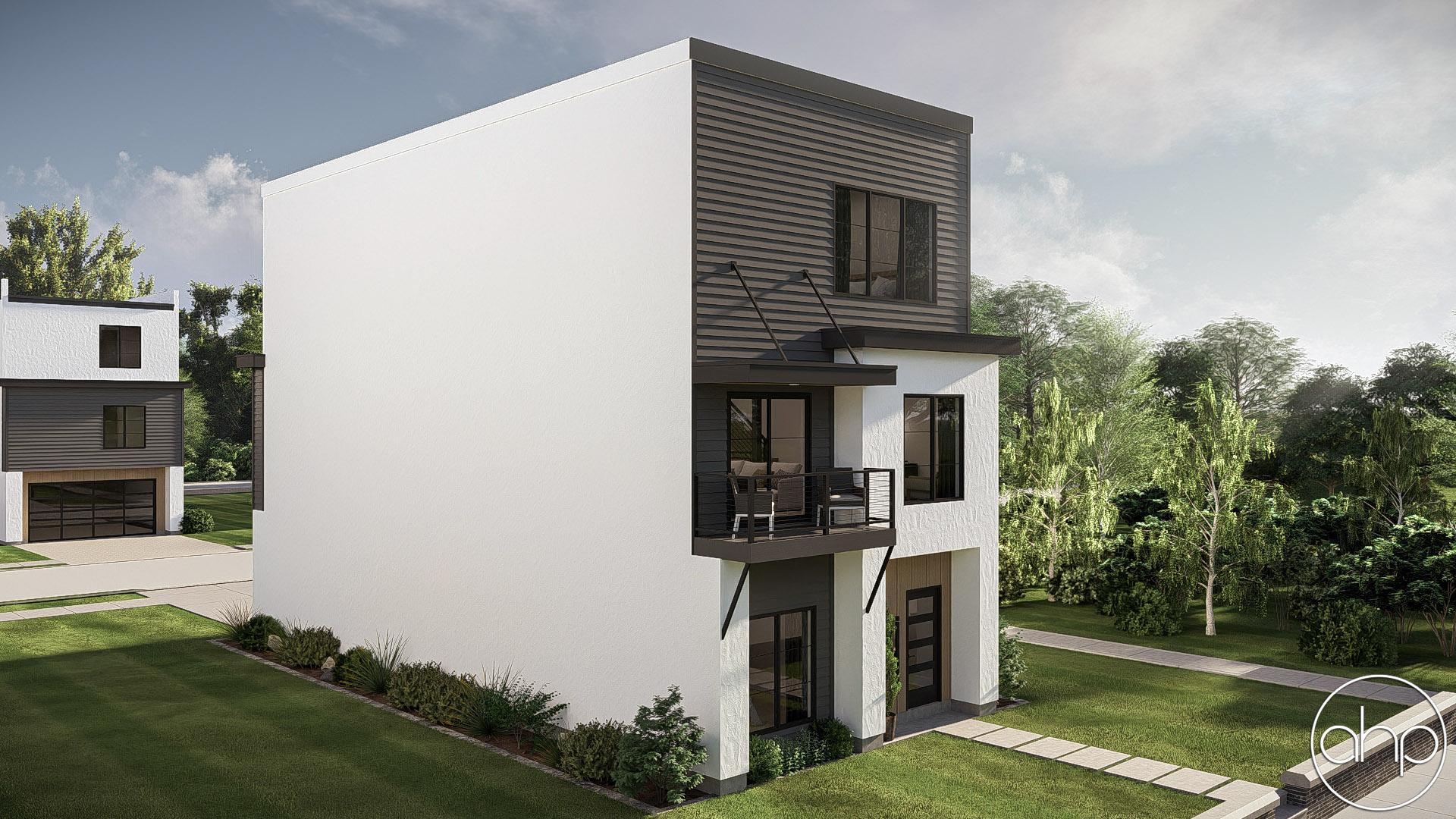

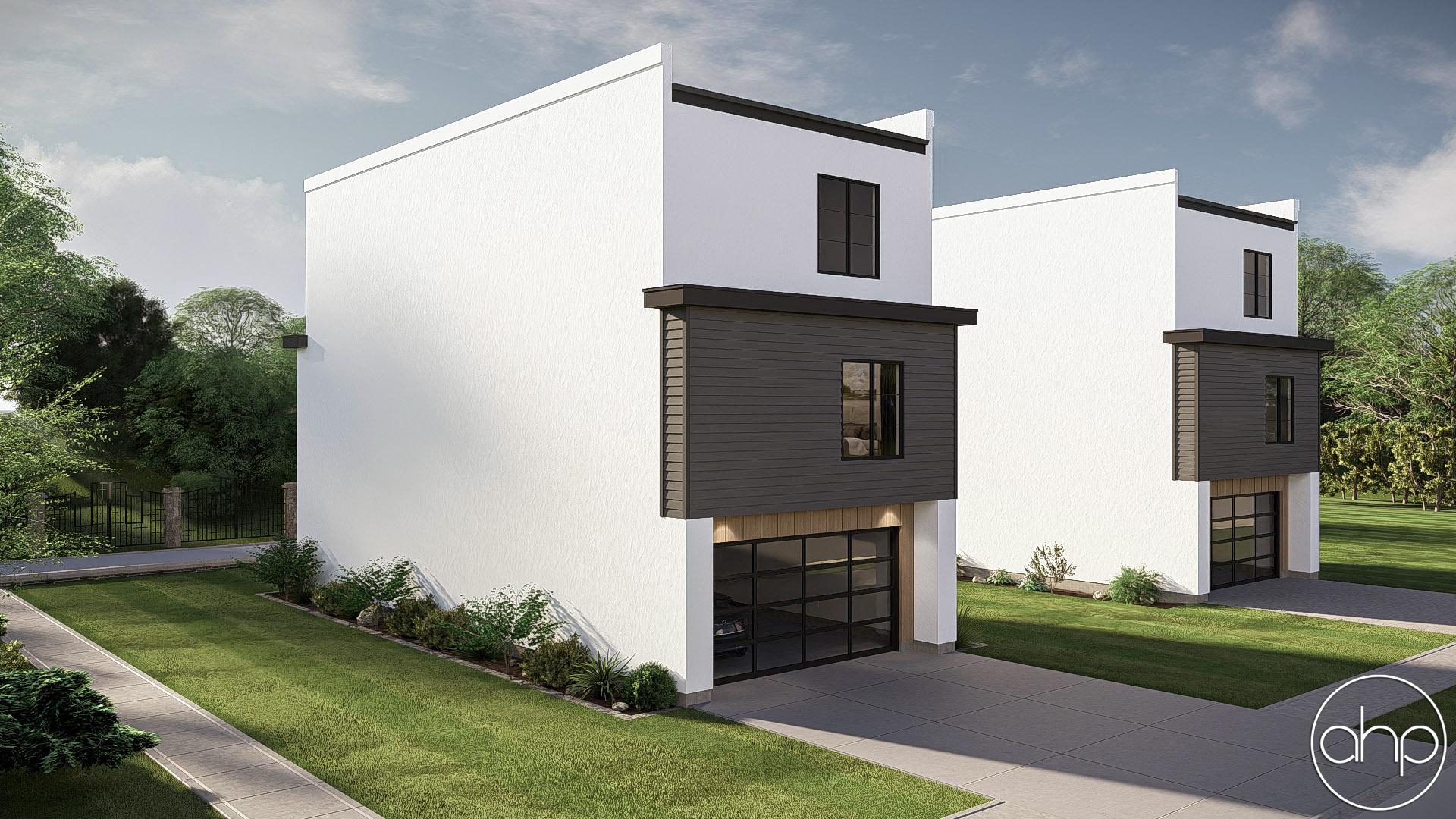

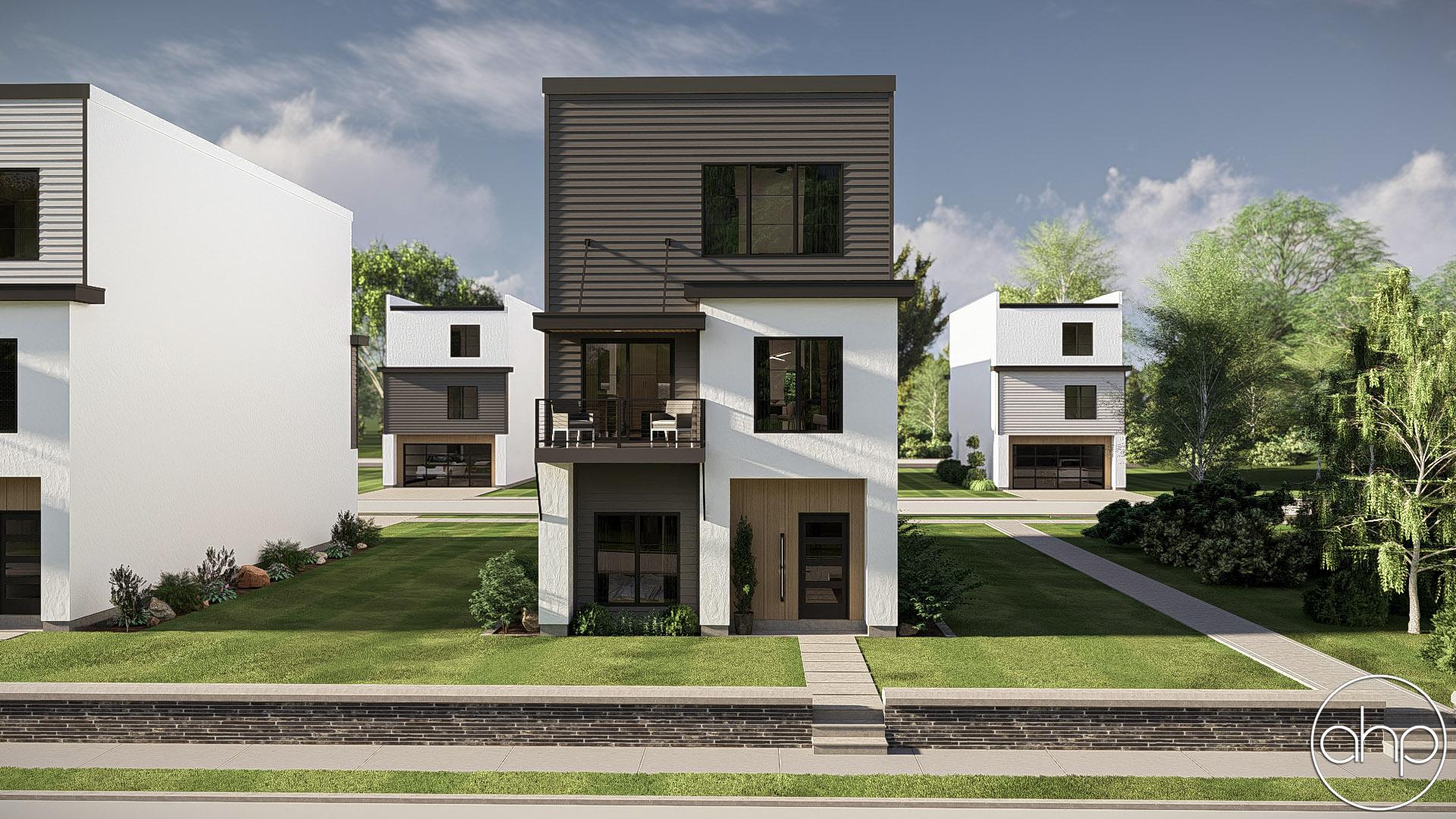

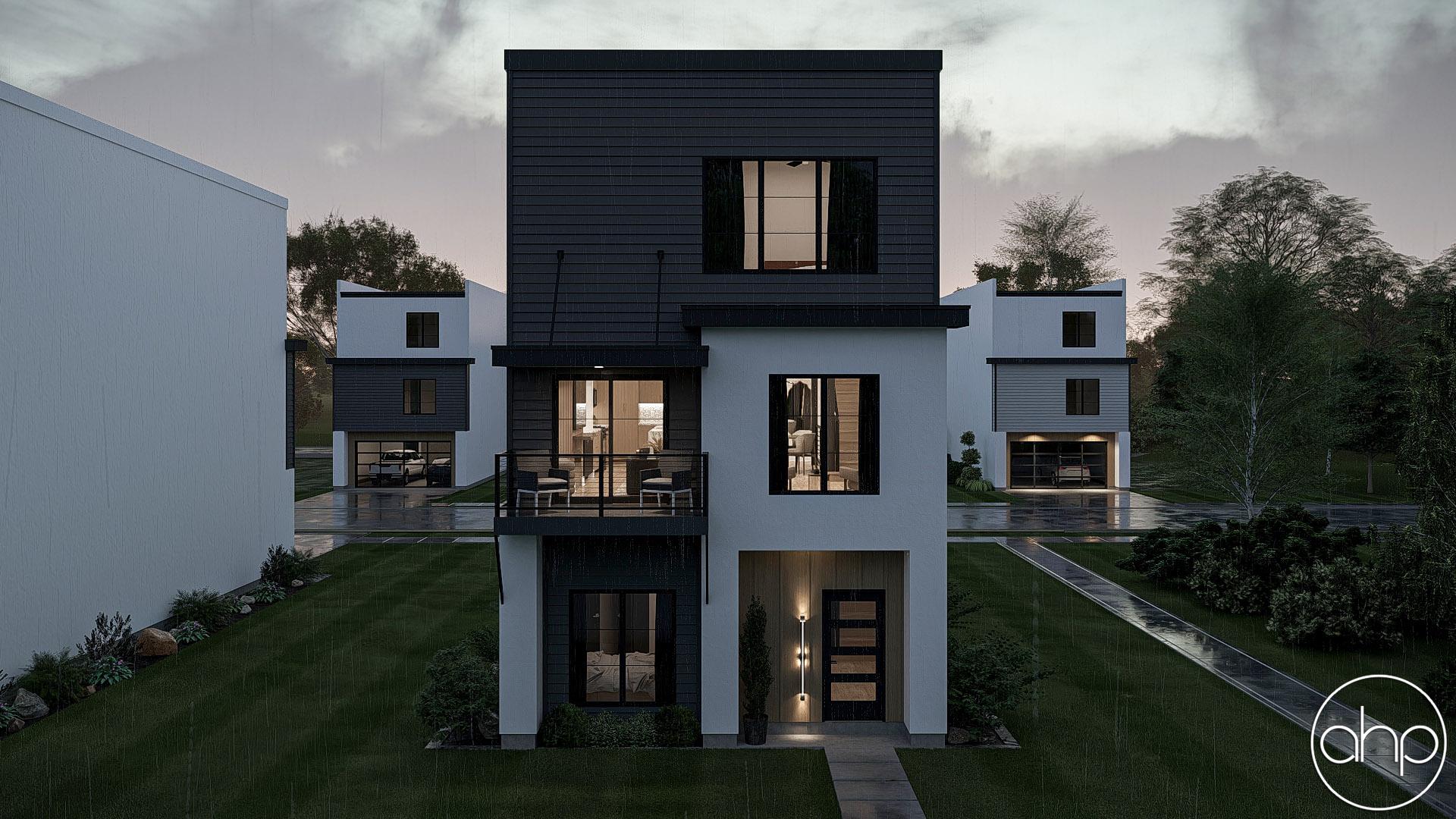

This modern, narrow three-story home makes a bold architectural statement with its clean stucco exterior, crisp lines, and thoughtfully layered façade. Designed to maximize space on a compact footprint, the home features a rear-loaded garage that preserves a sleek street presence while enhancing functionality.

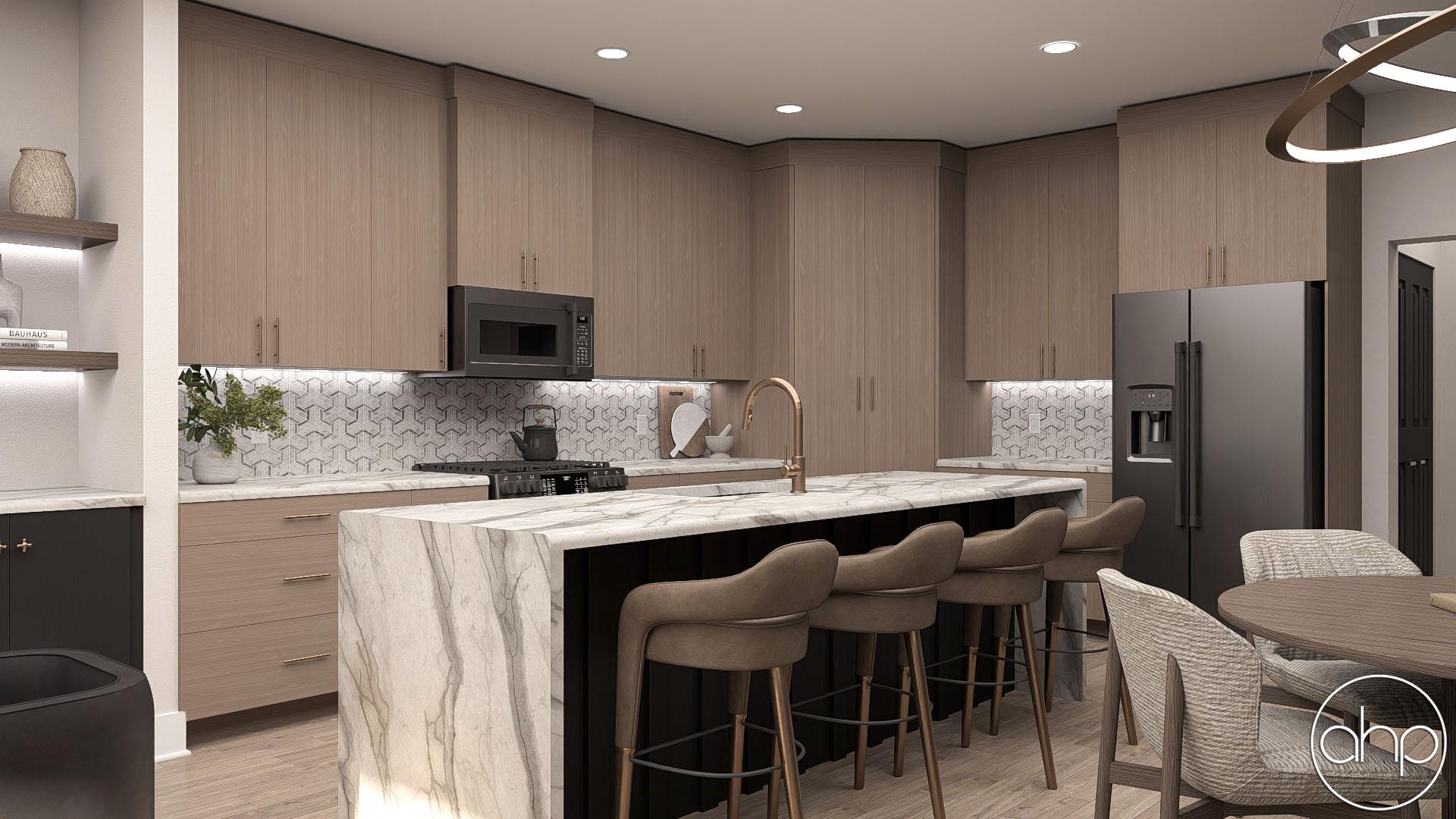

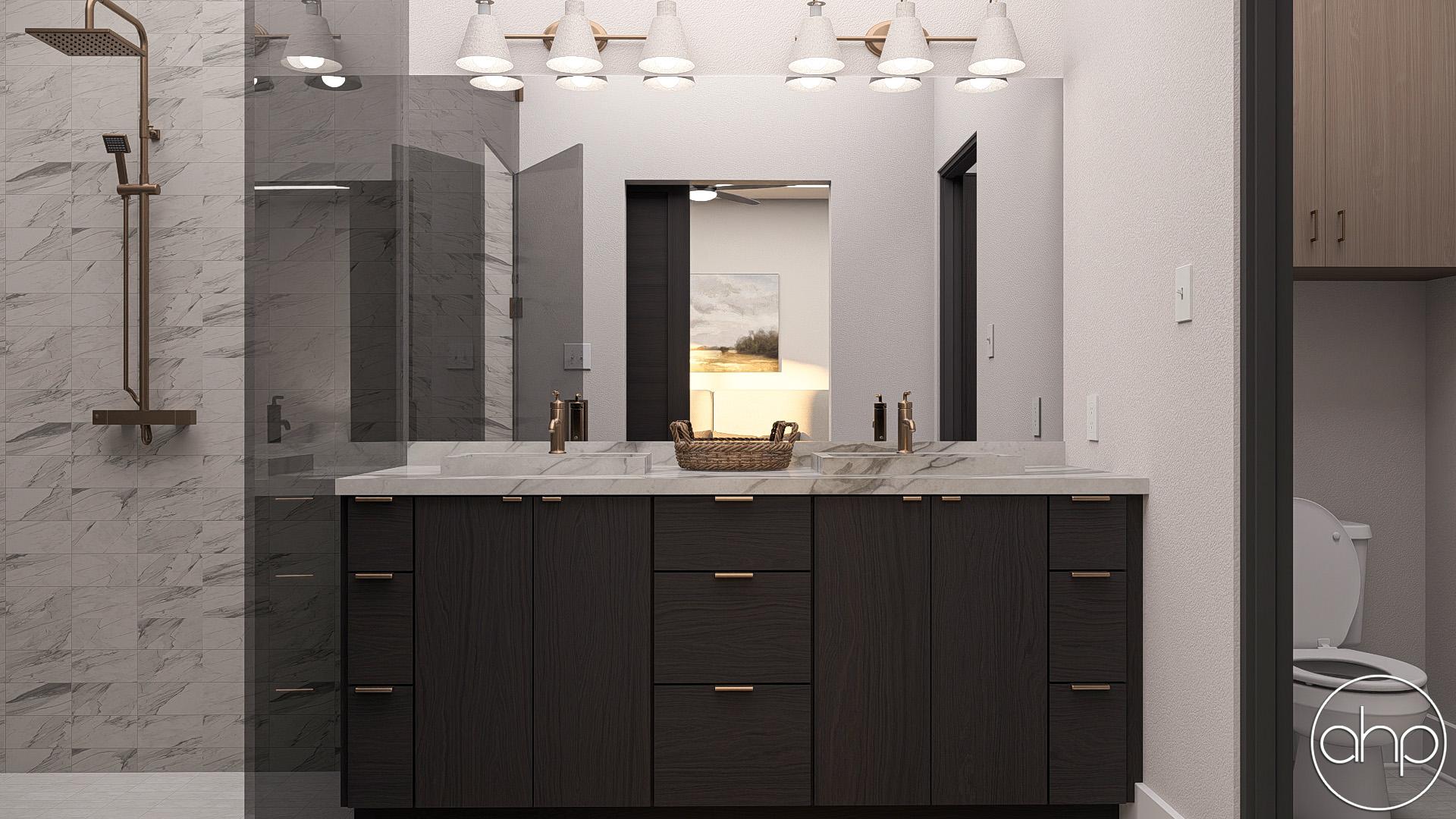

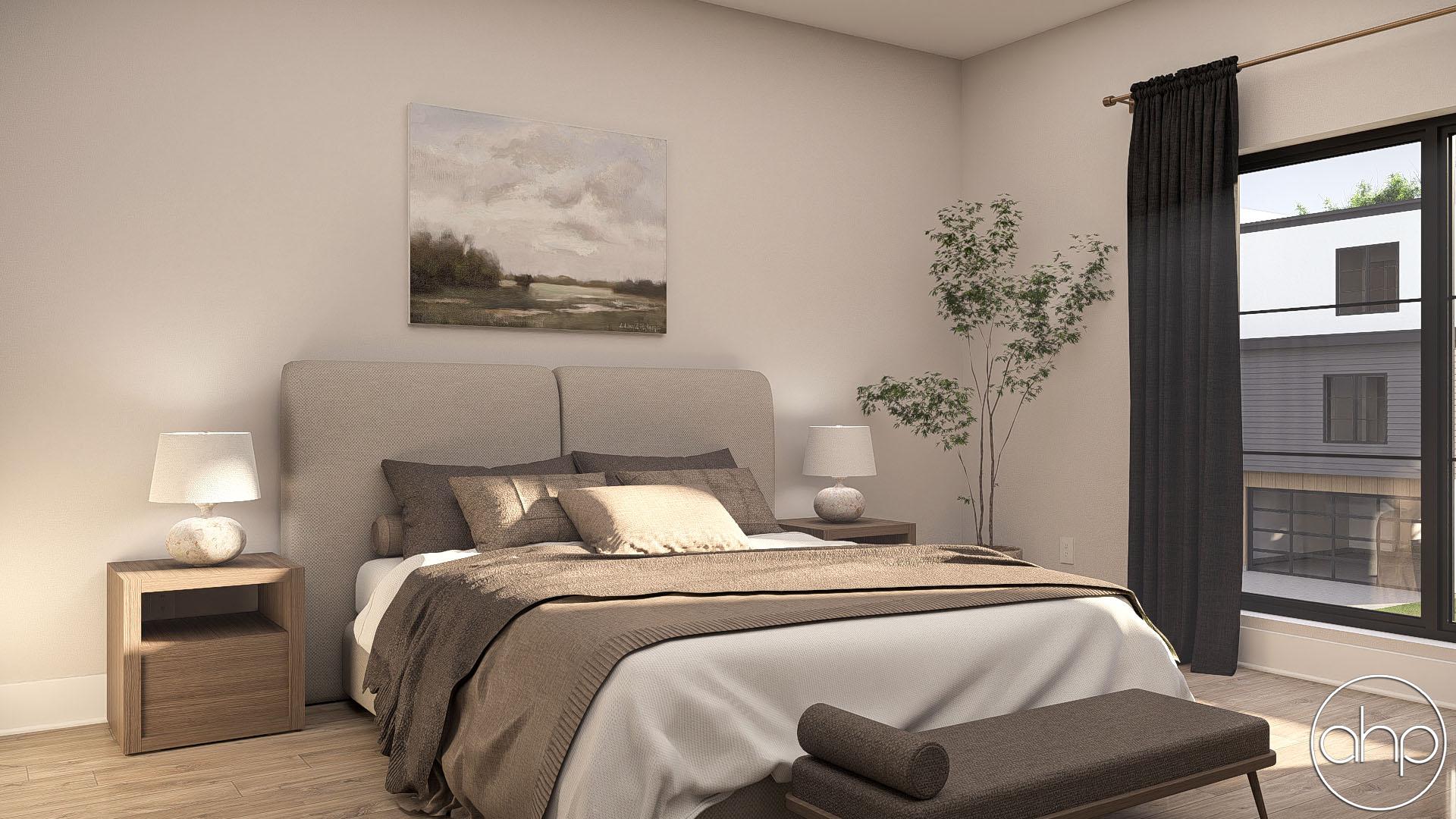

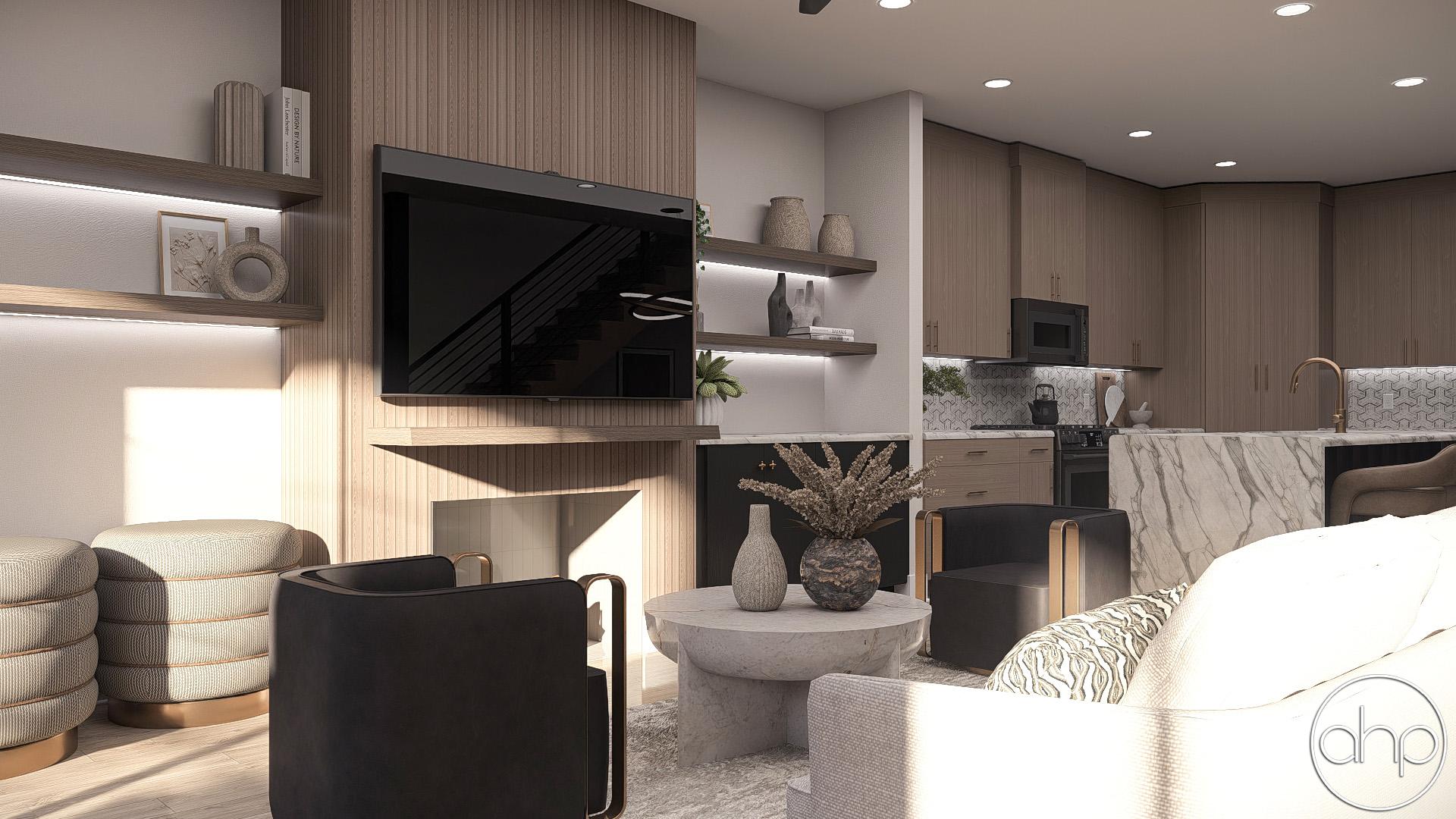

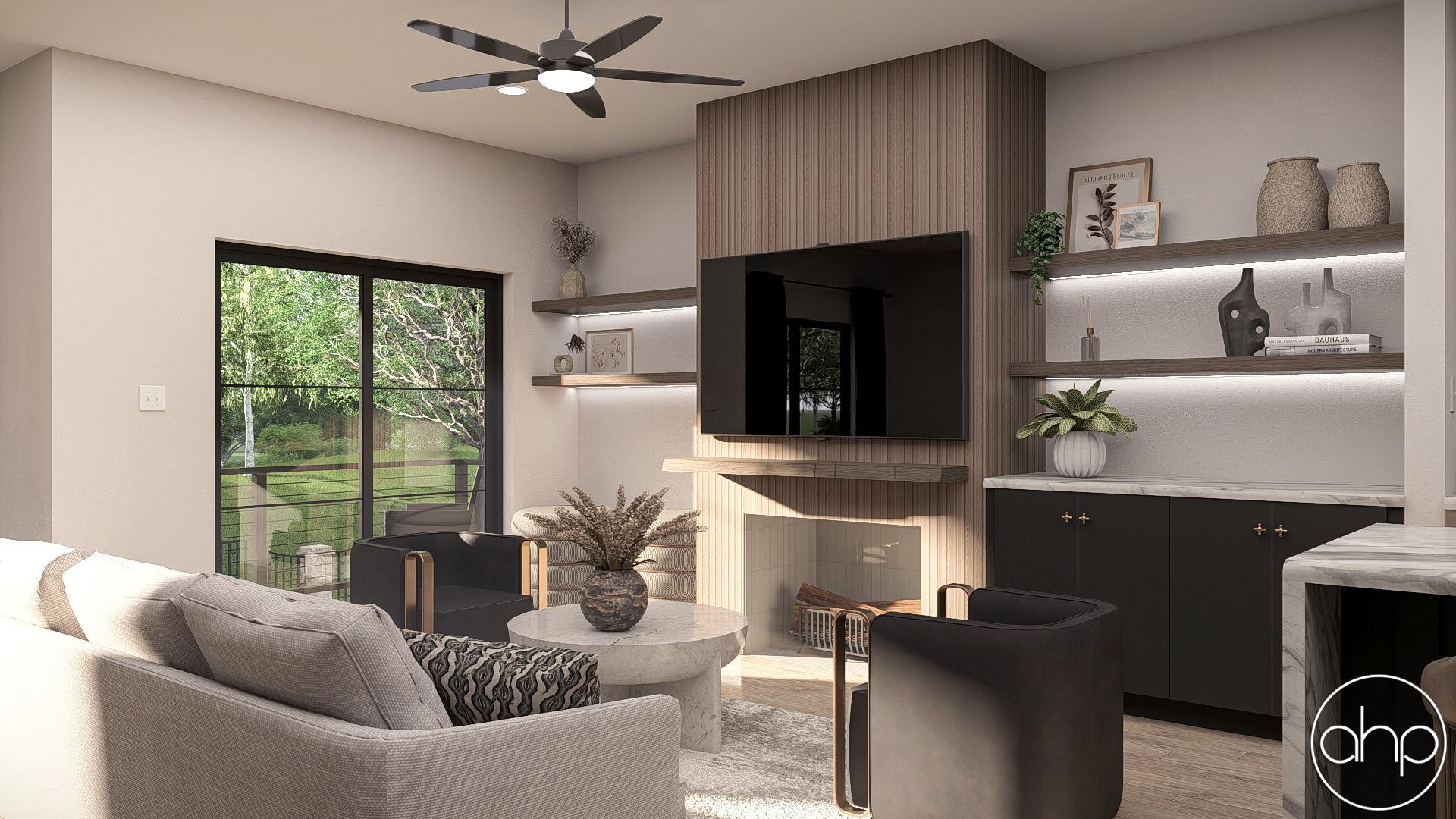

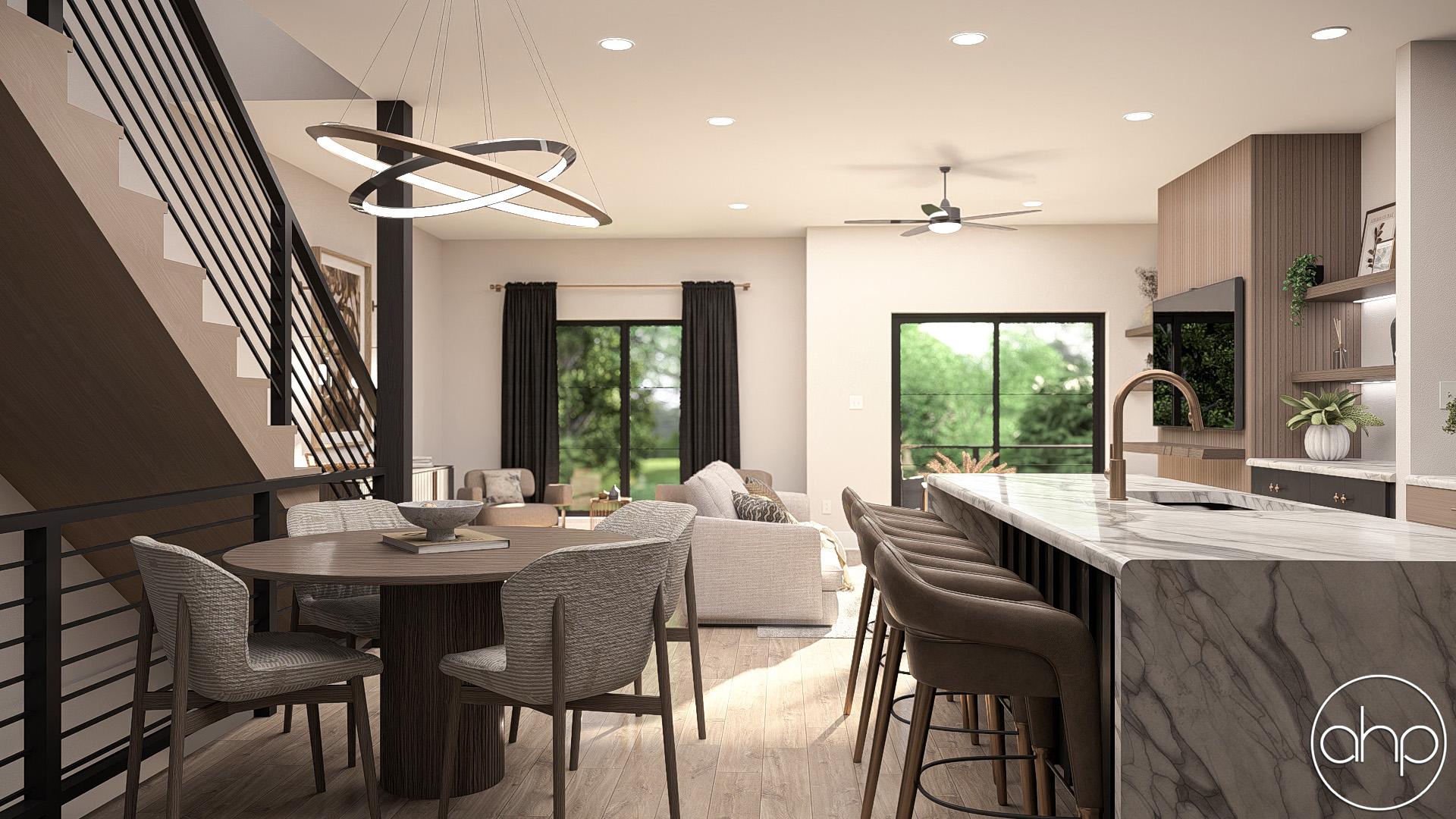

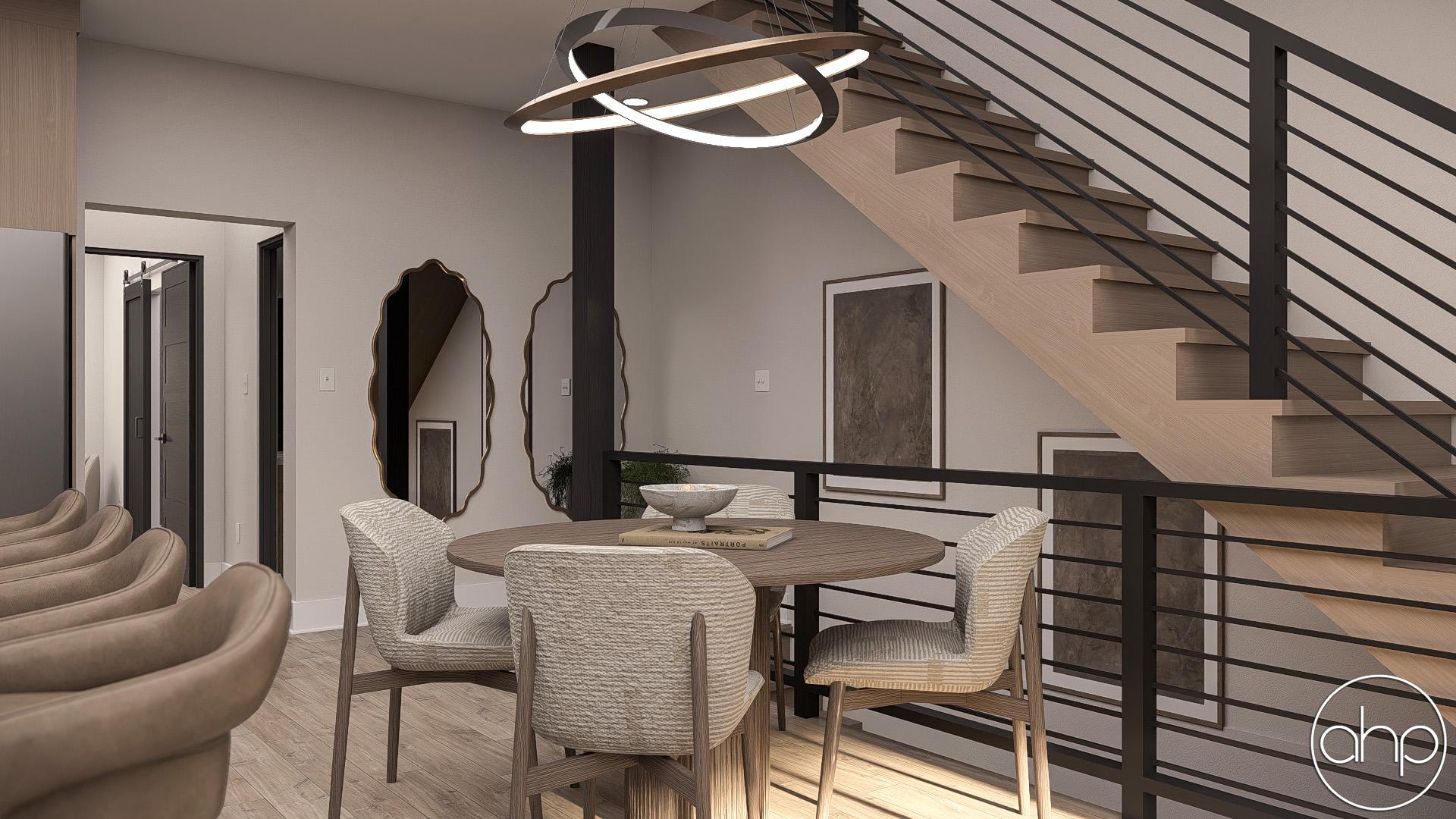

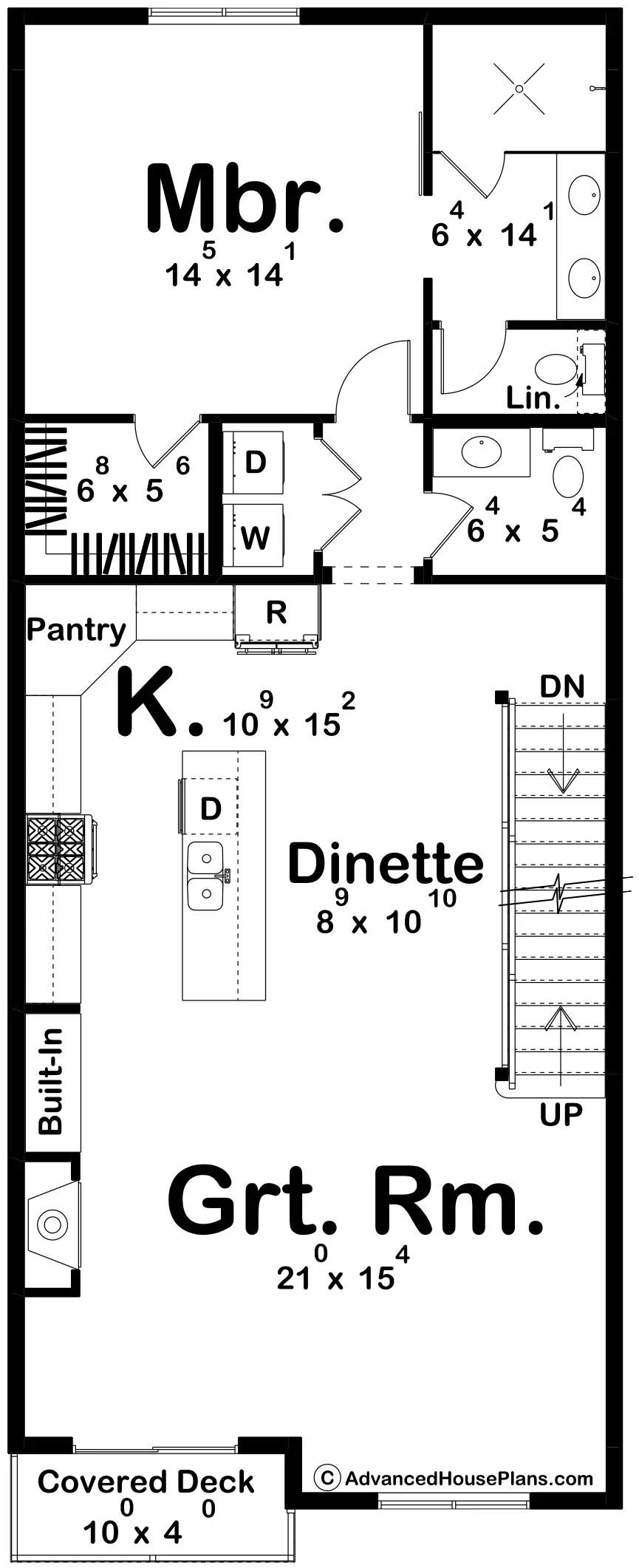

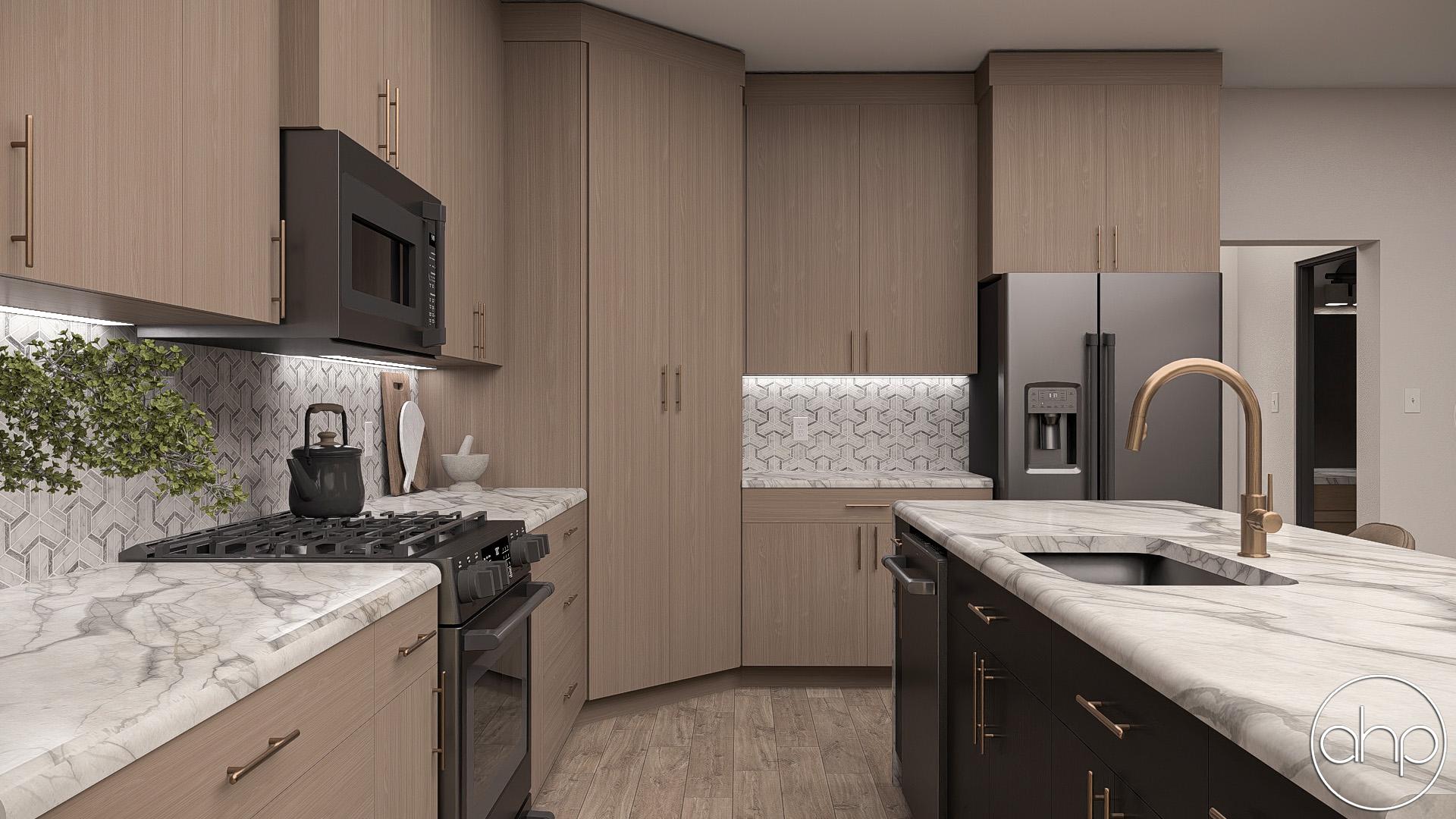

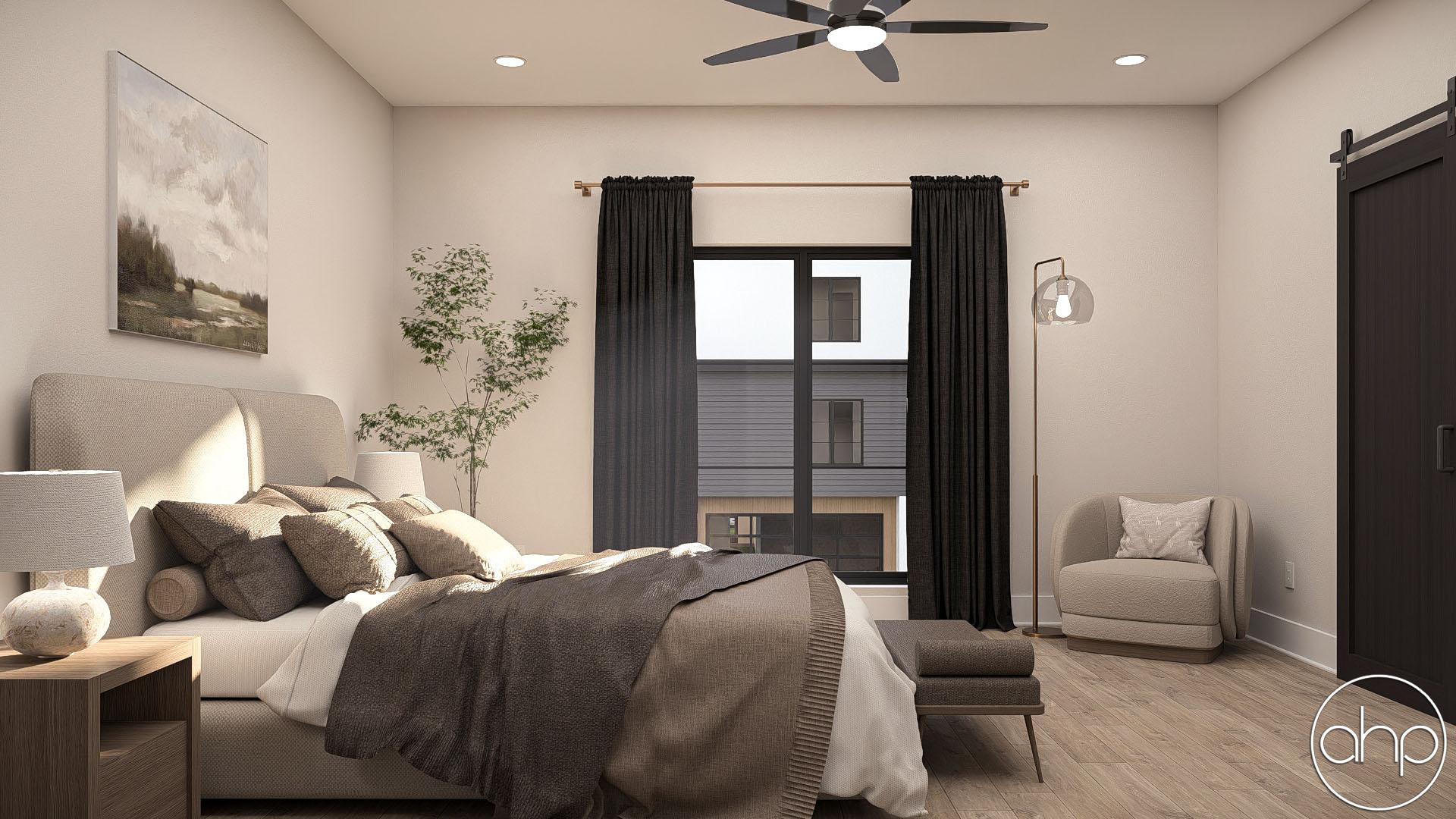

The heart of the home is located on the second level, where a spacious great room flows effortlessly into the dinette and modern kitchen. Also on the second level is the master bedroom, tucked away from the rest of the bedrooms for added privacy.

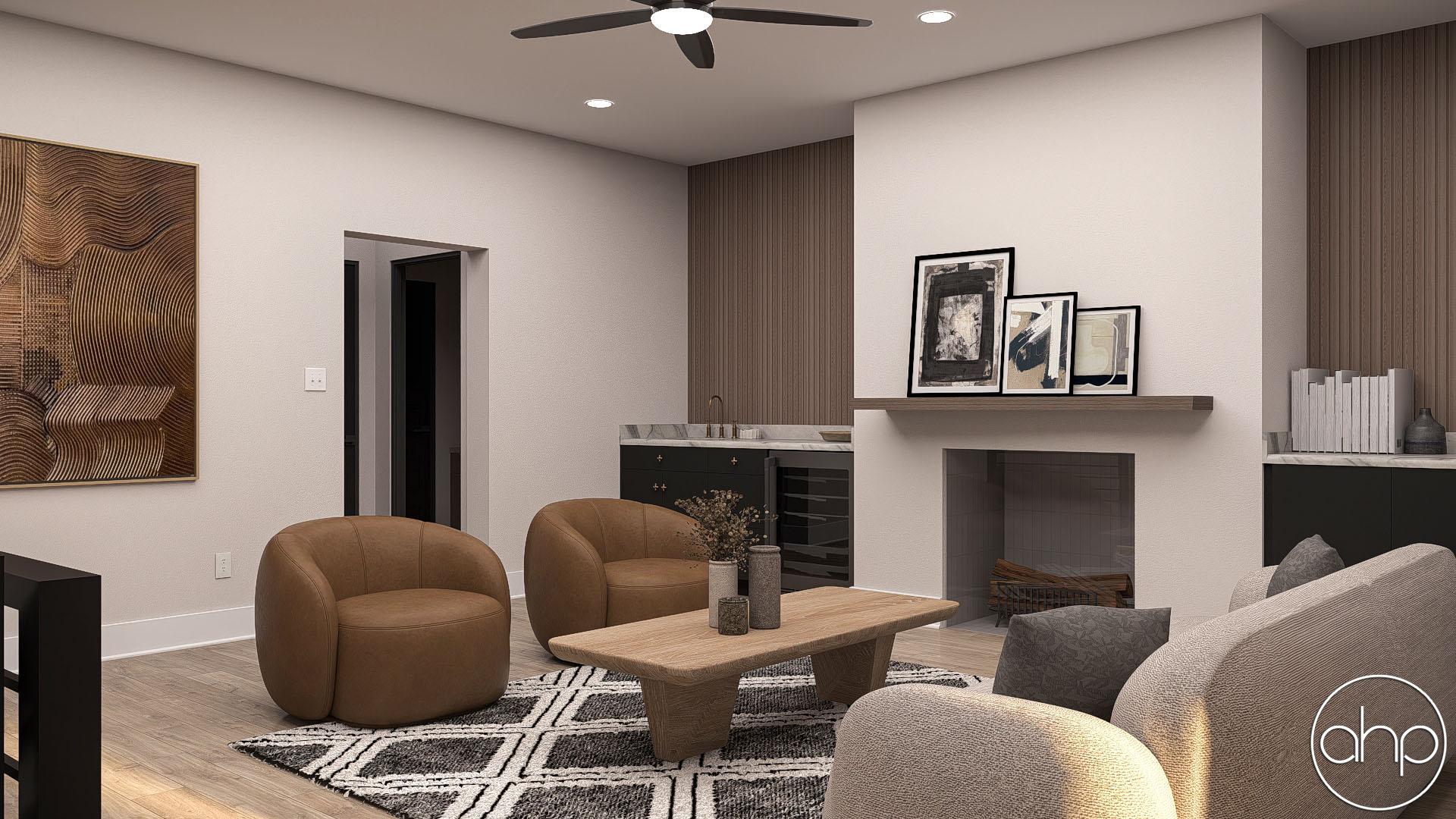

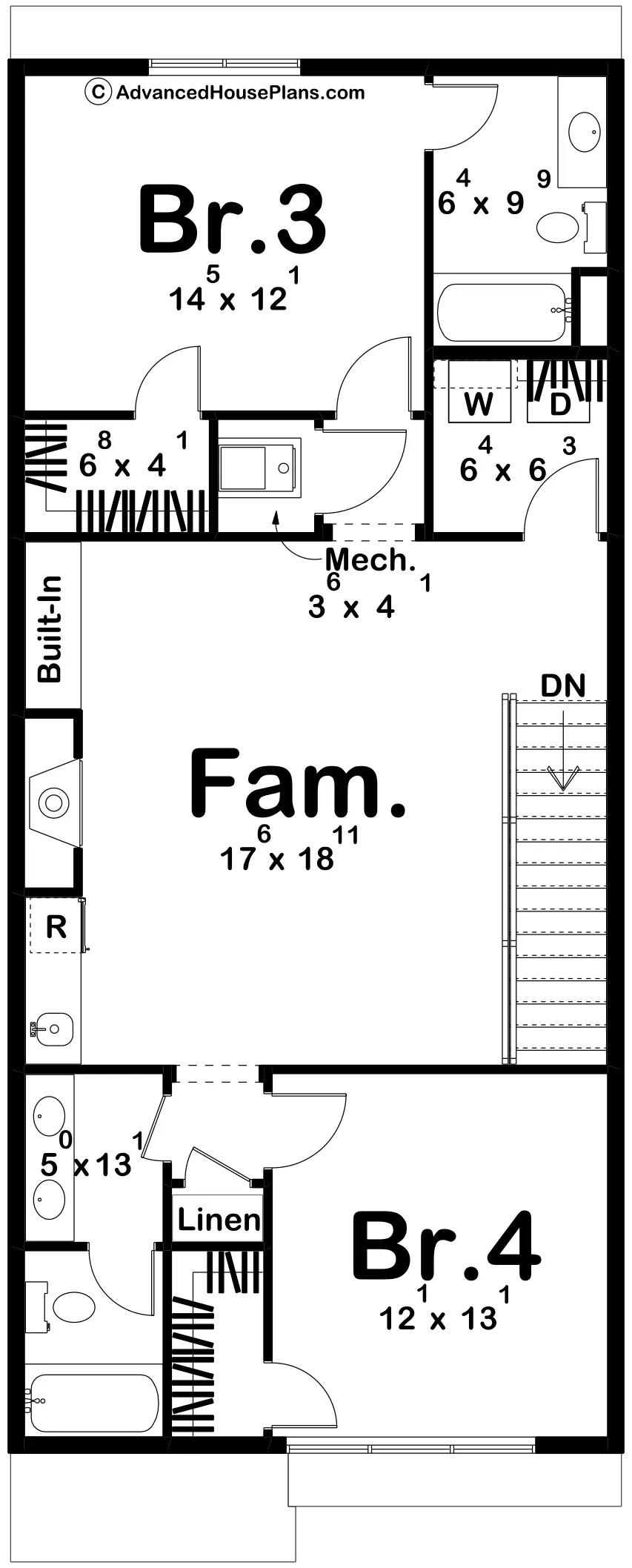

On the third level, an additional family room provides a versatile retreat, offering a comfortable and private living space. This level also includes two additional bedrooms, each thoughtfully designed with its own private bathroom for added comfort and convenience.
With its smart vertical layout, modern finishes, and a blend of open gathering spaces and cozy retreats, this home delivers refined urban living with a touch of luxury and plenty of room to grow.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 4 |
| Bathrooms | 5 |
| Garage Bays | 2 |
| Square Footage Breakdown | |
| Main Level | 525 Sq Ft |
| Second Level | 1118 Sq Ft |
| Third Level | 1039 Sq Ft |
| Total Finished Area | 2682 Sq Ft |
| Garage | 491 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 58 Sq Ft |
| Exterior Dimensions | |
| Width | 22' 0" |
| Depth | 54' 0" |
| Ridge Height | 34' 5" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x6 |
| Roof Construction Method | Trusses |
| Floor Construction Method | Floor Trusses |
| Roof Pitches | 5/12, Flat |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 9' |
| Third Level Ceiling Height | 9' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
