Modern Cottage Style House Plan

Hayden Flats - 30278

2643
Sq Ft
3
Beds
3
Baths
2
Bays
76' 0"
Wide
64' 0"
Deep

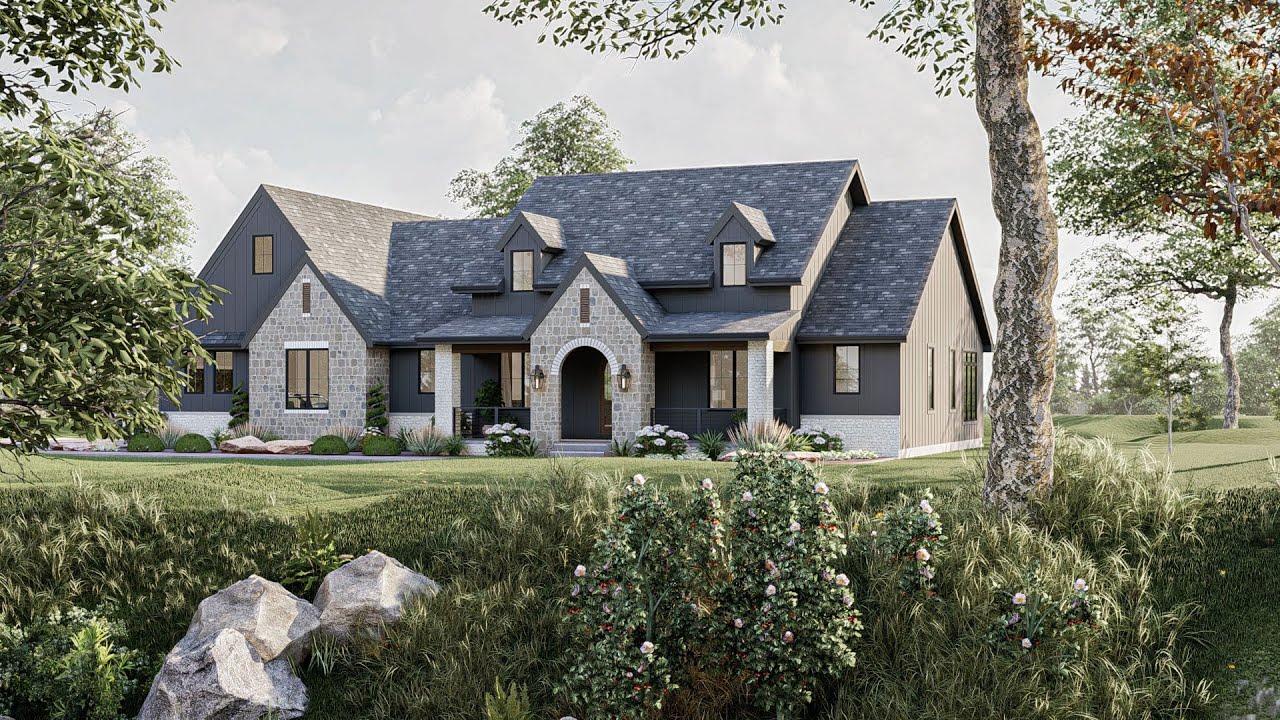

Plan Video

Floor Plan Images

Main Level

Hayden Flats

Plan Description

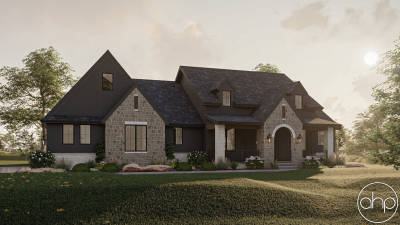

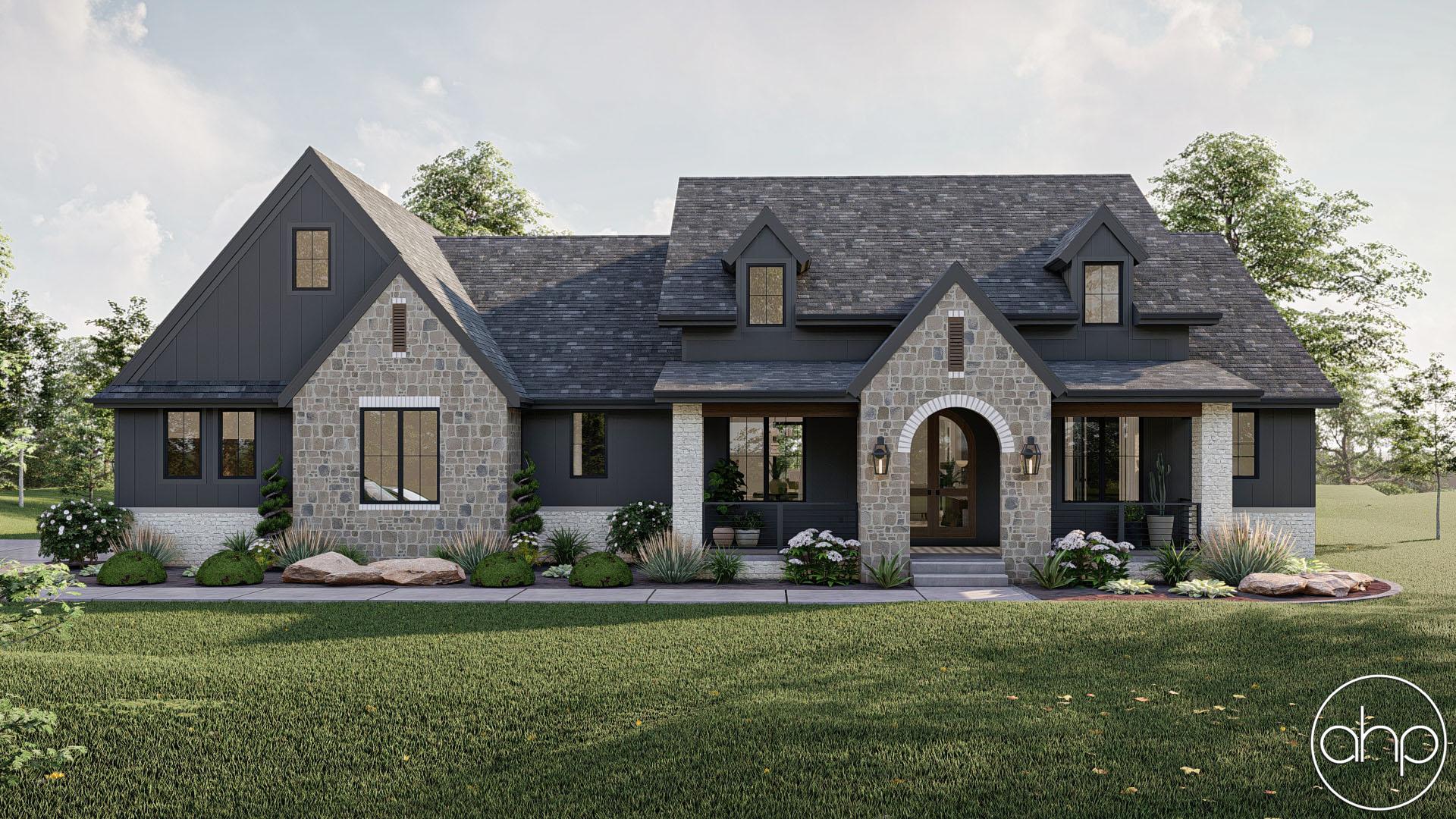

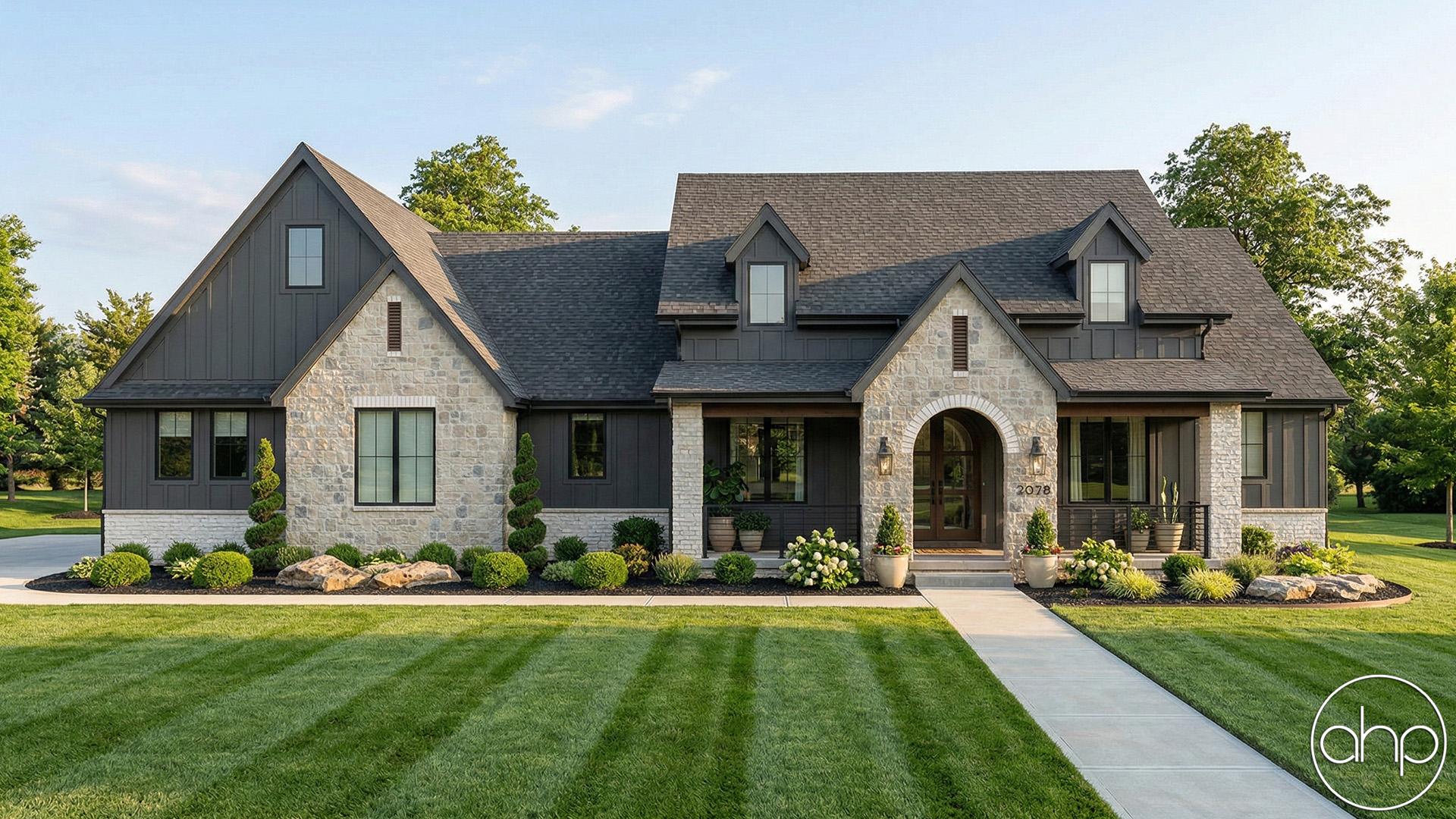

The Hayden Flats plan is a Modern Cottage style house plan with 2643 square feet, 3 bedrooms and 3 bathrooms. The exterior of this plan is jaw dropping with combinations of dark board and batten siding, as well as two different stone types as accents.

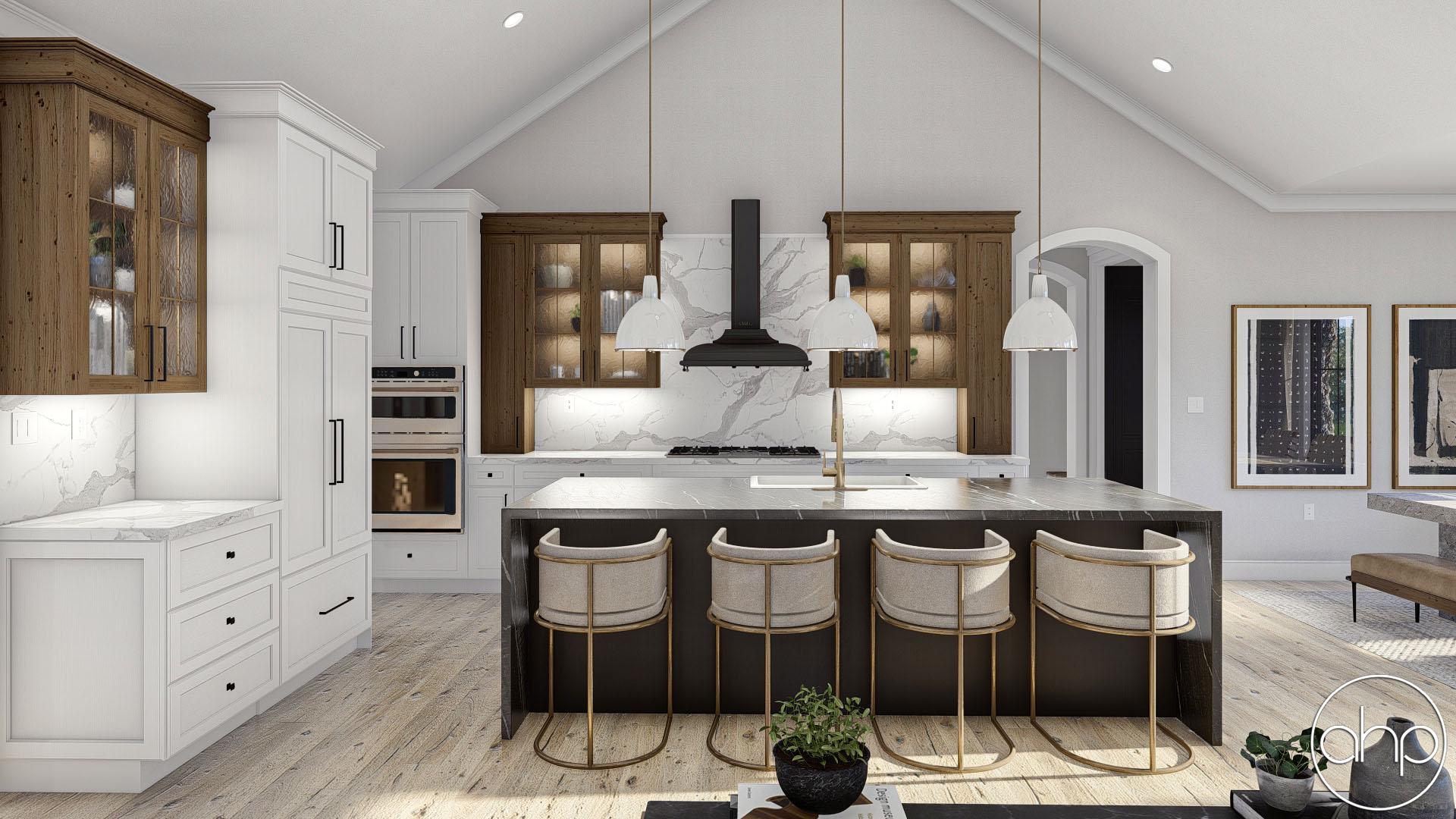

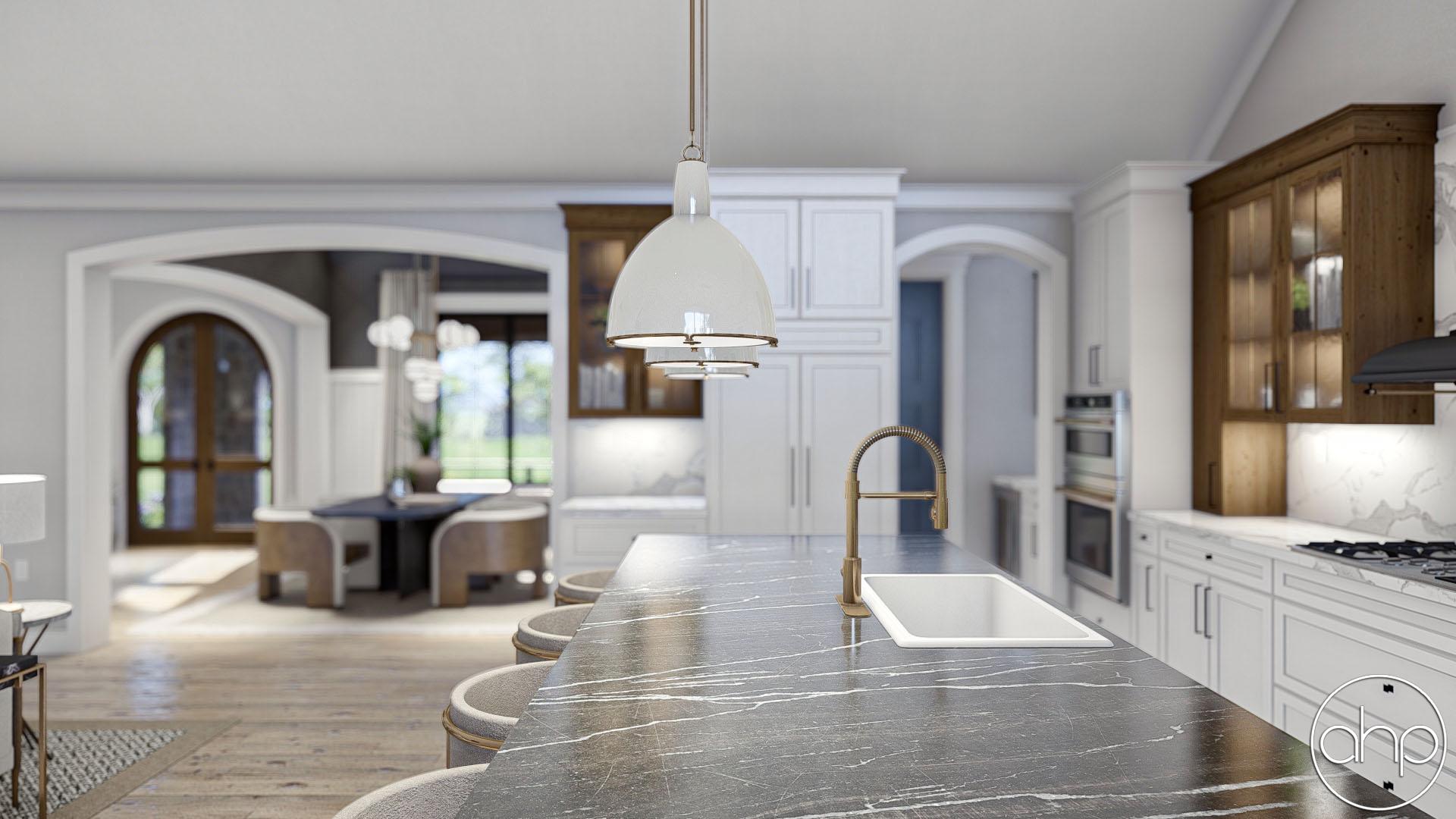

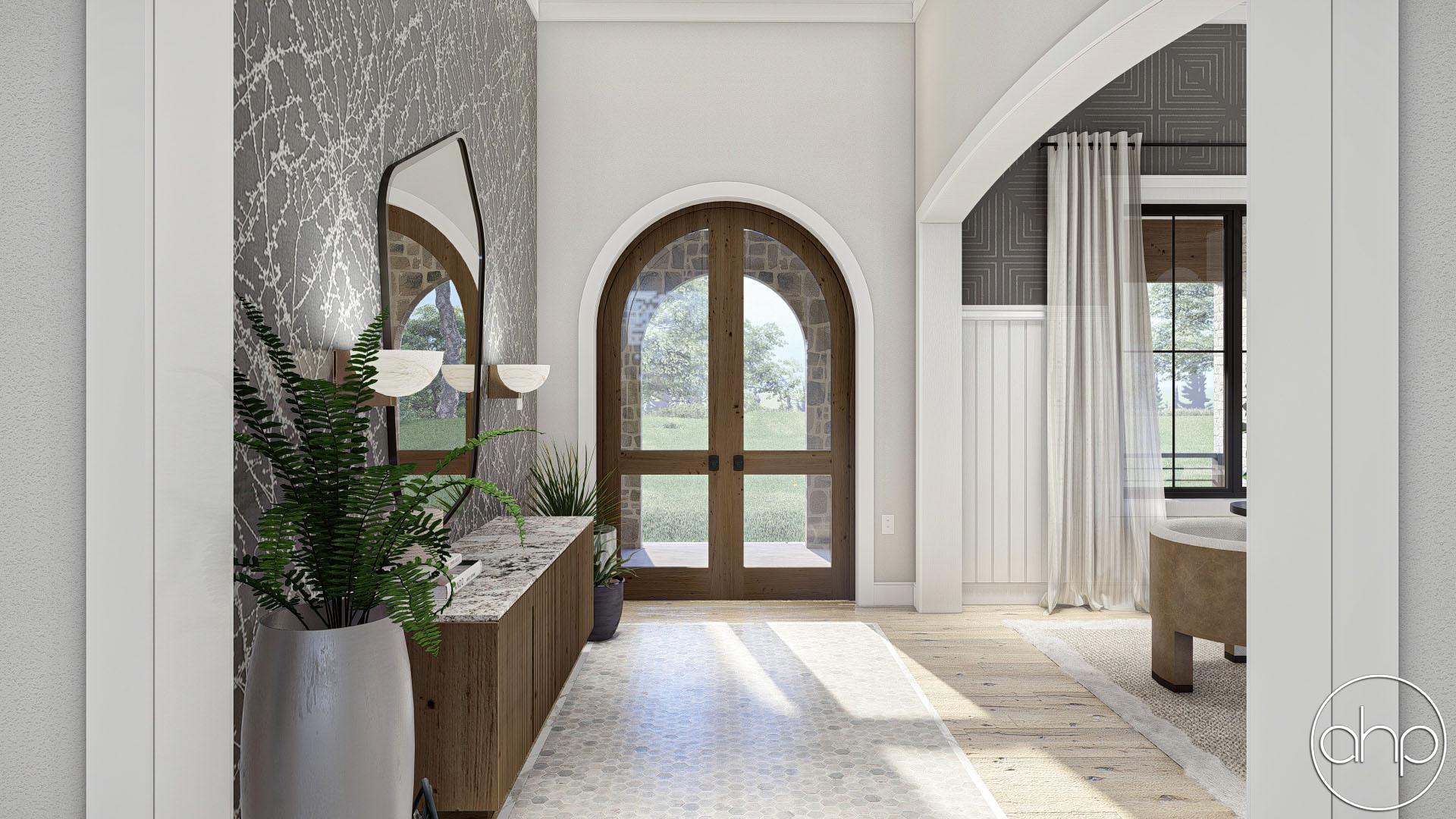

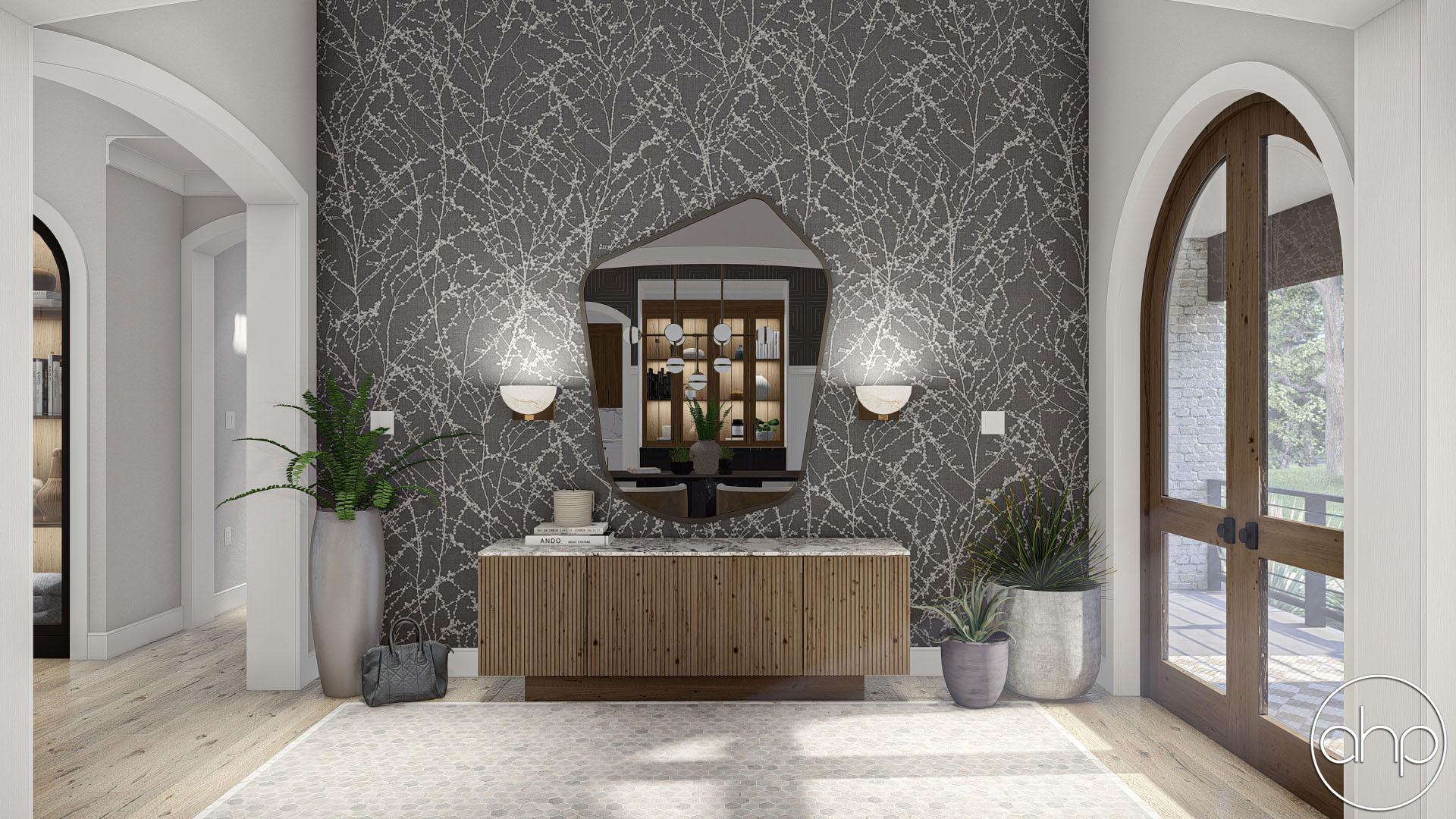

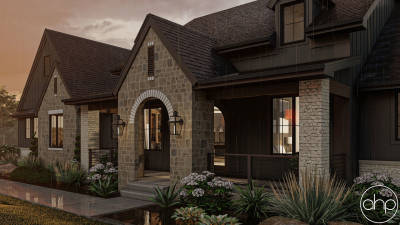

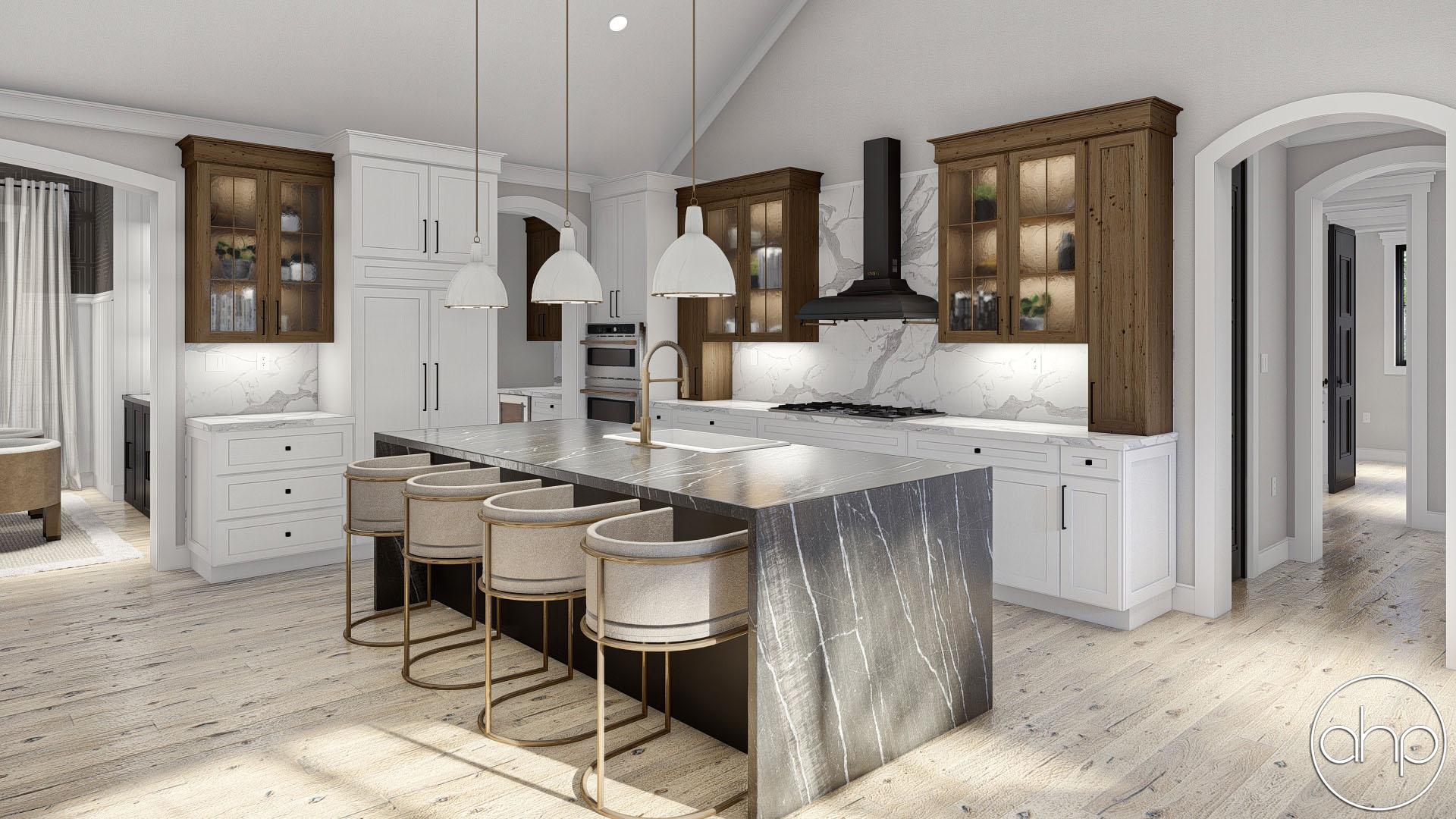

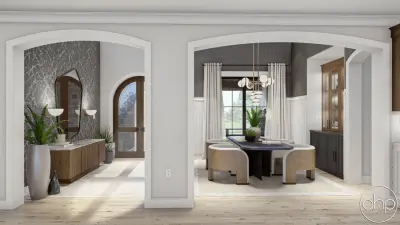

Walking up to the beautiful covered porch with stunning arch ways welcomes you right into a 12’ tall entryway with connection to the dining room. The great room with built-in shelving and a fireplace can be found by heading straight through the home, as well as an open-concept area including the dinette and kitchen.

The kitchen provides access to a small servery and walk-in pantry which loops back into the dining room, making the process of eating in the room much more seamless.

The left side of the home is where the master bedroom can be found, complete with 10’ ceilings, a spacious bathroom with a soaking tub, double vanities, separate shower and toilet, and large walk-in closet. Access to the laundry room can also be found in the closet, looping back out through the mudroom and two-car garage.

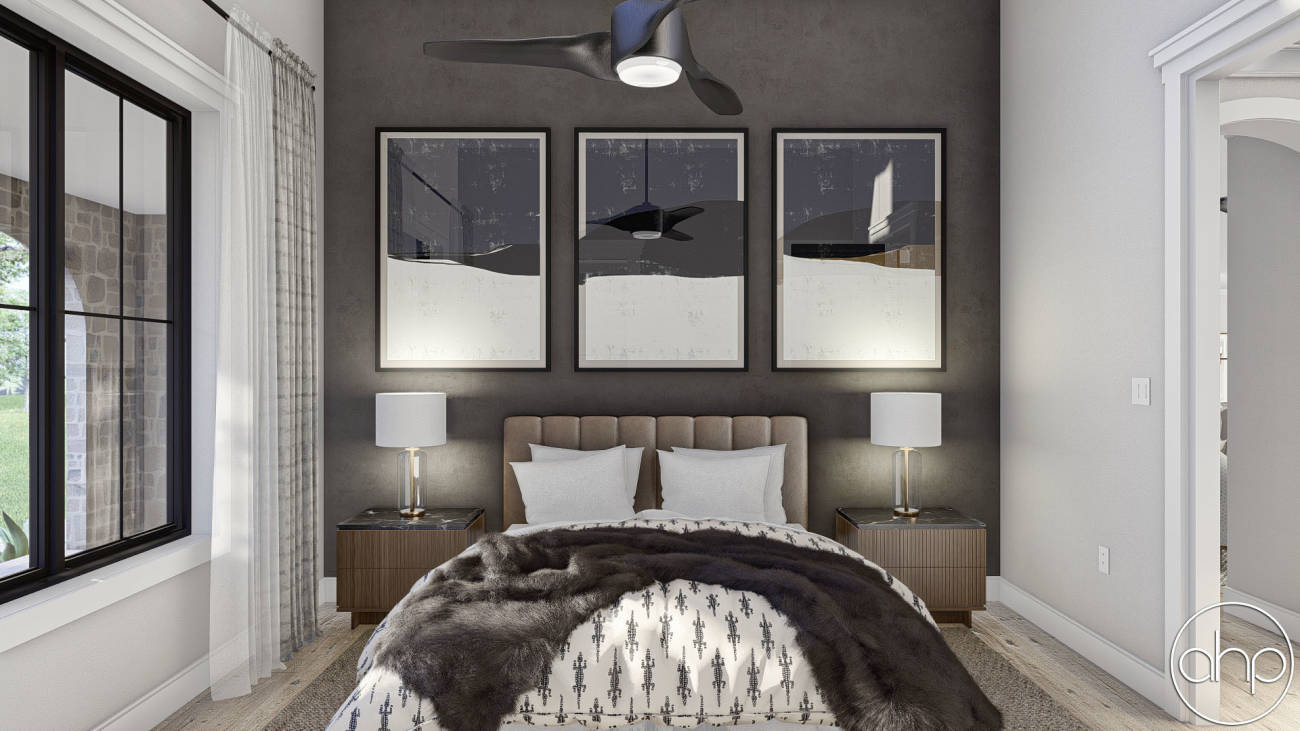

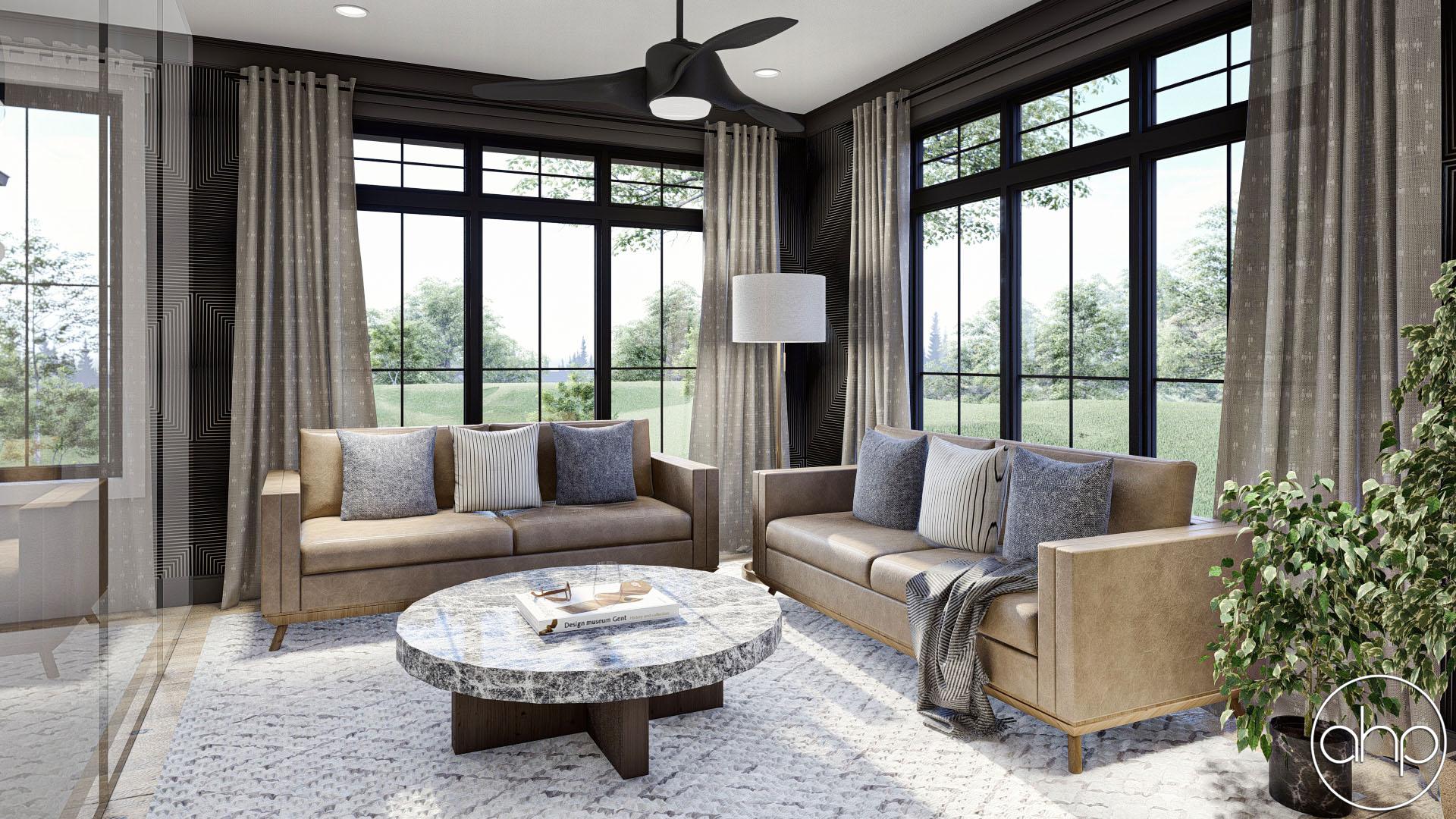

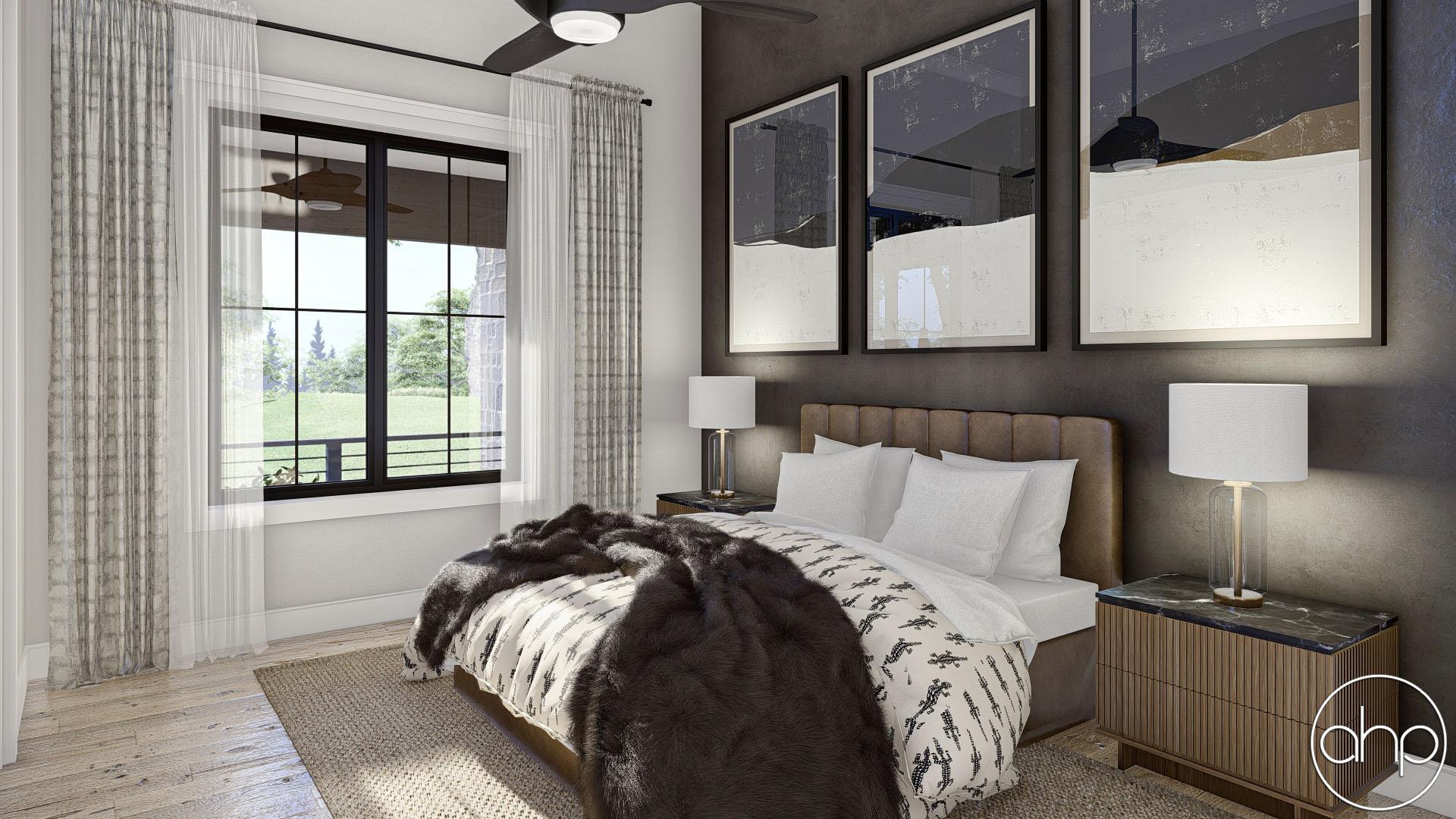

The right side of the home is where bedrooms 2 and 3 can be found, each with their own walk-in closet and shared private bathroom. A powder bath as well as a gorgeous sunroom are also on this side of the house with a beautiful covered patio in the rear as well.



As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 3
Bathrooms 3
Garage Bays 2
Square Footage
Main Level 2643 Sq. Ft.
Covered Area 594 Sq. Ft.
Garage 610 Sq. Ft.
Total Finished Area 2643 Sq. Ft.
Exterior Dimensions
Width 76 ' 0"
Depth 64 ' 0"
Ridge Height
Calculated from main floor line
26 ' 4"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Basement
Exterior Wall Construction
2x4
Roof Pitches
Primary 8/12, Secondary 14/12, 3/12, 12/12
Foundation Wall Height
9'
Main Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$1700
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.

Instant Cost-to-build Estimate™

See how much it will cost to build this plan. Our estimate includes everything so you'll have a good idea of how much to budget.
