Plan Description

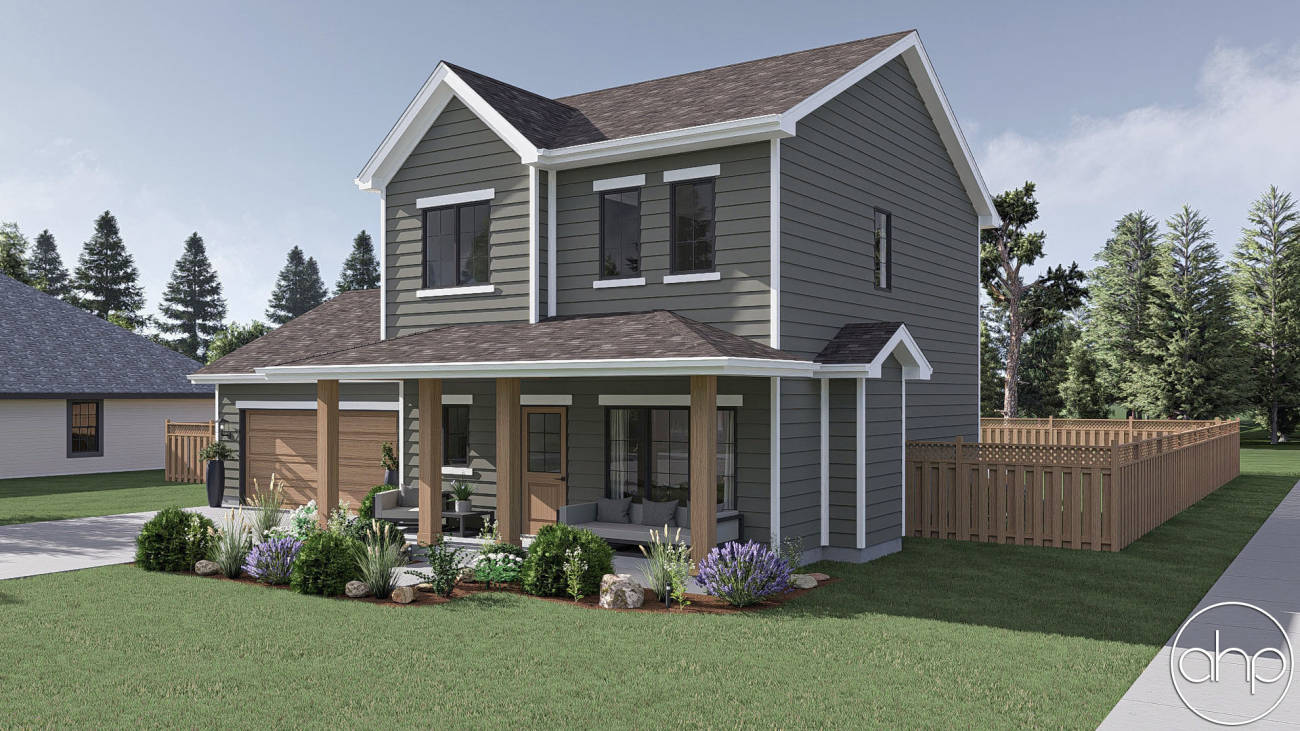

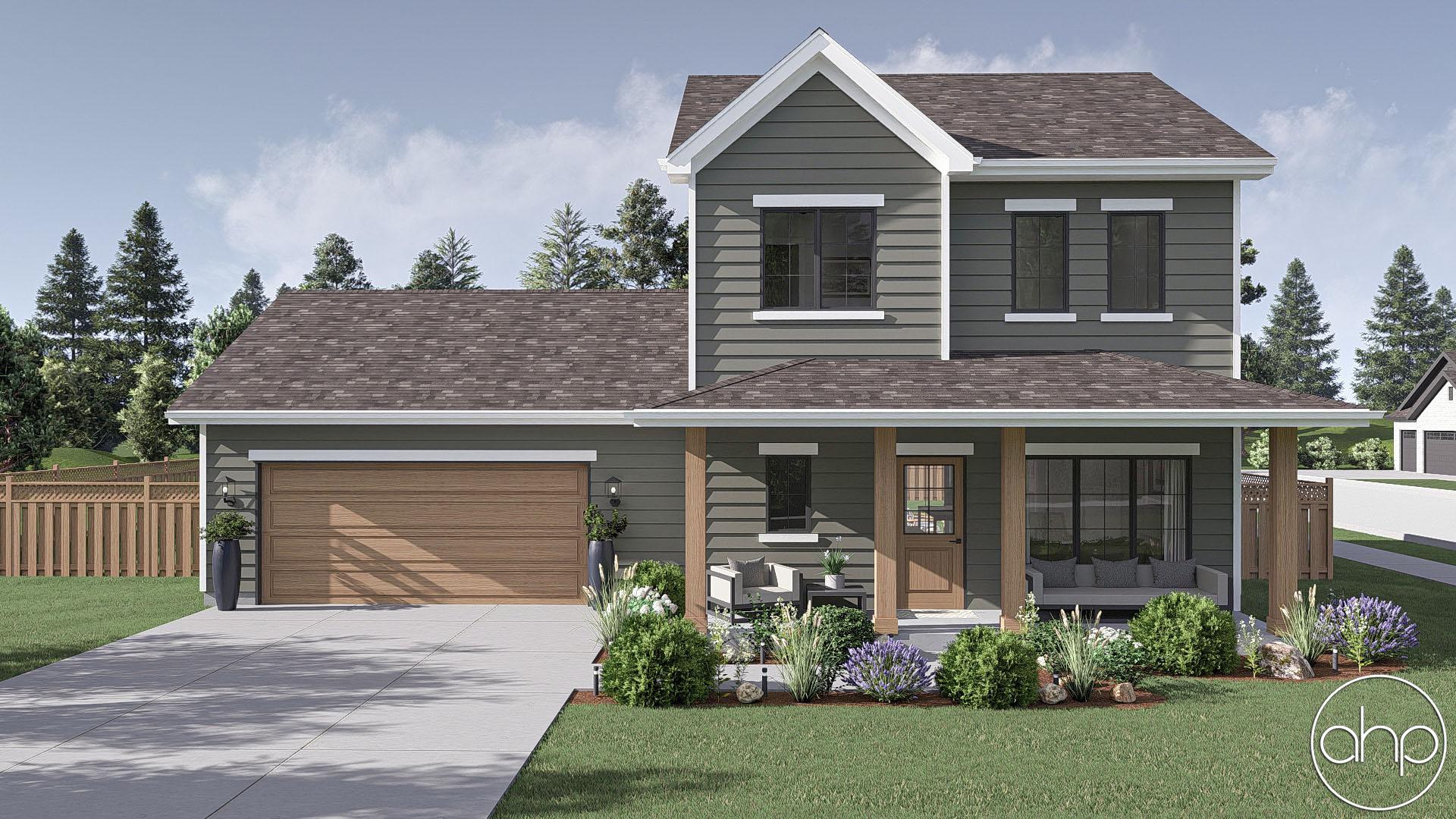

Welcome to the Grafton—a two-story traditional-style haven that combines charm, comfort, and practicality. From the moment you pull up, the curb appeal will captivate you with its classic lap siding and elegant wood-accented posts framing the covered front porch. It’s the perfect spot to relax and enjoy a peaceful morning or an evening breeze.

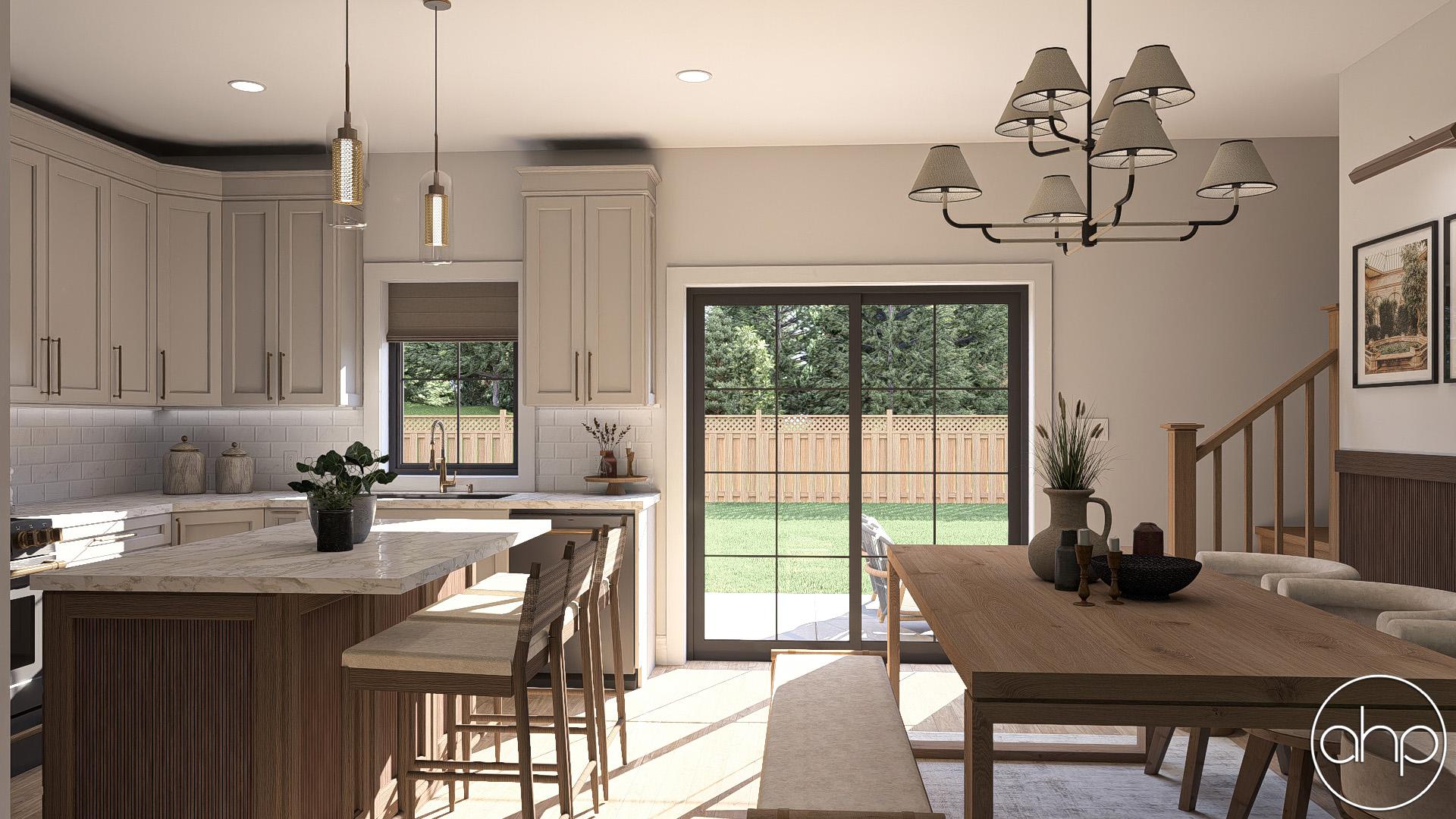

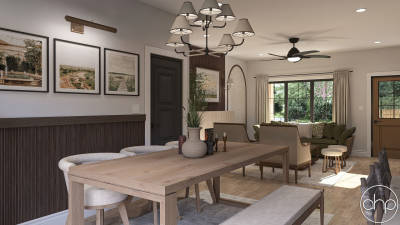

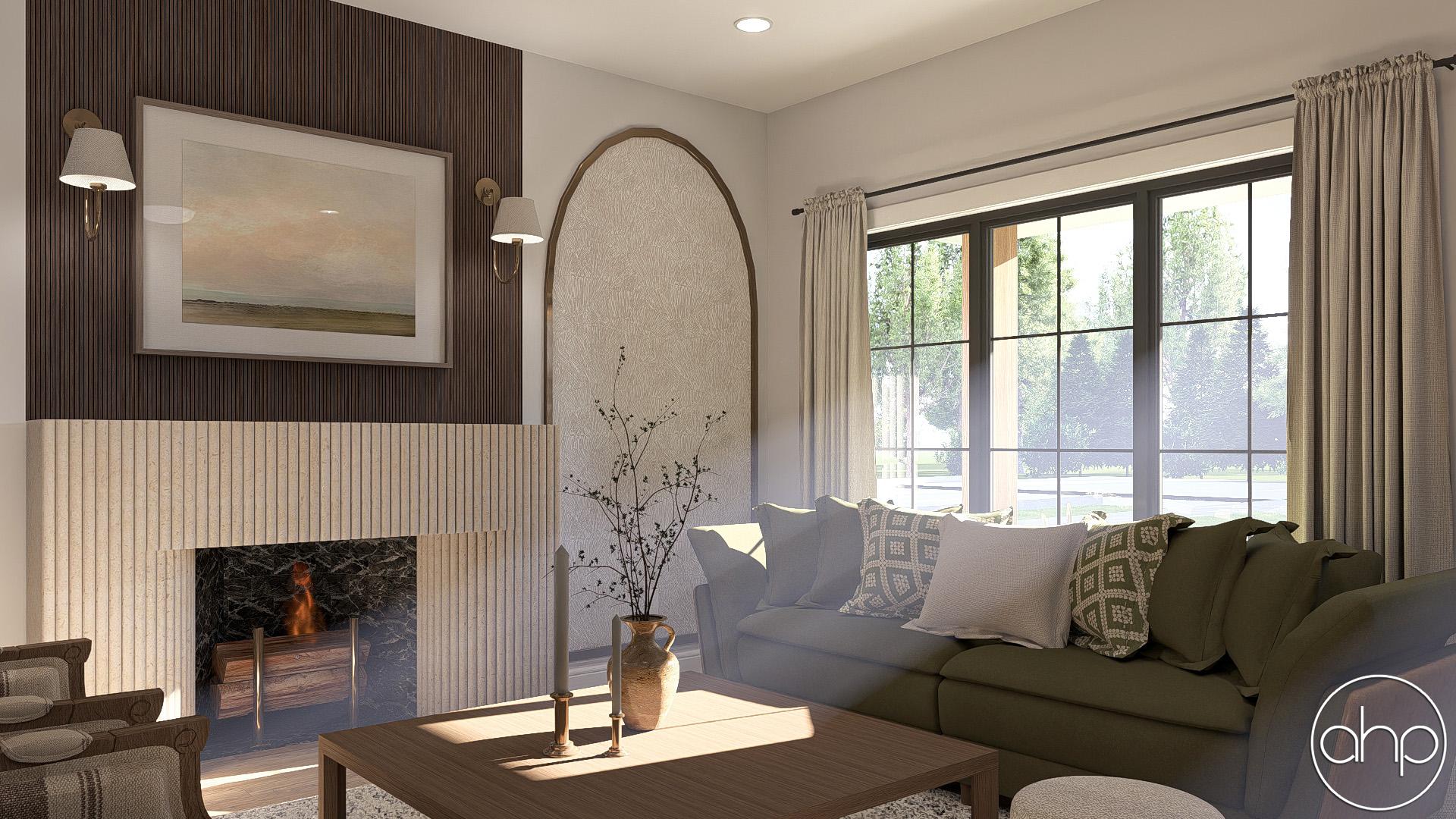

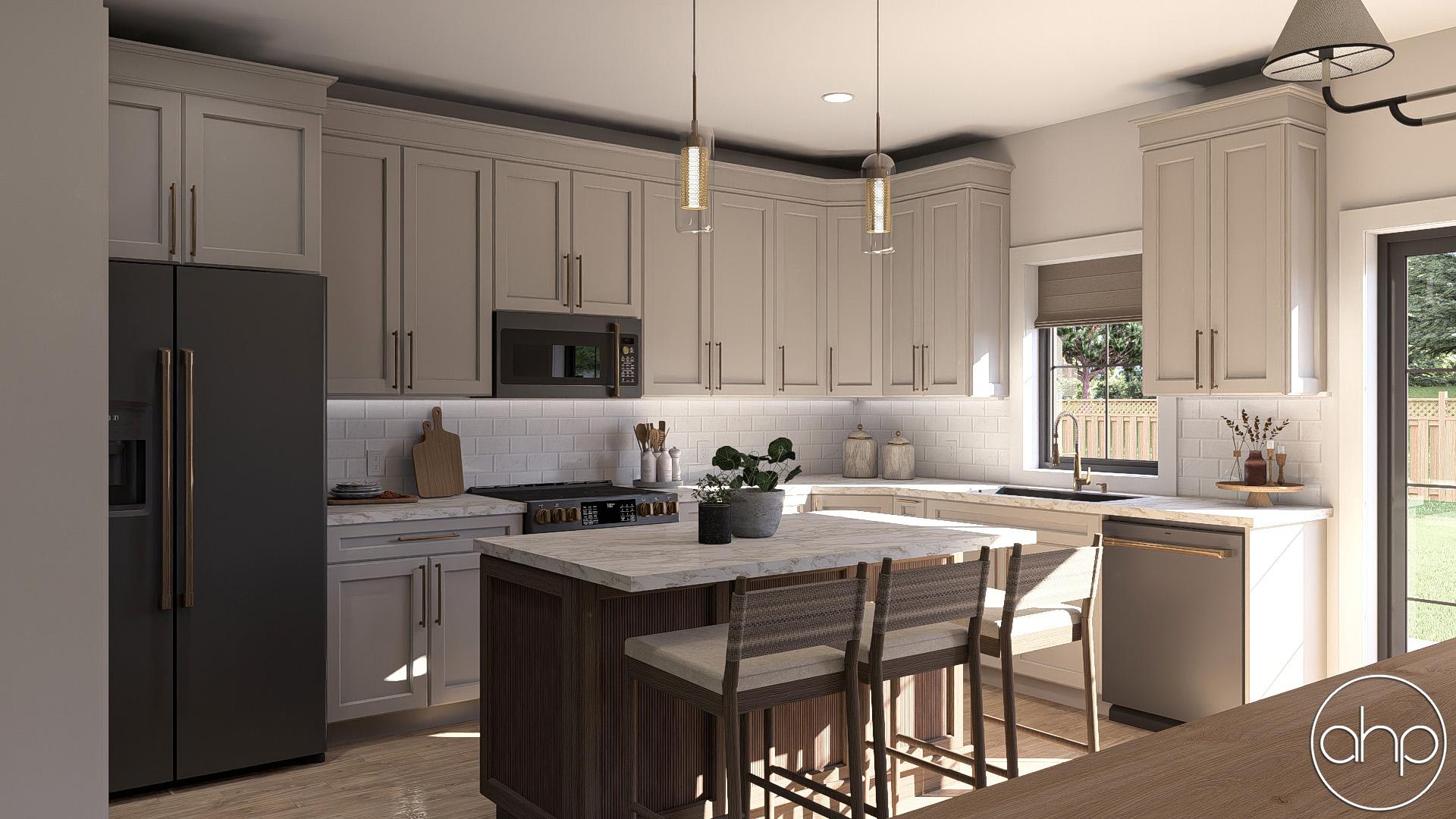

Step through the front door, and you’re immediately welcomed into a spacious and open living room. This inviting space flows effortlessly into the dining area and kitchen, creating the perfect environment for hosting family gatherings, holiday dinners, or casual evenings with friends. With its open-concept design, this home ensures every space feels connected and vibrant.
Conveniently located on the main floor, you’ll find a powder bathroom for guests and a laundry room, making everyday chores more manageable without interrupting the home’s flow.
As you head upstairs, you’ll find three well-sized bedrooms, each with its own closet to keep everything organized. The master bedroom is truly a highlight, featuring a large walk-in closet and an en-suite bathroom, offering you a private retreat to unwind and recharge.
The two-car garage is tucked neatly to the side, maintaining the home’s classic facade while giving you plenty of space for vehicles, storage, or hobbies.
The home's blend of style and functionality is designed to fit your lifestyle perfectly!
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 3 |
| Bathrooms | 3 |
| Garage Bays | 2 |
| Square Footage Breakdown | |
| Main Level | 710 Sq Ft |
| Second Level | 667 Sq Ft |
| Total Finished Area | 1377 Sq Ft |
| Garage | 608 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 142 Sq Ft |
| Exterior Dimensions | |
| Width | 49' 8" |
| Depth | 36' 0" |
| Ridge Height | 27' 8" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x4 |
| Roof Pitches | Primary 6/12, Secondary 4/12, 10/12 |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 9' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
Note: The material list is for estimation purposes only.
