Traditional Style Carriage House Plan | Gideon

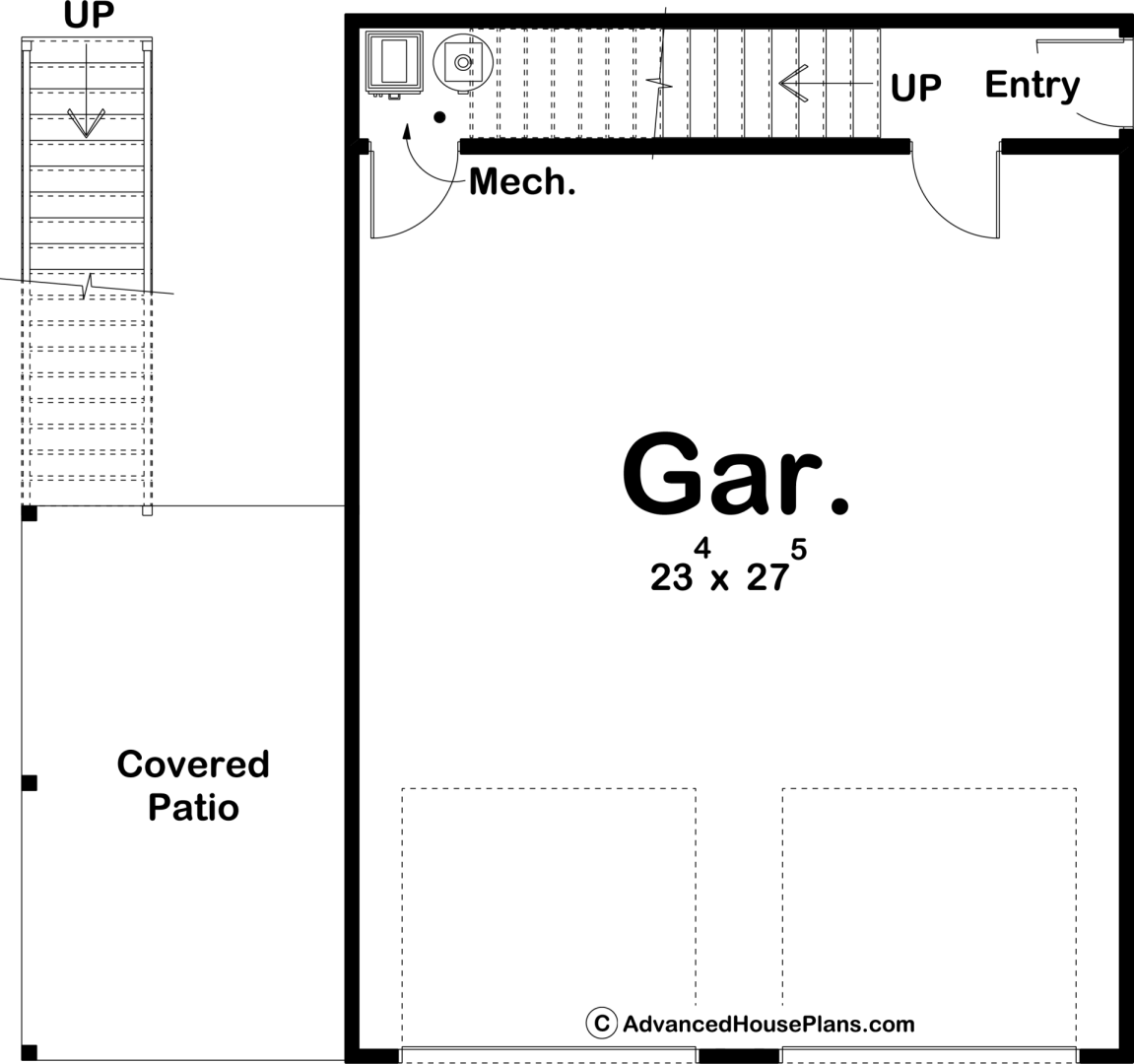

Floor Plan Images
Plan Description

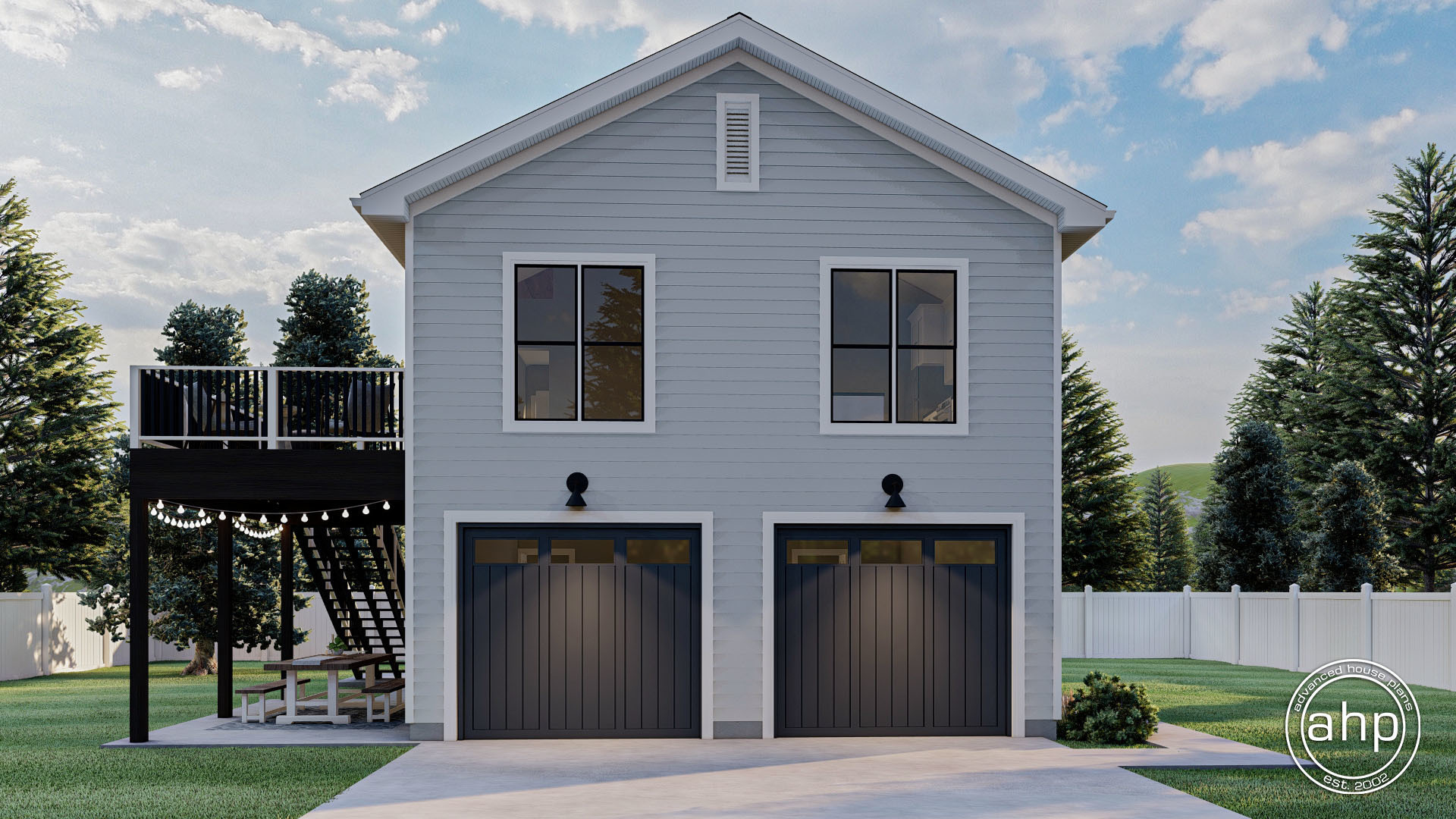

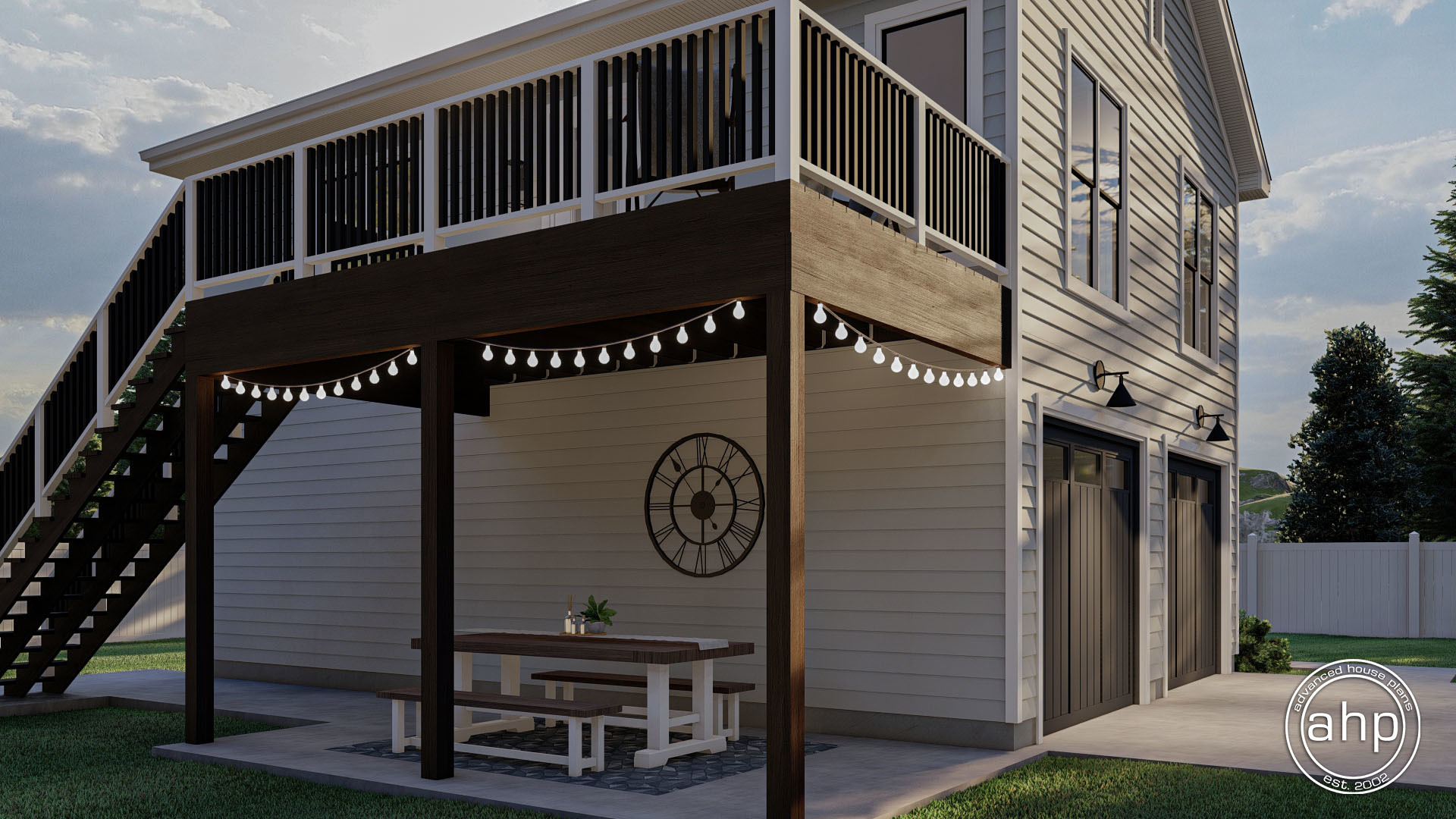

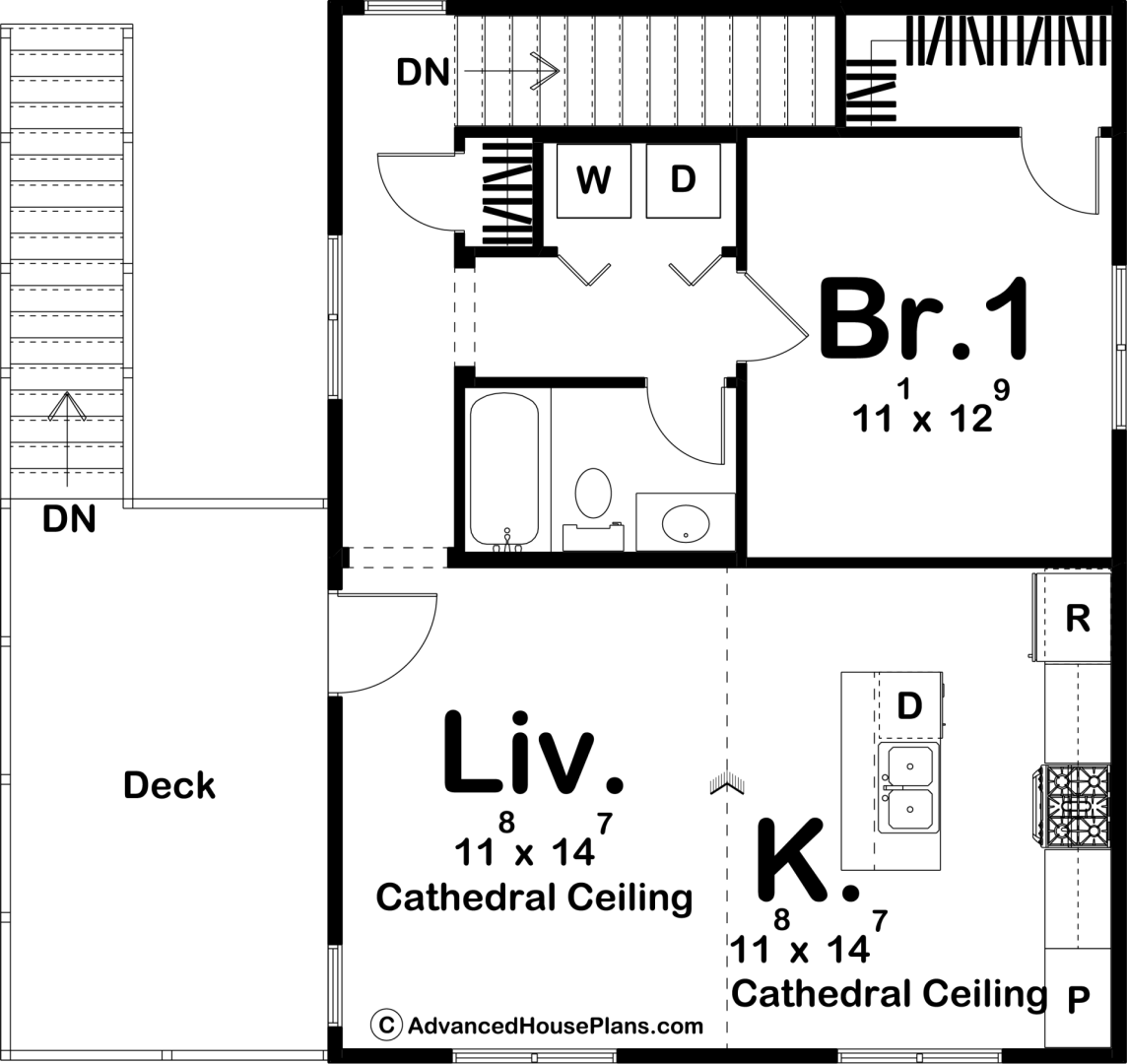

The Gideon plan is a wonderful carriage house plan that features a 1 bedroom apartment above a 2 car garage. A covered patio on the main floor creates a perfect space to relax after working in your garage. Upstairs, a well thought out apartment includes a bedroom with a walk-in closet. The kitchen opens up to the living room and includes a pantry and an island.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 1 |
| Bathrooms | 1 |
| Garage Bays | 2 |
| Square Footage Breakdown | |
| Main Level | 103 Sq Ft |
| Second Level | 736 Sq Ft |
| Total Finished Area | 839 Sq Ft |
| Garage | 667 Sq Ft |
| Exterior Dimensions | |
| Width | 34' 0" |
| Depth | 32' 0" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x4 |
| Roof Pitches | 6/12 Primary |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 9' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
