Bermuda Style Garage Plan | Garbatella
Floor Plan Images
Plan Video Tour
Plan Description

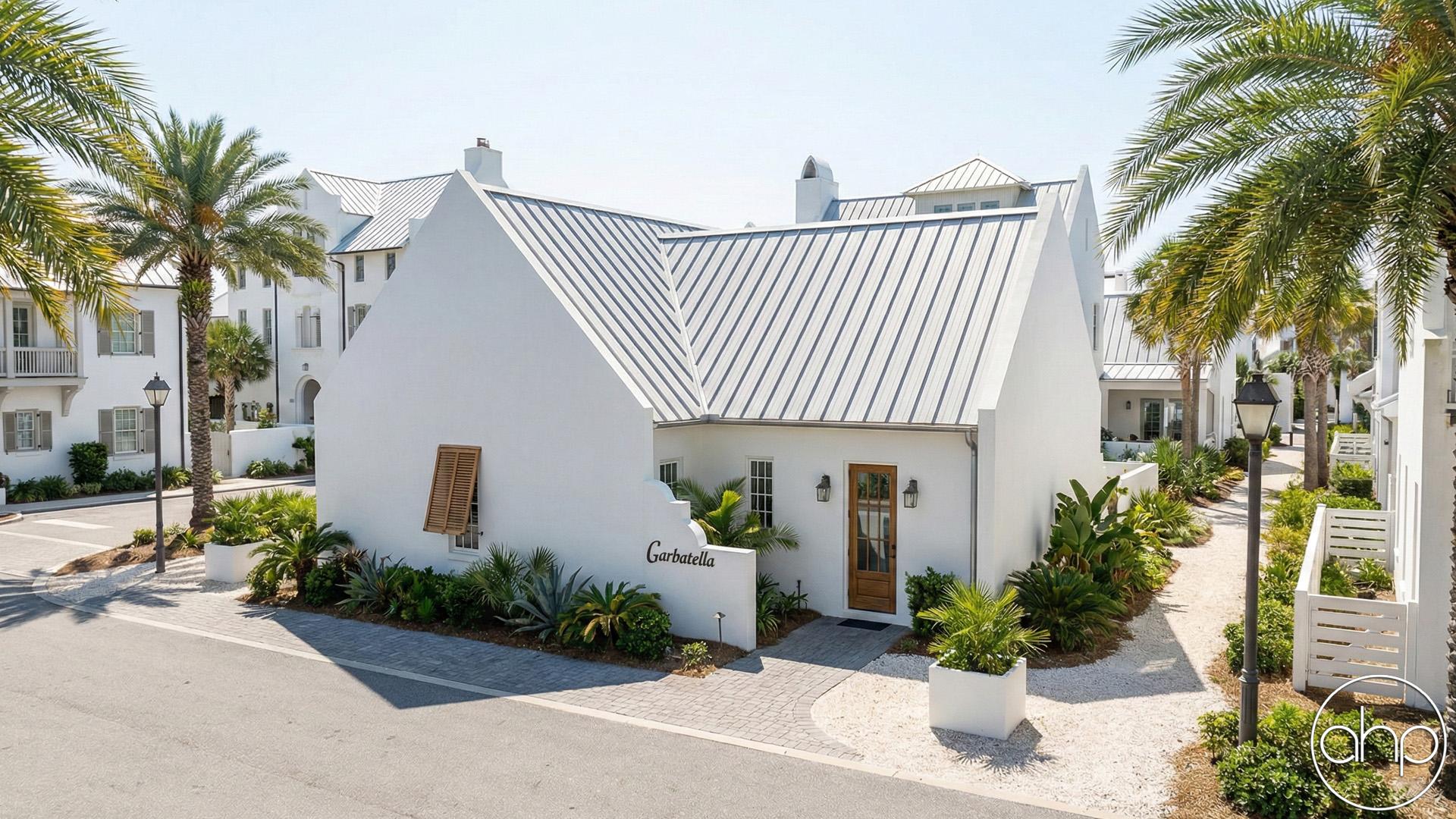

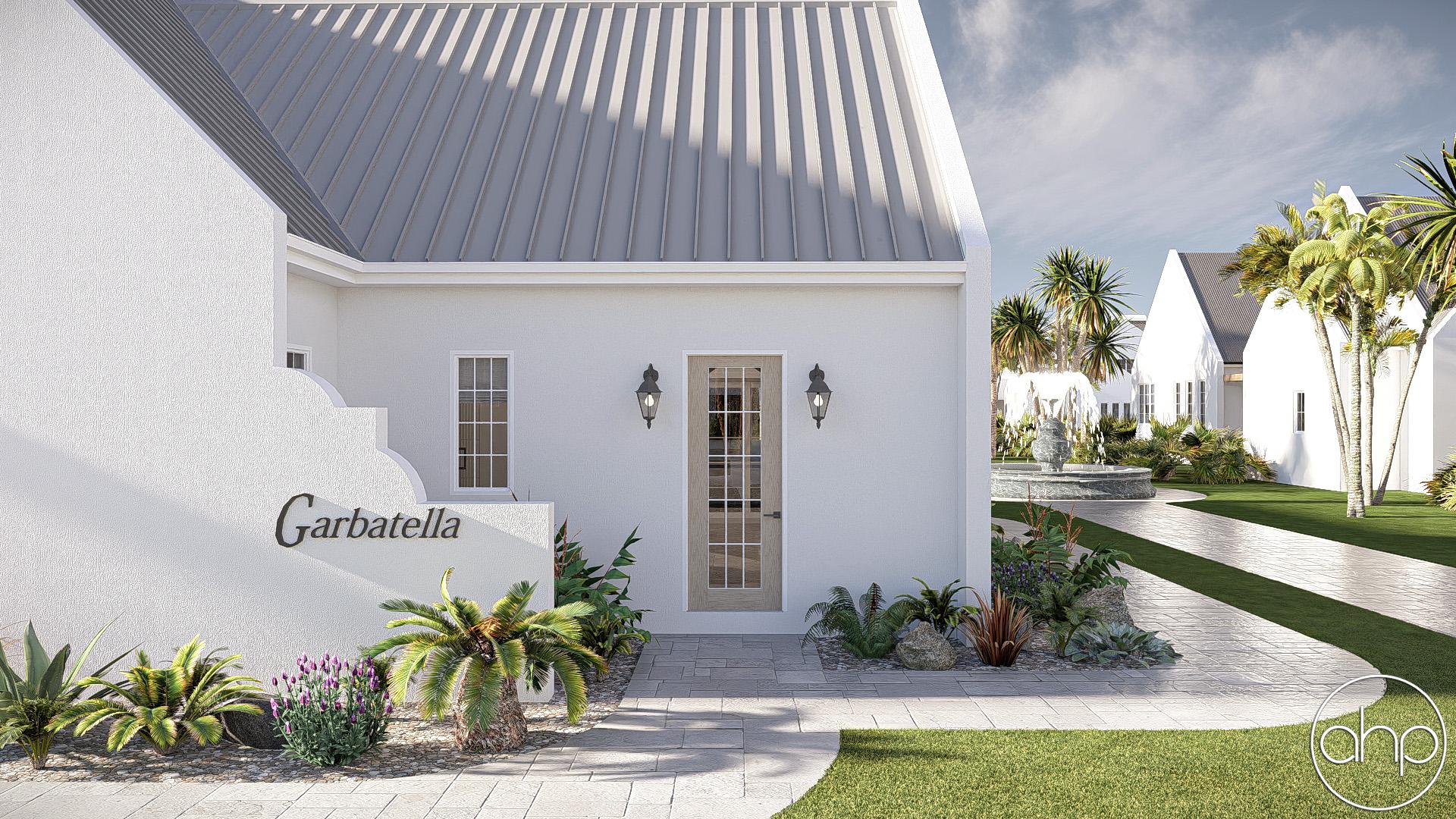

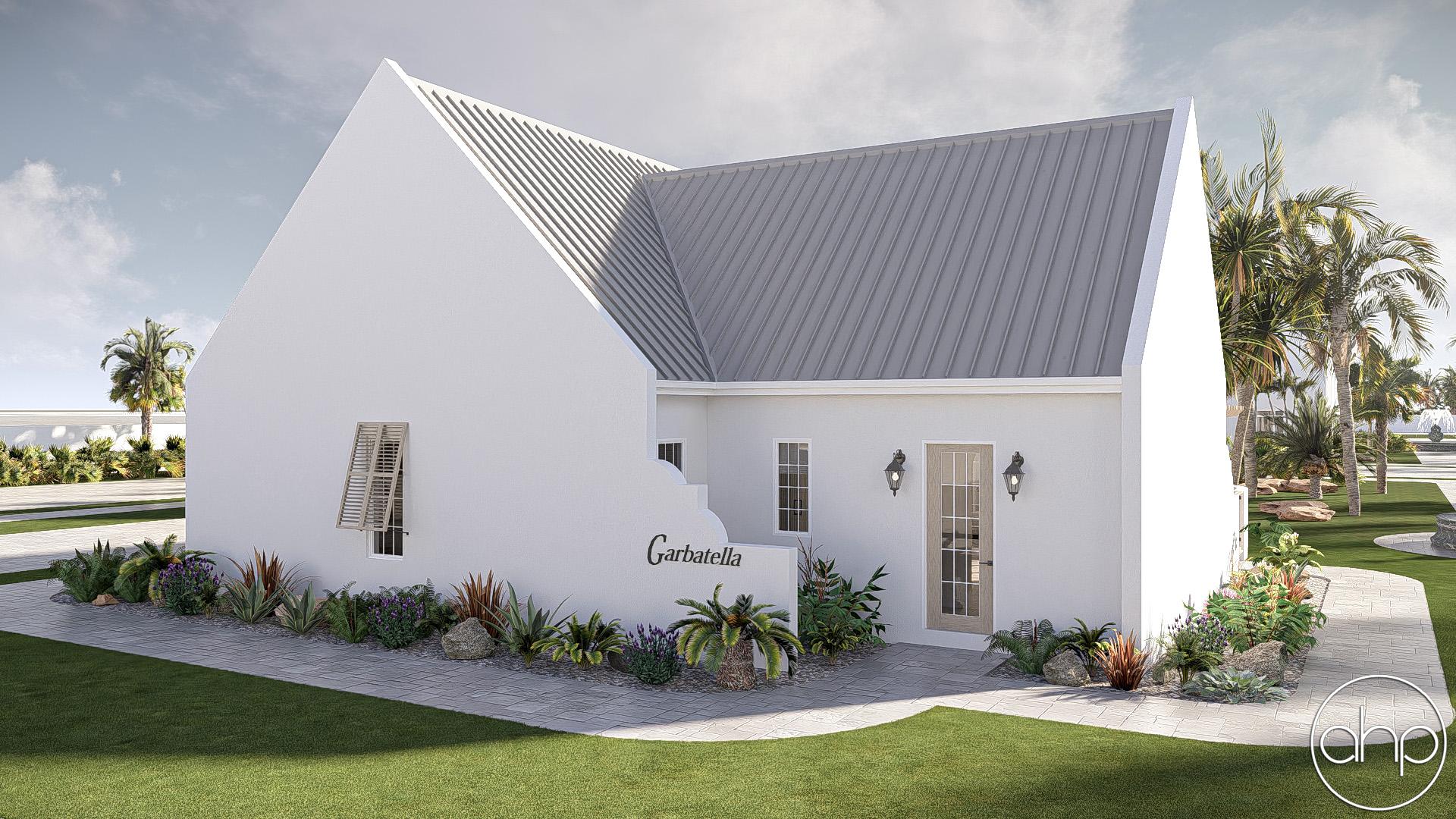

This Bermuda-style specialty garage plan combines clean lines and refined architectural detail with a highly functional layout. The exterior is finished entirely in smooth stucco, creating a crisp, minimalist façade that emphasizes simplicity, texture, and form. Subtle detailing and balanced proportions give the structure a sophisticated yet understated presence.

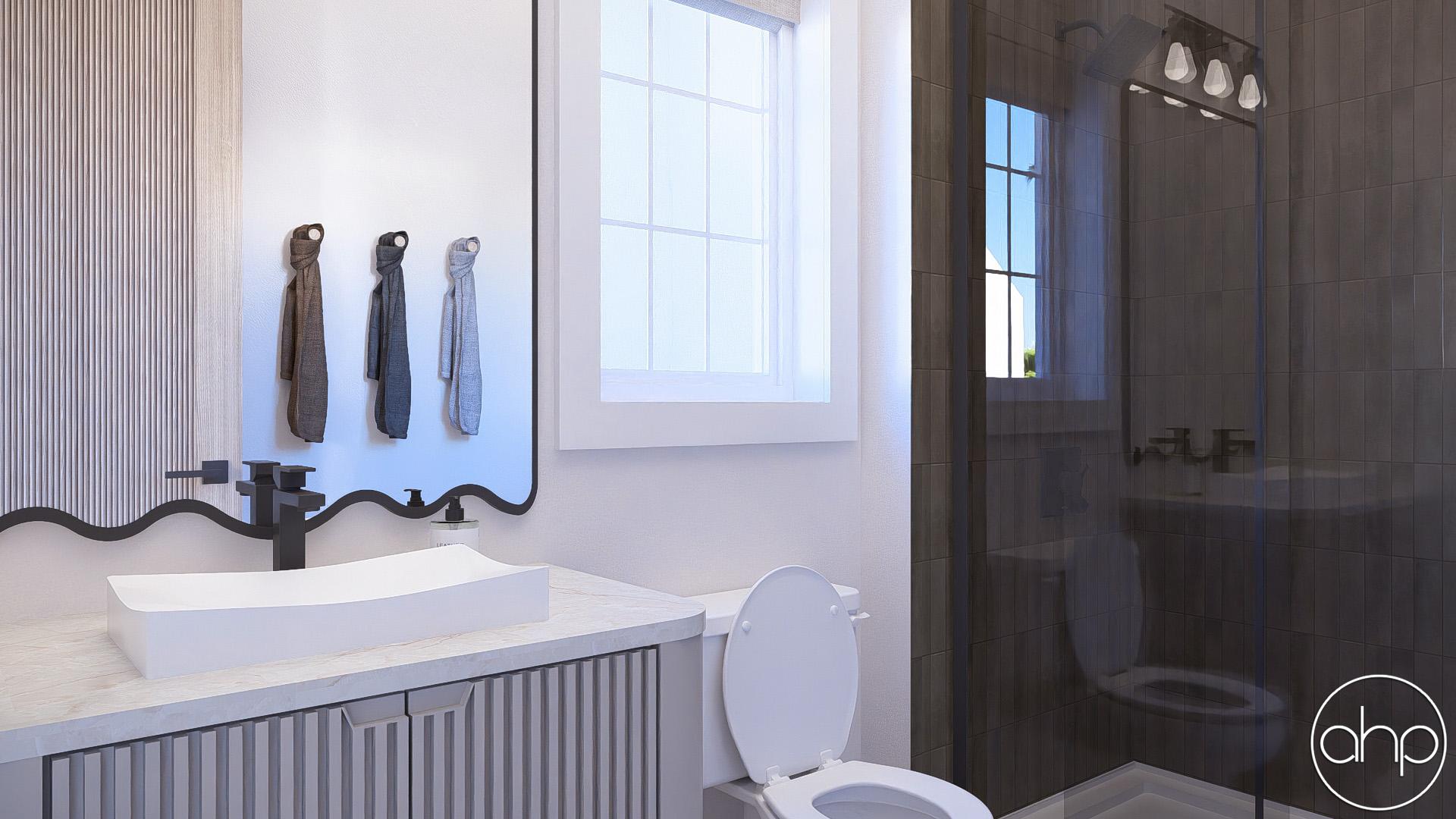

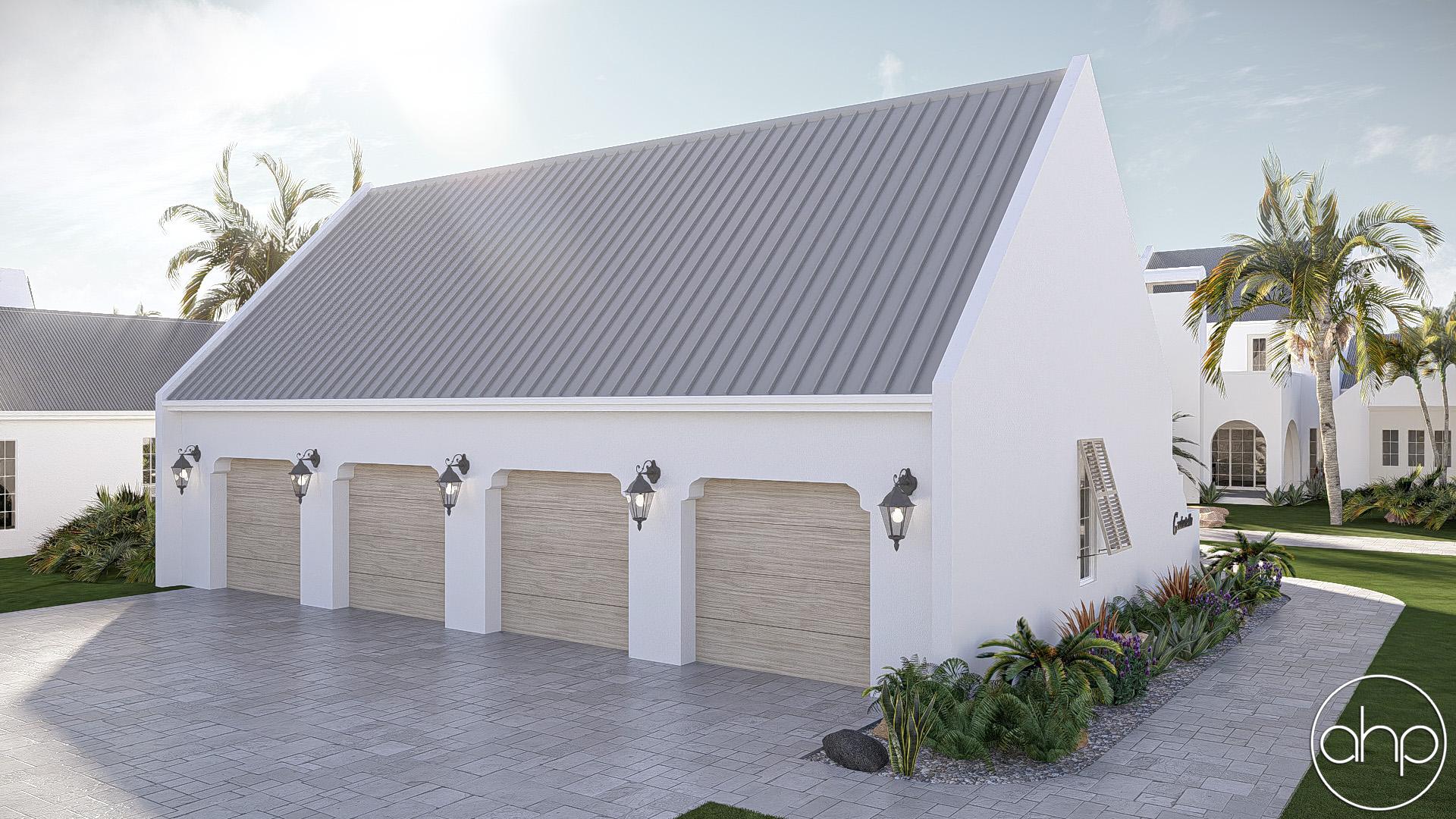

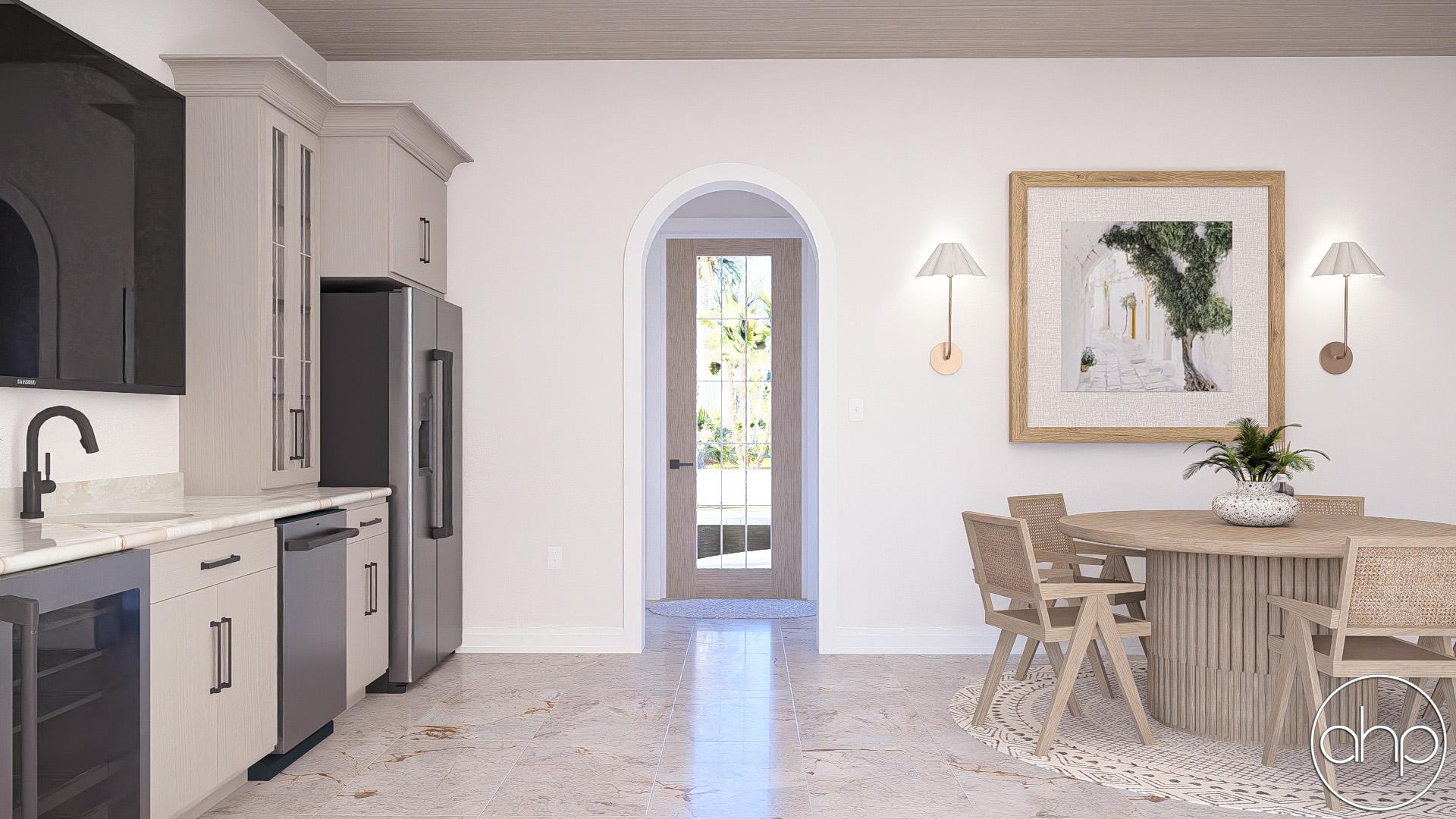

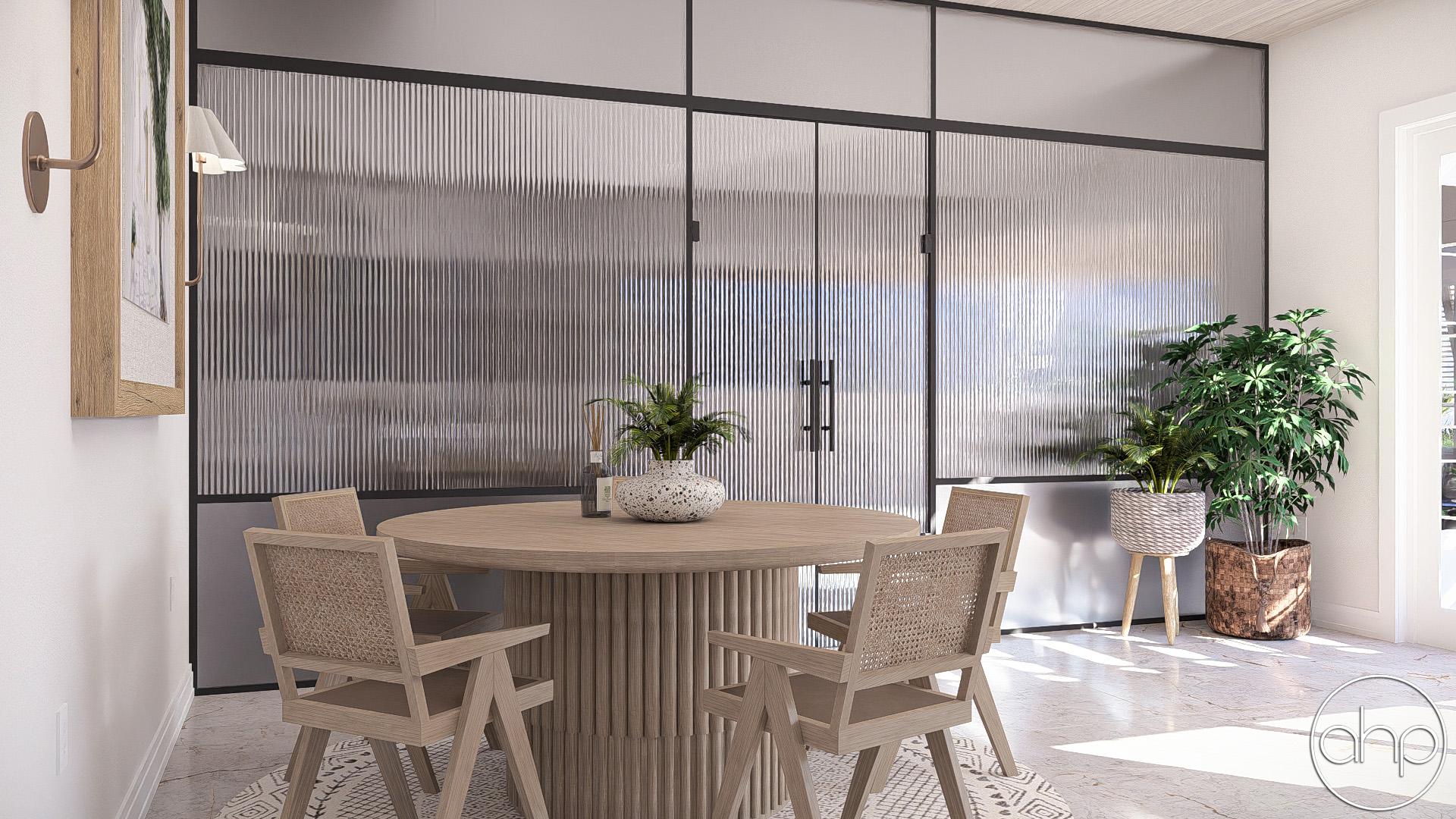

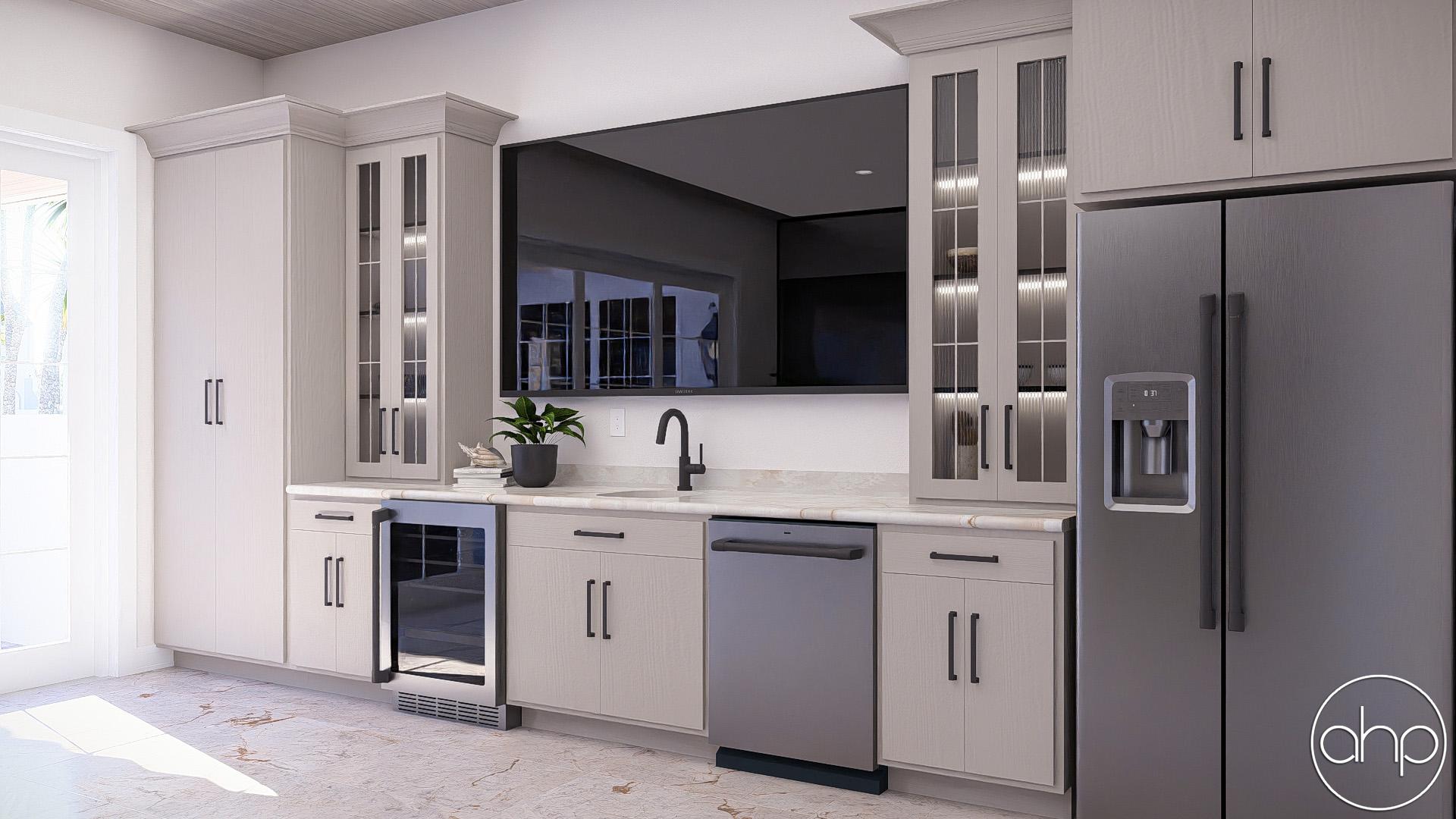

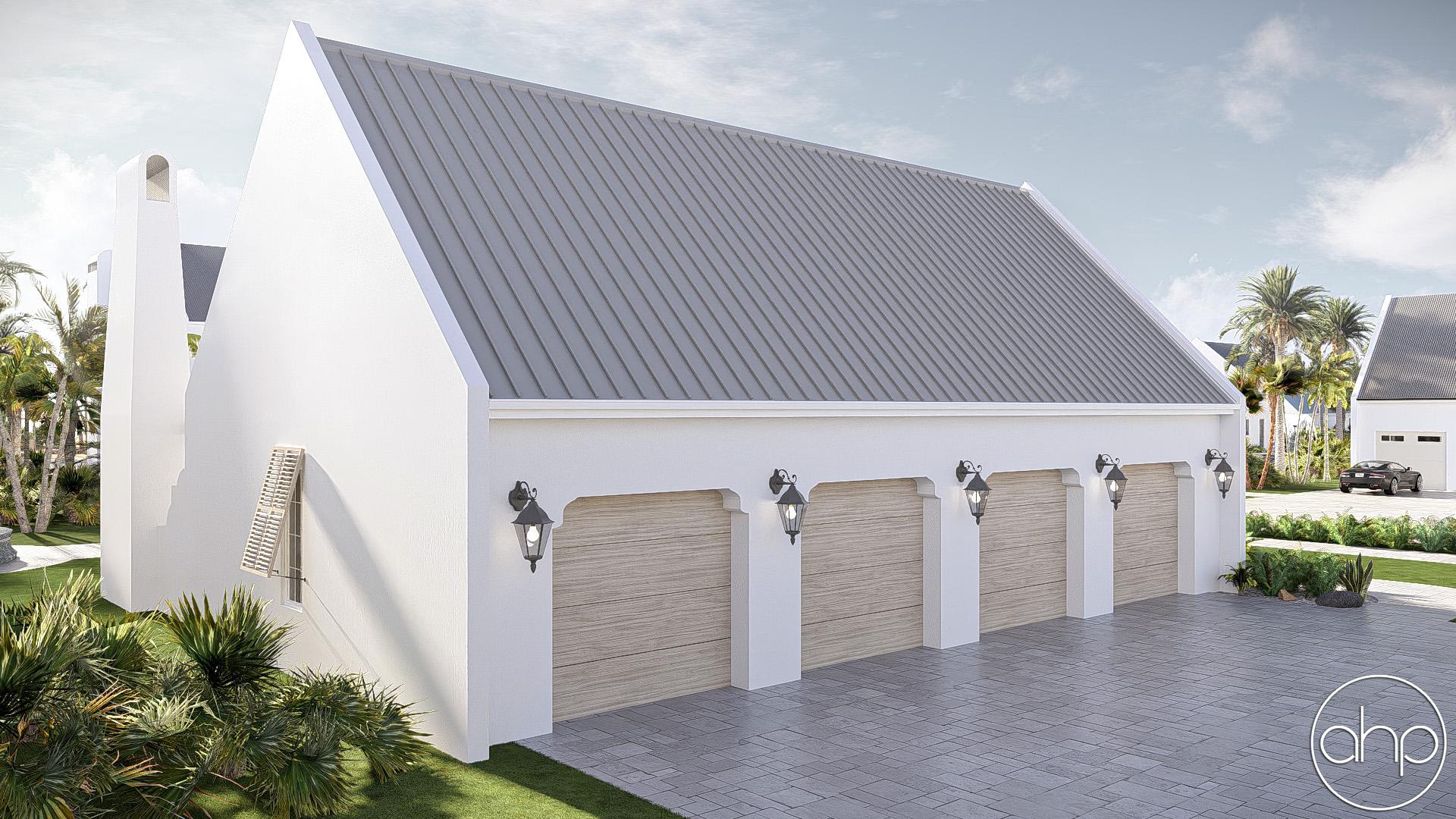

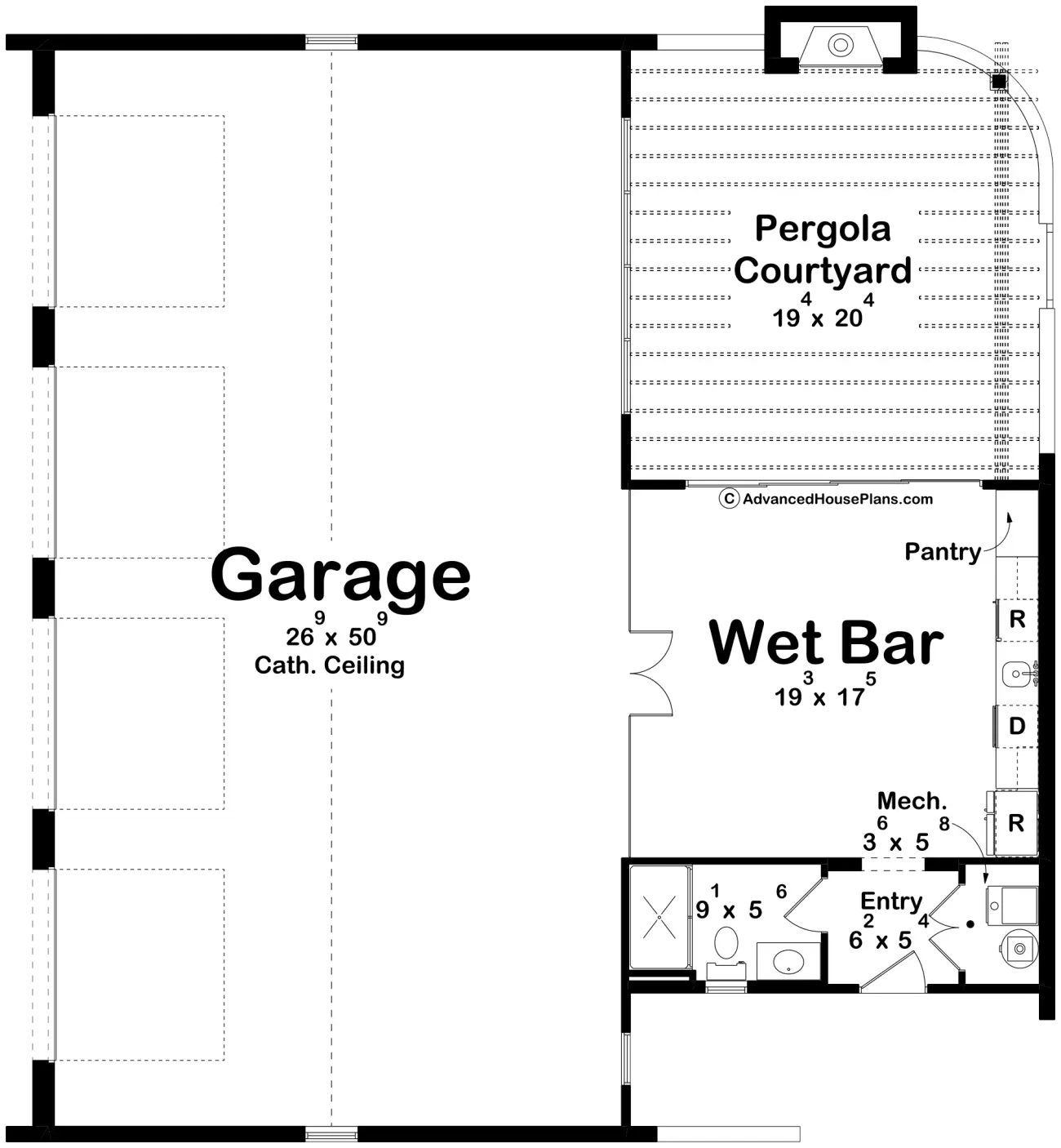

Inside, the design features a welcoming entry, a private bathroom, and an open wet bar area that adds flexibility and entertainment value. The expansive four-car garage is the highlight of the plan, showcasing a dramatic cathedral ceiling that enhances the sense of scale and architectural interest while maintaining the airy, modern aesthetic.

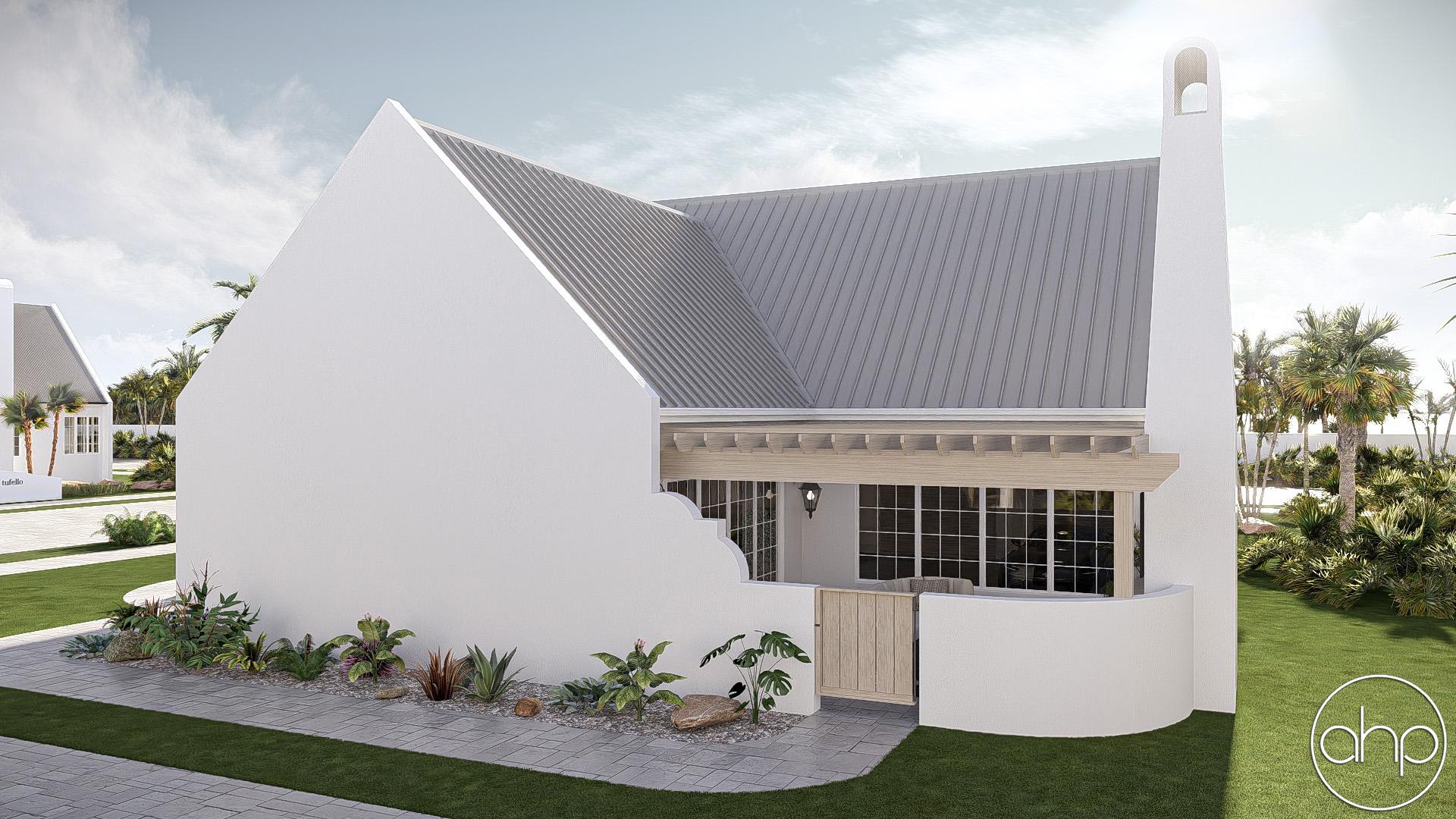

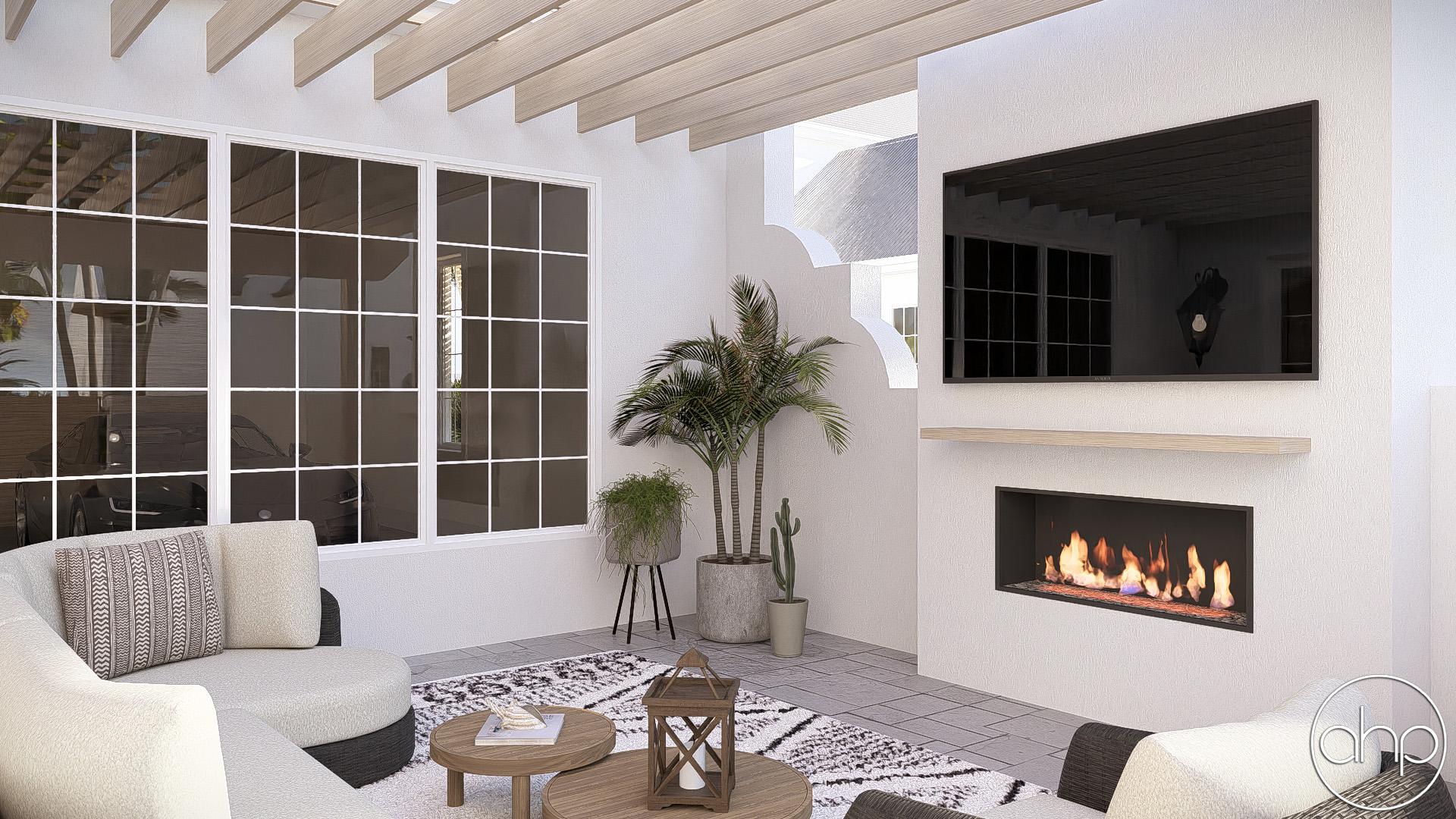

At the rear, a pergola-covered courtyard extends the living space outdoors, complete with a fireplace for year-round enjoyment. This thoughtfully designed ADU blends minimalism with comfort and functionality, creating a versatile structure that feels both elevated and inviting.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 0 |
| Bathrooms | 1 |
| Garage Bays | 4 |
| Square Footage Breakdown | |
| Main Level | 482 Sq Ft |
| Total Finished Area | 482 Sq Ft |
| Garage | 1454 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 411 Sq Ft |
| Exterior Dimensions | |
| Width | 49' 4" |
| Depth | 53' 4" |
| Ridge Height | 25' 9" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x4 |
| Roof Construction Method | Trusses |
| Roof Pitches | Primary 12/12 |
| Main Level Ceiling Height | 10' |
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
Note: A material list is included for all garage plans.
