Barndominium Style House Plan | Gallatin
Floor Plan Images
Plan Description

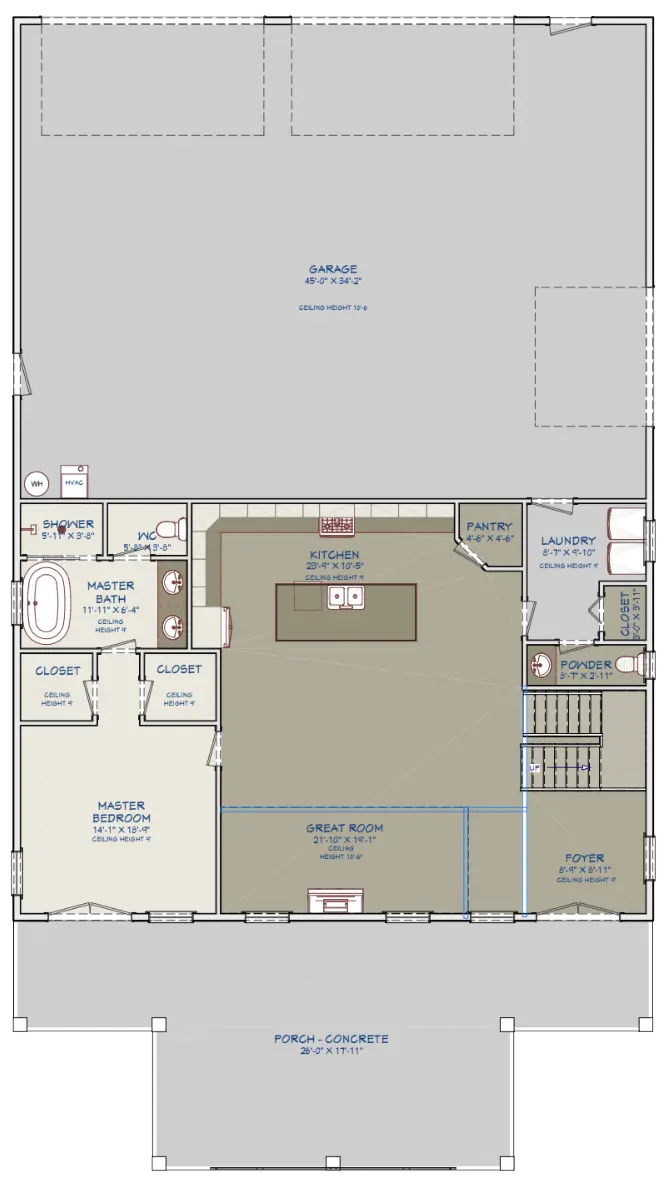

This 1.5-story barndominium offers a functional and inviting layout with a rear-entry garage and open-concept living spaces. The foyer welcomes you into a spacious great room and dining area, seamlessly connected to a large kitchen just beyond—ideal for everyday living and entertaining. The main level features a private master suite with his-and-her closets and a generous en-suite bathroom. Upstairs, three additional bedrooms and a loft overlooking the great room provide flexible space for family, guests, or relaxation.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 4 |
| Bathrooms | 3 |
| Garage Bays | 3 |
| Square Footage Breakdown | |
| Main Level | 1388 Sq Ft |
| Second Level | 1169 Sq Ft |
| Total Finished Area | 2557 Sq Ft |
| Garage | 1602 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 628 Sq Ft |
| Exterior Dimensions | |
| Width | 46' 0" |
| Depth | 83' 0" |
| Ridge Height | 32' 0" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x6 |
| Roof Construction Method | Trusses |
| Floor Construction Method | I-Joists |
| Roof Pitches | Primary 7/12 |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 8' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.

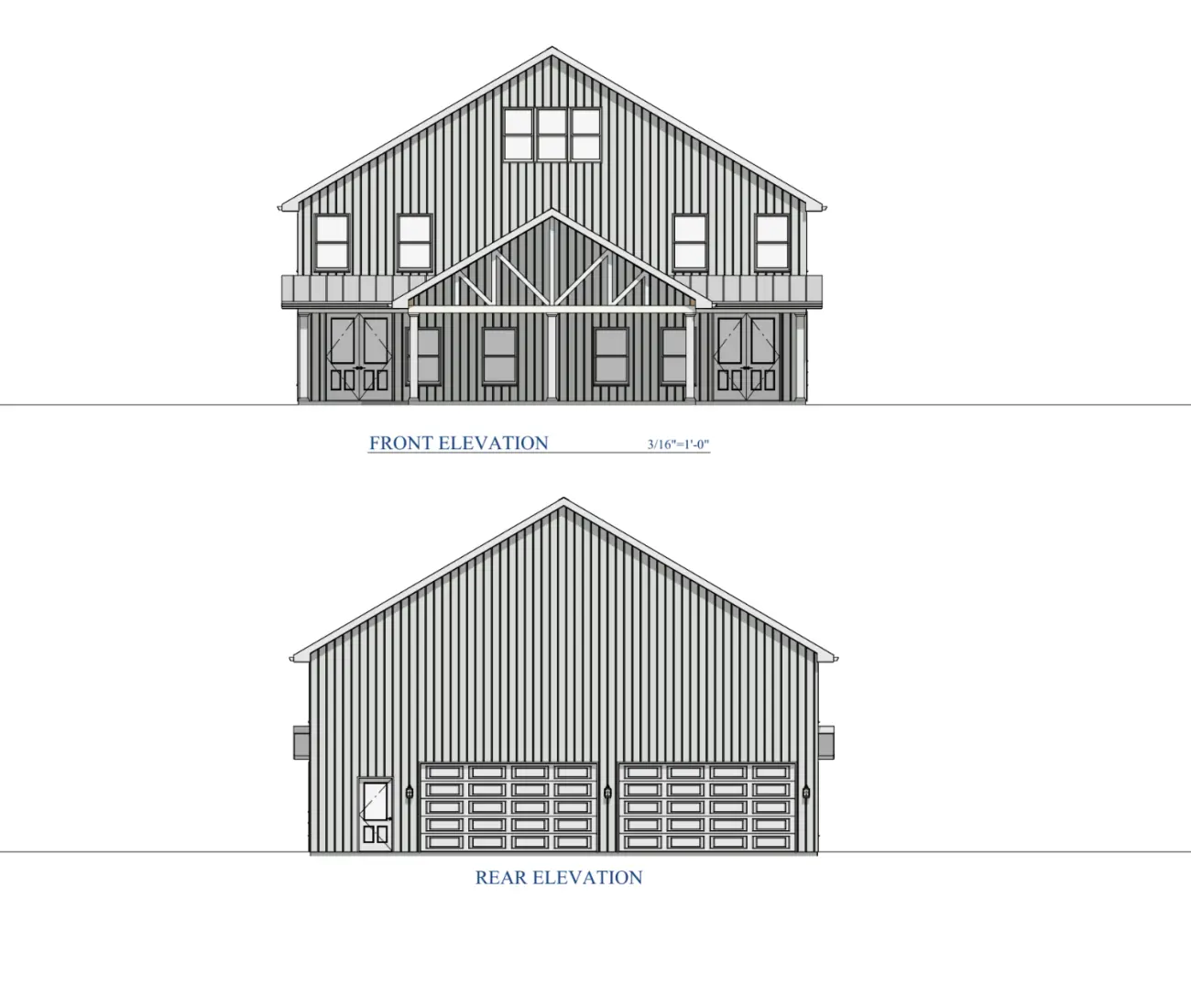

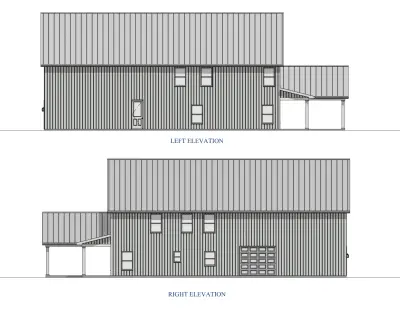

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
