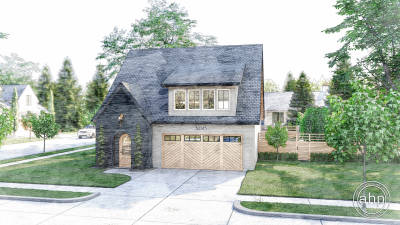

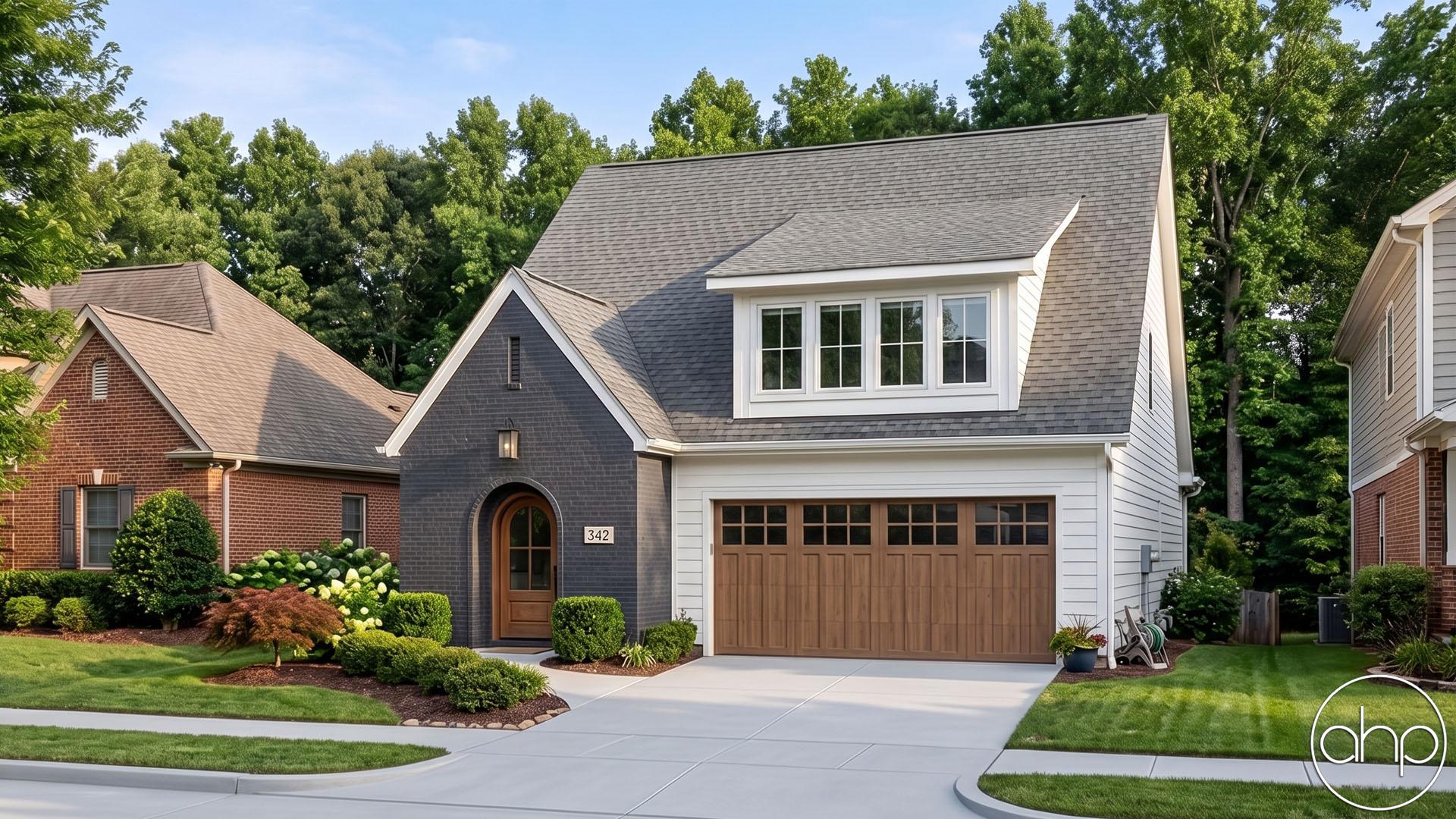

Colter Bay Rendering Colter Bay Rendering Colter Bay Rendering Colter Bay Rendering Colter Bay Rendering Colter Bay Rendering Colter Bay Rendering Colter Bay Rendering Colter Bay Rendering Colter Bay Rendering Colter Bay Rendering Colter Bay Rendering Colter Bay Rendering
NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

Modern Cottage Carriage House Plan

Colter Bay - 30154

802
Sq Ft
1
Beds
1
Baths
2
Bays
31' 0"
Wide
35' 0"
Deep

Floor Plan Images

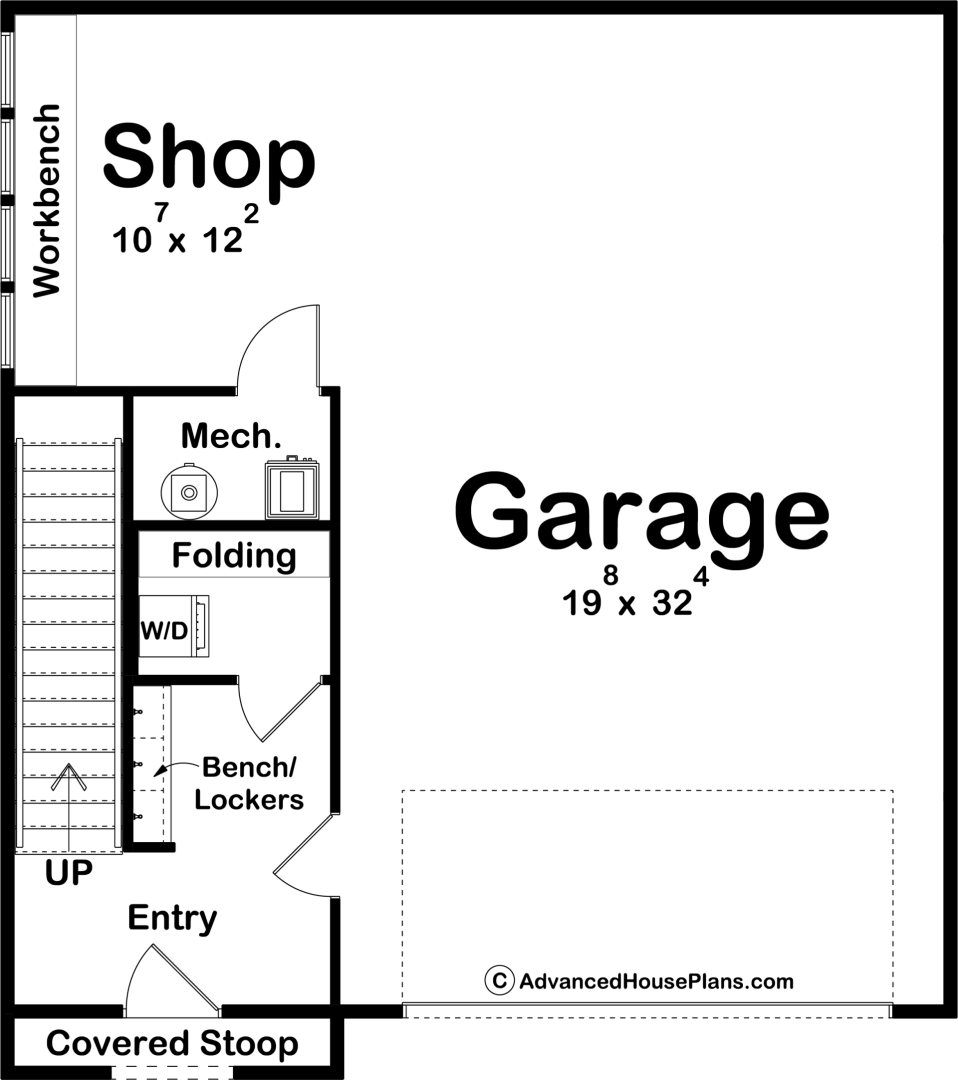

Main Level

Colter Bay

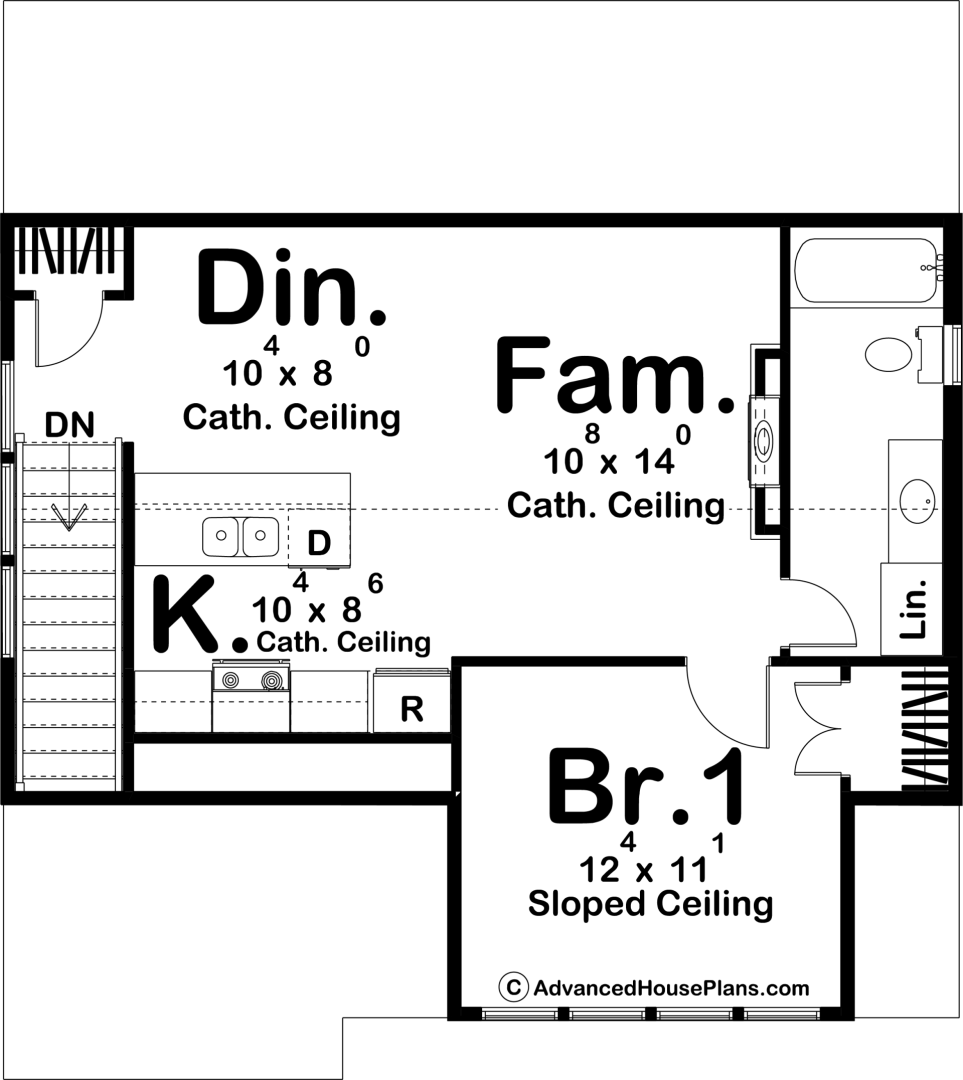

Second Level

Colter Bay

Plan Description

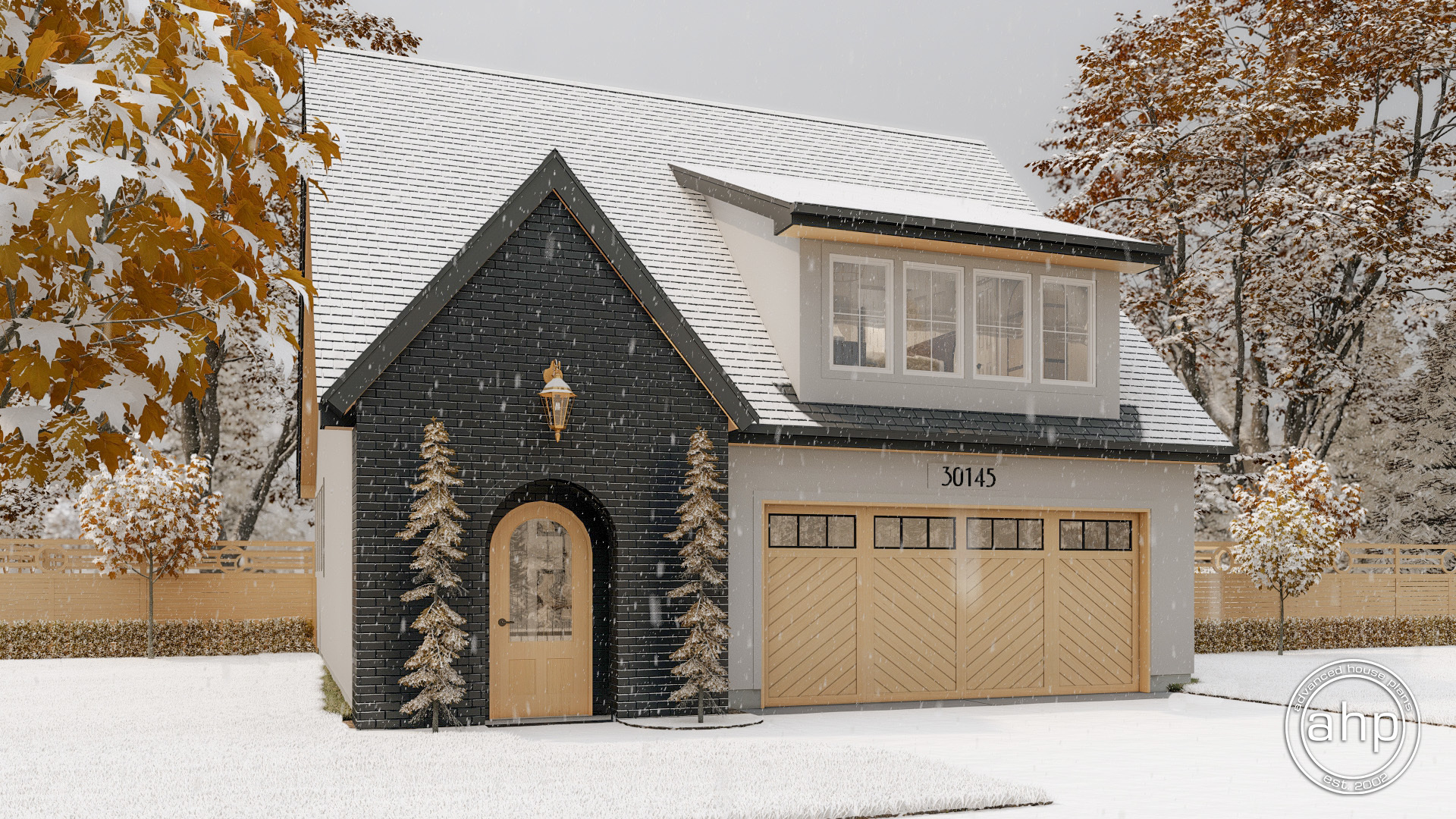

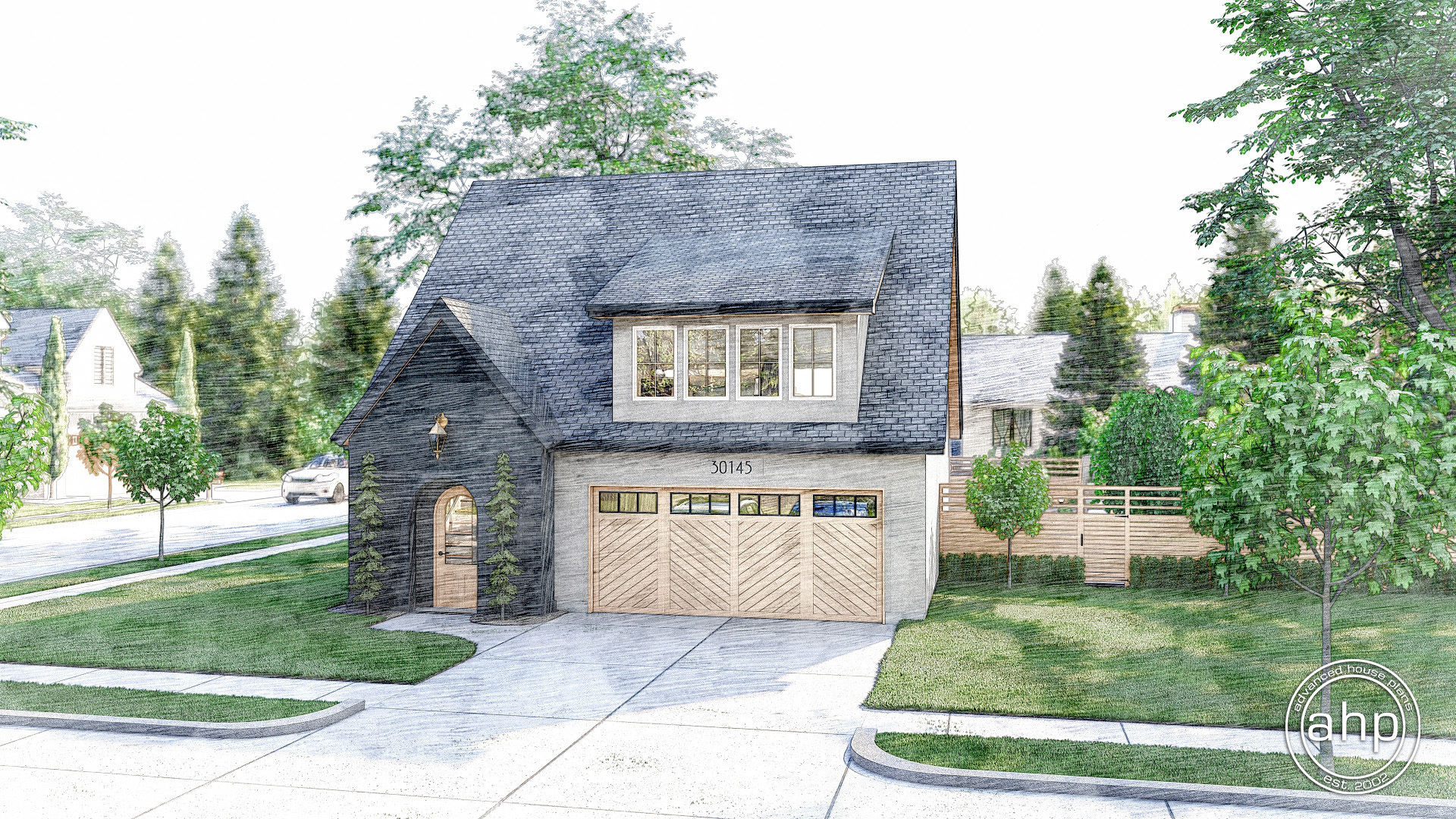

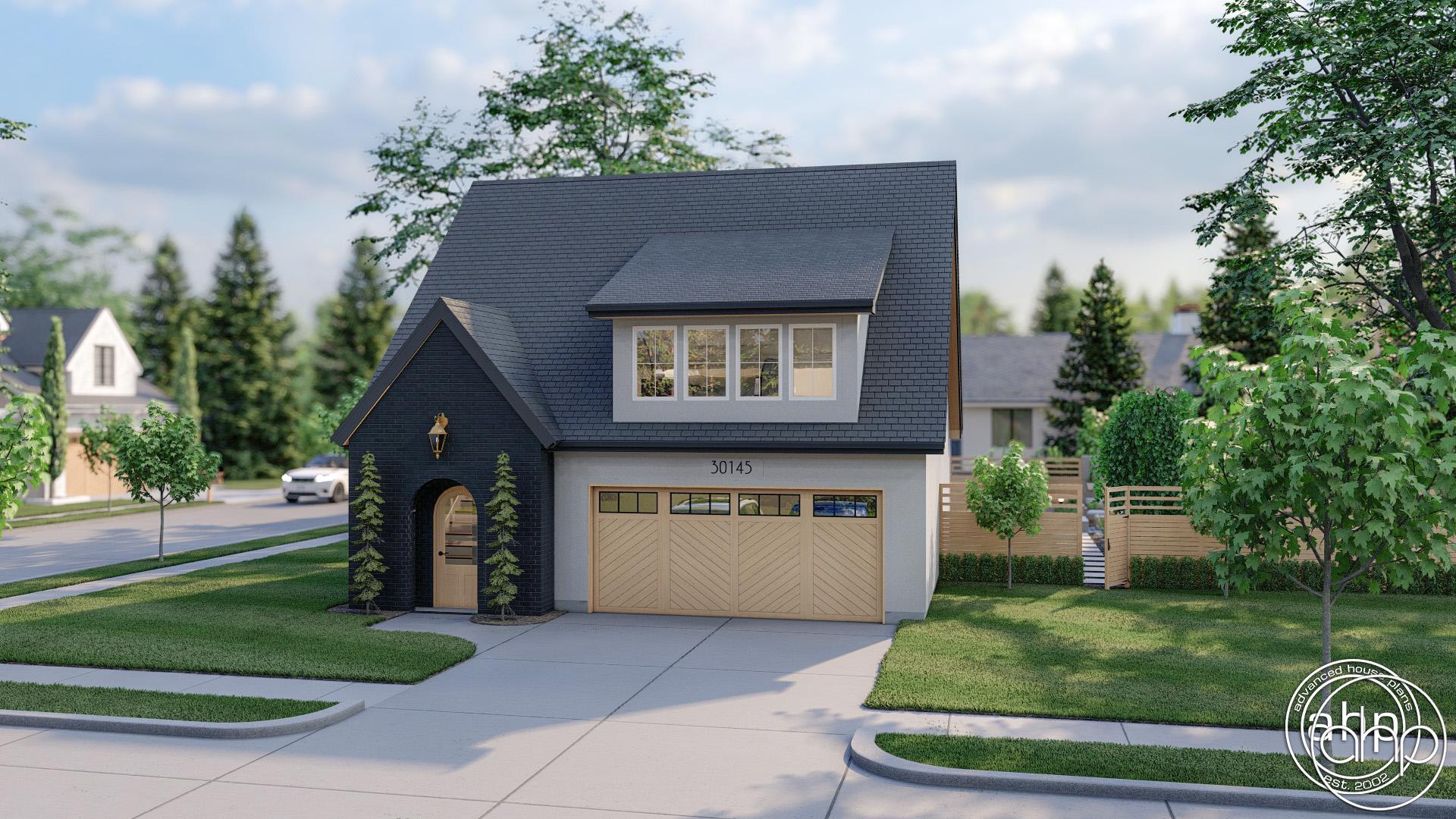

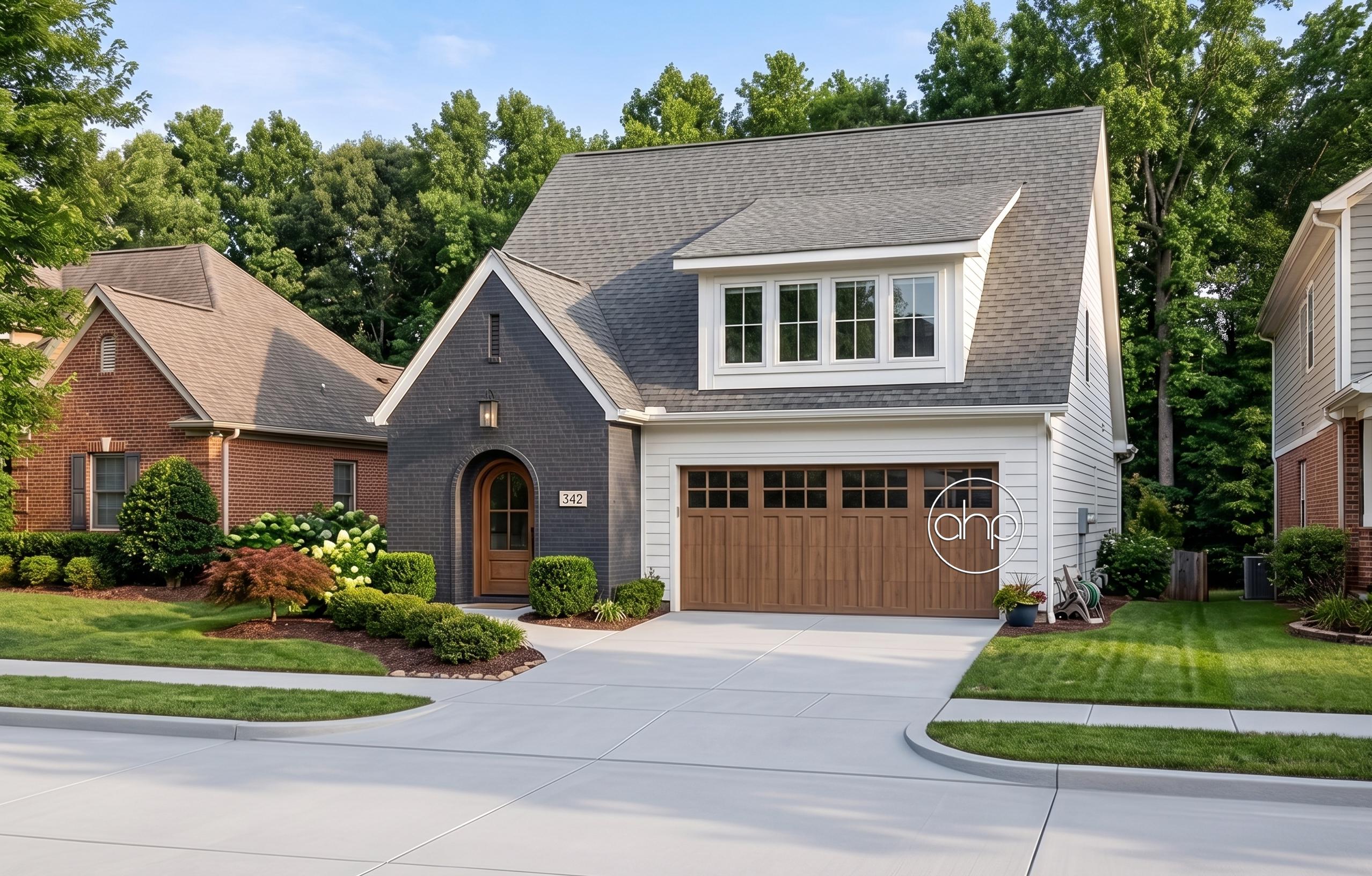

The Colter Bay plan is a wonderful Modern Cottage style carriage house plan. The outside of this charming home is highlighted by steep rooflines, dark painted brick, wood garage doors, and stucco siding.

The bottom level includes an oversized garage with a workshop and a built-in workbench. The mudroom/entry features a bench, lockers, and access to the laundry room.

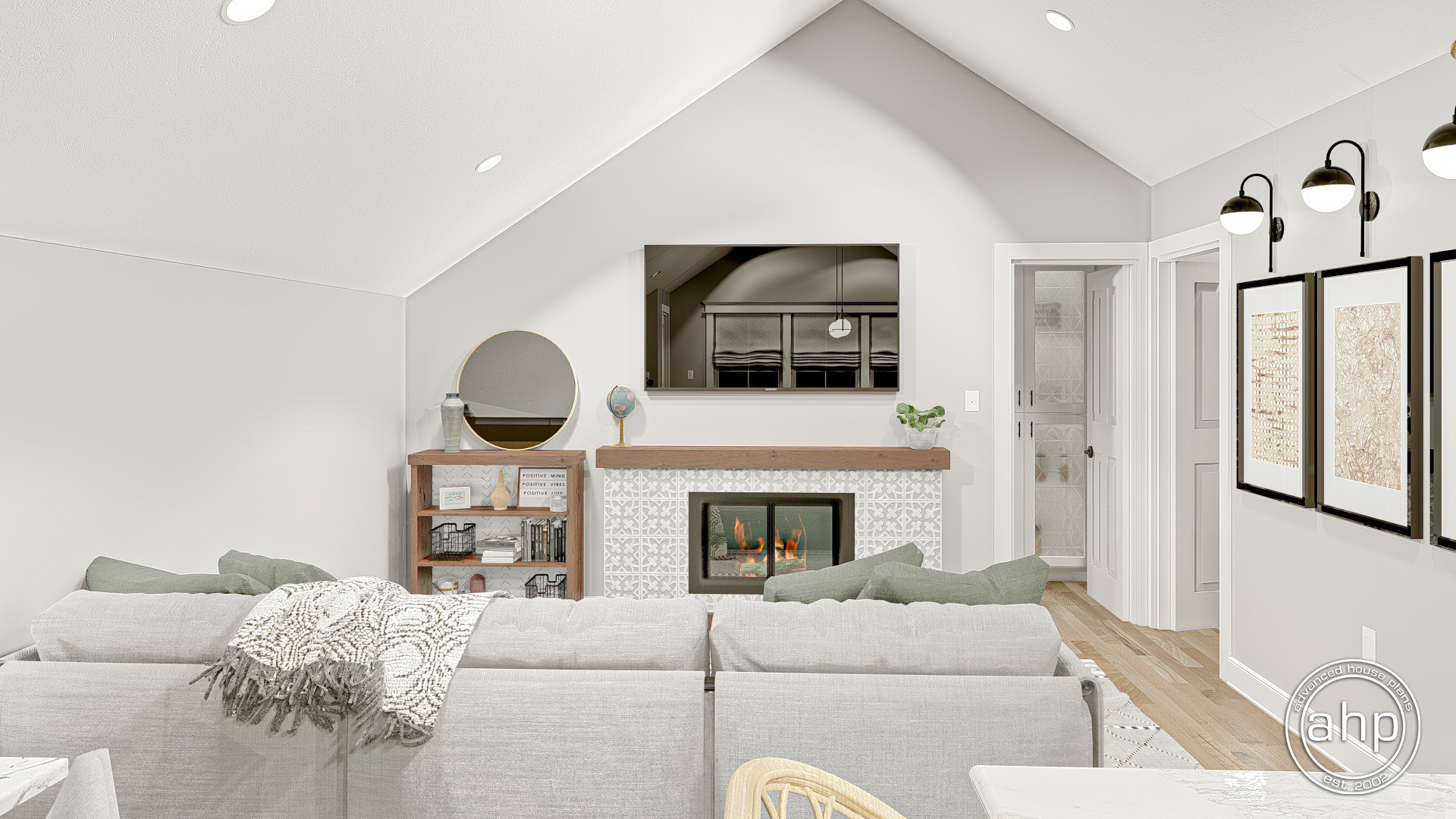

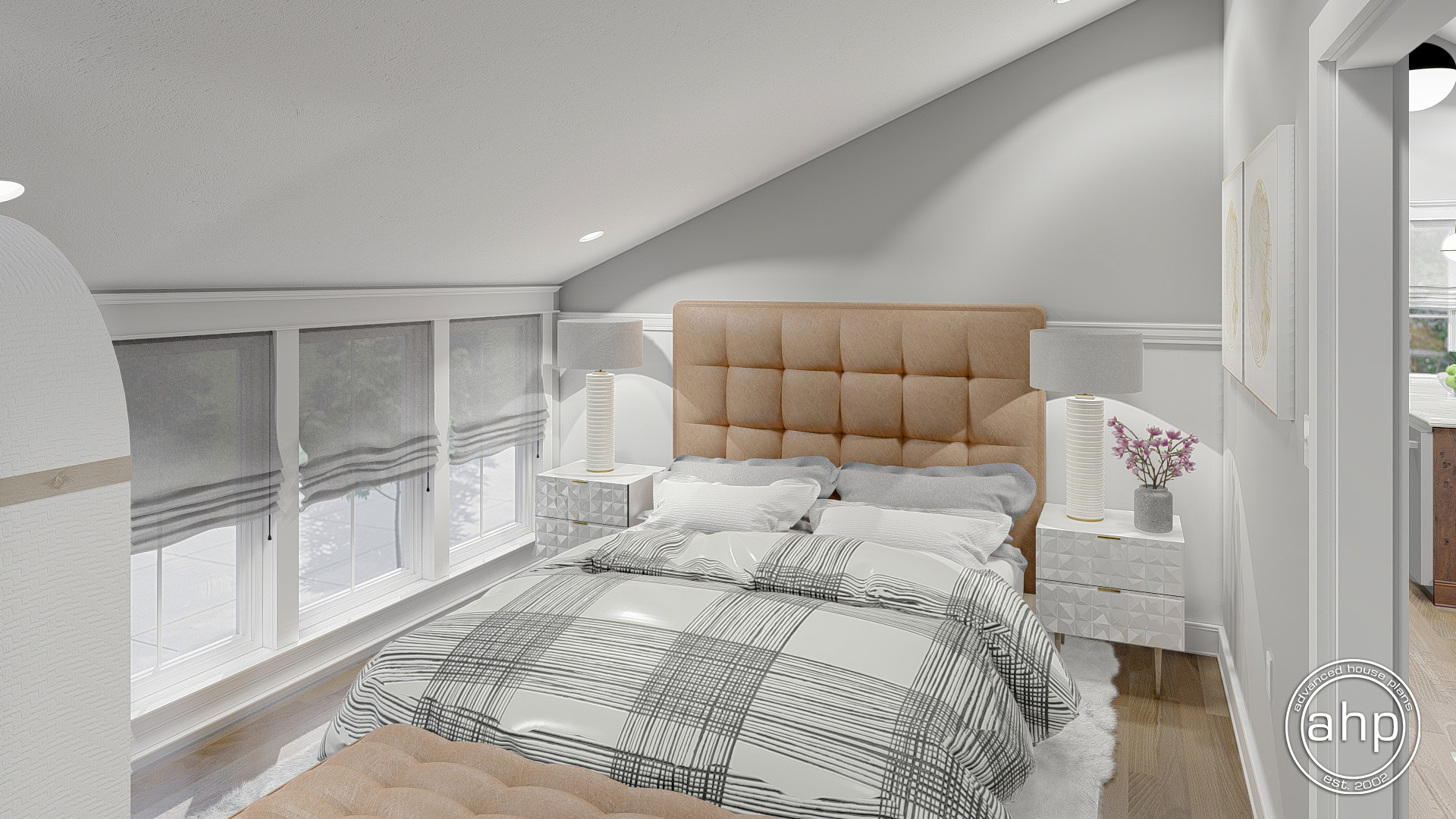

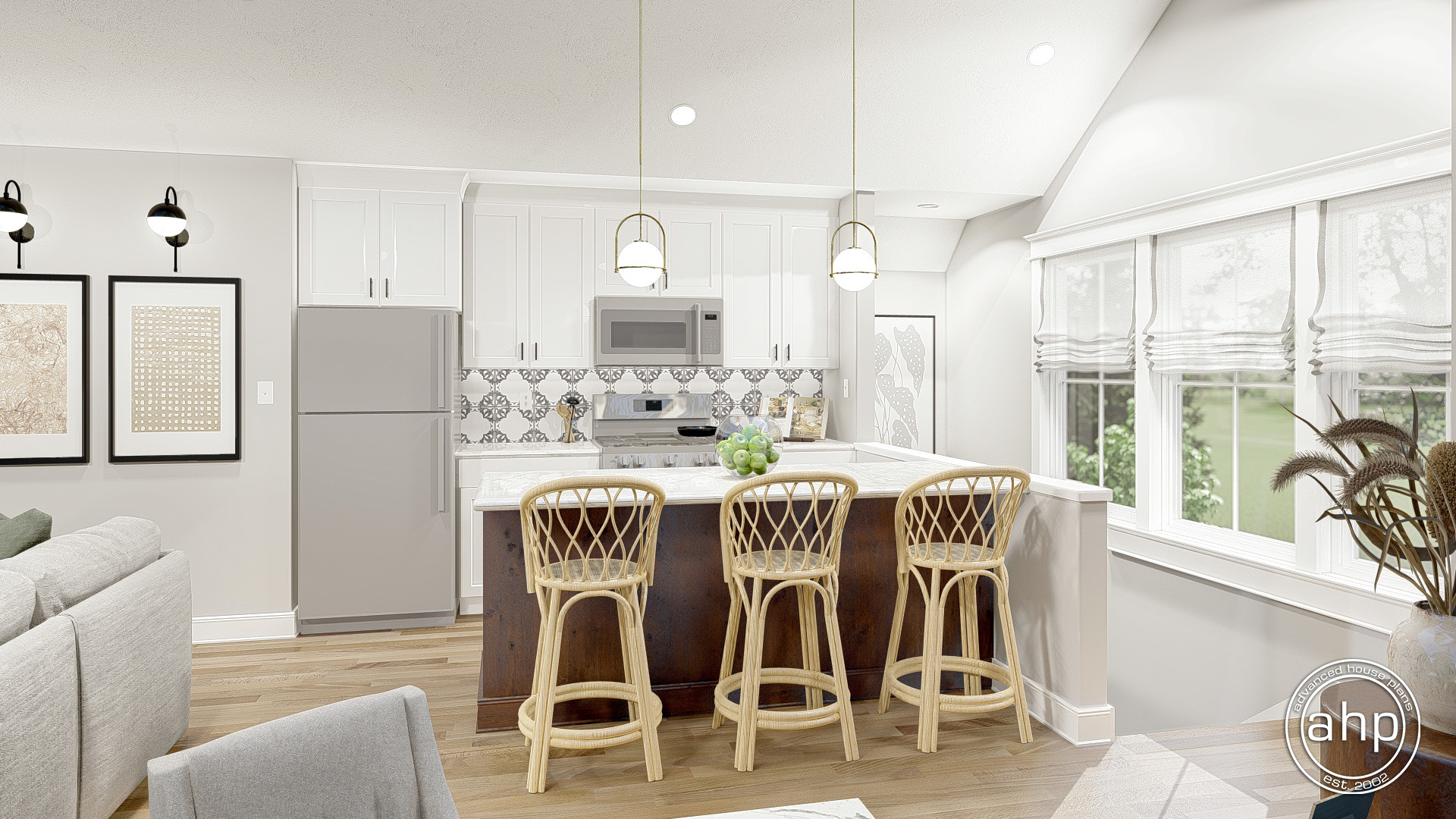

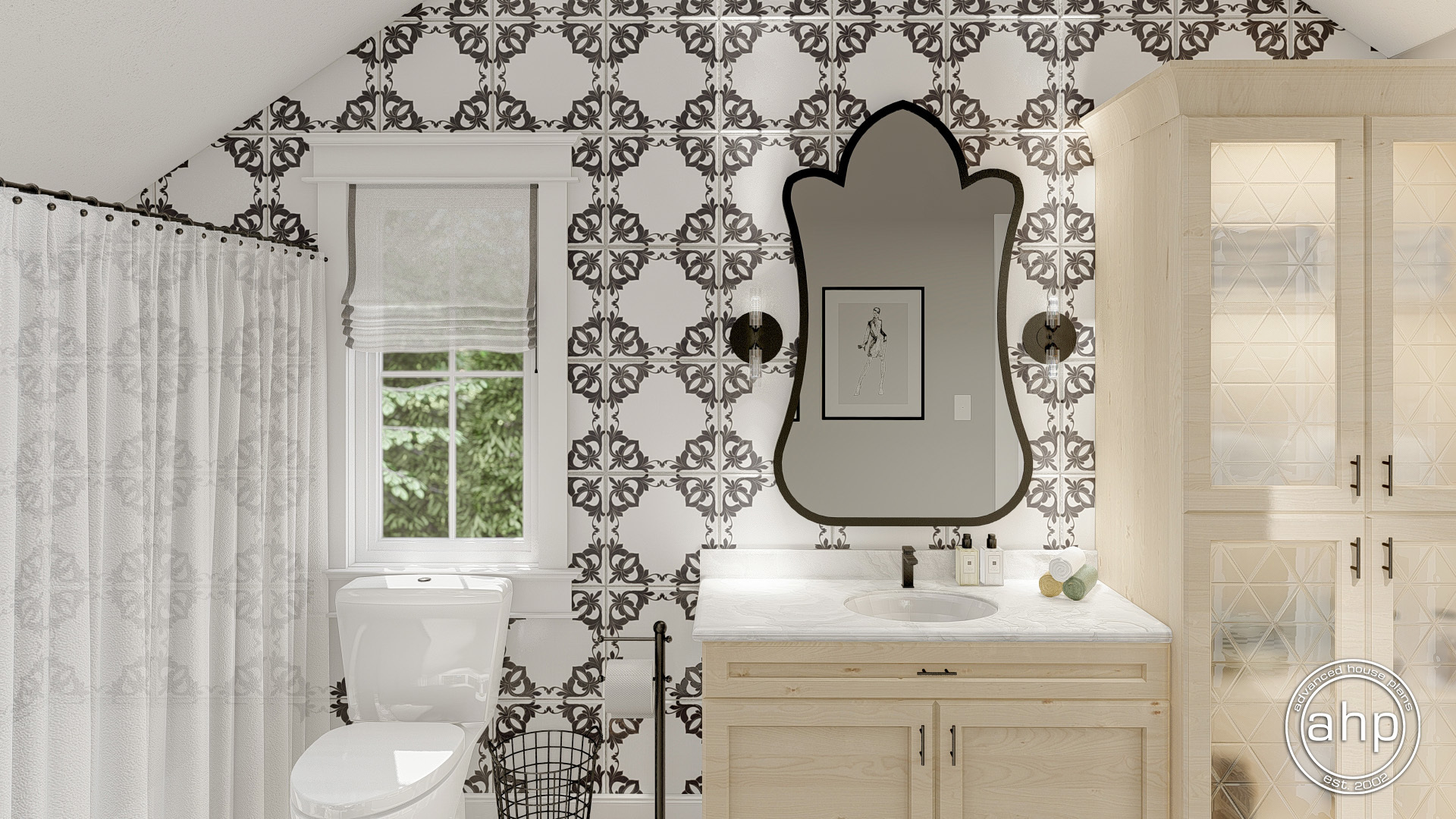

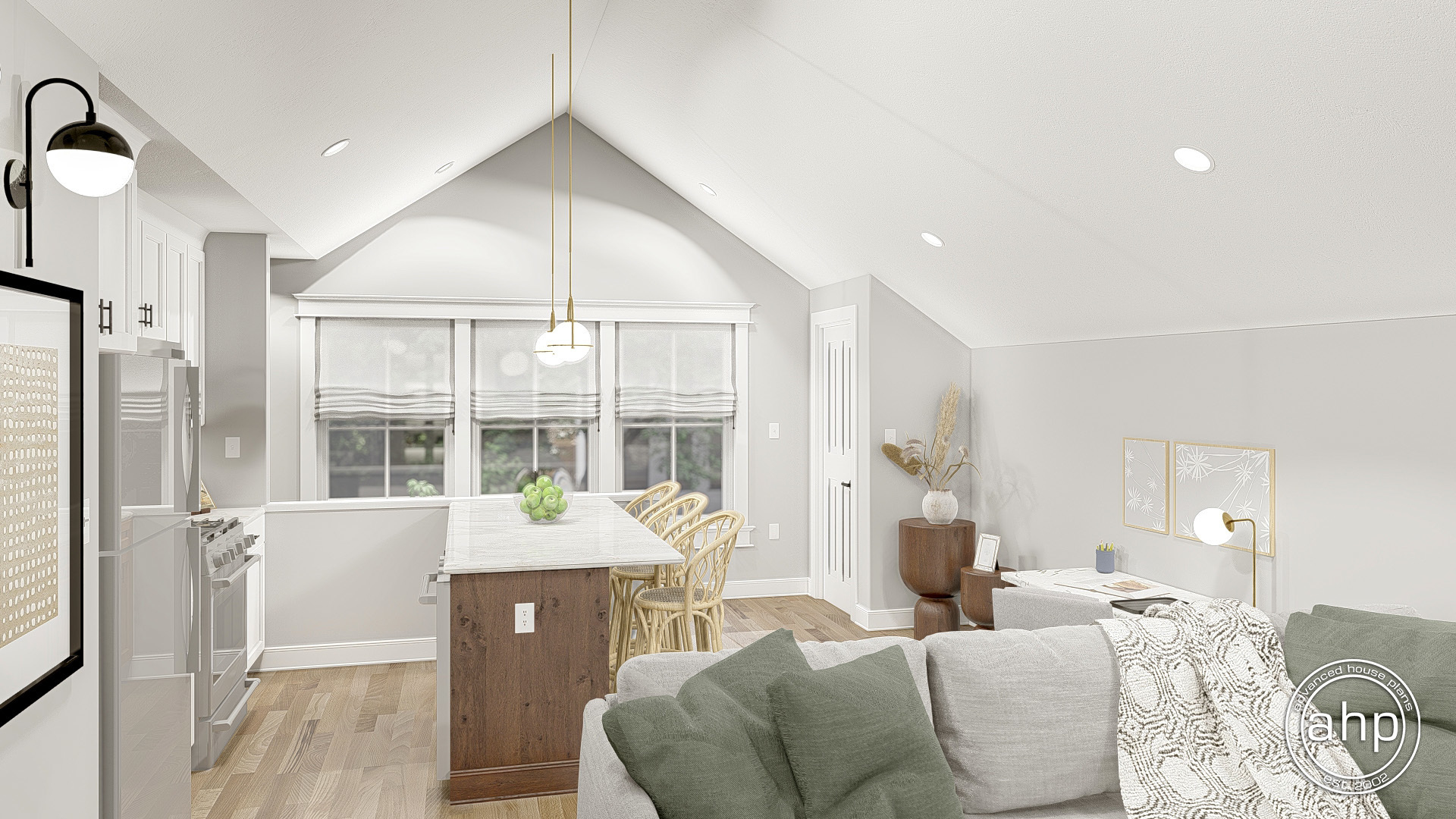

Above the garage, you'll find an amazing 1 bedroom apartment. The main living area is laid out in an open floor plan. The full kitchen includes a large island with a snack bar. The bedroom shares a centrally located bathroom with the main living area.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 1
Bathrooms 1
Garage Bays 2
Square Footage
Main Level 188 Sq. Ft.
Second Level 614 Sq. Ft.
Garage 807 Sq. Ft.
Total Finished Area 802 Sq. Ft.
Exterior Dimensions
Width 31 ' 0"
Depth 35 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x4
Roof Pitches
12/12 Primary, 5/12 14/12 Secondary
Main Wall Height
9'
Second Wall Height
6'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$1100
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.

View Similar Style Plans
