Traditional Garage Plan

Name: Traditional Garage Plan | Clark
Brand: Advanced House Plans
SKU: 29168
Price: 650 USD

Clark - 29168

Sq Ft

Beds

Baths

Bays

38' 0"

Wide

24' 0"

Deep

Floor Plan Images

Main Level

Second Level

Plan Description

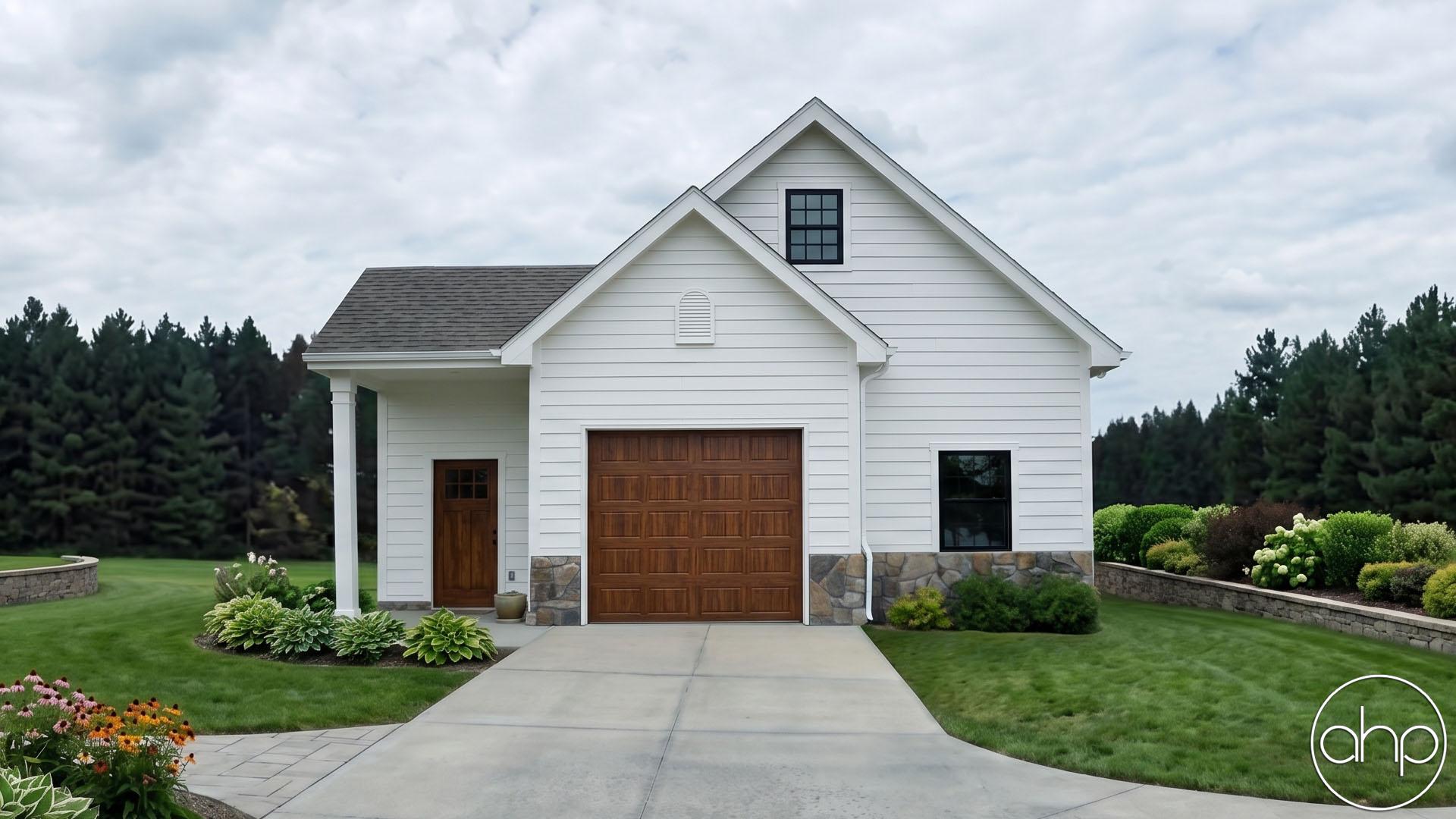

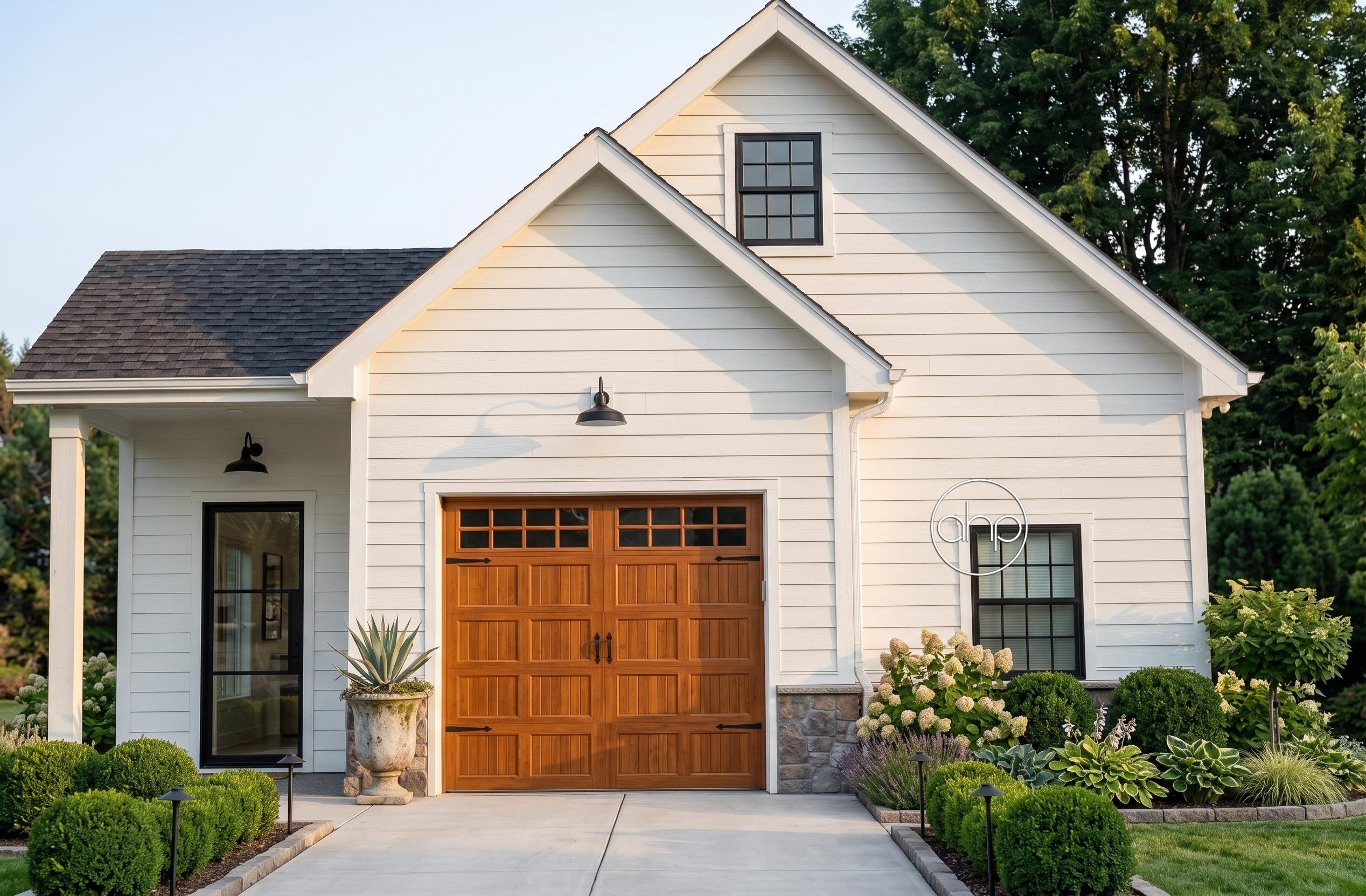

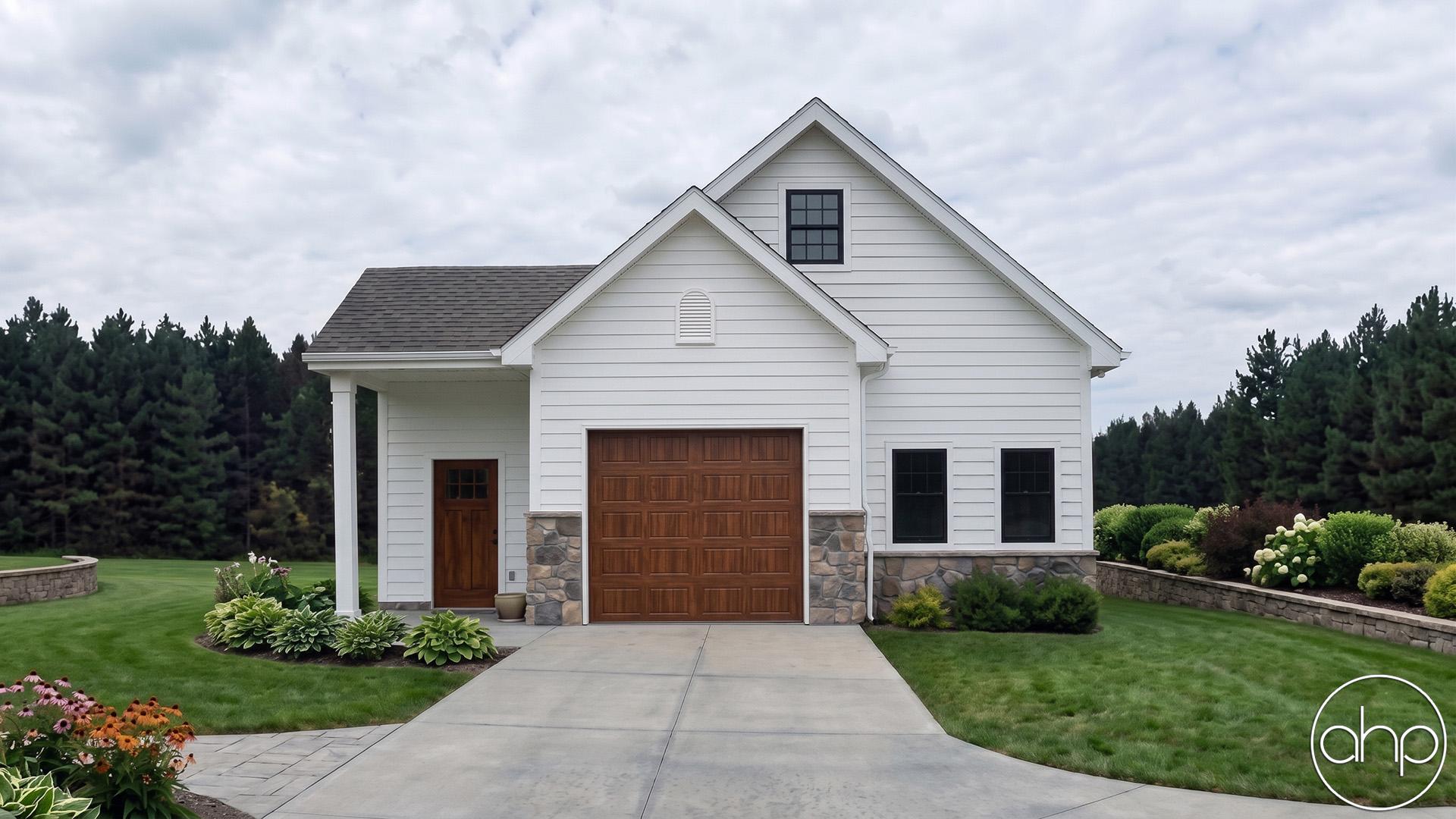

This is a 2 story traditional single car garage that has a spacious loft with cathedral ceilings. It is built on a slab foundation.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Garage Bays	1
Square Footage
Garage	1012 Sq. Ft.
Exterior Dimensions
Width	38 ' 0"
Depth	24 ' 0"
Ridge Height Calculated from main floor line	23 ' 0"
Default Construction Stats Stats are unique to the individual plan.
Foundation Type	Slab
Exterior Wall Construction	2x4
Roof Pitches	10/12 Primary, 8/12 Secondary
Main Wall Height	9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
