29084 | Castleberry


Build Photos

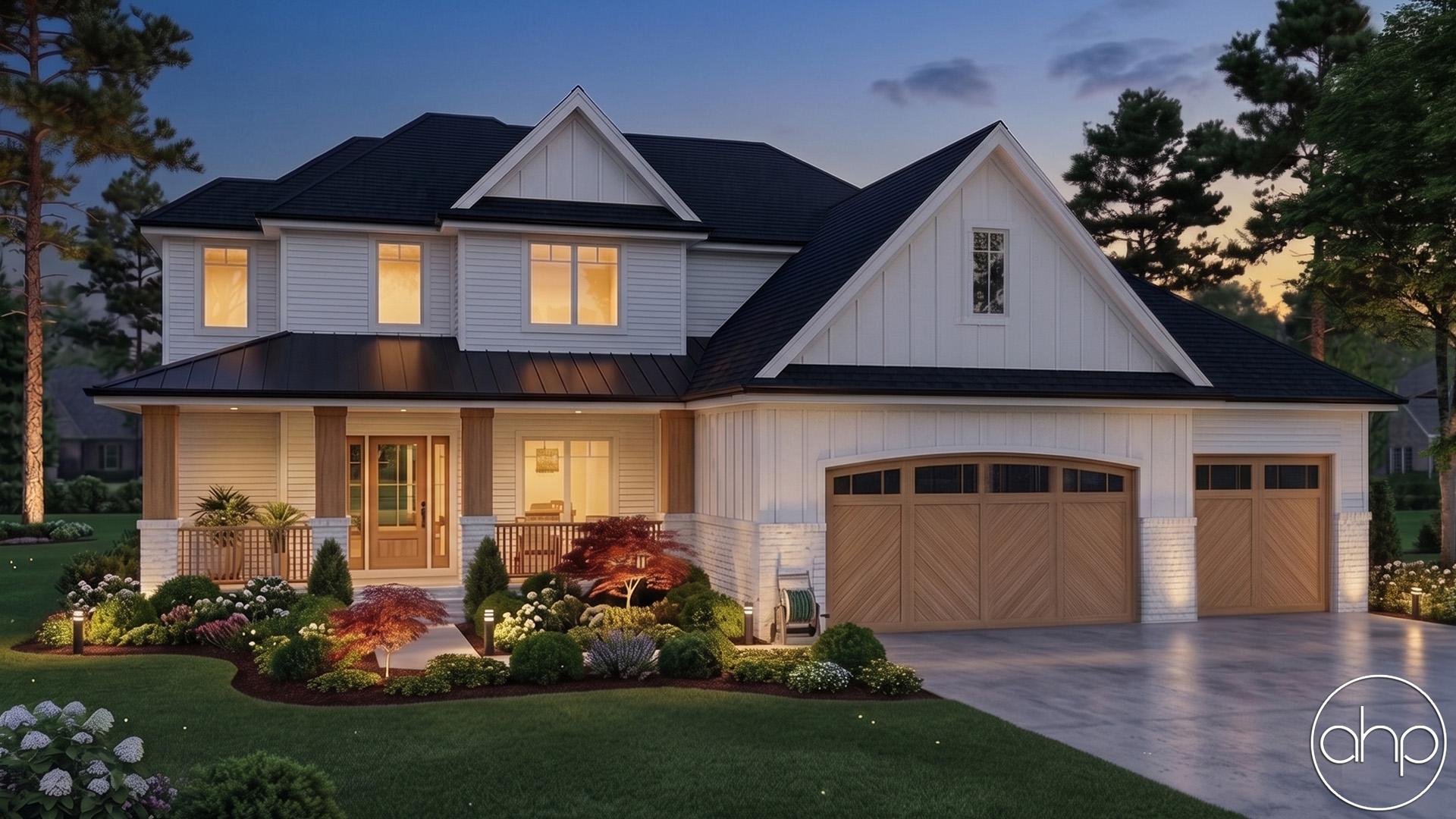

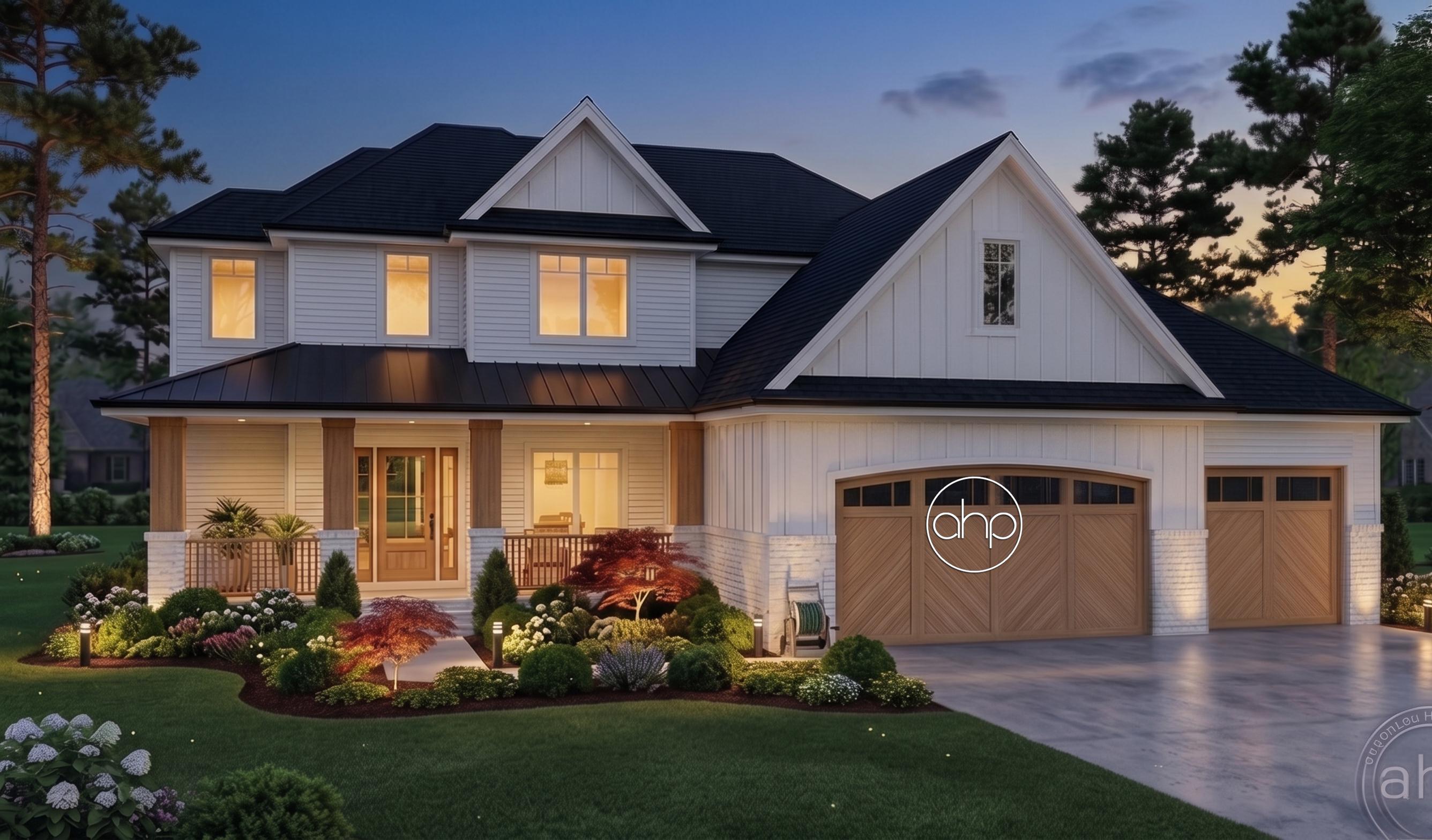

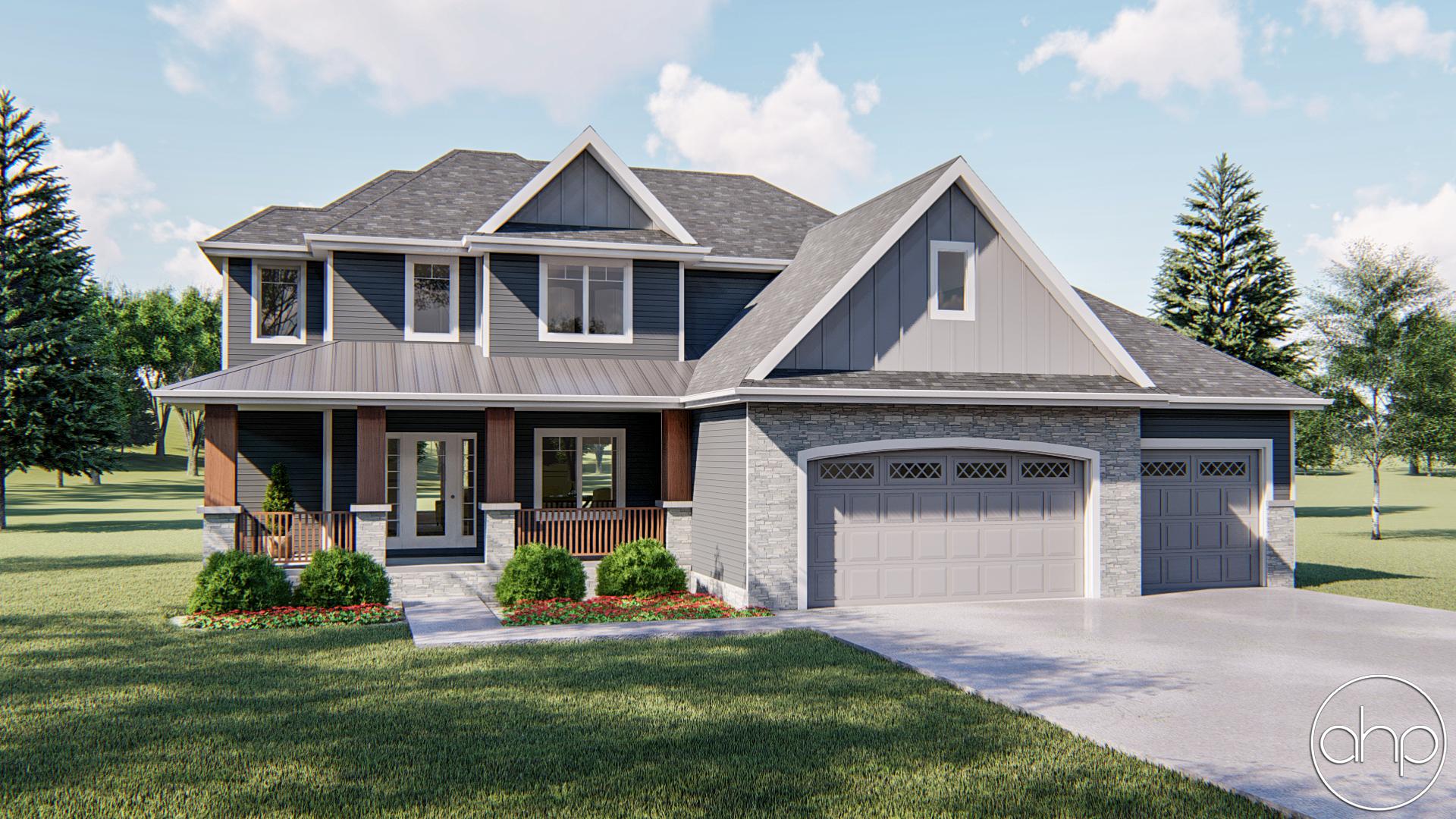

Castleberry Rendering Castleberry Rendering Castleberry Rendering Castleberry Rendering Castleberry Rendering
Want to make changes to this plan?

2 Story Traditional House Plan

Castleberry - 29084

Sq Ft
60' 0"
43' 0"

Floor Plan Images

Main Level

2 Story Traditional House Plan | Castleberry

Second Level

2 Story Traditional House Plan | Castleberry

Plan Description

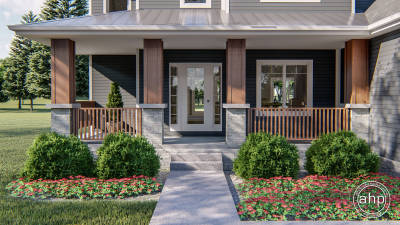

A quartet of solid columns highlights the covered front porch of this traditional style2-story house plan. Just inside, a formal dining area is defined by elegant columns and ceiling details. Beyond, the great room, with its fireplace and views to the rear, opens to the breakfast area and kitchen. The kitchen itself features a central work island, walk-in pantry, and ample counter space. A mudroom with bench, lockers, coat closet, and powder bath, intercepts traffic from the 3-car garage, which boasts extra space, ideal for a workshop.

Upstairs, the master suite includes a bath area with corner tub, shower, compartmented toilet, and an expansive walk-in closet. Bedrooms 2, 3 and 4 share a central hall bath. A banister at the top of the stairs offers views to the entry area below.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 4
Bathrooms 3
Garage Bays 3
Square Footage
Main Level 1003 Sq. Ft.
Second Level 1197 Sq. Ft.
Garage 876 Sq. Ft.
Total Finished Area 2200 Sq. Ft.
Exterior Dimensions
Width 60 ' 0"
Depth 43 ' 0"
Ridge Height
Calculated from main floor line
29 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Primary 7/12, Secondary 12/12
Foundation Wall Height
Main Wall Height
Second Wall Height

Customer Build Photo Albums

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
