Arlington Heights.

plan # 30178
Starting at$1,899
Customize
Plan features
4
Bedrooms
3
Bathrooms
3,293
Square Feet
3
Garage Bays
About this plan

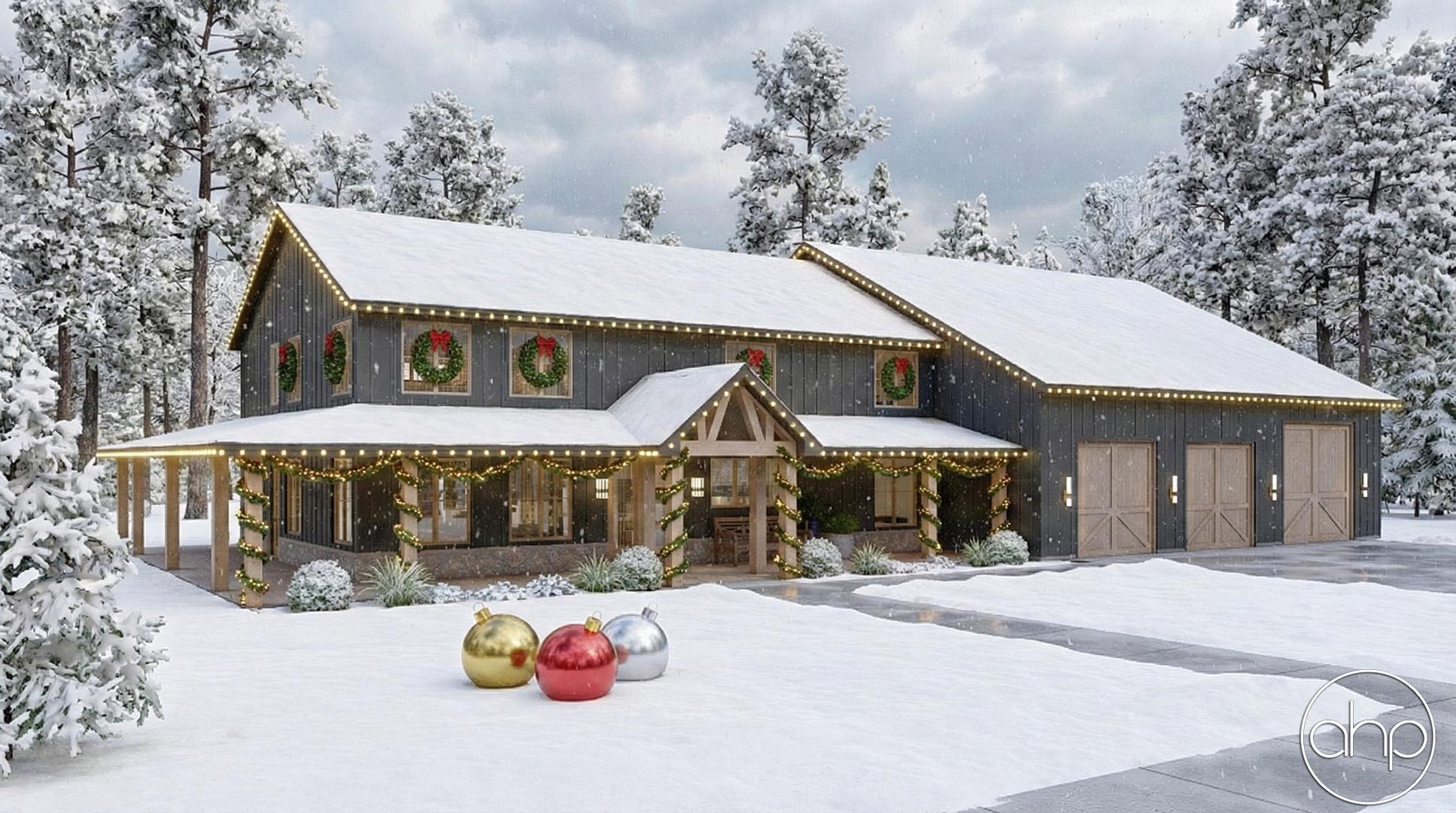

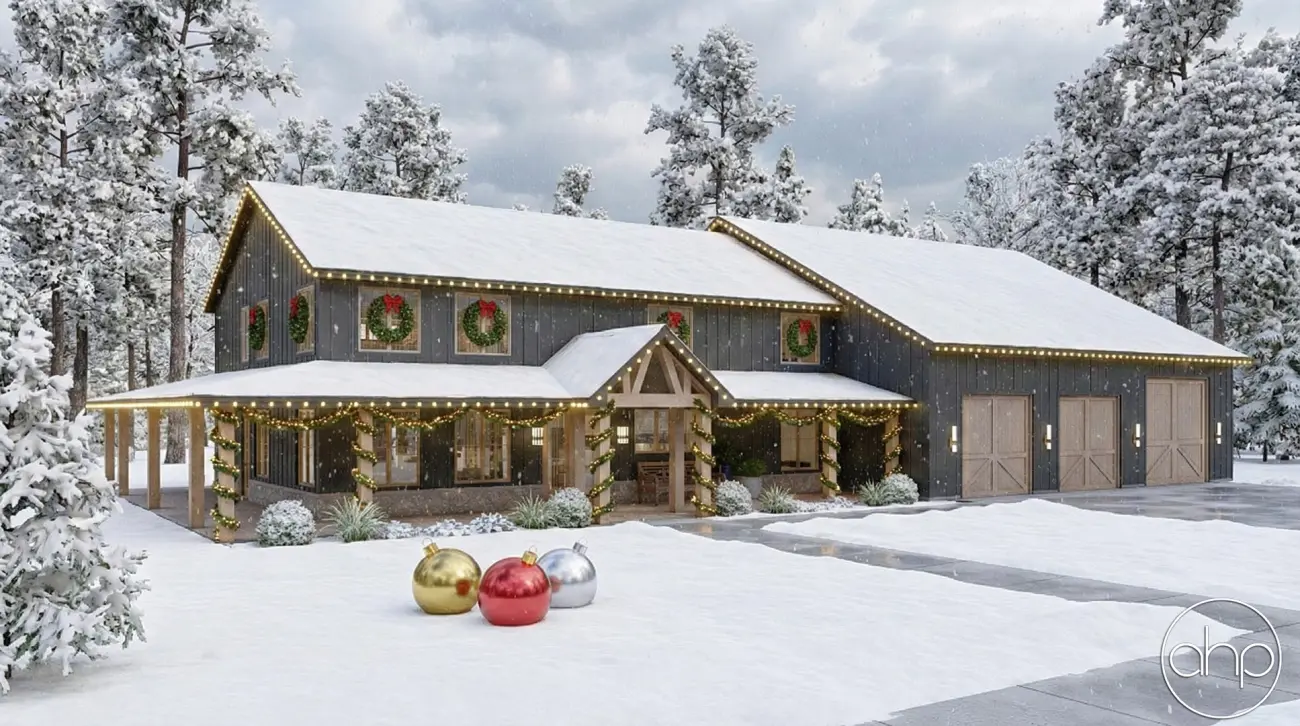

If you are a fan of Barndominium-style homes, the Arlington Heights will quickly become a favorite. The exterior showcases dark-colored board and batten siding, wood accents, and wood garage doors. A large wrap-around porch greets guests into the beautiful home.

One step through the Barndominium front set of french doors leads guests into the entry and great room. The great room lies under a 2 story ceiling and is warmed by a fireplace flanked by built-in benches with drawers. The kitchen includes a large island with a snack bar, a walk-in pantry, and ample counter space. Tucked away behind the kitchen you'll find a great home office.

A large formal dining room can be found towards the rear of the home. The dining room leads through its own set of french doors to the rear of the wrap-around covered porch.

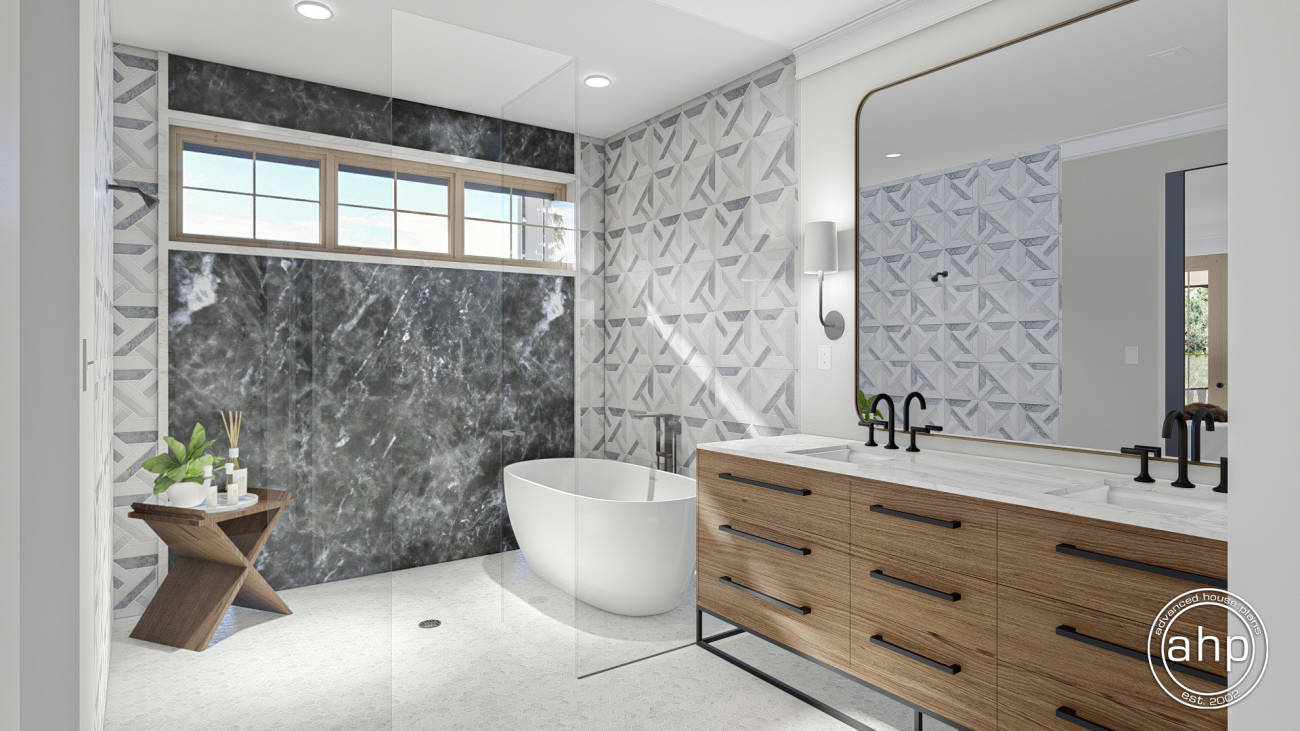

The master suite can be conveniently located on the main floor. The master bathroom includes his/her vanities, a wet room with a soaking tub, a large walk-in closet, and access to the laundry room.

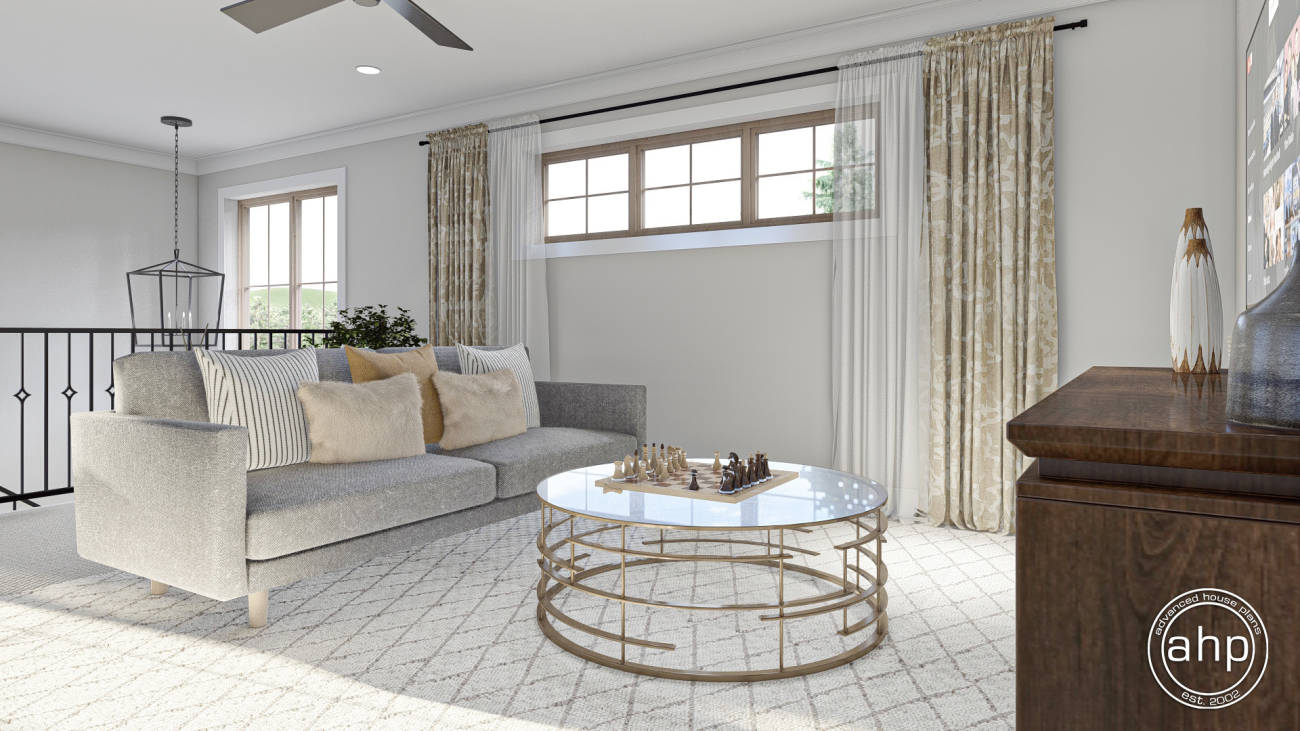

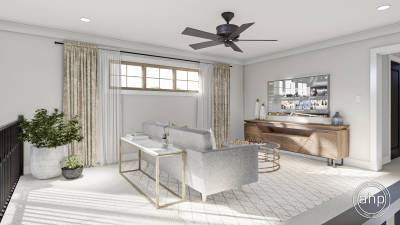

Upstairs in this Barndominium, you'll find 3 additional bedrooms. Each bedroom enjoys its own walk-in closet. A wonderful loft overlooks the great room below.

Back on the main level, the Barndominium home's massive oversized 3-car garage includes an RV door and 14' ceilings.

Floor plans

Walk through every level.

Preview only — lettering reads backwards. Choose Reverse Plan when you add to cart.

Main Floor2,043 sqft
Second Floor1,250 sqft
Alterations Studio

Want to change something?

Mark up the floor plan, drop pins where you'd move walls, add rooms, change windows — and we'll come back with a free quote in one business day.

Mark up this plan Free quote · No commitment
✏︎ Sketch◉ Pin changes▦ Multiple floors
The alterations studio with a room added, a wall moved, and a window pinned on a floor plan
The studio, marking up the Aubrey
The furniture planner with a sofa, dining table, and king bed placed on a floor plan
The planner, furnishing the Aubrey
Furniture Planner

Will your furniture fit?

Drop true-to-scale sofas, beds, and tables onto every floor of the Arlington Heights and see how the rooms really live. Nothing to sign up for.

Furnish this plan Free · Saves as you go
▭ True to scale↻ Rotate & drag⤓ Export a PNG
N° 003 — The Plan Set

What's in the set.

Every set is a complete, construction-ready package — detailed, and designed to hand straight to your contractor.

Sample Cover Sheet

N° 01 — Sheet

Cover Sheet

Front elevation rendering with typical notes and project specifications.

N° 01 / 07
Pricing$1,899

Starting price · add-ons optional

Customize

Need builder bids before you commit? , credited toward the full set.
