Texas Hillside House Plan

Name: Texas Hillside House Plan | Arlington
Brand: Advanced House Plans
SKU: 30465
Price: 1900 USD

Arlington - 30465

3584

Sq Ft

Beds

Baths

Bays

101' 0"

Wide

81' 2"

Deep

Plan Video

Floor Plan Images

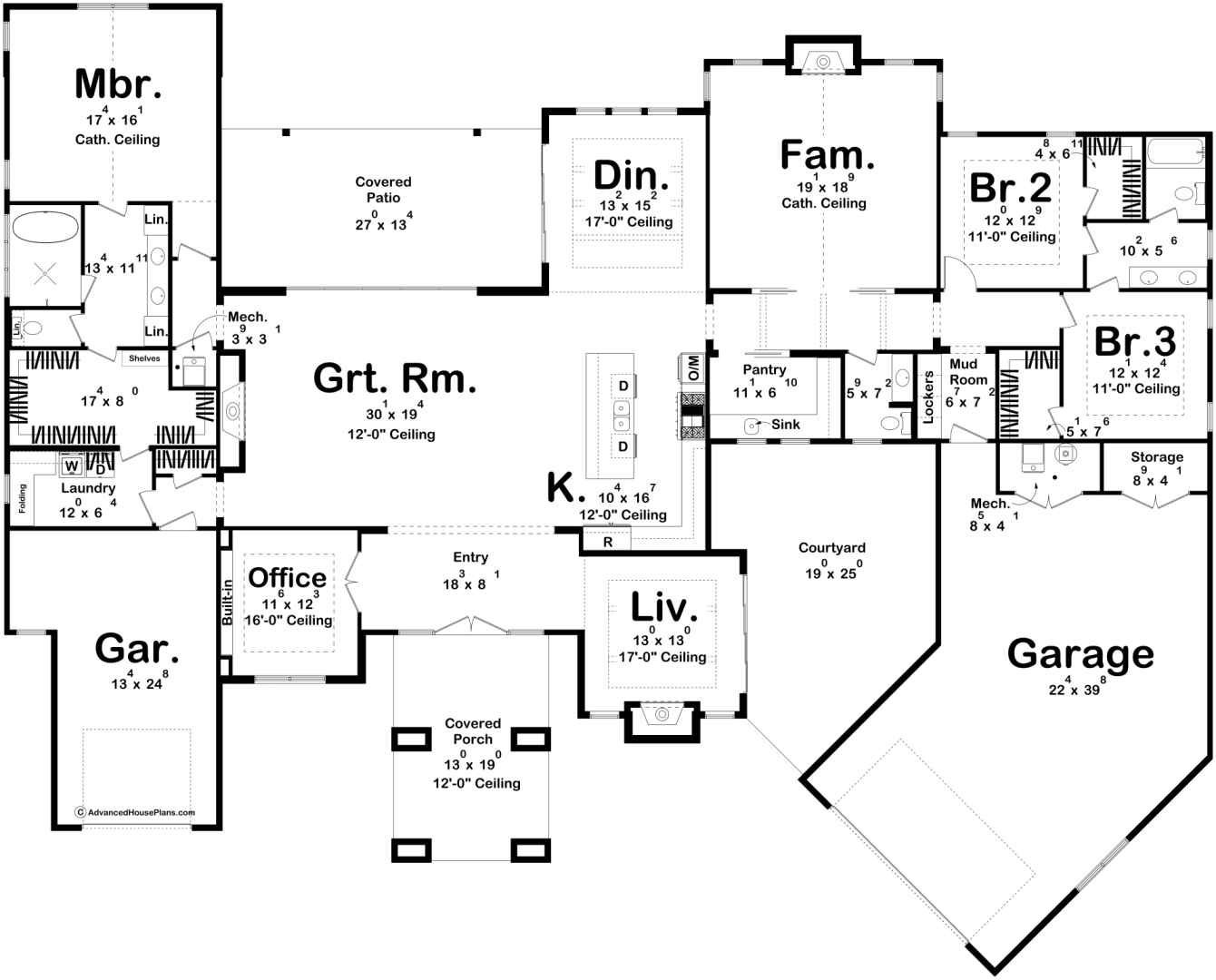

Main Level

Plan Description

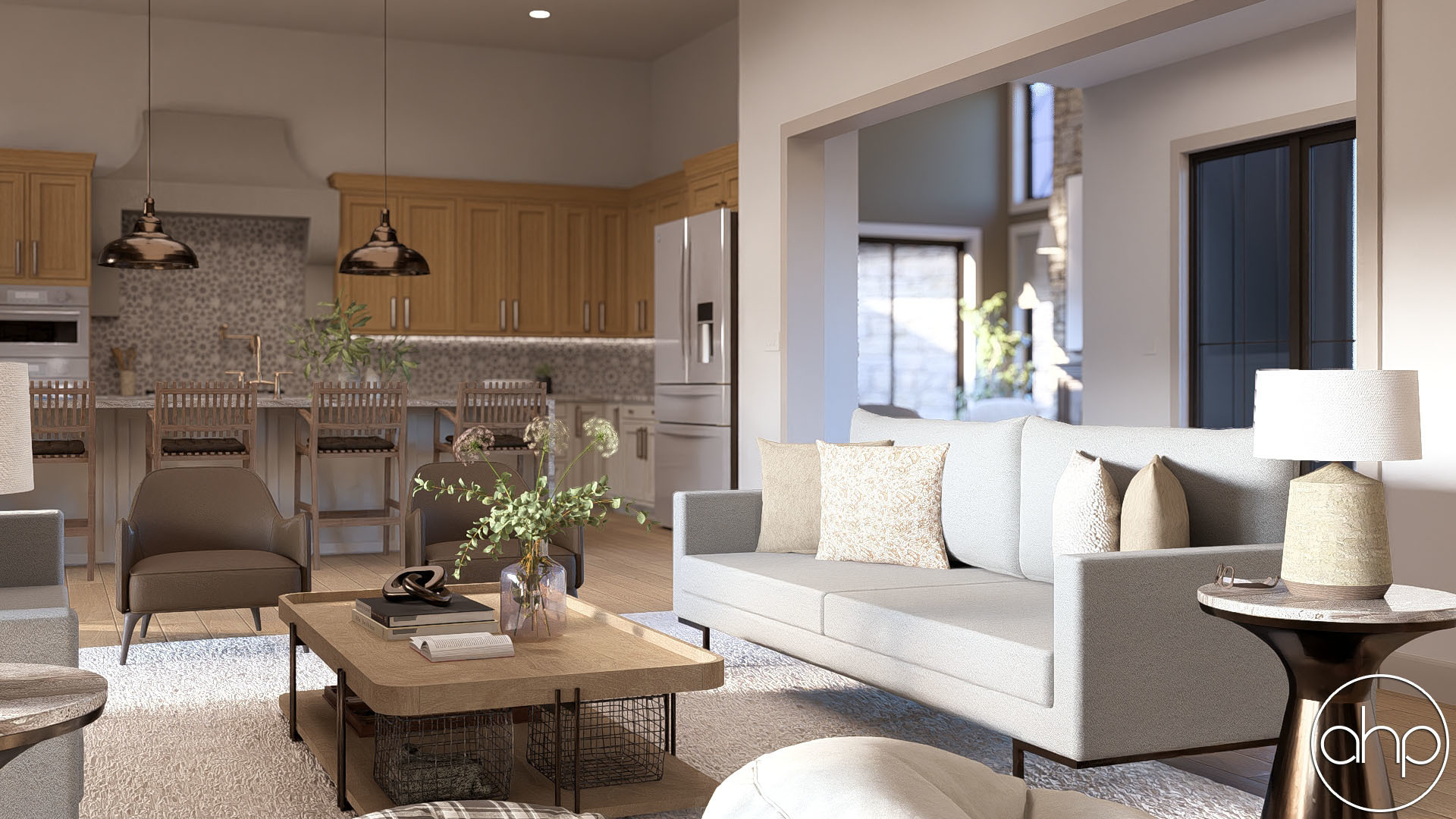

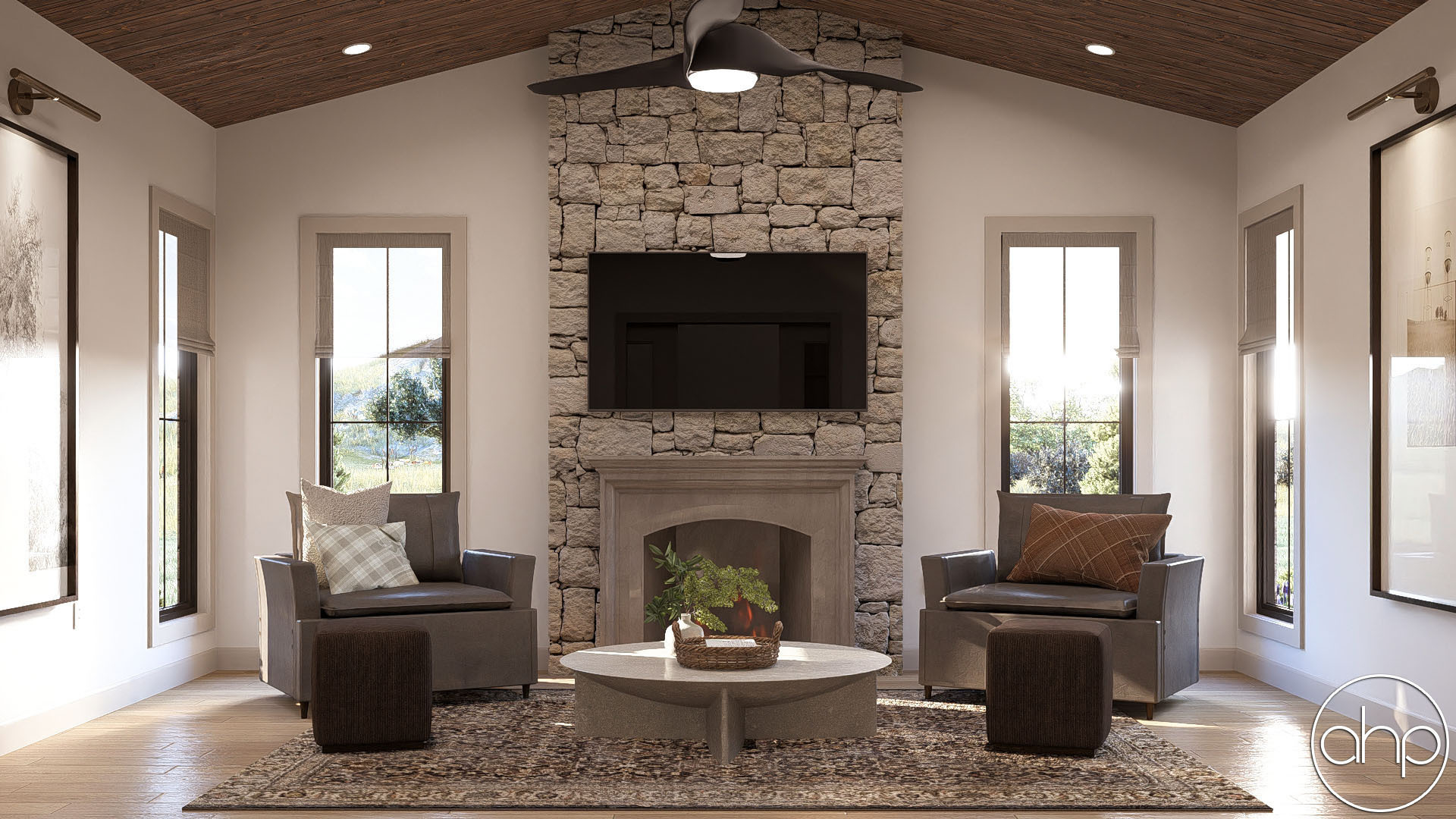

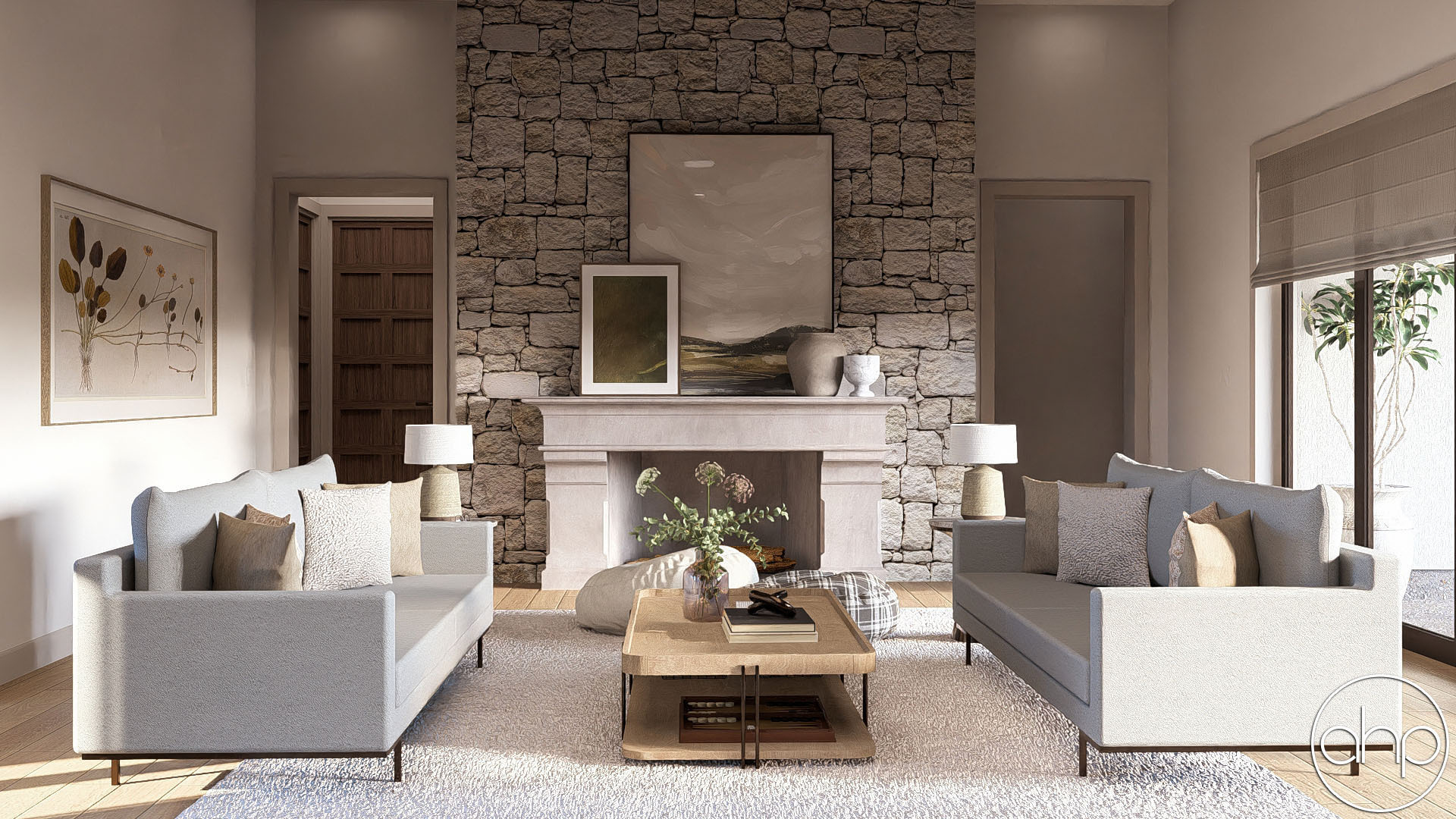

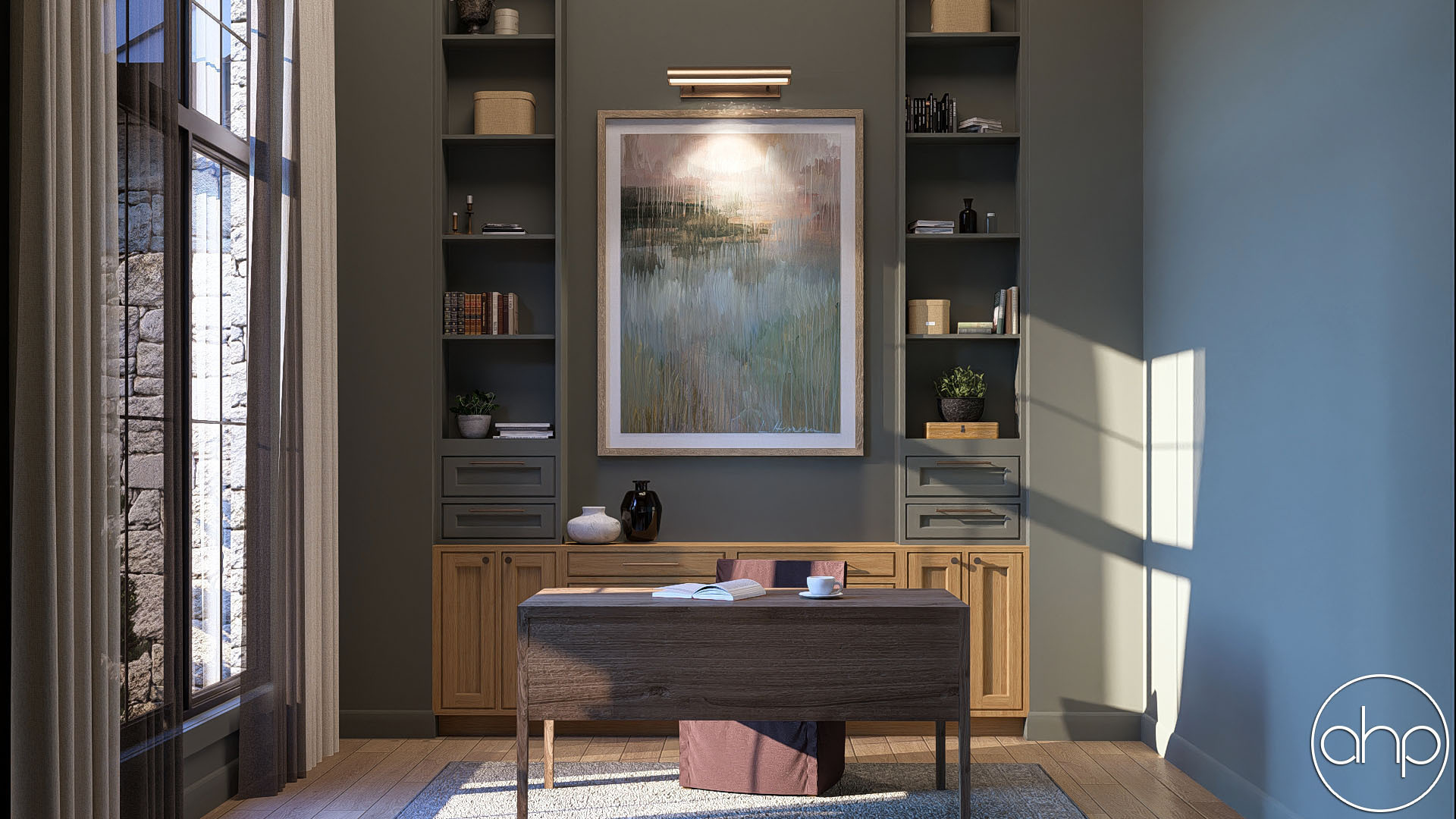

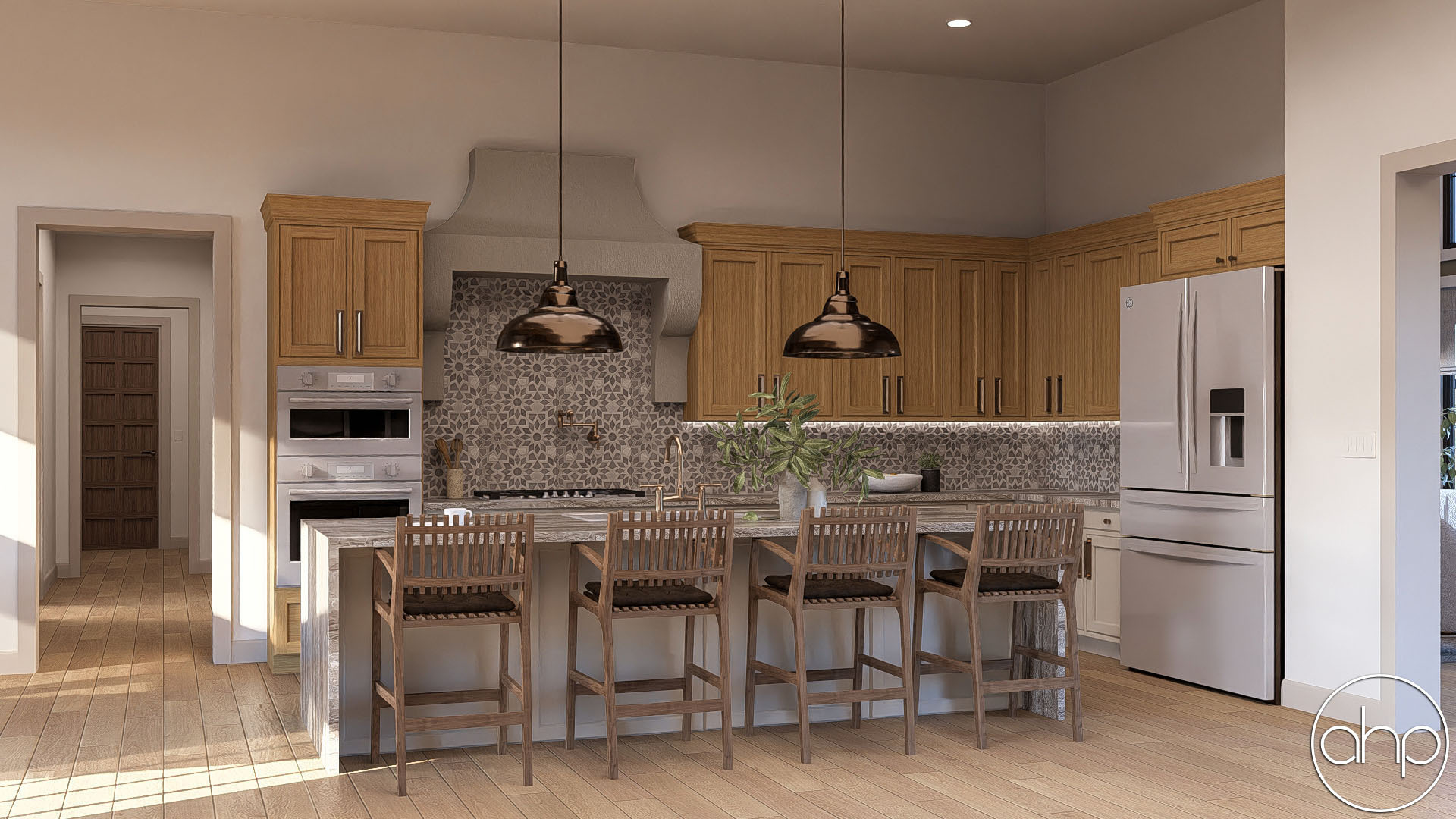

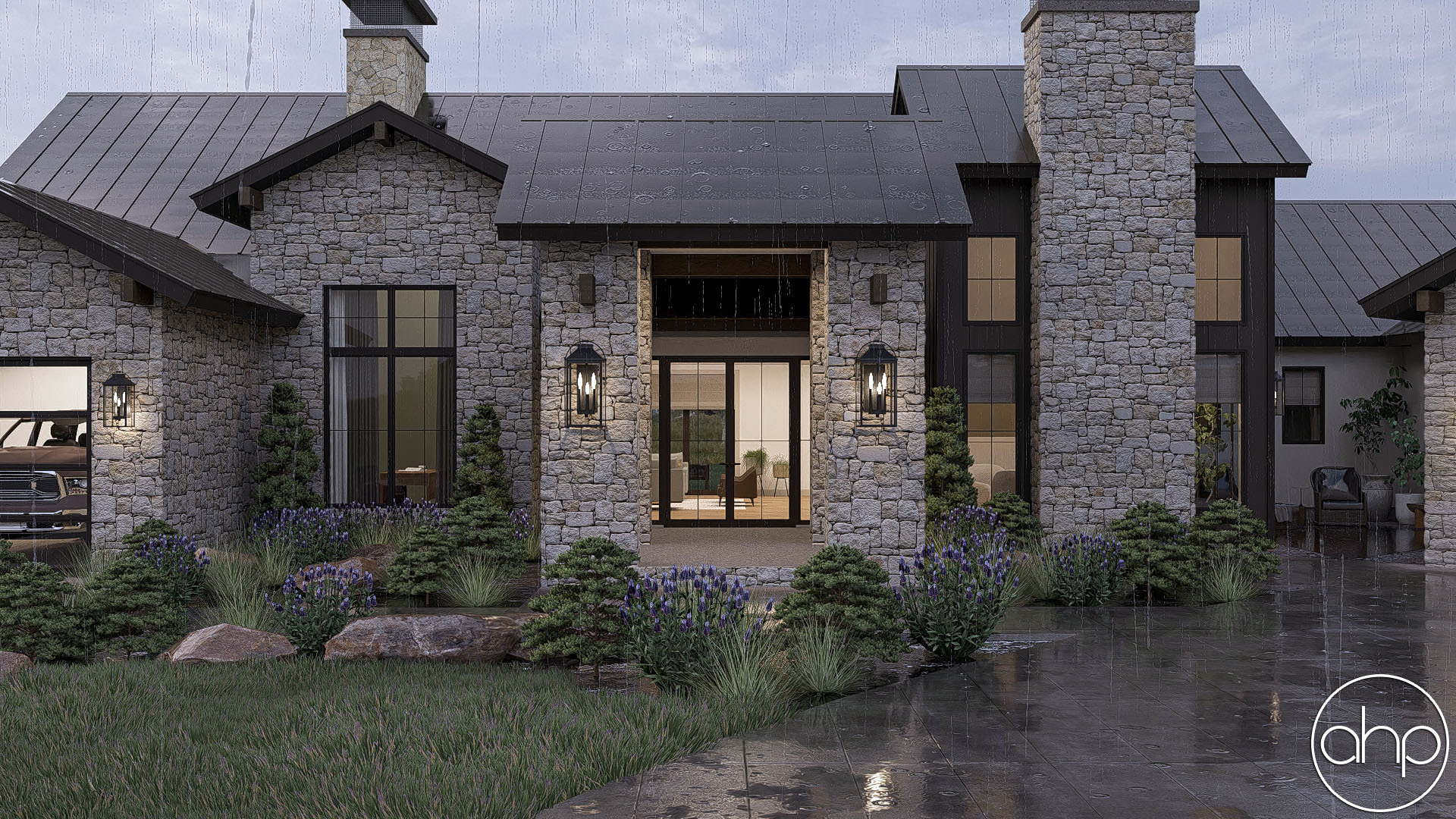

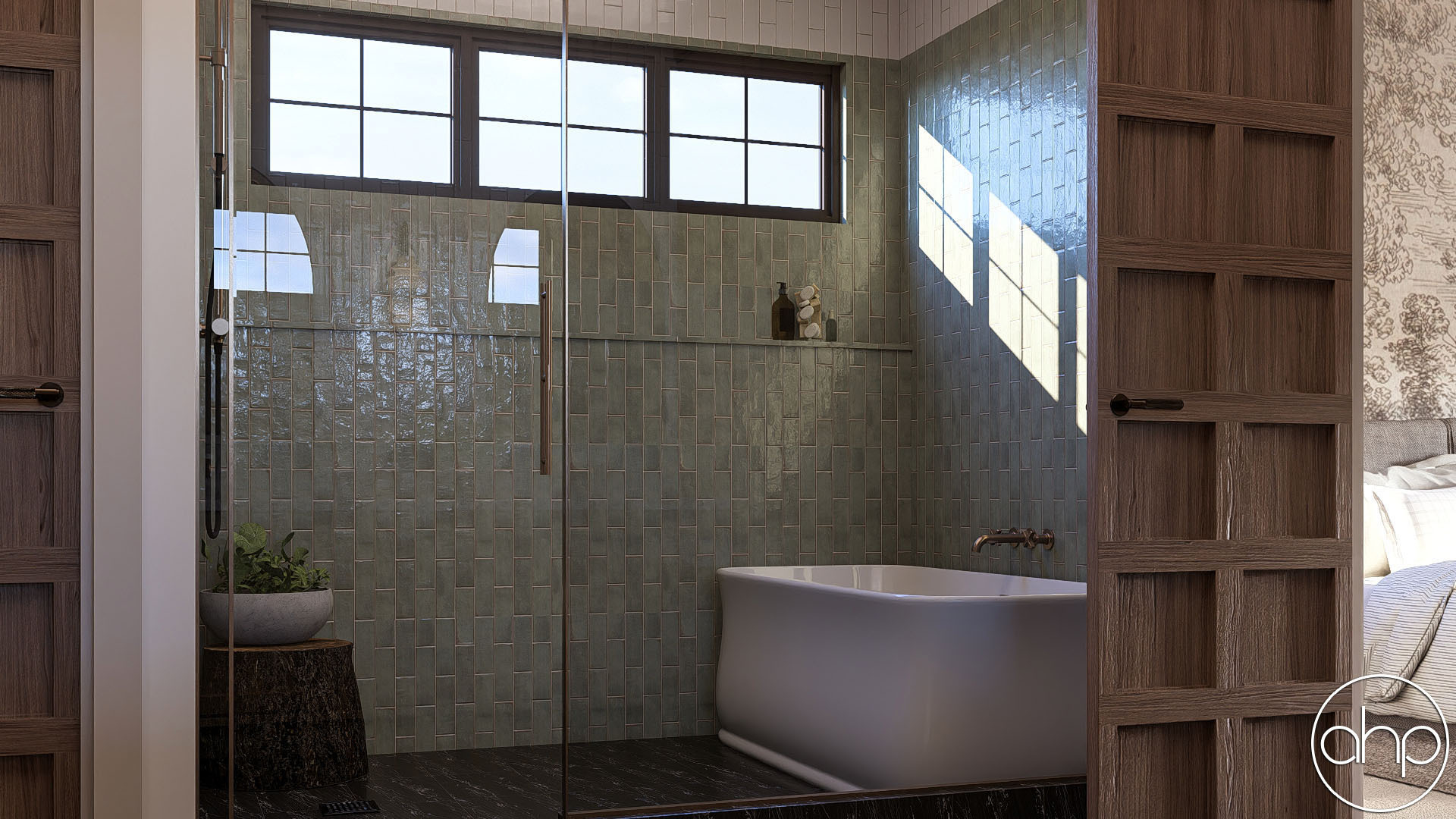

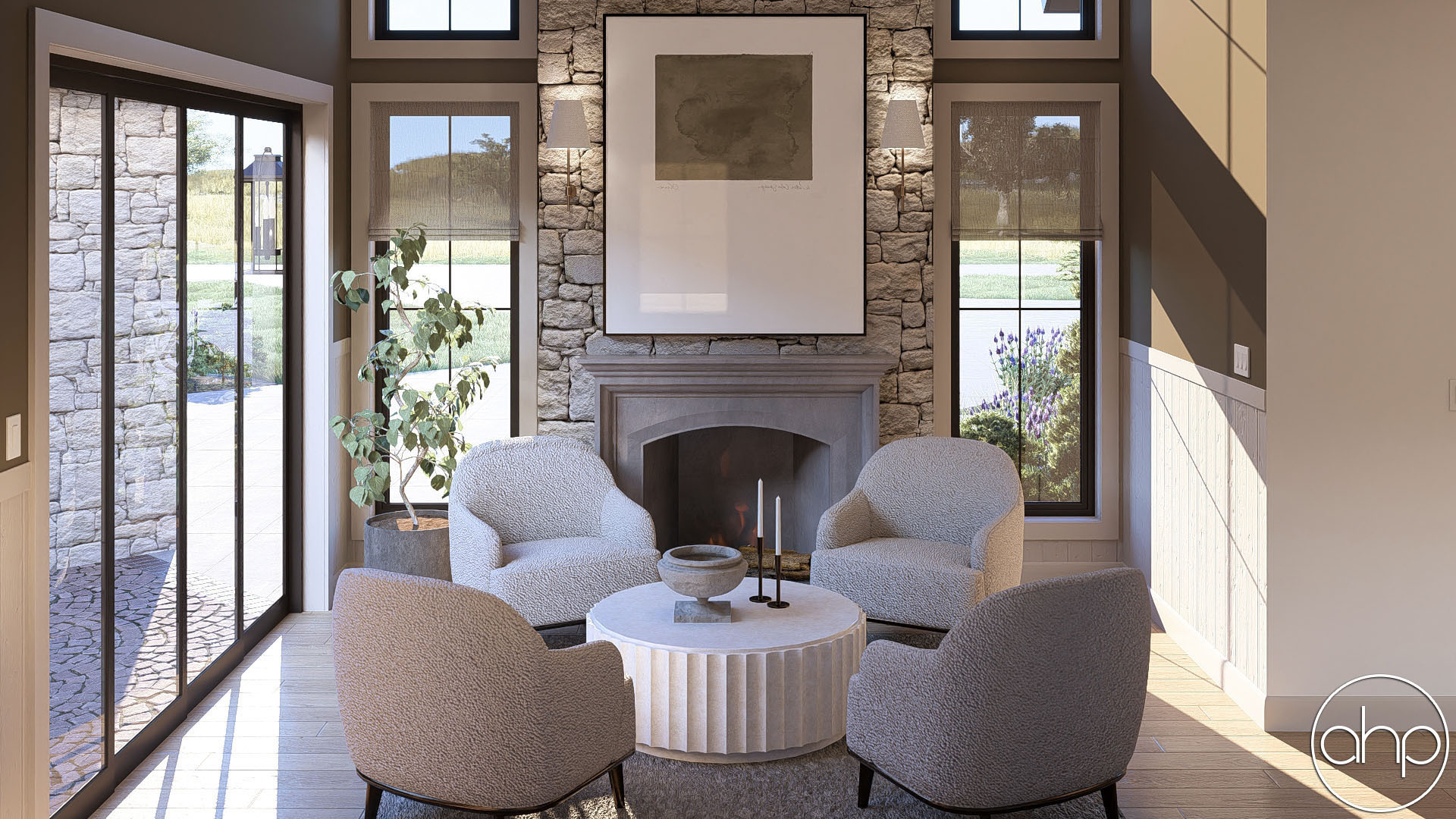

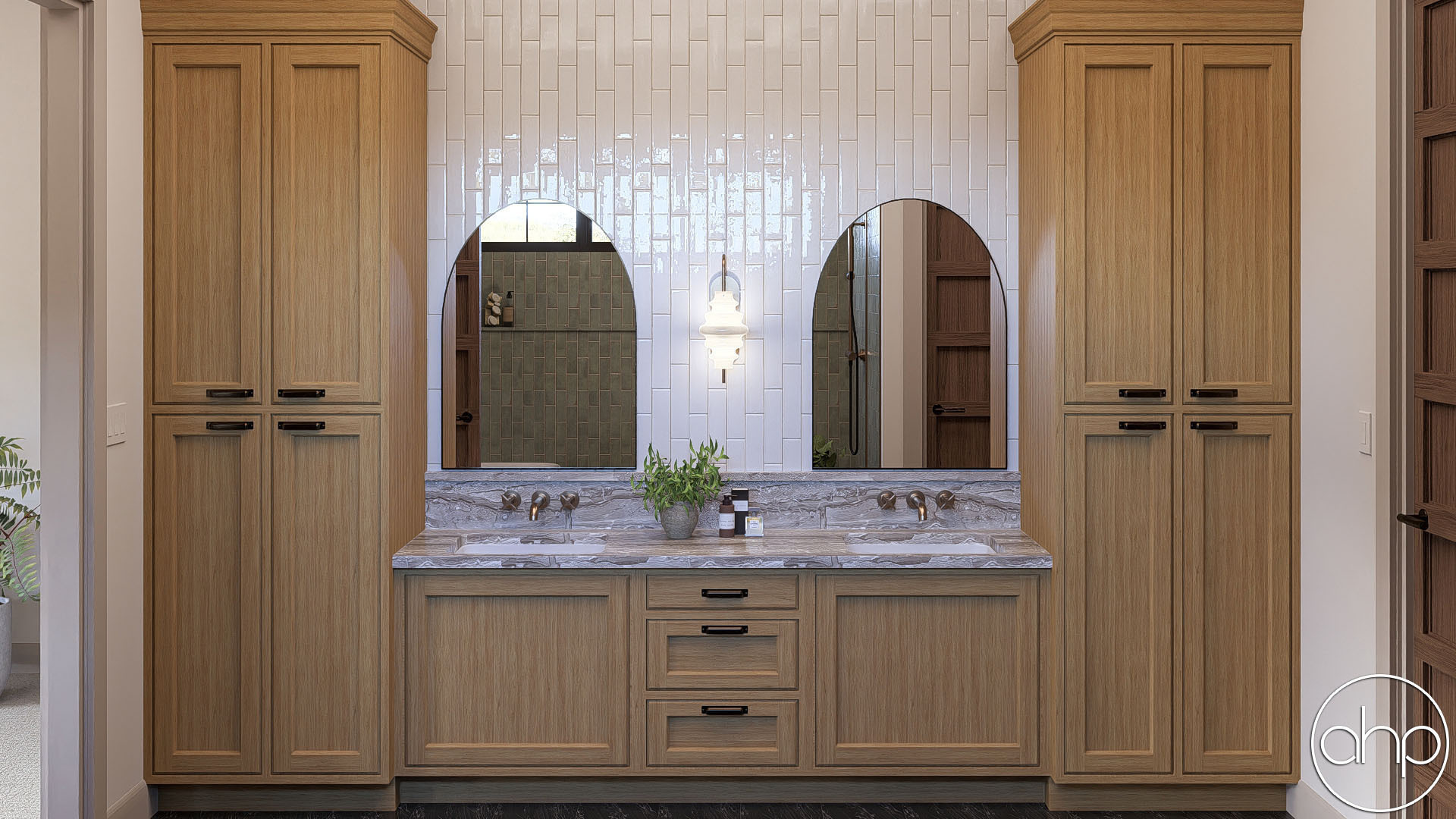

The Arlington is a stunning Texas Hillside home blending classic style with modern elegance. Inside, grand ceilings define the spaces—a 17’ ceiling with faux wood beams in the living room, cathedral ceilings in the family room and master bedroom, and a soaring 16’ ceiling in the office. The master suite offers a serene retreat with a spa-like bathroom featuring a unique tub-in-shower design and an oversized walk-in closet. For everyday ease, enjoy the walk-in pantry, mudroom, and dedicated laundry room. Outside, relax on the expansive covered patio or courtyard, making this 3-bed, 3-bath haven perfect for entertaining and unwinding.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms	3
Bathrooms	3
Garage Bays	3
Square Footage
Main Level	3584 Sq. Ft.
Covered Area	605 Sq. Ft.
Garage	1279 Sq. Ft.
Total Finished Area	3584 Sq. Ft.
Exterior Dimensions
Width	101 ' 0"
Depth	81 ' 2"
Ridge Height Calculated from main floor line	24 ' 10"
Default Construction Stats Stats are unique to the individual plan.
Foundation Type	Slab
Exterior Wall Construction	2x4
Roof Pitches	Primary 8/12, Secondary 6/12, 5/12
Main Wall Height	10'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
