Traditional Pool House With Shop

Arcadia - 29943

Sq Ft
56' 0"
66' 0"

Floor Plan Images

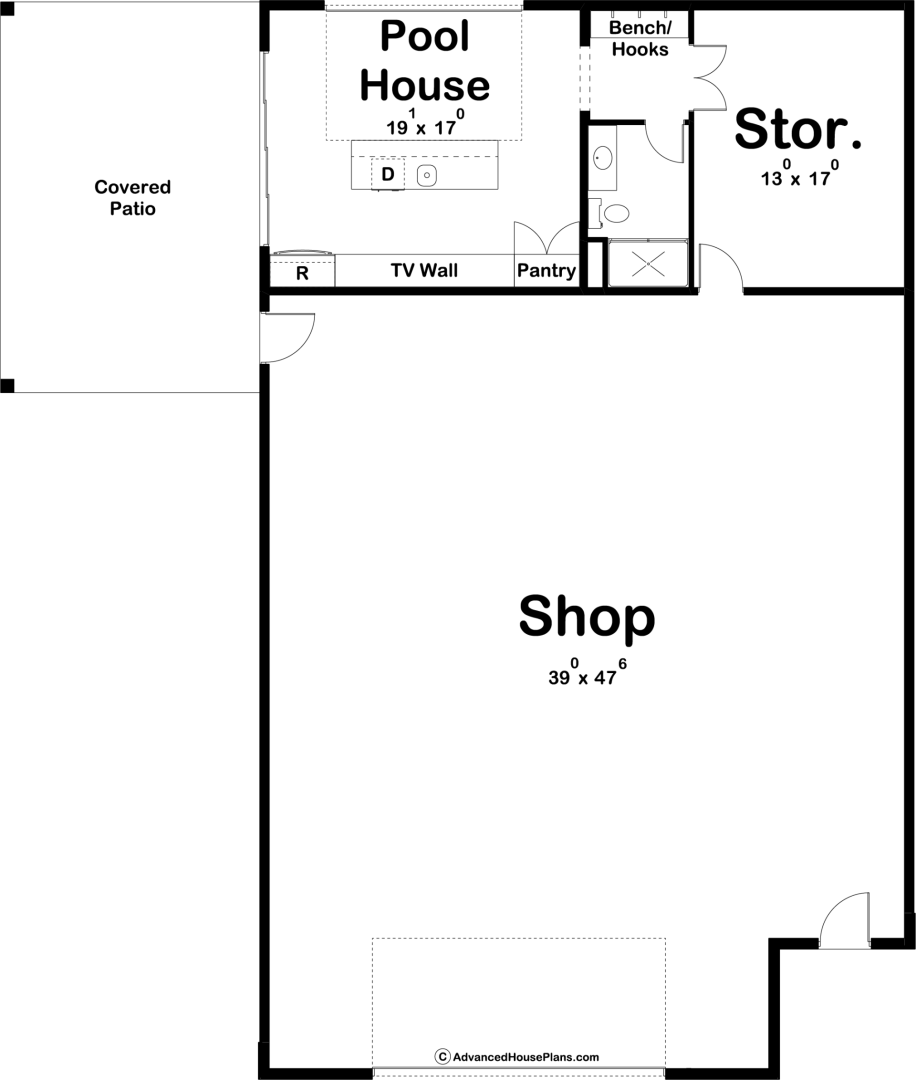

Main Level

Traditional Pool House With Shop | Arcadia

Plan Description

This pool house design has great indoor and outdoor spaces. The Arcadia plan has a covered patio, a pool house, and a spacious shop. The lap siding and stone give this pool house some charm of its own. The covered patio can be used for relaxing in a pool chair, or dining after preparing a snack in the kitchen. Inside lies a large kitchen equipped with everything you would ever want in your pool house including a sink, refrigerator, and dishwasher. Ample amount of counter space make this a great area to prepare and entertain. The large glass garage door allows you to bring the outdoors inside while escaping the sun on a hot summer day. A 3/4 bath is conveniently located between the pool house and storage area. This storage area can be used for pool equipment including chairs and floatation devices. The Arcadia pool house is set apart from most because it includes a 1853 sq. ft. shop. Inside you can store and work on all sorts of toys. You could also use it as a large family gathering space for the holidays. This pool house plan will have you relaxing in luxury.

Be sure to check out our other pool houses.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bathrooms 1
Garage Bays 2
Square Footage
Main Level 722 Sq. Ft.
Covered Area 382 Sq. Ft.
Garage 1853 Sq. Ft.
Total Finished Area 722 Sq. Ft.
Exterior Dimensions
Width 56 ' 0"
Depth 66 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
10/12 Primary
Main Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
