Solid Craftsman styling on the outside and sleek, fluid room arrangements on the inside make this 3,002 sq. ft. multi-family house plan an attractive choice. Stout columns occupy the front covered porch, where upon entering the home, guests are greeted by views into a living room on one side and a home office on the other. The office, accessed through French doors, features a walk-in closet and has views to the front.

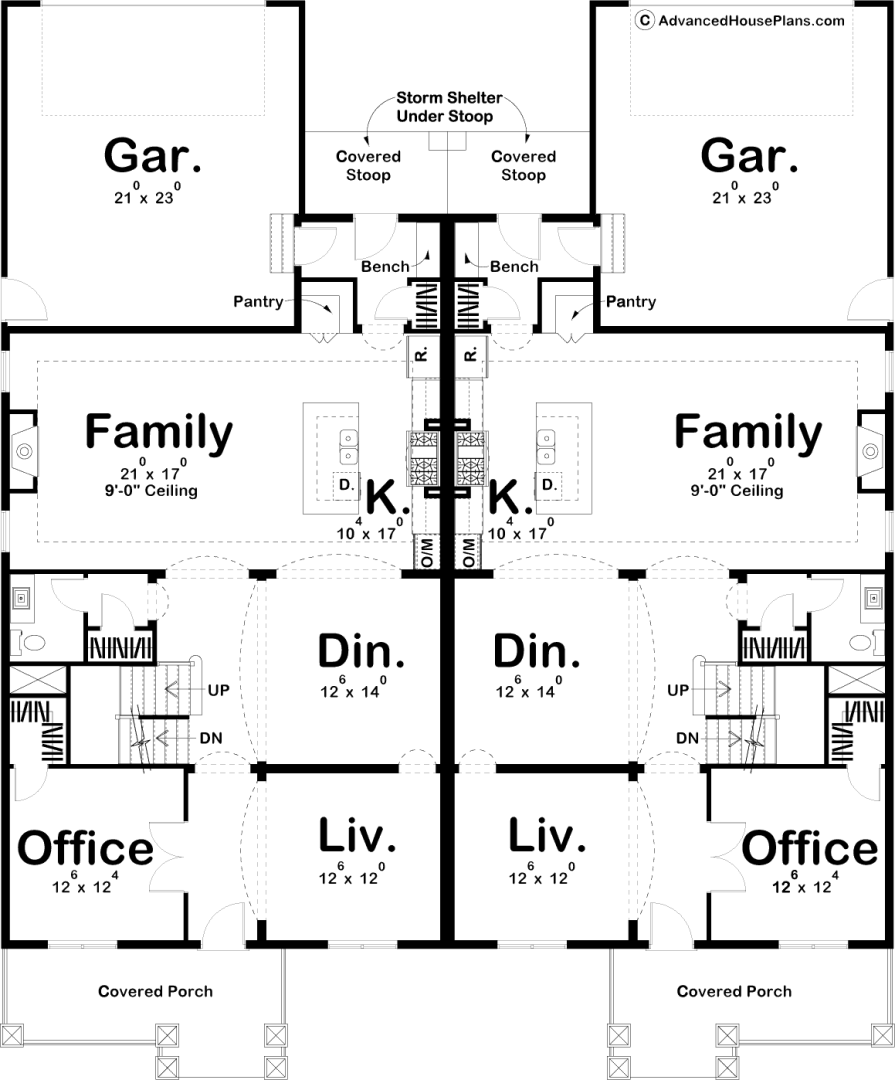

A pass-through connects the living room and dining room, which lies just a few steps farther inside. Adjoining the dining room is the kitchen, with its island breakfast bar and pantry. The kitchen lies open to the family room, which showcases a fireplace flanked by windows.
Just off the kitchen, a mud room with bench and coat closet accesses the 2-car garage, as well as a covered stoop that sits atop a storm shelter below.

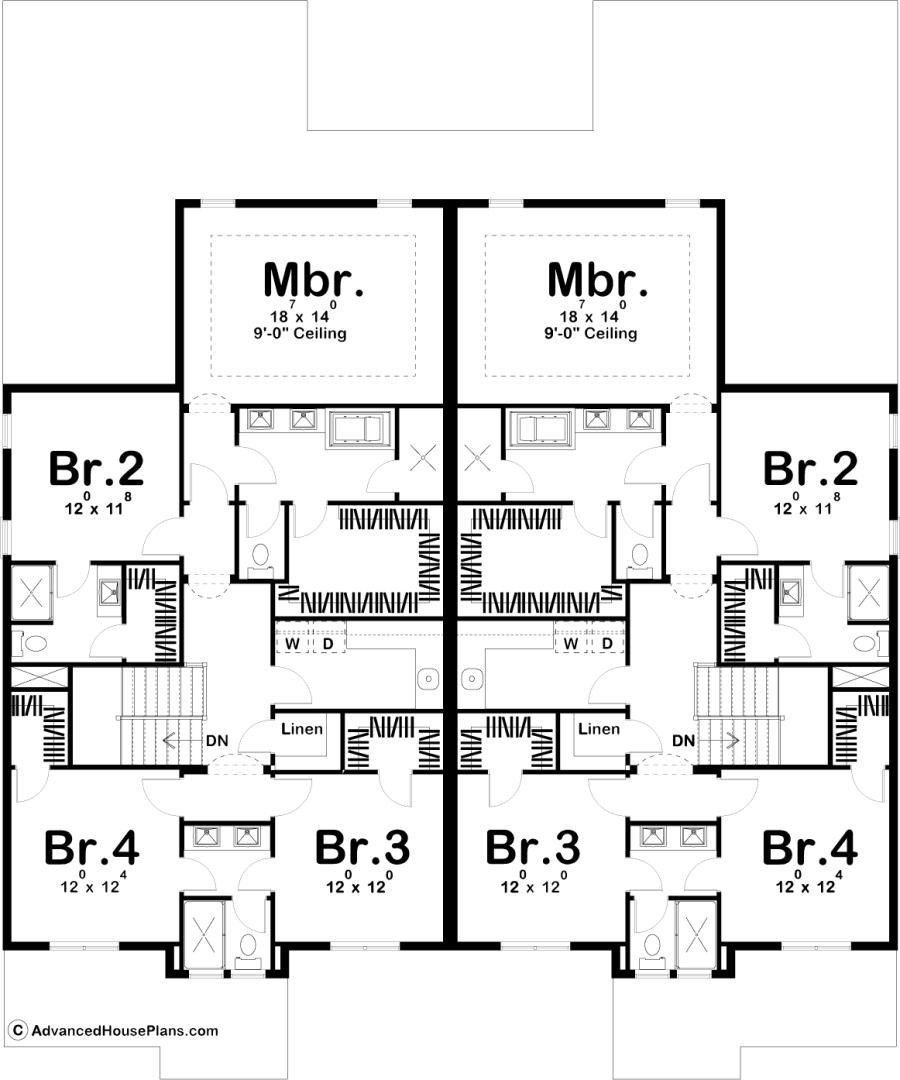

Upstairs, the master suite enjoys privacy from the secondary bedrooms and features a bathroom with dual sinks, soaking tub, shower, compartmented toilet and large walk-in closet. All of the secondary bedrooms feature walk-in closets. Bedroom 2 has its own bath, while bedrooms 3 and 4 share a Jack-n-Jill bath. A centrally located laundry with soaking sink and generous counter space conveniently serves all bedrooms.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 4 |
| Bathrooms | 4 |
| Garage Bays | 2 |
| Square Footage Breakdown | |
| Main Level | 1506 Sq Ft |
| Second Level | 1496 Sq Ft |
| Total Finished Area | 3002 Sq Ft |
| Garage | 504 Sq Ft |
| Exterior Dimensions | |
| Width | 64' 0" |
| Depth | 78' 0" |
| Ridge Height | 30' 0" |
| Default Construction Stats | |
| Default Foundation Type | Basement |
| Default Exterior Wall Construction | 2x4 |
| Roof Pitches | 6/12 |
| Foundation Wall Height | 9' |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 8' |
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
Note: The material list is for estimation purposes only.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
Note: The material list is for estimation purposes only.
