Modern Farmhouse Style Duplex

Abilene - 30273

2177
Sq Ft
Per Unit
3
Beds
Per Unit
3
Baths
Per Unit
1
Bays
Per Unit
64' 0"
Wide
50' 4"
Deep

Floor Plan Images

Main Level

Abilene

Second Level

Abilene

Plan Description

To see this plan in single-family form, head over to our Crandall plan.

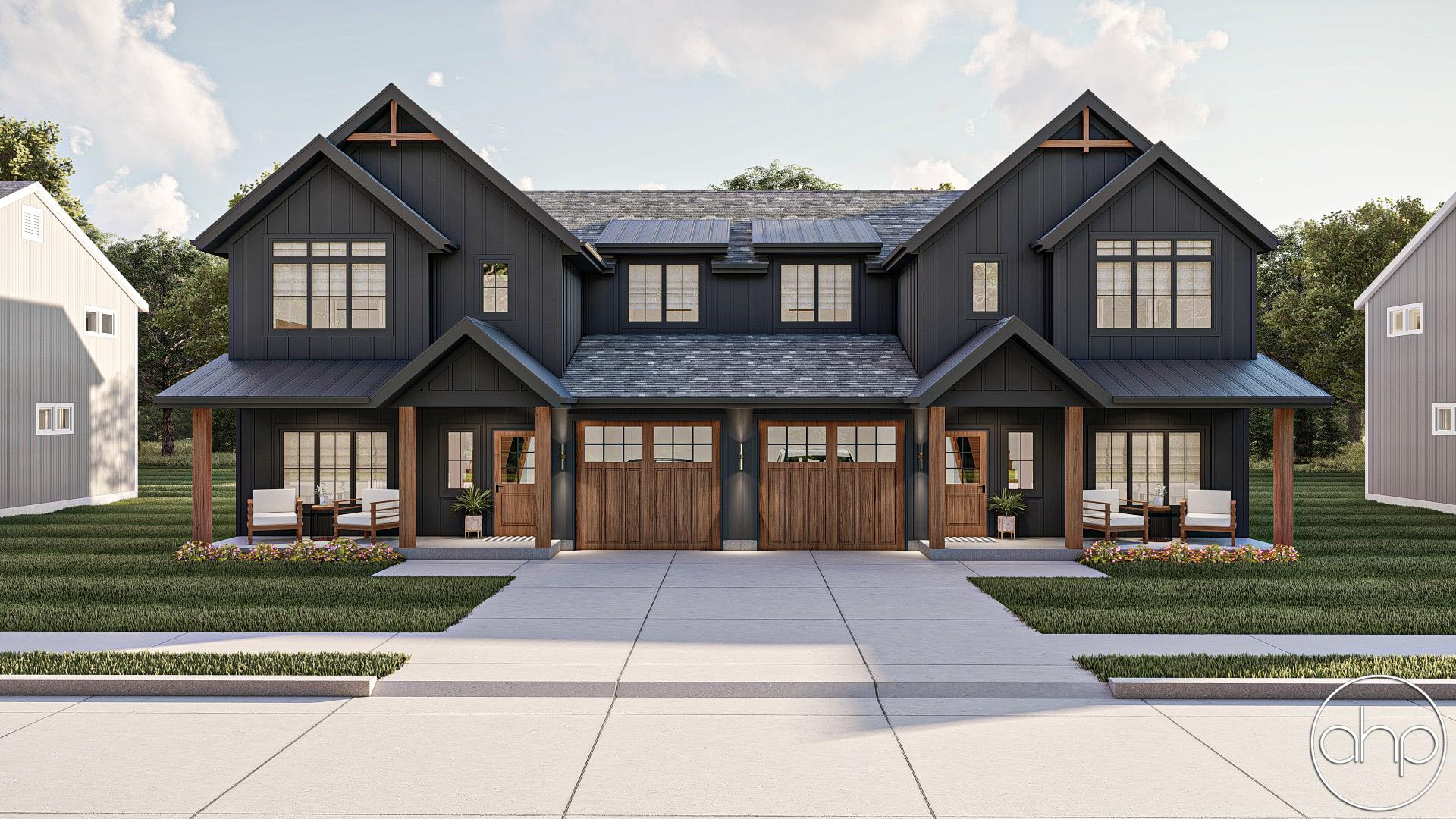

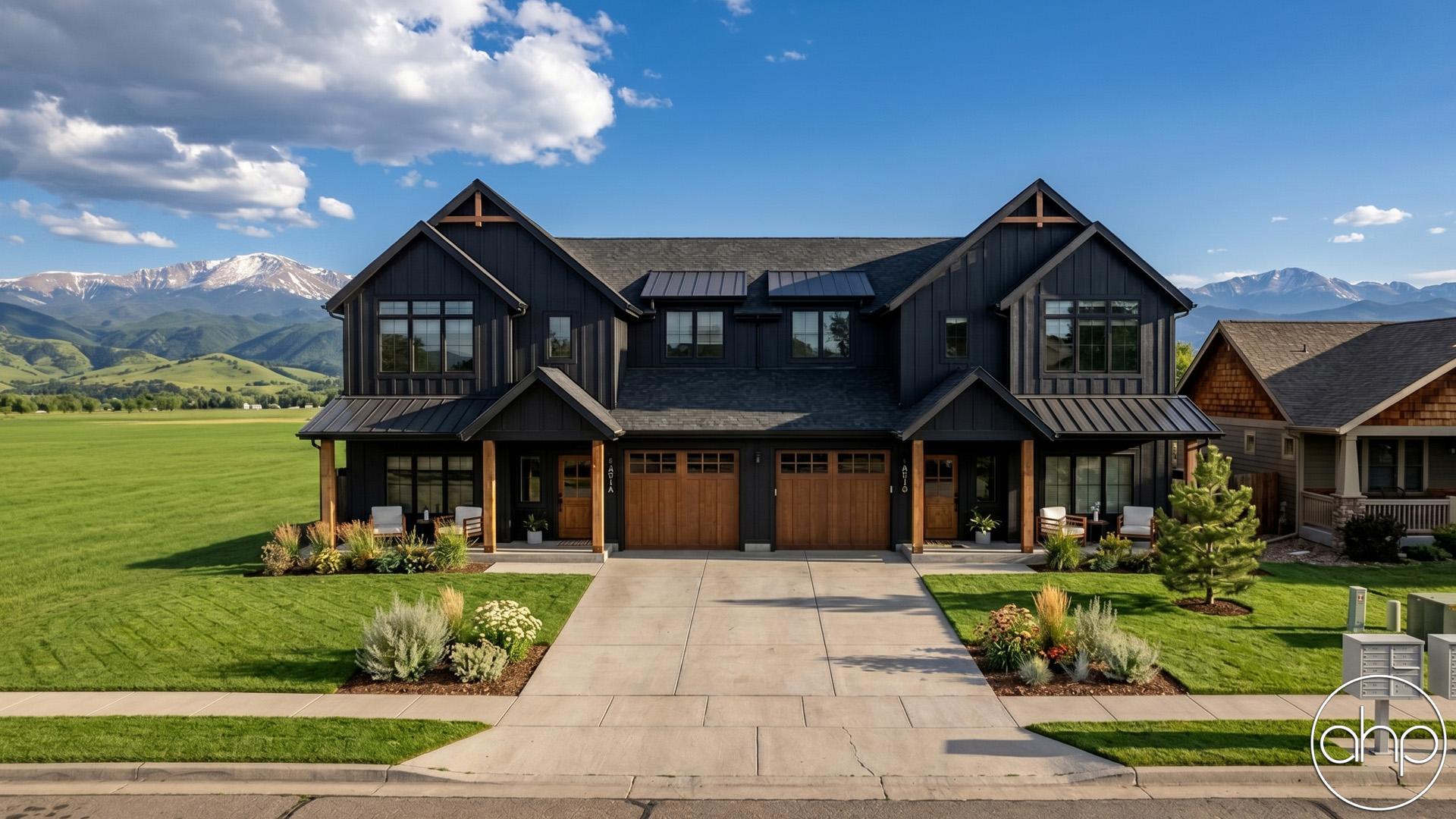

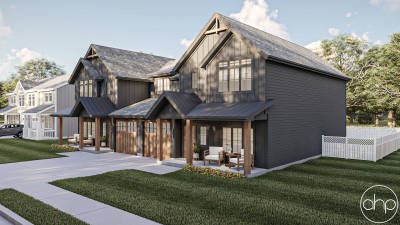

This modern farmhouse style duplex is a beautiful multi-family version of our Crandall plan. With board and batten siding as well as the contrast from the black exterior and wood accents, the curb appeal of this plan is show stopping.

A covered porch next to the one-car garage is a wonderful space to sit and have coffee in the morning, or a place to watch the sunsets after dinner. Head inside to find a long hallway with stairs to head up to all the bedrooms.

A flex room with a walk-in closet can also be found next to the stairs, making a great space for an office or extra bedroom. This room connects to a shared bathroom, as well as leads out into the shared space for the kitchen, dining room, and great room. The kitchen provides a large kitchen island, a walk-in pantry, and a mudroom to access the one-car garage.

As previously mentioned, the upstairs is where all the bedrooms can be found. The master bedroom is complete with a wet bar upon entry, a large private bathroom, double vanity, soaking tub, and separate toilet and shower areas. A large walk-in closet can also be found connected with a built-in shoe rack. The laundry room can also be found here, as well as the bathroom for bedrooms 2 and 3 to share.



As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 3
Per Unit
Bathrooms 3
Per Unit
Garage Bays 1
Per Unit
Square Footage
Main Level 1071 Sq. Ft.
Per Unit
Second Level 1106 Sq. Ft.
Per Unit
Covered Area 123 Sq. Ft.
Per Unit
Garage 277 Sq. Ft.
Per Unit
Total Finished Area 2177 Sq. Ft.
Per Unit
Exterior Dimensions
Width 64 ' 0"
Depth 50 ' 4"
Ridge Height
Calculated from main floor line
27 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x4
Roof Pitches
Primary 10/12, Secondary 6/12, 4/12
Main Wall Height
9'
Second Wall Height
8'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$2000
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.
